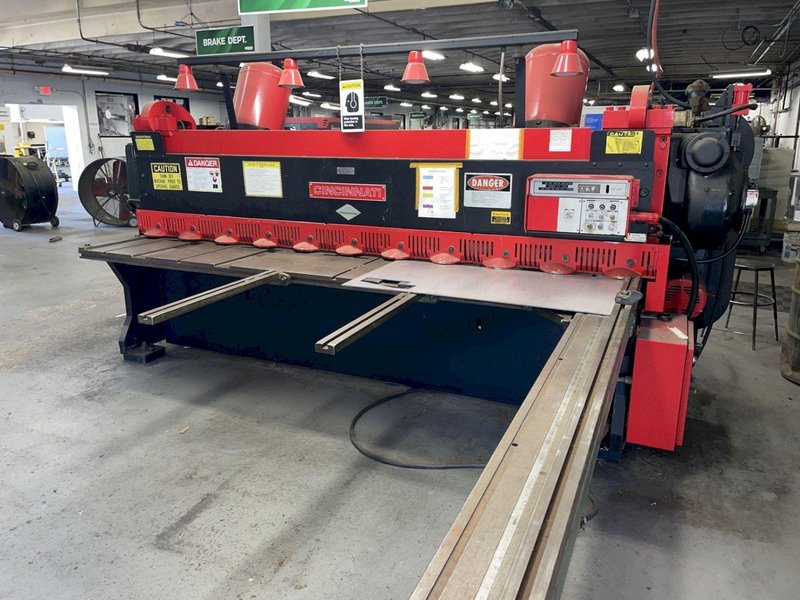

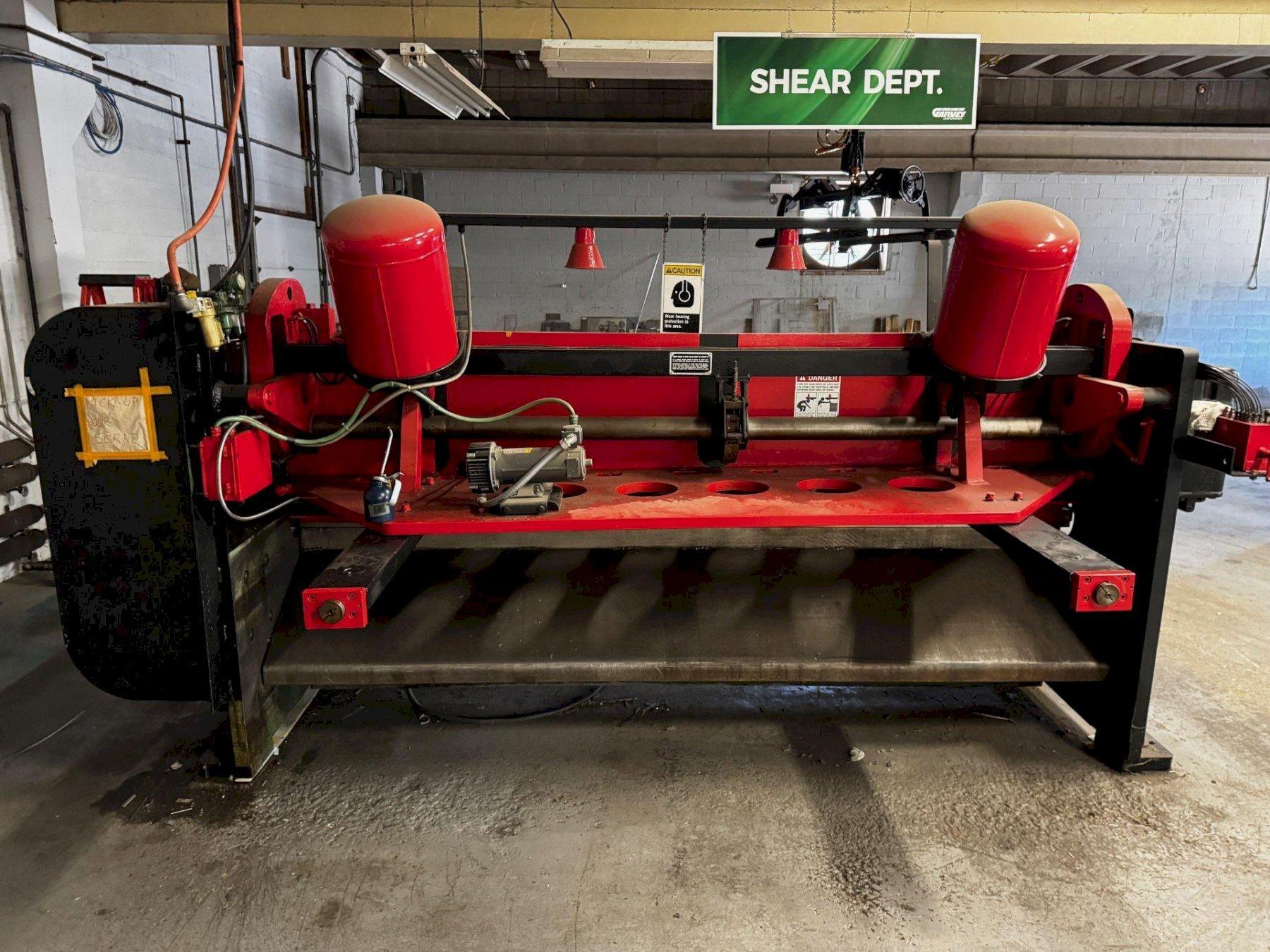

¼” X 10’ Mechanical Power Squaring Shear with Front Operated Backguage, Dovetail Slots & Hand Slots in Table, Squaring Arm, Electric Foot Switch, Automatic Pressurized Lubrication, Light Bar and Non - Float Inclined Ram.

GENERAL SPECIFICATIONS
Capacity:                        ¼”
Distance between Housings:            10’ 3”
Backgauge Range:                    0 - 36”
Rake Taper Per Foot:                ¼”  P/FT
Strokes Per Minute:                    60
Holddowns:                        11
Gap Between Housing & Table:            4”
Main Drive Motor:                    7.5 HP
Main Motor:                        230 / 460 / 360V / 3-Phase


INCLUDES: Front Operated Backguage, Dovetail Slots & Hand Slots in Table, Squaring Arm, Electric Foot Switch, Automatic Pressurized Lubrication, Light Bar and Non - Float Inclined Ram.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
