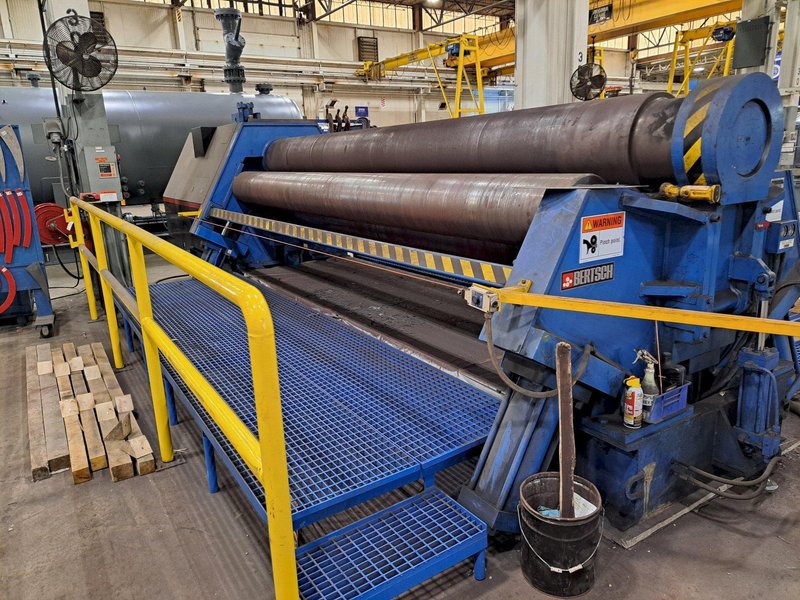

3/4” X 15’ Plate Rolling Machine with Digital Readout on Control Pedestal, Safety Line Around Machine and Hydraulic Drop End for Part Removal
GENERAL SPECIFICATIONS
Rolling Capacity Nominal Thickness:       .75″ x 15′
Rolling Capacity Maximum Thickness:    .865″ x 15′
Rolling Capacity @ 70% Length:             1.024″ x 7′
Rolling Capacity @ 30% Length:             1.563″ x 3′
Maximum Rolling Length:                        180″
Top Roll Diameter:                                   18″
Bottom Roll Diameter:                              17″
Motor, Main:                                              30 HP
Electrics:                                                   460/3/60
Approximate Machine Dimensions:          264″ x 87″
Approximate Machine Height:                  96″
Approximate Machine Weight:                 56,000 LBS

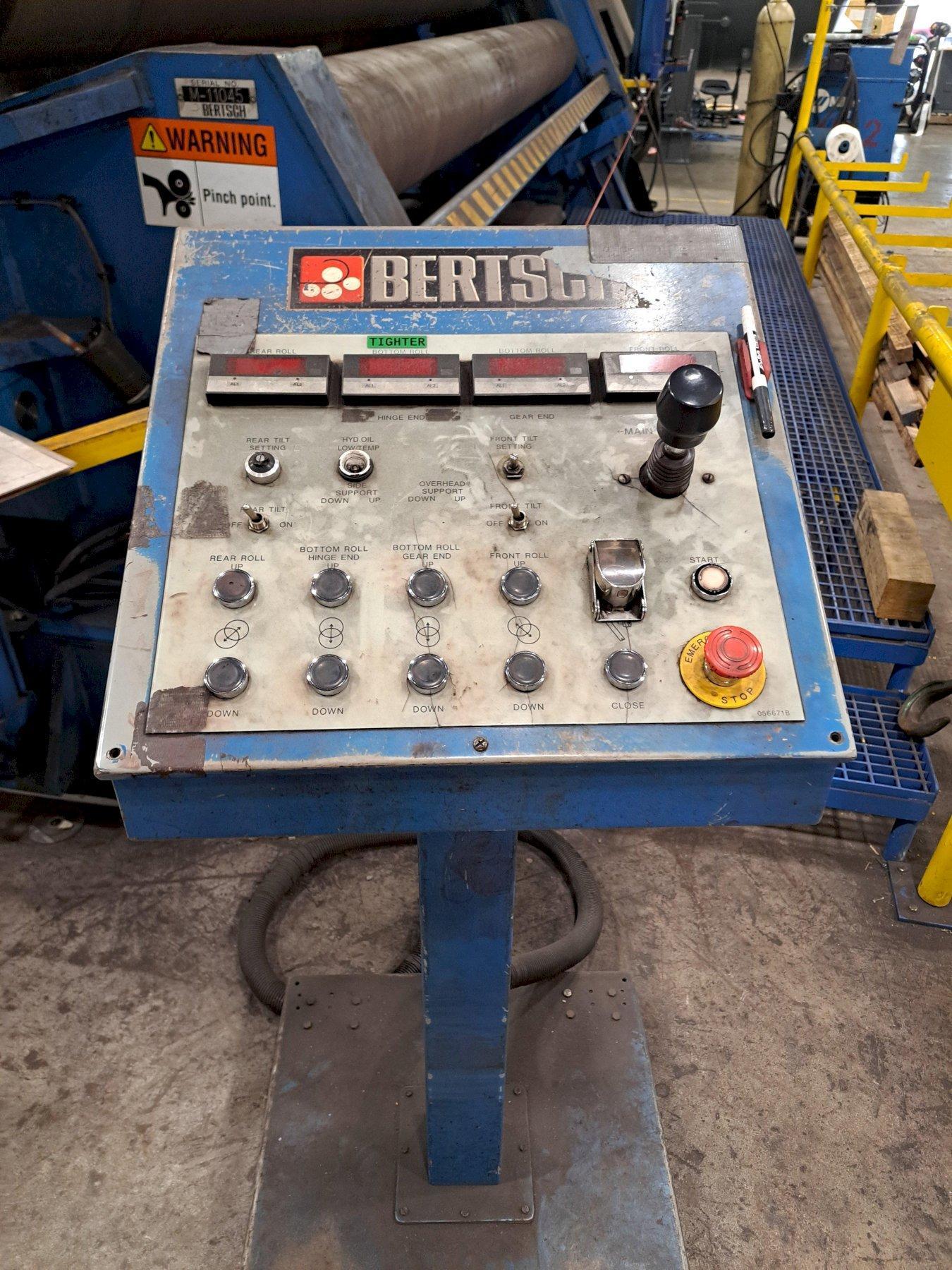

INCLUDES: Digital Readout on Control Pedestal, Safety Line Around Machine and Hydraulic Drop End for Part Removal.
