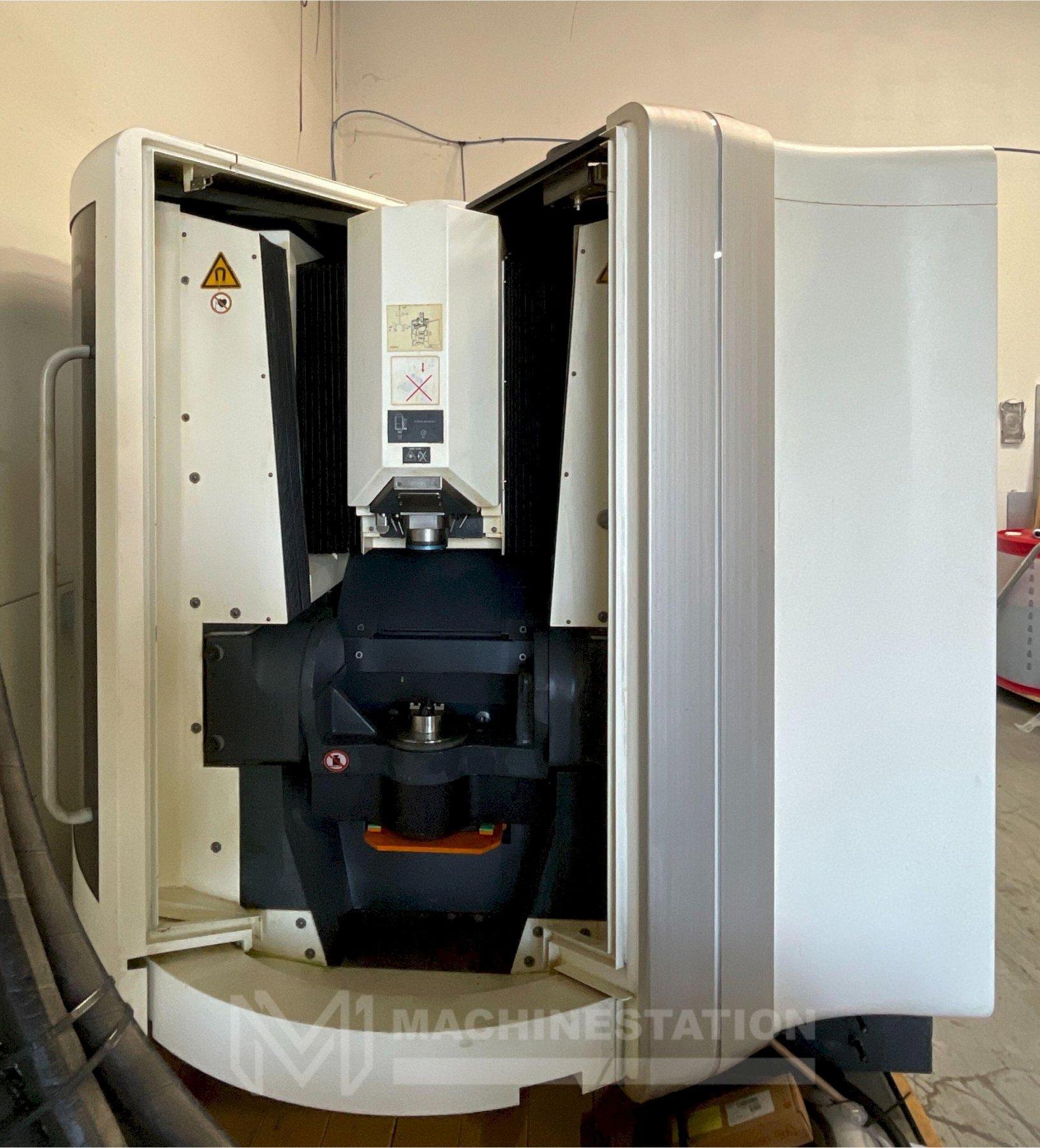

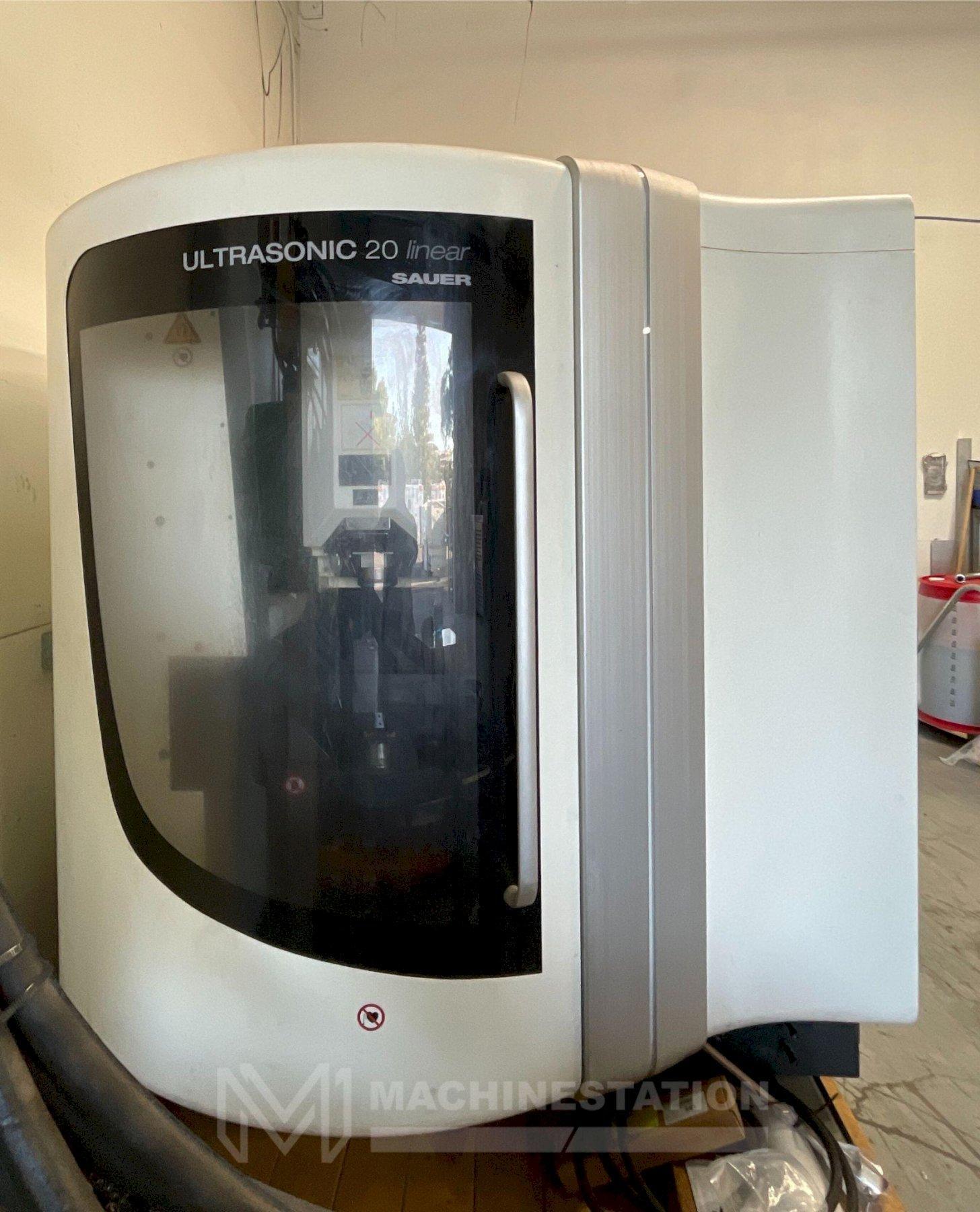

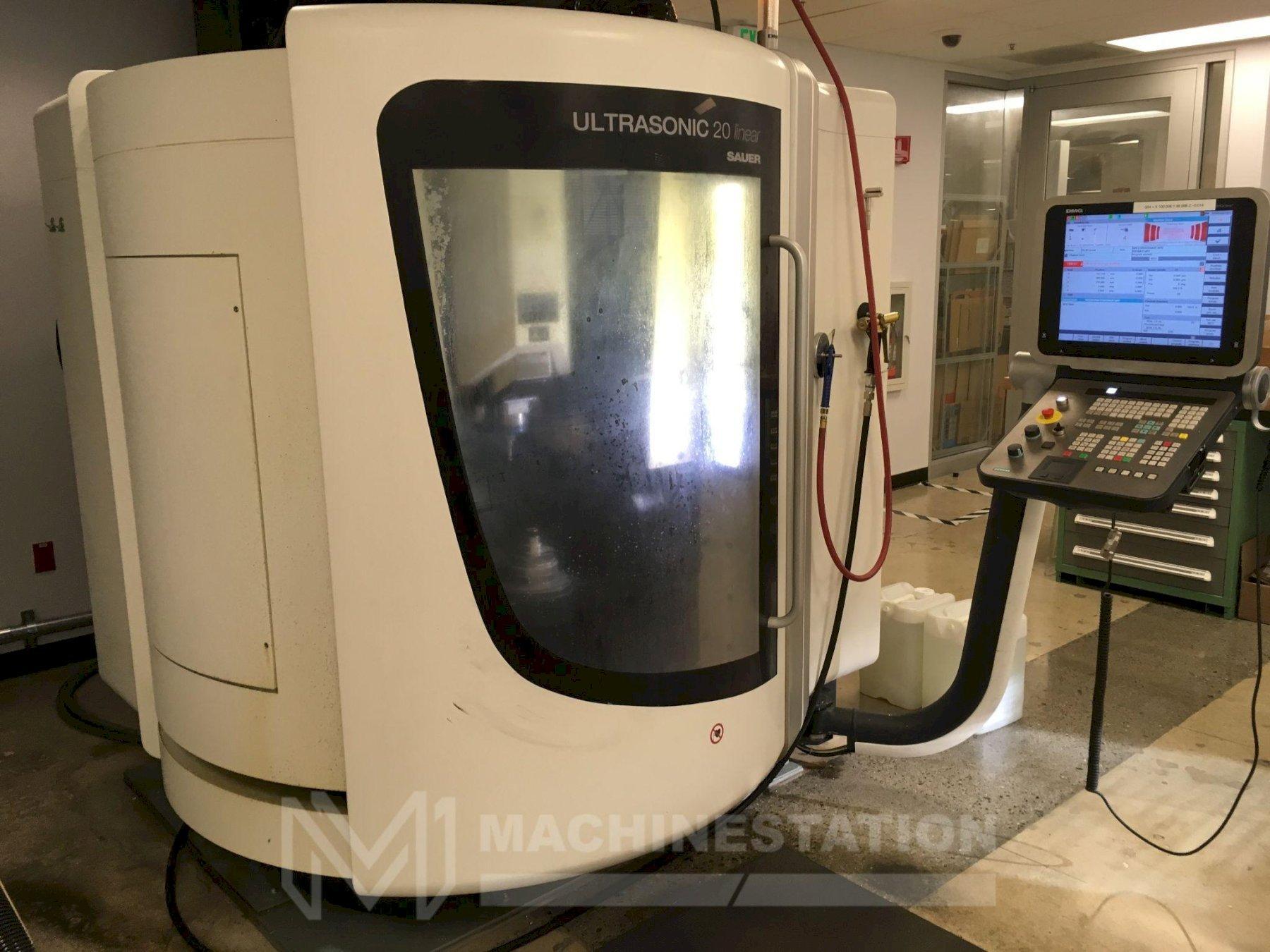

DMG Ultrasonic 20 Linear 5 Axis CNC Vertical Machining Center – 42,000 RPM Mill

Brand
DMG MORI
Category
Machining Centers
Type
Machining Centers, Horizontal, (5-Axis or More)
Model
DMG Ultrasonic 20 Linear
Stock #
115114
Year
2012
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:DMG
Model:Ultrasonic 20 Linear
Year:2012
Condition:Used – Good
Features:
Siemens ERGOline 840D CNC Control
Programmable Swiveling Trunnion Table
5 Axis Simultaneous Machining
42,000 RPM High Speed Spindle
High Speed Machining
20 HP Spindle Power
24 Station Automatic Tool Changer
Through Spindle Coolant
MPG Handwheel Control
Rigid Tapping
Spindle Orientation

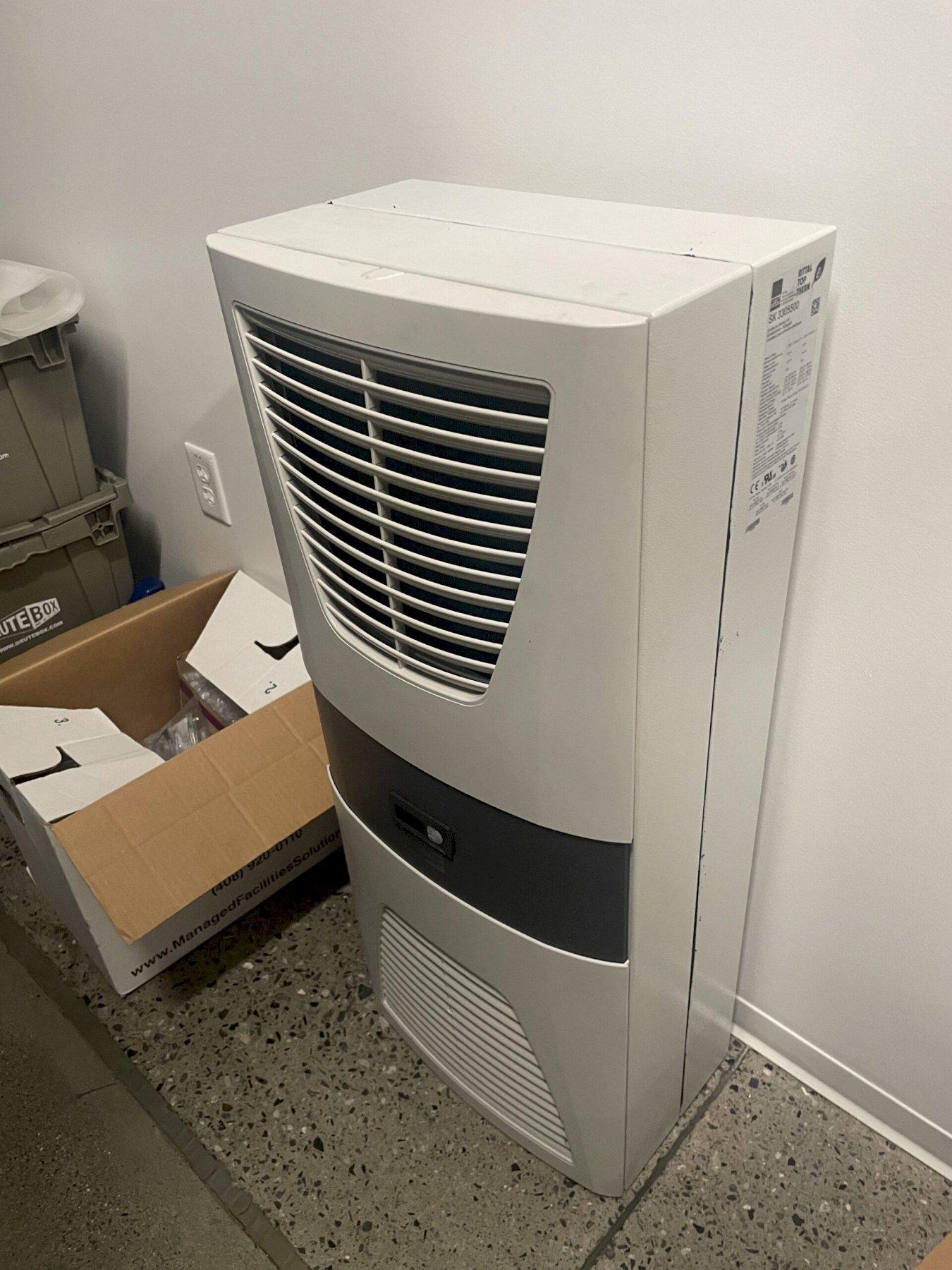

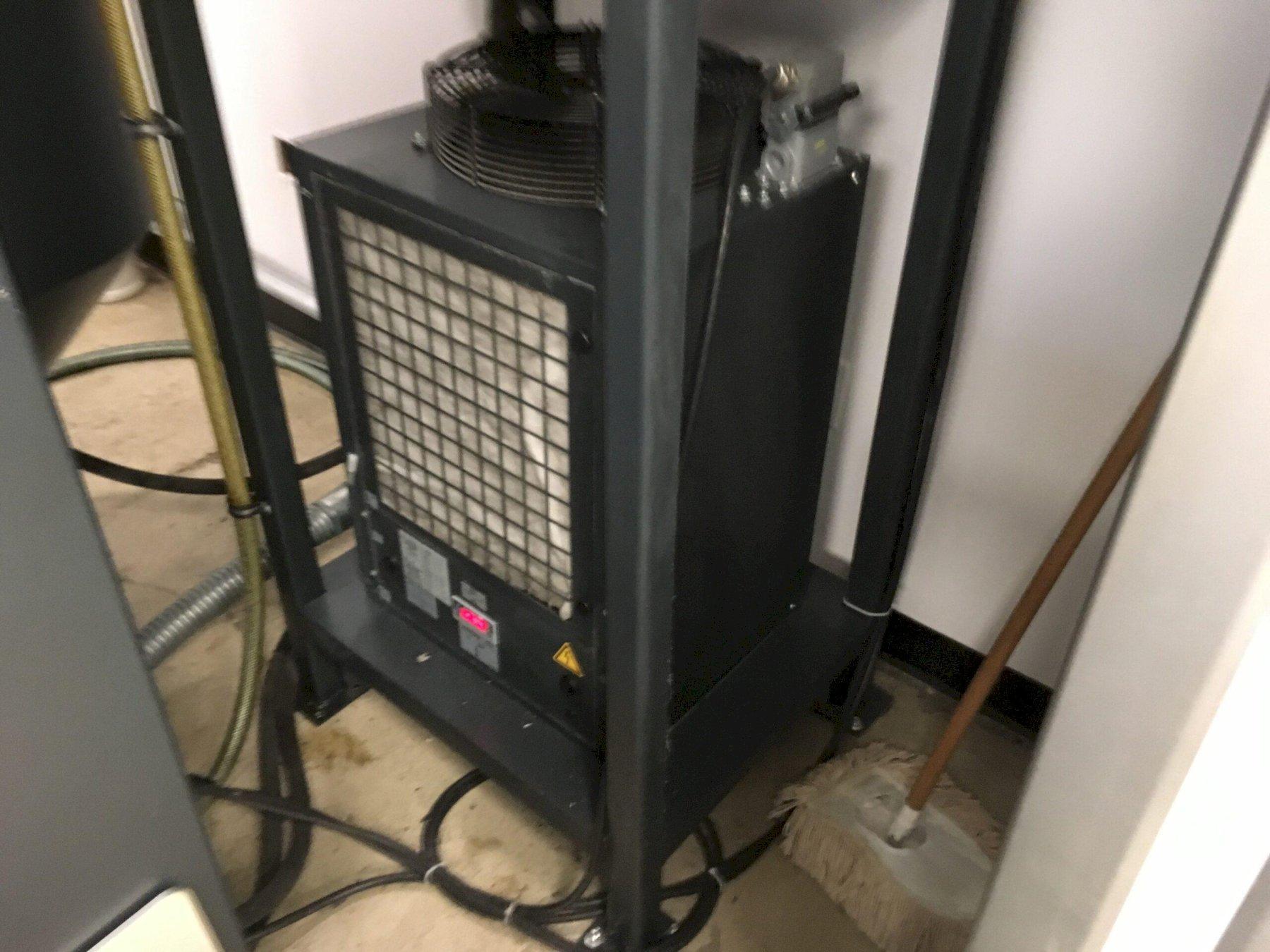

Chiller Unit

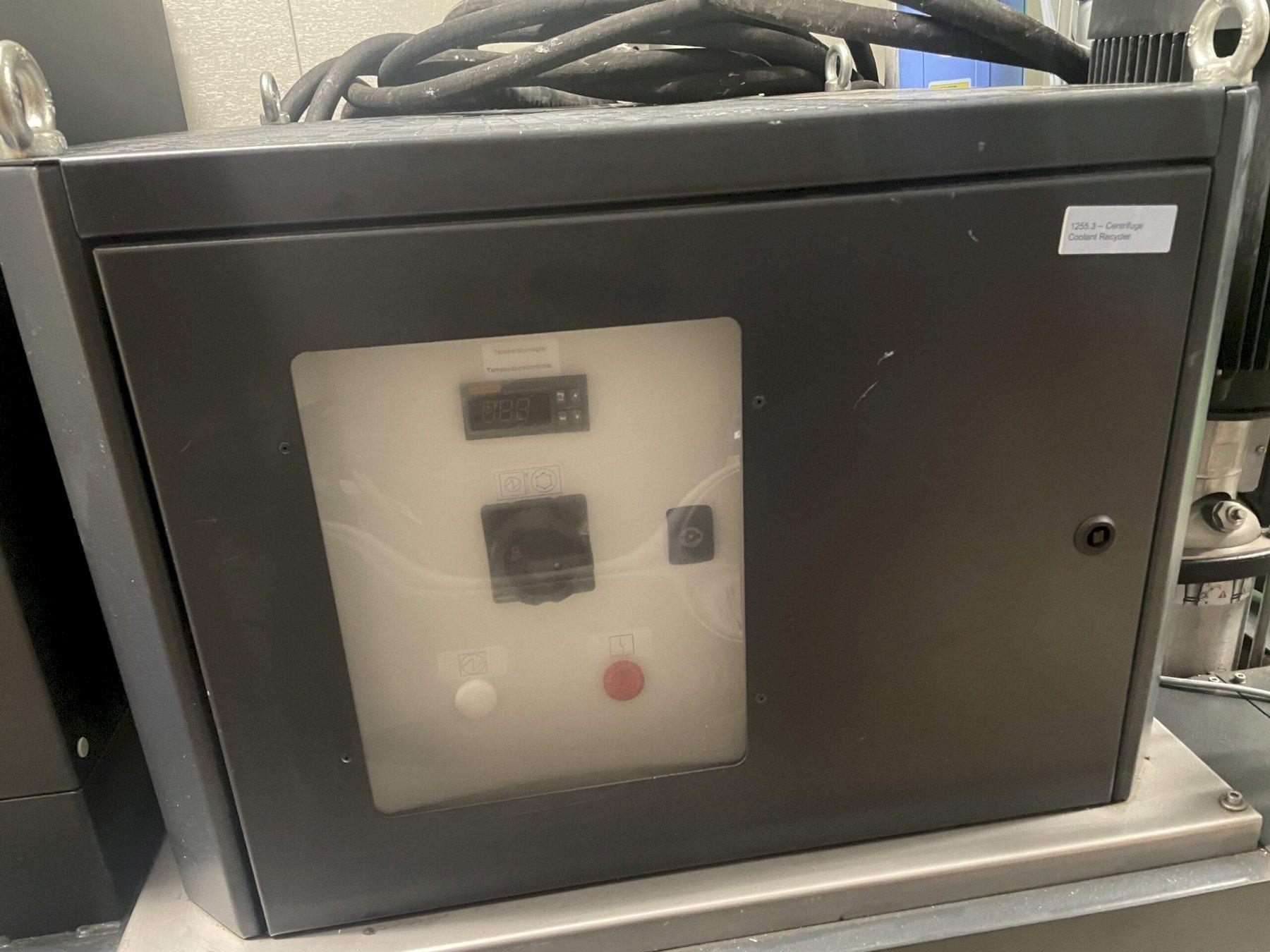

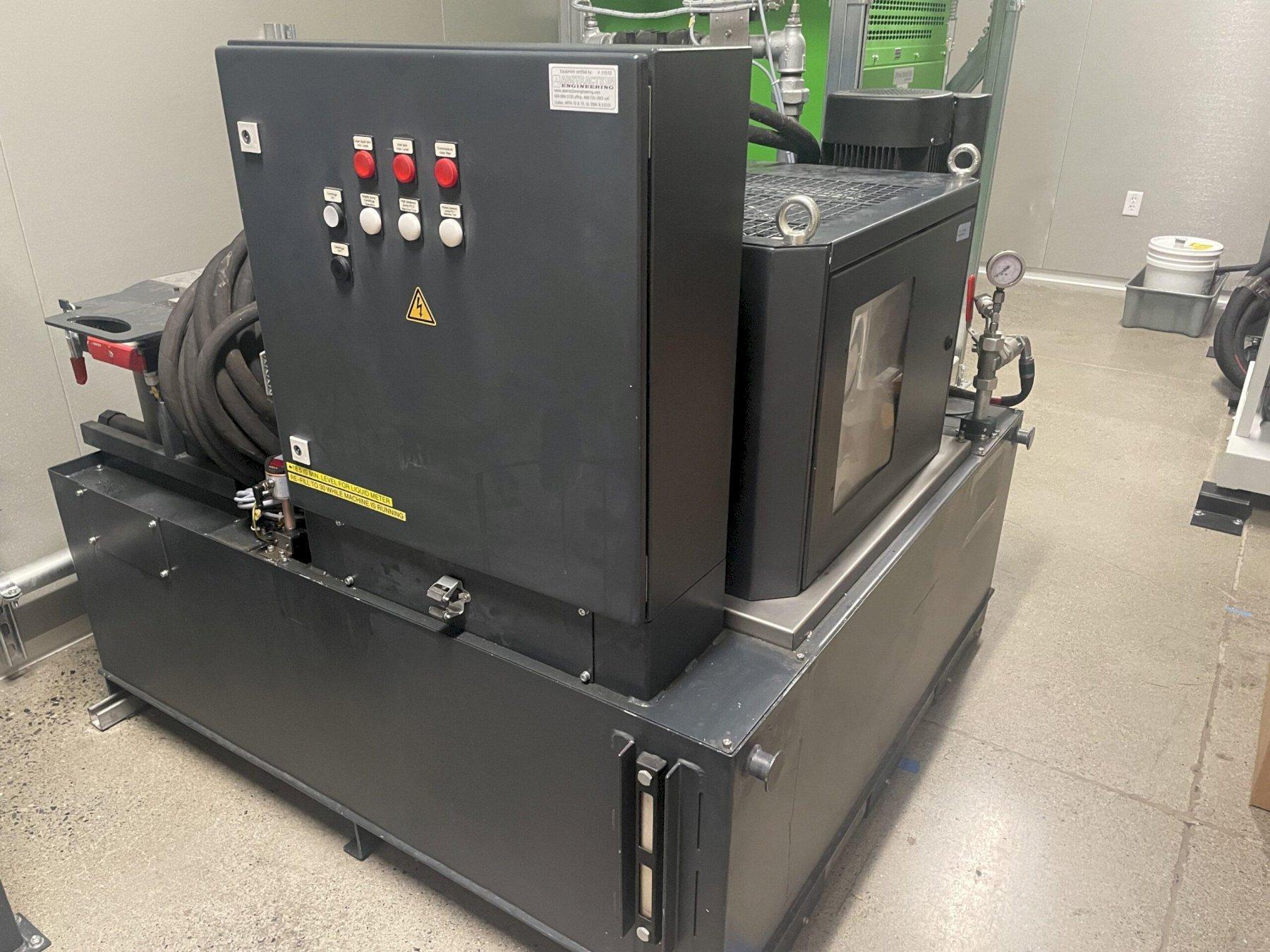

Coolant Recycler Unit
Mist Collector
Coolant System
Books & Manuals
Travels:
X-Axis: 7.87″
Y-Axis: 8.66″
Z-Axis: 11.02″
A-Axis (Table Tilt): + 130° – 15°
C-Axis (Rotation): 360°
Rapid Traverse Rates: 1574 Inch Per Minute

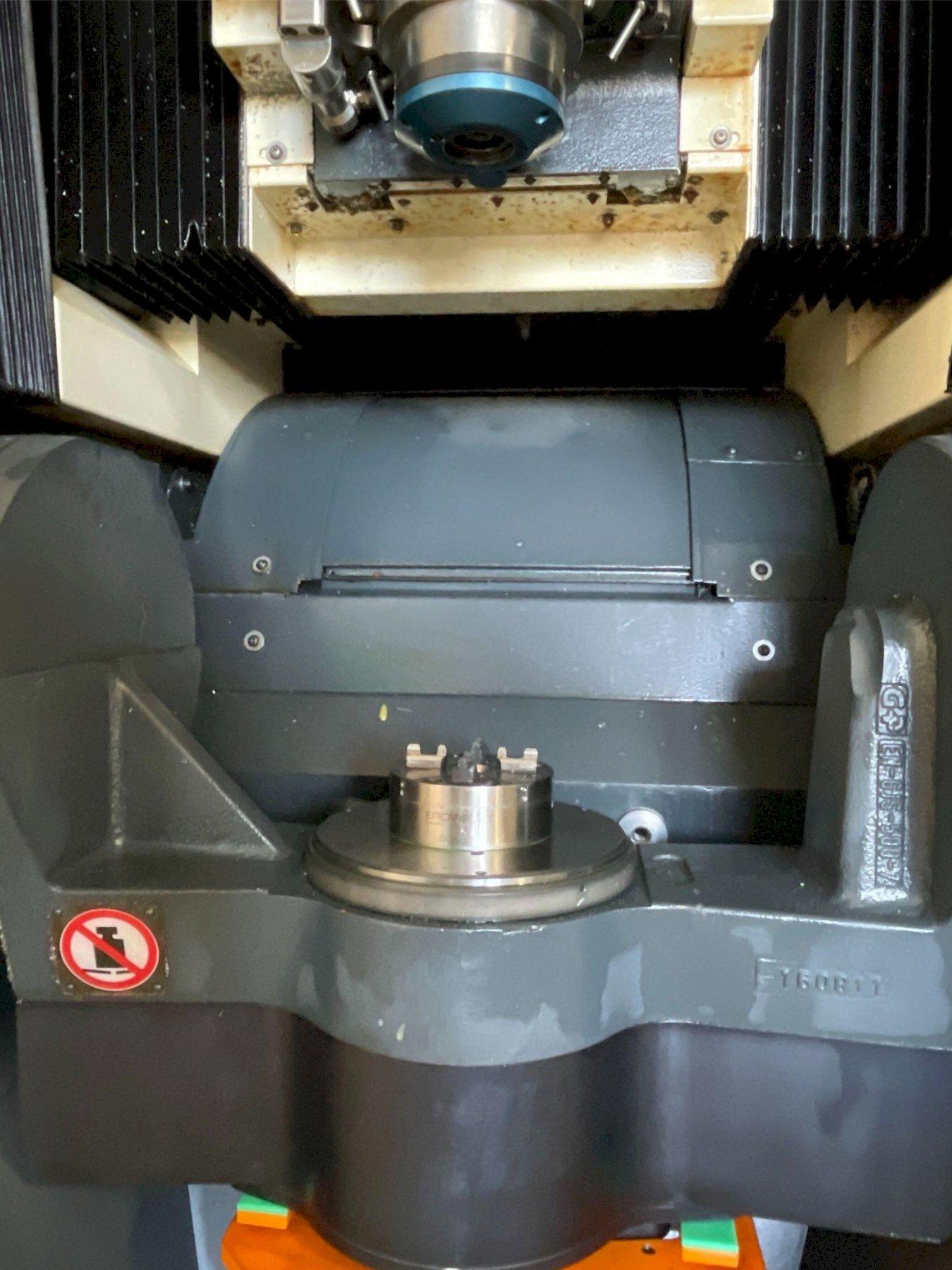

Trunnion Table:
NC Swivel Rotary Table Diameter: 7.87″
Max Table Load: 220 lbs
Max Table Load: 33 lbs
Max Speed Rotation Axis (A/C): 150/50 RPM
Spindle:
Taper Size: HSK 40
Speed Range: 42000 RPM
Spindle Power: 20 HP
Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 12 lbs
Max Tool Diameter : 4.0″
Max Tool Length: 7.87″
Tool Changing Time: 10 Seconds
General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 80″ x 65″ x 93″ High
Weight: 8250 lbs

Tags: DMG MORI, DMG Mori Seiki
