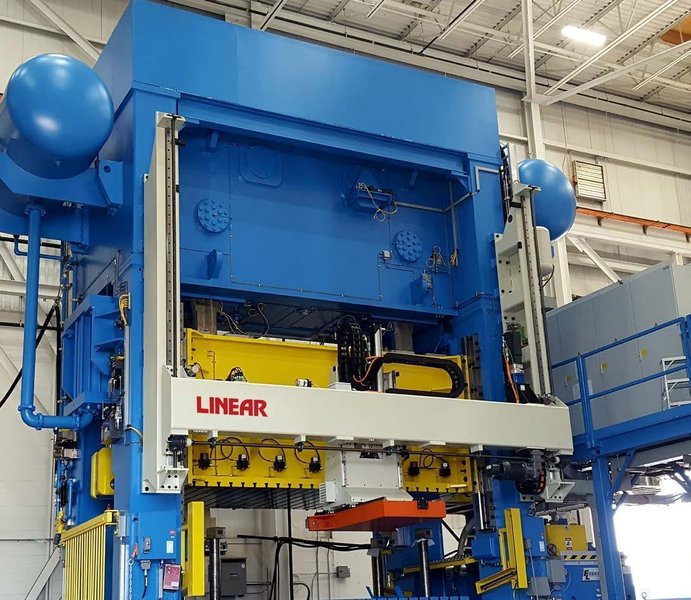

Linear Front-and-Rear Transfer

Name: Linear Front-and-Rear Transfer
Brand: LINEAR TRANSFER
SKU: 5584
Availability: PreOrder

Brand

LINEAR TRANSFER

Location

Ontario, Canada

REQUEST FINANCING

Specifications
Files & Videos

Material Passline Height Over Floor	Customized to customer requirements
Transfer Rails	Customized to customer requirements
Auxiliary Parking Height	Customized to customer requirements
Bolster Size	Suitable for bolsters 3657.6 mm (144 in) to 5588 mm (220 in)
Parts & Tooling	350 lbs at max. rate
X Axis #Motors	2
Y Axis #Motors	2
Z Axis #Motors	2
Lubrication System	Manual, can be upgraded to Automatic
Pitch Axis: X	Acceleration: 1.1 G, Full Pitch: 2540 mm (100 in), Forward Pitch: 1270 mm (50 in), Reverse Pitch: 1270 mm (50 in)
Grip Axis: Y	Acceleration: 1.0 G, Front Grip Stroke: 610 mm (24.0 in), Rear Grip Stroke: 610 mm (24.0 in)
Lift Axis: Z	Acceleration: 0.9 G, Total Lift Stroke: 610 mm (24.0 in)
Can be retrofitted to new or existing presses Can be integrated with servo, mechanical, or hydraulic presses Independent motion functionality on front and rear transfer units HMI is multi-language supported 2-D, 3-D & Pick and place, Crossbar motion Capability Up to 6 motion positions per axes of motion per one press revolution included in base system Part Tracking, Miss-grips, Empty Station insertion / removal, line empty, line fill functionality Transfer Motion Curves are infinitely programmable Schematics, operator manuals, and maintenance manuals integrated onto HMI 200 tooling recipe storage Air-Conditioned Panels Intelligent error messaging Touch Screen Control with password protection Recipe optimization software Off-line Transfer Curve generator with output to AutoCAD with interference drawings Die ID signal acceptance from Press Control via Ethernet IO Link Network EWON remote access package
