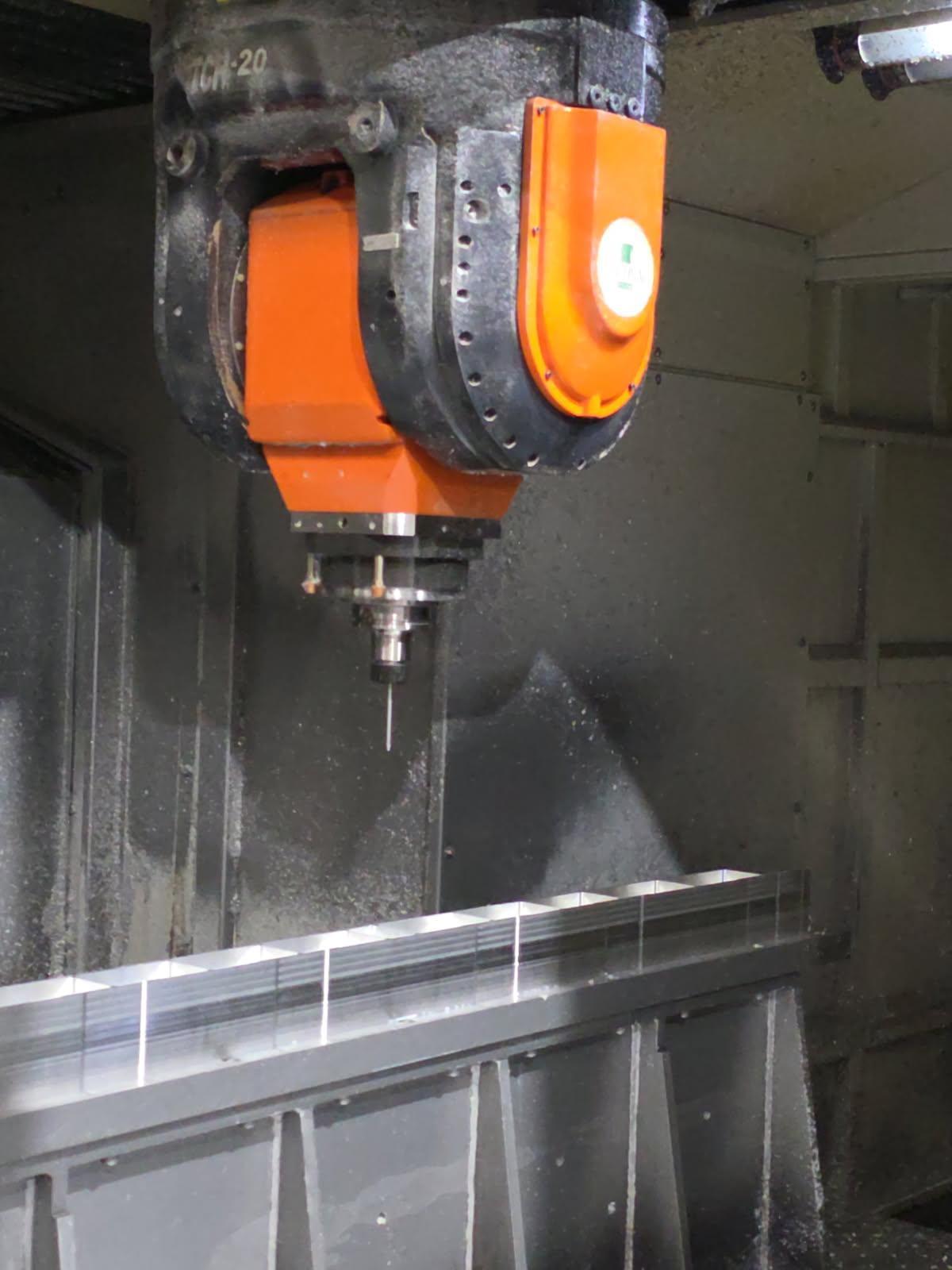

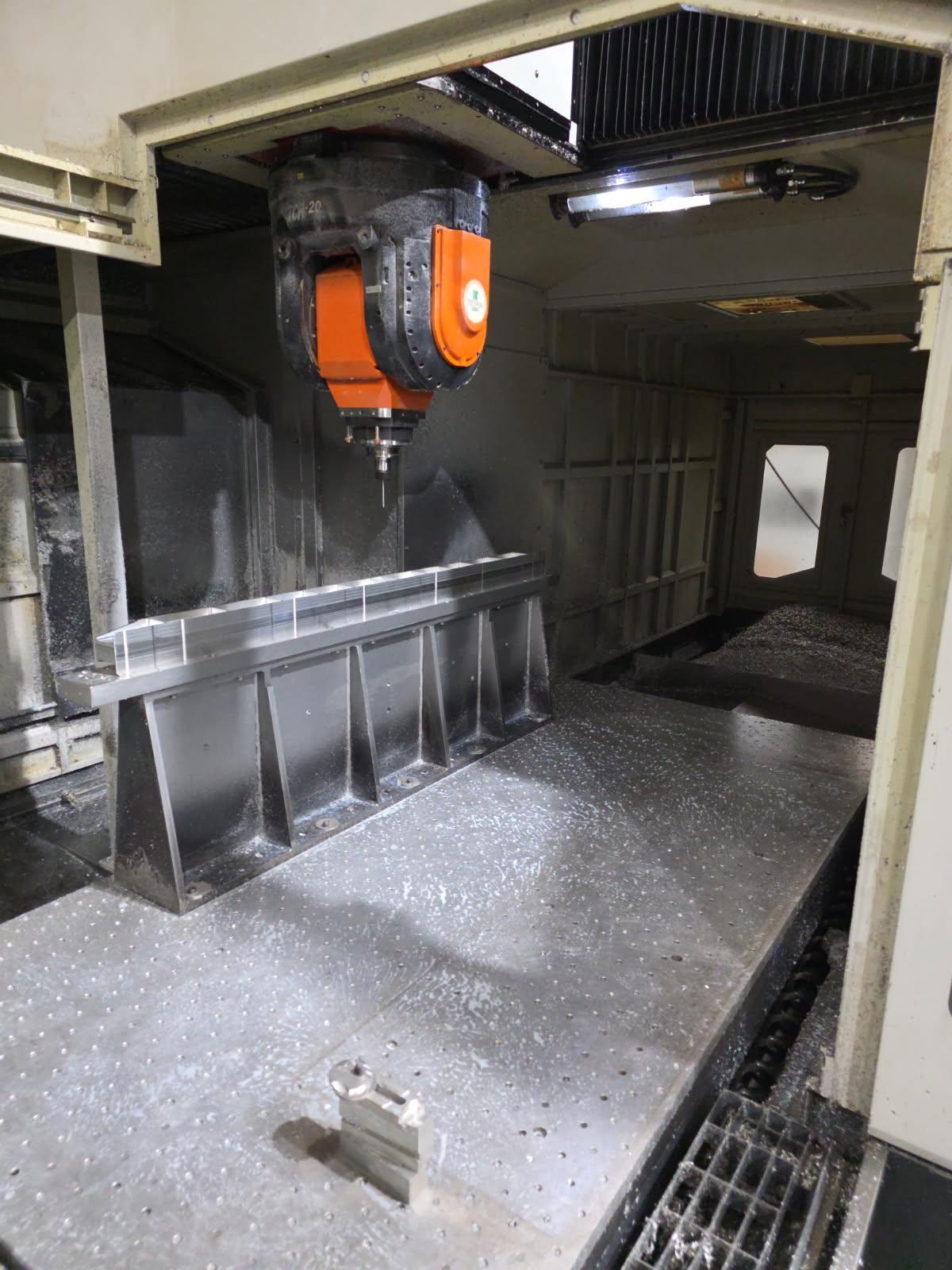

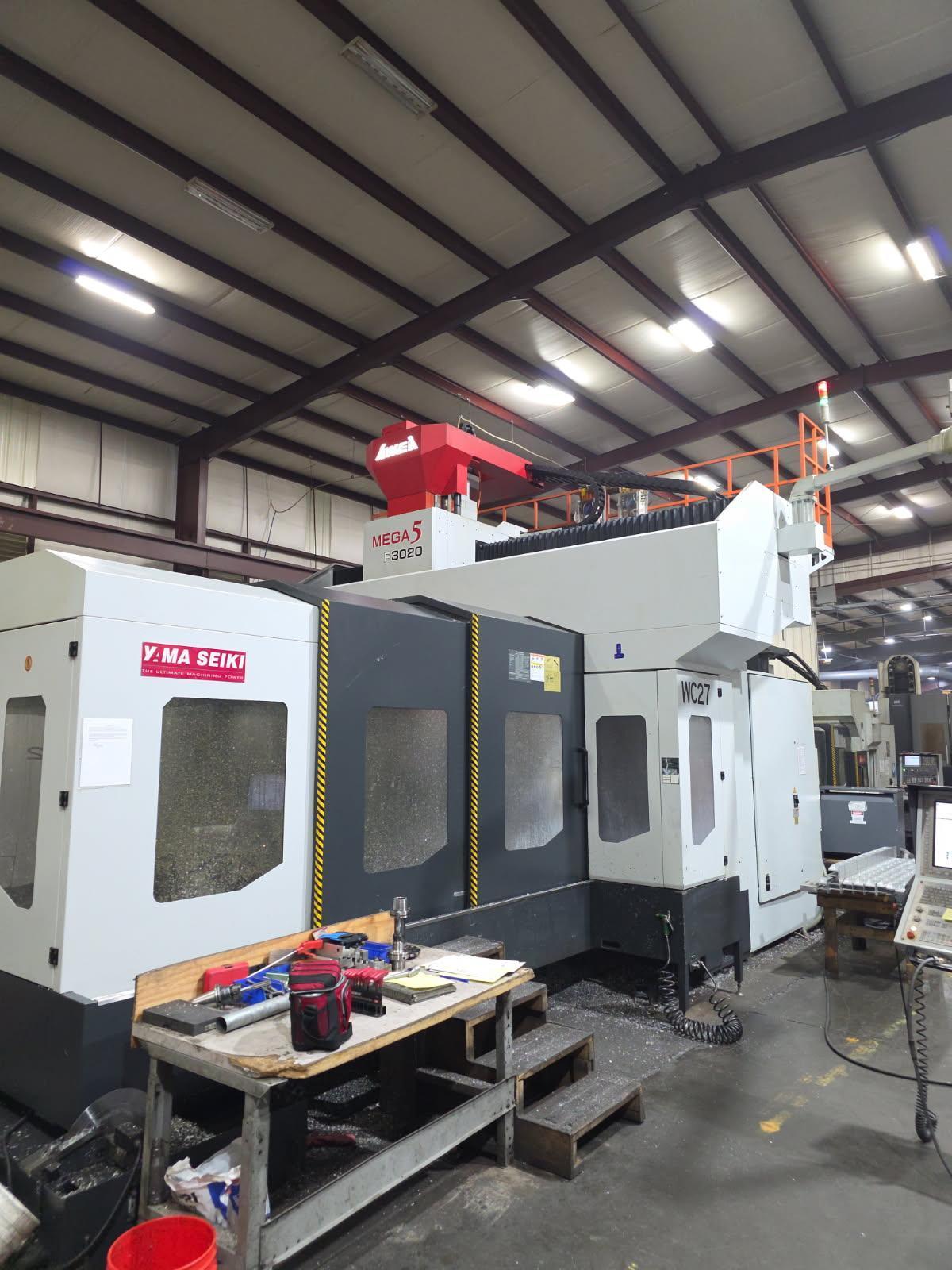

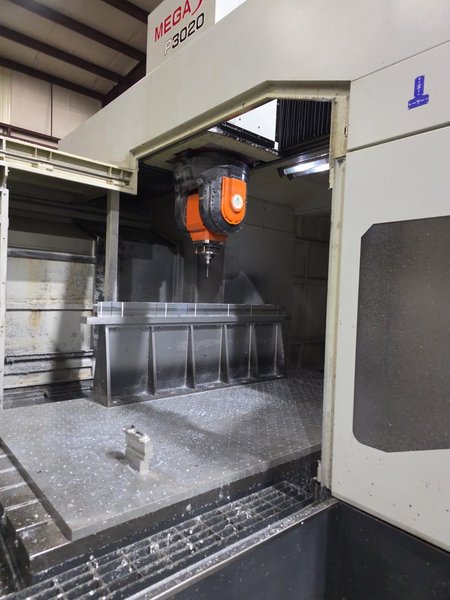

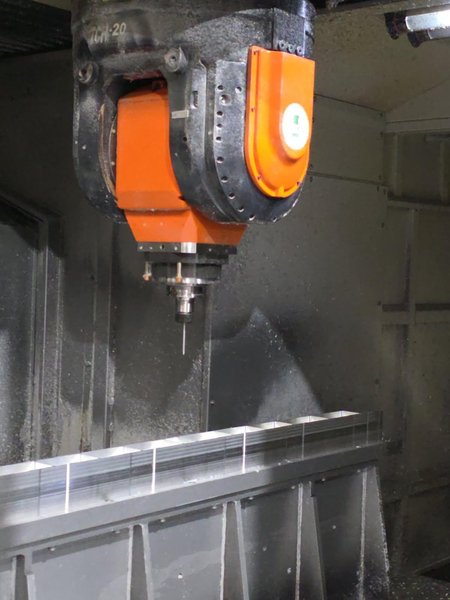

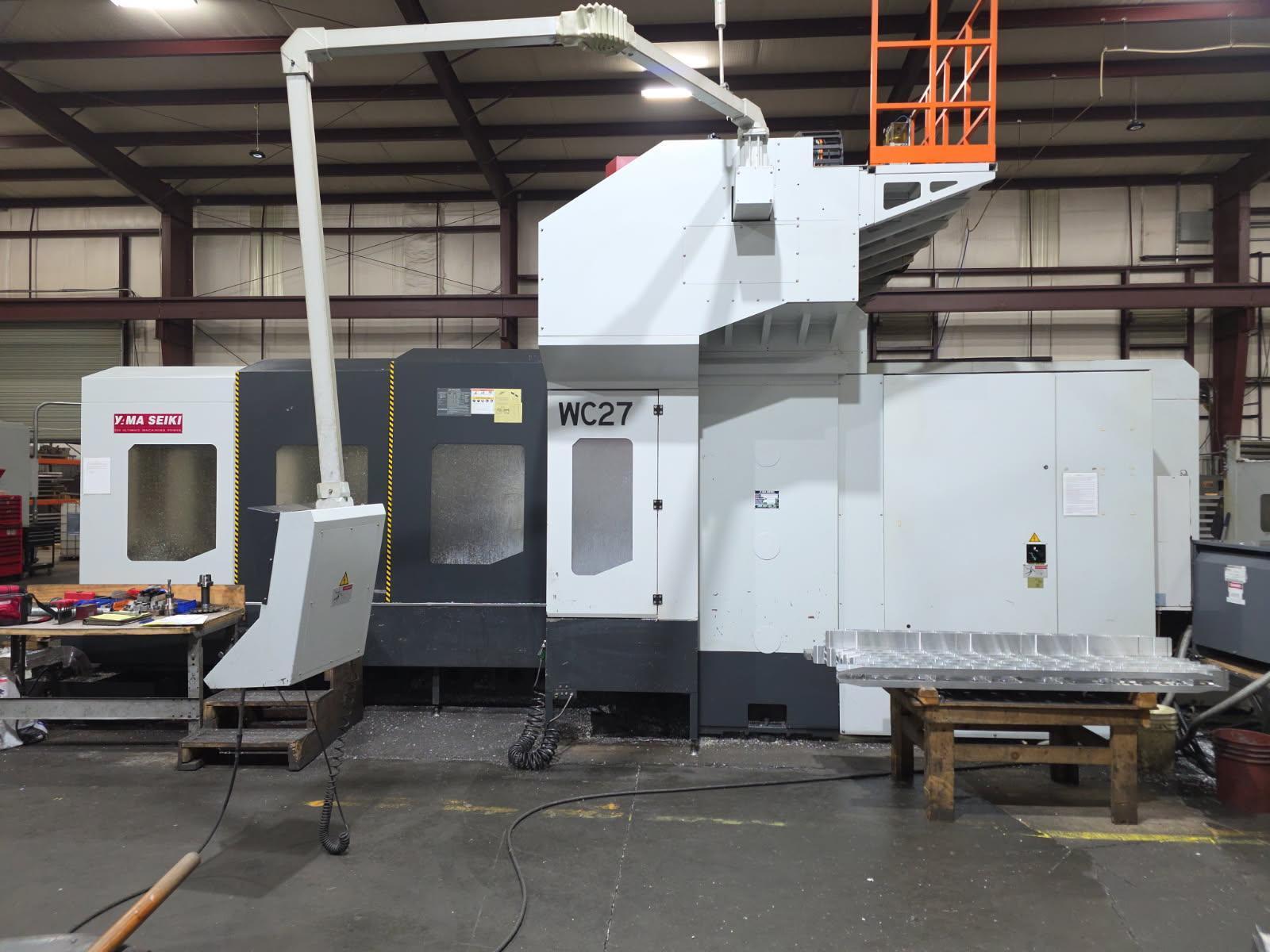

YAMA SEIKI AWEA MEGA 5 P3020 (5) AXIS BRIDGE TYPE VMC
Brand
Category
Model
MEGA 5 P3020
Stock #
Not specified
Year
2017
Condition
Used
Location
Michigan
|

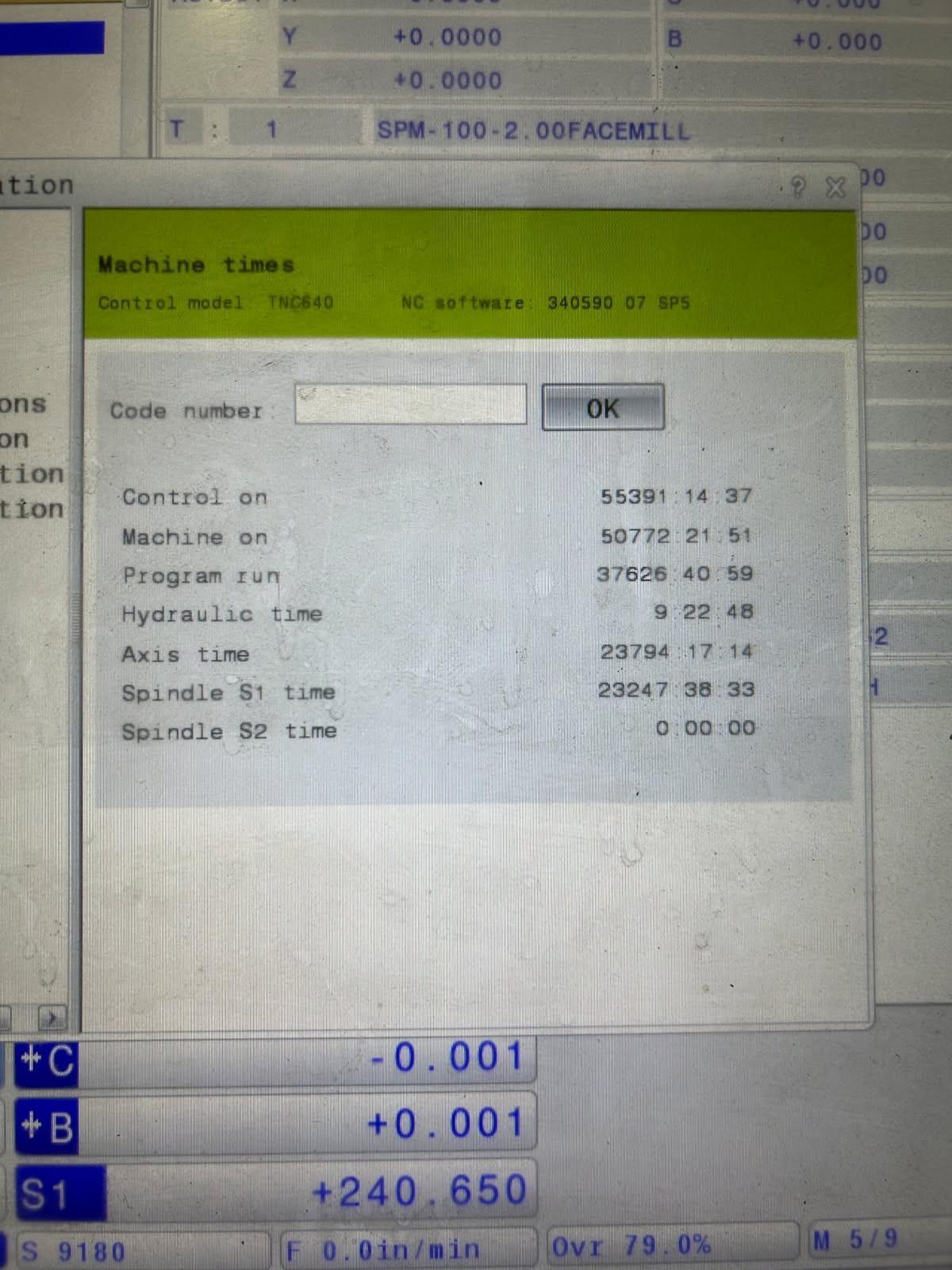

Control: Heidenhain 640 series
X-axis travel : 118.1" Y-axis travel : 98.4" Z-axis travel : 39.3" Table Size : 126" x 60" Max. table load : 26,450 Lbs. Spindle taper : HSK-100A Spindle speed max: 15,000 RPM Spindle motor ( 30 min. / cont. ) : 66 / 53 HP X-axis rapid feedrate : 393 ~ 787 IPM Y-axis rapid feedrate : 590 IPM Z-axis rapid feedrate : 393 IPM Tool Changer : 40 ATC SPECIFICATIONS ADDITIONAL: X-Axis Travel 118" 3,000 mm Y-axis travel 100" 2,560 mm (Vertical head/ 2,000 mm ( Horizontal head ) Z-axis travel 39" 1,000 mm Distance between columns 66.9" 1,700 mm Distance from spindle nose to table top mm 200 ~ 1,200 Distance from 90o spindle center line to table mm 480 ~ 1,480 Table size ( X x Y ) mm 2,310 x 1,500 T slot ( Width x Distance ) mm 22 x 170 SPINDLE: Spindle taper HSK-100A Spindle motor ( cont. / 30 min ) kW 56 / 70 Spindle speed rpm 15,000 FEED RATE: X-axis rapid feedrate m/min. 20 Y-axis rapid feedrate m/min. 20 Z-axis rapid feedrate m/min. 15 Cutting feedrate m/min. 1 ~ 10 TOOL MAGAZINE Tool magazine capacity 40 ATC Max. tool length mm 350 Max. tool weight kg 8 Max. tool diameter / adj. pocket empty mm Ø140 / Ø180 GENERAL Coolant tank capacity liter 420 Lubrication oil tank capacity liter 6 Hydraulic unit tank capacity liter 100 Pneumatic pressure requirement ( min. ) kg/cm2 6 ~ 8 ( 6 ) Max. work-piece dimension: Length ( X-axis ) mm 3,000 Width ( Y-axis ) mm 1,500 Height ( Z-axis ) mm 850 Standard Accessories Optional Accessories ¦ 20 / 70 bar Coolant through spindle ¦ Automatic tool length measurement ¦ Automatic work piece measurement ¦ Fully enclosed splash guard w/o roof ¦ Spindle cooling system ¦ X / Y / Z axes optical linear scale ¦ Centralized automatic lubricating system ¦ 4 pcs splash guard ¦ Coolant system with pump and tank ¦ Twin screw type chip augers ¦ Caterpillar type chip conveyor and bucket ¦ Electric cabinet with air conditioner ¦ Mobile handwheel ¦ Foot switch for tool release |
