Okamoto ACC 12.24DXB 3-Axis Automatic Surface Grinder, Servo Incremental Downfeed, Servo Inc. Cross Feed, 12" x 24"EM Chuck- Auction Item

Brand
OKAMOTO
Category
Grinding Machines
Type
Grinders, Surface, Horizontal
Model
ACC 12.24DXB
Stock #
Lot No.: 70
Year
2008
Condition
Not specified

Location

Minnesota
REQUEST FINANCING
View Auction Item:https://www.machinesused.com/lots/48837

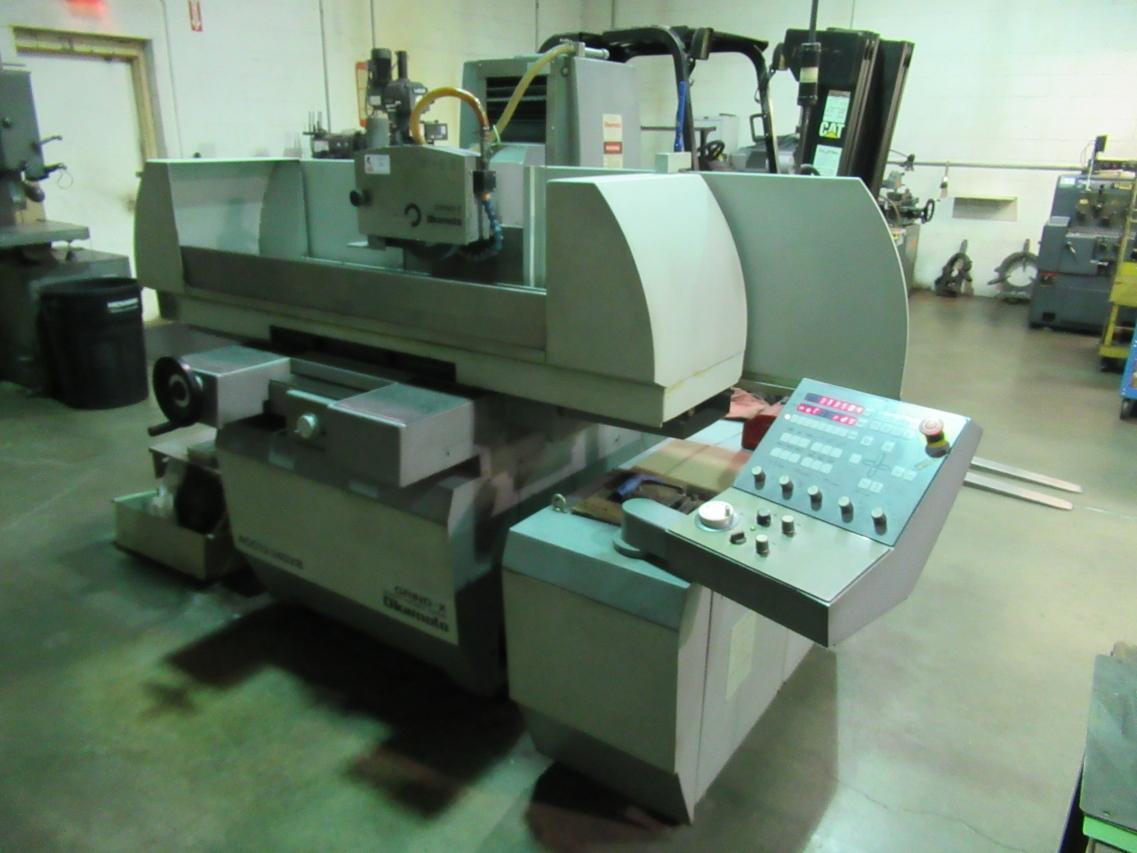

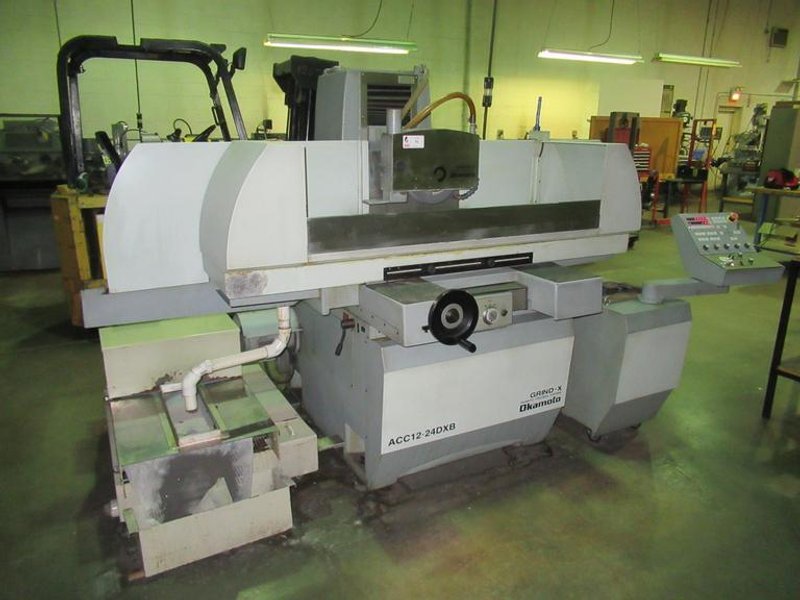

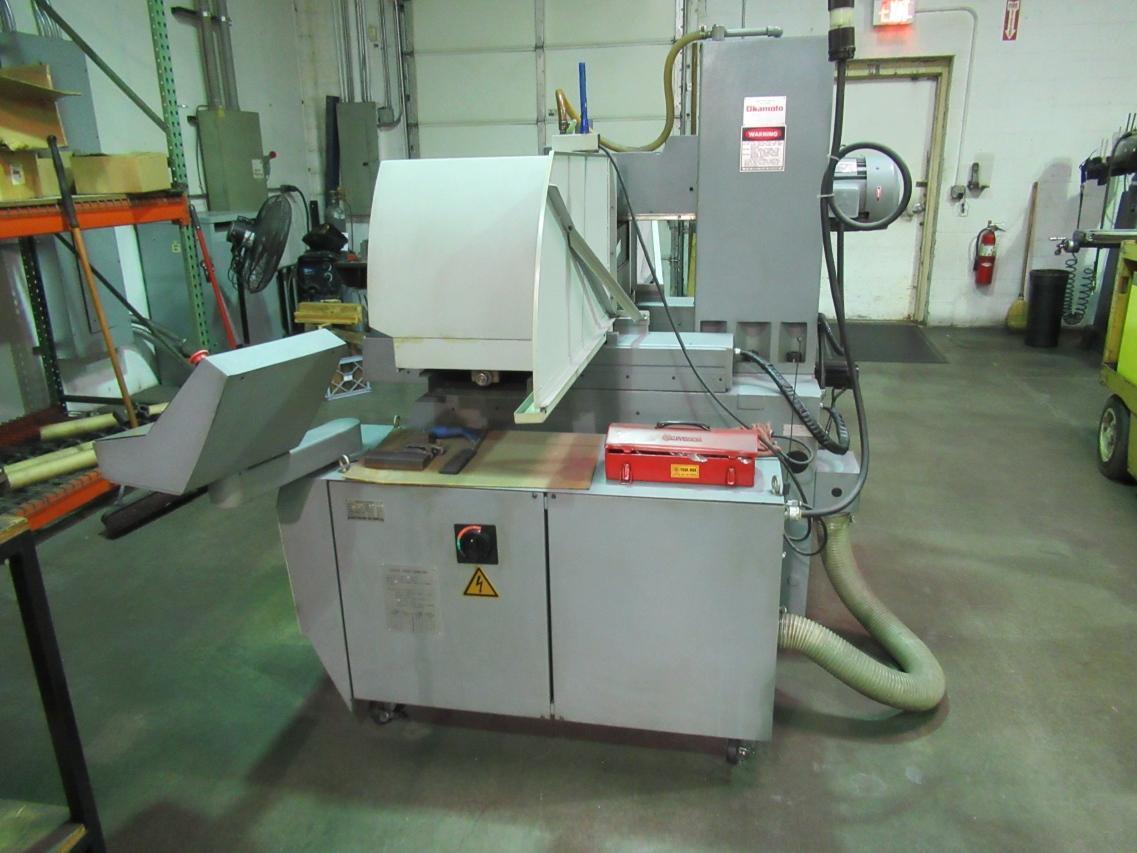

Lot 70: Okamoto ACC 12.24DXB 3-Axis Automatic Surface Grinder, Servo Incremental Downfeed, Servo Inc. Cross Feed, 12" x 24"EM Chuck
Equipped With:

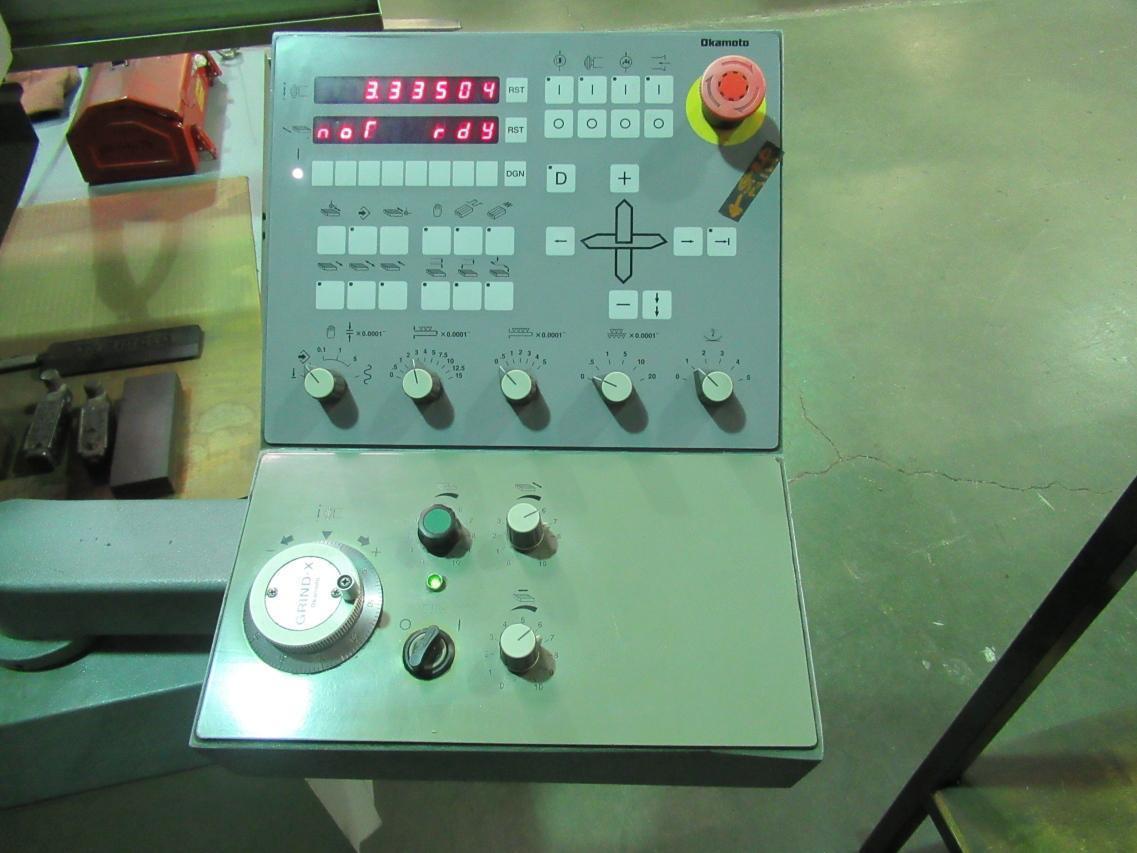

State-of-the-Art MDI Touch Pad with Teach Function for Crossfeed Positions & Grinding Cycles and Cross & Vertical Rapid Feeds, Servo Motor Controlled Crossfeed, 12" x 24" Fine Line Electromagnetic Chuck, Servo Incremental Downfeed, Servo Cross Feed, Coolant System with Paper Filtration, LED Digital Readout for Vertical and Cross Travels, Grind-X, Improved Spindle Design with P4 Class Bearings, Rounded Splash Guards for Enhanced Coolant Containment,

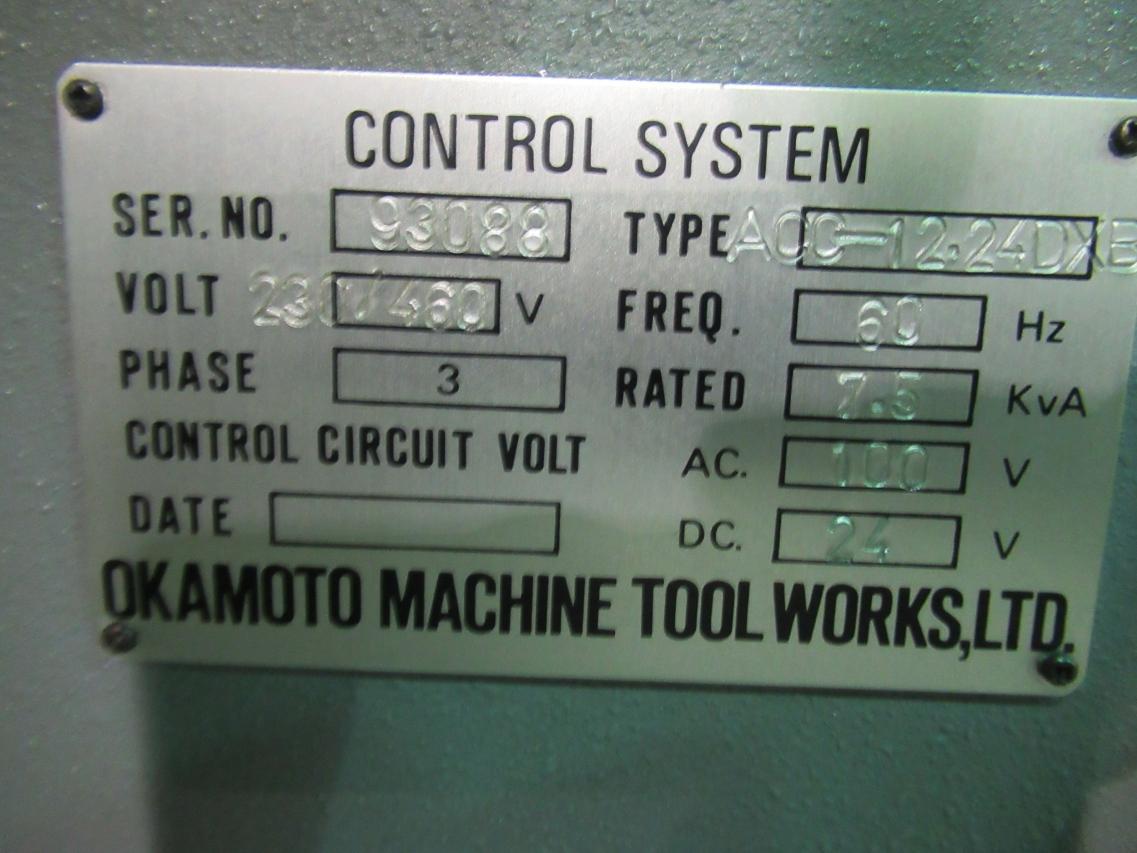

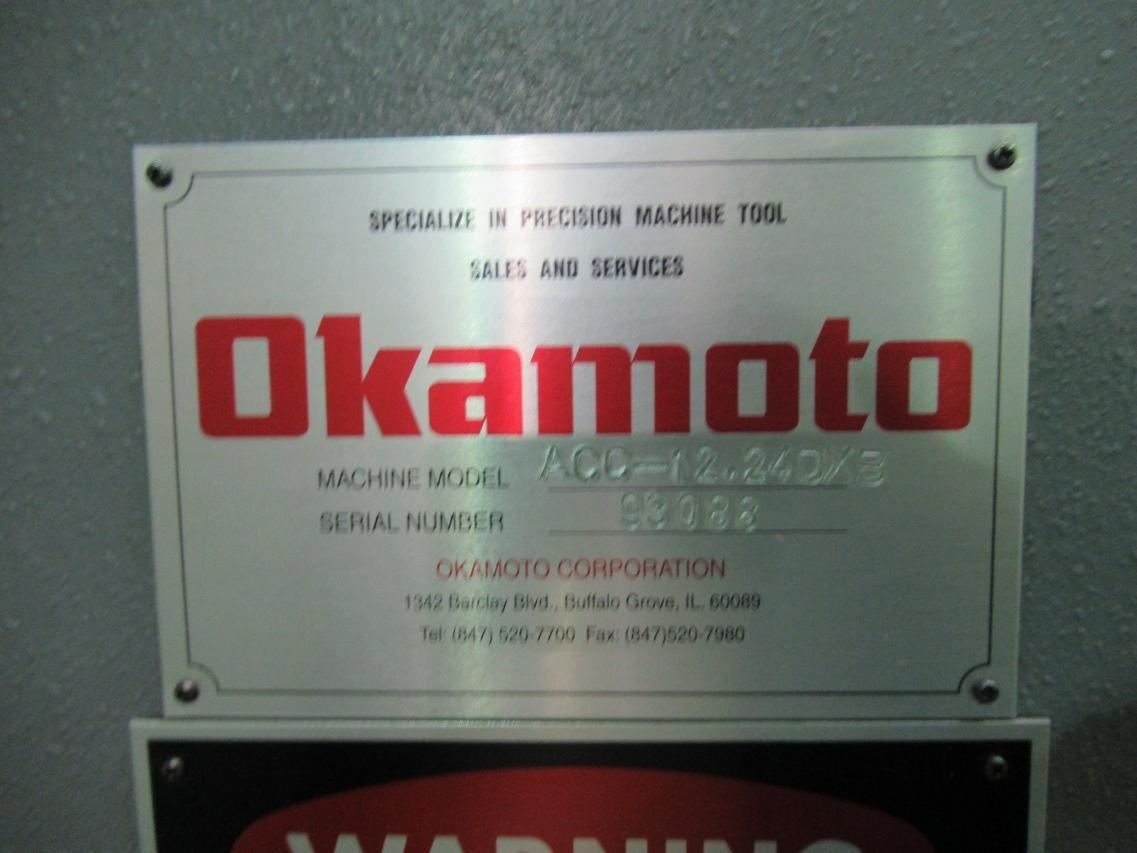

Manufacturer: Okamoto Model: ACC 12.24DXB Year: 2008 Serial Number: 93088
Main Unit Approx Weight: 6000.00 lbs
Main Unit Dimensions (in inches): Length: 62.00"  Width: 108.00"  Height: 73.00"
Components:

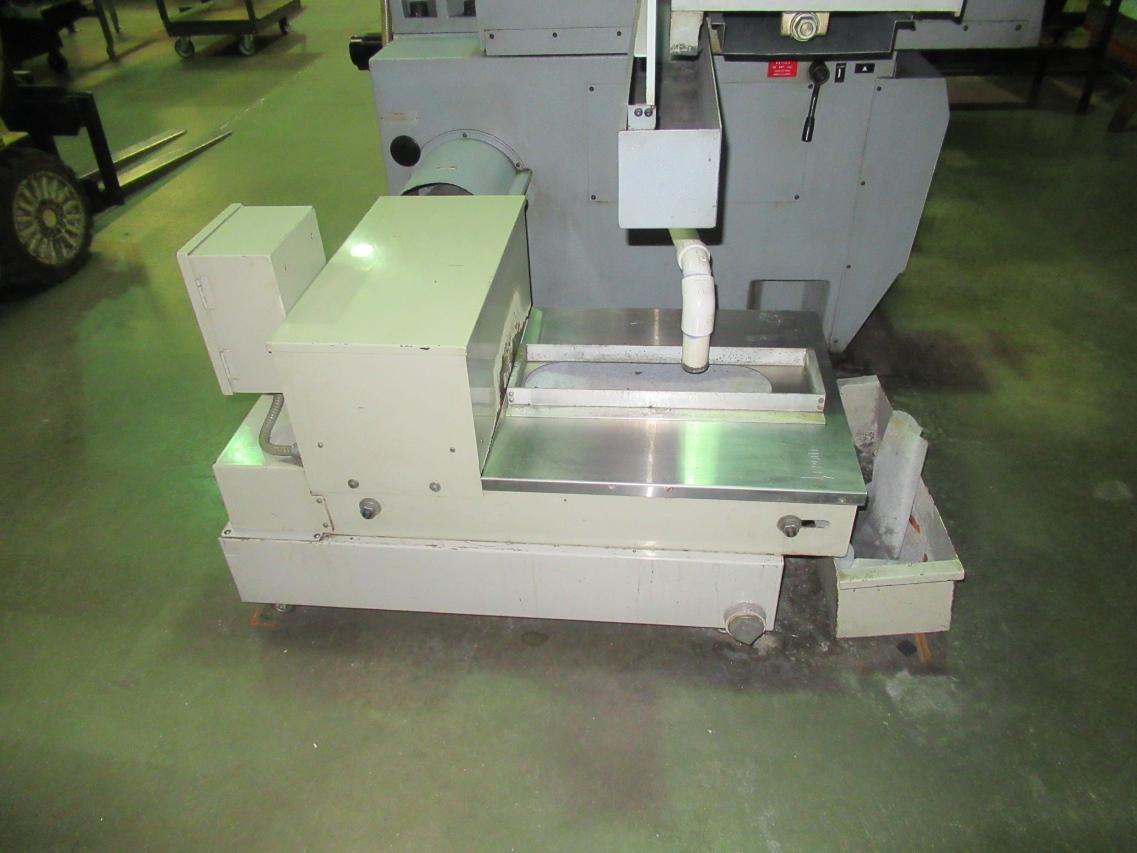

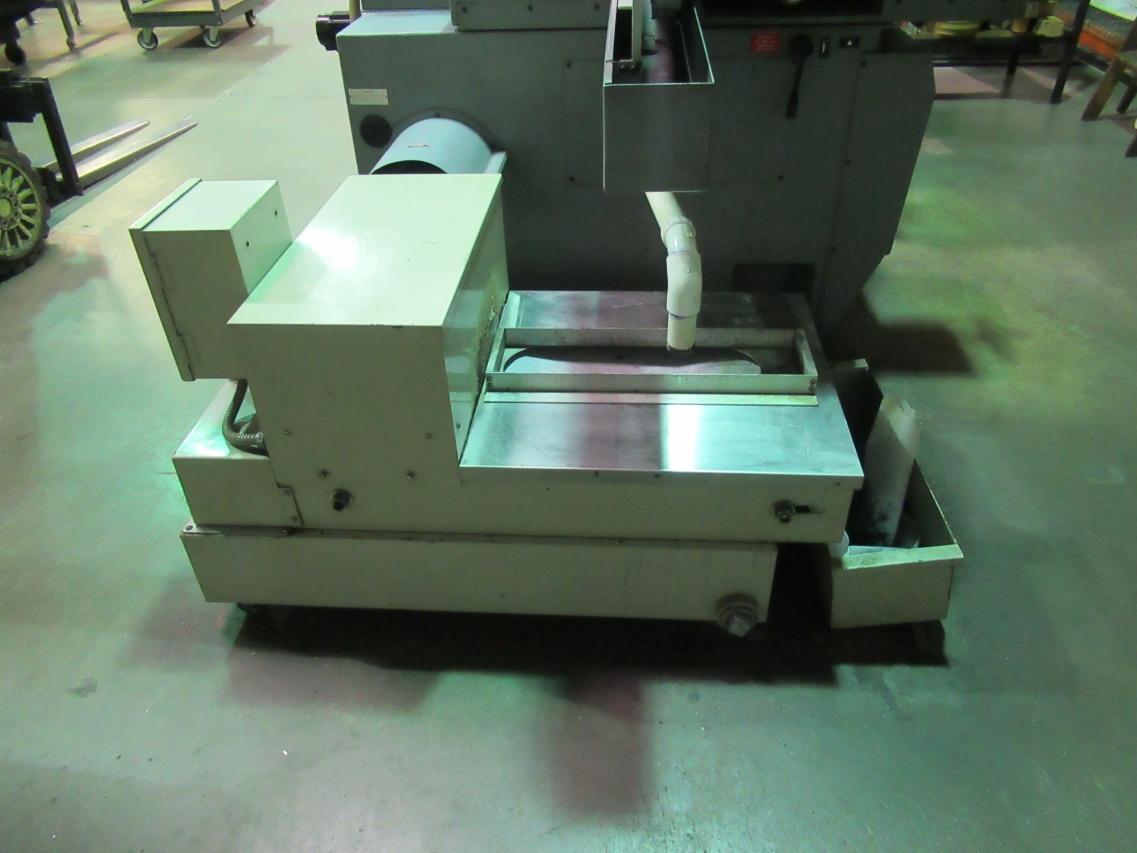

Coolant System: Length: 34.00"  Width: 52.00"  Height: 29.00"
Control Cabinet on Wheels: Length: 68.00"  Width: 18.00"  Height: 45.00"

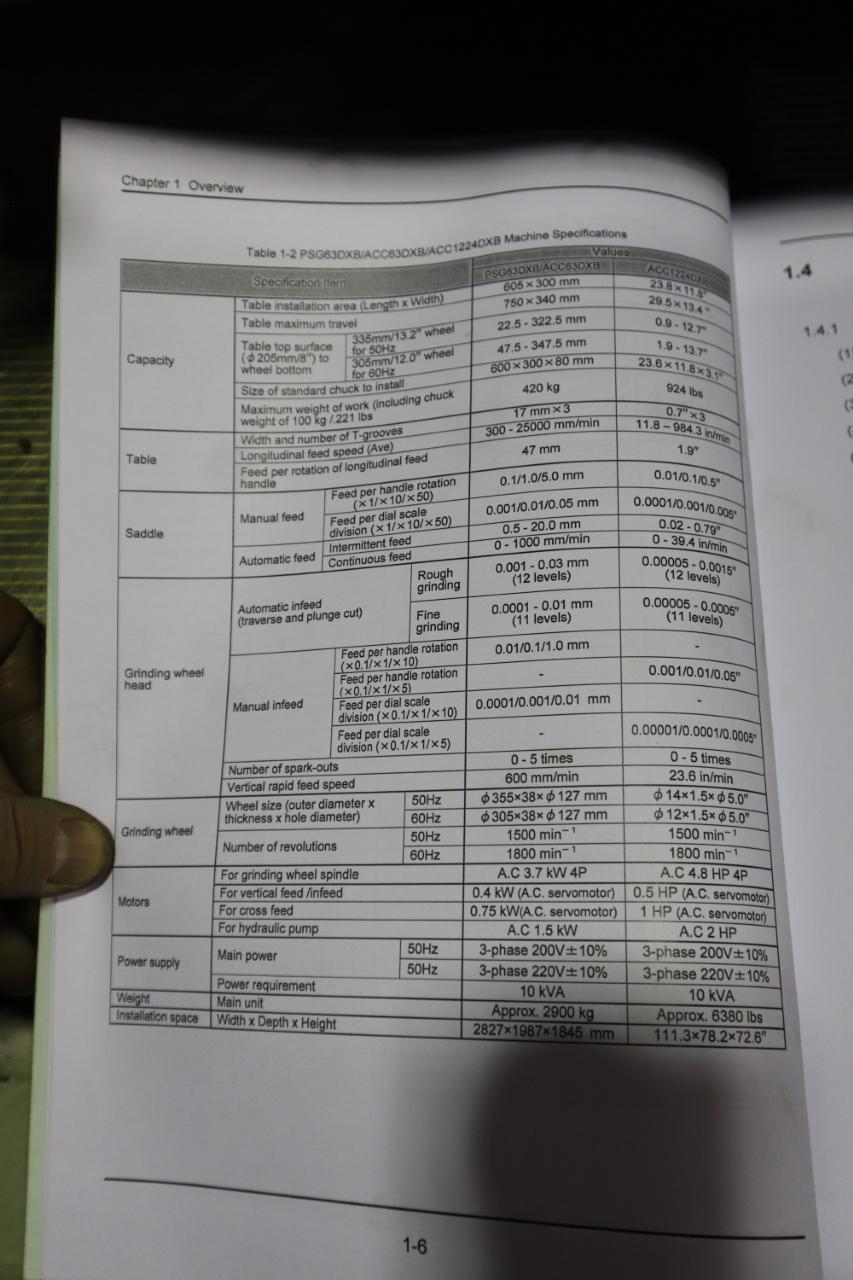

Specs:

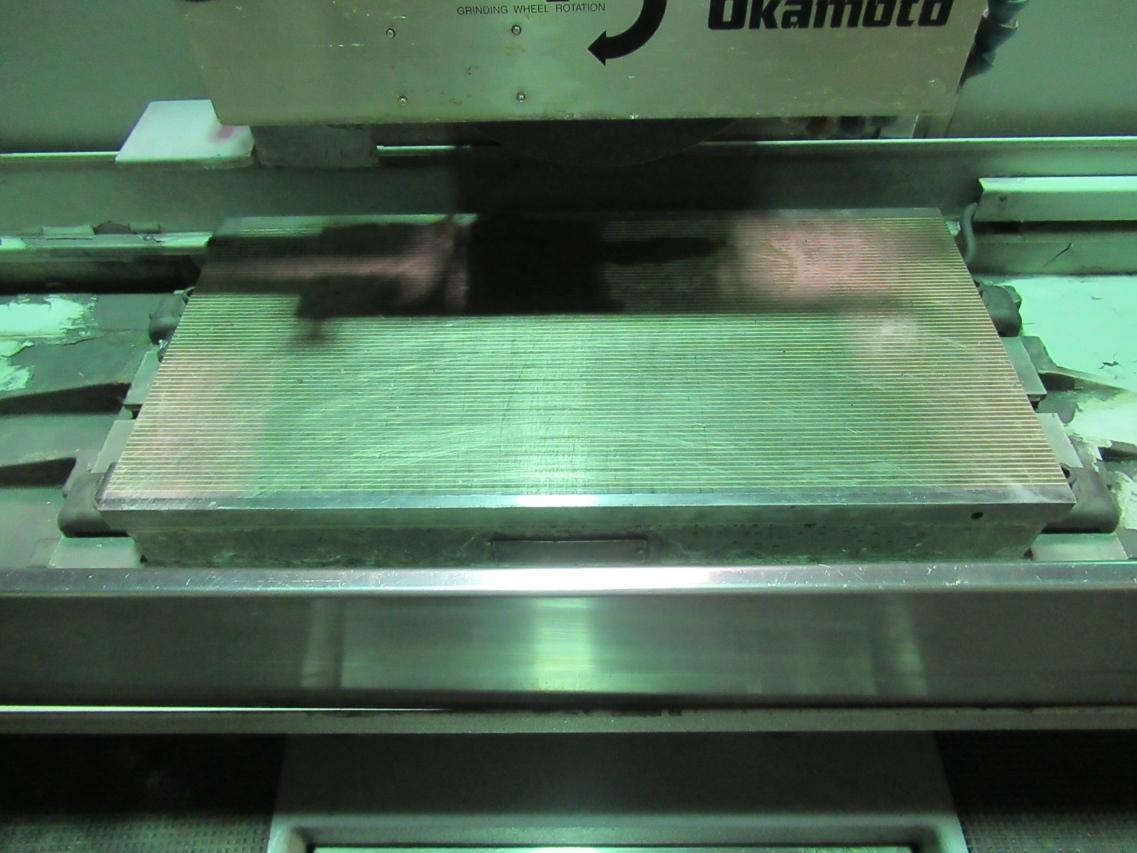

Table Working Surface: 12" x 24"
Max Chuck Size: 12" X 24"
Max Table Movement (Manual): 29.5" x 13.4"
Auto Longitudinal Feed Rate: 11.8 - 984.3 IPM
Max Distance Spindle / Wheel to Table: 13.6" w 12" Wheel
Max Table Load (Including Chuck): 925 Lbs.

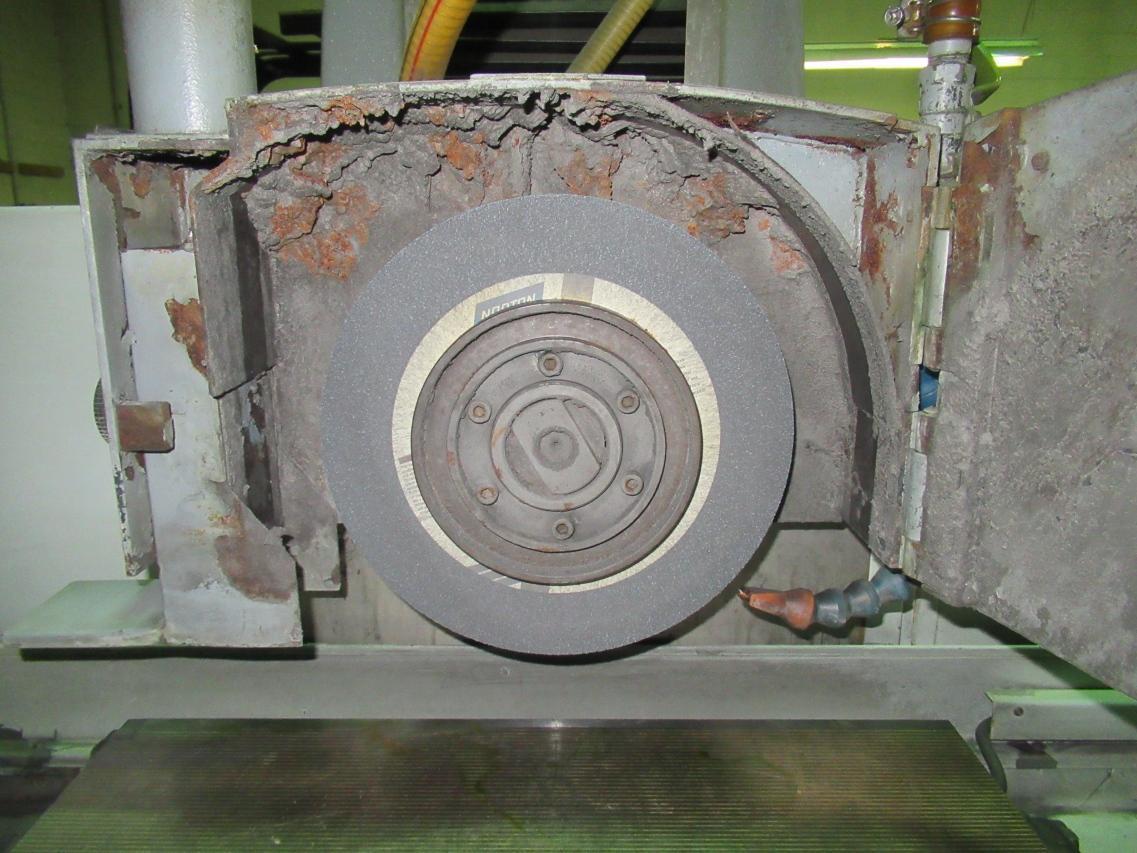

Max Wheel Size : 12" x 1.5" x 5"
Wheel Speed: 1,800 RPM
Rapid Wheelhead Feed Rate: 23.6 IPM
Servo Motor Controlled Crossfeed: 0-39.4 IPM
Crossfeed Handwheel Increment: .0001/.001/.005"
Crossfeed Servo Motor: 1 HP
Cross Feed Automatic Increments: .02 - .79"
Auto Wheelhead Downfeed Increments: .0005" - .0015"
Wheelhead Elevation Motor: .5 HP
Hydraulic Motor: 2 HP
Spindle Drive: 5 HP
Seller Company: GB Tool Inc
Seller Contact: Machinesused.com GBTool Phone: (763) 745-1166
Item Location: GB Tool Inc, 1580 93rd NE, Blaine, MN 55449
Location Contact: Machinesused.com GBTool Phone: (763) 745-1166
Inspection Date & Time: Friday, January 9, 2026 9AM-4PM
Dock Door: 144" x 144" Ground | 96" x 120"H Truck Level (48"H) Dock Door
Loading Dock: Ground Level, and Truck Level Doors, Paved Lot
Removal Dates and Times: This item must be removed between Monday, January 19, 2026 and Wednesday, January 21, 2026
  • Acceptable Payment: Cash, Wire Transfer, Cashier's Check, Money Order
  • VISA / MASTERCARD/DISCOVER ACCEPTED FOR U.S. BUYERS AMOUNTS UP TO $2,500 WITH 3% ADDITIONAL FINANCE CHARGE
  • ACH Auto Payment for US Buyers with Invoices $2,500 Or Under
  • All Payments made to Machinesused.com prior to item removal.
  • All Payments Due to Machinesused.com by Wednesday, January 14, 2026 4PM CT
  • Auction Held ONLINE ONLY at www.machinesused.com
  • 15% Buyer's Premium
  • Applicable Sales Tax Charged - SEE SALES TAX
  • Auction Uses DYNAMIC CLOSE: Click Here for More Info
  • All Items Sold As Is, Where Is - Buyers Responsible for Inspection & Removal
  • CLICK HERE FOR TERMS AND CONDITIONS
  • ALL ITEMS MUST BE REMOVED BY Wednesday, January 21, 2026
  • ALL PAYMENTS DUE BY Wednesday, January 14, 2026 4PM CT

Bid NOW

Current Bid: $0.00
Bid Increment: $1.00
Minimum Bid: $1.00
Login to BidRegister to Bid
