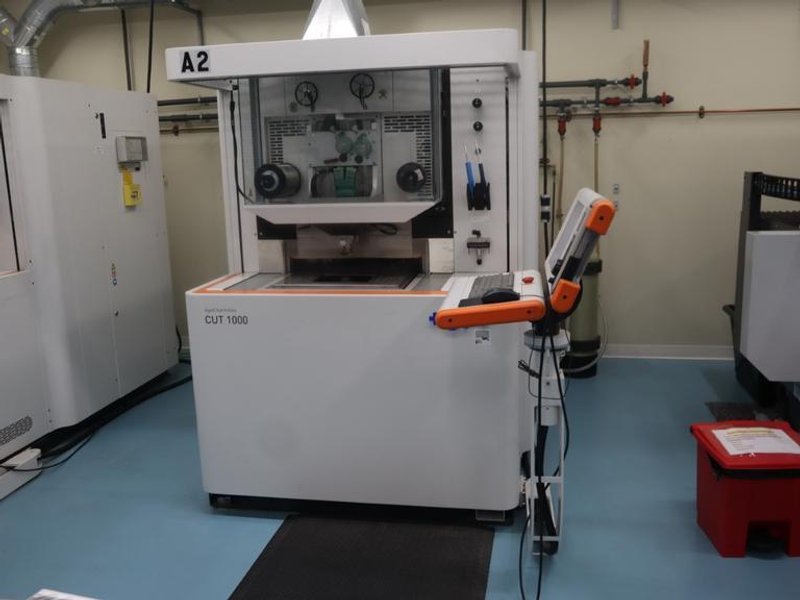

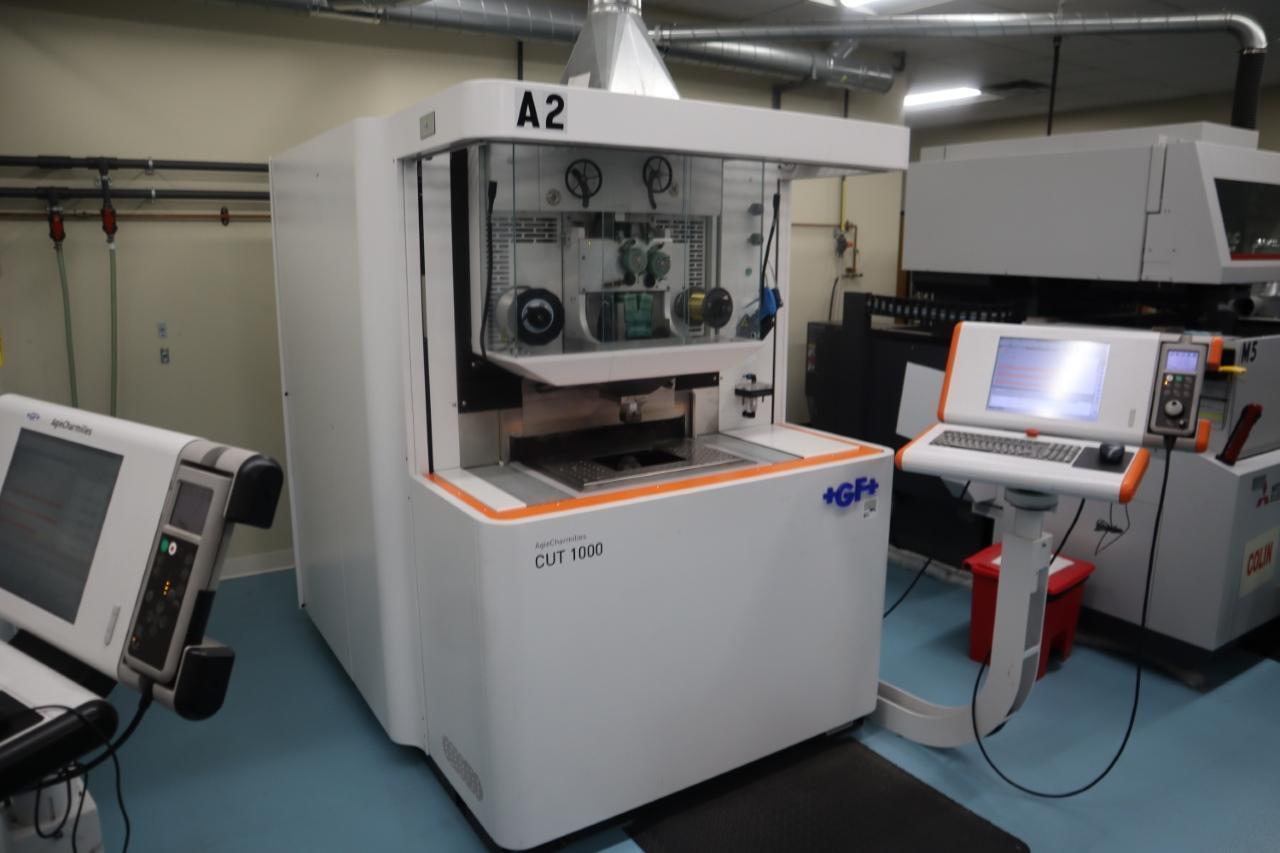

AgieCharmilles Cut 1000 CNC Wire EDM, Dual Spool Auto Thread - New 2018

AgieCharmilles Cut 1000 CNC Wire EDM, Dual Spool Auto Thread - New 2018

Name: Used AGIECHARMILLES Cut 1000 For Sale 7328
Brand: AGIECHARMILLES
SKU: 7328
Availability: PreOrder

Brand

AGIECHARMILLES

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

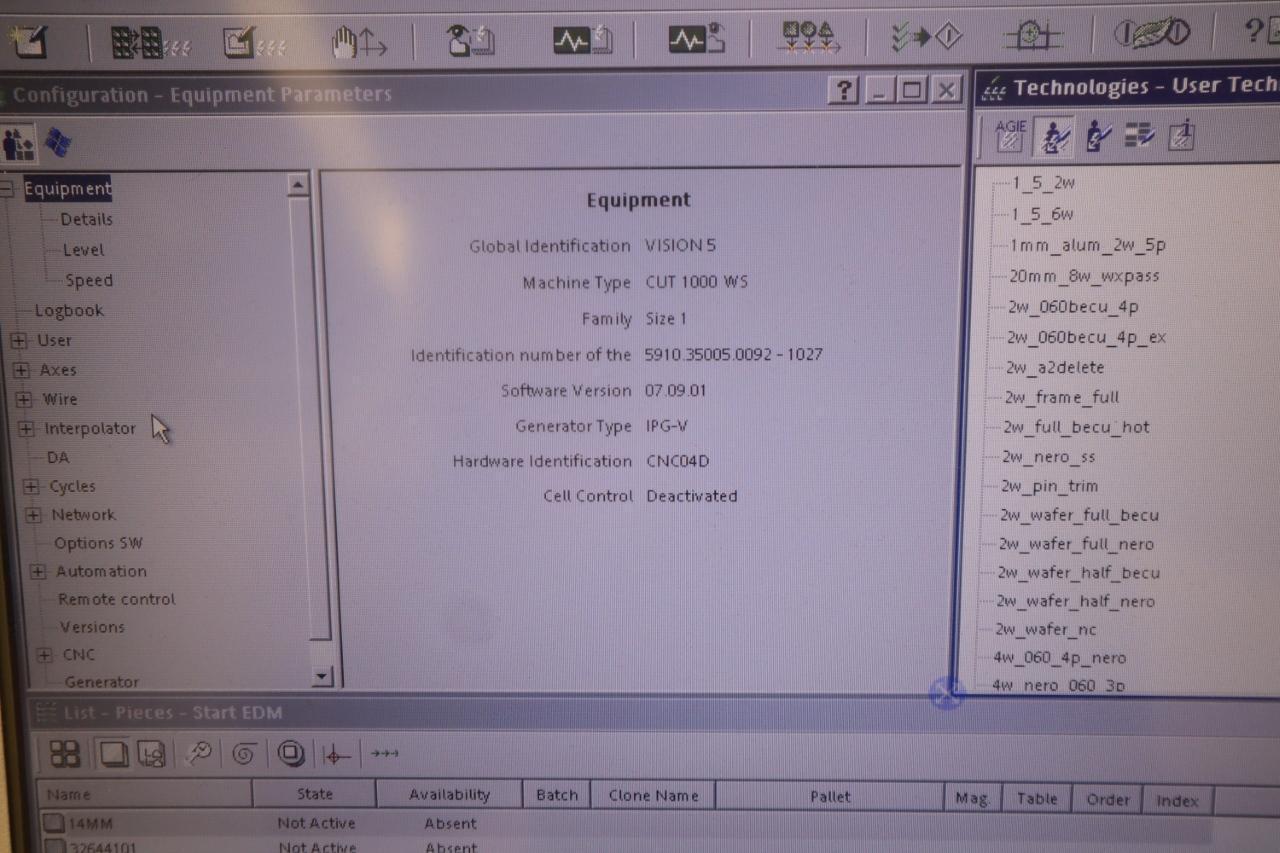

Control: Agie Charmilles CNC Control

Max Workpiece Size: 11.81" x 7.87" x 3.14"

Travels (X,Y,Z): 8.66" x 6.3" x 3.93"

UV Travels: +/- 1.57"

Taper Angle: +/- 3 Degrees for 3.14"

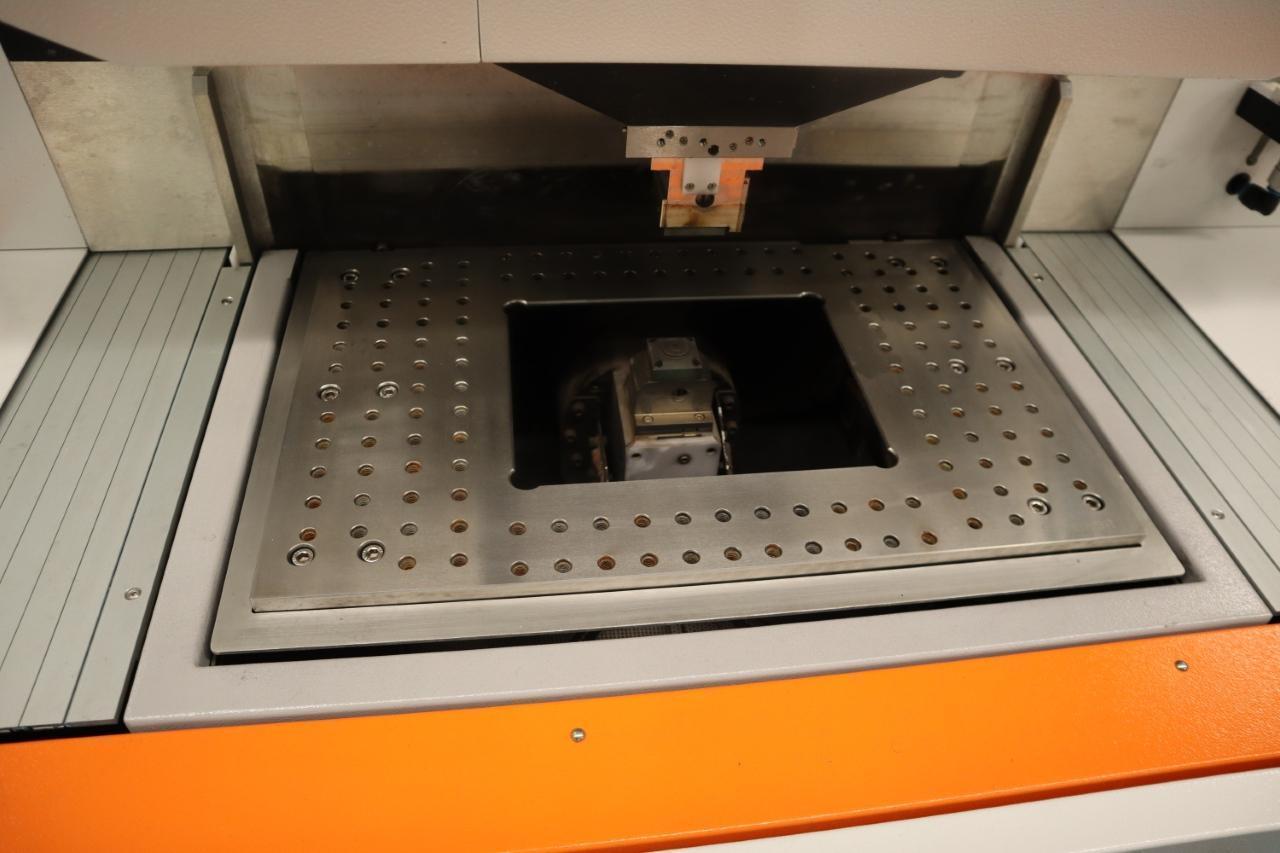

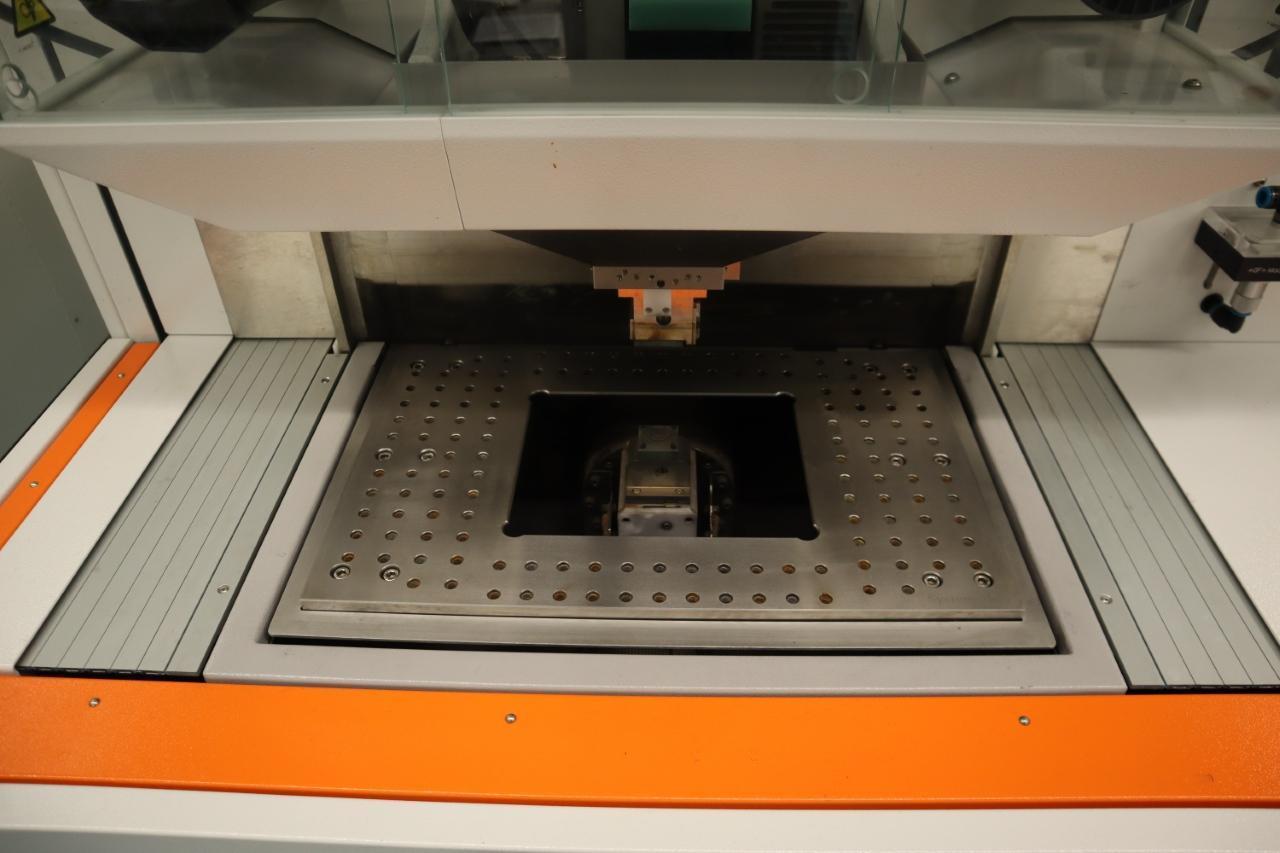

Dimensions of Table: 21.65" x 13.39"

Max Workpiece Weight: 77 Lbs.

Wire Diameter: Dual Spool Auto Wire Thread: .003 - .008" Wire Diameter

Wire Speed: 2.36 - 11.81 Inches Per Second

Rapid Traverse Rate : .04 - 111 IPM

Dielectric Fluid Capacity: 110 Gallons

Wie Spool Capacity: (2) x 17.6 Lbs

Description:

The AgieCharmilles Cut 1000 CNC Wire EDM is an ultra-precision machining solution engineered for industries that demand exceptional accuracy, including medical, aerospace, electronics, and high-end moldmaking. Built with Swiss precision, the Cut 1000 delivers extremely tight tolerances, superior surface finishes, and outstanding repeatability using advanced EDM technology and intuitive AC Cut control. Its high-stability machine structure, optimized wire threading system, and smart automation options make it ideal for micro-machining, fine-detail work, and complex geometry. For manufacturers seeking top-tier EDM performance, the AgieCharmilles Cut 1000 provides reliable operation, fast processing, and exceptional part quality.

Equipped With:

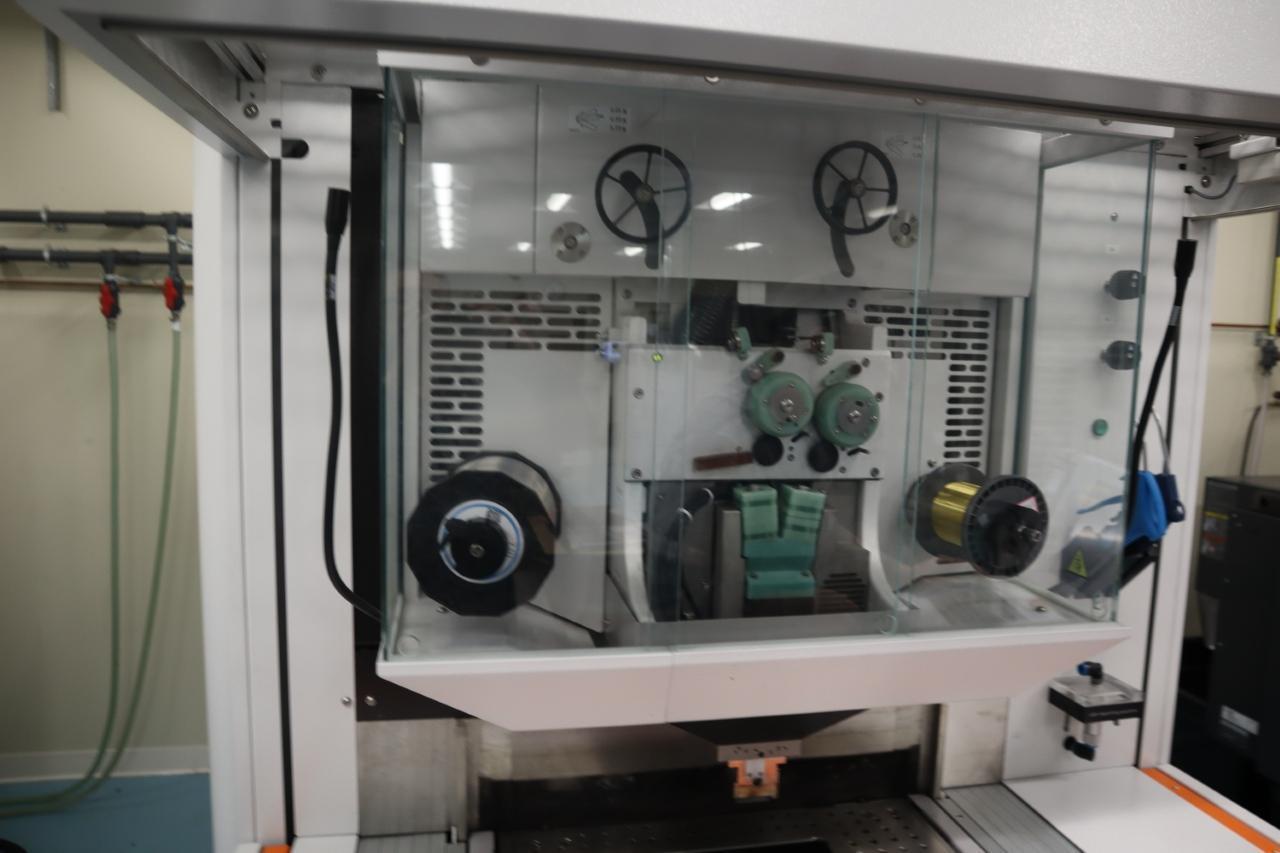

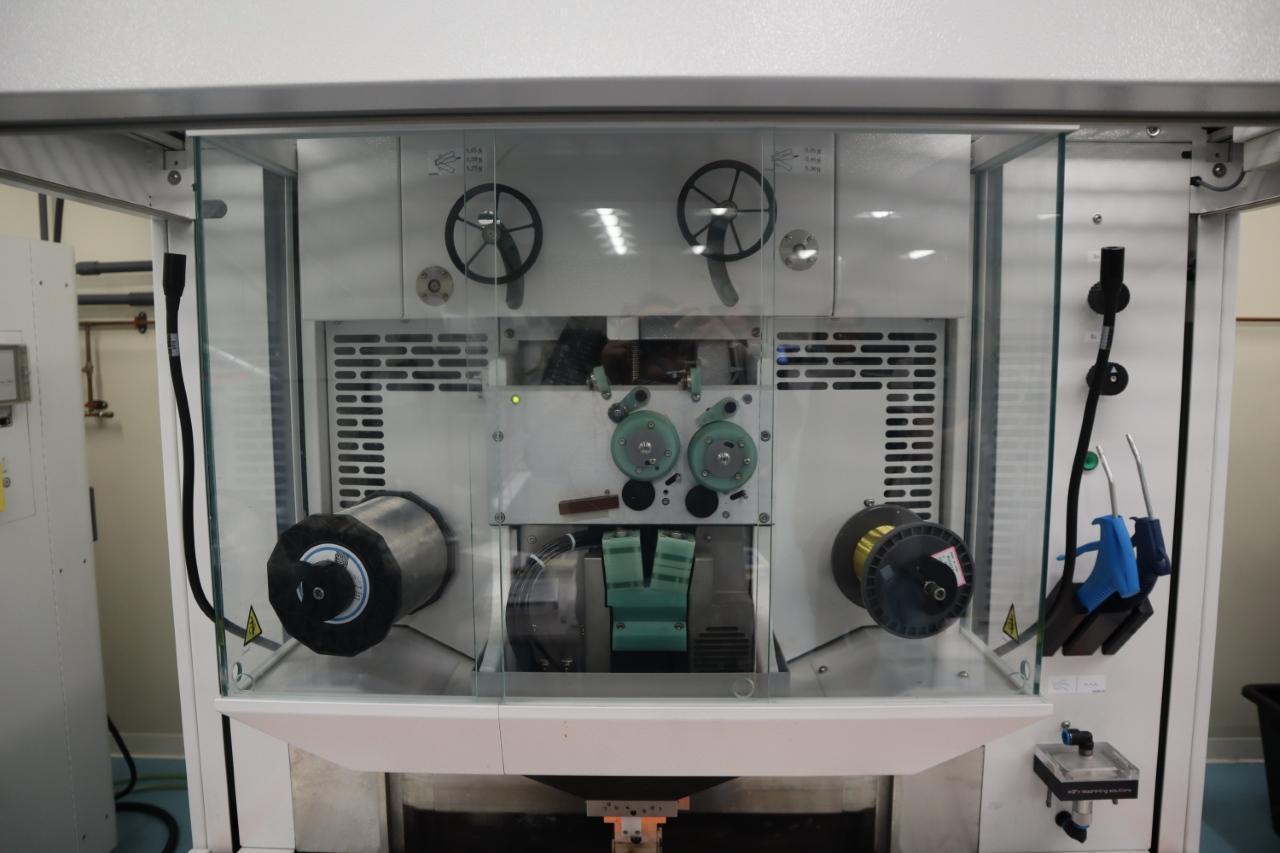

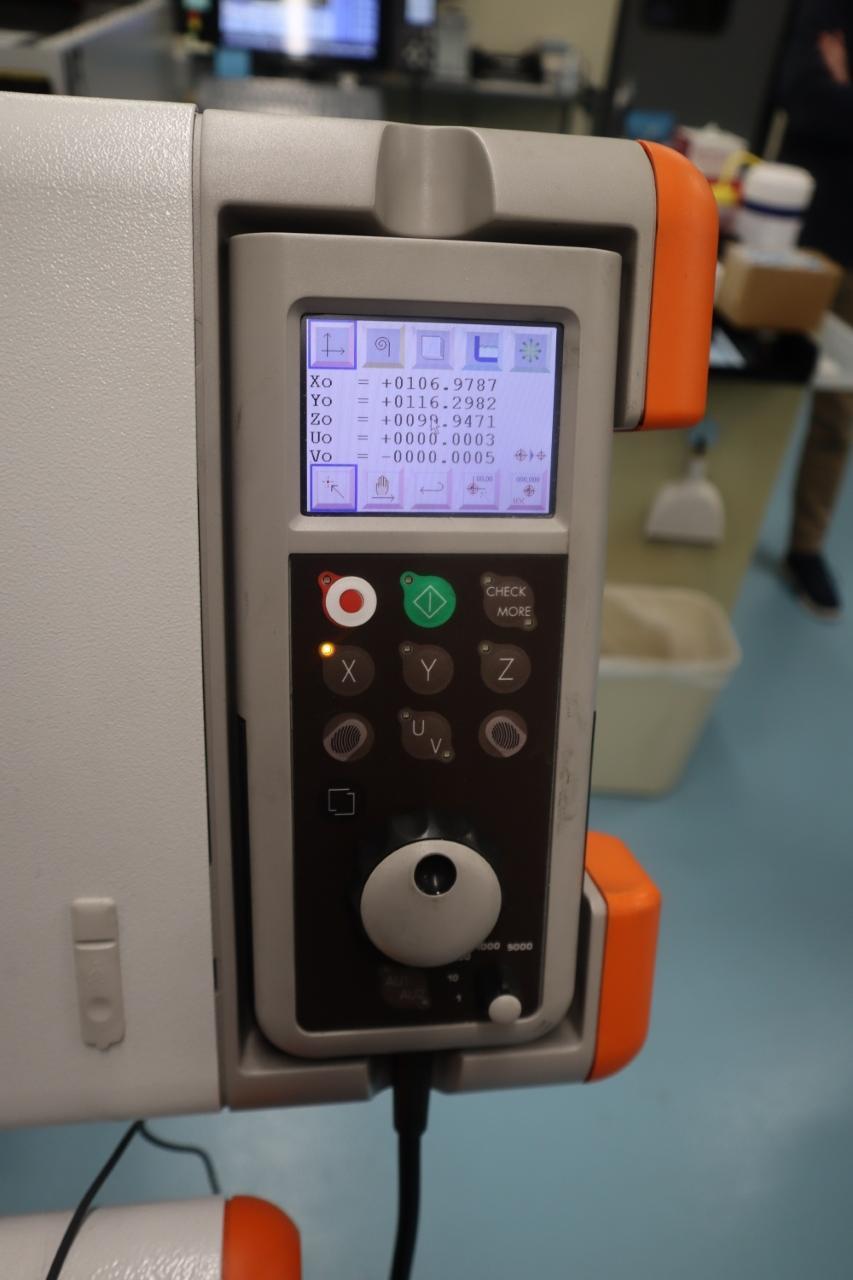

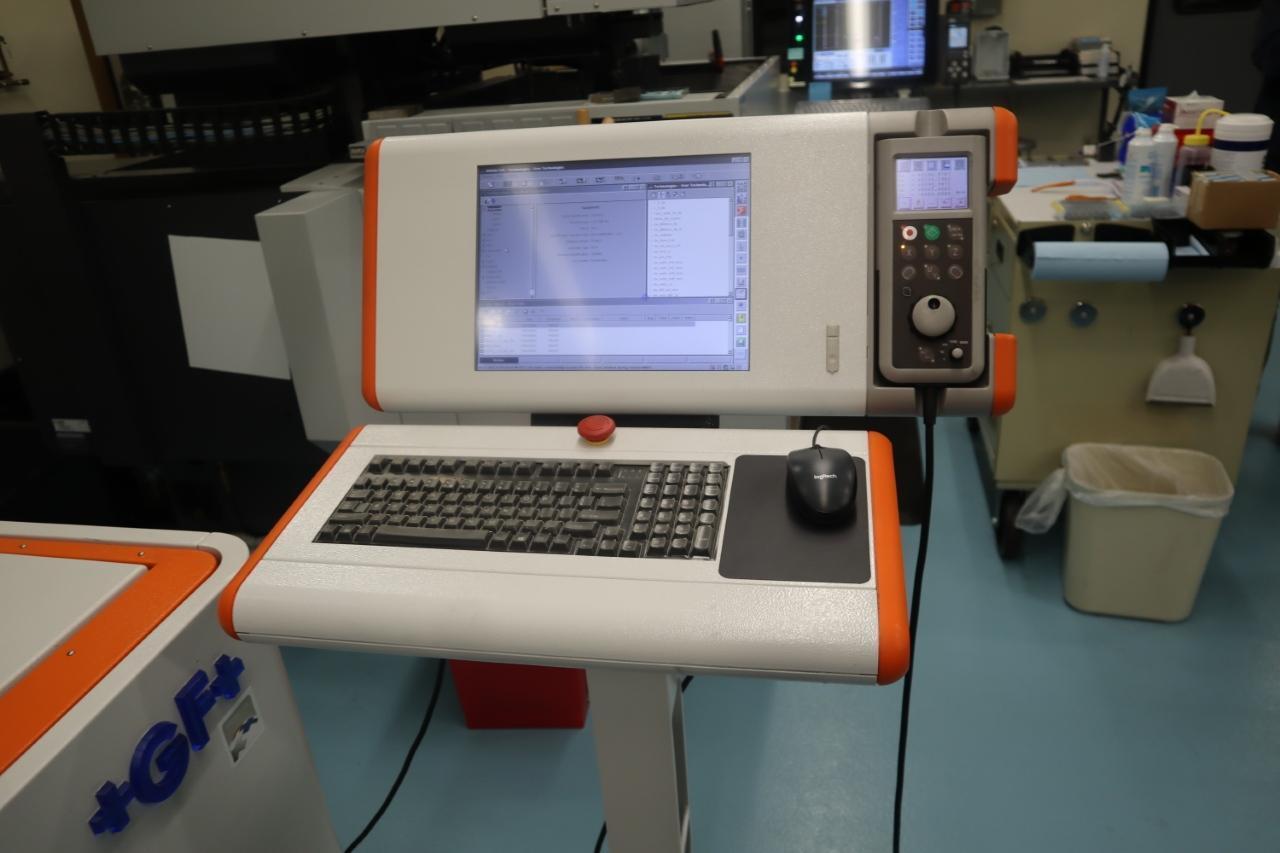

AWC Dual Spool Automatic Wire Threader, Fully Digitized Pulse Control, Drop Tank, Advanced Wiree Offset, Wire Bending Control, Integrated Vision Unit, Auto-Scanning of the Form, Remote Control Pendant, Filter System, Chiller, Transformer

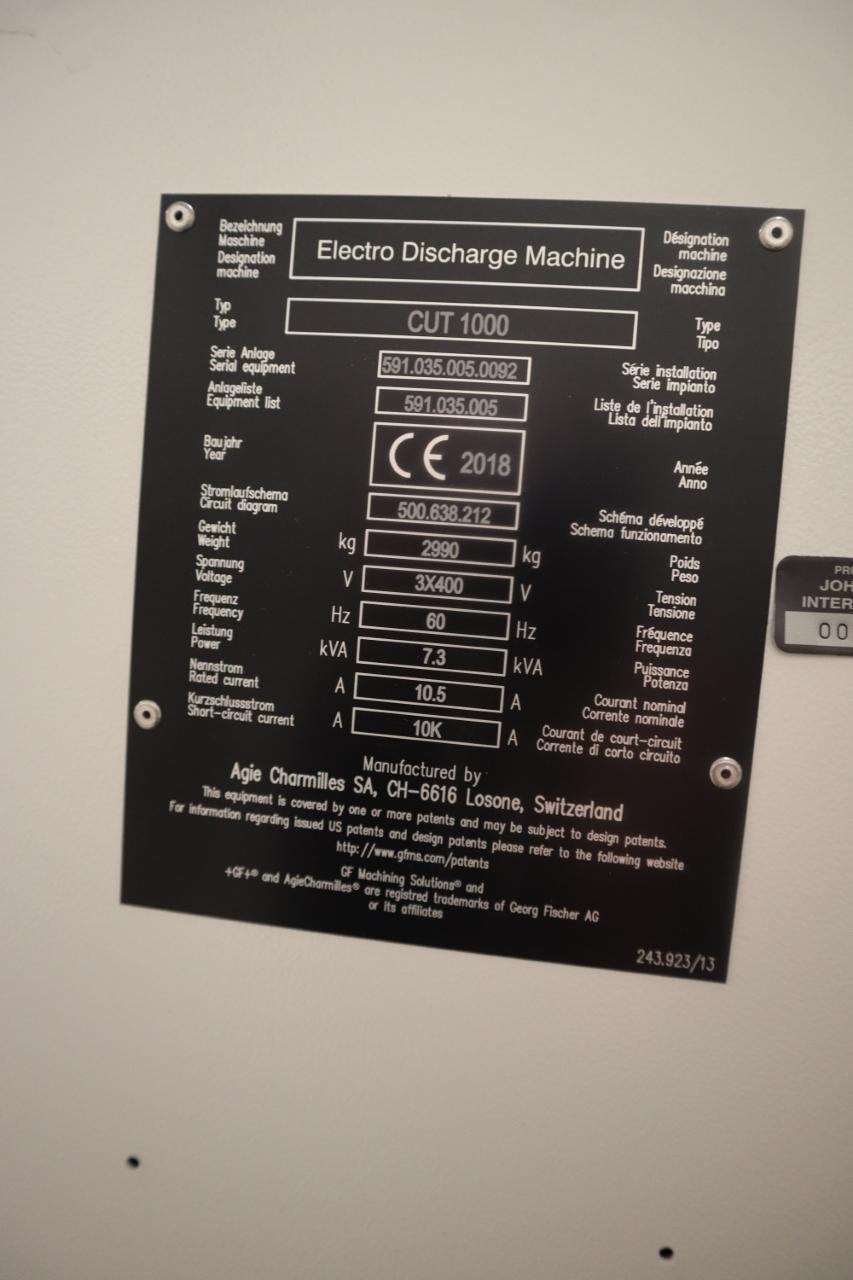

Electrics:

400 Volt, 3 Phase - Comes with Multi-Tap Transformers for 208-230 Volt/ 440 Volt Operation
