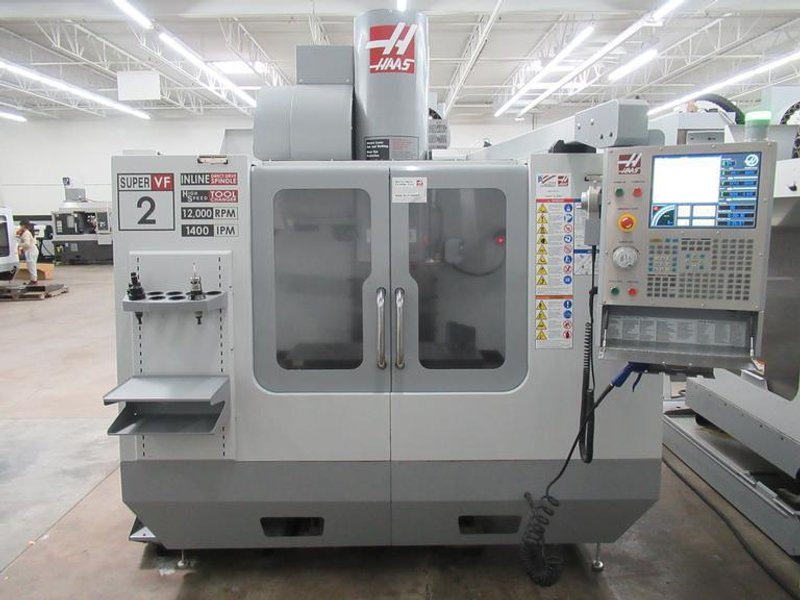

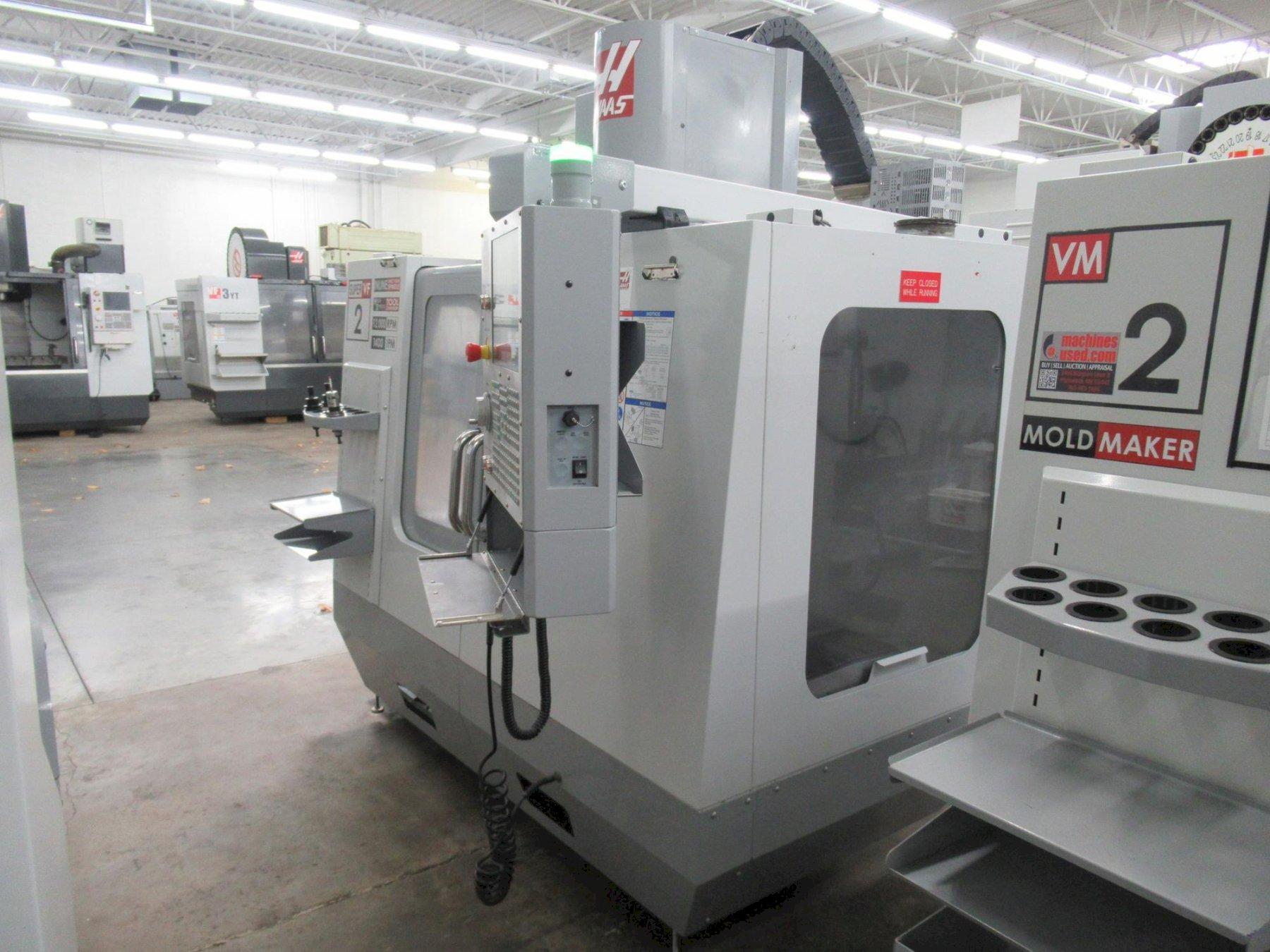

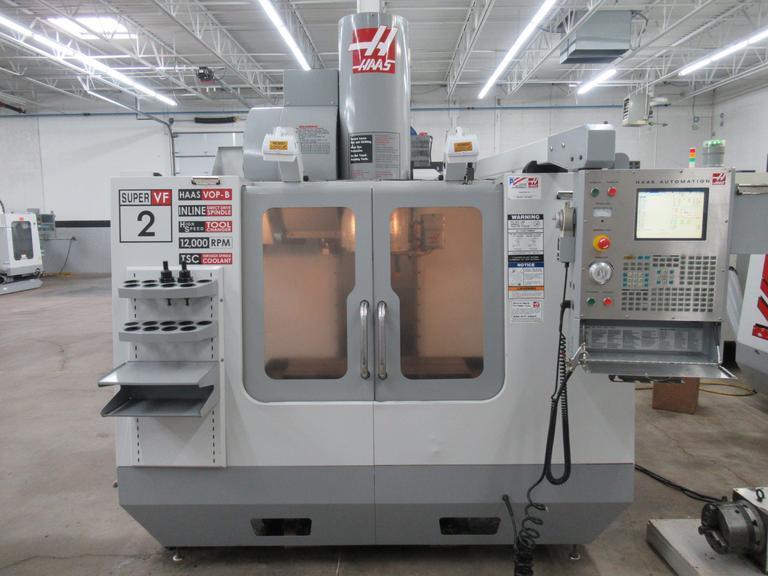

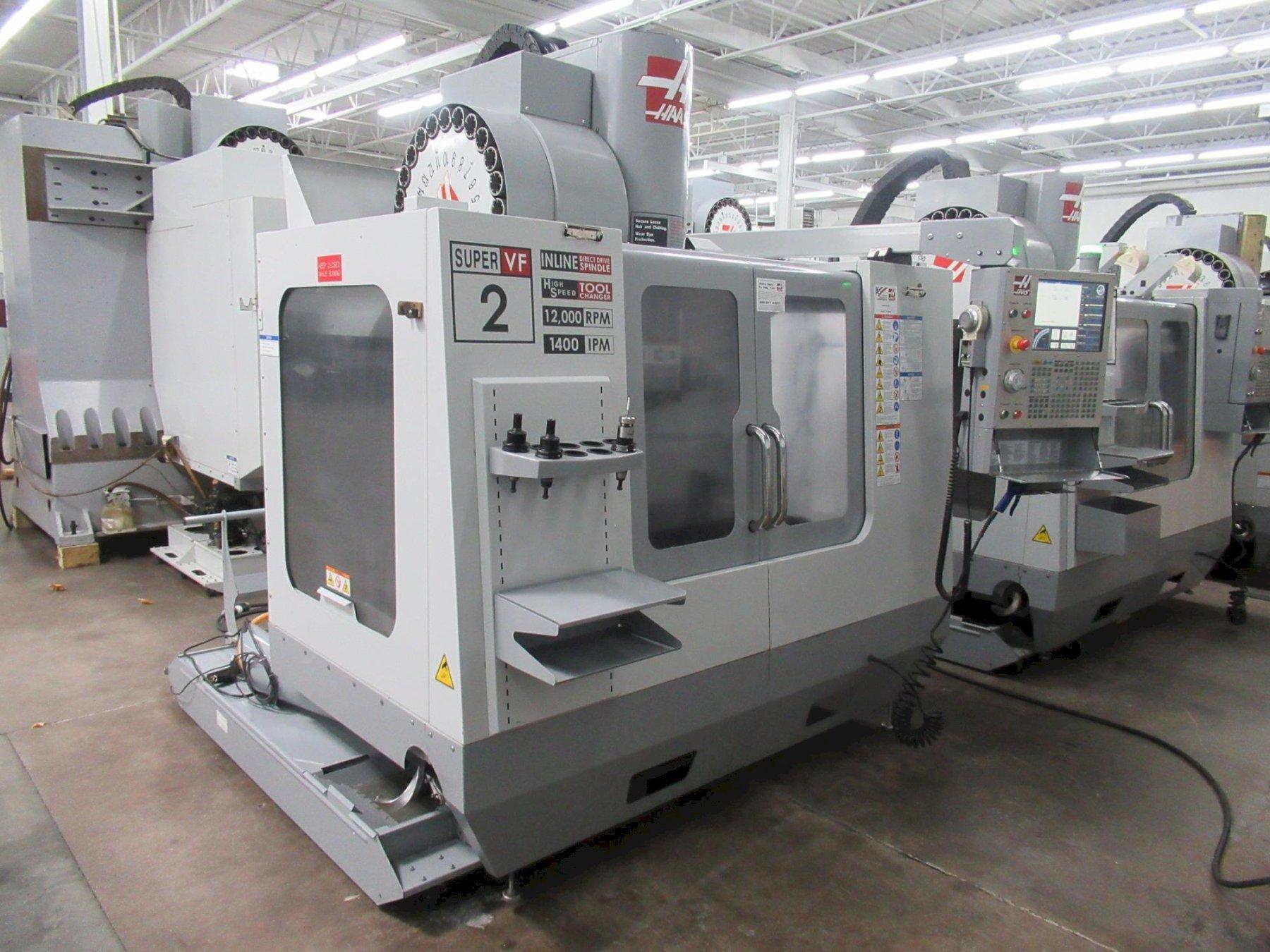

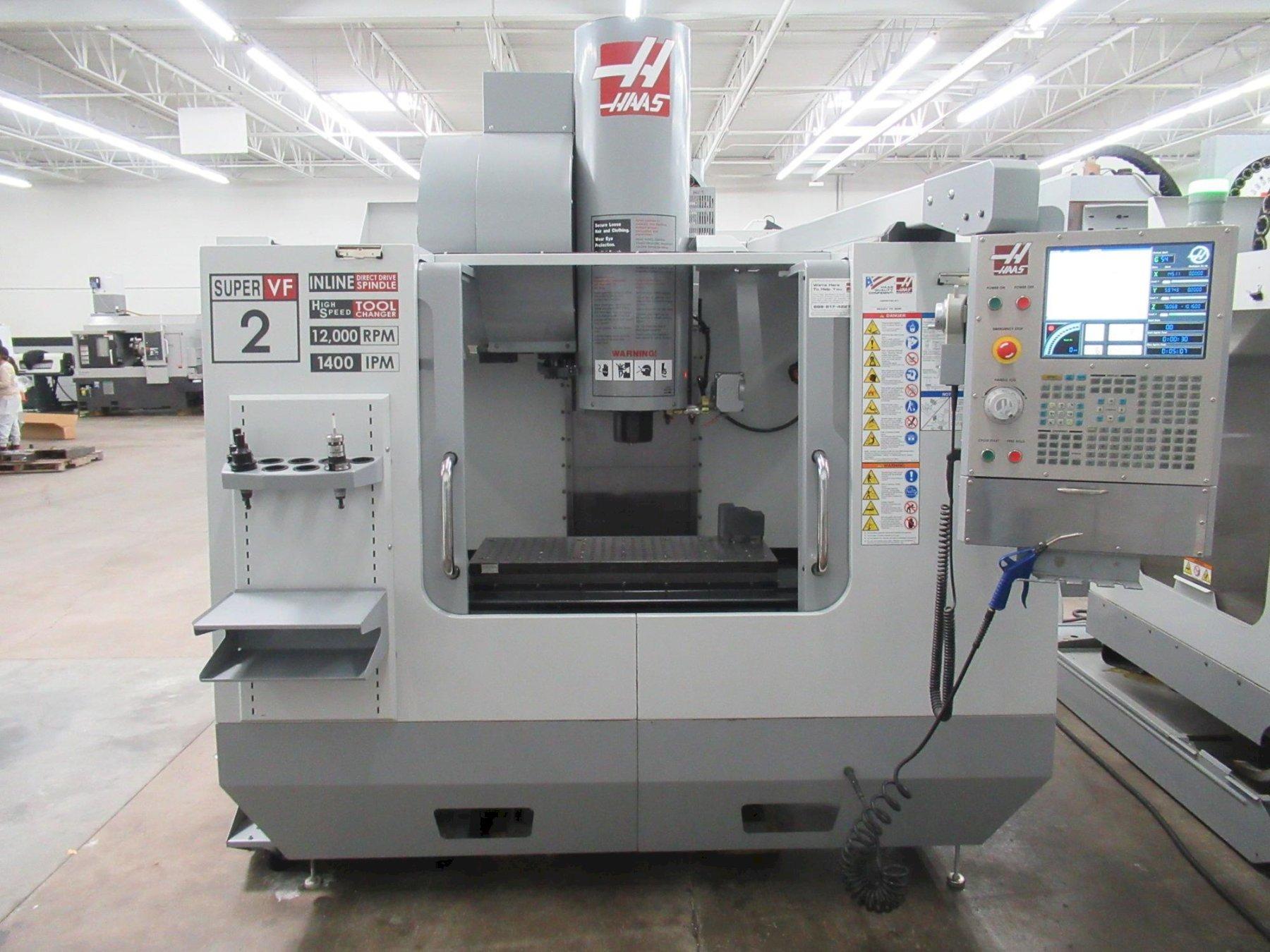

Haas VF-2SS CNC Vertical Machining Center, 12K Spindle, 24 Station ATC, Probing System, Coolant, Chip Auger

Haas VF-2SS CNC Vertical Machining Center, 12K Spindle, 24 Station ATC, Probing System, Coolant, Chip Auger

Name: Used HAAS VF-2SS For Sale 7289
Brand: HAAS
SKU: 7289
Availability: PreOrder

Brand

HAAS

Location

Minnesota

REQUEST FINANCING

Specifications
Files & Videos

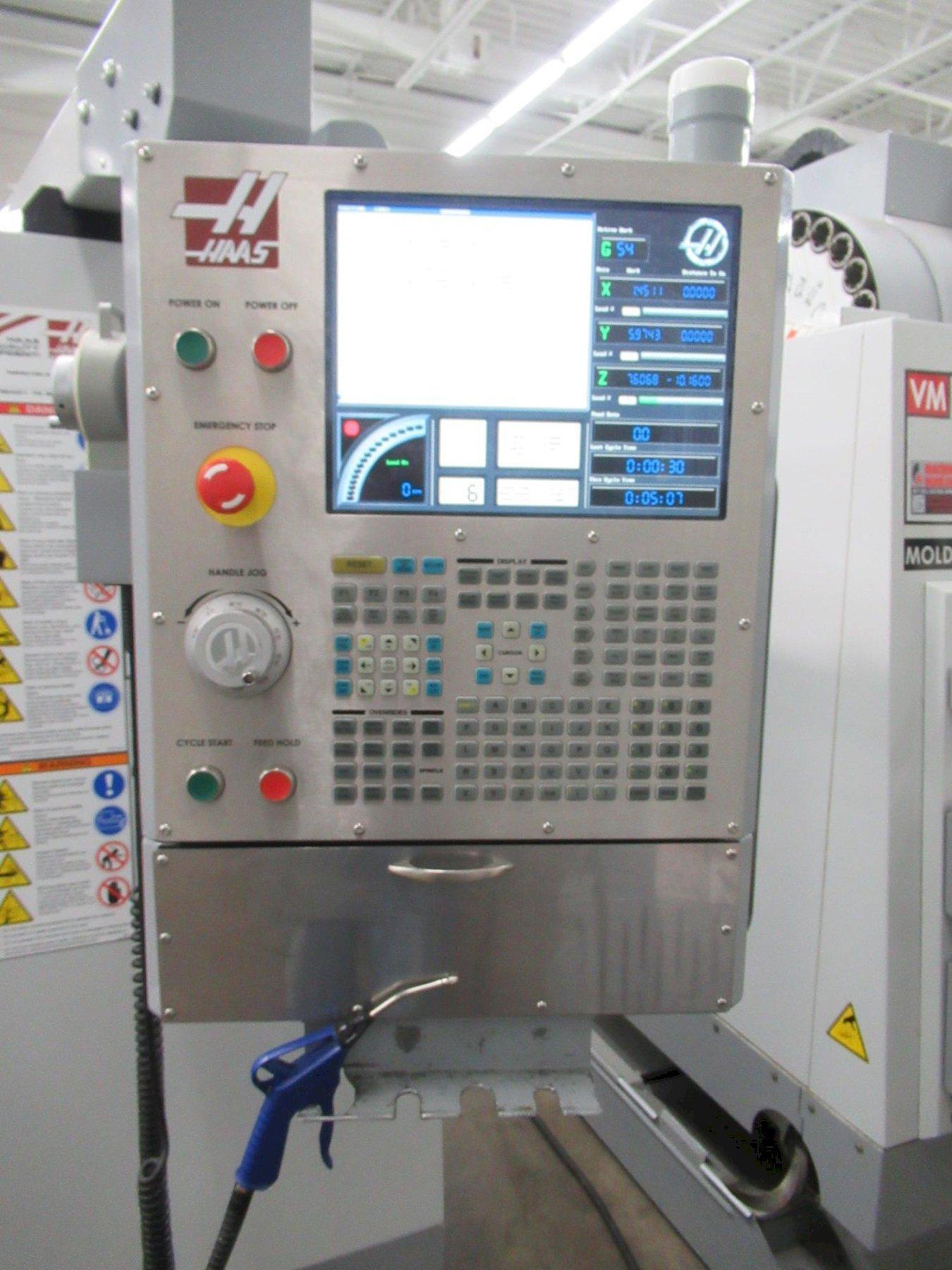

Machine Control: Haas CNC with Coldfire Processor

Table Size: 36" x 14"

Machine Travels (X/Y/Z): 30" x 16" x 20"

Table Capacity: 1,500 Lbs.

Spindle To Table Distance: 4" - 24"

Spindle Taper: CT 40

Spindle Speeds: 0 - 12,000 RPM

Transmission: Direct In-line Spindle Drive

Rapid Traverse Rate (X/Y/Z): 1,400 IPM

Tool Changer Style: Side-Mount, Twin Arm

Tool Changer Capacity: 24 + 1 Tools

Tool Change Time: 1.6 seconds

Max Tool weight: 12 Lbs.

Spindle Drive: 30 HP Vector Drive

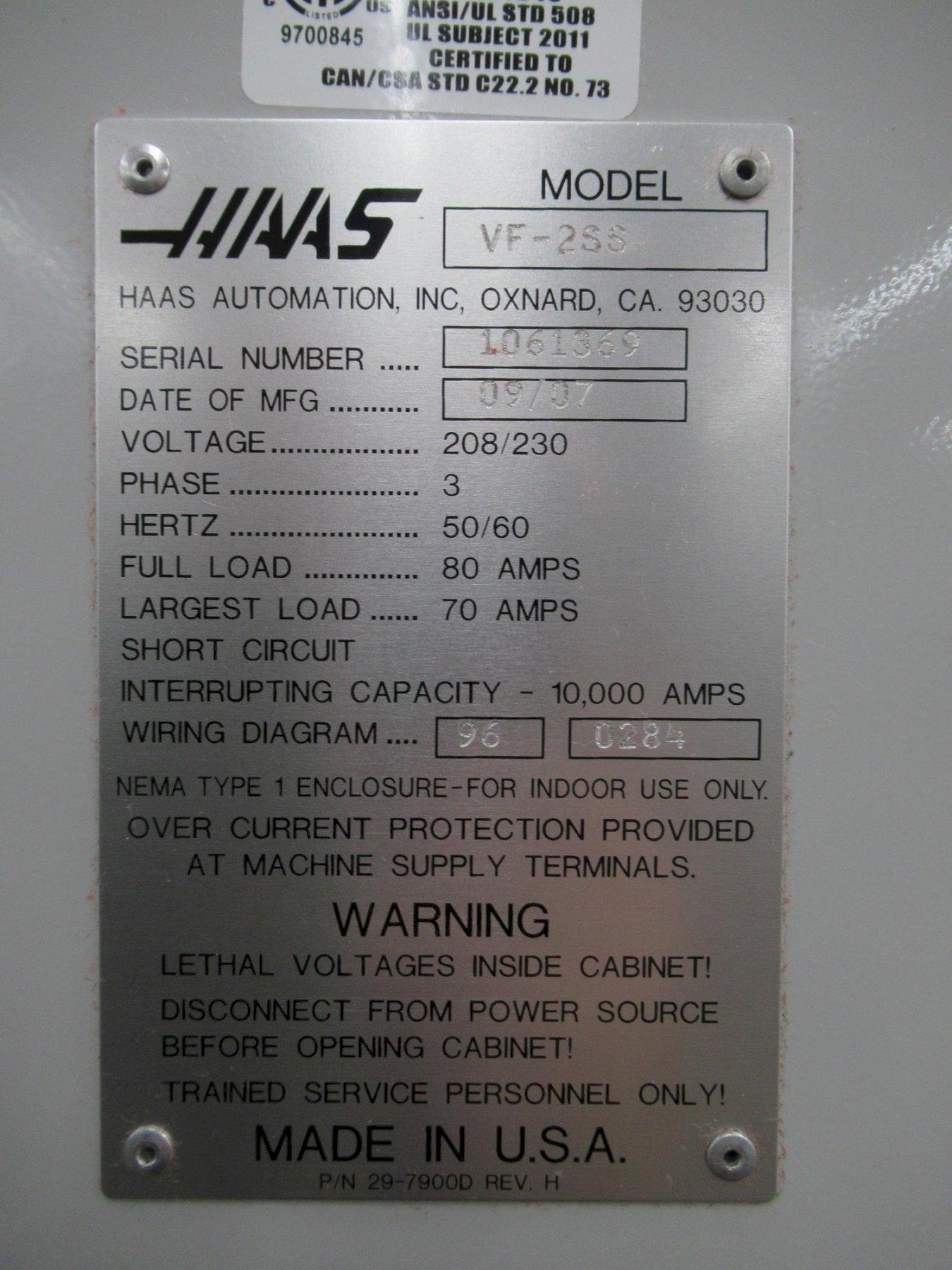

Power Requirement: 208/230 Volt 3 Phase

Description:

Unlock your machining capabilities with the Haas VF-2SS CNC Vertical Machining Center — a high-performance Super-Speed model engineered for precision, speed and efficiency. At Machinesused.com, we specialize in buying, selling and consigning premium used CNC equipment — including this industry-leading VMC.

Equipped With:

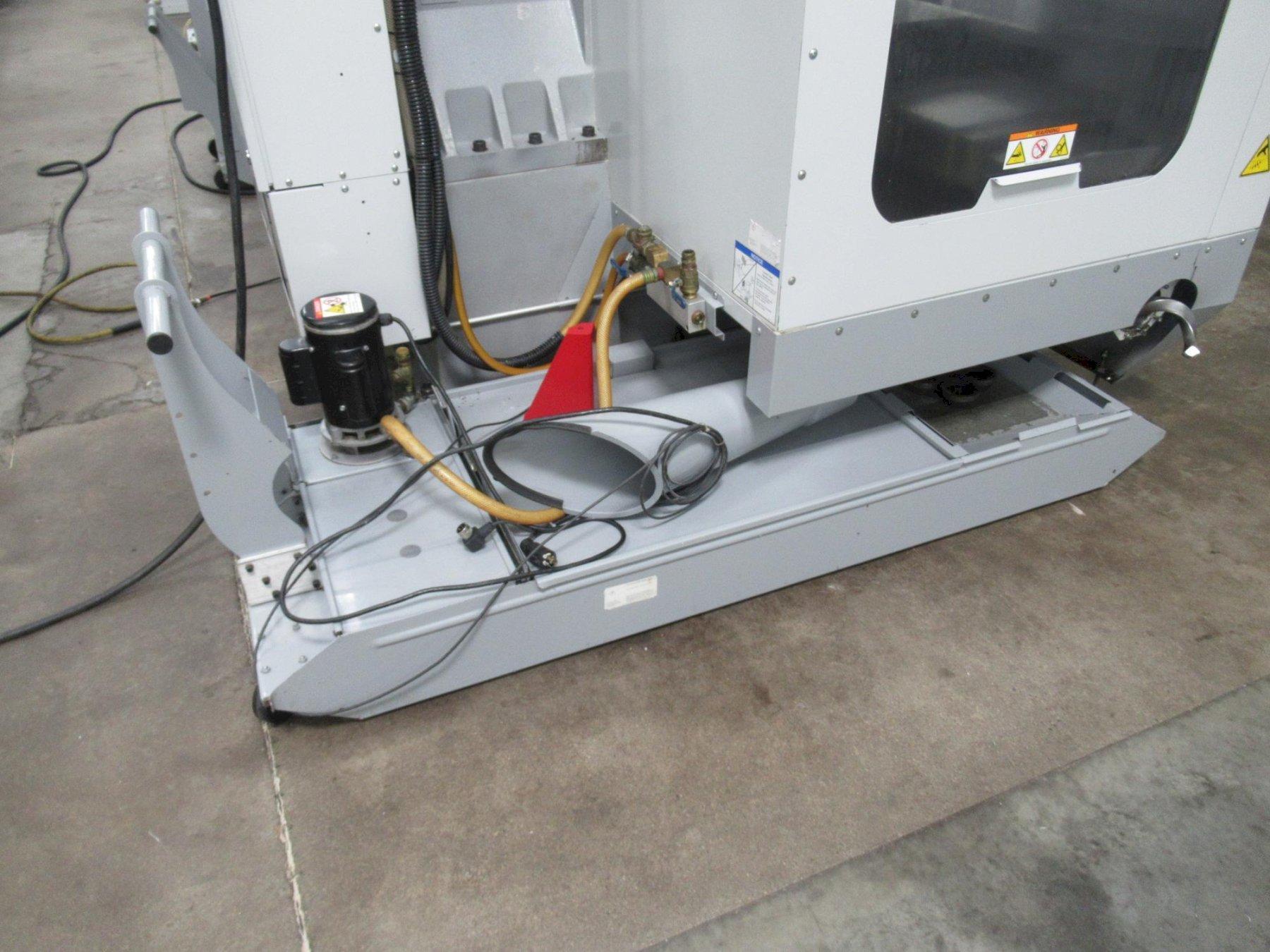

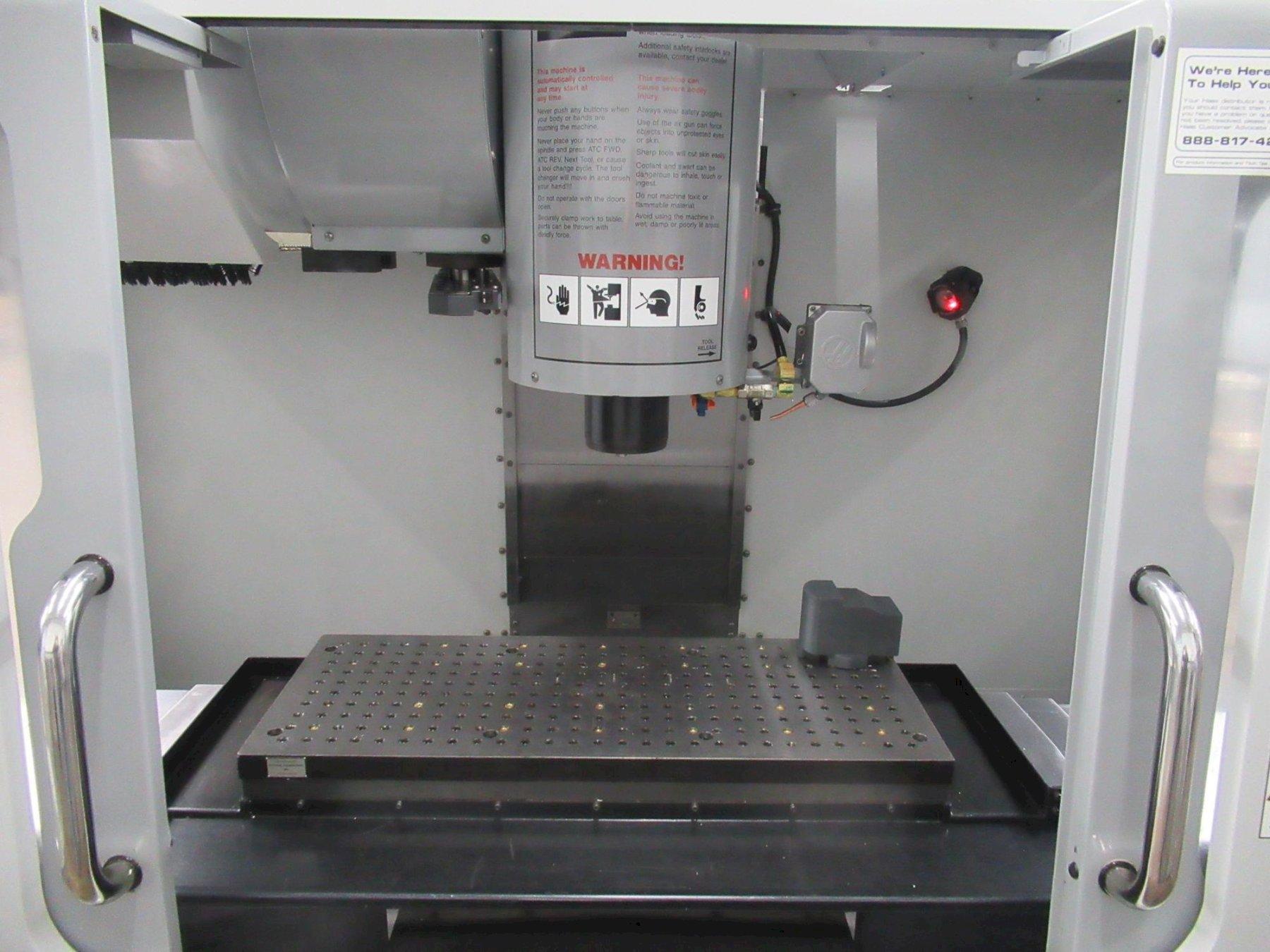

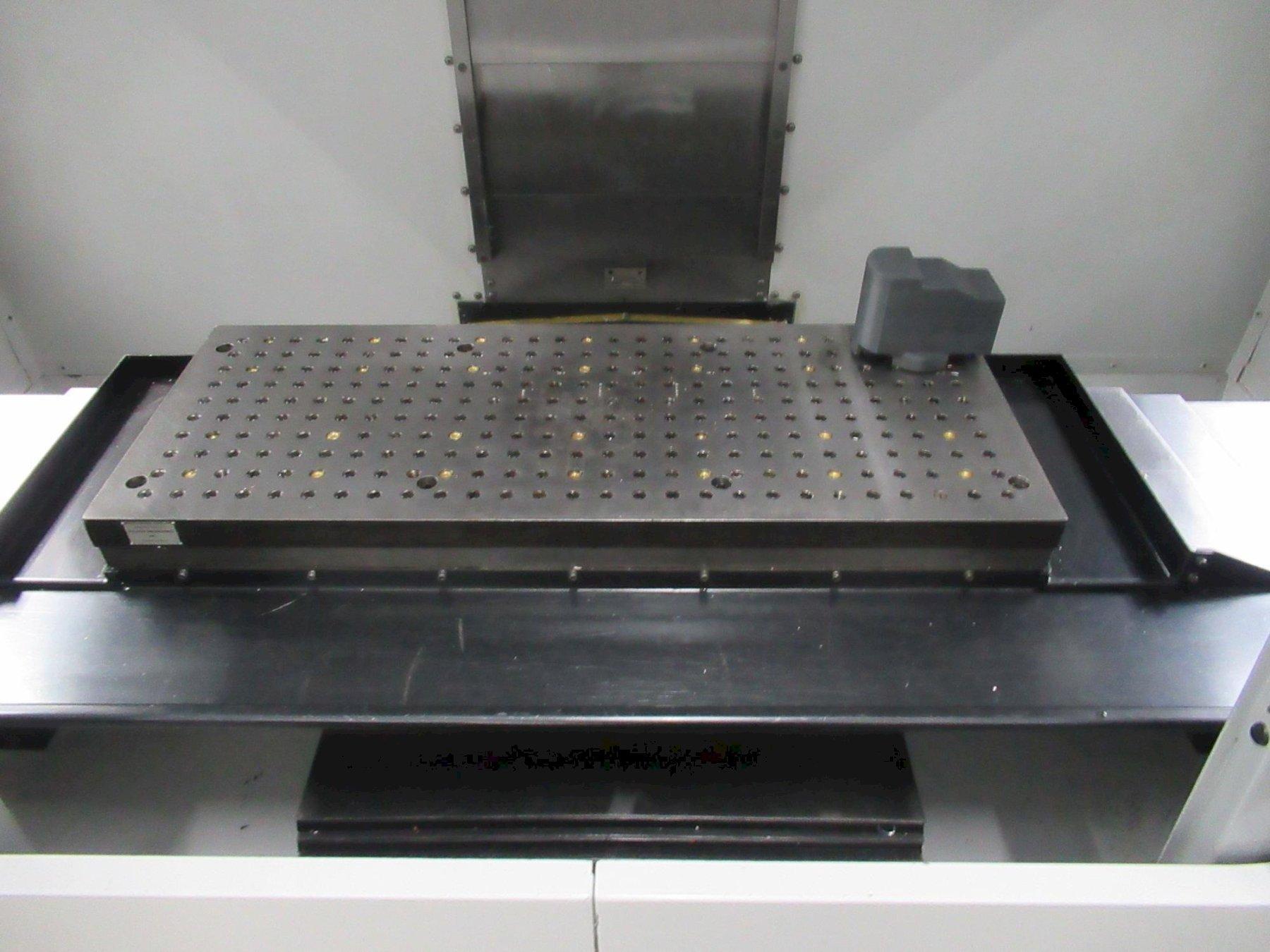

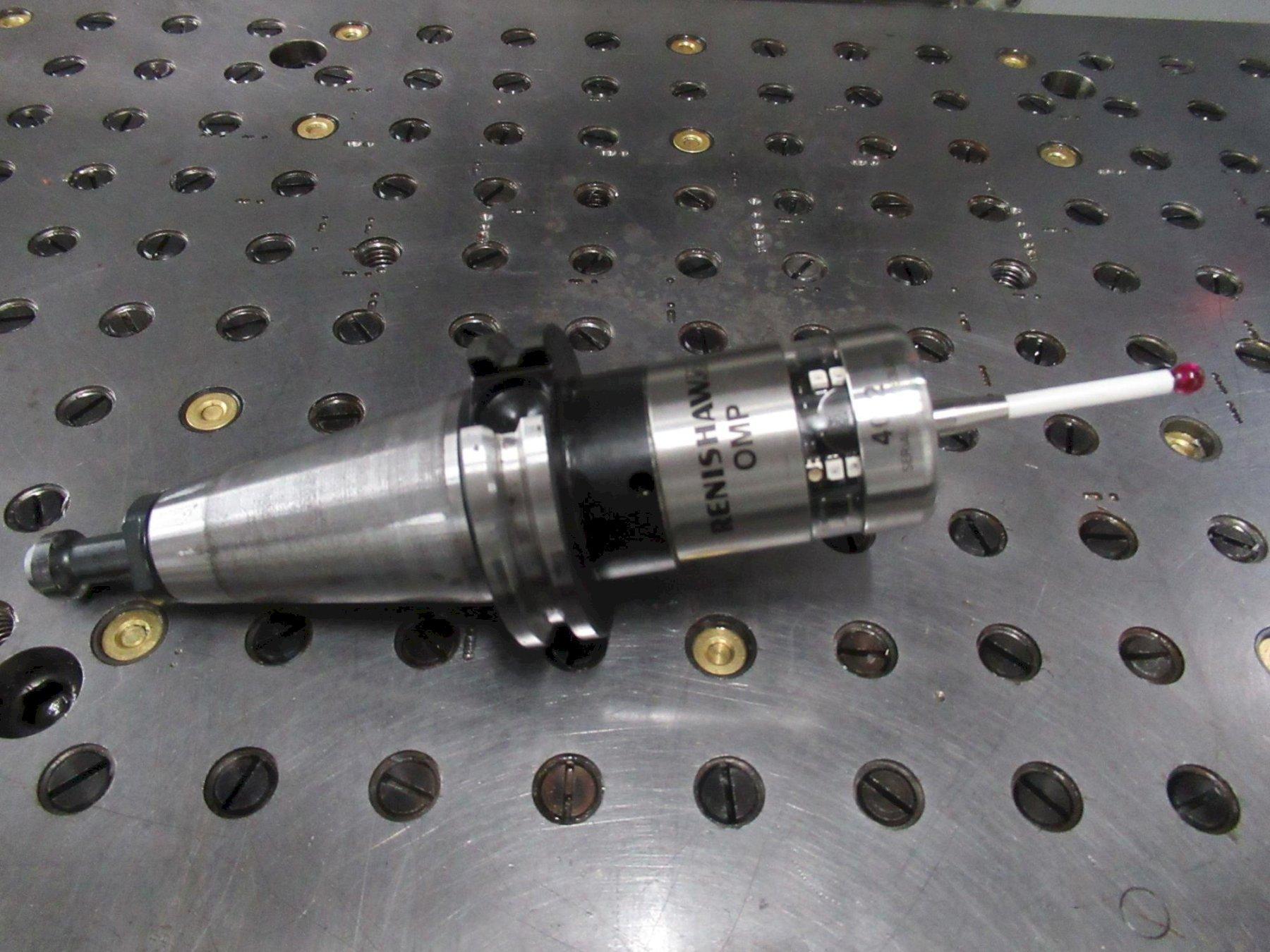

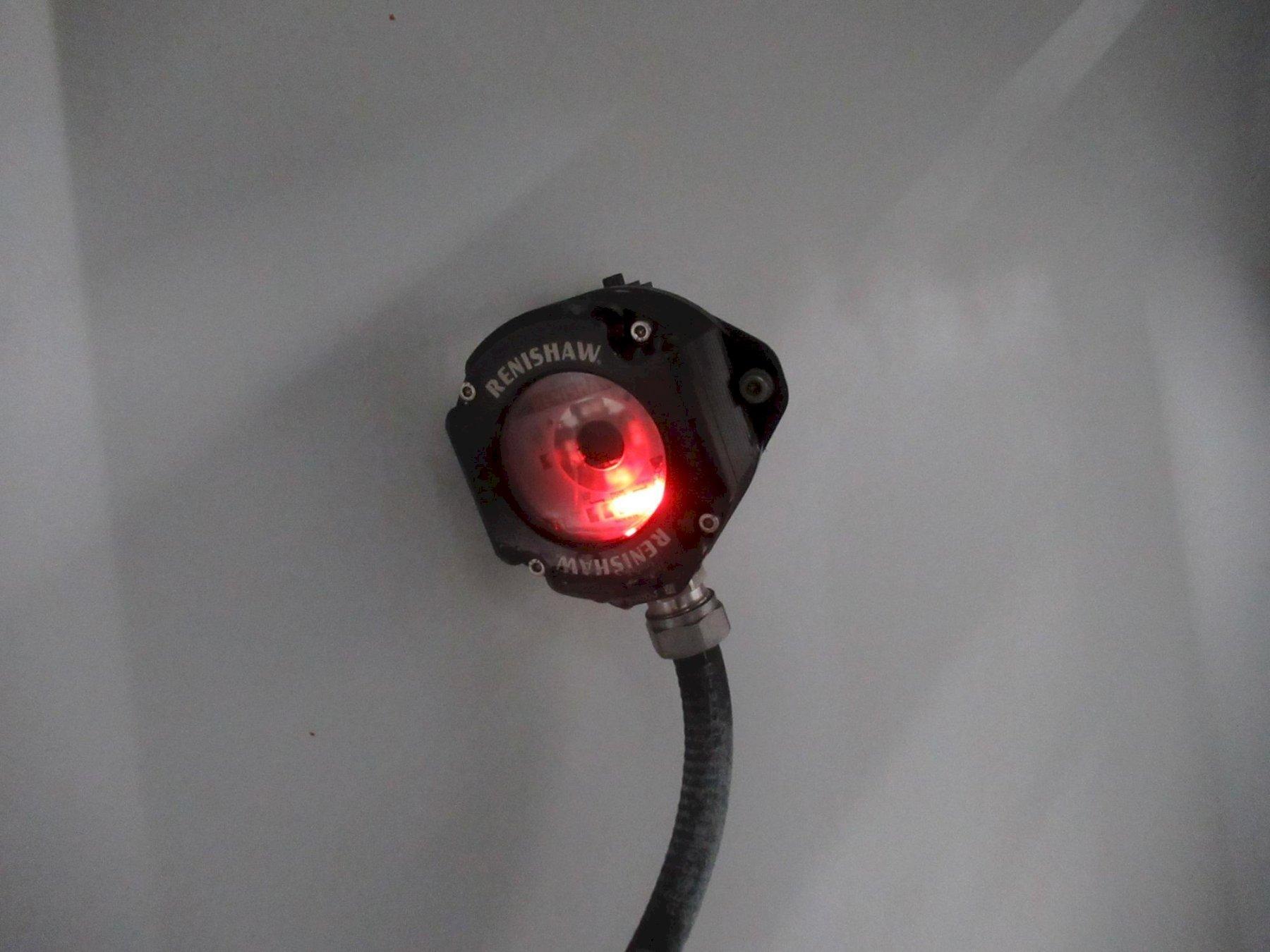

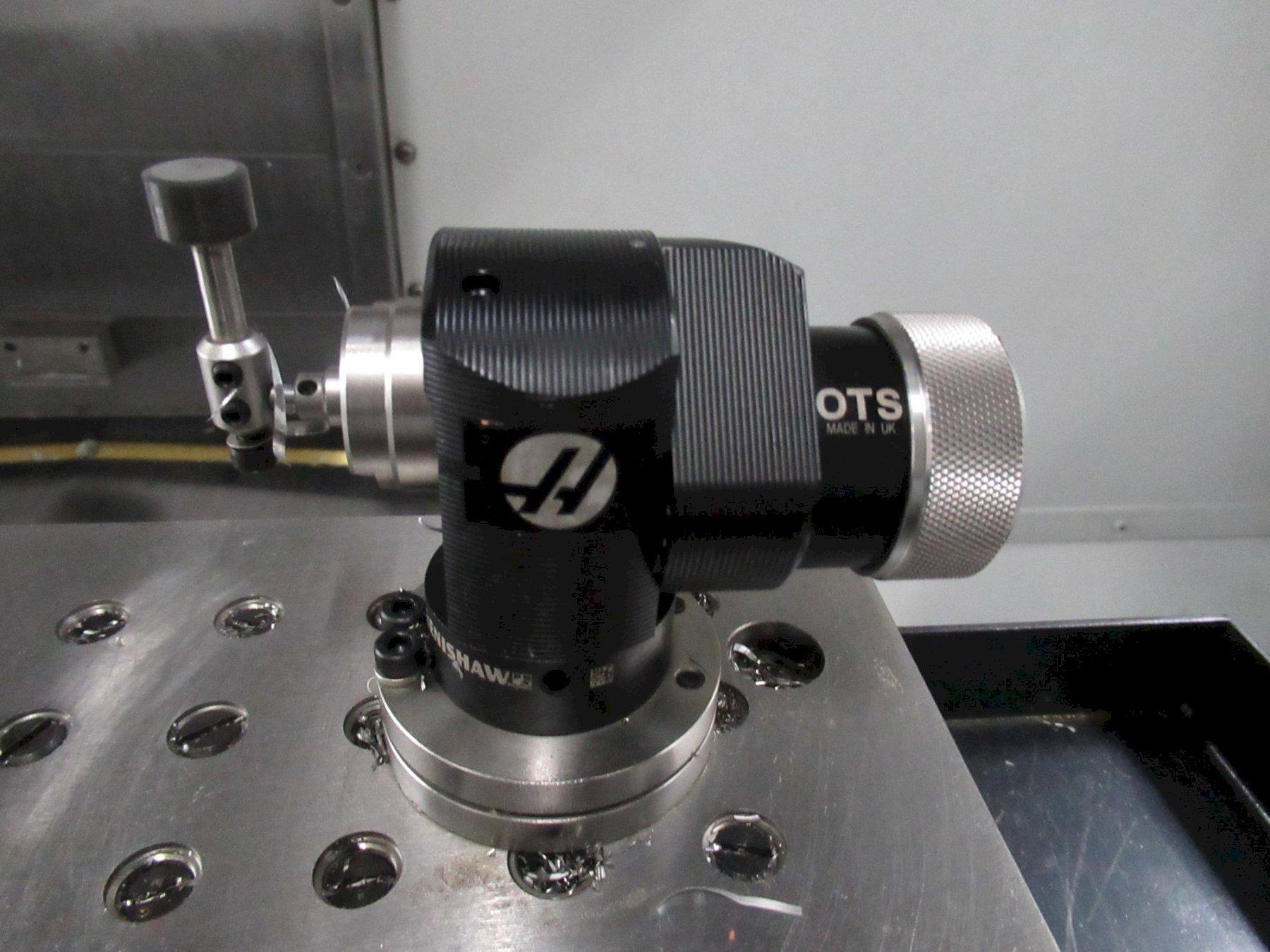

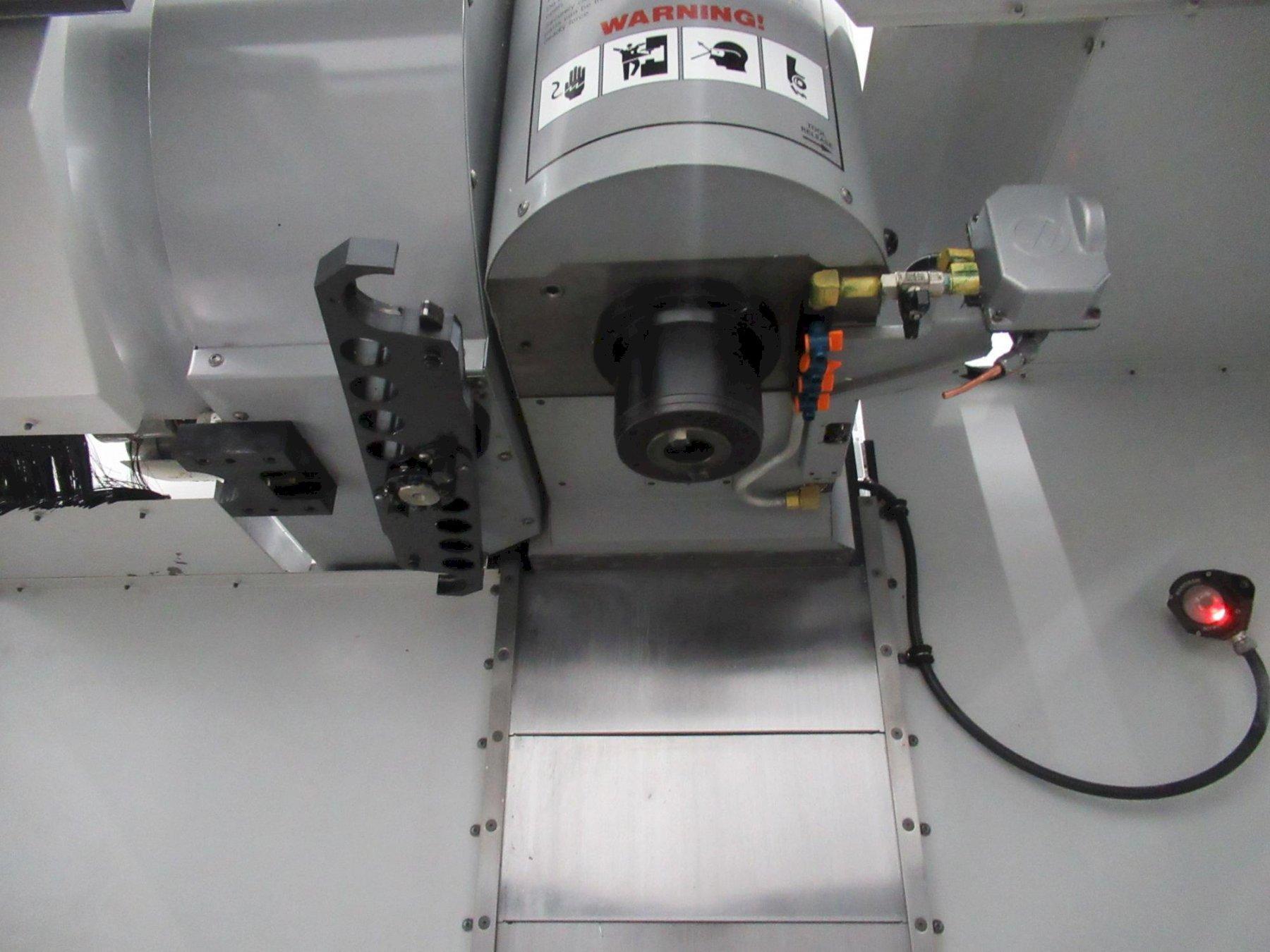

Haas CNC Control Coldfire Processor, Software Version 15.04 E, 12K RPM Spindle, CAT 40 Spindle Taper, 24 Station Side Mount Twin-Arm Tool Changer, Chip Auger, Rigid Tapping, Coolant Tank and System, Programmable Coolant Nozzle, Renishaw Tool and Parts Probing System, Remote Jog Handwheel, USB Port, Stevens Engineering 36" x 14" Fixture Plate Mounted to Table, Drilled and Tapped on 1.25" Centers.

Electrics:

208/230 Volt, 3 Phase
