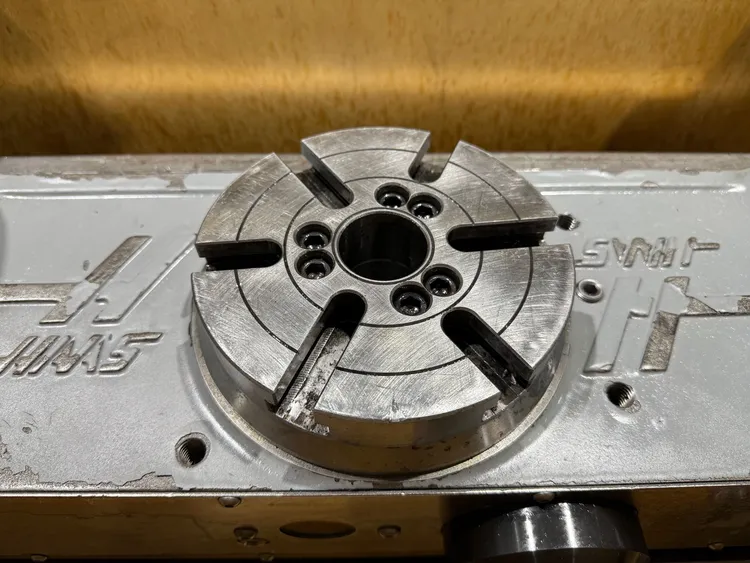

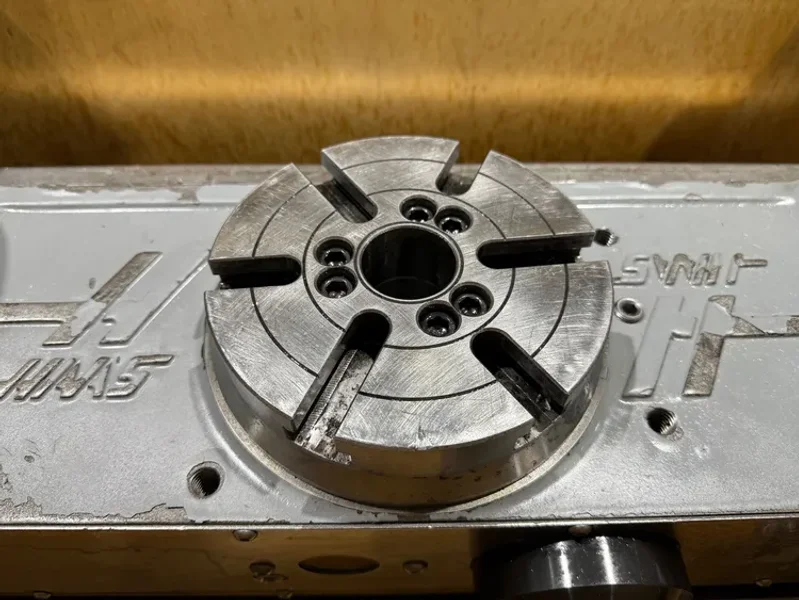

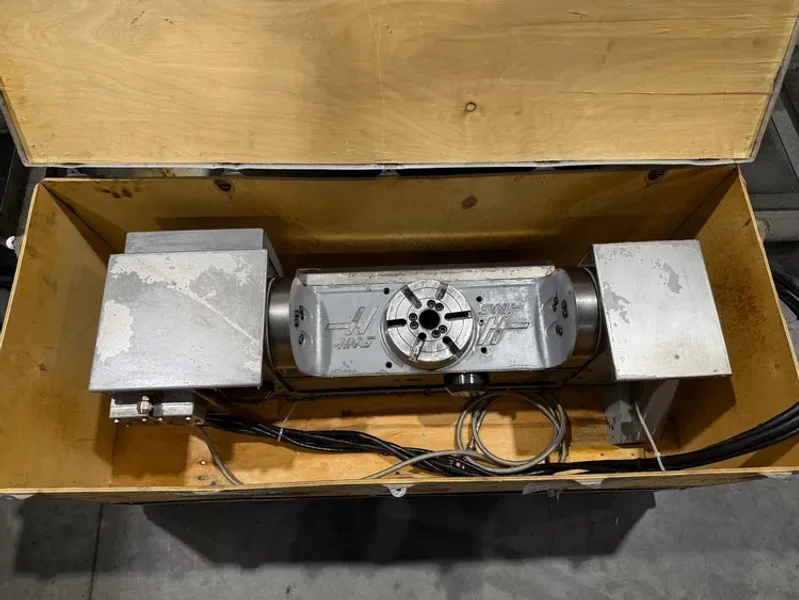

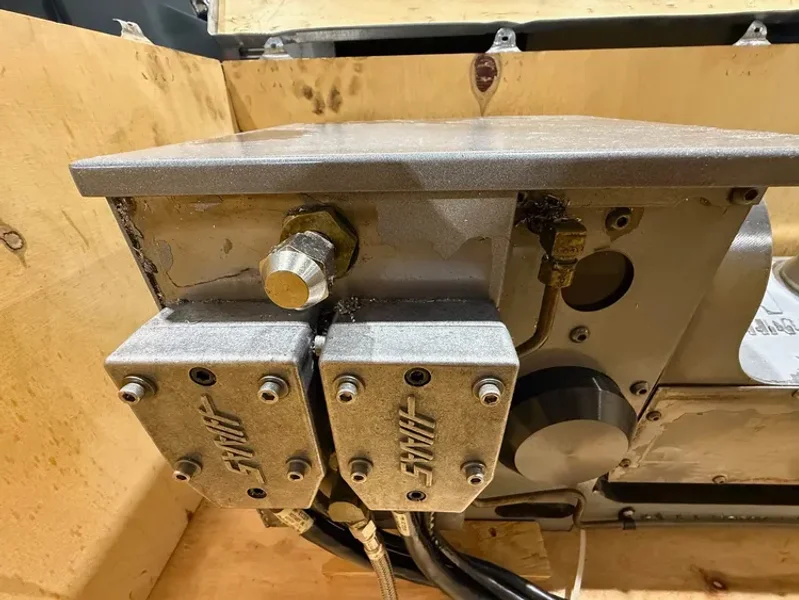

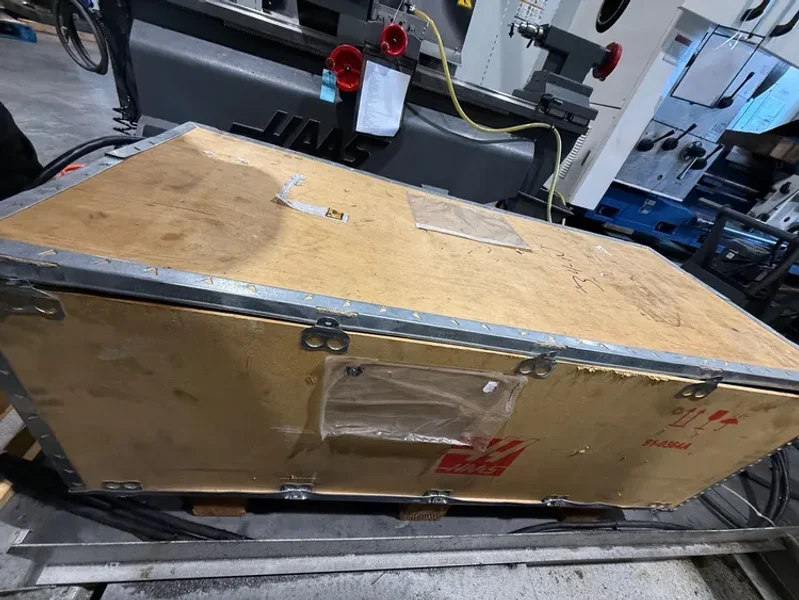

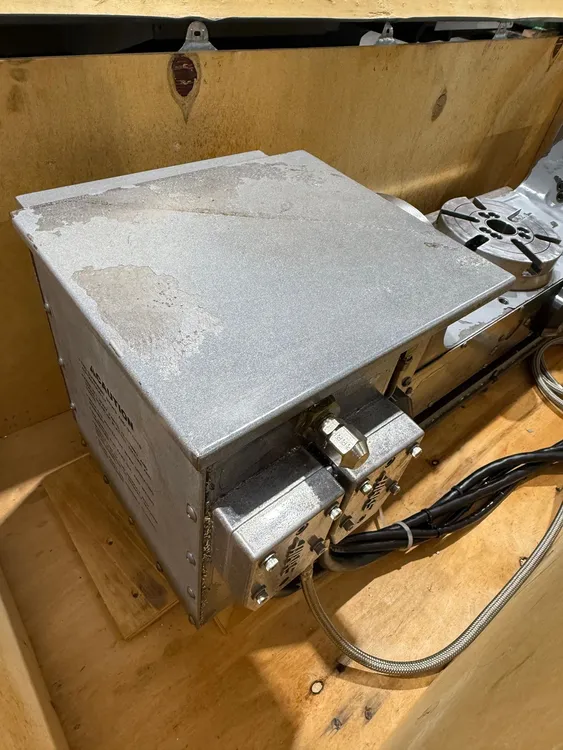

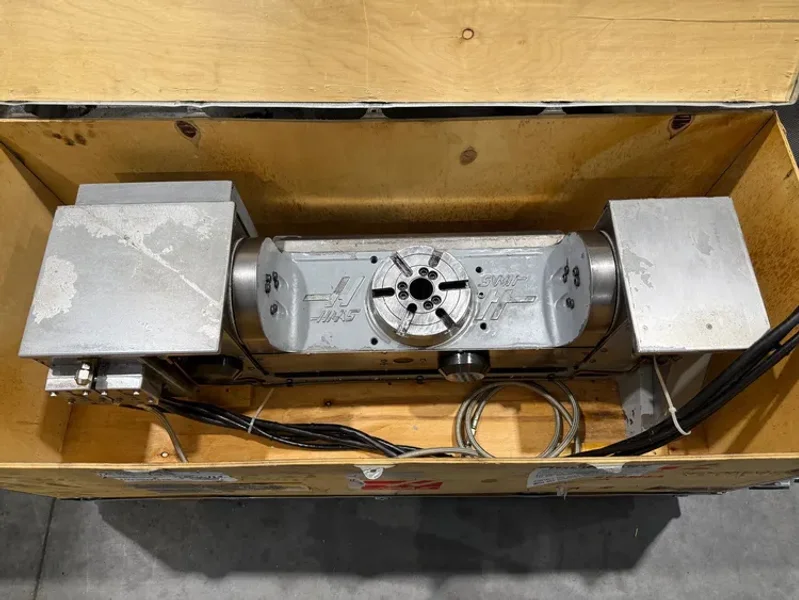

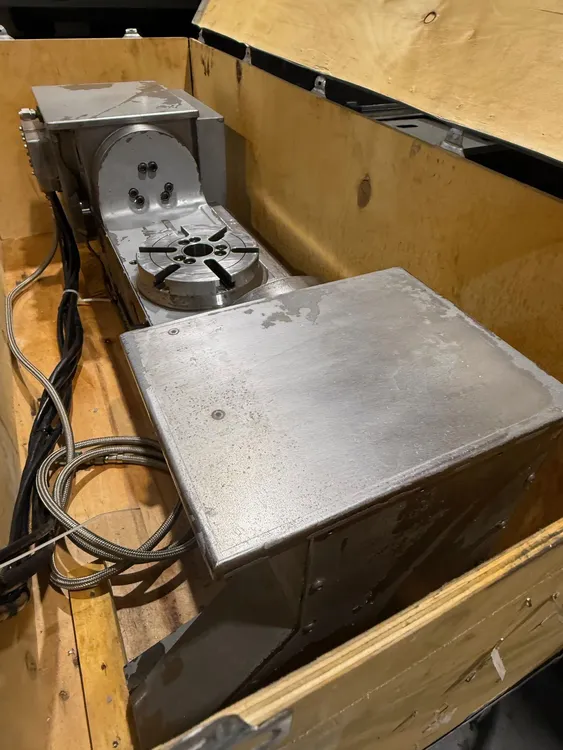

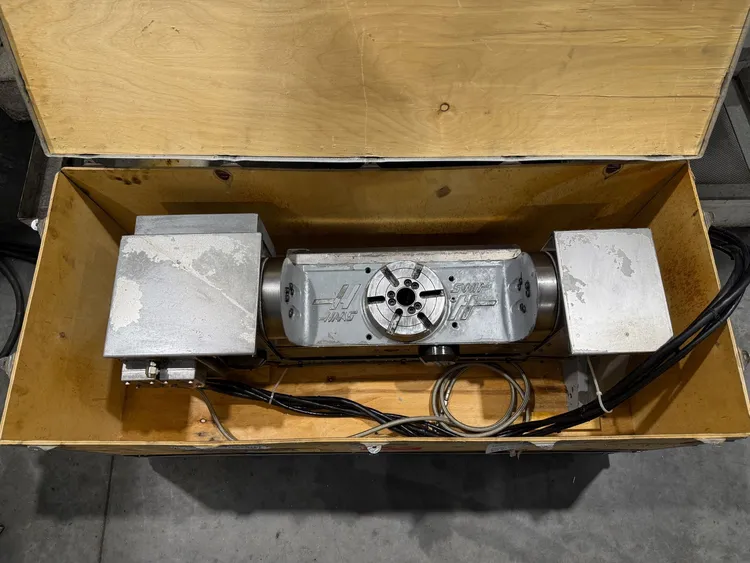

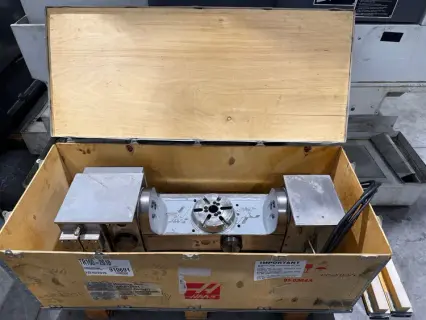

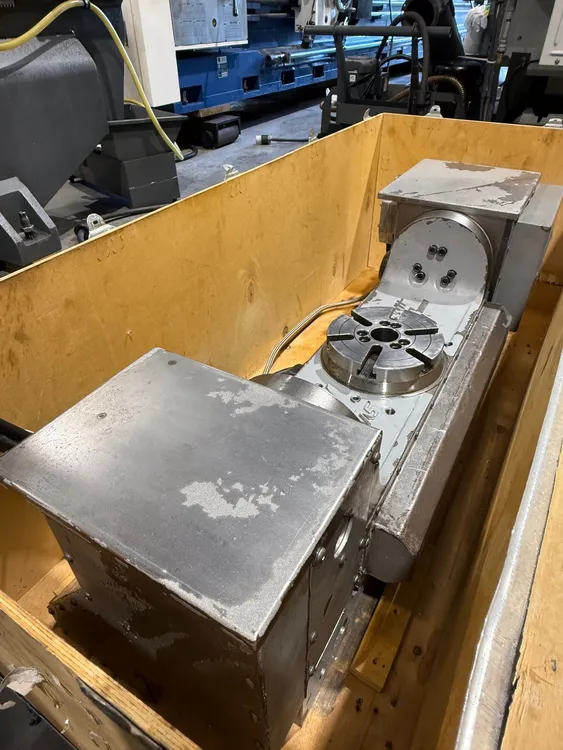

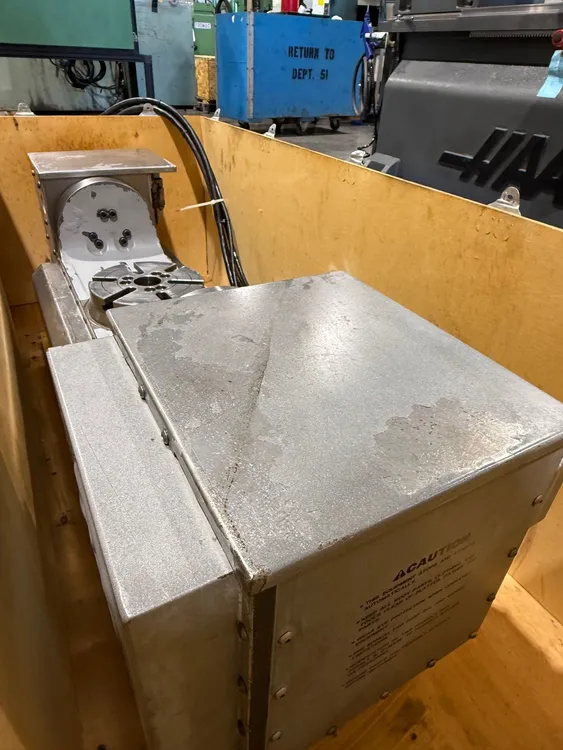

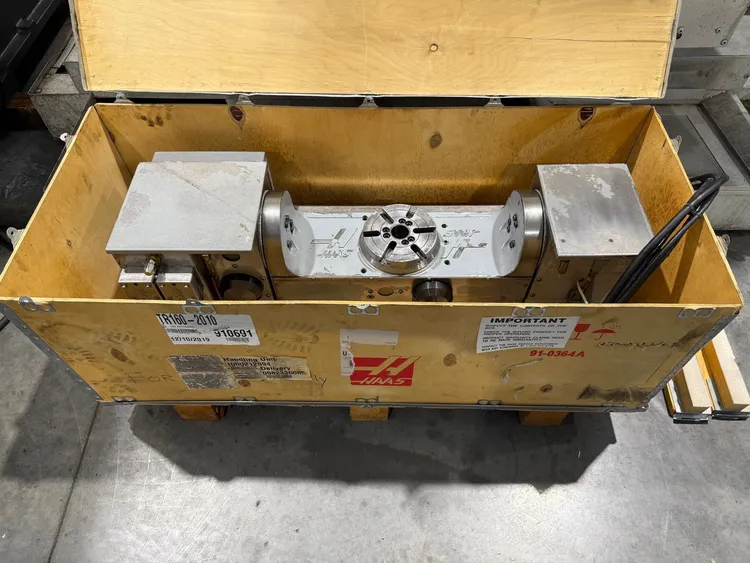

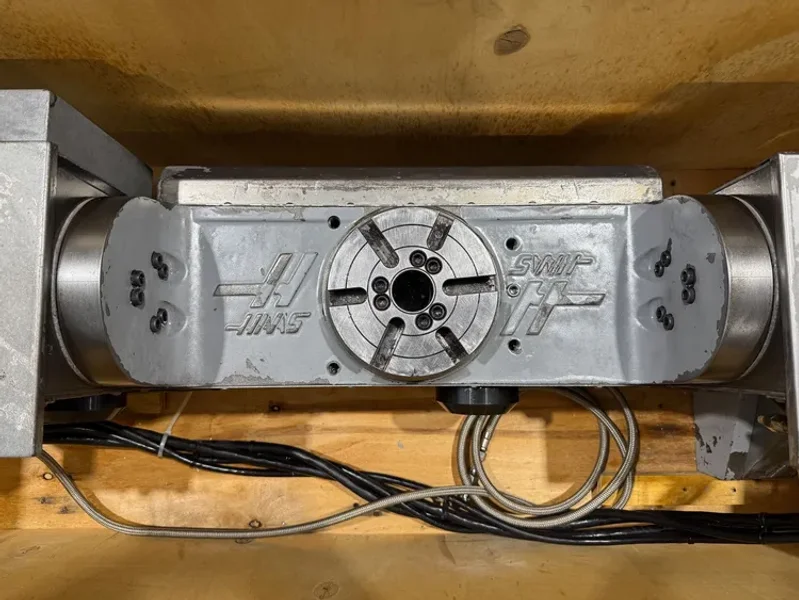

HAAS STR160 2 Axis CNC Rotary Table Trunnion Type 2007’ USA #7801
Brand
Category
Model
SRT-160H
Stock #
7801
Year
Not specified
Condition
Not specified
Location
Not specified
|
HAAS STR160 2 Axis CNC Rotary Table Trunnion Type 2007’ USA #7801

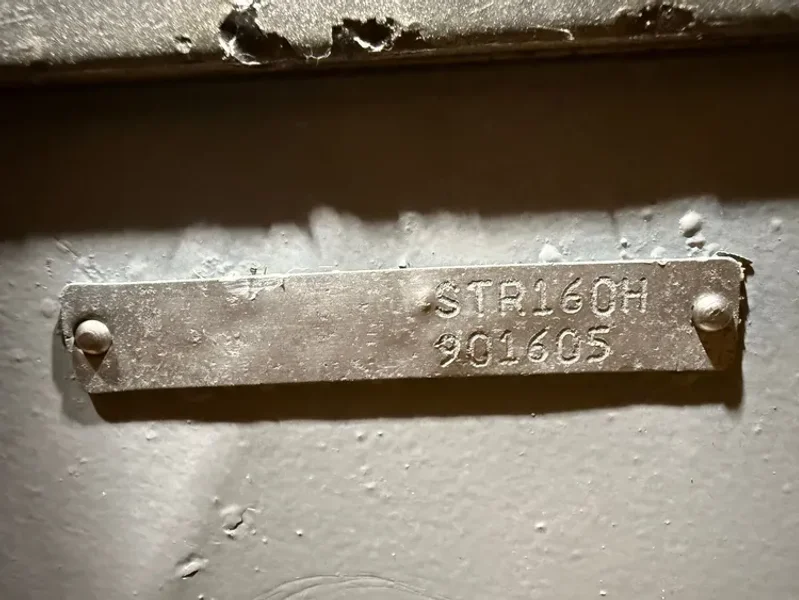

Reference #7801 Model # STR160H Serial # 901605 Year of manufacture- 2007’ Platter diameter- 6.3” Max weight on Platter- 80 Lbs. Part swing max- 17.5” Number of T-Slots- (6) @ 60° Tilt A Axis Max speed- 80° / sec Max torque- 150 ft/lbf Backlash- 30 arc / sec Gear ratio- 63:1 Timing- 2:1 Brake torque @ 100 PSI- 200 ft/lbf Max rotation / step- +/- 120° Resolution- 0.001° Accuracy- +/- 15 arc/sec Repeatability- 10 arc/sec Rotary B axis Max speed- 80° / sec Max torque- 100 ft/lbf Runout max- 0.0005’’ Backlash- 30 arc / sec Gear ratio- 63:1 Timing- 2:1 Brake torque @ 100 PSI- 100 ft/lbf Max rotation / step- 999.999° Resolution- 0.001° Accuracy- +/- 15arc/sec Repeatability- 10 arc/sec |
