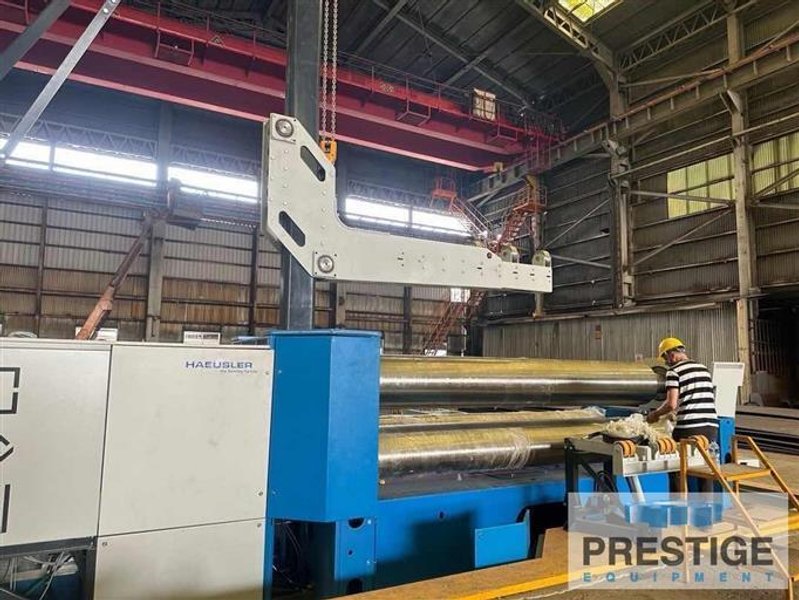

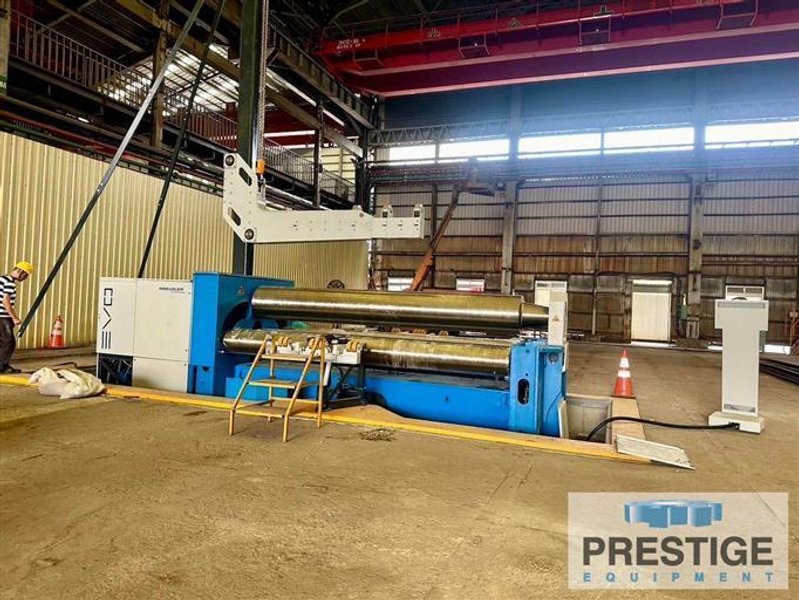

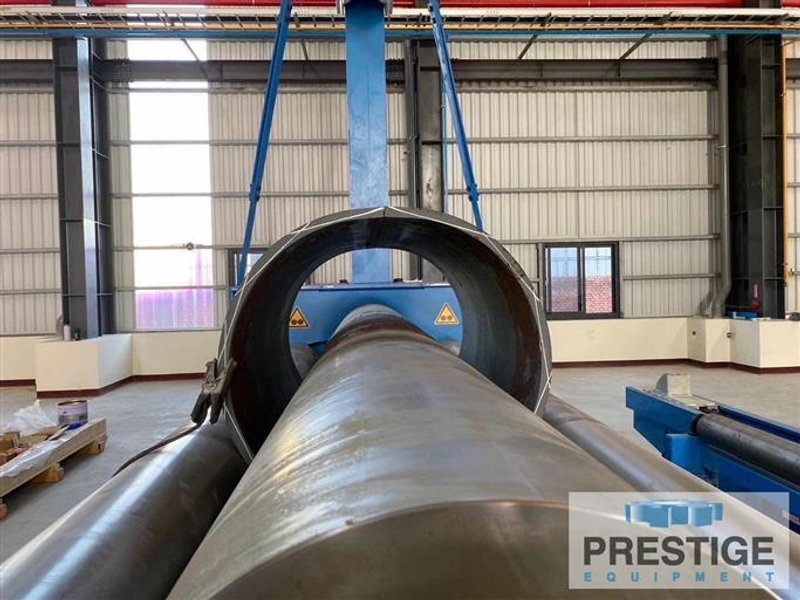

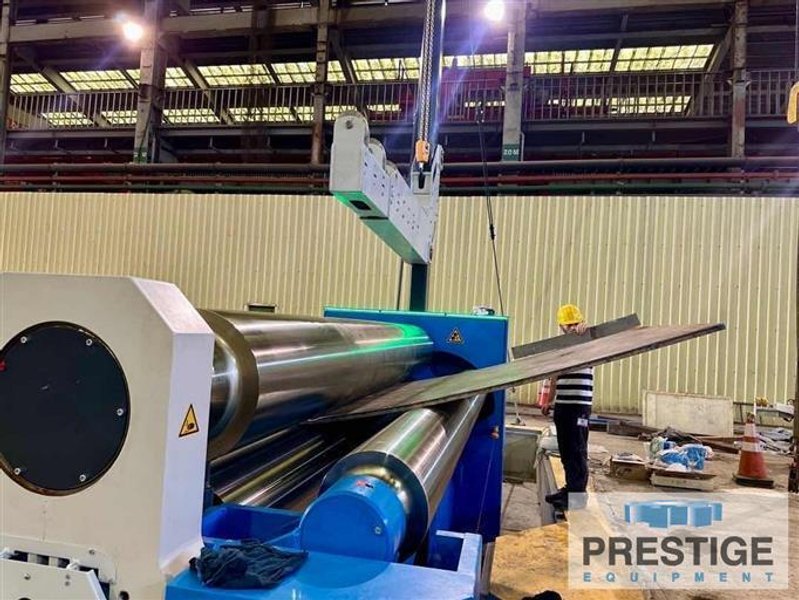

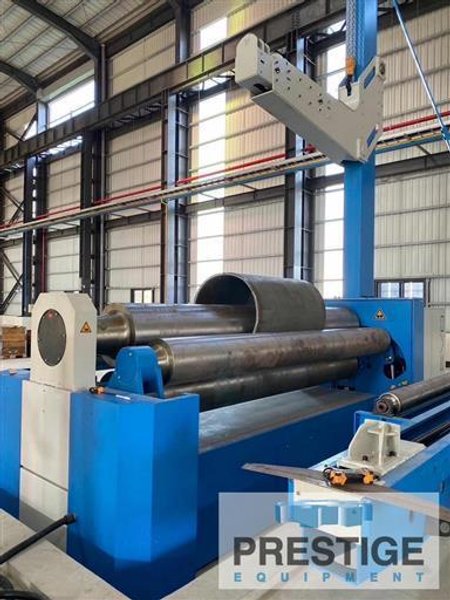

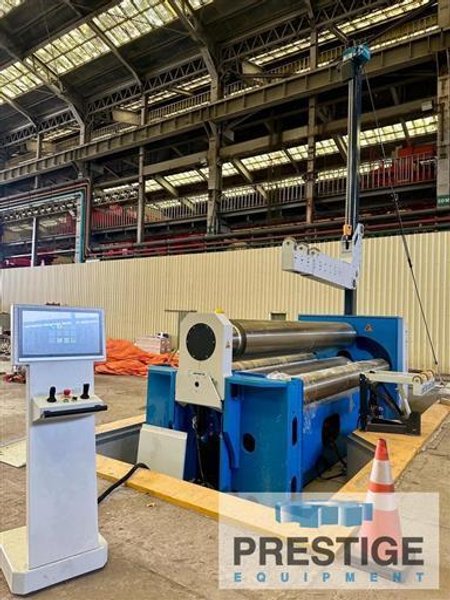

Haeusler EVO 42196 1.49" x 165" 4-Roll Plate Bending Machine

SPECIFICATIONS:
Pre-Bending Capacity 1.33"
Rounding Capacity 1.49"
Surface Length of Rolls 165.35"
Top Roll Diameter 21.25"
Bottom Roll Diameter 19.68"
Side Roll Diameter 14.37"
Min. Bending Dia. (Top Roll 21.25") 23.42"
Min. Bending Dia. (Top Roll 14.5") 16.14"
Operating Speed 0-314 IPM
Main Drive Motor 73.75 HP
Overall Dimensions (LxWxH) 294" x 82" x 95"
Approximate Shipping Weight 77,200 Lbs



Equipped With:

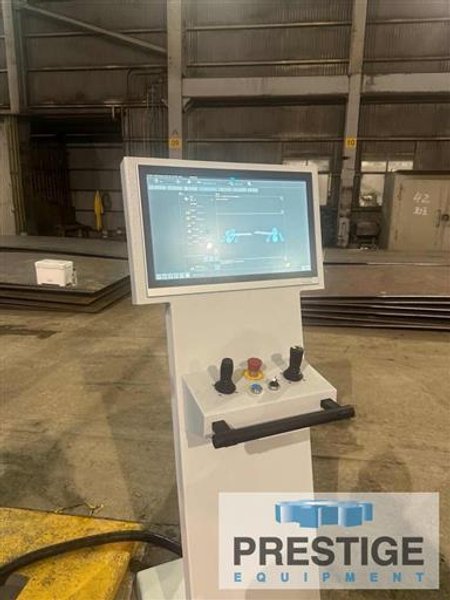

BENDtronic CNC Control with 21.5" Touch Screen Display
Autonomous Bending Package
Installed Remote Access Service for Online Diagnosis
VSA Technology (Allows Bending of Thicker Plates and Samller Diameters)
Automatic Pressure Compensation Between Top and Bottom Roll
Electro-Mechanical Holding System for Rotation of Top Roll
Automatic Protection of Hydraulic System against Overload
Continuous Pressure Adjustment for Bottom Roll
Tilting of Bottom and Both Side Rolls for Cone Bending
Upper Plate Supporting Device
Lateral Side Supporting Device

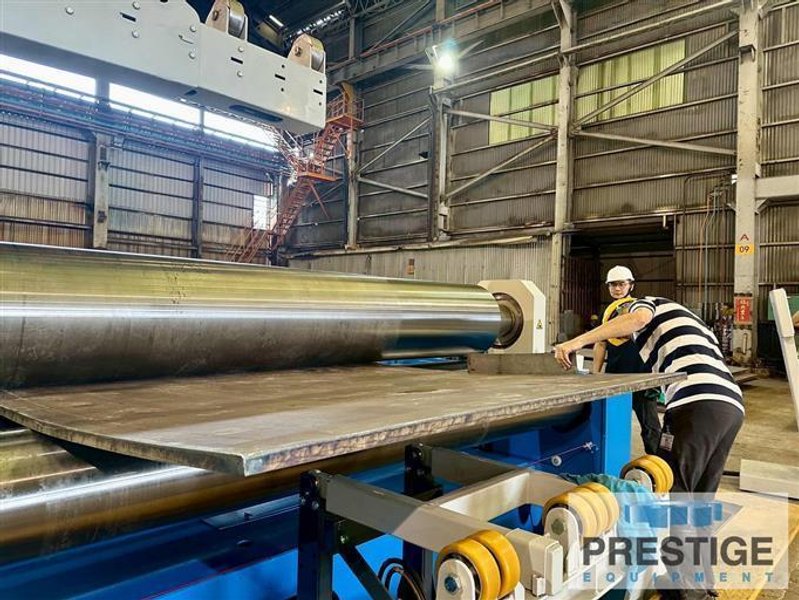

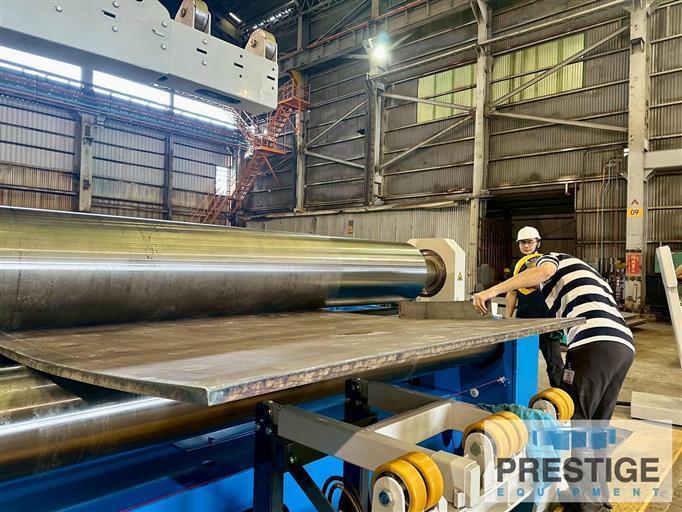

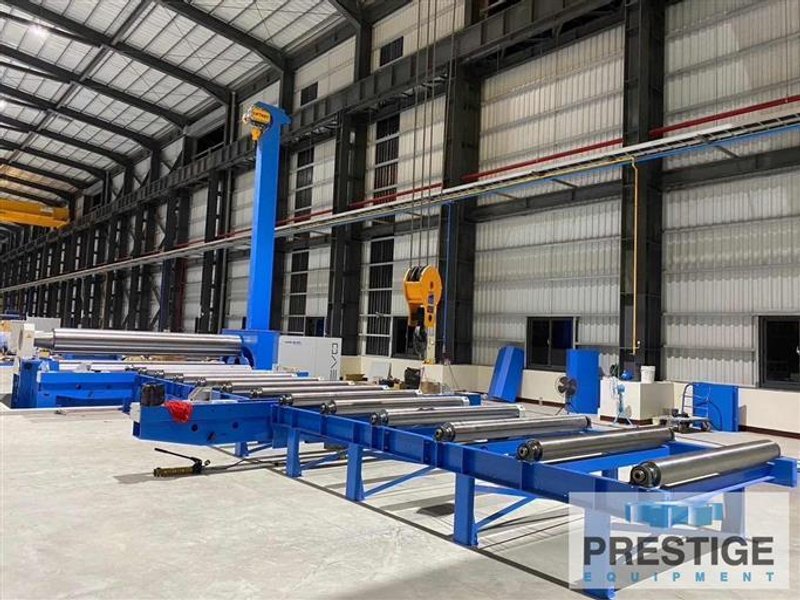

Plate Table Infeed
4-Roll Machine Design


NOTE: Brand New, Customer Lost Job
