Haas VF-4 CNC Vertical Machining Center, Maincon CNC Control, 4th Drive, 24 ATC, Thru Spindle Coolant, 8100 RPM Gearbox Spindle, New 2013- Auction Item

Haas VF-4 CNC Vertical Machining Center, Maincon CNC Control, 4th Drive, 24 ATC, Thru Spindle Coolant, 8100 RPM Gearbox Spindle, New 2013- Auction Item

Name: Used HAAS VF-4 For Sale Lot No.: 135
Brand: HAAS
SKU: Lot No.: 135
Availability: PreOrder

Brand

HAAS

Location

Minnesota

REQUEST FINANCING

Specifications
Files & Videos

View Auction Item:https://www.machinesused.com/lots/48096

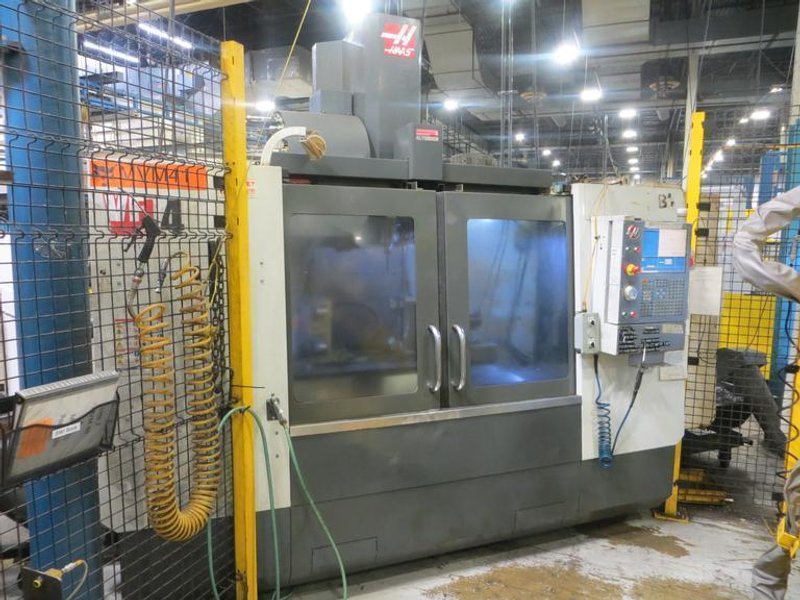

Lot 135: Haas VF-4 CNC Vertical Machining Center, Maincon CNC Control, 4th Drive, 24 ATC, Thru Spindle Coolant, 8100 RPM Gearbox Spindle, New 2013

Equipped With:

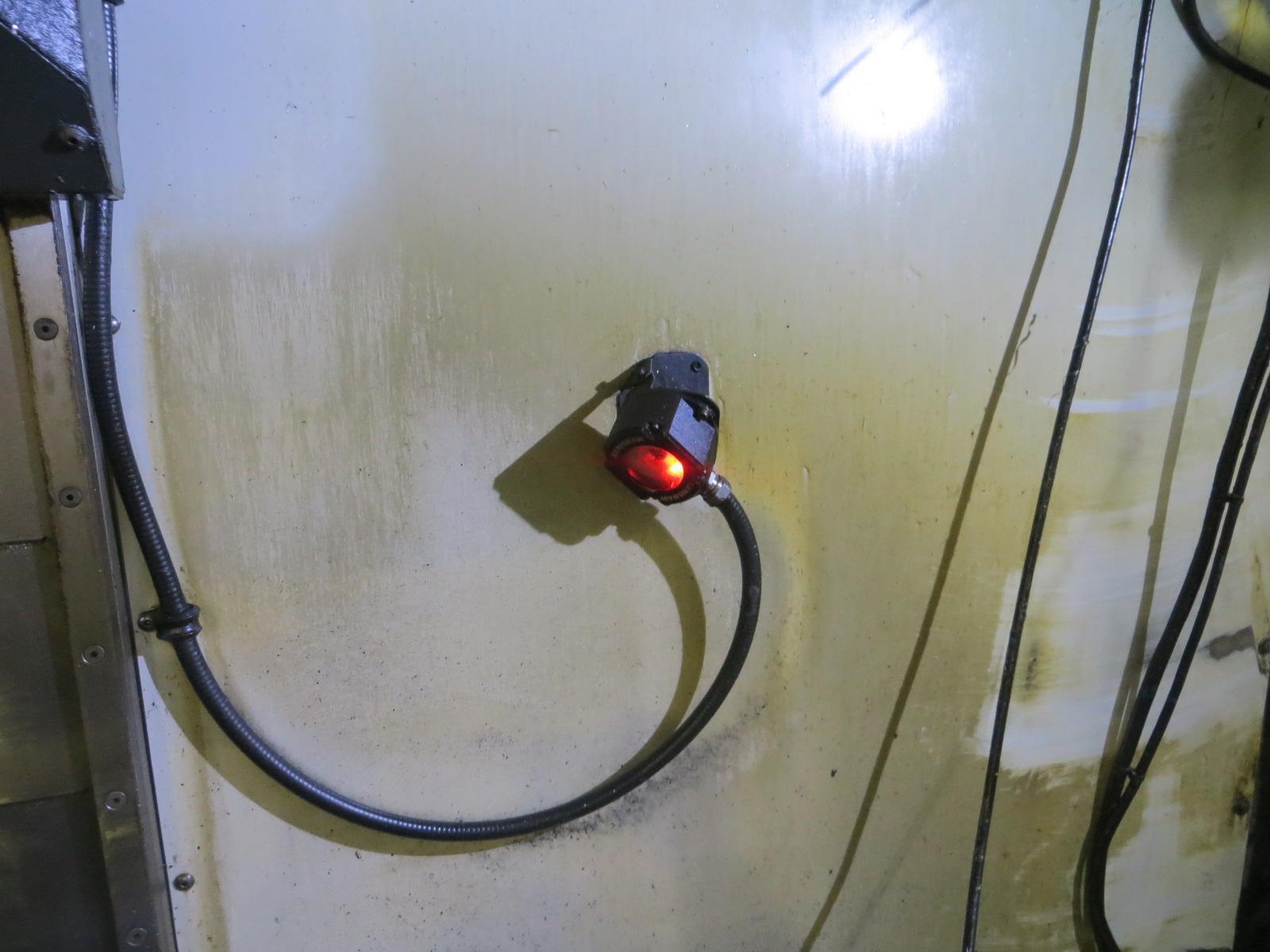

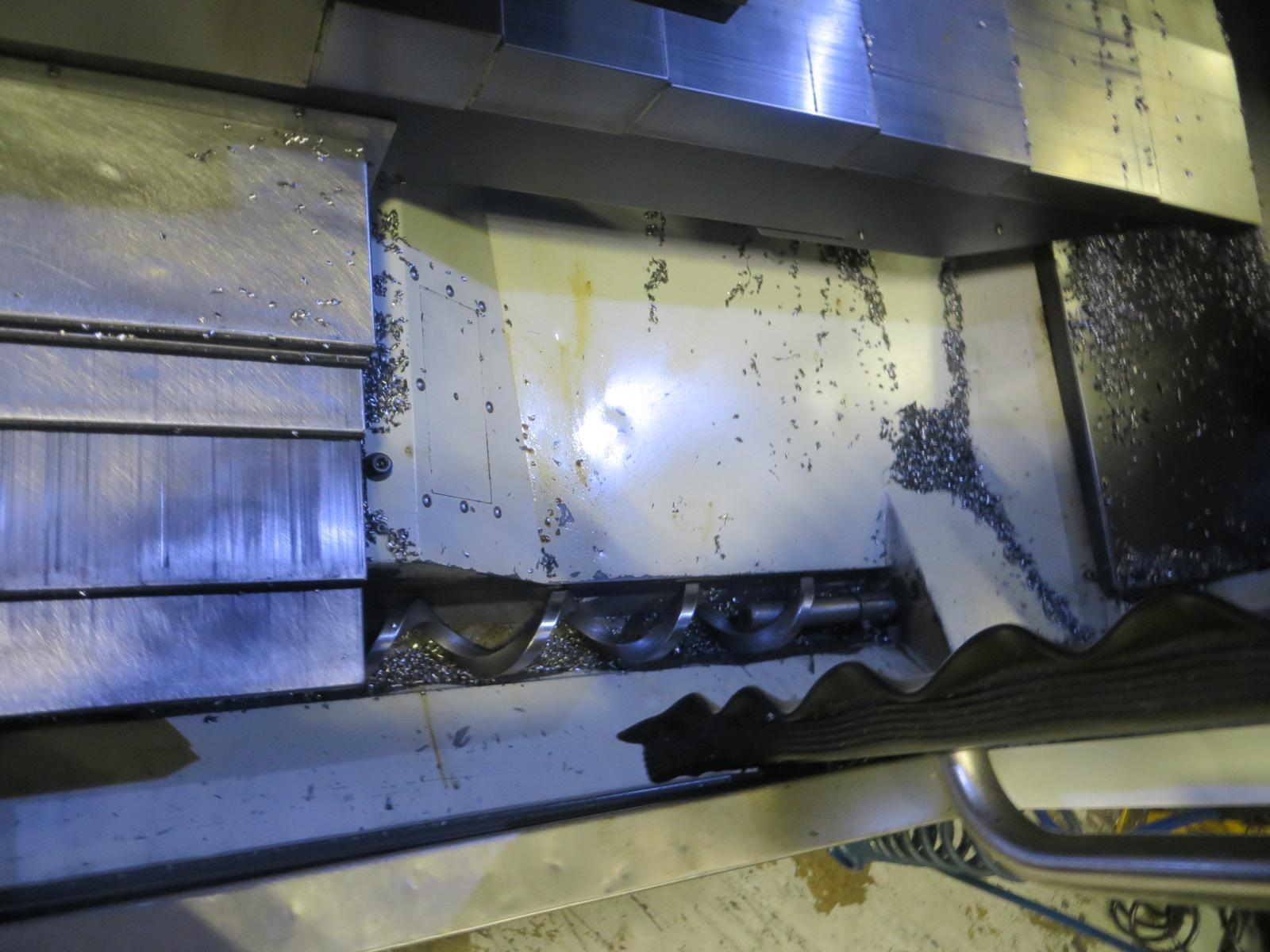

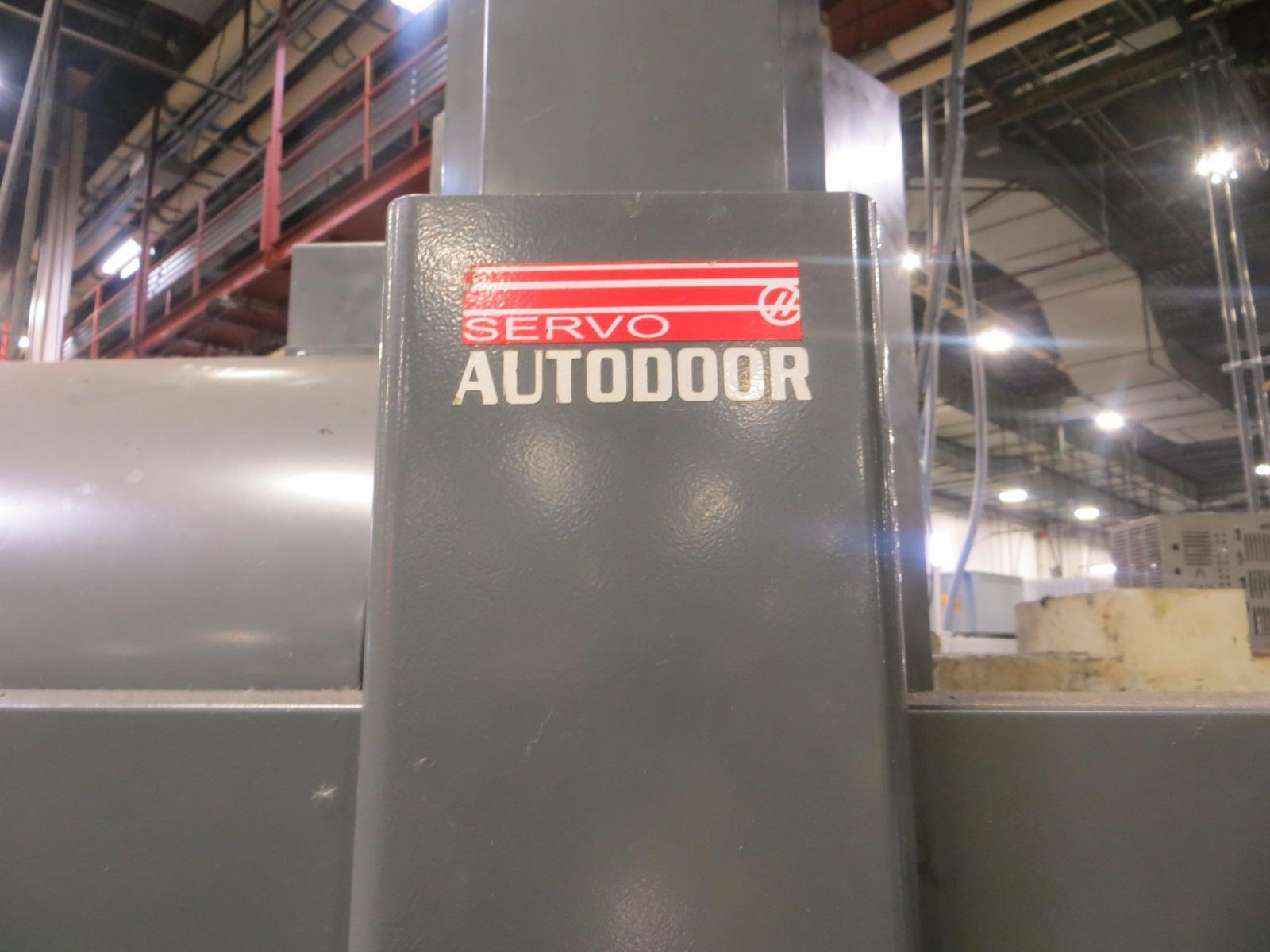

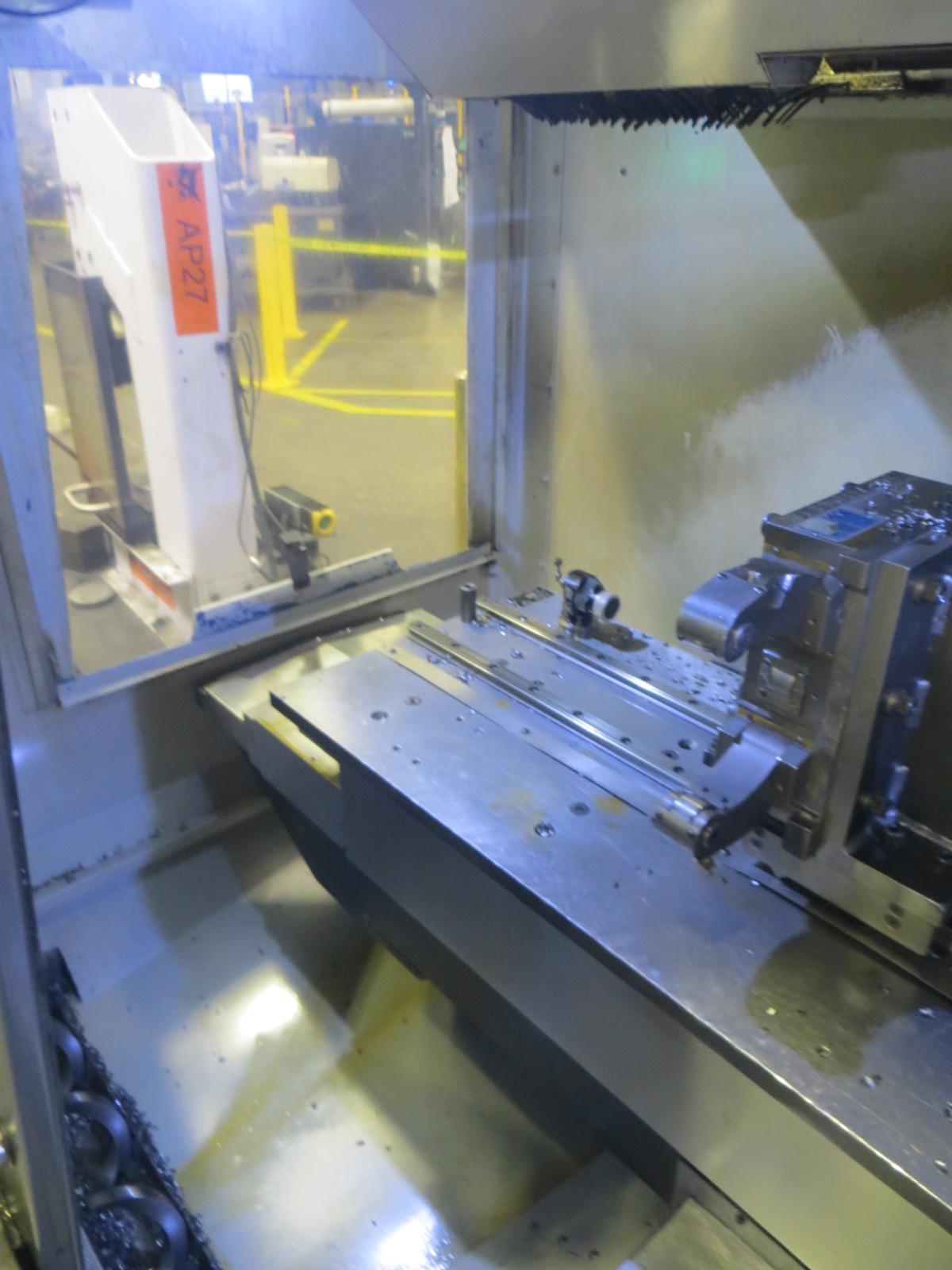

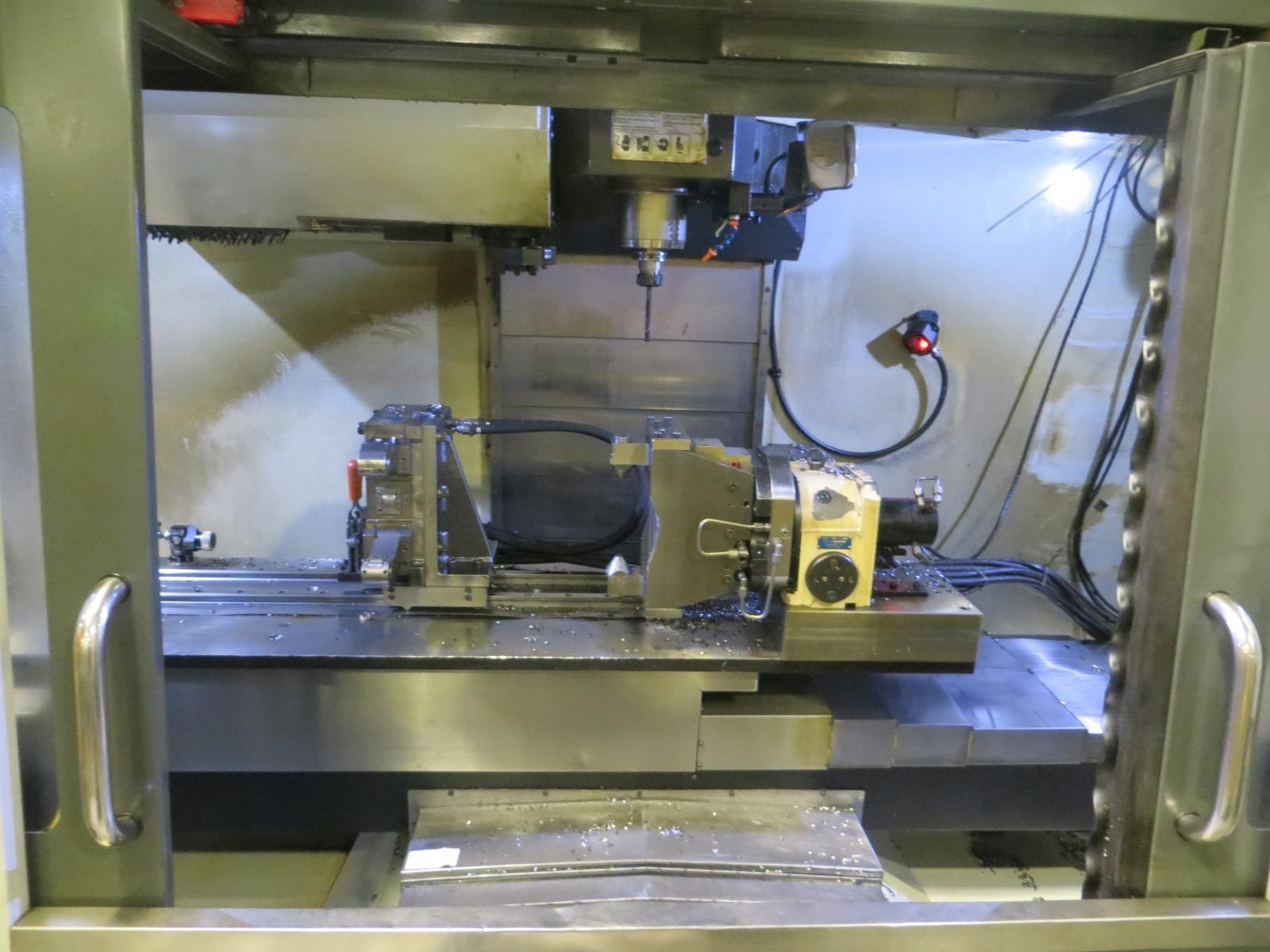

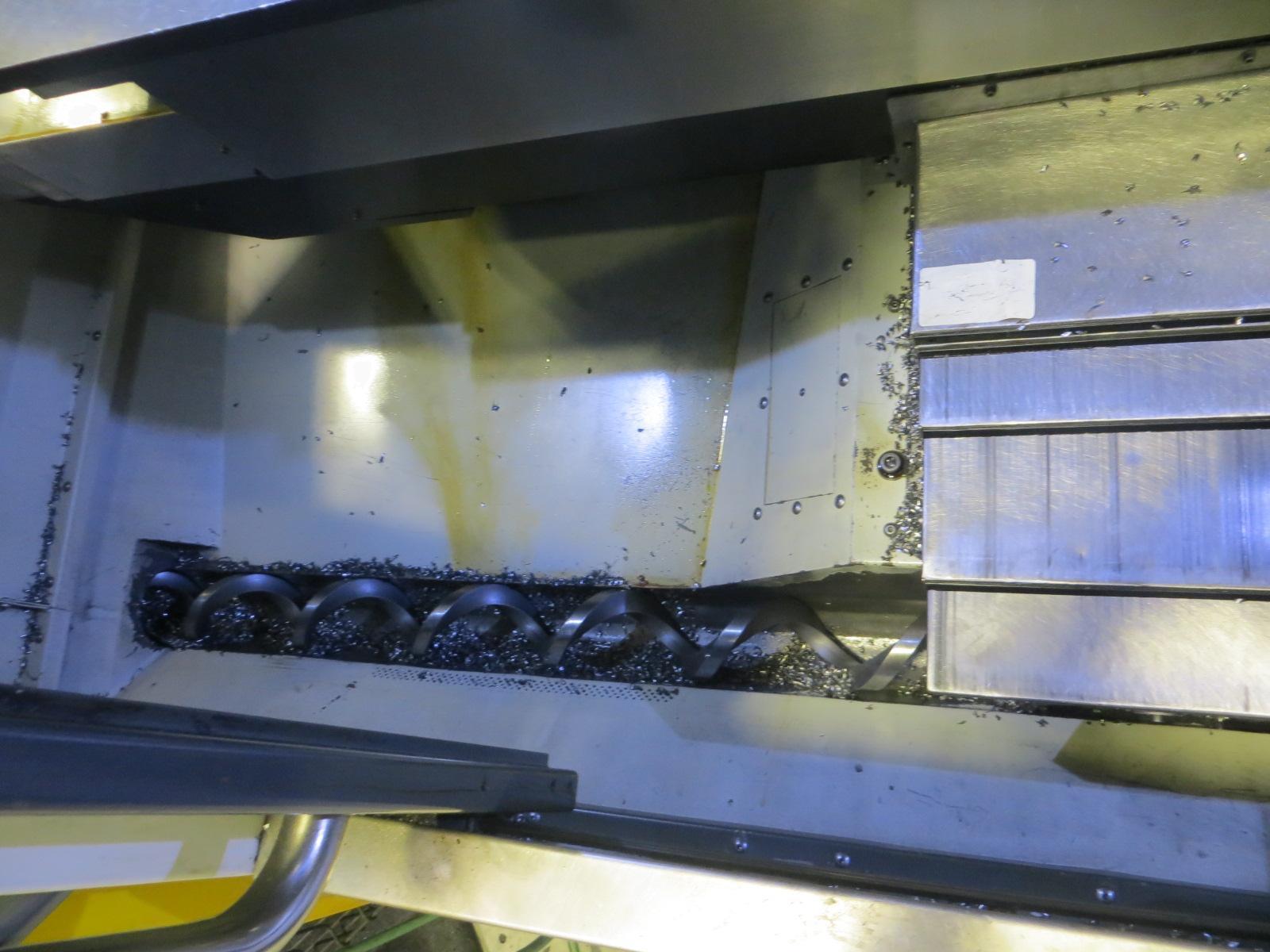

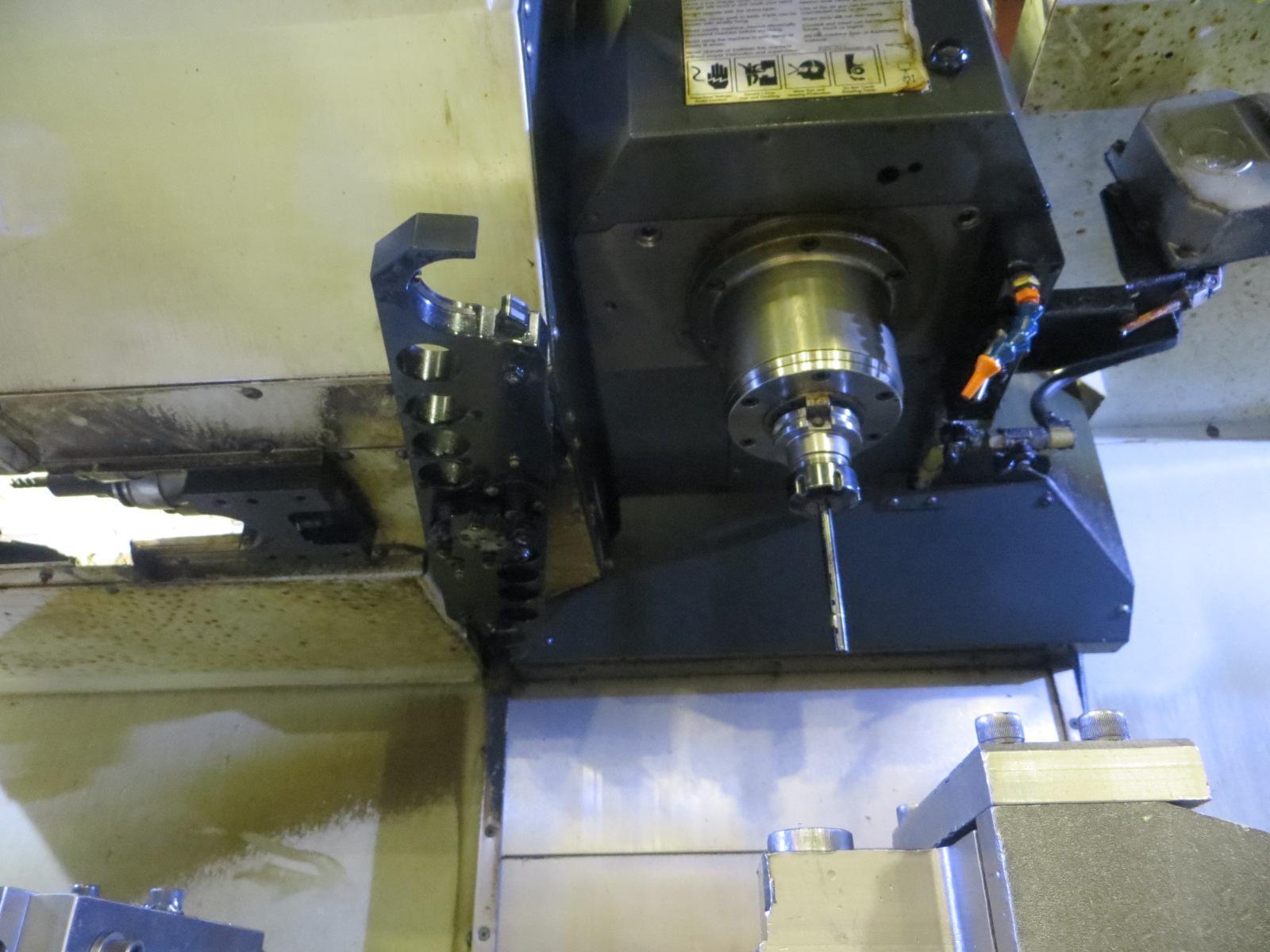

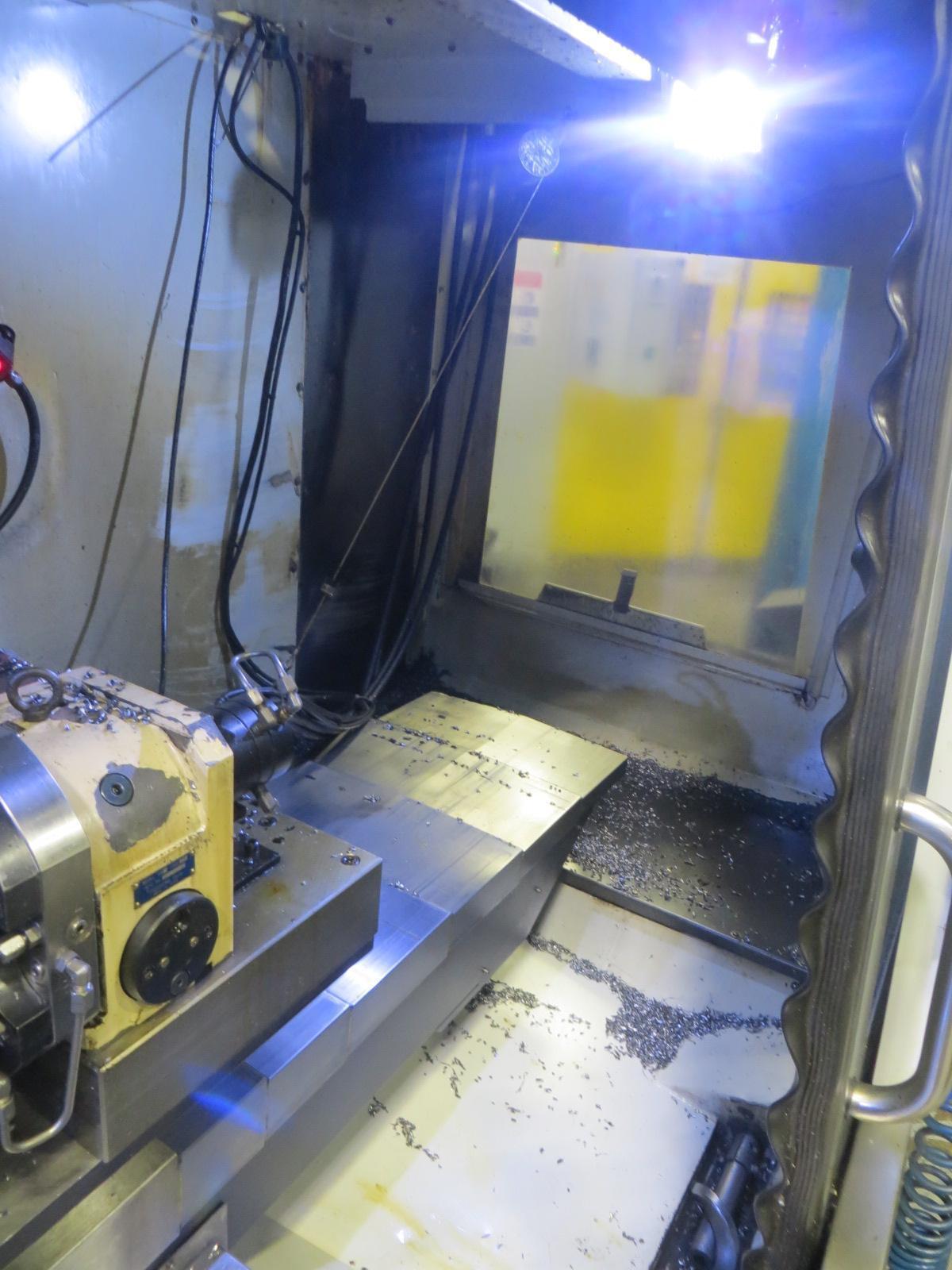

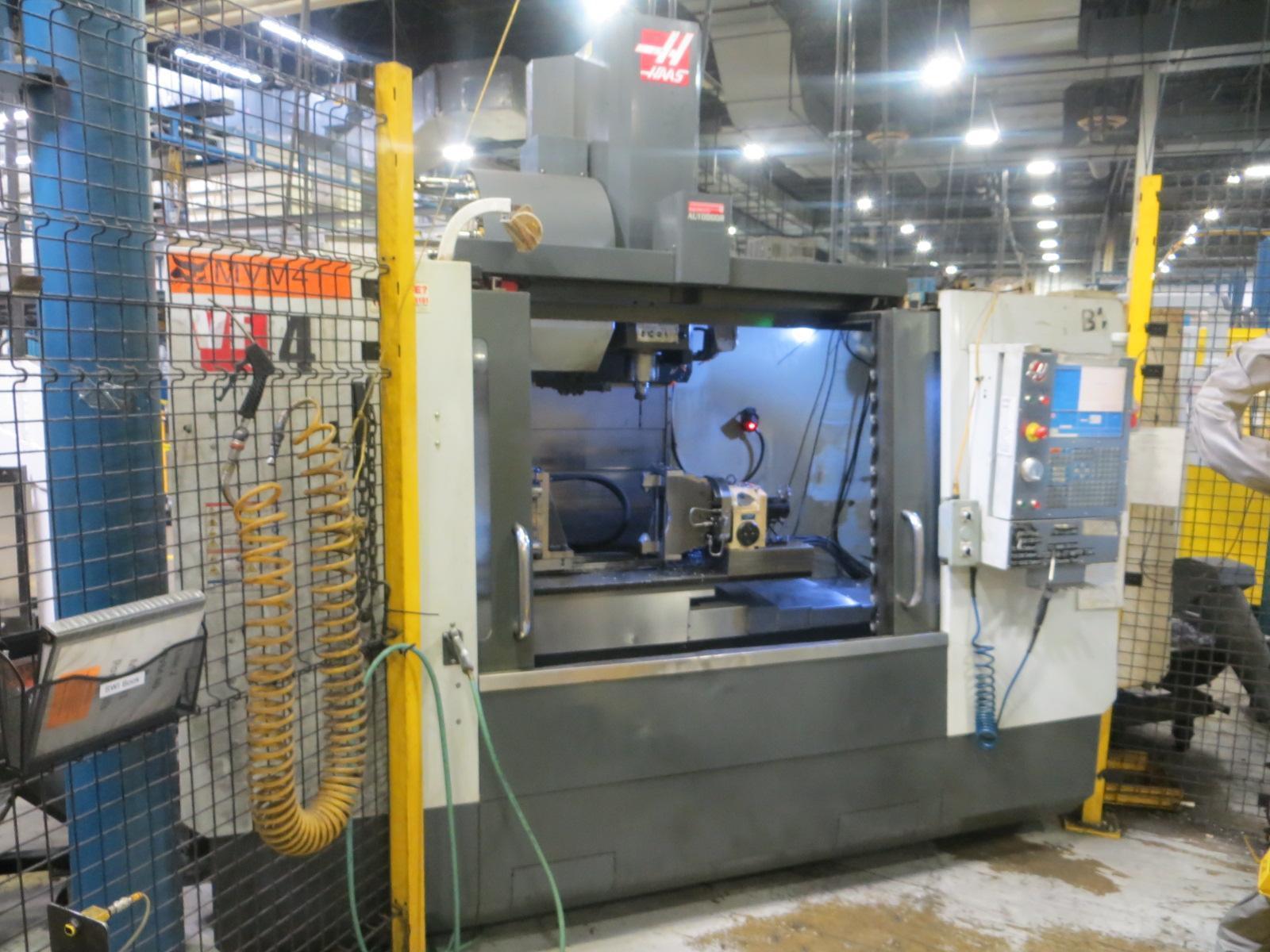

Haas Maincon CNC Control, Brushless 4th Axis Drive, 8-Spare M-Functions, 8100 RPM Gearbox Spindle, 20 HP, 40 Taper, 300 PSI Thru Spindle Coolant, 55 Gallon Coolant Tank, Chip Auger, Auxiliary Coolant Filter, 24+1 Twin Arm Side Mount Automatic Tool Changer, Rigid Tapping, Servo Auto Door, Robot Ready Interface, Programmable Coolant, High Intensity Lighting, Renishaw Probing System (Reader Eye ONLY, Part Probe and Tool Setter NOT included), User Defined Macros, Visual Part Programming System, Spindle Orientation and Coordiante Rotation & Scaling. NOTE: Tool Holders, Part Probe, Tool Setter, Fixture with Rotary Table and Hydraulic Steady Rests, Hydraulic Clamping/Controls, Robot and Safety Fencing in Photos and Video are NOT included. NOTE: Enclosure addition to right hand side of machine to accomadate fixture with rotary table and hydraulic steady rests.

Electrics:

195-260 Volts, 3 Phase

Manufacturer: Haas Model: VF-4 Year: 2013 Serial Number: 1104439

Main Unit Approx Weight: 13300.00 lbs

Main Unit Dimensions (in inches): Length: 118.00" Width: 144.00" Height: 119.50"

Components:

Coolant Pump and Tank: Length: 72.00" Width: 20.00" Height: 22.00"

Ship Width and Height: Length: 0.00" Width: 98.00" Height: 102.00"

Specs:

Machine Control: Haas Maincon CNC Control

Machine Travels (X/Y/Z): 50" x 20" x 25"

Table Size: 52" x 18"

Table Capacity: 3,500 Lbs.

Spindle Taper: Cat 40 Taper

Spindle Speeds: 8,100 RPM

Transmission: 2-Speed Gearbox

Maximum Cutting Feed Rate: 650 IPM

Tool Changer Style: Side-Mount Twin-Arm

Tool Change Time: 4.2 or 2.8 Seconds

Tool Changer Capacity: 24 Stations

Max Tool weight: 12 Lbs.

Spindle Drive: 20 HP

Spindle To Table Distance: 4" - 29"

Seller Company: Doosan Bobcat North America dba Bobcat Company - Wahpeton

Seller Contact: TREVOR SUNDQUIST Phone: (701) 678-6160

Item Location: Doosan Bobcat North America dba Bobcat Company - Wahpeton, 2101 11th St. North, Wahpeton, ND 58075

Location Contact: TREVOR SUNDQUIST Phone: (701) 222-5000

Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday

Removal Dates and Times: This item must be removed between Tuesday, December 2, 2025 and Friday, December 12, 2025

Acceptable Payment: Cash, Wire Transfer, Cashier's Check, Money Order
VISA / MASTERCARD/DISCOVER ACCEPTED FOR U.S. BUYERS AMOUNTS UP TO $2,500 WITH 3% ADDITIONAL FINANCE CHARGE
ACH Auto Payment for US Buyers with Invoices $2,500 Or Under
All Payments made to Machinesused.com prior to item removal.
All Payments Due to Machinesused.com by Wednesday, December 3, 2025 4PM CT
