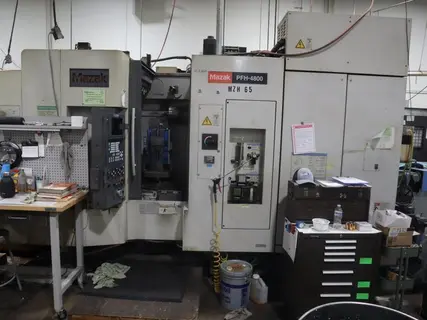

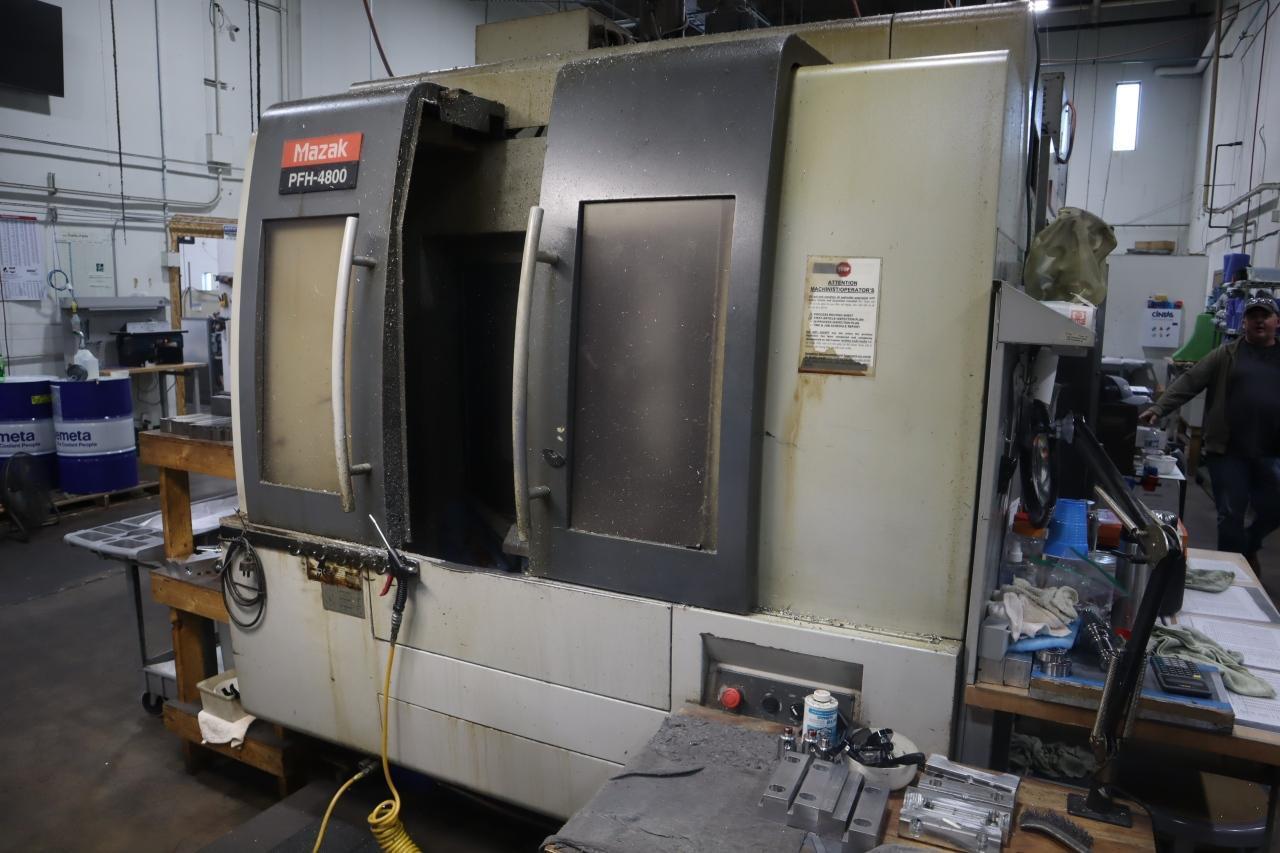

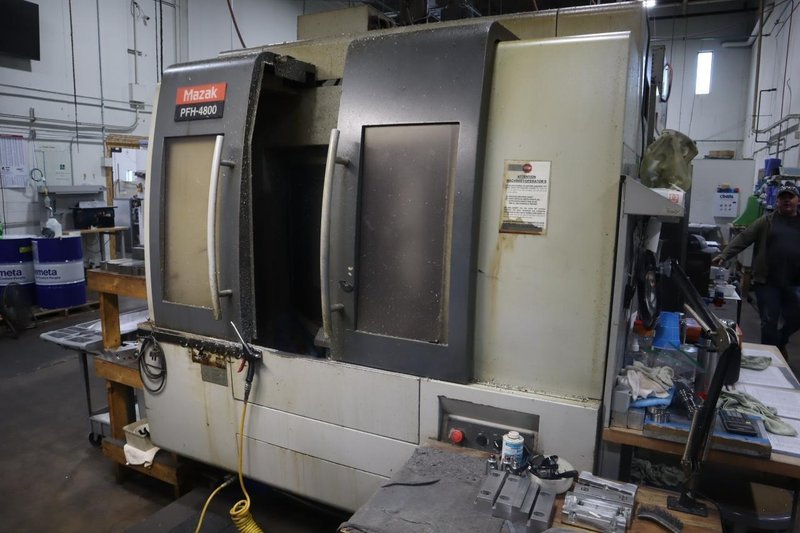

Mazak PFH-4800 CNC Horizontal Machining Center, Mazatrol 640M Control, (2) 400mm Pallets, CT40, 80 ATC, .001 Degree Index, 2 Station Pallet Changer - NOT CURRENTLY OPERATIONAL- Auction Item

Mazak PFH-4800 CNC Horizontal Machining Center, Mazatrol 640M Control, (2) 400mm Pallets, CT40, 80 ATC, .001 Degree Index, 2 Station Pallet Changer - NOT CURRENTLY OPERATIONAL- Auction Item

Name: Used MAZAK PFH-4800 For Sale Lot No.: 130
Brand: MAZAK
SKU: Lot No.: 130
Availability: PreOrder

Brand

MAZAK

Location

Minnesota

REQUEST FINANCING

Specifications
Files & Videos

View Auction Item:https://www.machinesused.com/lots/48012

Lot 130: Mazak PFH-4800 CNC Horizontal Machining Center, Mazatrol 640M Control, (2) 400mm Pallets, CT40, 80 ATC, .001 Degree Index, 2 Station Pallet Changer - NOT CURRENTLY OPERATIONAL

Equipped With:

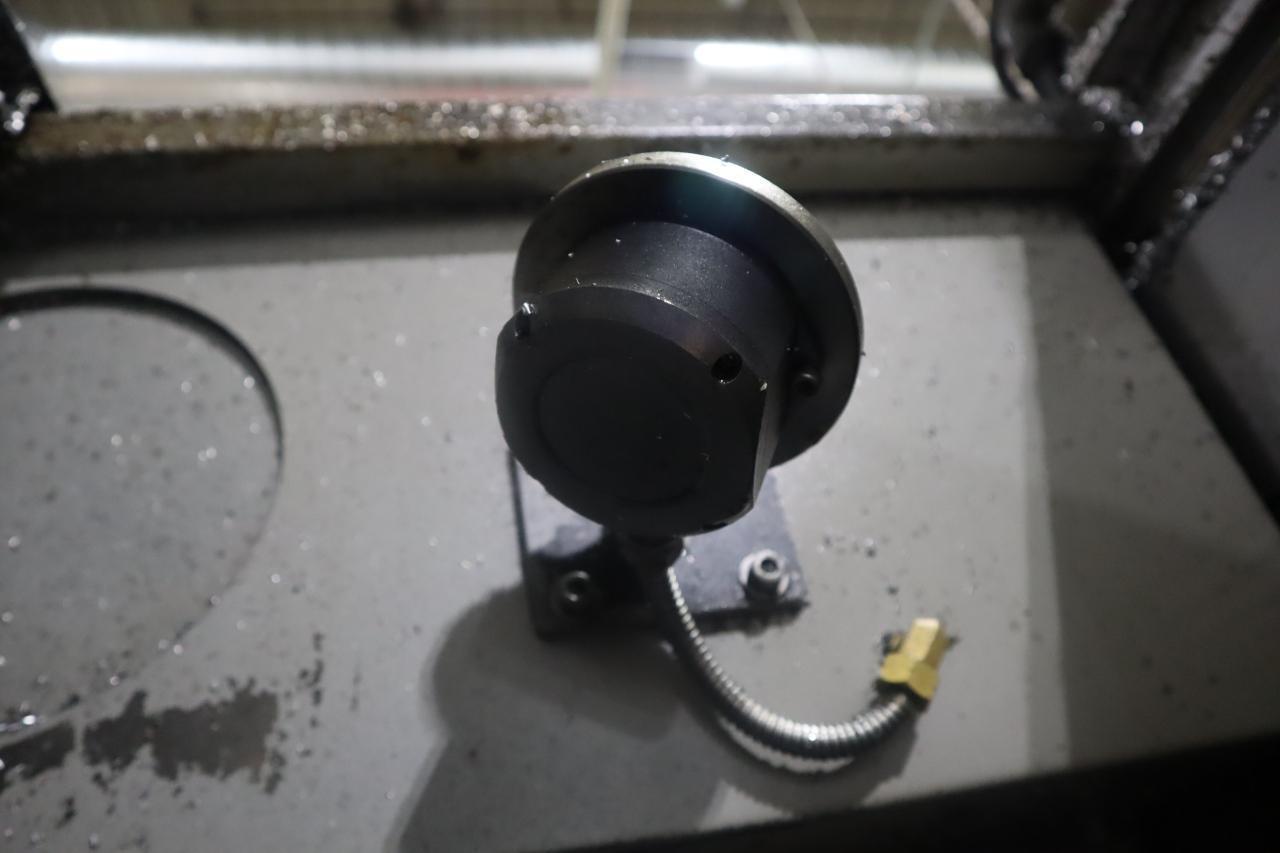

Mazatrol 640M PC-Fusion-CNC Control, CT 40 Spindle Taper, 12,000 Max RPM, Pallet Changer, (2) 400mm Pallets, 80 Station Automatic Tool Changer, Mayfran Chip Conveyor, Built-In Daikin Chiller, Coolant System, Tool and Parts Probe / NOTE: Tooling and Workholding Not Included in Sale

Electrics:

230/460 Volt, 3 Phase

Manufacturer: Mazak Model: PFH-4800 Year: 2003 Serial Number: 162400

Main Unit Approx Weight: 25080.00 lbs

Main Unit Dimensions (in inches): Length: 112.00" Width: 172.00" Height: 110.00"

Components:

High Pressure Coolant System/Chip Conveyor: Length: 93.00" Width: 80.00" Height: 52.00"

Specs:

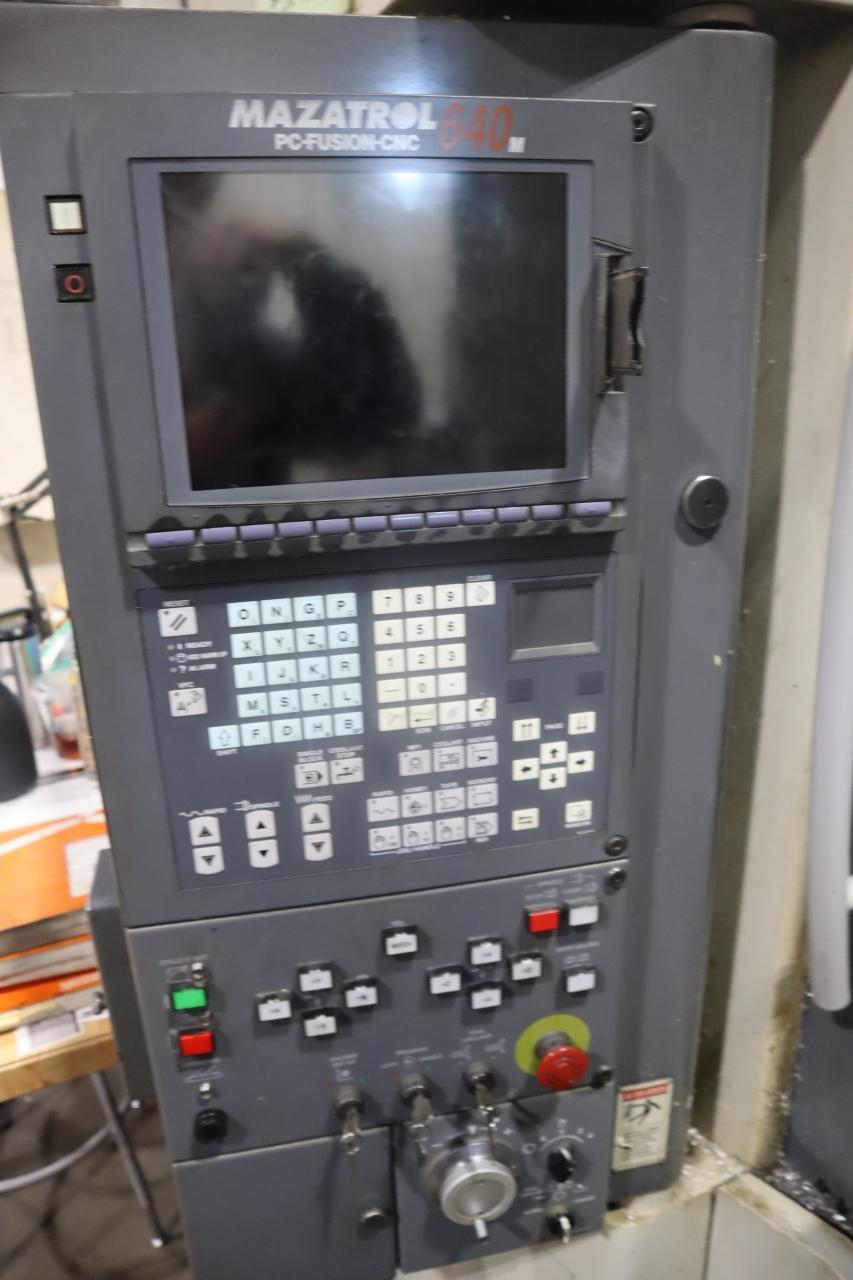

CNC Control: Mazatrol 640M PC-Fusion-CNC Control

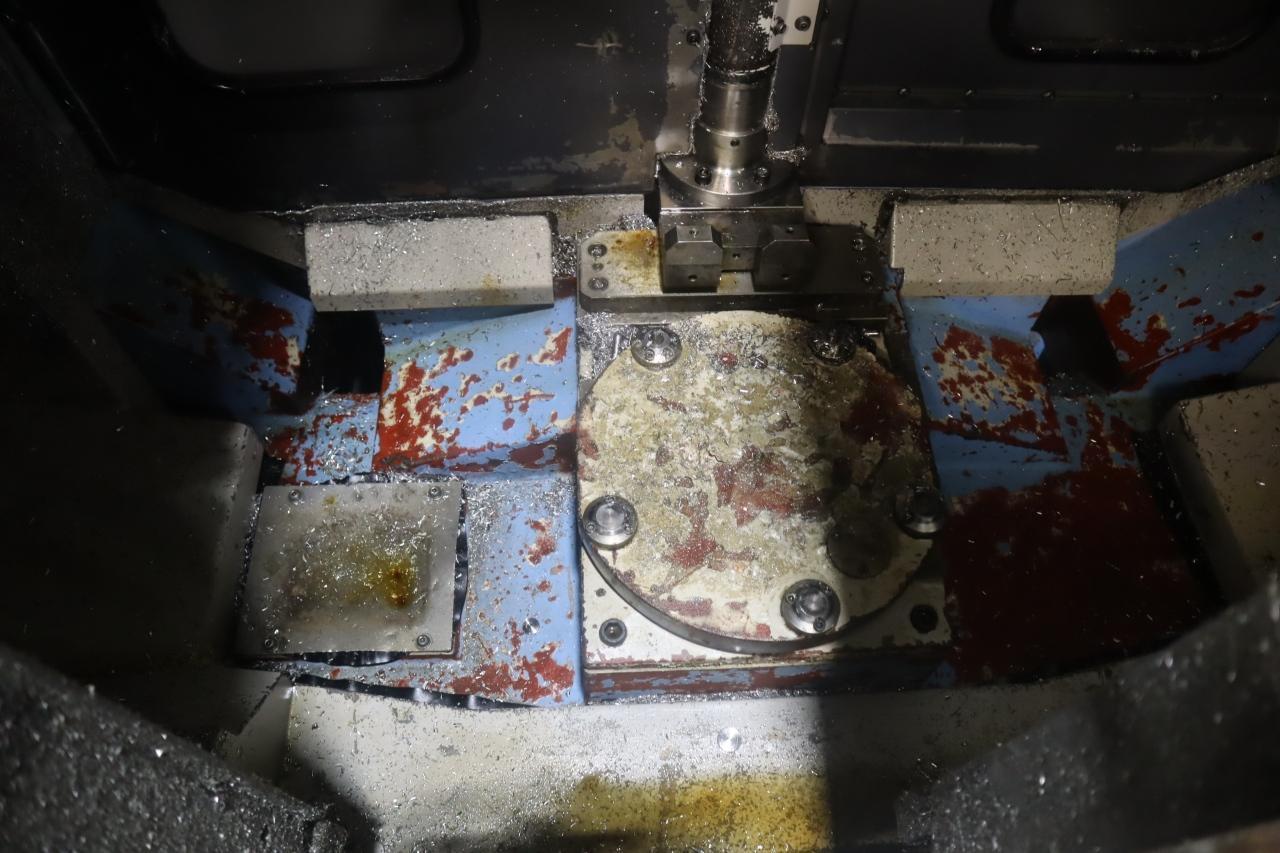

Pallet Size: 400mm (15.75" x 15.75")

Machine Travels (X/Y/Z): 22.05" x 24.80" x 23.62"

Pallet Indexing: 1 Degree OR .001 Degree Index

Rapid Traverse Rate (X/Y/Z): 2,362 IPM

Max Cutting Feed Rate: .03937-2362.2 IPM

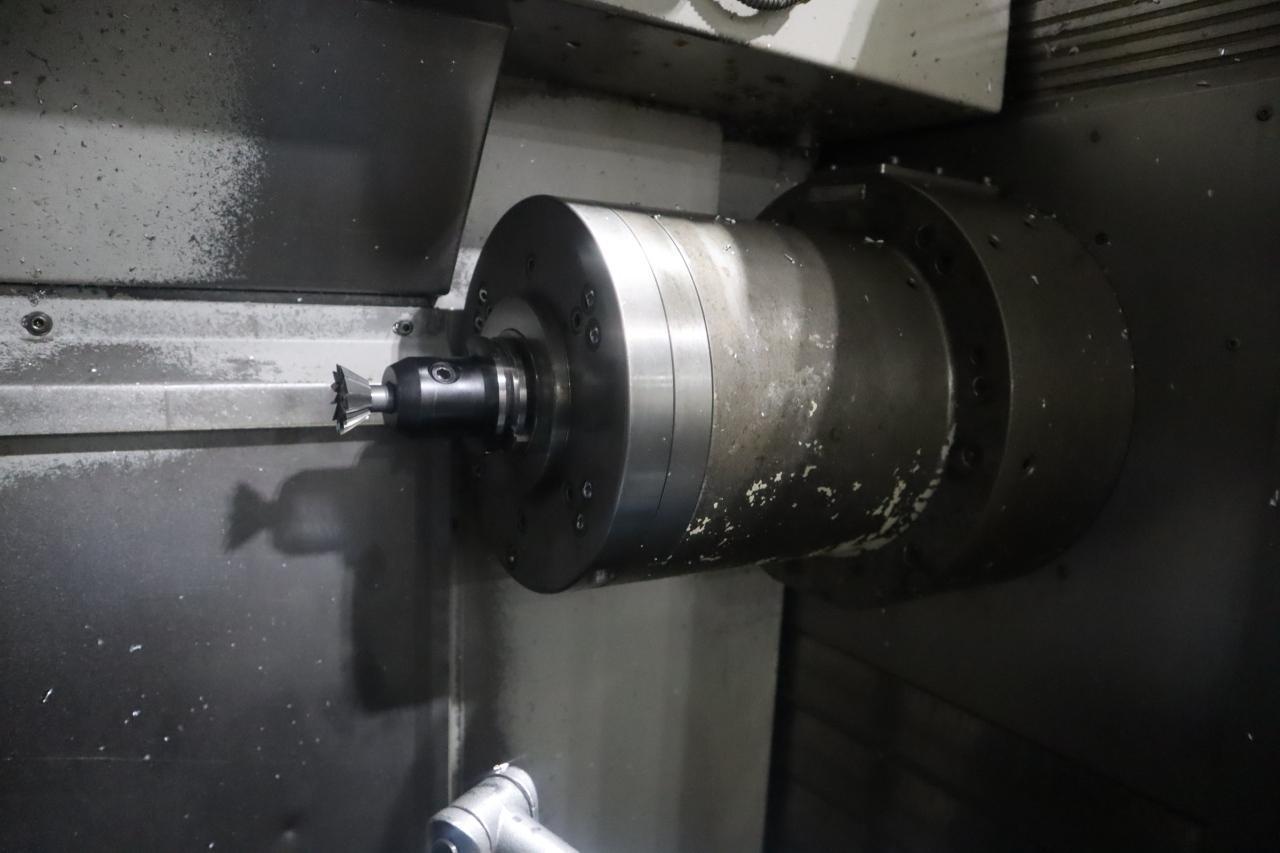

Spindle Taper: CT 40

Spindle Speeds: 35-15,000 OR 35 - 12,000 RPM

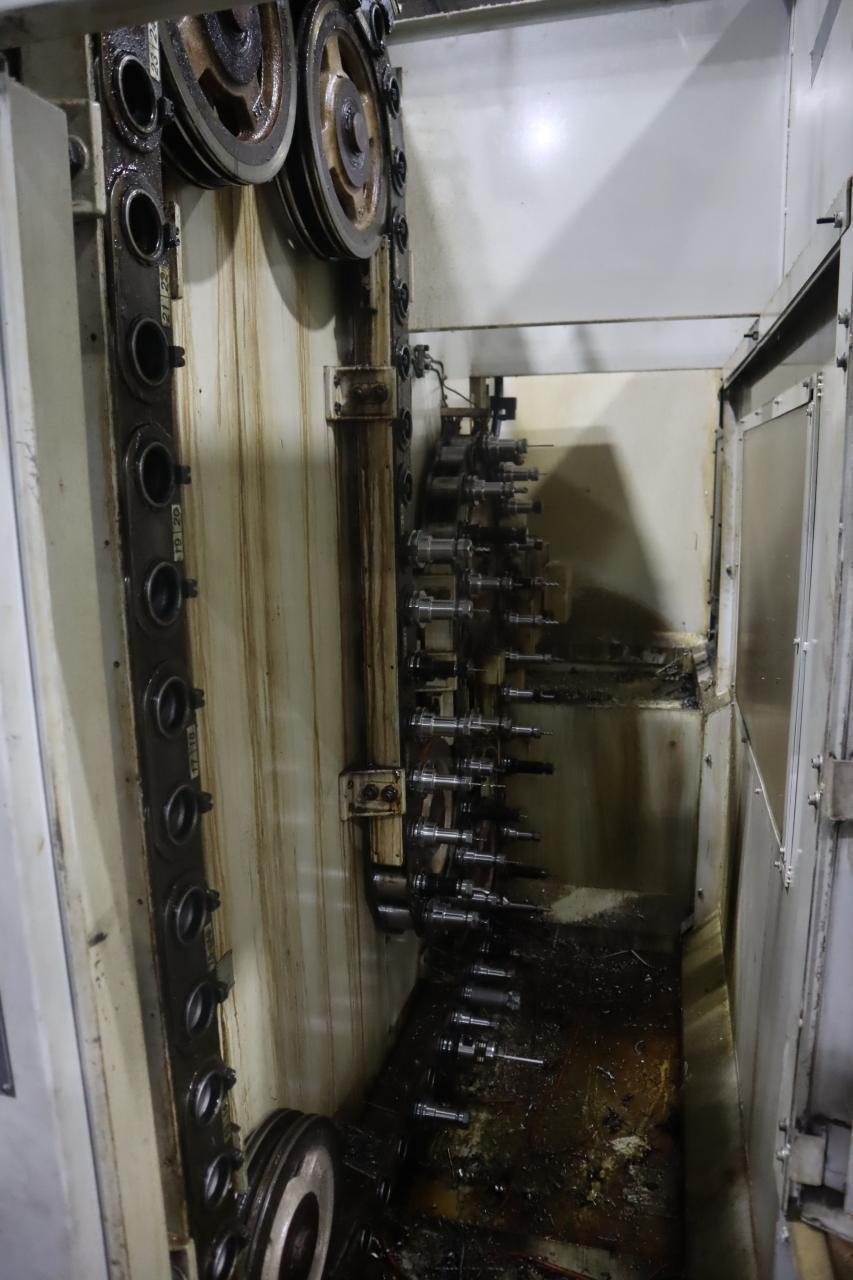

Toolchanger Capacity: 80 Stations

Max Tool Weight: 26.4 Lbs.

Max Tool Length/Diameter: 14.17" Long x 3.74"/5.91" Diameter

Tool to Tool Time: 2.2. or 2.7 Seconds Chip to Chip ( Tool Weight Dependent)

Spindle Drive: 40/20 HP

Max Pallet Load: 880 Lbs.

Pallet Change Time: 5 Seconds

Spindle Nose to Pallet Center Distance: 2-8 - 26.38"

Number of Pallet Stations: 2

Spindle Center to Pallet Distance: 3.15" - 27.95"
