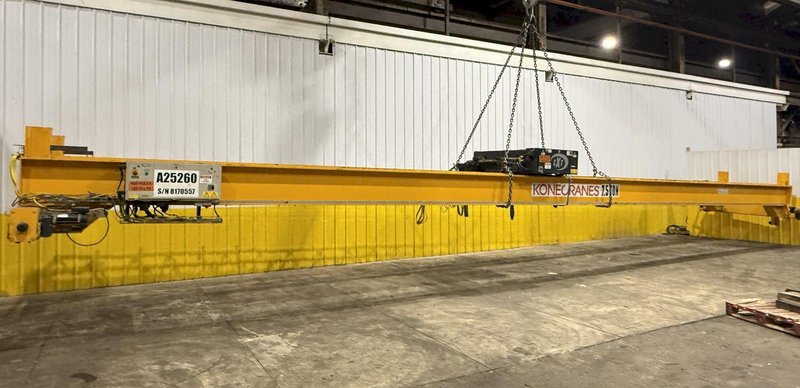

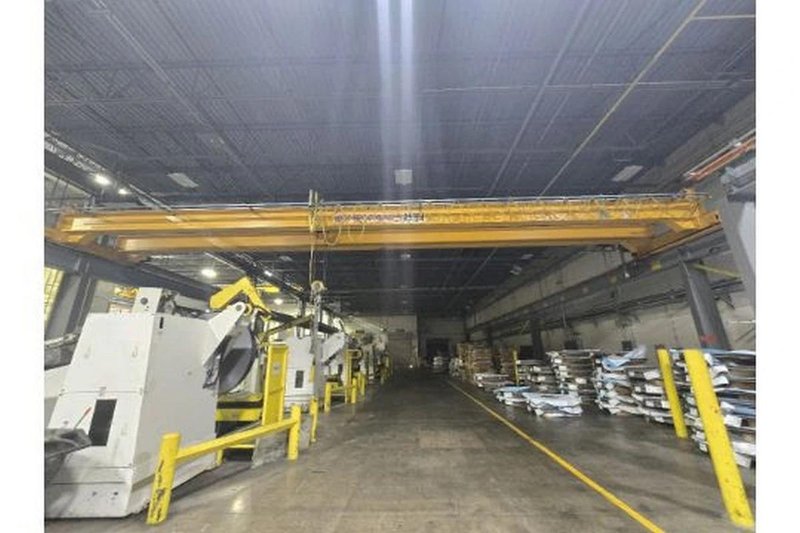

7.5 TON x 48'-9'' x KONE CRANES FREE STANDING CRANE SYSTEM, COMPLETE WITH 140' RUNWAY BEAMS AND UPRIGHTS: YOBRO #24534

7.5 TON x 48'-9'' x KONE CRANES FREE STANDING CRANE SYSTEM, COMPLETE WITH 140' RUNWAY BEAMS AND UPRIGHTS: YOBRO #24534

Name: Used KONE 7.5 TON X 50' X 140 For Sale 24534
Brand: KONE
SKU: 24534
Availability: PreOrder

Brand

KONE

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

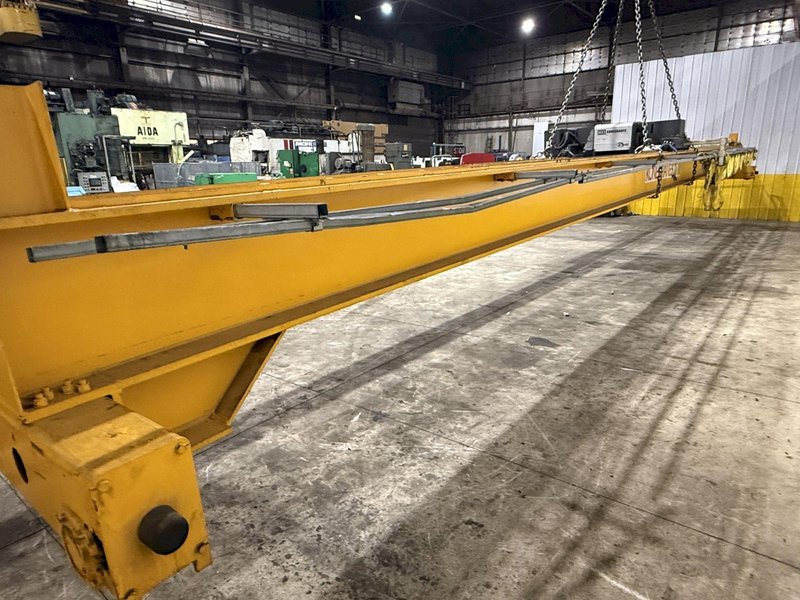

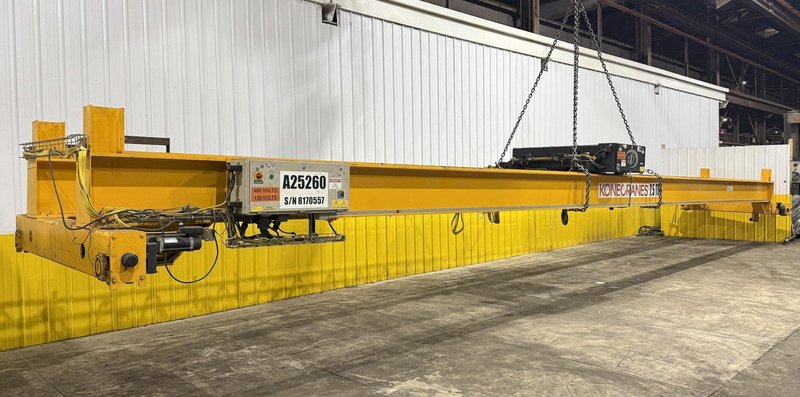

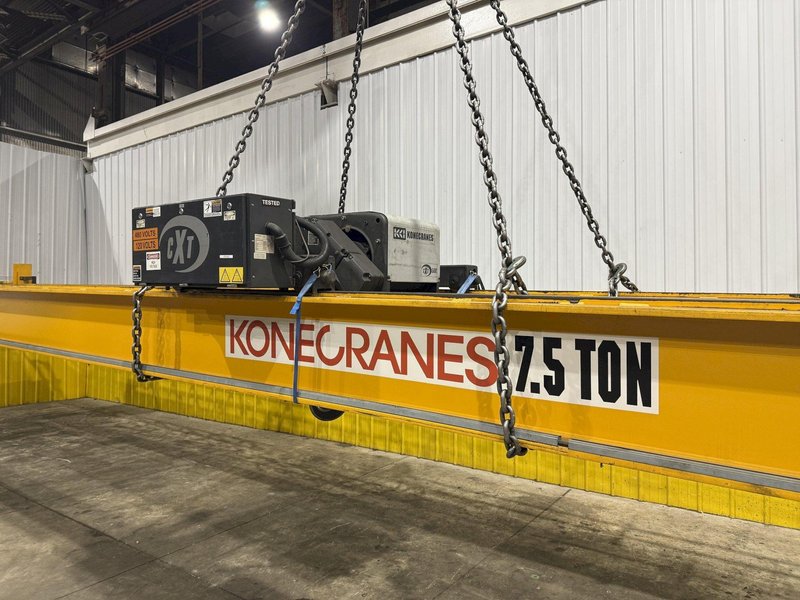

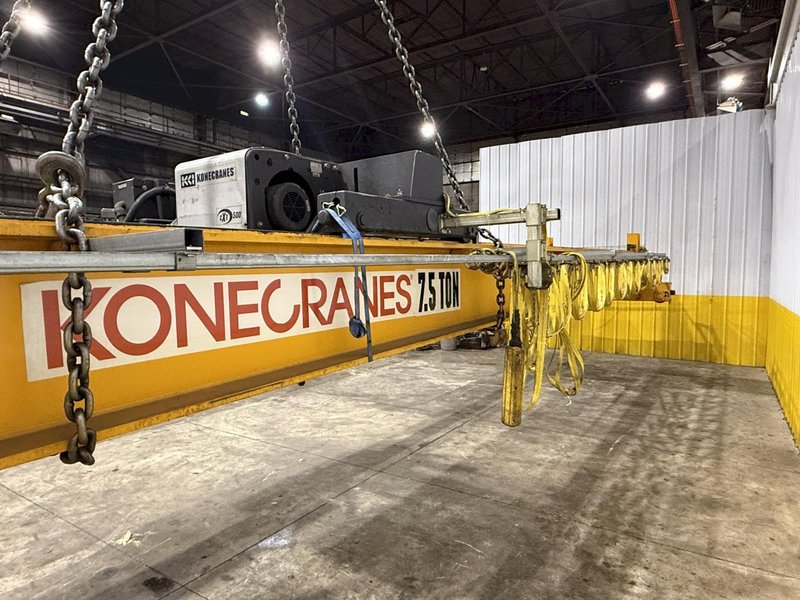

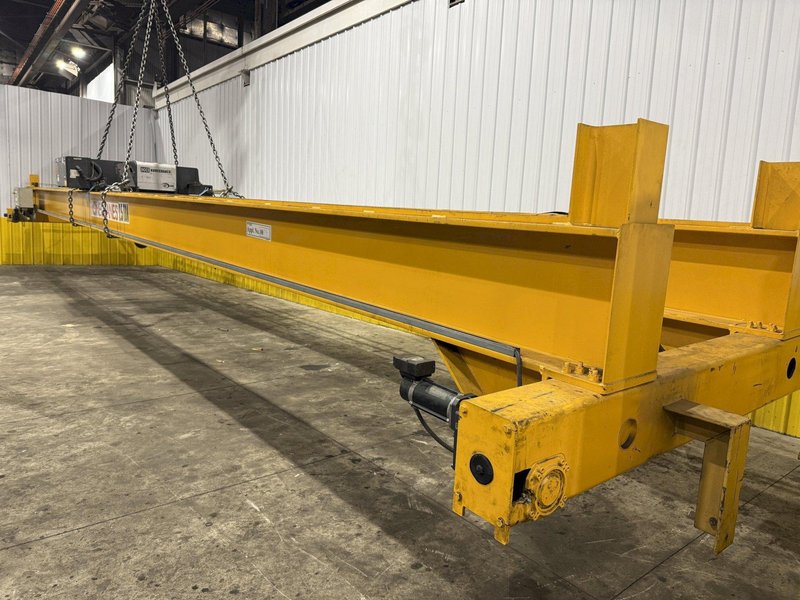

CRANE:

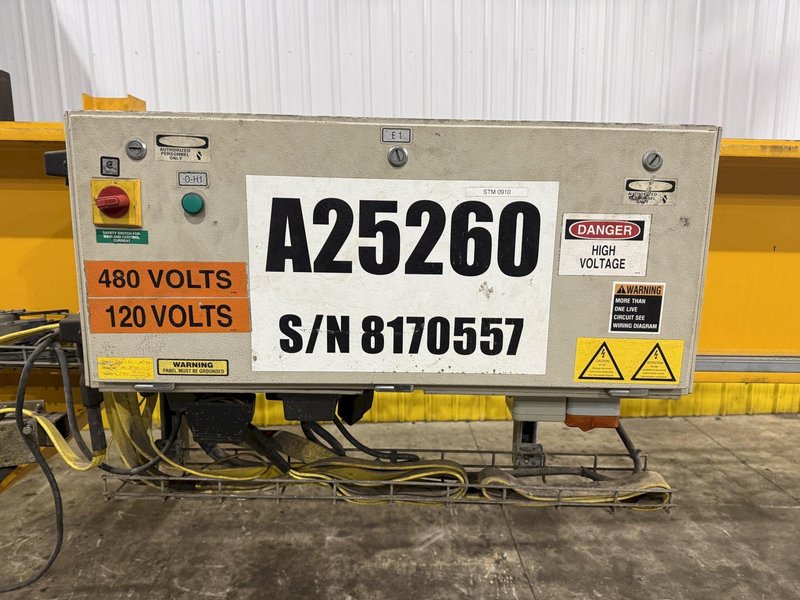

SERIAL ....................... 8170557
NEW .......................... 2008
MODEL ........................ A25260
CLASS ........................ C
CAPACITY ..................... 7.5 TON
SPAN ......................... 48'9"
DOUBLE GIRDER ................ YES

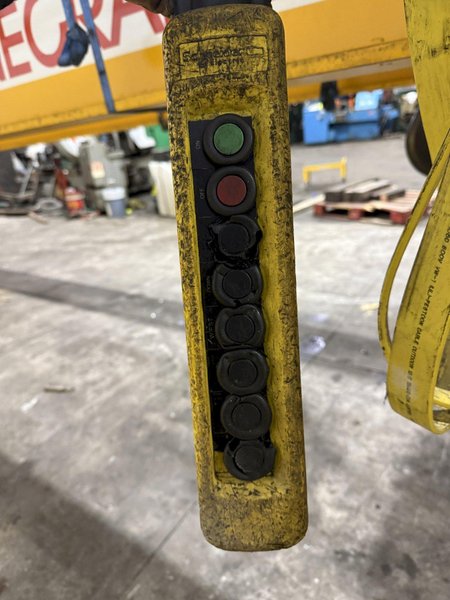

CONTROL PENDANT .............. 8 BUTTON

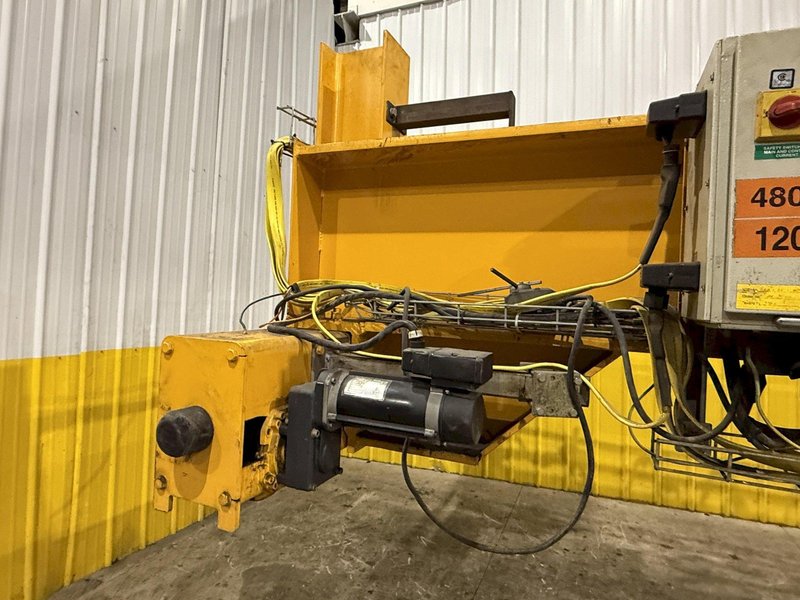

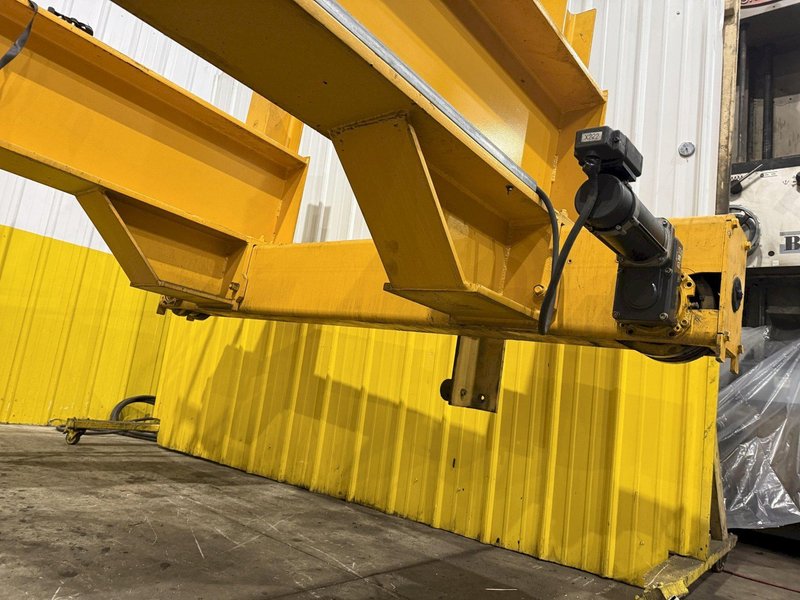

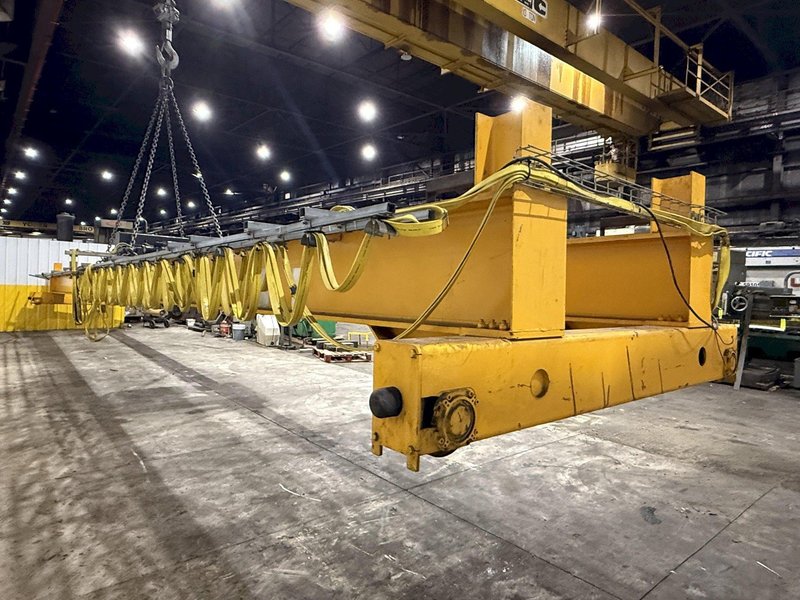

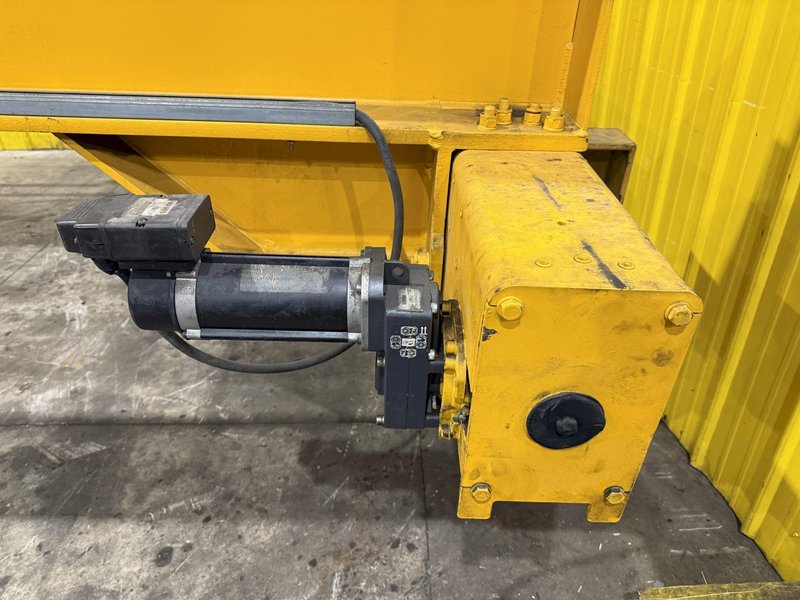

BRIDGE ....................... TOP RUNNING
BRIDGE SPEEDS ................ 100 / 14 FPM STEPLESS
TOP OF RAIL TO TOP OF CRANE .. 4' 11/16"

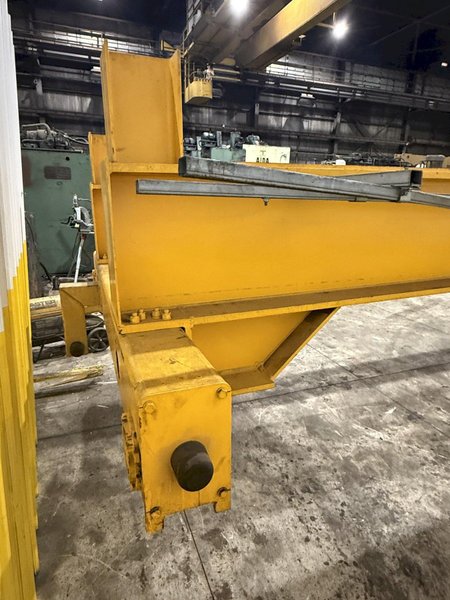

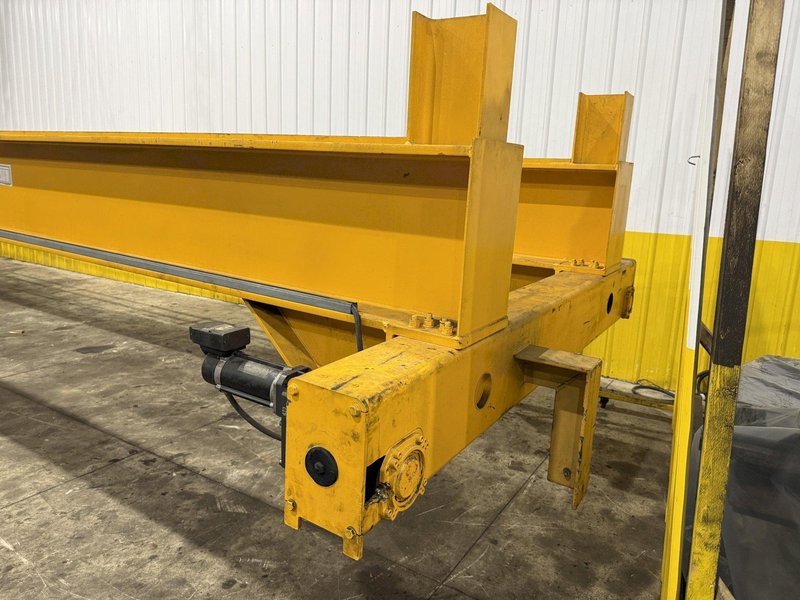

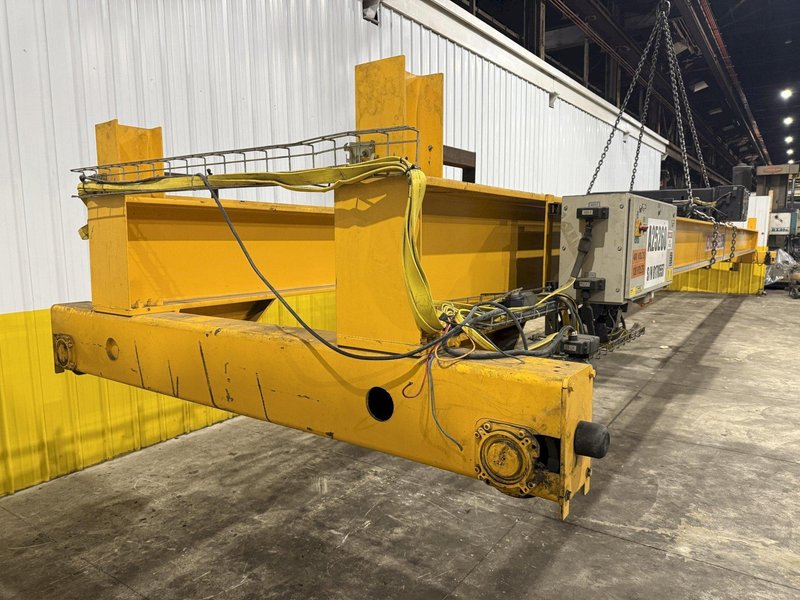

END TRUCK LENGTH ............. 8' 7"
END TRUCK WHEEL CENTER ....... 7' 2-5/8"
OVERALL LENGTH OF CRANE ...... 49' 6-5/8"

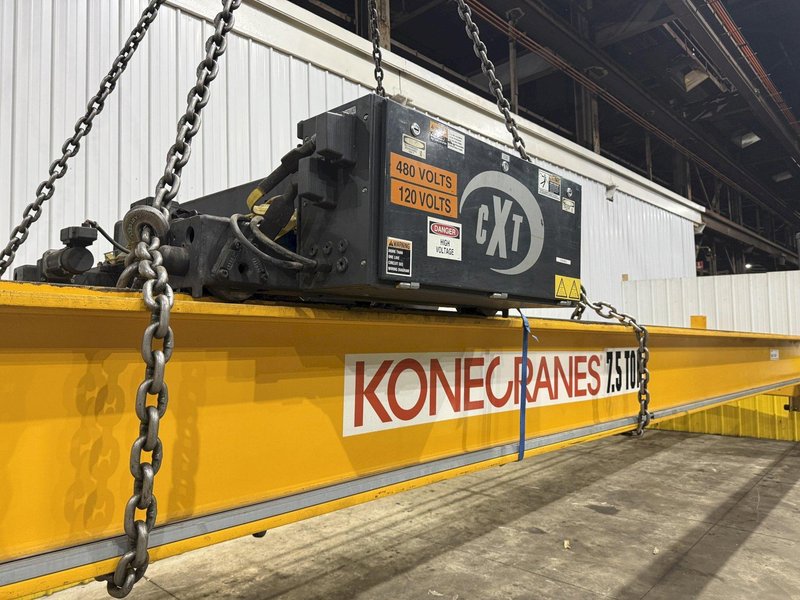

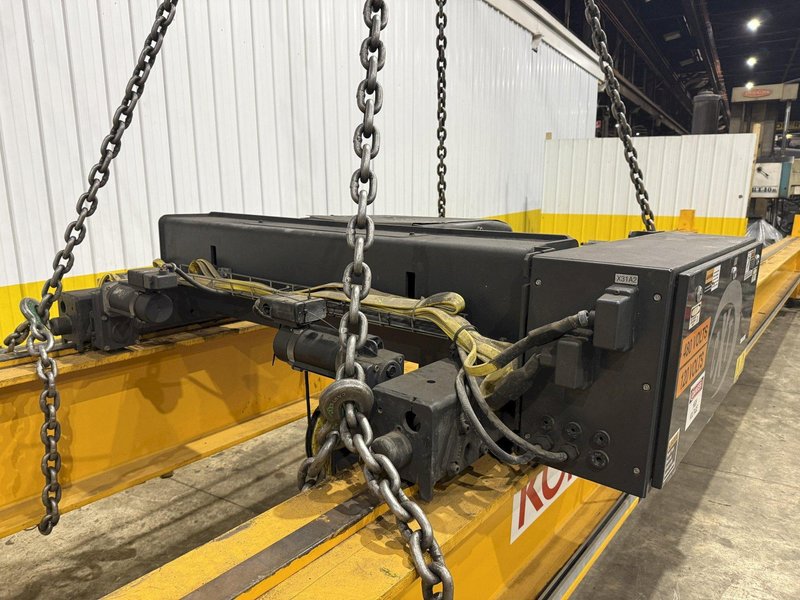

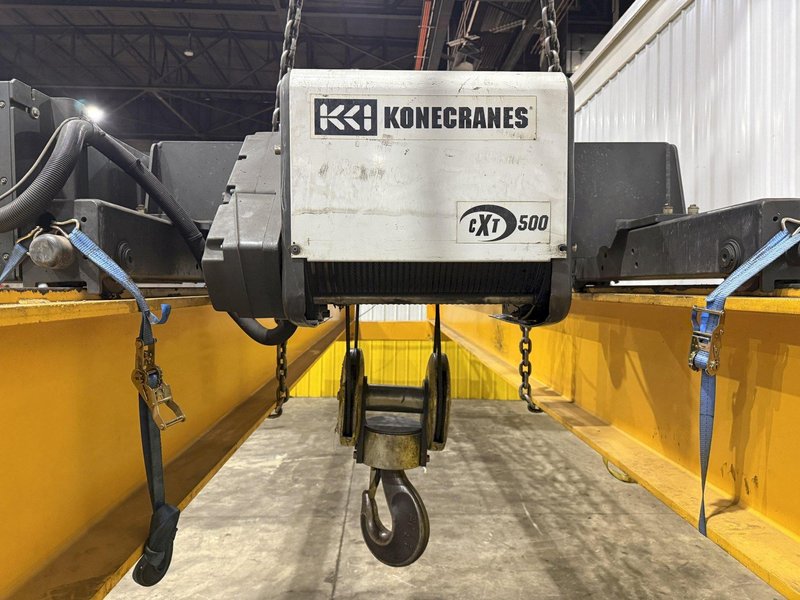

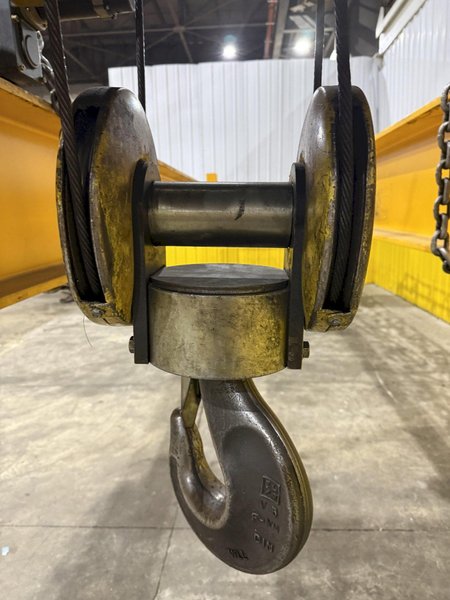

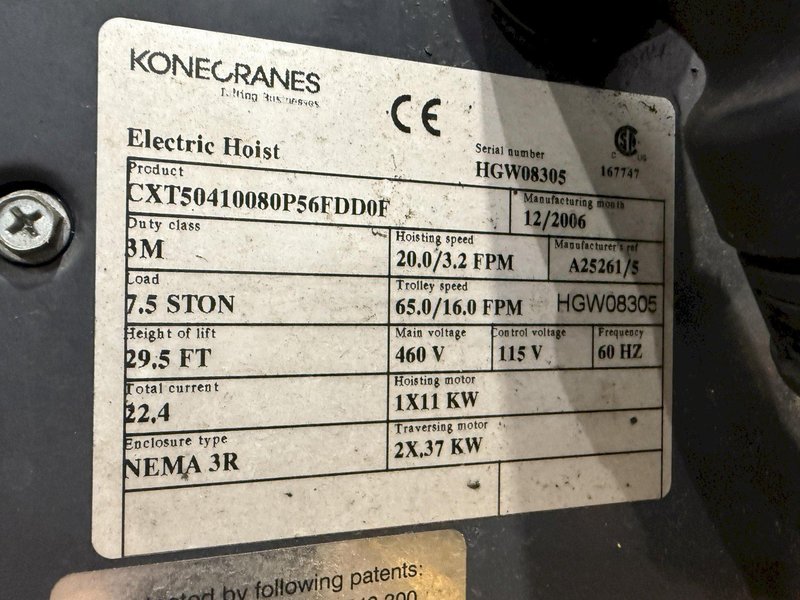

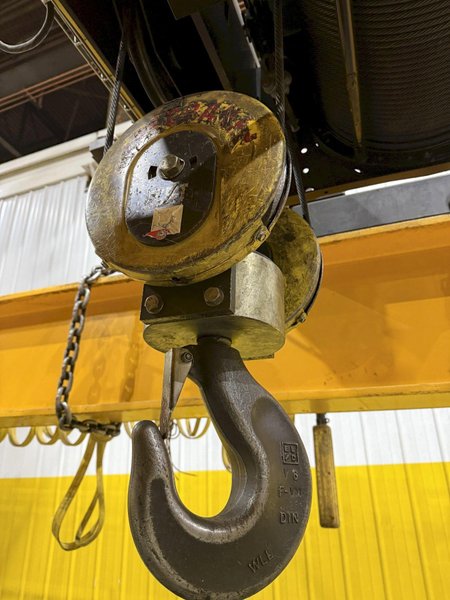

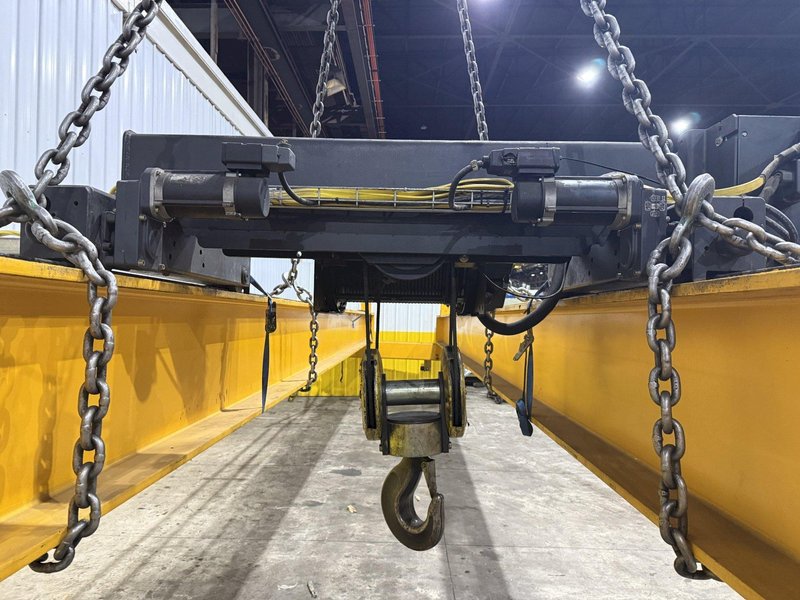

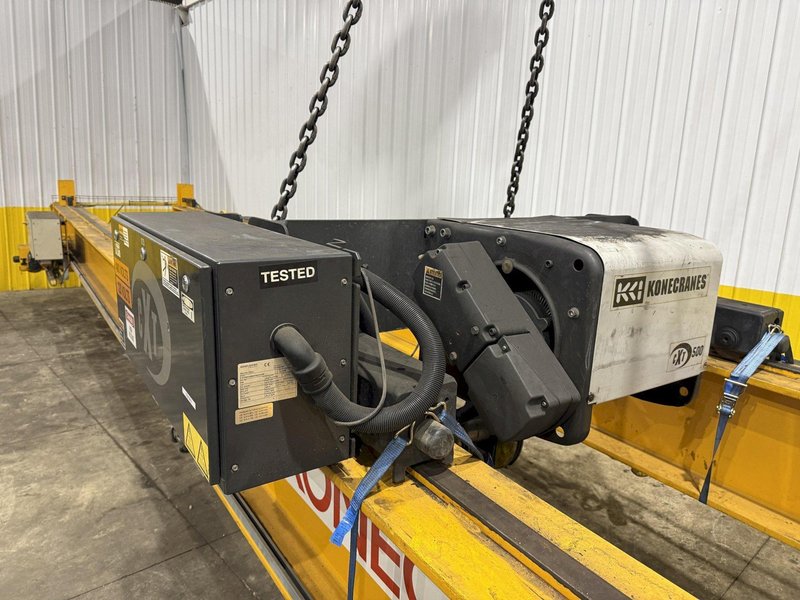

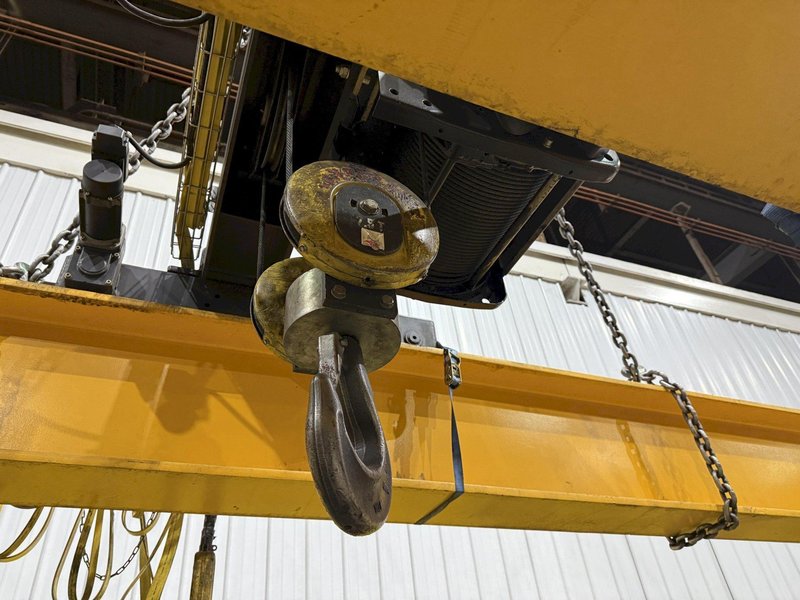

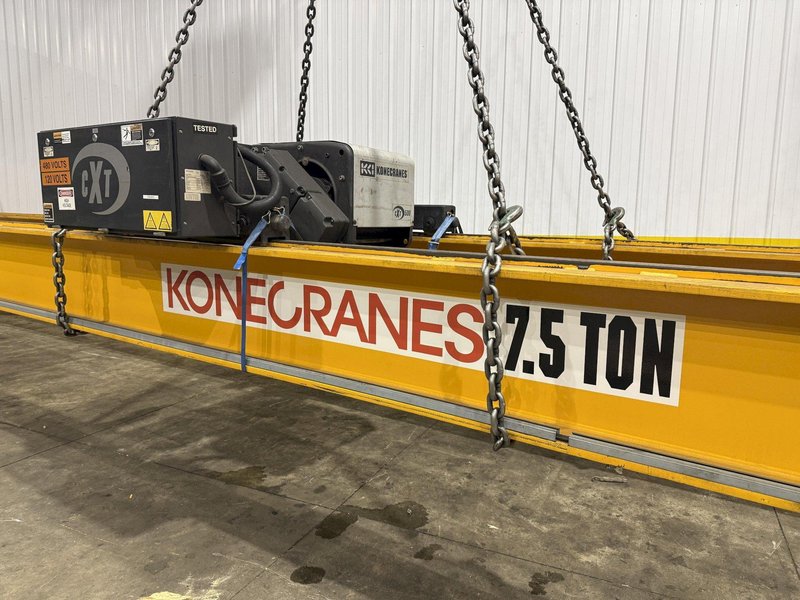

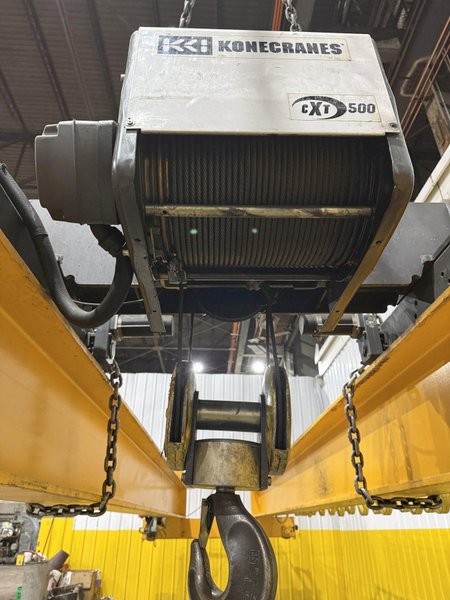

HOIST:
MODEL ........................ CXT50410080P5
LIFTING HEIGHT ............... 15' 3-13/16"
HOIST SPEEDS ................. 20.0 / 3.2 FPM STEPLESS
TROLLEY SPEEDS ............... 65 / 16 FPM STEPLESS
TROLLEY GAUGE ................ 4' 7-1/8"

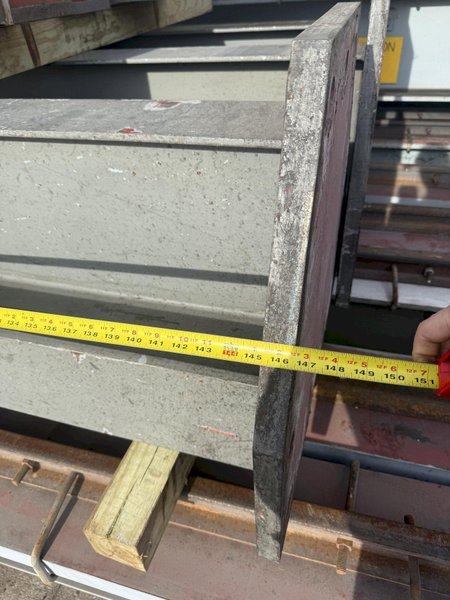

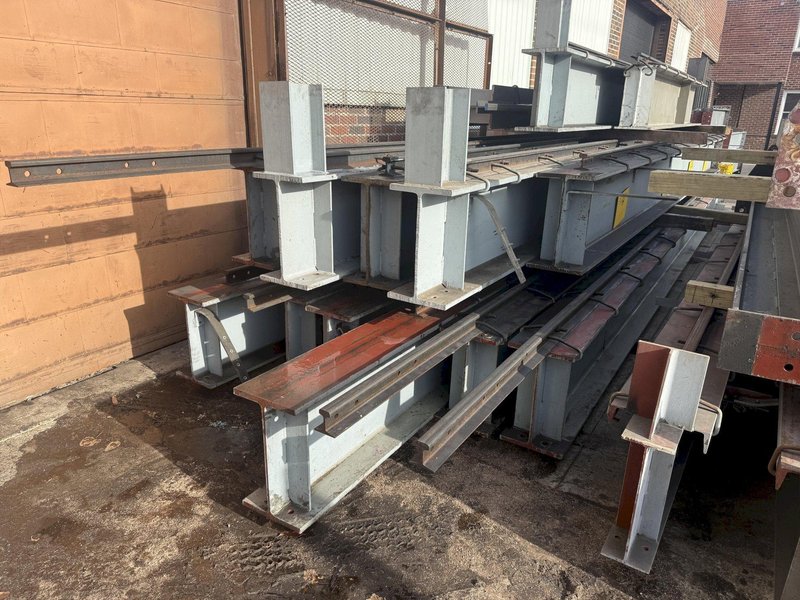

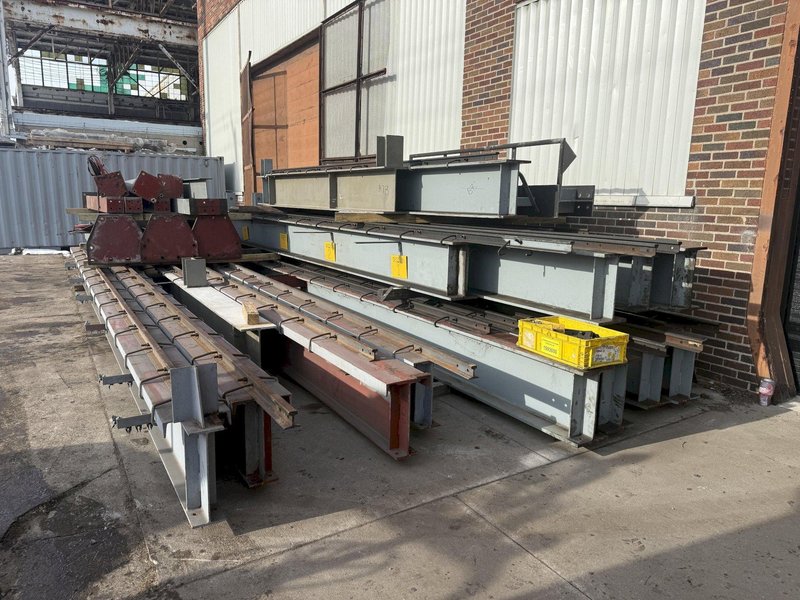

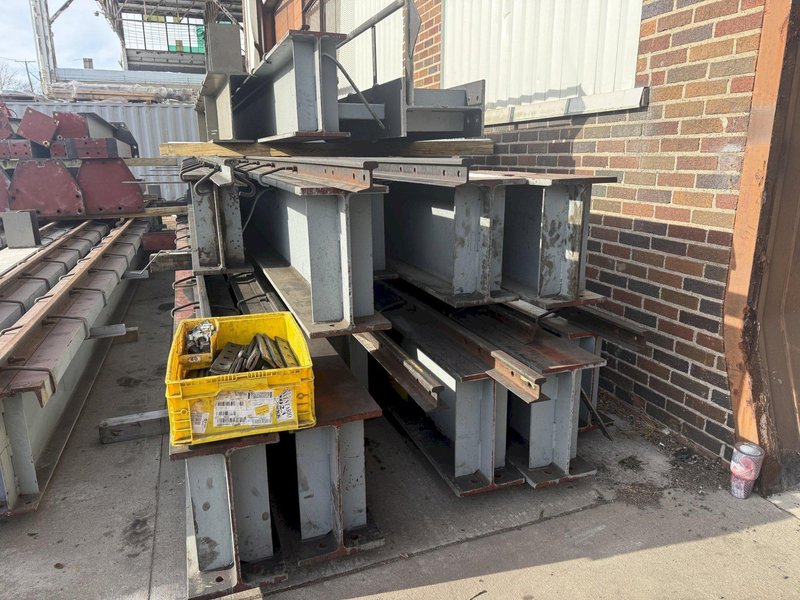

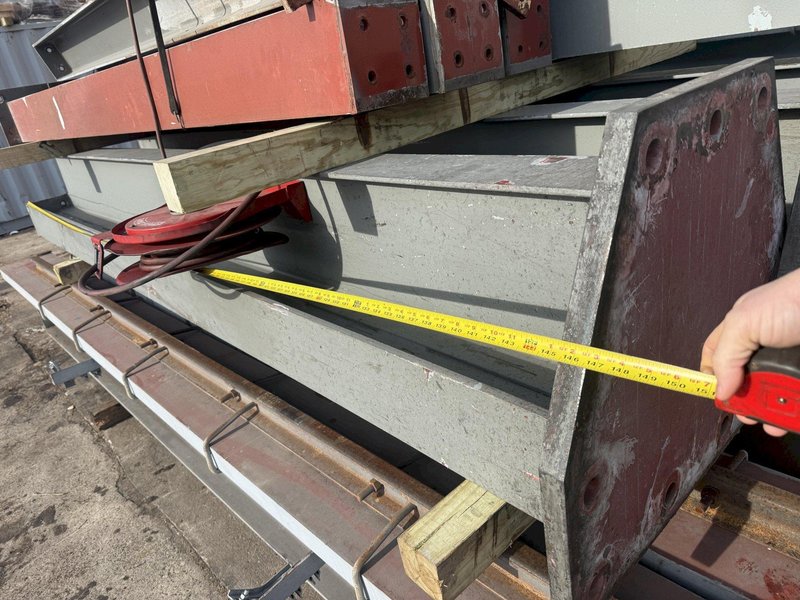

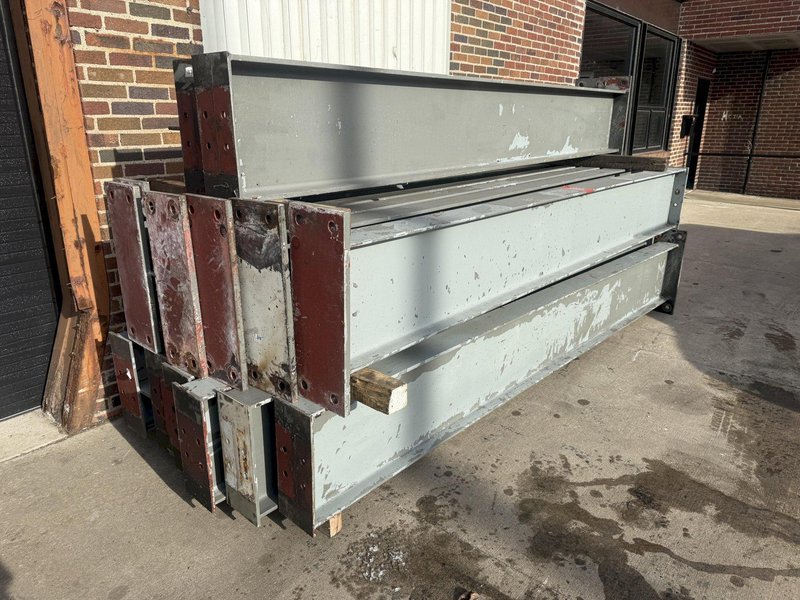

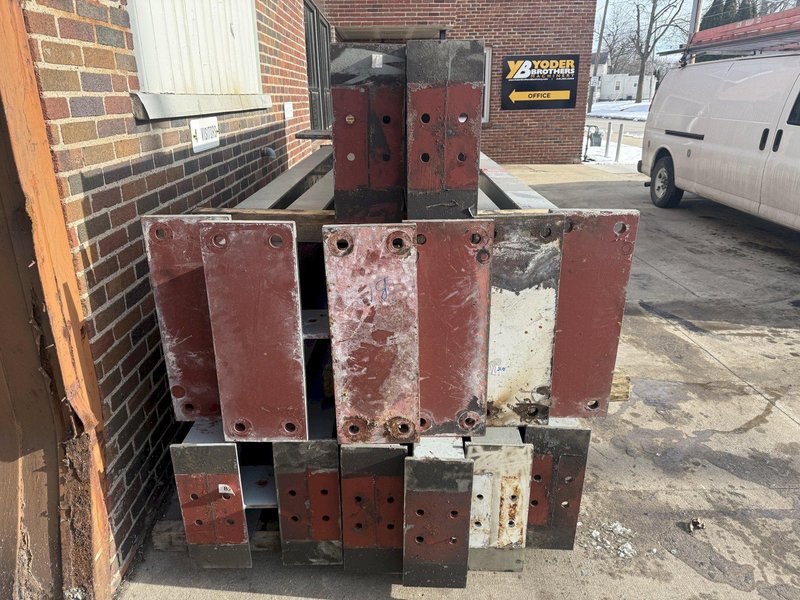

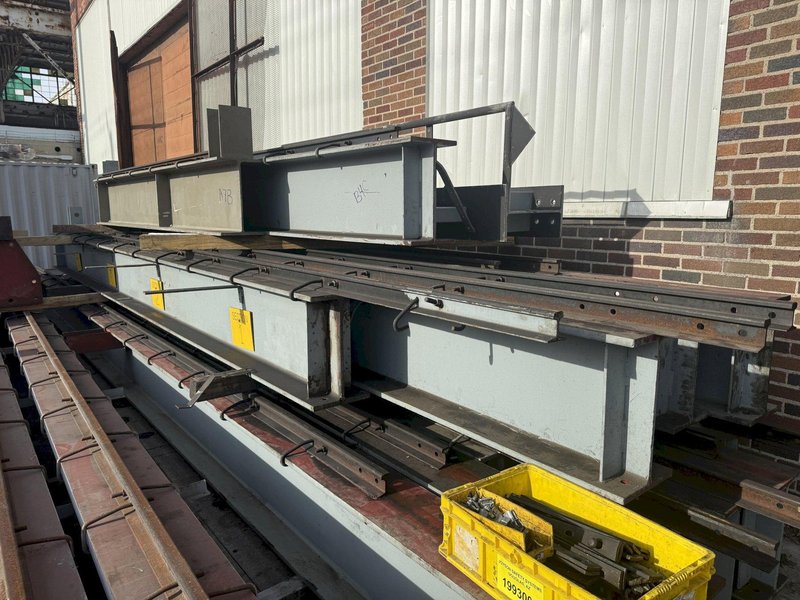

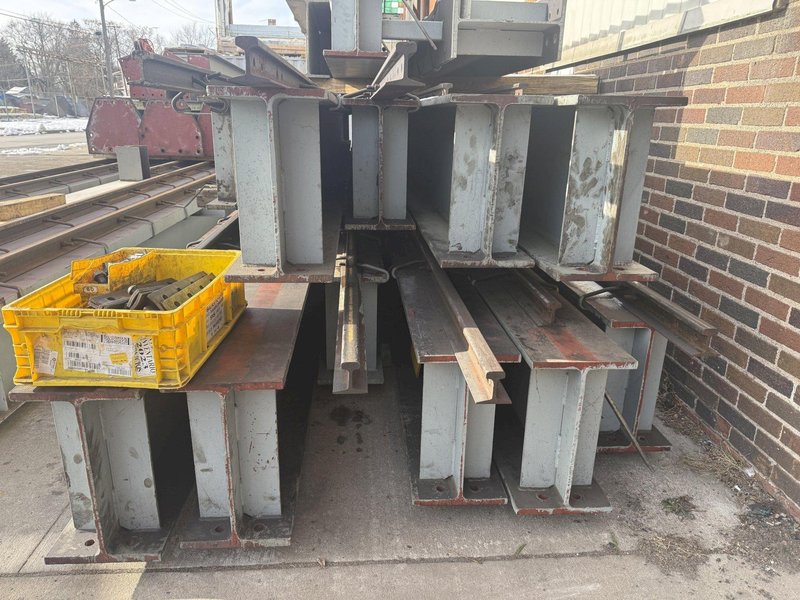

RUNWAY SYSTEM:
RUNWAY LENGTH ................ 140 FEET +/-
NUMBER OF RUNWAY PIECES ...... 15
NUMBER OF UPRIGHTS ........... 18
HEIGHT OF UPRIGHTS ........... 12 FT
CRANE RAIL ................... ASCE30

TROLLEY WEIGHT ............... 1,437 LBS
BRIDGE WEIGHT ................ 12,726 LBS
