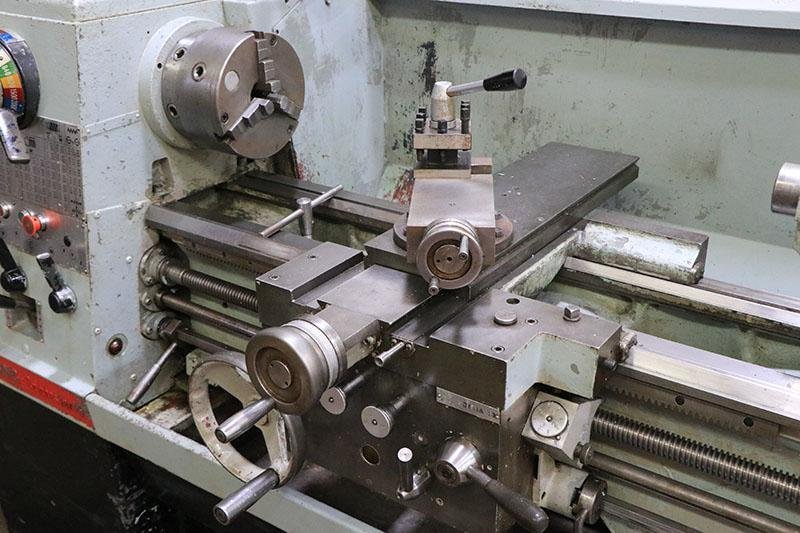

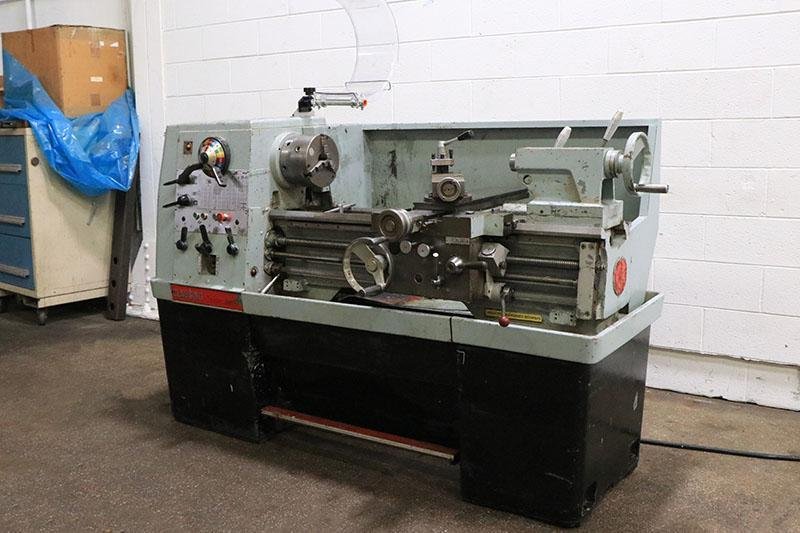

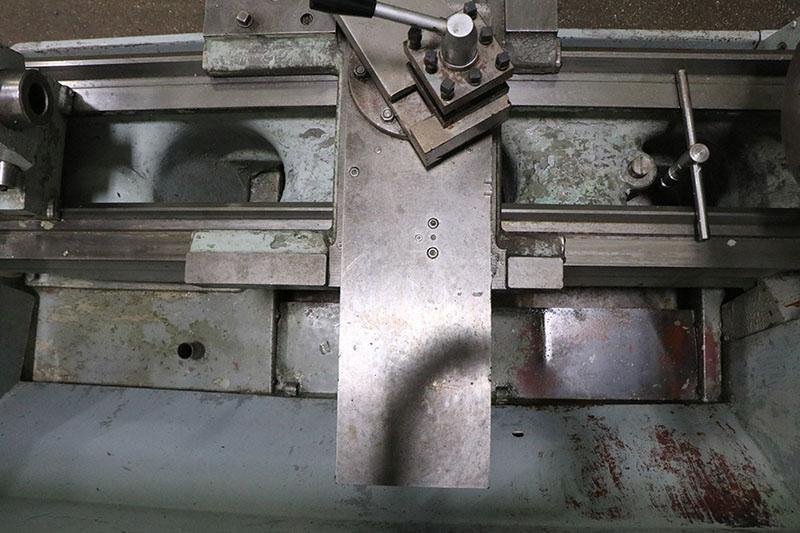

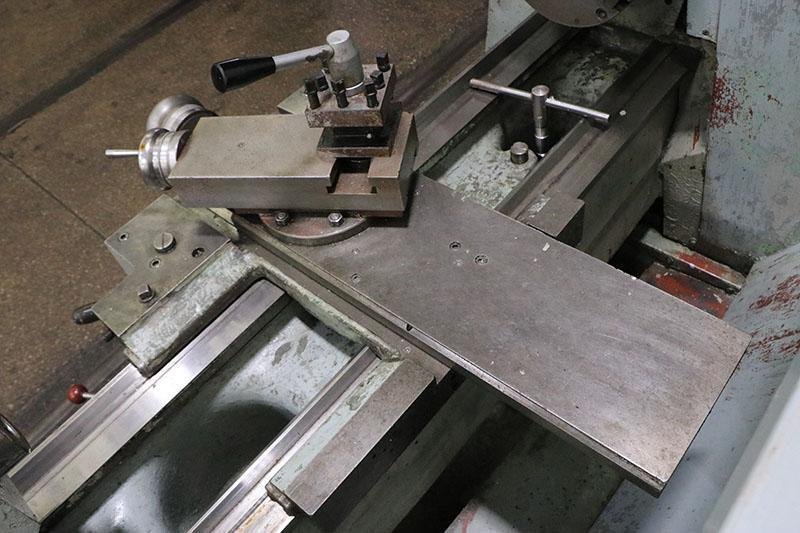

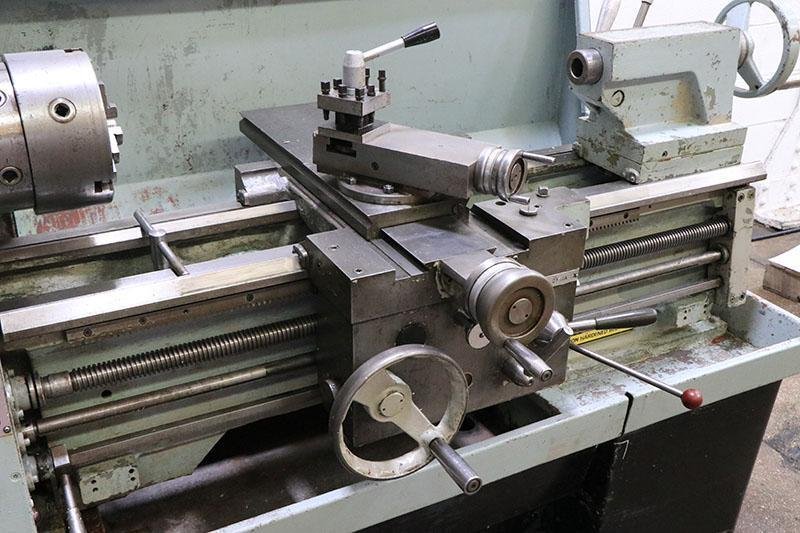

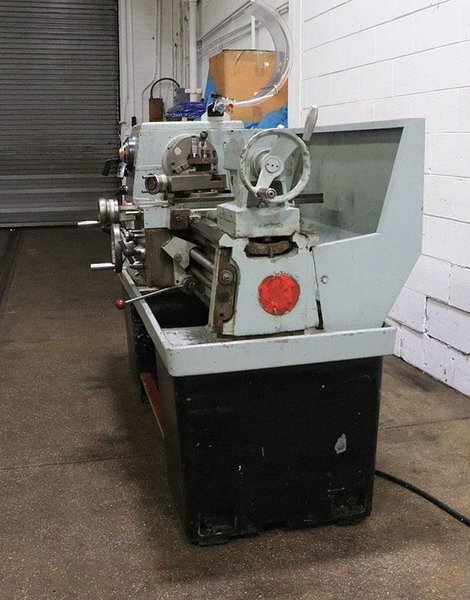

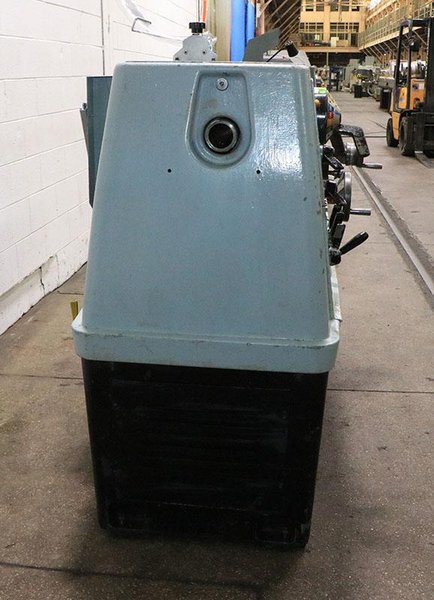

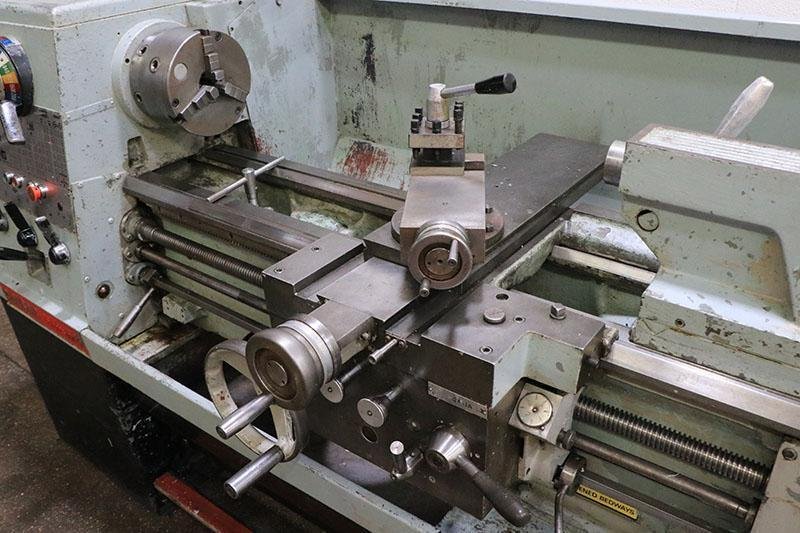

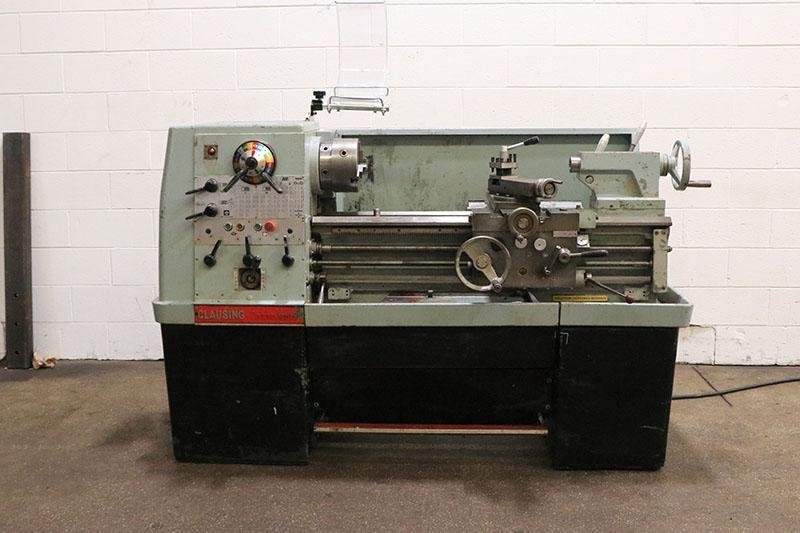

15" x 30" CLAUSING-COLCHESTER ENGINE LATHE
MODEL: 8030
NEW: 1975 SPECIFICATIONS:
SWING OVER BED ....................... 15-1/4"
SWING OVER CROSS SLIDE ............... 9-1/2"
DISTANCE BETWEEN CENTERS ............. 30"
BAR CAPACITY THROUGH SPINDLE ......... 2-1/8"
HOLE THRU SPINDLE .................... 2-3/16"
SPINDLE NOSE, CAMLOCK SIZE ........... D1-6"

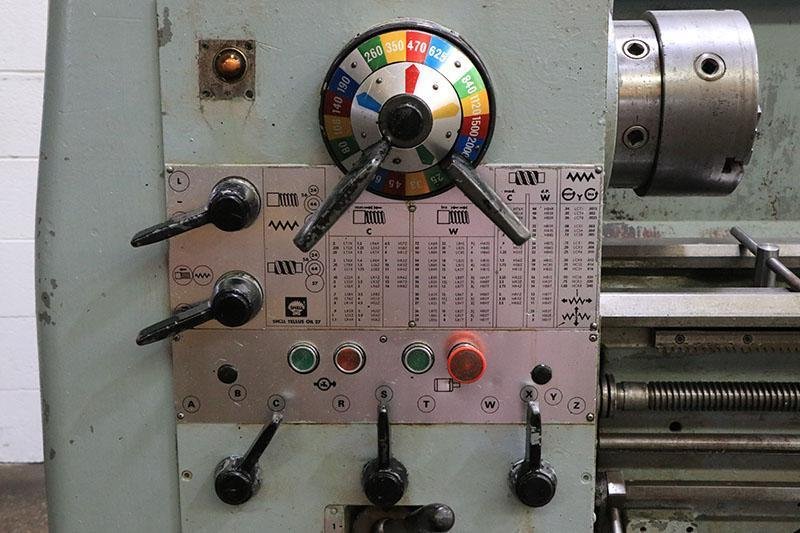

SPINDLE SPEEDS (16) .................. 25 - 2000 RPM
HEADSTOCK SPINDLE TAPER .............. #4 MORSE
WIDTH OF BED ......................... 11"
FEEDS:
LONGITUDINAL (45) ................ .0015 - .040 IPR
CROSS (45) ....................... .00075 - .020 IPR
THREADS:
INCH (45) ........................ 2 - 72 TPI
METRIC (39) ...................... .2 - 14 mm

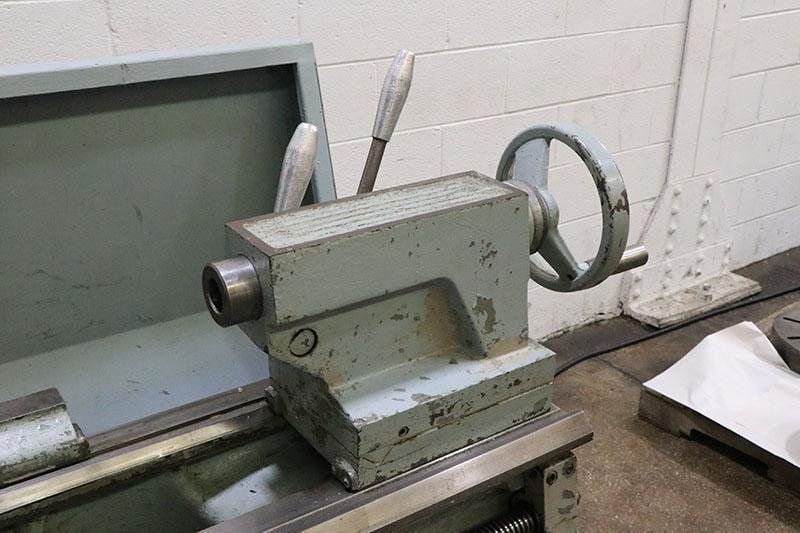

TAILSTOCK SPINDLE TRAVEL ............. 6-1/8"
TAILSTOCK SPINDLE DIAMETER ........... 2-5/16"
TAILSTOCK SPINDLE TAPER .............. #4MT
DIMENSIONS ........................... 76" x 38" x 52"
APPROX WEIGHT ........................ 3,100 LBS
EQUIPPED WITH:
- INCH/METRIC THREADING CAPABILTIY
- 8" 3-JAW CHUCK
- TOOLPOST
- LIVE CENTER FOR TAILSTOCK
- THREAD DIAL INDICATOR
- COOLANT SYSTEM
- FOOT BRAKE

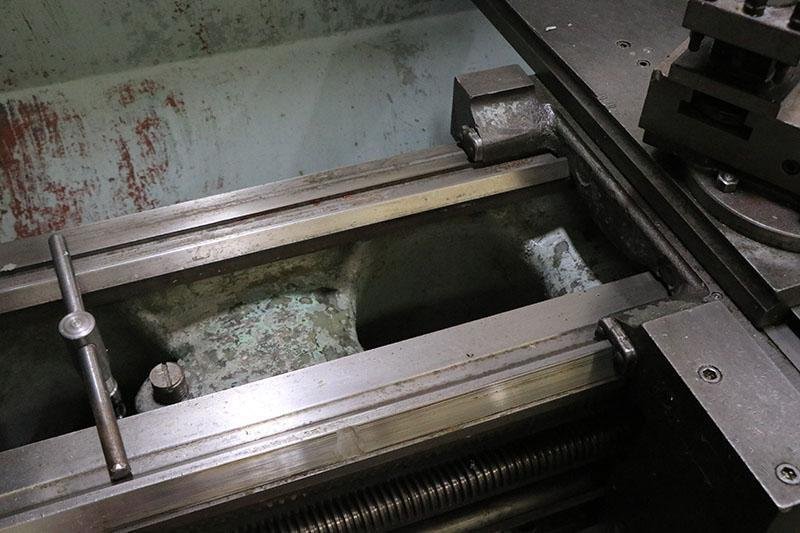

- HARDENED & GROUND BED WAYS
- 7.5 HORSE POWER SPINDLE DRIVE MOTOR
FOB: Origin |
