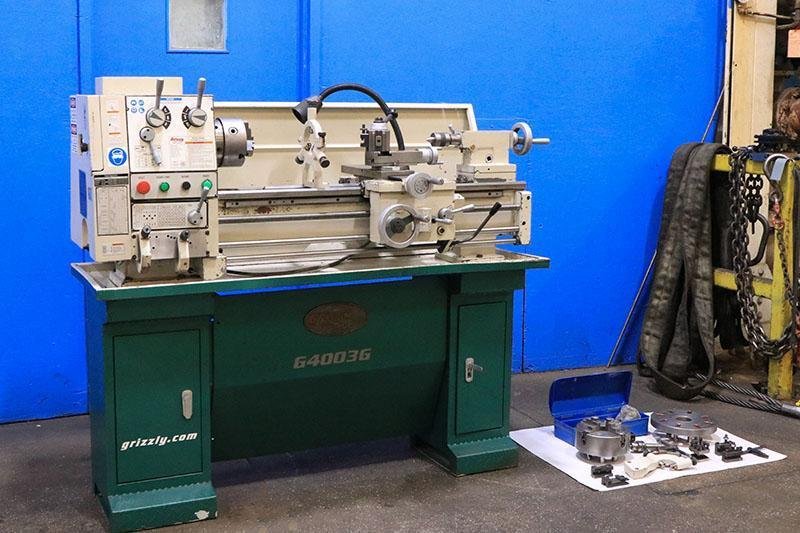

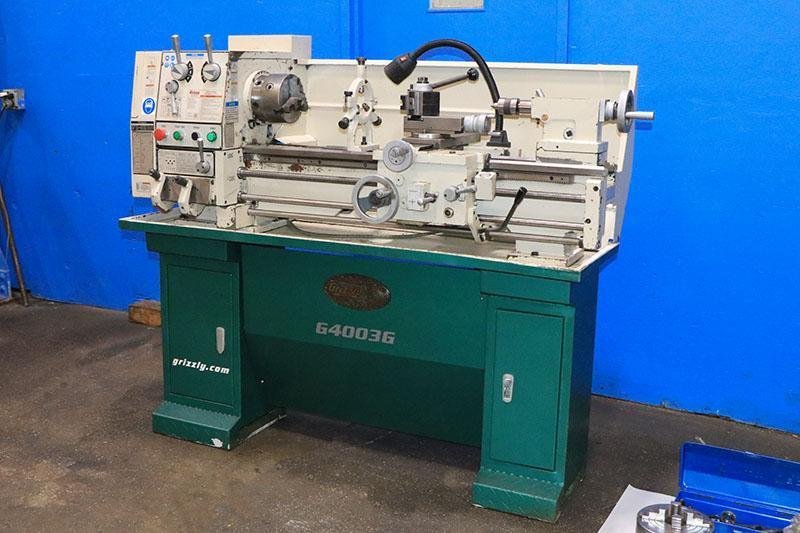

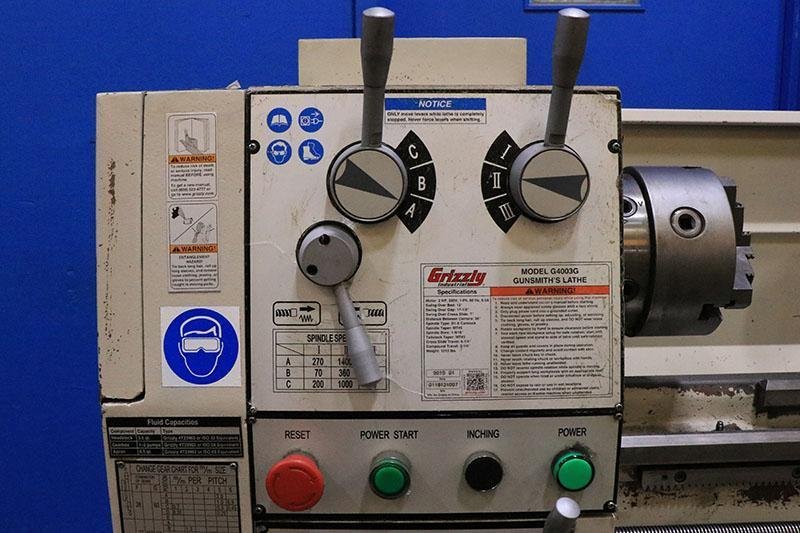

12" X 36" GRIZZLY GUNSMITHING METAL LATHE MODEL: G4003G, NEW: 2019

Brand
GRIZZLY
Category
Lathes & Turning Machines
Type
Lathes, Engine
Model
G4003G
Stock #
5002
Year
2019
Condition
Used

Location

New York
REQUEST FINANCING

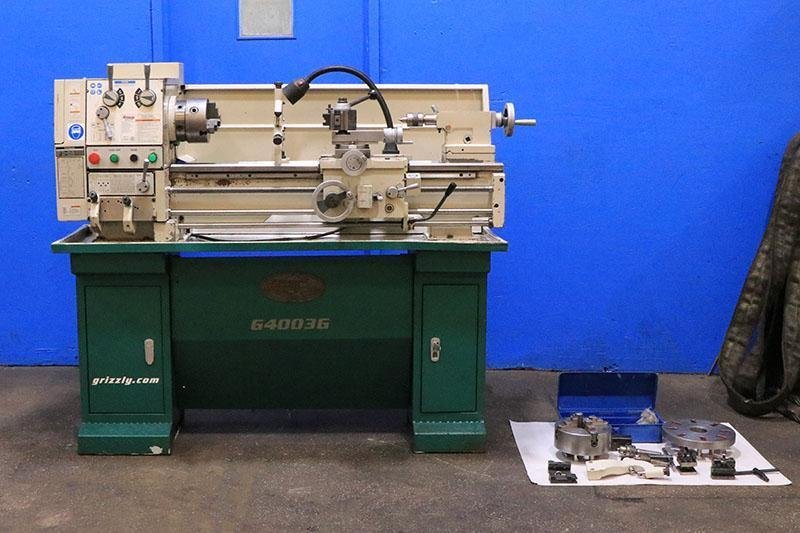

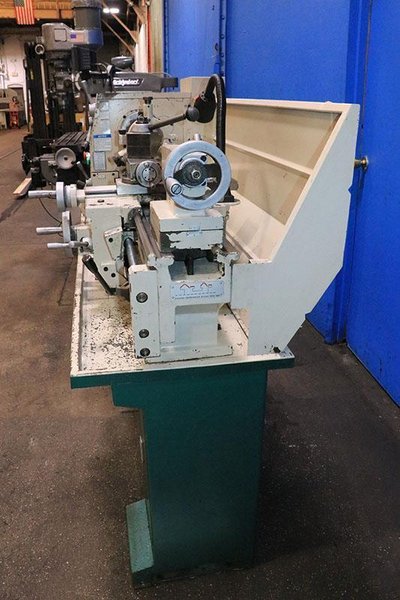

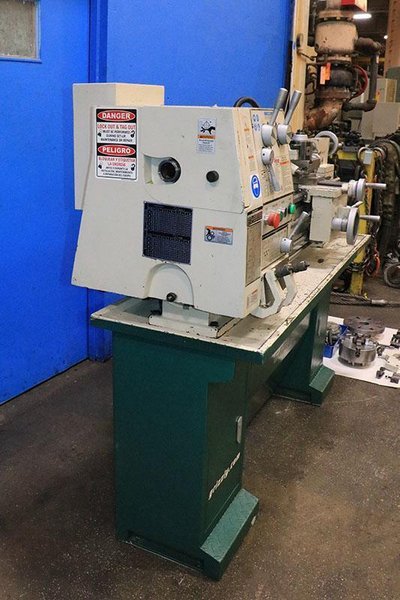

12" X 36" GRIZZLY GUNSMITHING METAL LATHE

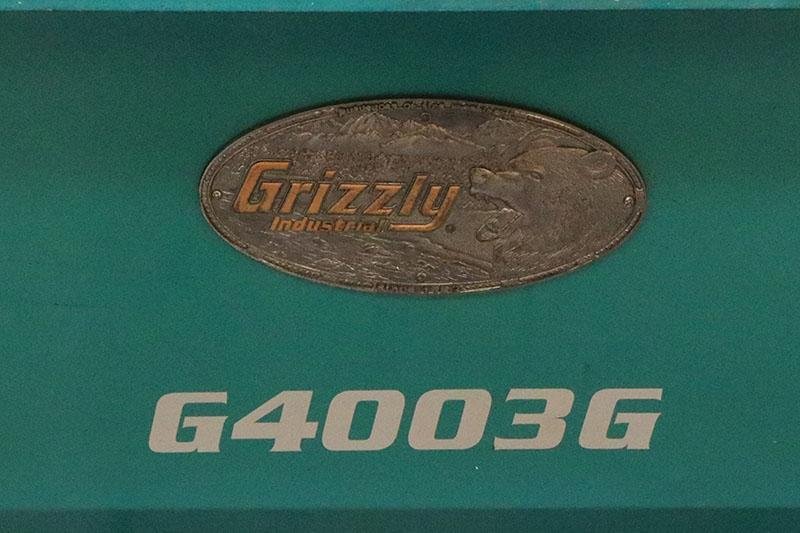

MODEL: G4003G
NEW: 2019

SPECIFICATIONS:
SWING OVER BED .......................... 12"
SWING IN REMOVABLE GAP .................. 17-1/2"
SWING OVER CARRIAGE WINGS ............... 11-11/32"
SWING OVER CROSS SLIDE .................. 7"
DISTANCE BETWEEN CENTERS ................ 36"
BED WIDTH ............................... 7-1/4"
SPINDLE SPEED RANGE (9) ................. 70 - 1,400 R.P.M.
HOLE THROUGH SPINDLE .................... 1.57"
SPINDLE NOSE CAMLOCK .................... D1-5"

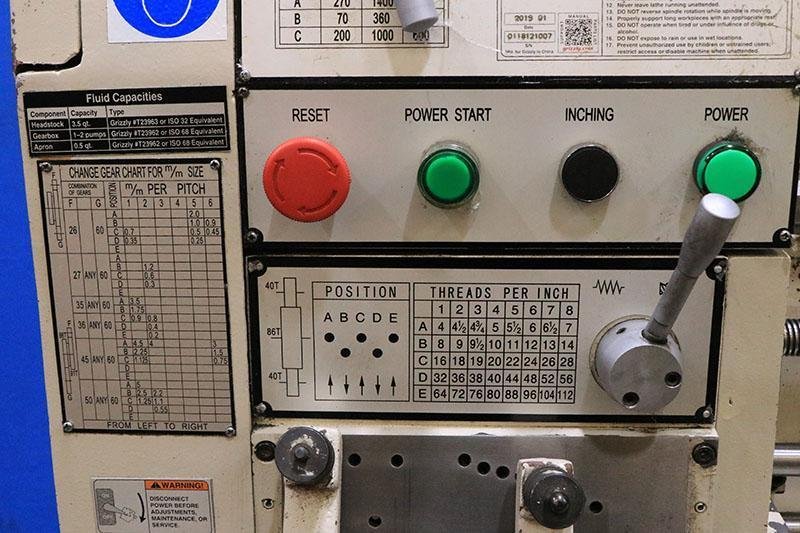

AMERICAN STANDARD THREADING RANGE (40) .. 4 TO 112 T.P.I.
METRIC THREADING RANGE (29) ............. 0.25 TO 4.5 MM
FEED CHANGES:
    LONGITUDINAL (40) ................... 0.0011 - .0310 IPR
    CROSS (40) .......................... 0.0004 - .0105 IPR

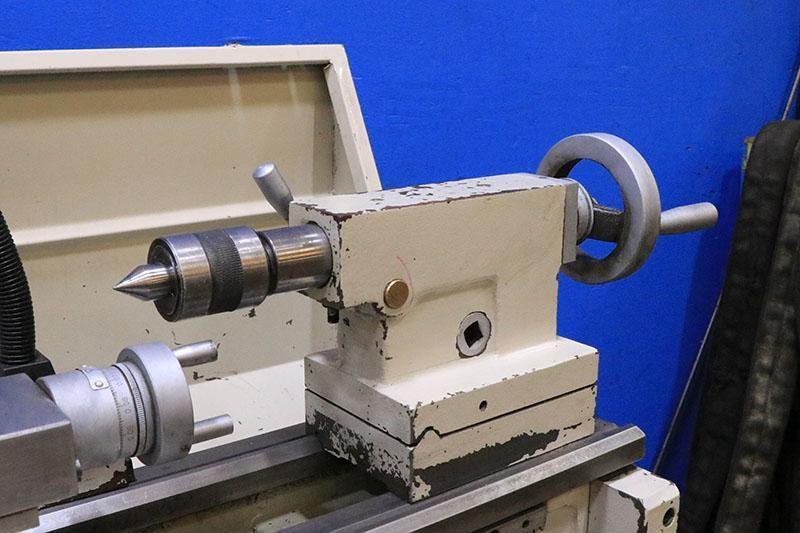

TAILSTOCK SPINDLE TAPER ................. #3MT
TAILSTOCK SPINDLE DIAMETER .............. 1.563"
TAILSTOCK SPINDLE TRAVEL ................ 4"
APPROXIMATE WEIGHT ...................... 1,400 LBS.

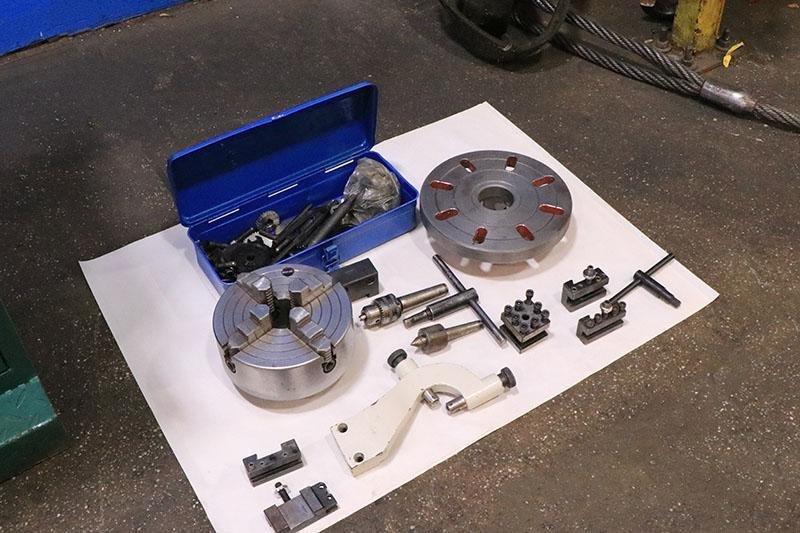

EQUIPPED WITH:
INCH AND METRIC THREADING CAPABILITY

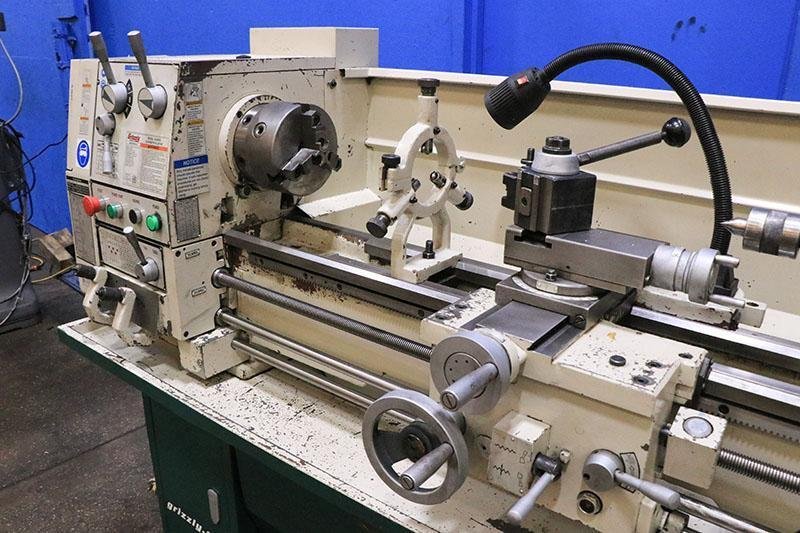

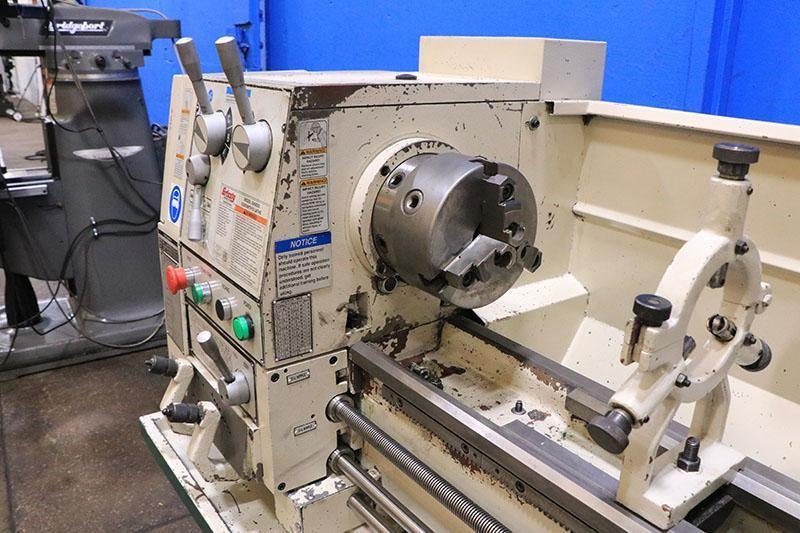

3-JAW CHUCK
4-JAW CHUCK
STEADY REST
FOLLOW REST

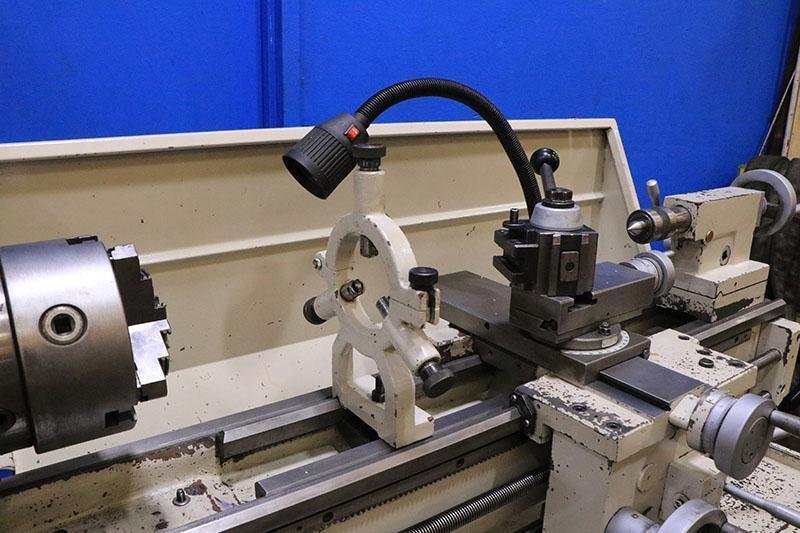

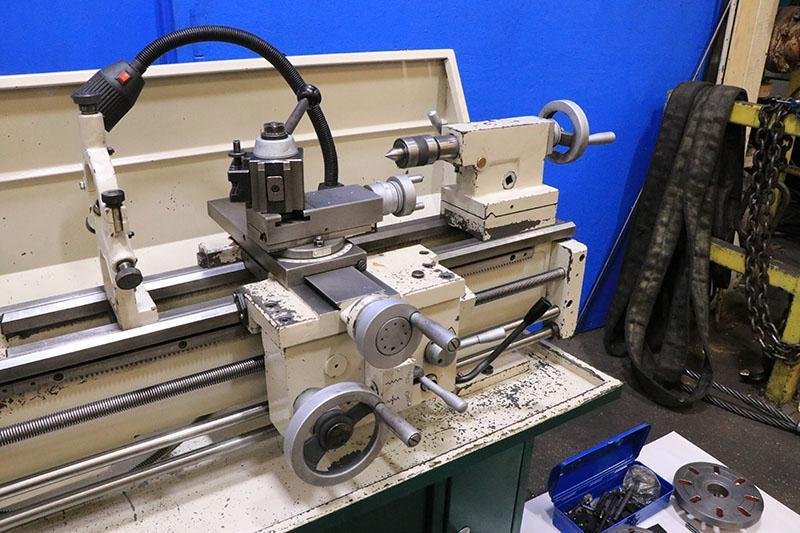

QUICK CHANGE TOOLPOST
FACEPLATE
DRILL CHUCK
LIVE CENTER
THREAD DIAL INDICATOR
REMOVABLE CHIP PAN
COOLANT SYSTEM WITH SPLASH GUARD
2 HORSE POWER MAIN MOTOR
MACHINE IS SET UP TO RUN WITH 220 SINGLE PHASE POWER

FOB: ORIGIN
