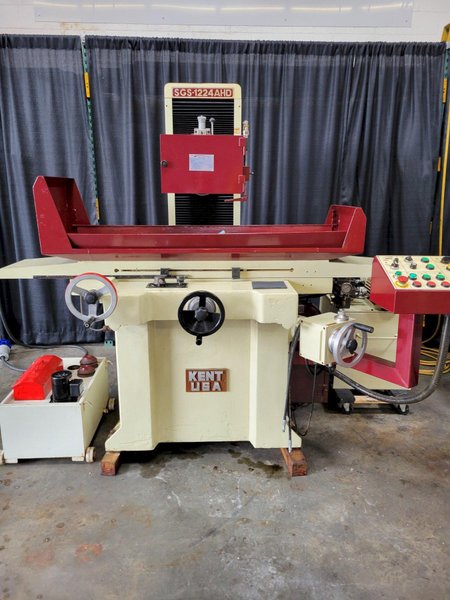

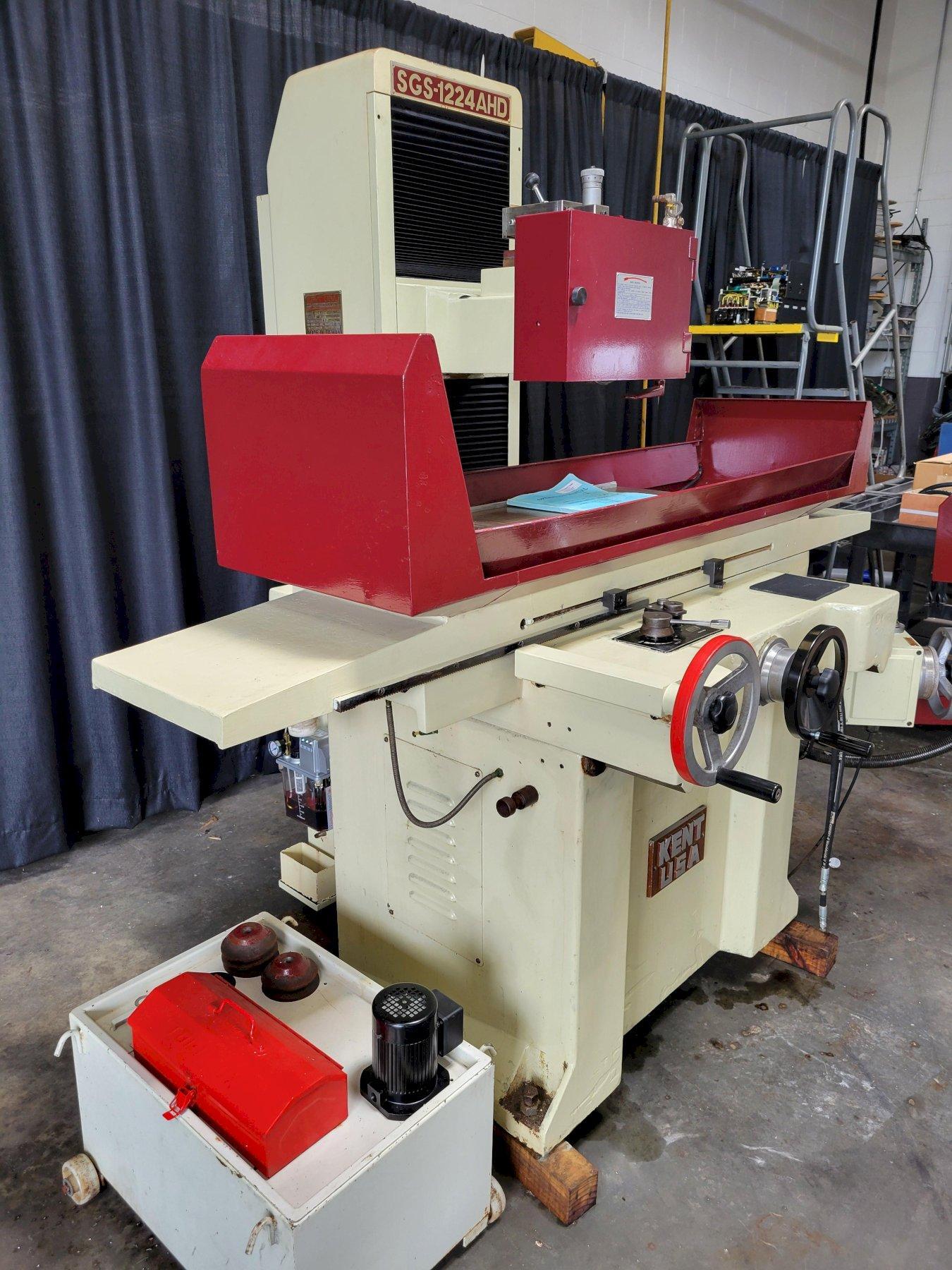

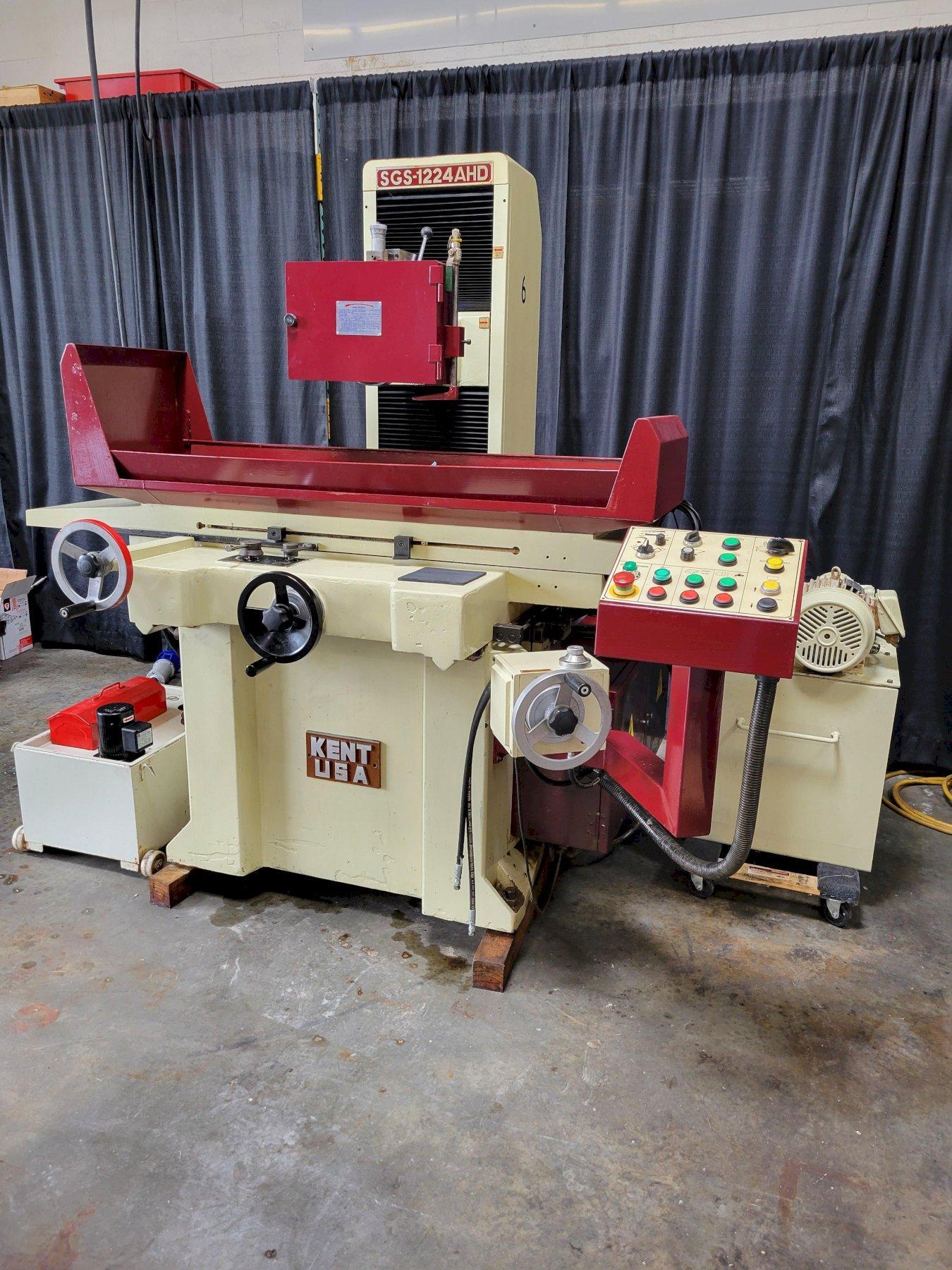

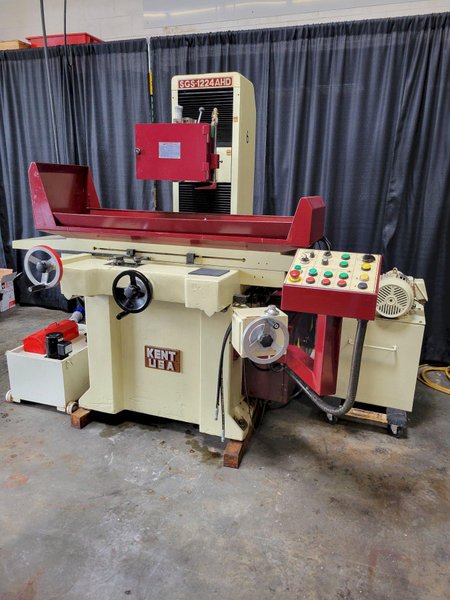

12 x 24 KENT USA SURFACE GRINDER, SGS-1224AHD 3-AXIS AUTOMATIC

            EQUIPPED WITH:

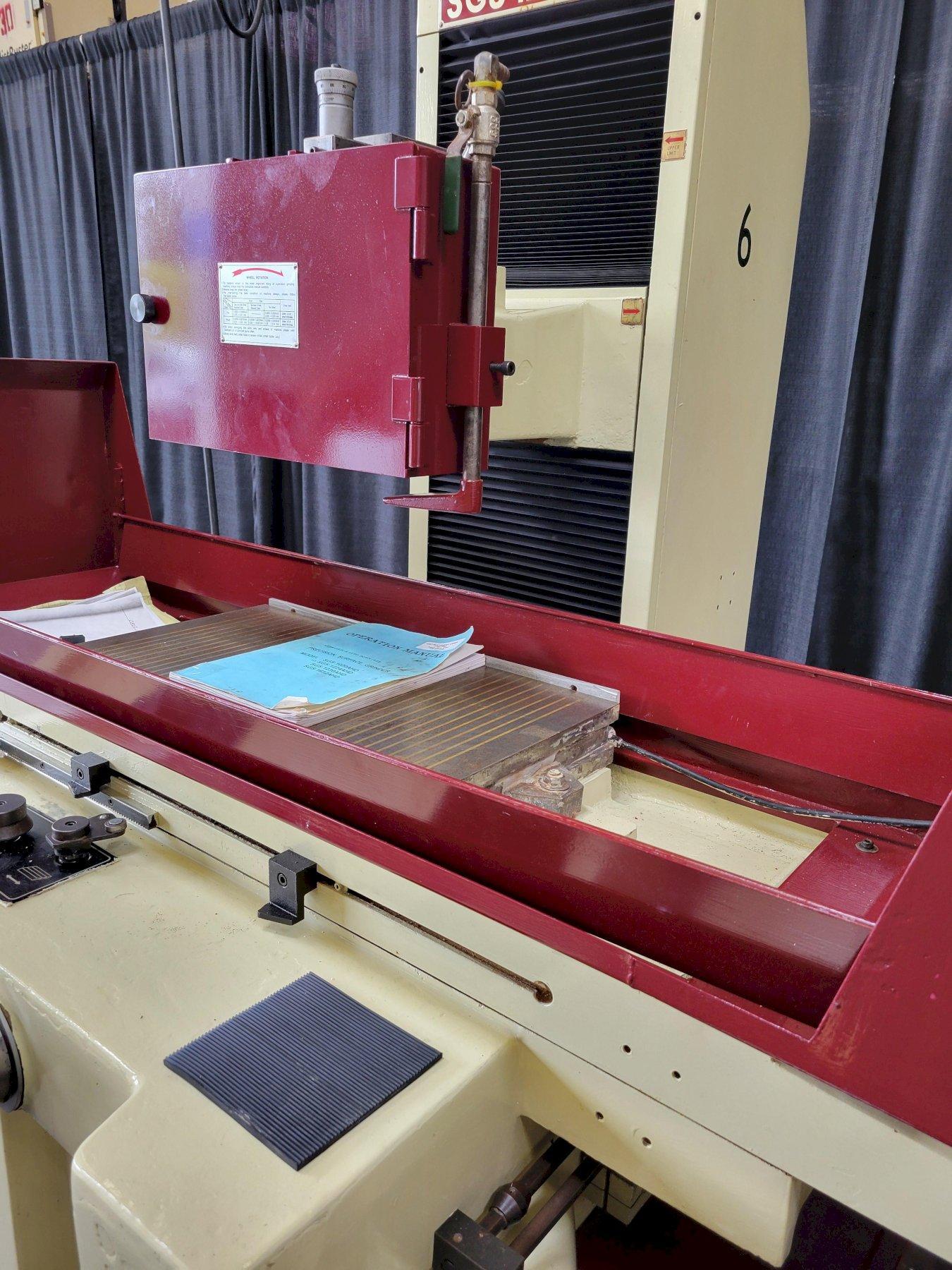

                                                12" x 24" Electro Magnetic Chuck with Variable Control.

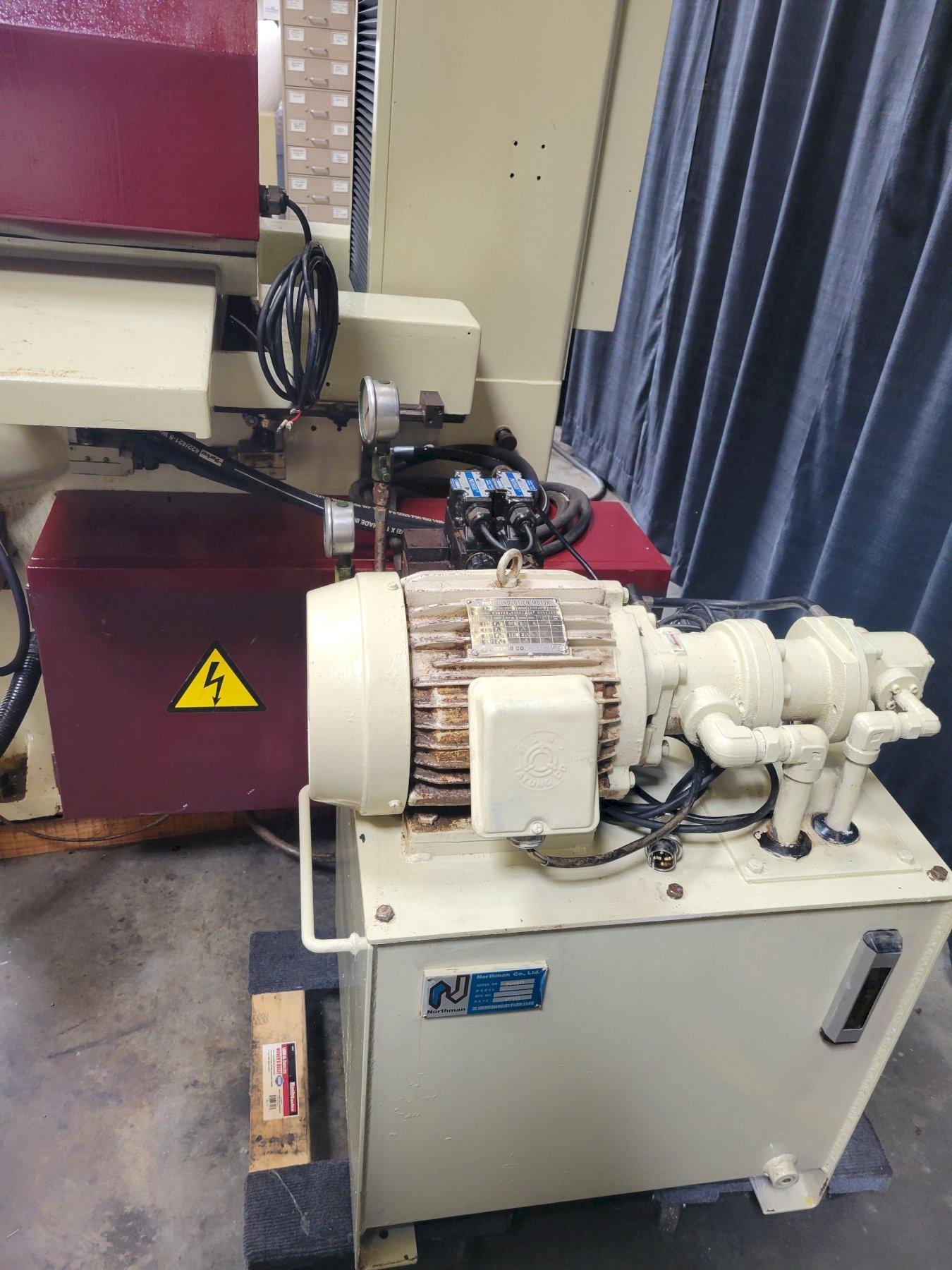

                                                Hydraulic Table & Electronic Auto-Crossfeed.

                                                Rapid Elevation and Cross Feed.

                                                Precision Turcite-B Ways.

                                                Over-Wheel Parallel Dresser.

                                                Automatic Lubricating System.

Coolant System.

                                                Table Splash Guards

MACHINE SPECIFICATIONS

                        Longitudinal  Travel.....................................….         24.5"

                        Cross Travel ................................................….         13.5"

                        Spindle C/L to top of table ..........................….         23"

                        Working Capacity:..........................................           12" x 24"

                        Grinding Wheel ..............................................           14" x 1-1/4" x 5"

                        Grinding Wheel Speed....................................           1,750 RPM

                        Spindle Motor ..............................................              5 HP (V3)

                        Vertical Downfeed Graduation .......................          0.0005"

                        Vertical Downfeed per Revolution....................        0.1000"

                        Automatic Incremental Downfeed ...................         Variable 10 steps

                                                                                                                  (.0001" to .001")

                        Table Speed ...................................................            16 to 80 FPM

                        "T" Slot ..........................................................            1”x 9/16"

Condition;…   REFURBISHED AND TESTED (2025)

            Photos……..   Available

            Demo:……..   Yes, under power.

            Dimensions.    78”(l-r) x 60”(f-b) x 78” high.

            Weight:…..     4,100 lbs approx.

                        Electrics:…    220 / 3 / 60
