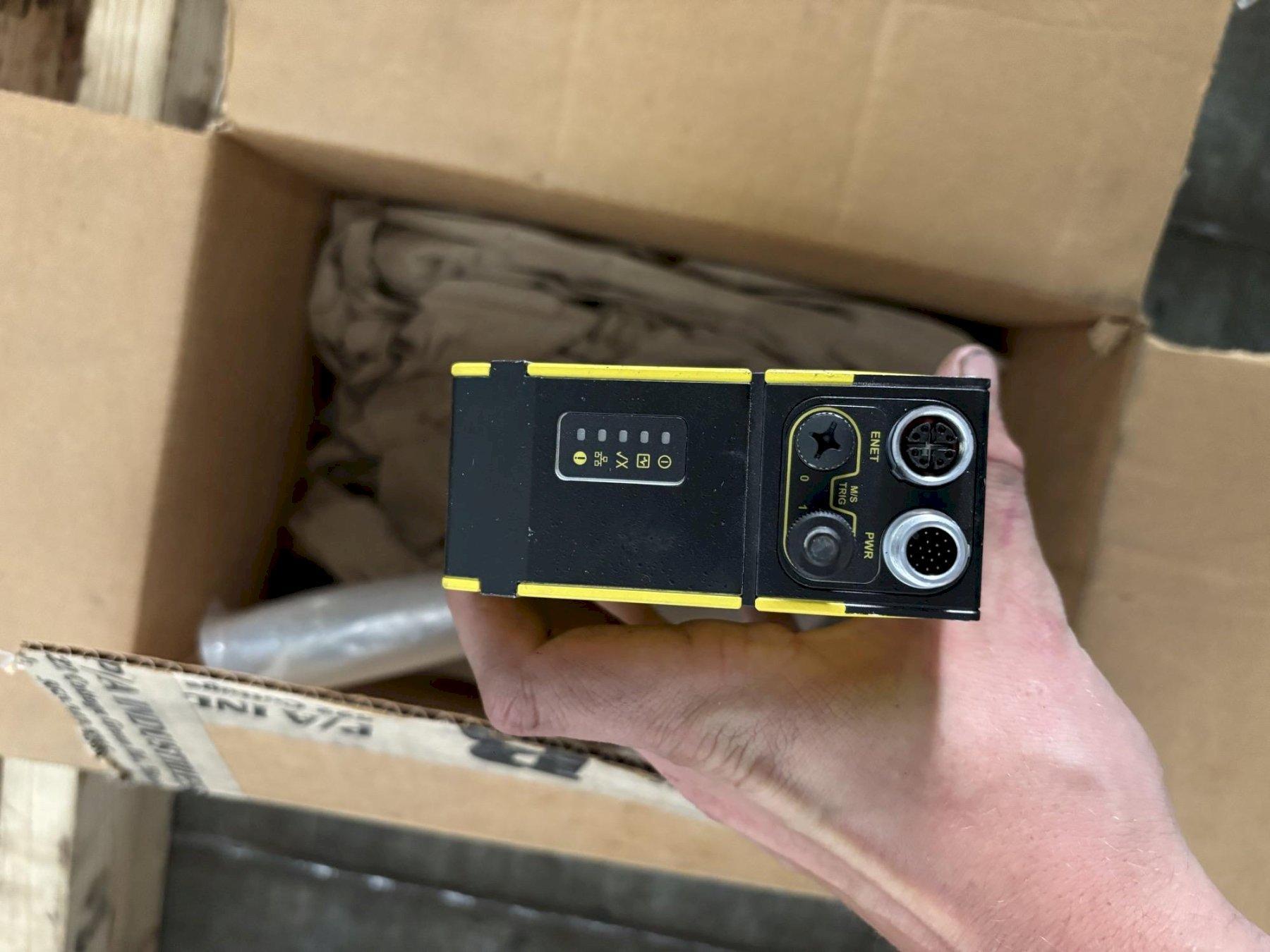

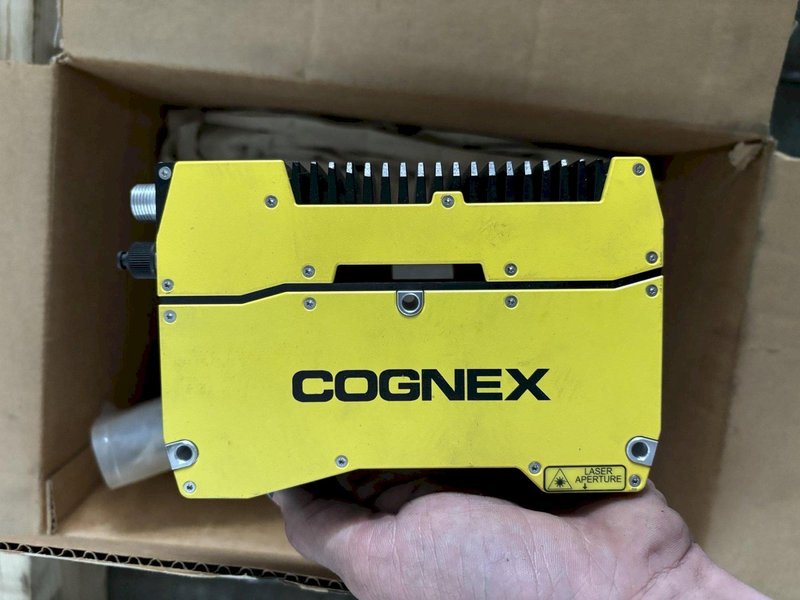

Cognex 3D-L4000 In-Sight 3D Laser Vision System, 2021 – High Precision Industrial Inspection

Laser wavelength: 450 nm blue laser Bytronic Vision Intelligence Laser class: 2M output power ~45 mW Measurement ranges for different models: clearance distance ~92 mm / 130 mm / 180 mm; Z-axis measurement ranges ~106 mm / 235 mm / 745 mm Field of view (X-axis) near/middle/far for respective models e.g., 55/72.5/90 mm (for first variant) Resolution & repeatability: Z resolution top ~2.5 µm, repeatability down to ~0.5 µm (for top variant) Scan rate: Up to 4 kHz (or up to ~6 kHz when windowing sensor) Dimensions: 150.5 mm × 101 mm × 45 mm; weight ~0.94 kg Housing: IP65 (with proper cable attachments) Operating temperature: 0-45 °C (32-113 °F) typical, storage -20-70 °C Power supply: 24 VDC ±10%, minimum ~750 mA

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
