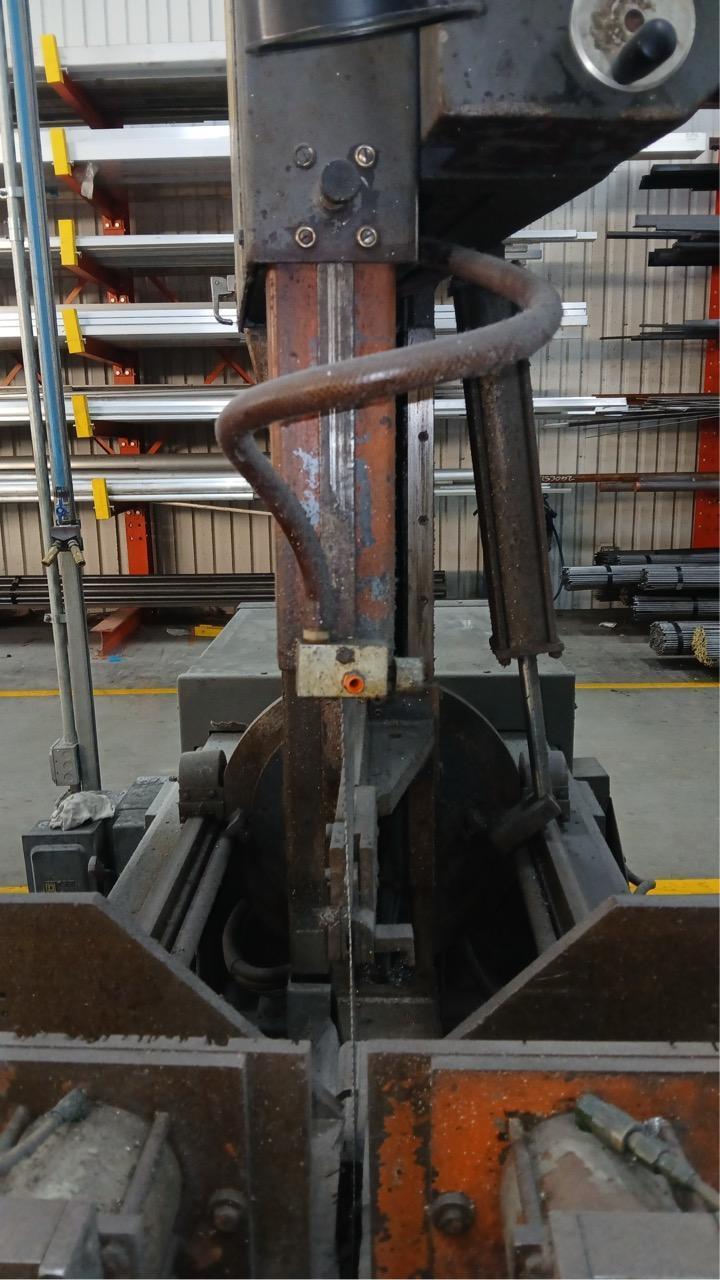

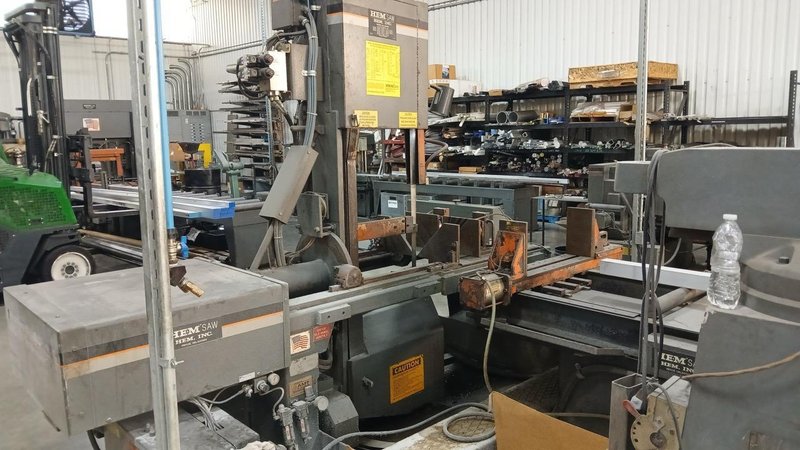

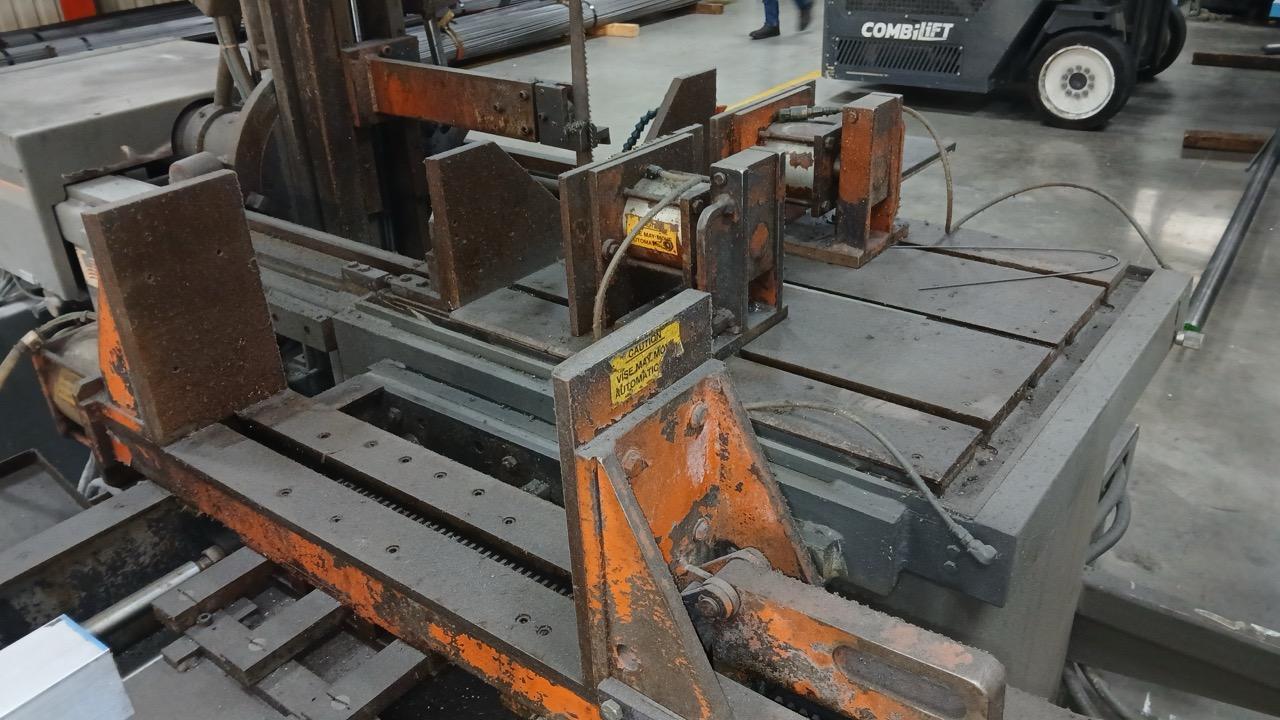

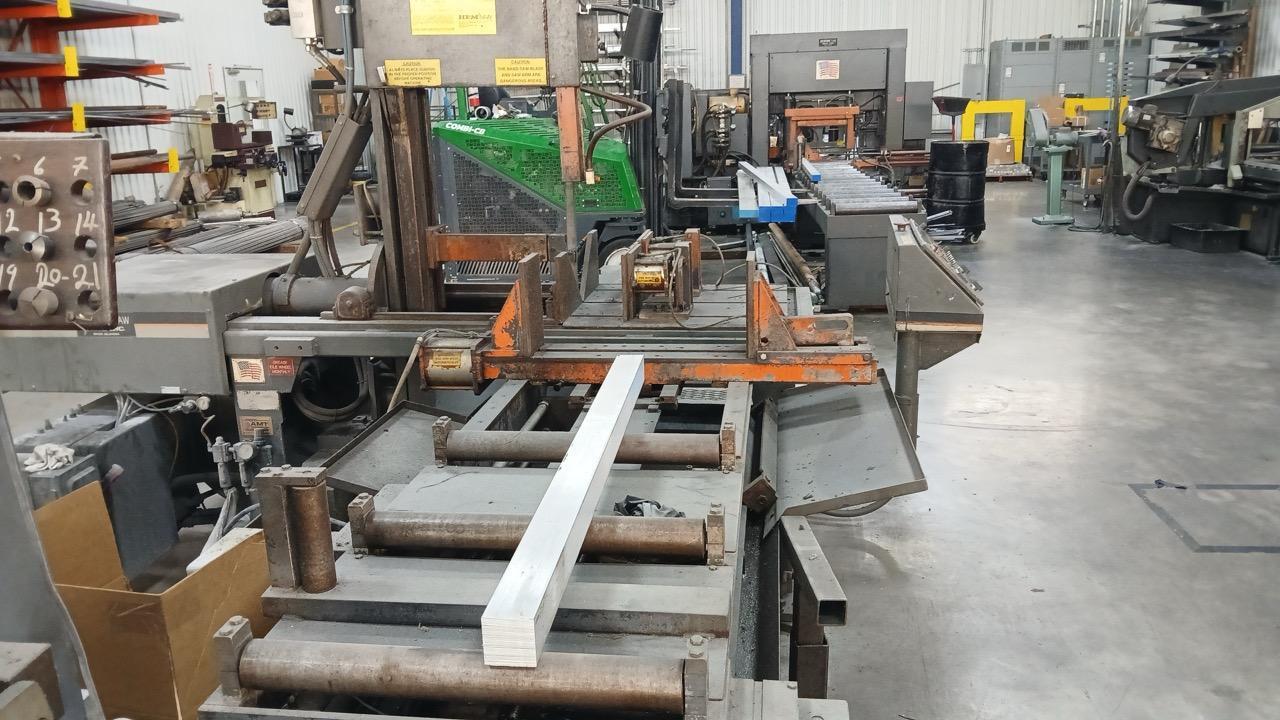

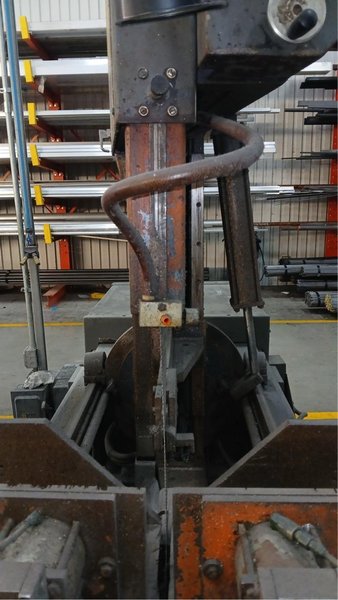

18″ x 22″ HEM V100LA-3 Automatic Tilting-Head Vertical Band Saw, 2004 – Under Power
Brand
Category
Type
Model
V100LA-3
Stock #
397984
Year
2004
Condition
Not specified
Location
Not specified
|
Capacity at 90 degrees: 18″ x 20.753
Mitering at 45 degrees: L18″x 4.253
Mitering at 45 degrees: R18″x 14″
Mitering at 60 degrees: L18″x 9.75″
Mitering at 60 degrees: R18″X 6.75″
Bar-feed multiple index: 0 to 483
Blade dimensions: 15’0″ x 1.25″ x .042″
Motor: 5 HP
Hydraulic motor: 2 HP

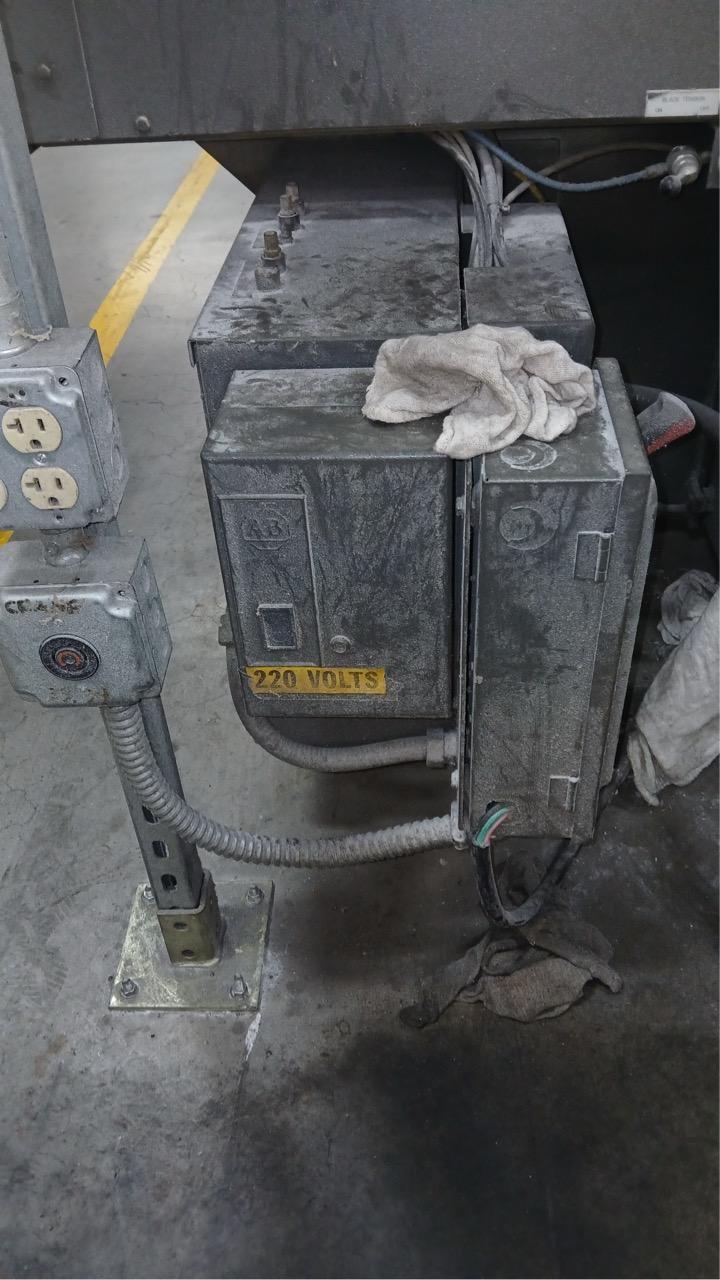

Volts: 220 / 440
Phase: 3
Approximate dimensions: 111″ x 120″ x 90″ high
Approximate weight: 5,500 lbs.
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
