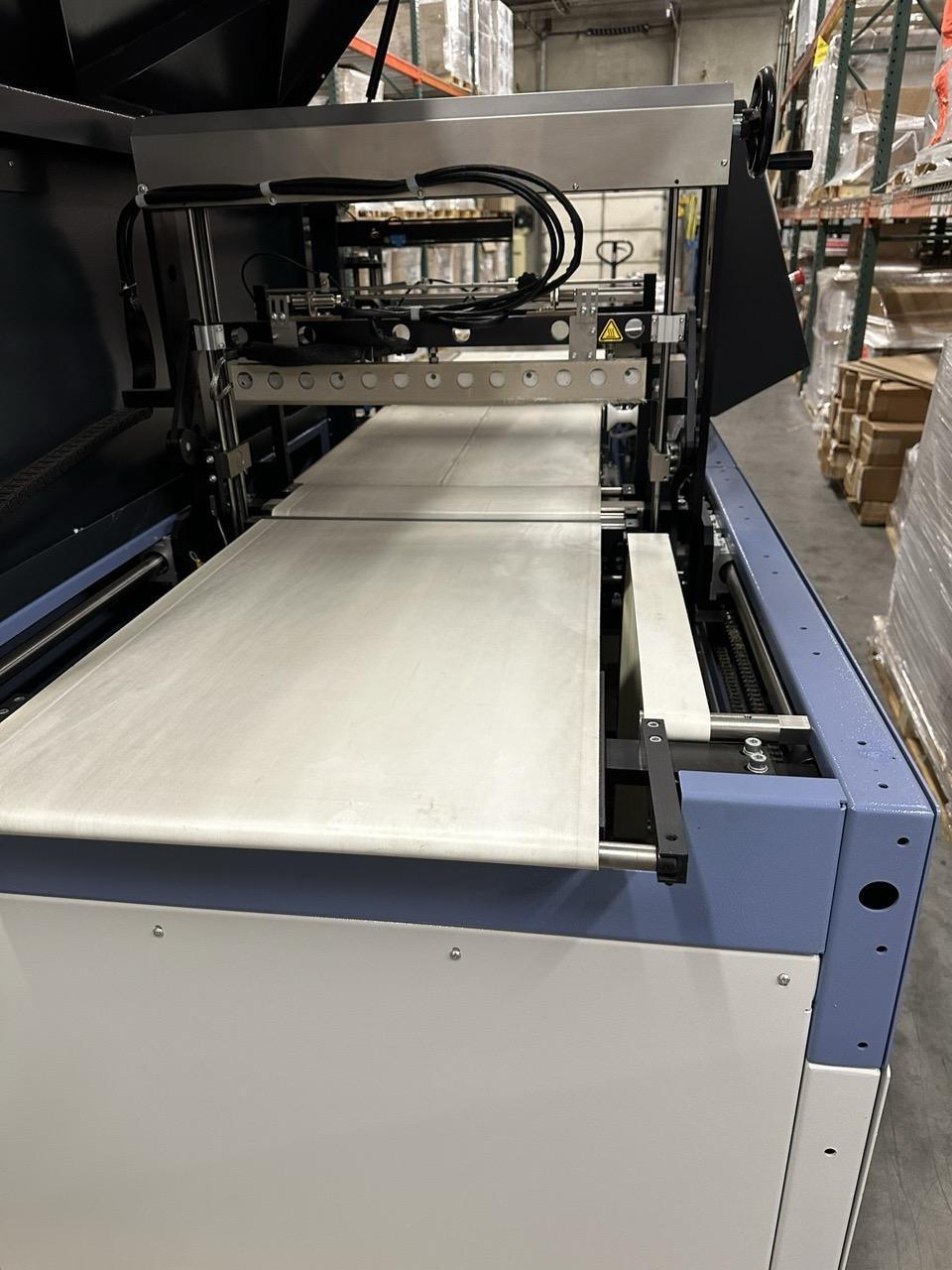

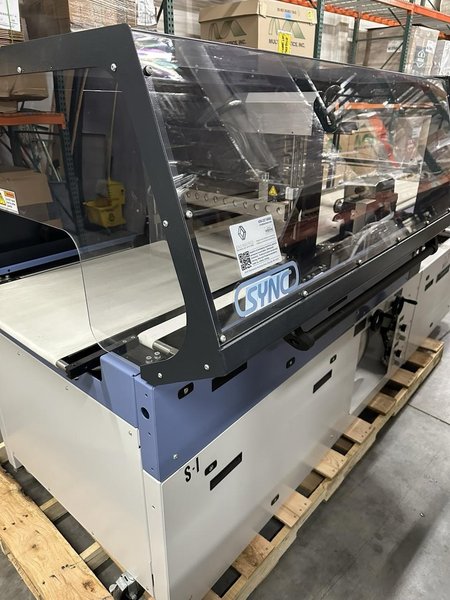

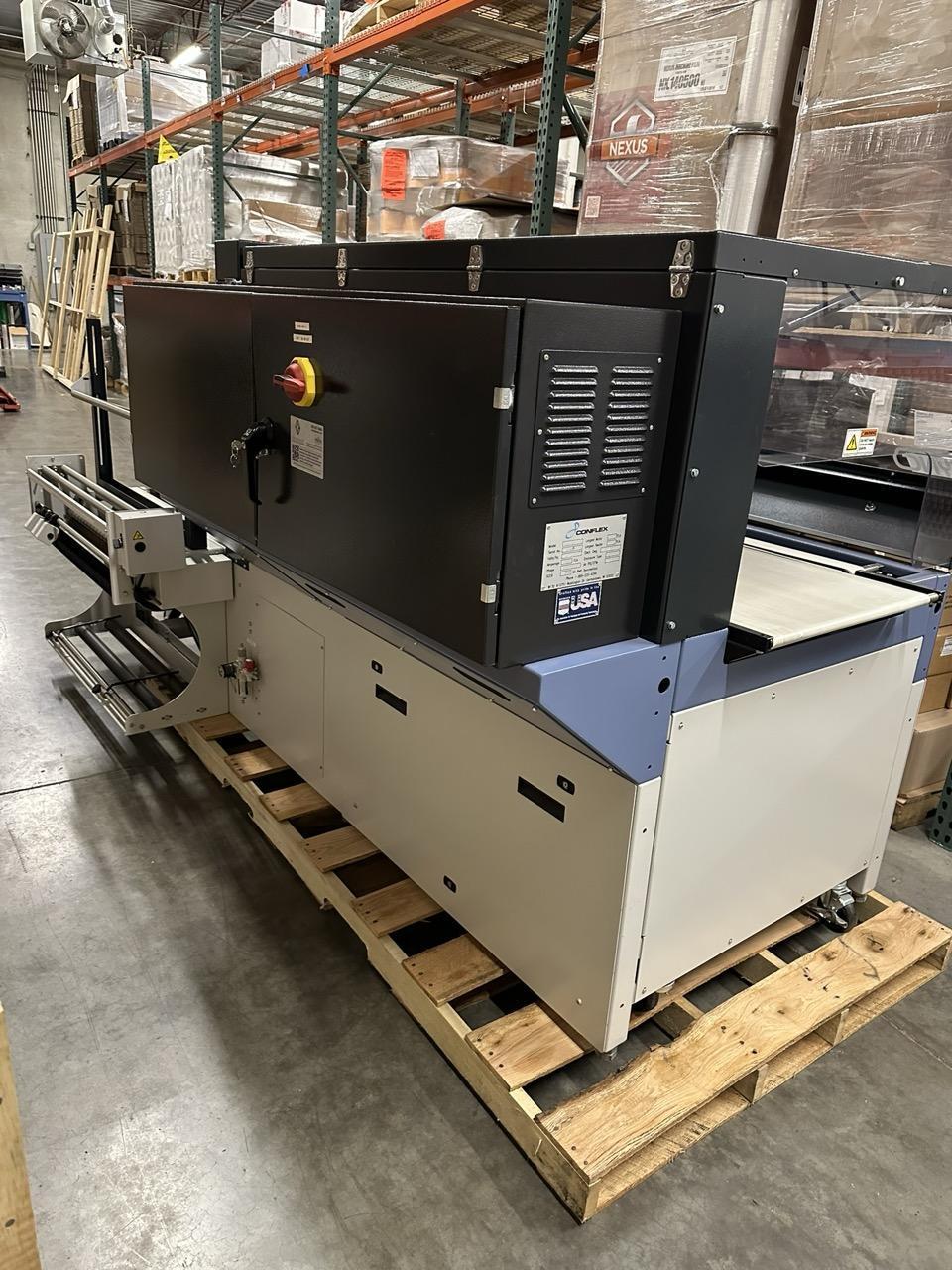

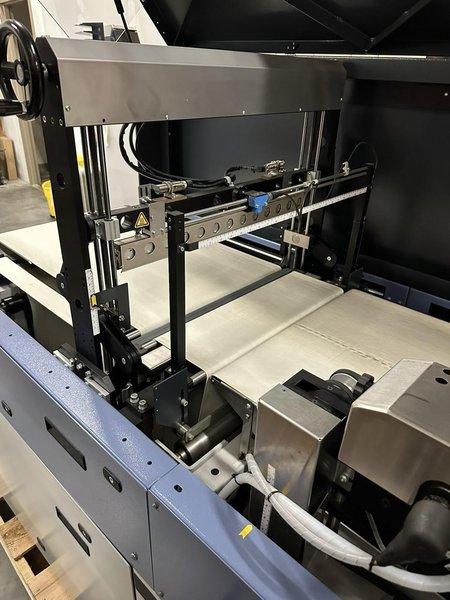

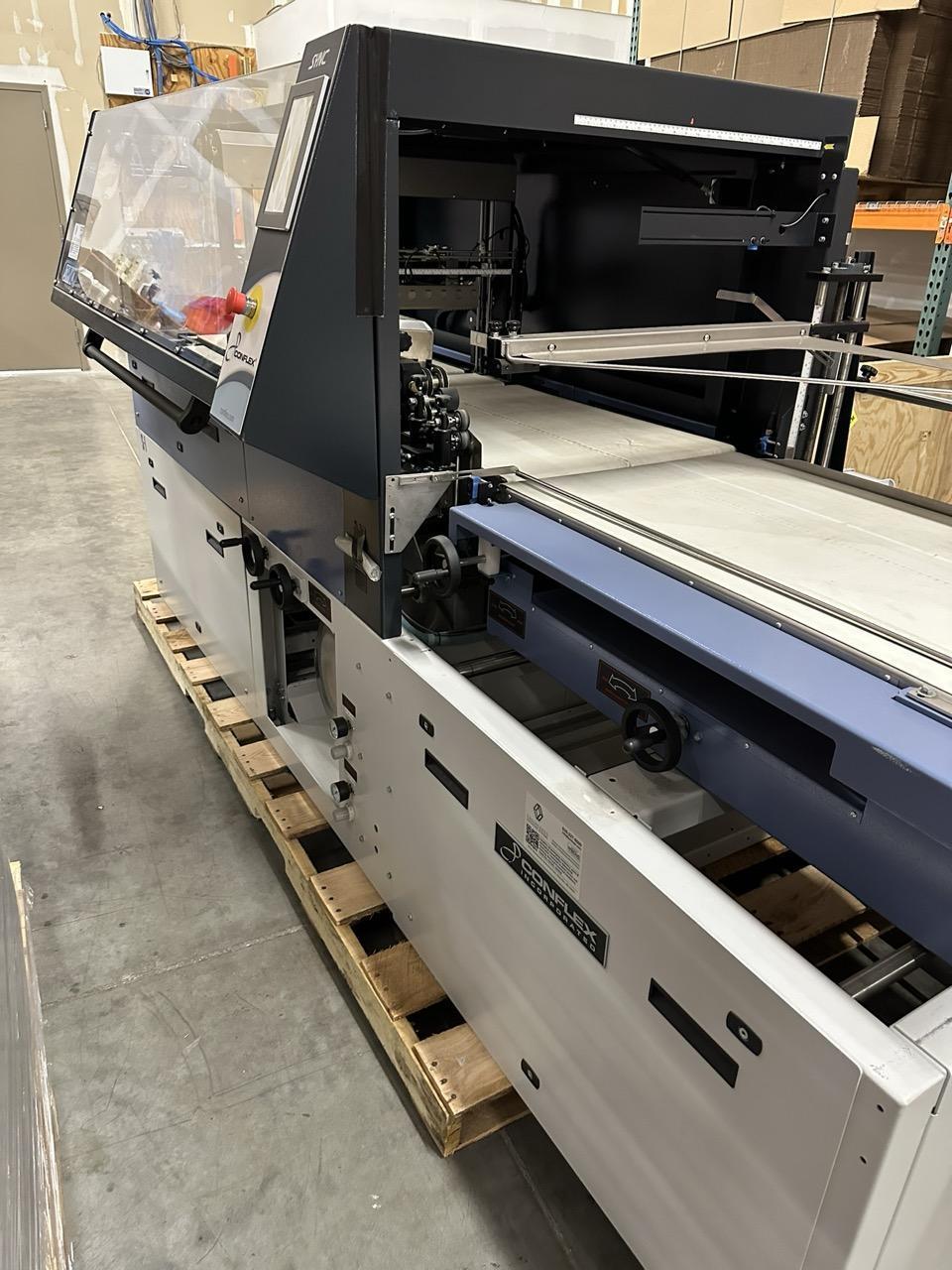

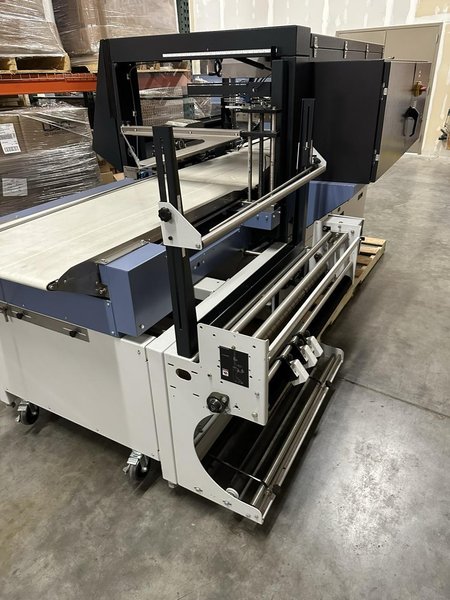

Conflex SYNC Side Sealer, 2021 – With Shanklin CT-T71B Shrink Tunnel

Machine Dimensions & Film Handling Overall Length: 96″ Width: 48″ Height: 60″ Max Film Width: 31″ (centerfold film) Cross Seal Width: 24″ Seal Type: Hot knife or rotary seal bar Speed: Up to 100 feet per minute Conveyor Width: 20″ Product Height Range: Adjustable up to 10″

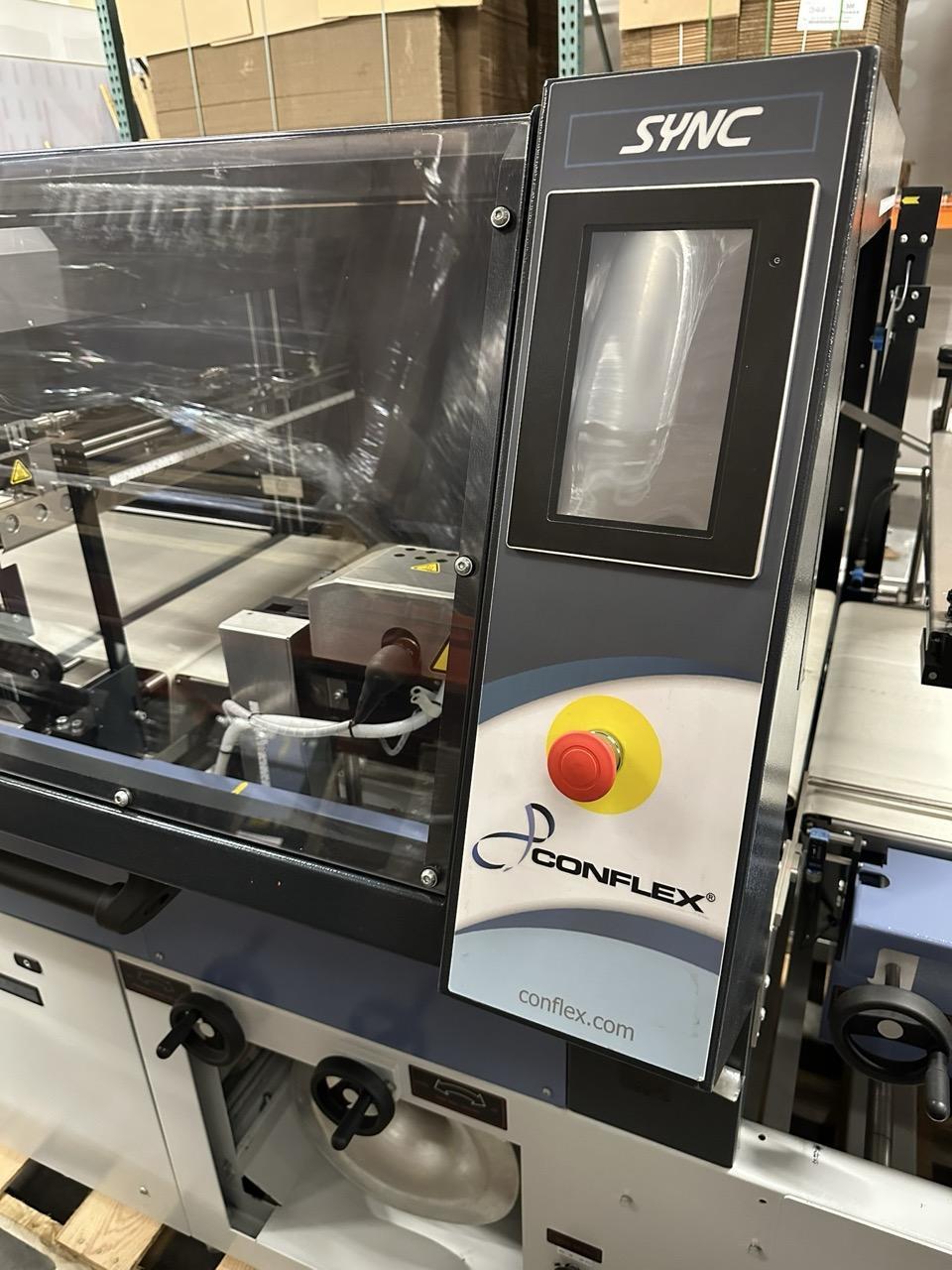

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Features Servo-driven seal head for continuous motion Touchscreen HMI with programmable wrap profiles Photoeye product detection Swing-away doors for easy access Power: 220V / 3-phase Air: 80 PSI

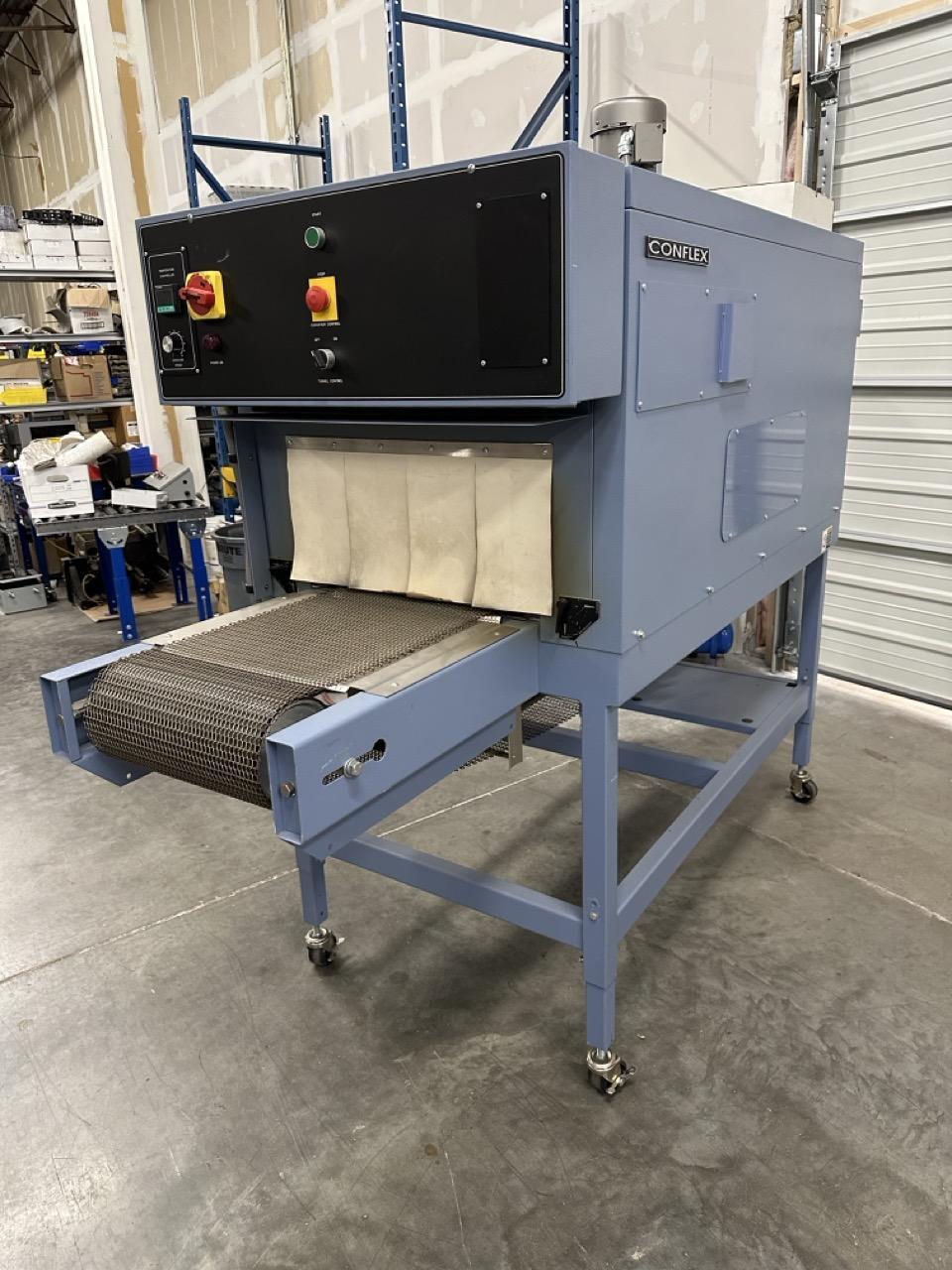

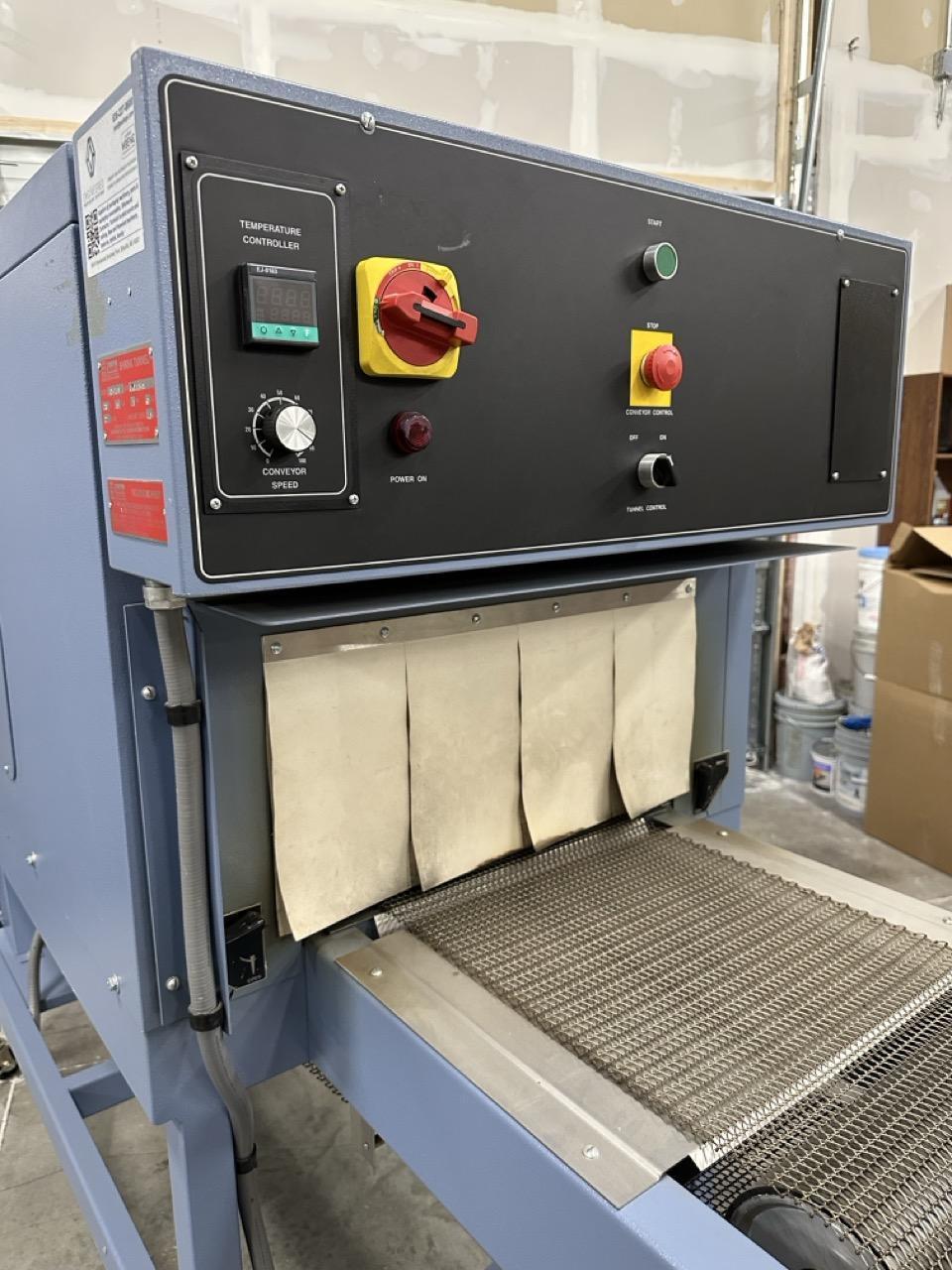

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Shanklin CT-T71B — High-Speed Shrink Tunnel Tunnel passage: 10” high x 22” wide x 60” long  Tunnel size: 36” wide x 68.5” high x 92” long  Conveyor height: 29” minimum, 42”maximum  Conveyor length: 92”long standard  Power: 230 volts, 3 phase, 53 amps, 12.1 KVA max  Blower motor: 1.5 hp, 3 phase  Temperature controller: Digital readout solid state controller  Safety features: Motor overload protection, high temperature limit switch, main power circuit breaker, emergency stop switches  Construction: Carbon steel construction, adjustable legs, on casters  Features: Digital temperature control, air velocity and control options, fin strip heaters, continuous 2-inch single piece insulation  Material: Available in stainless steel construction

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
