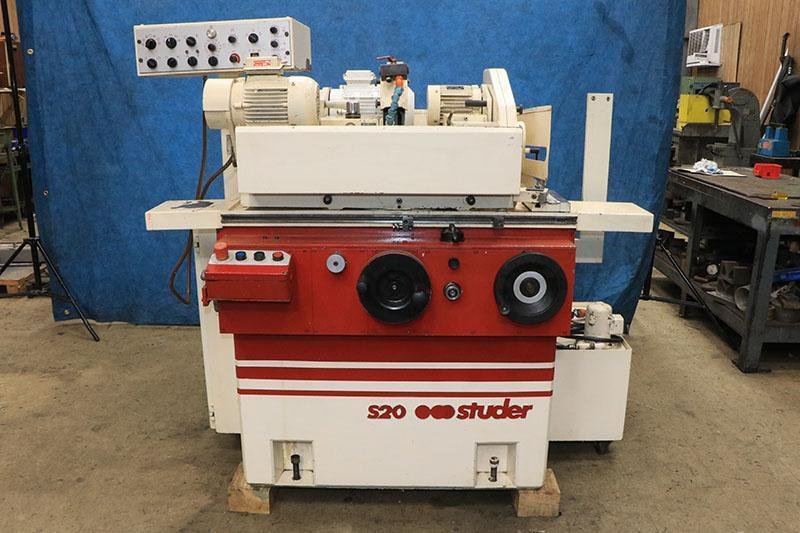

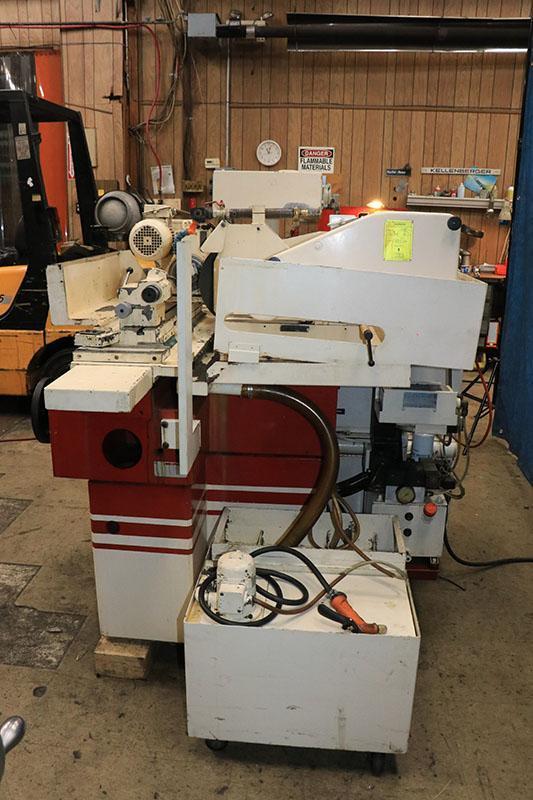

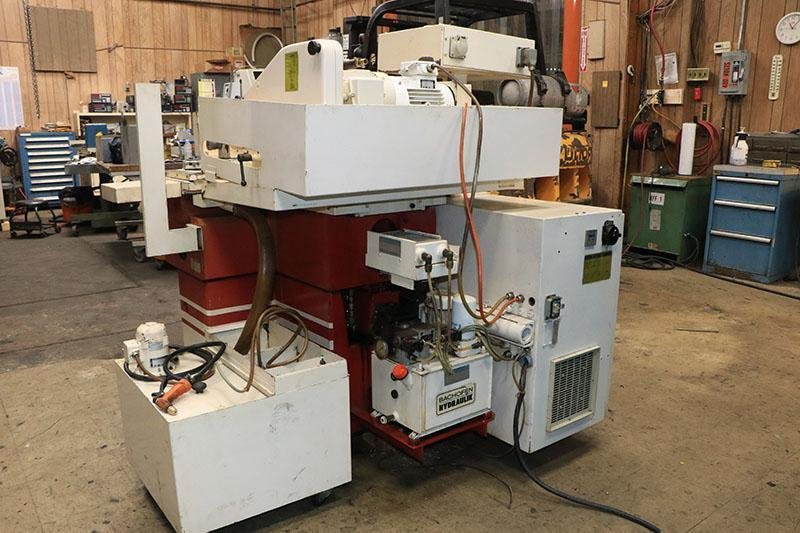

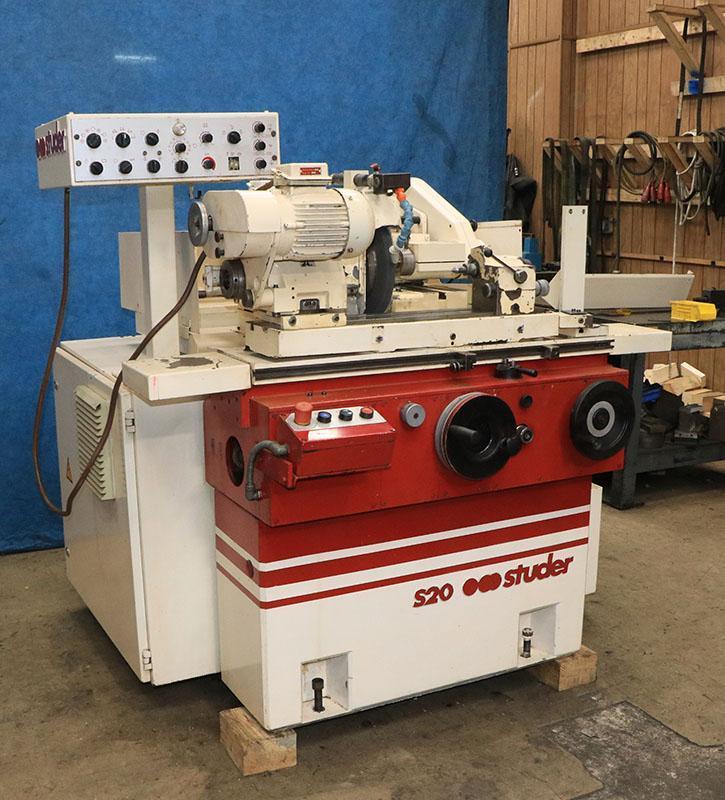

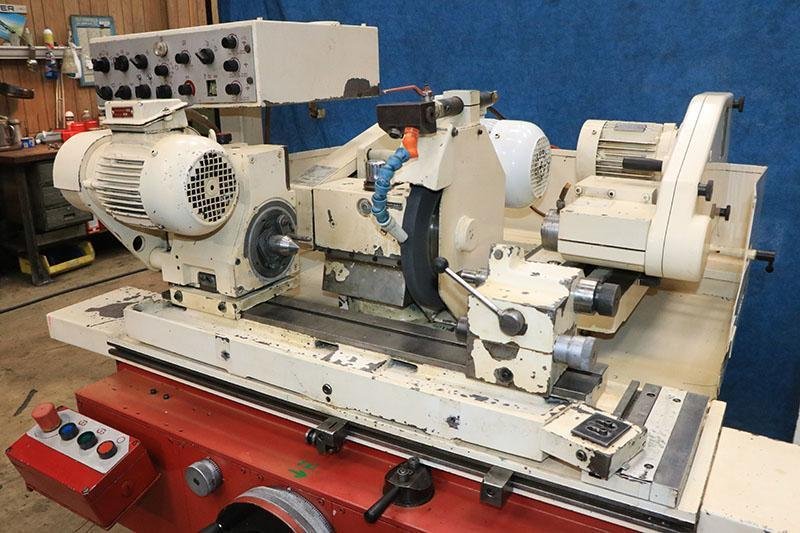

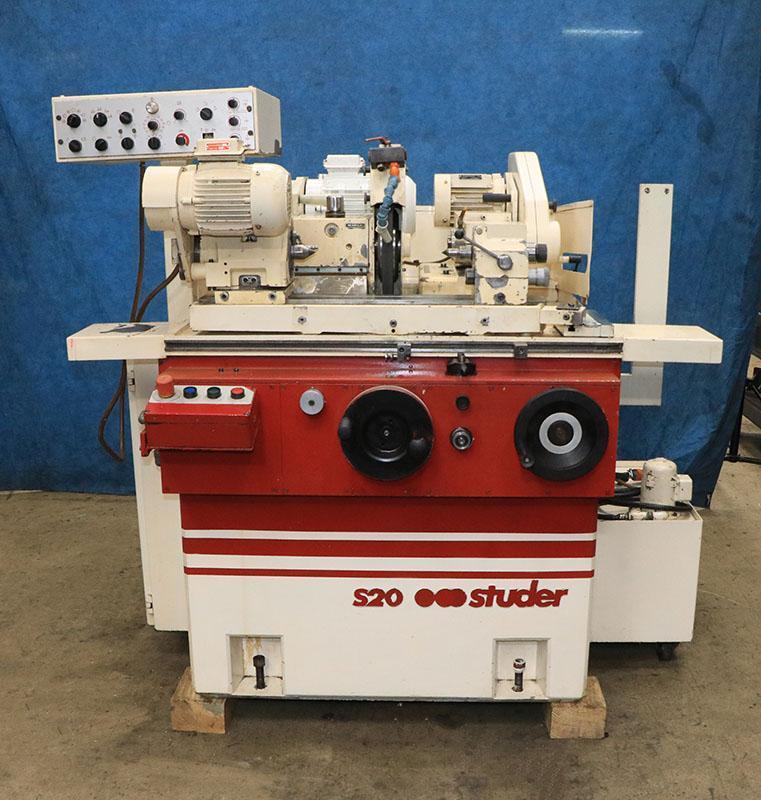

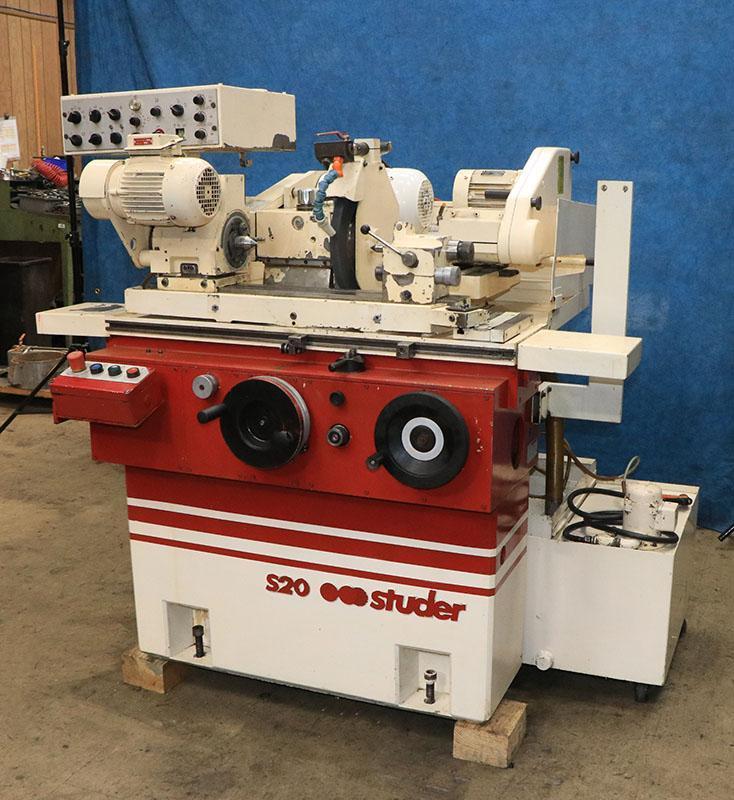

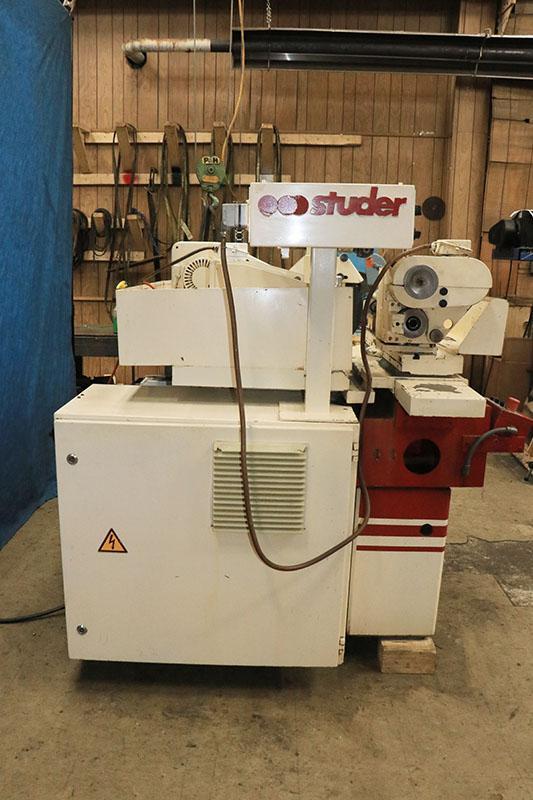

7.9″ x 15.7″ Studer S20-2 Compact Universal Cylindrical Grinder, 1989 – Tailstock, Grinding Attachment

Center height: 3.94″ Swing over bed: 7.88″ Distance between centers: 15.7″ Maximum workpiece weight between centers: 44 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X Axis (Cross Slide): Rapid approach: 1.18″ Maximum travel: 0.98″ Feed speed: 0.0012″ to 0.06″ IPM Diameter plunge feed (incremental): 0 to 0.006″ Sparkout time: 0 to 5 seconds

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Z Axis (Longitudinal Slide): Maximum travel: 16.5″ Speed range: 3.94″ to 138″ IPM Smallest automatic travel: 0.04″ Reverse delay: 0 to 5 seconds Machine table swiveling range: 30° counterclockwise / 15° clockwise

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wheelhead: Swivel range: 0°, 15°, 30° Grinding wheel size: 14″ diameter × 1.25″ wide × 5″ bore Optional grinding wheel sizes: 10″ and 12″ diameter Motor: 4 HP Wheel speeds: 1600 / 1975 / 2200 RPM Wheelhead swiveling: Yes

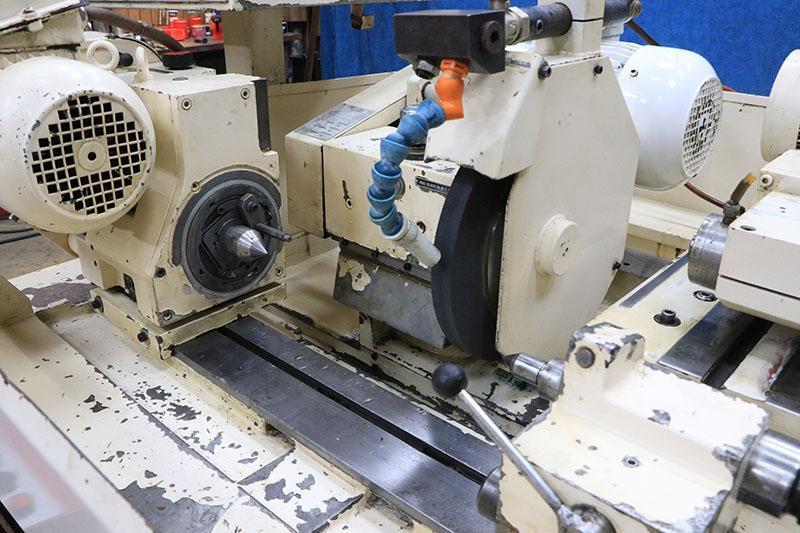

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Universal Workhead: Infinitely variable spindle speeds: 30 to 1200 RPM Spindle taper: MT 4 Spindle hole diameter: 0.95″ Swiveling range: 0° to 90° Motor: 0.66 HP

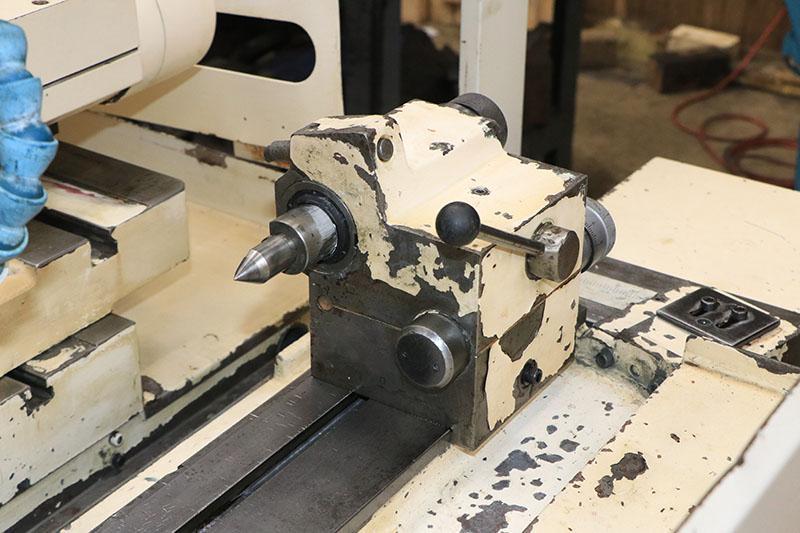

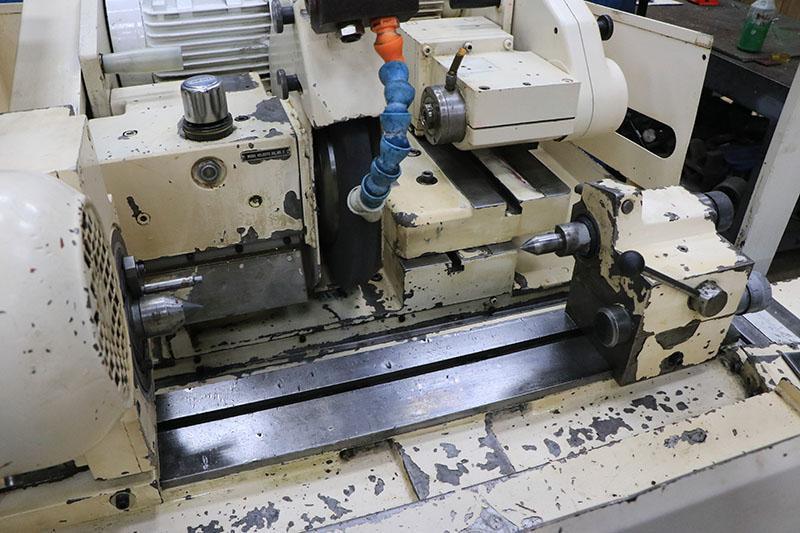

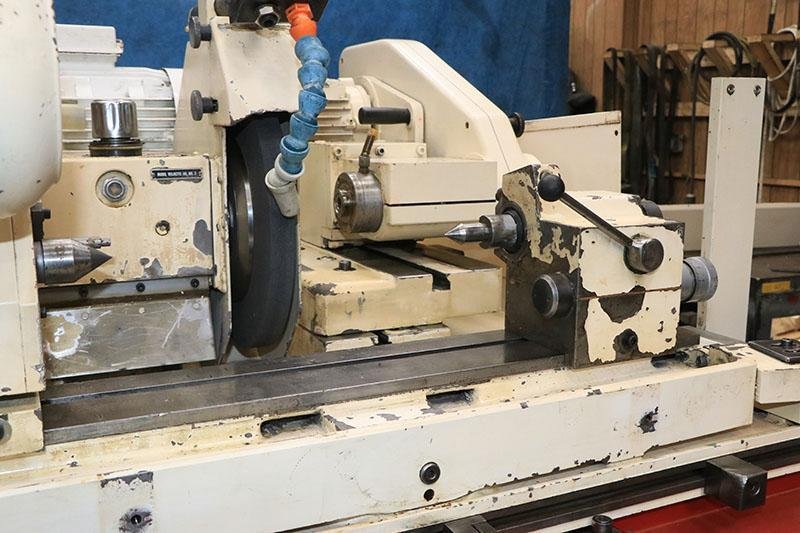

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tailstock: Spindle taper: MT 2 Spindle travel: 0.79″ Fine adjustment for cylindrical corrections: 0.0016″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

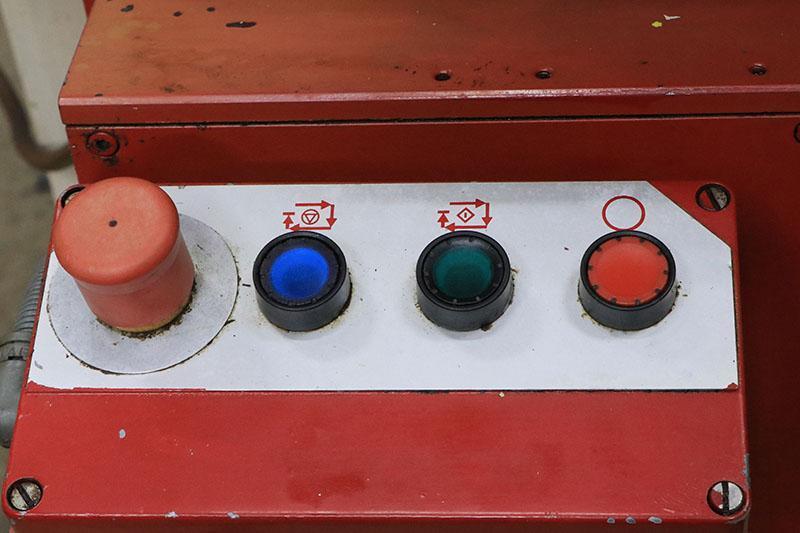

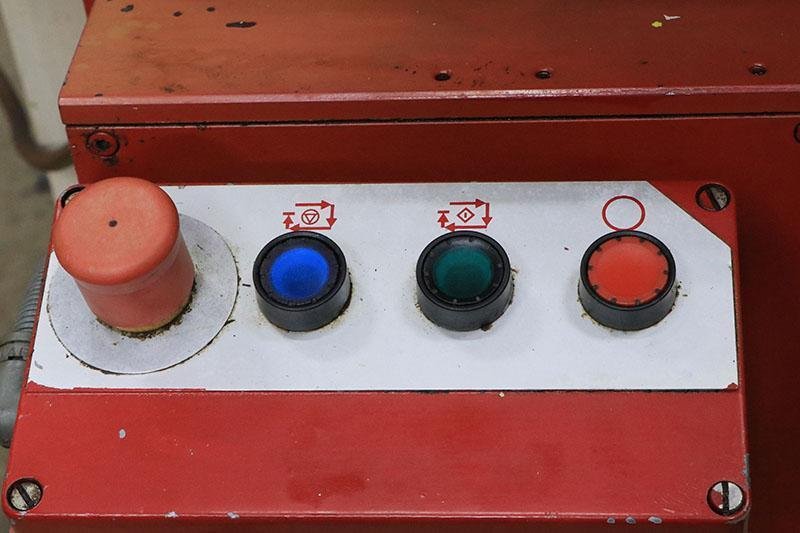

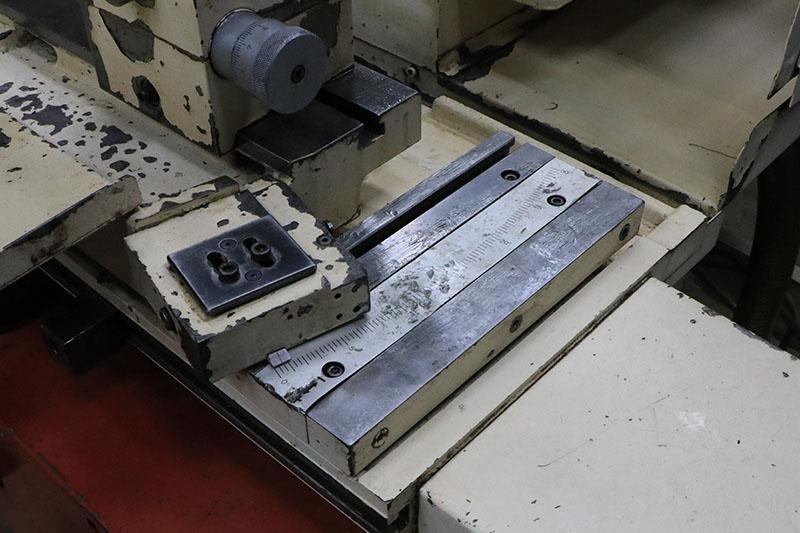

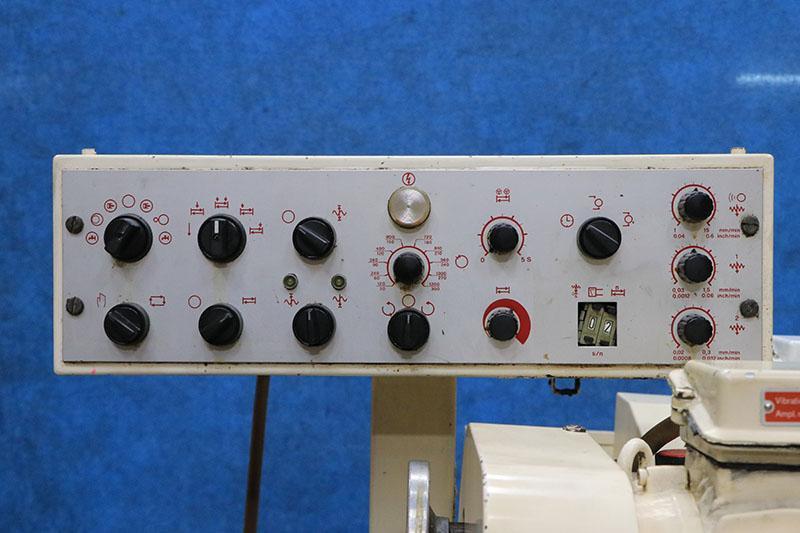

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Ergonimic Machine Control and Operation Independent slide, housing, and motor drive for the internal (I.D.) grinding attachment Studer I.D. spindle, belt-driven internal grinding attachment Fine adjustment and angle stop on the longitudinal slide for precise taper setting Center in the workhead for accurate positioning Coolant system Wide Swiveling Range of the Table Tailstock
