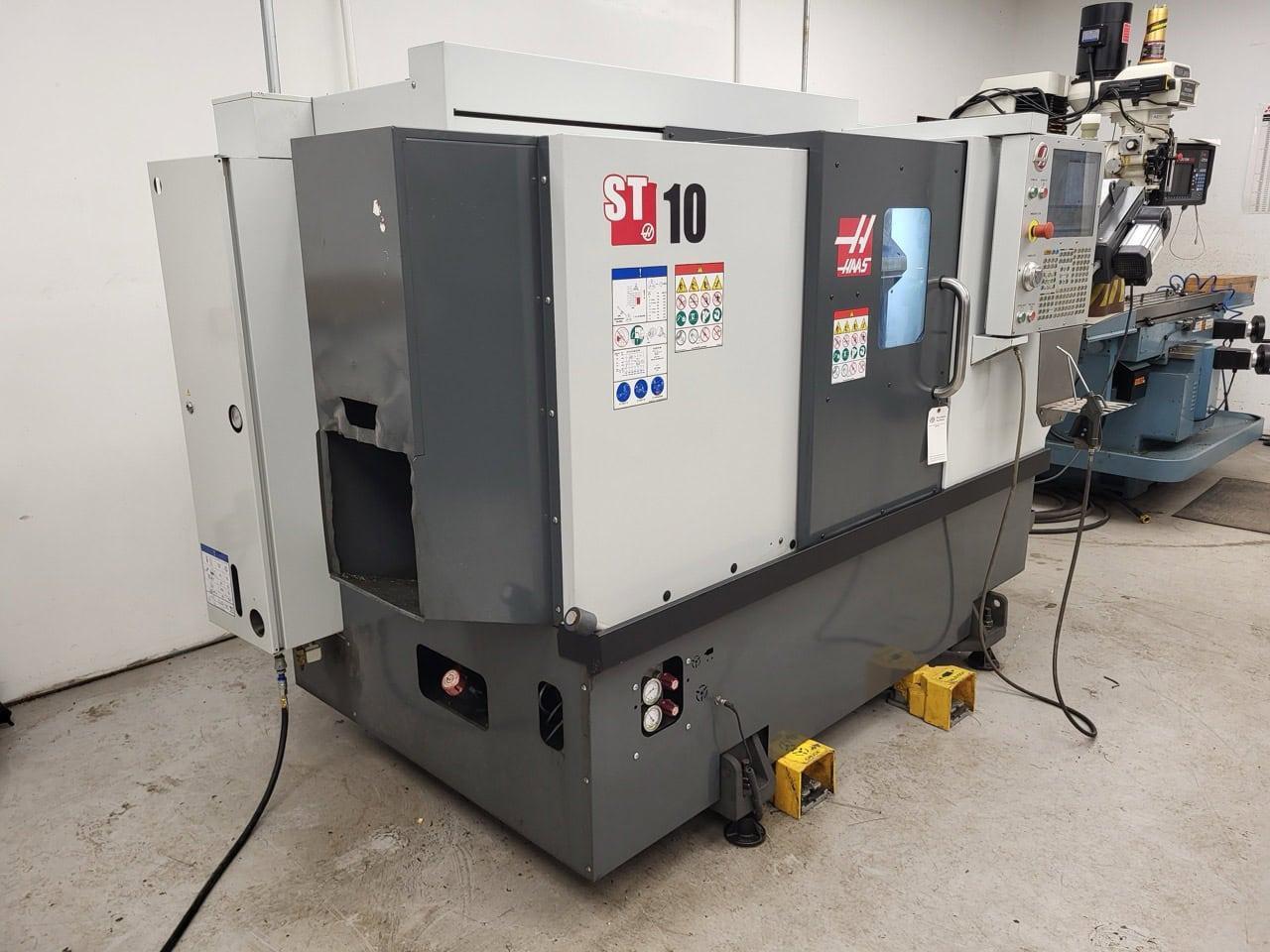

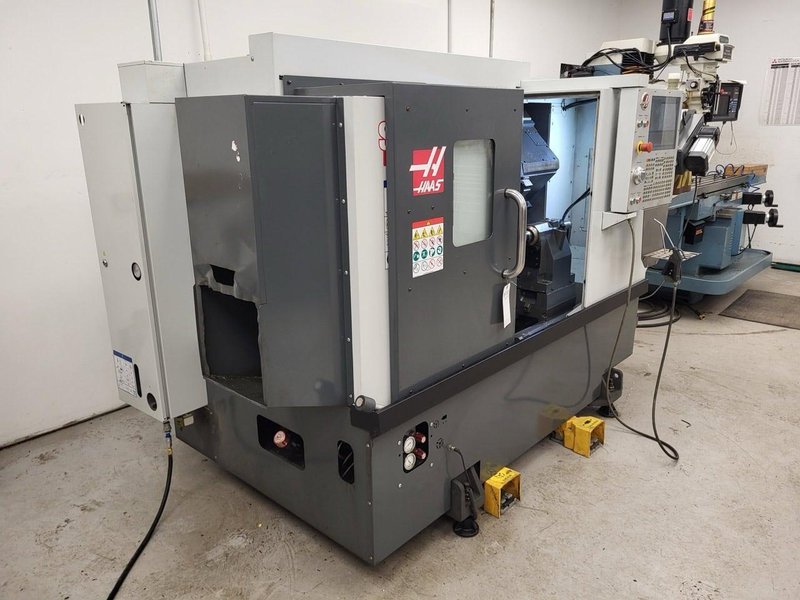

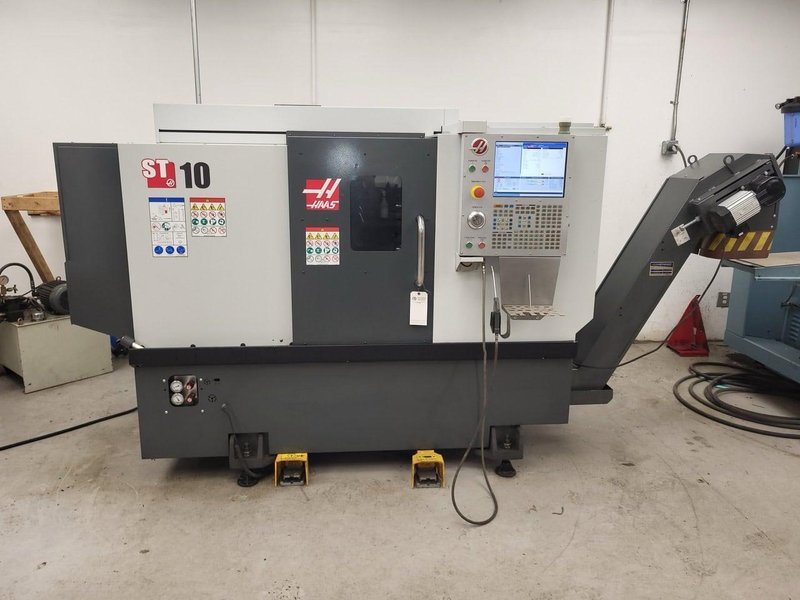

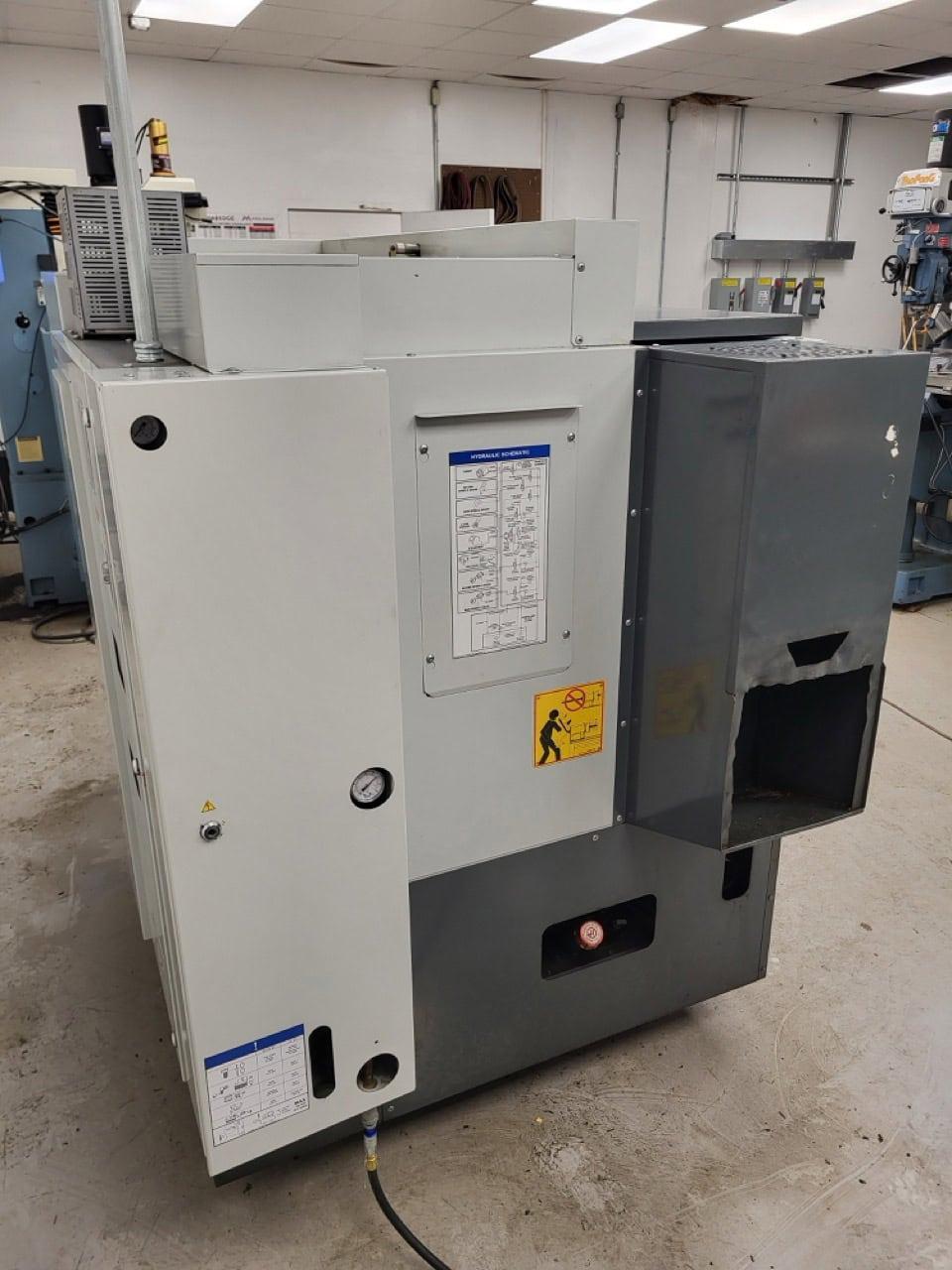

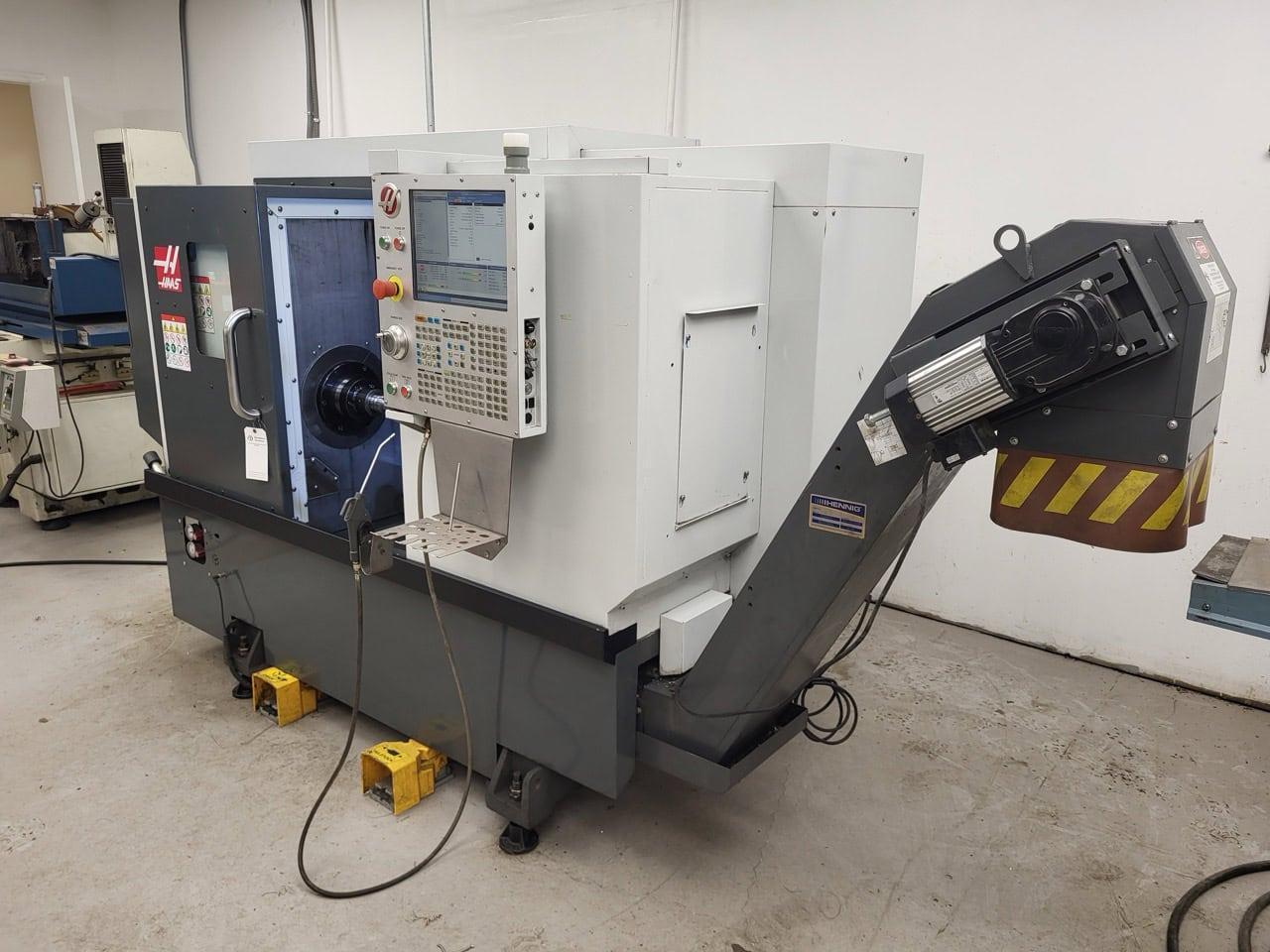

Haas ST-10 CNC Lathe, 2018 – 6.5″ Chuck, 1.75″ Bar, Low Hours – Excellent Condition

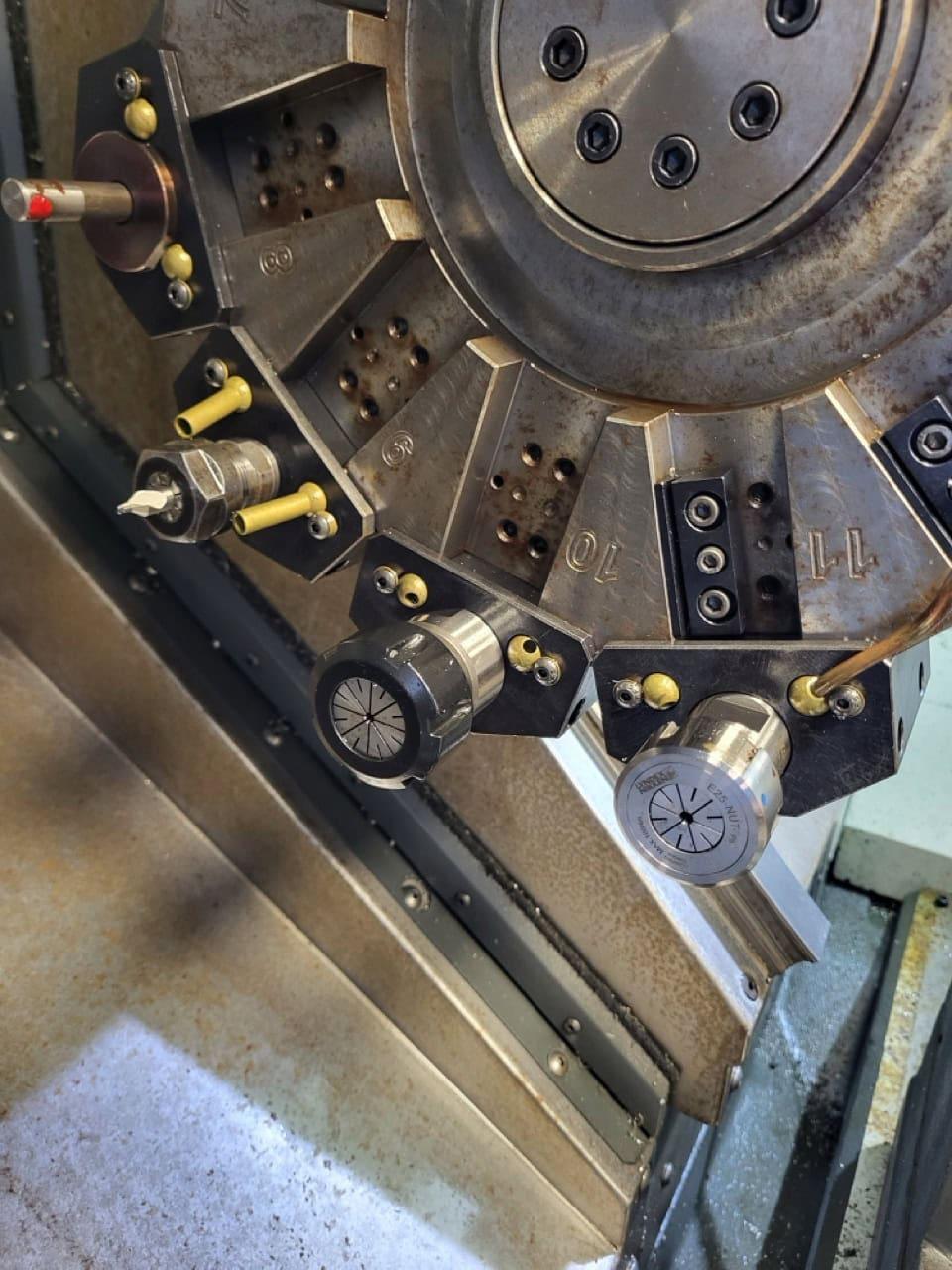

2018 HAAS ST-10 HIGH-PERFORMANCE CNC LATHE,TURNING CENTER, TOOLING INCLUDED SN 3111966 SPECIFICATIONS: COLLET CHUCK MAX PART SWING: 16.5 IN 419 MM MAX CUTTING DIAMETER (WITH BOT TURRET) 12.00 IN 305 MM MAX CUTTING DIAMETER (WITH BMT45 TURRET) 11.00 IN 279 MM MAX CUTTING DIAMETER (WITH VDI TURRET) 6.80 IN 173 MM MAX CUTTING LENGTH (VARIES WITH WORKHOLDING) 16.0 IN 406 MM BAR CAPACITY 1.75 IN 44 MM X AXIS 7.88 IN 200 MM Z AXIS 16.00 IN 406 MM RAPIDS ON X 1200 IPM 30.5 M/MIN RAPIDS ON Z 1200 IPM 30.5 M/MIN MAX THRUST X 3300 LBF 14679 N MAX THRUST Z 3300 LBF 14679 N SPINDLE NOSE A2-5 MAX RATING 15.0 HP 11.2 KW MAX SPEED 6000 RPM MAX TORQUE 75.0 FT-LBF @ 1300 RPM 102.0 NM @ 1300 RPM SPINDLE BORE Ø 2.31 IN 58.7 MM

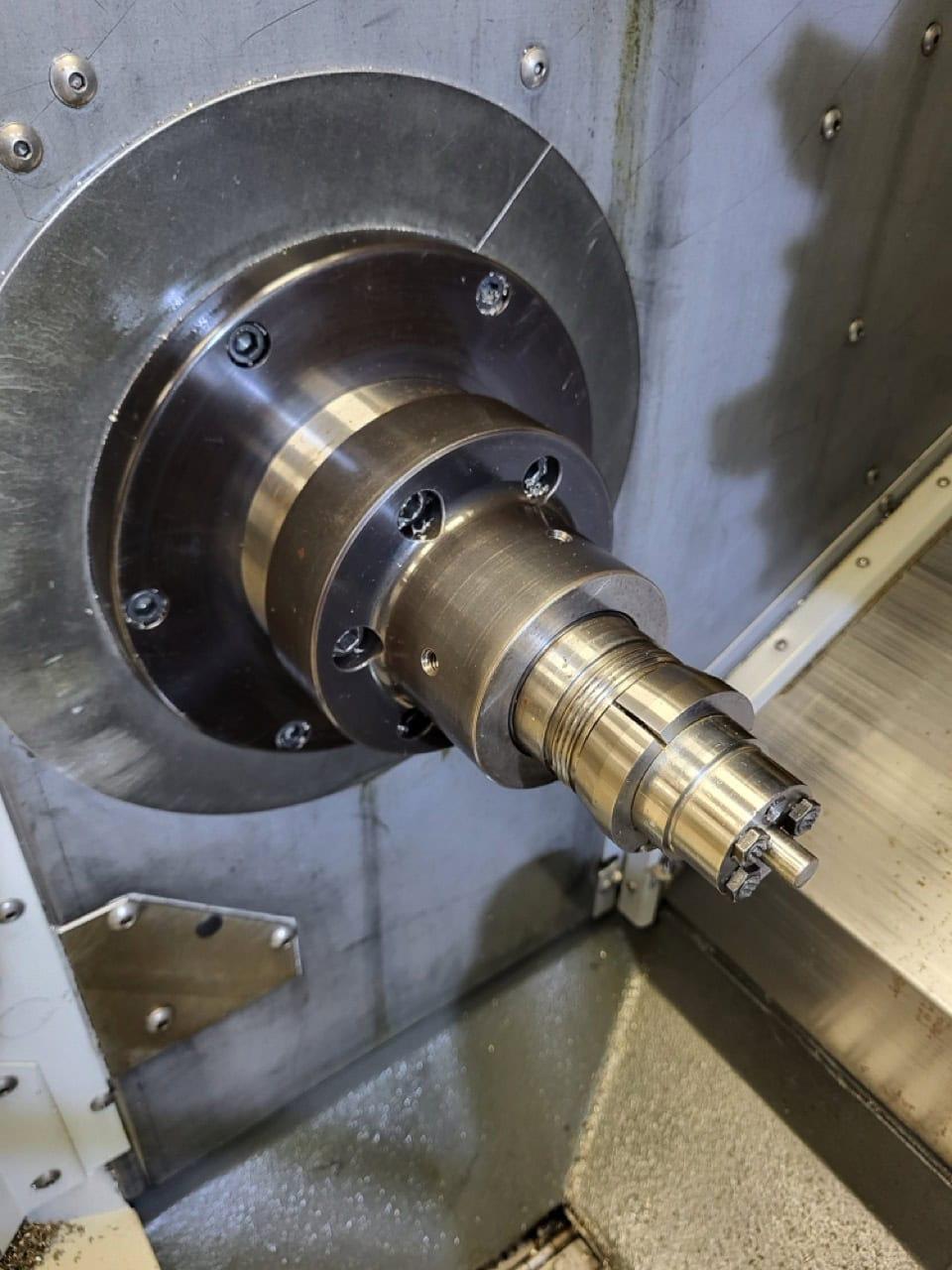

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,SUB-SPINDLE CHUCK SIZE 5.3 IN 135 MM SPINDLE NOSE A2-5 A2-5 MAX SPEED 6000 RPM 6000 RPM MAX SYNC SPEED W/MAIN SPINDLE 4800 RPM 4800 RPM CHUCK THROAT Ø 1.30 IN X 1.37 IN DEEP Ø 33.0 MM X 34.8 MM DEEP DRAWBAR BORE (NON-THROUGH) Ø 1.00 IN X 4.50 IN DEEP Ø 25.4 MM X 114.3 MM DEEP SPINDLE BORE (WITHOUT CHUCK AND DRAWBAR INSTALLED) 1.50 IN 38.1 MM INTEGRATED BRAKE TORQUE 17 FT-LBF 23 N/M SPINDLE ORIENTATION ACCURACY (REQUIRES SO) ± 0.02 ° ± 0.02 ° RAPIDS (B-AXIS) 400 IPM 10 M/MIN

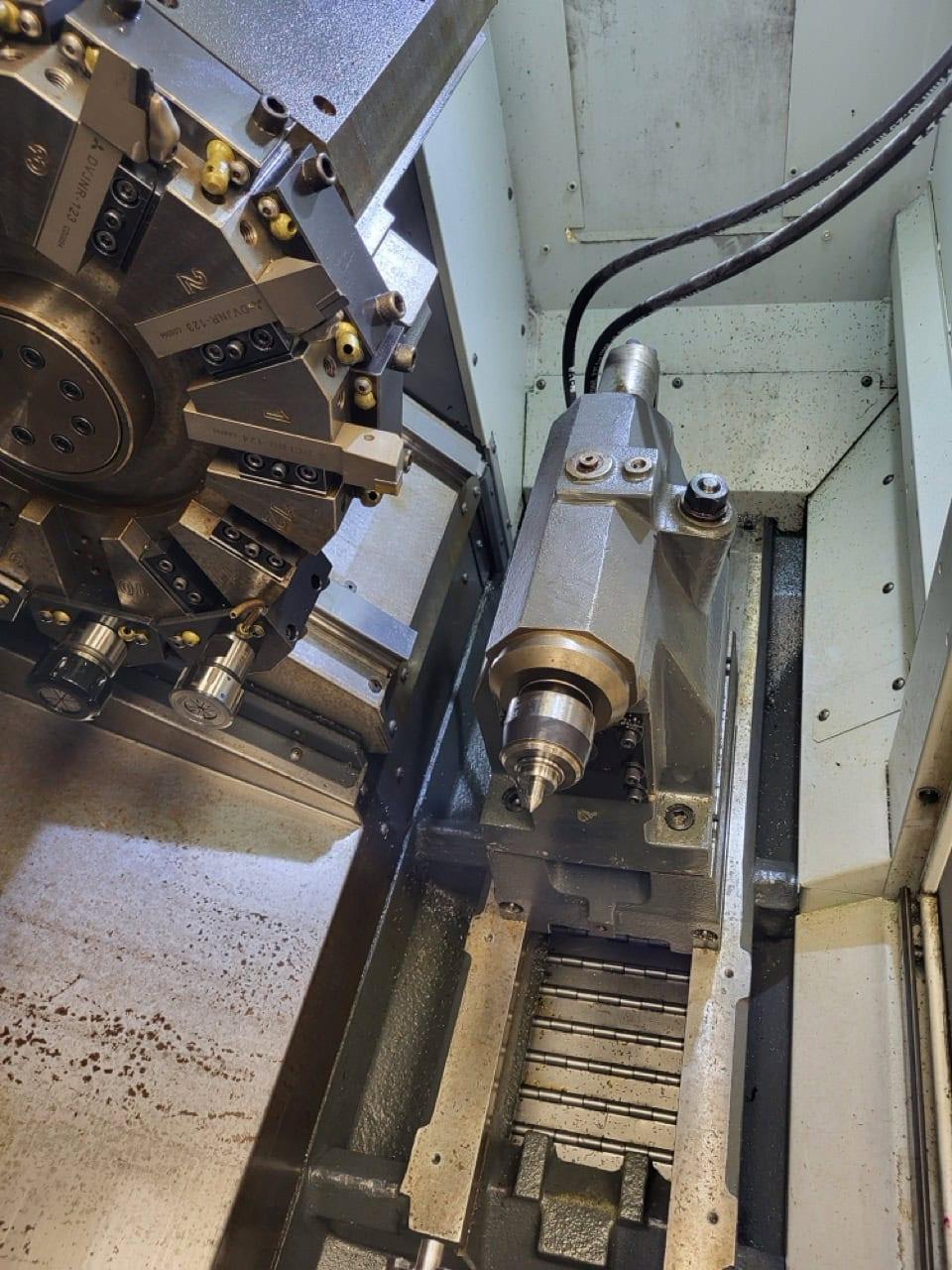

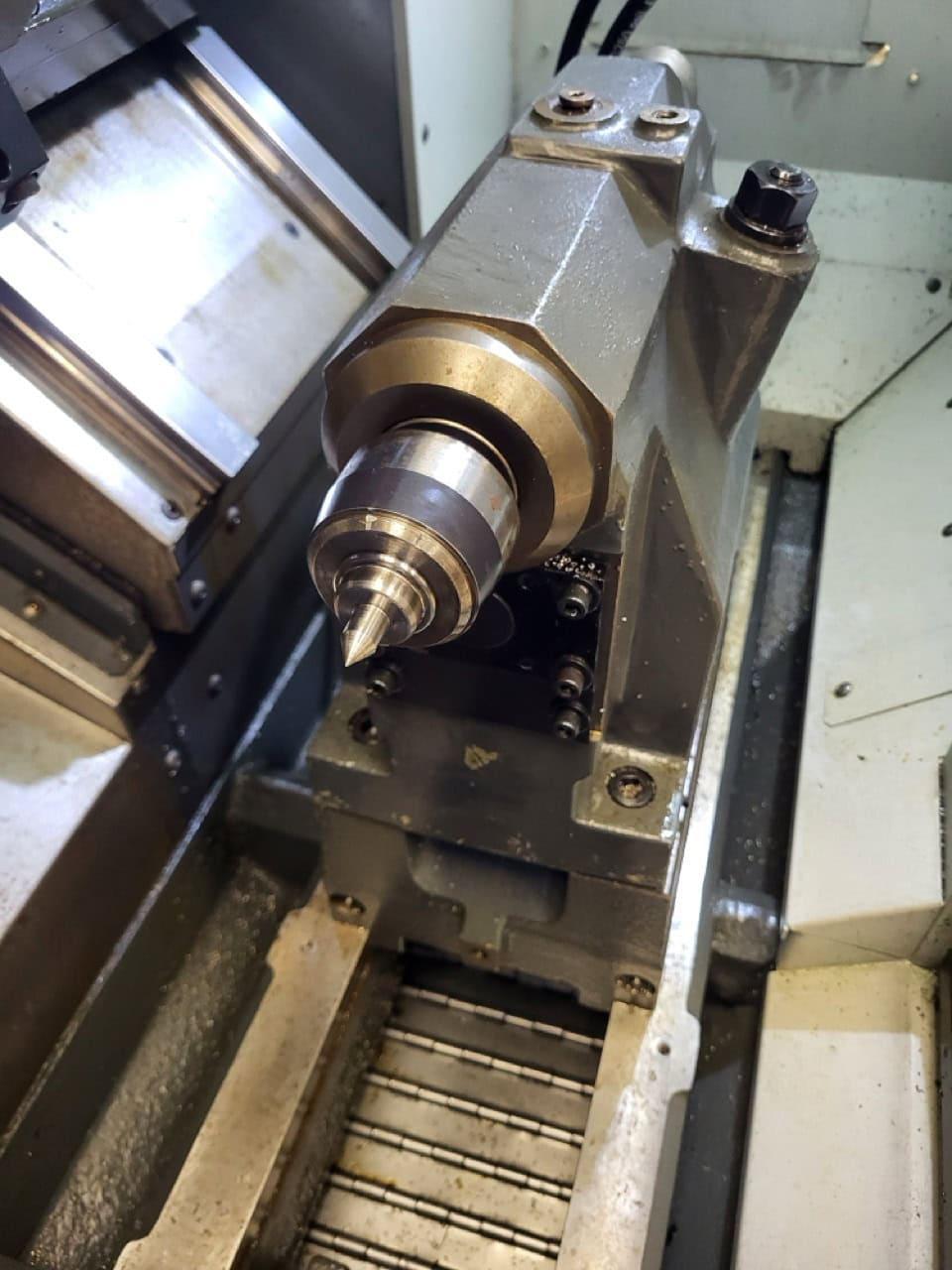

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,TAILSTOCK TAPER MT3 HYDRAULIC QUILL TRAVEL 3.8 IN 95 MM MANUAL BODY POSITIONING 20.0 IN 508 MM MAX THRUST (HYD. QUILL ONLY) 1130 LBF 5026 N MIN THRUST (HYD. QUILL ONLY) 140 LBF 623 N

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,ELECTRICAL SPECIFICATION SPINDLE SPEED 6000 RPM DRIVE SYSTEM DIRECT SPEED, BELT DRIVE SPINDLE POWER 15.0 HP 11.2 KW INPUT AC VOLTAGE (3 PHASE) – LOW 220 VAC FULL LOAD AMPS (3 PHASE) – LOW 40 A INPUT AC VOLTAGE (3 PHASE) – HIGH* 440 VAC FULL LOAD AMPS (3 PHASE) – HIGH* 20 A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
