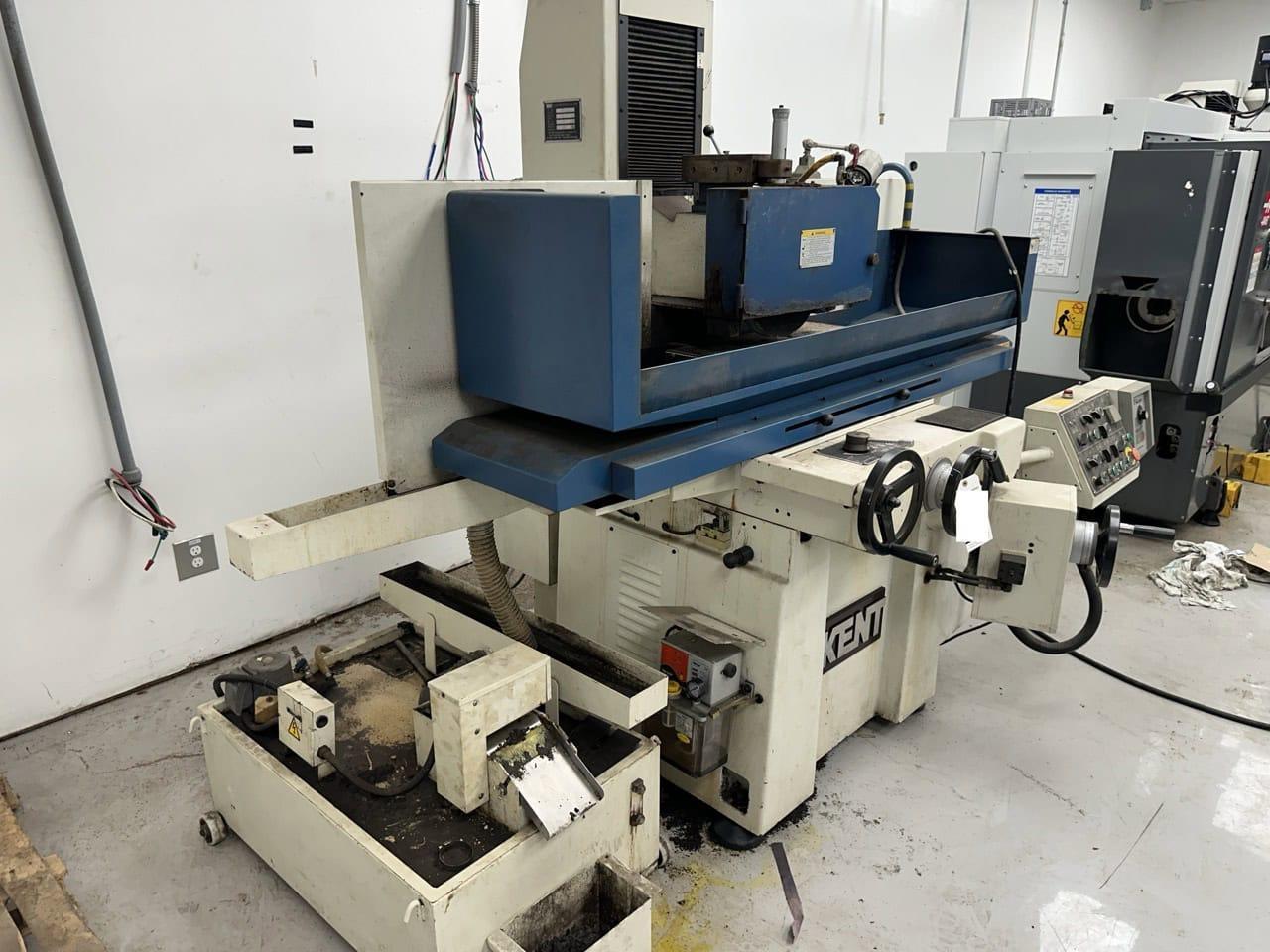

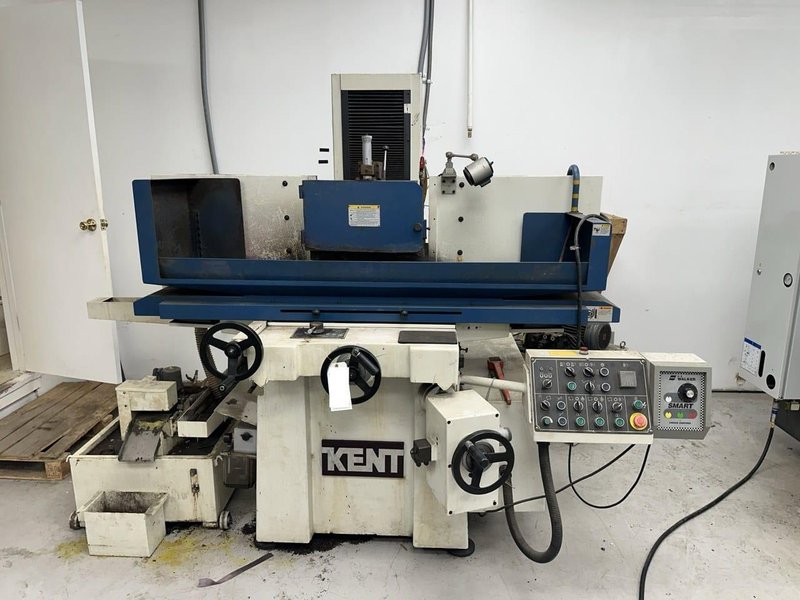

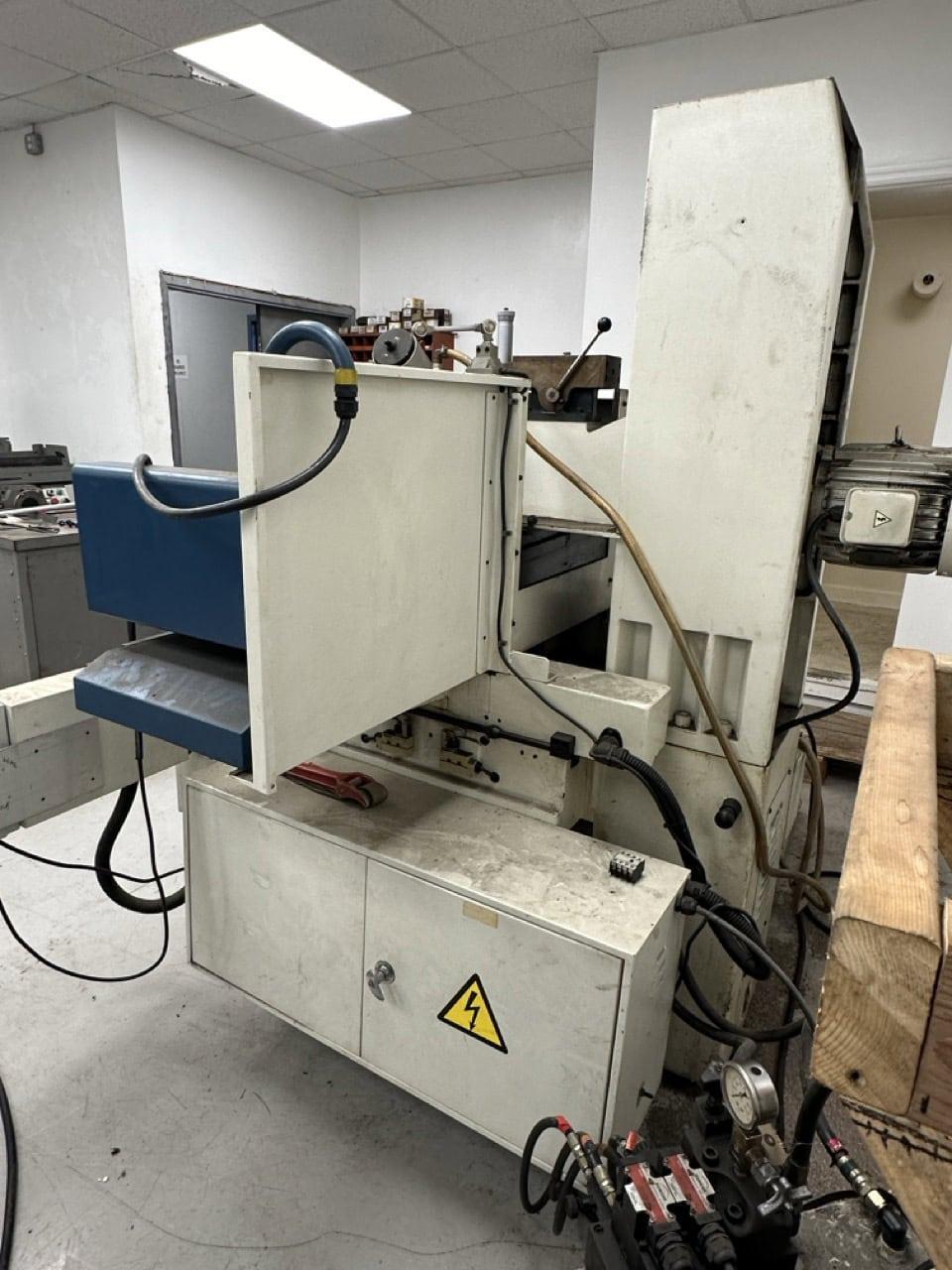

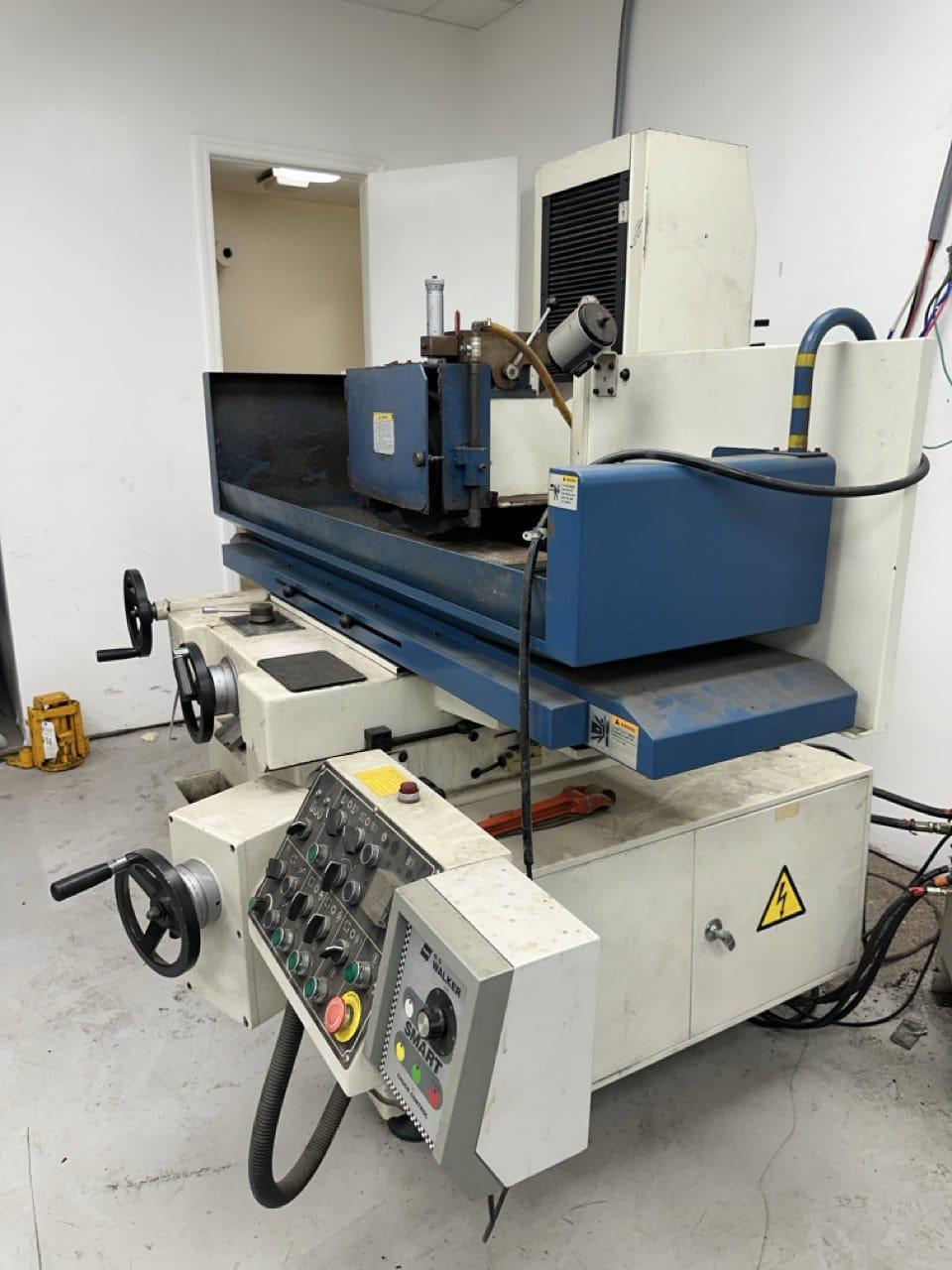

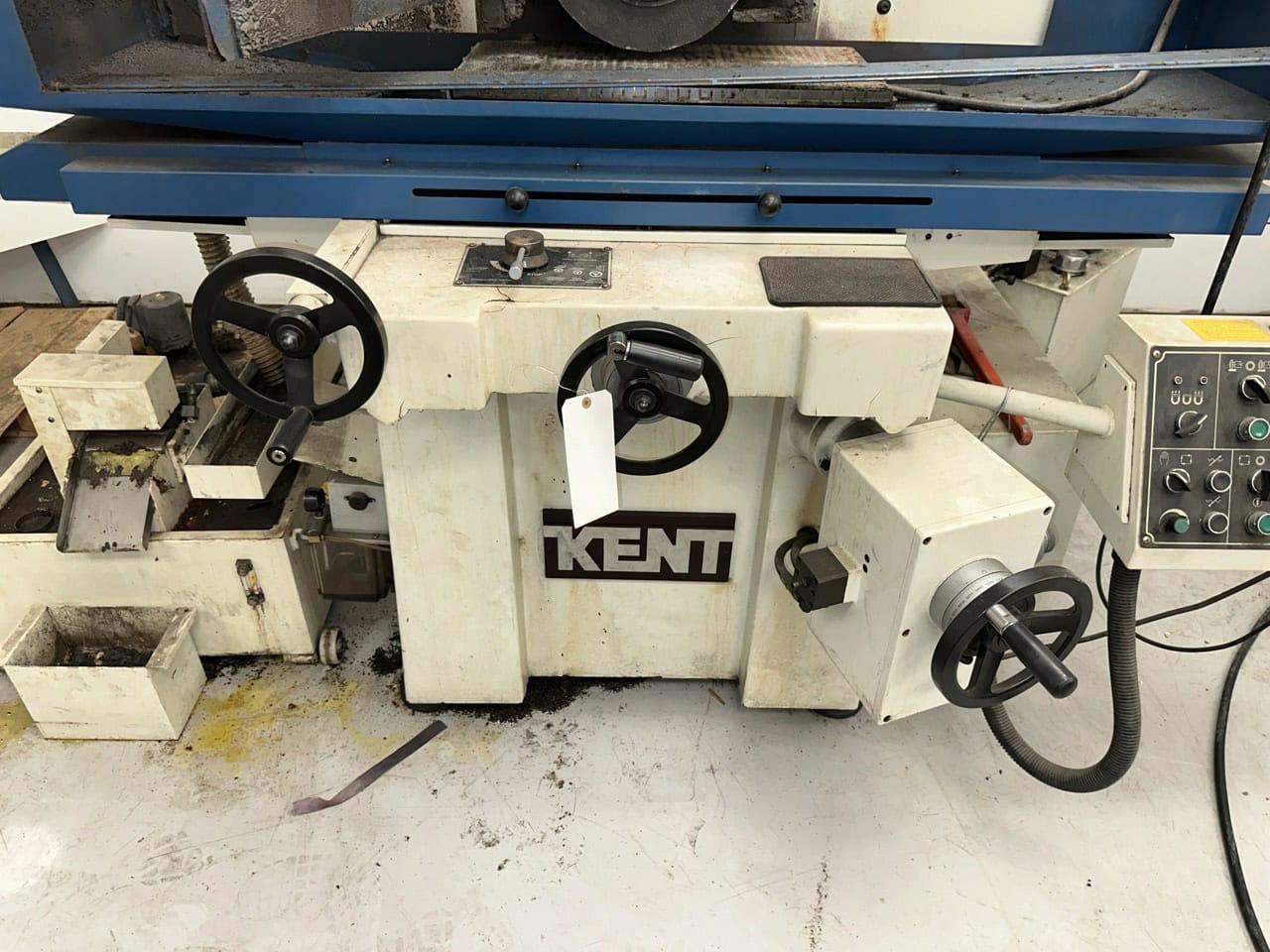

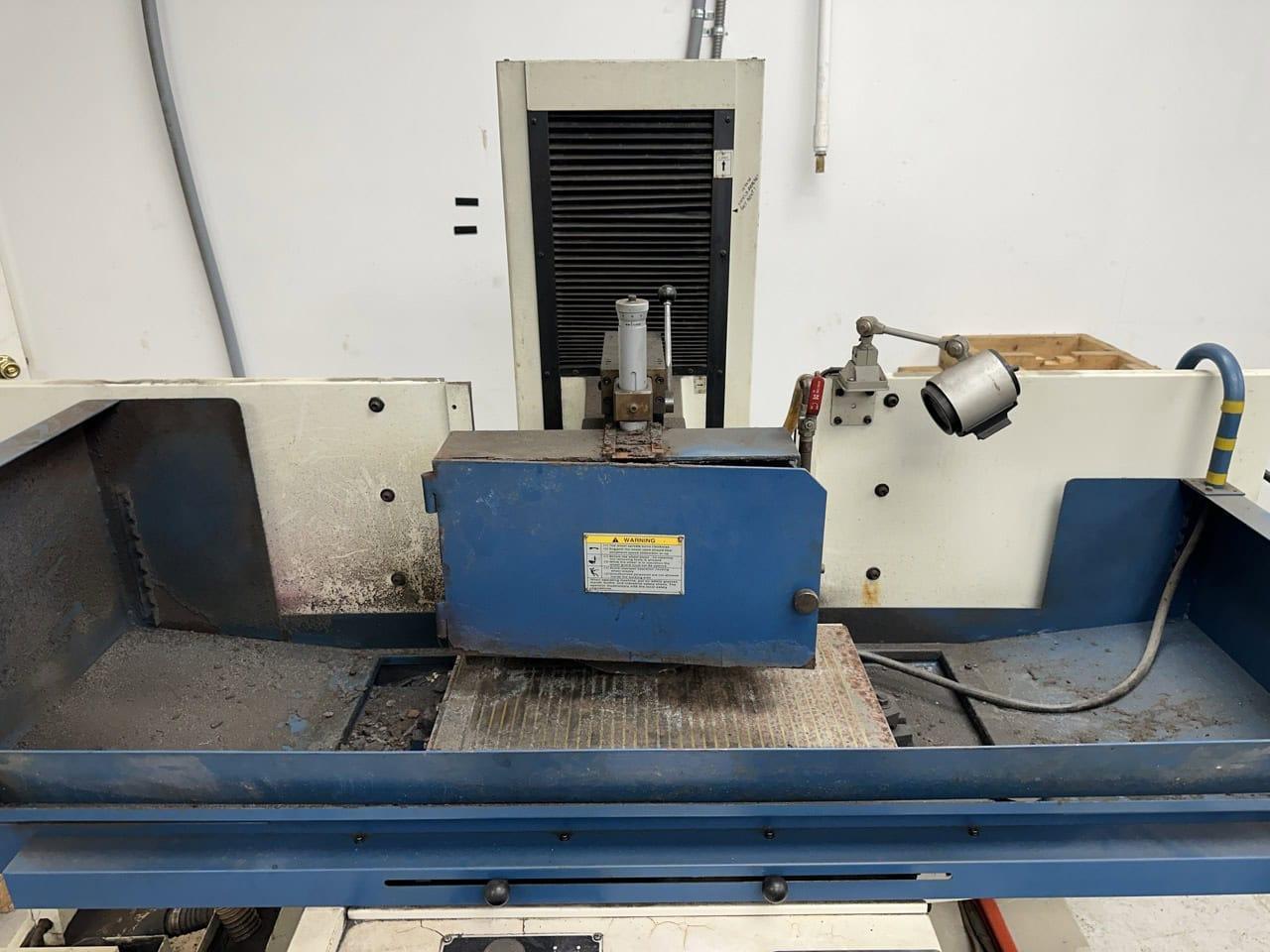

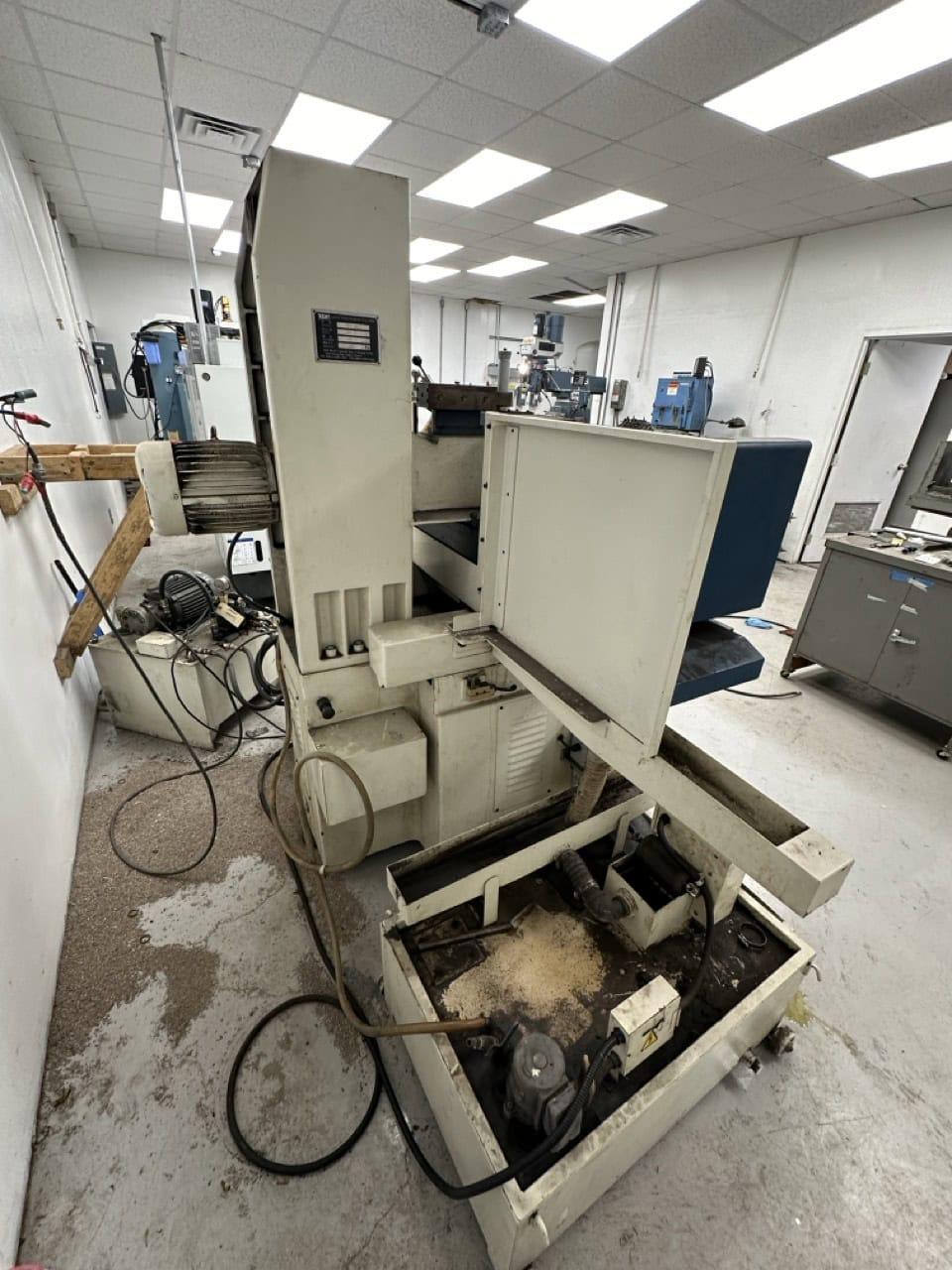

Kent KGS-63AHD Precision Hydraulic Surface Grinder, 2005 – 12″ × 24″ Table, Auto Feed, Excellent Condition

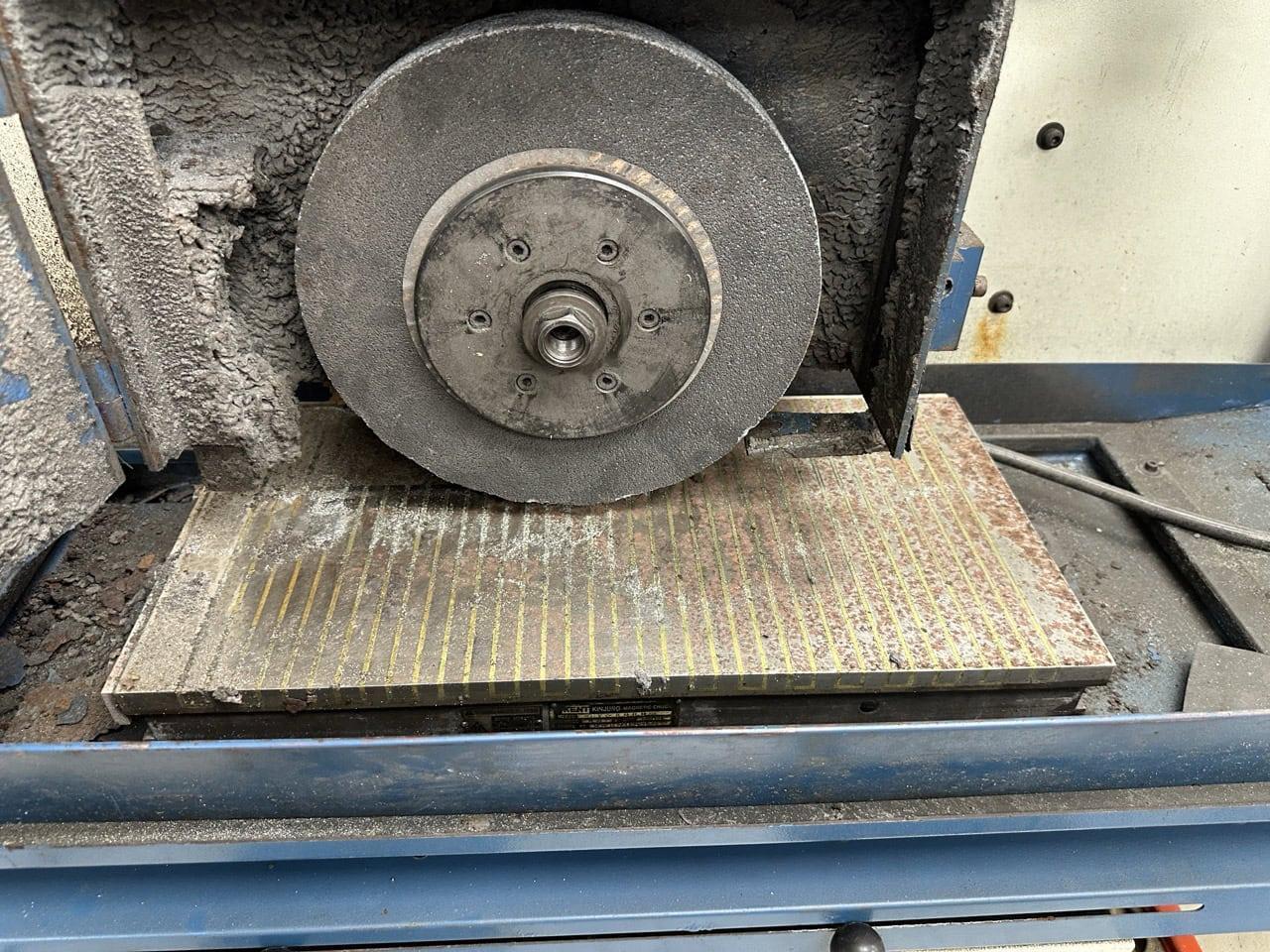

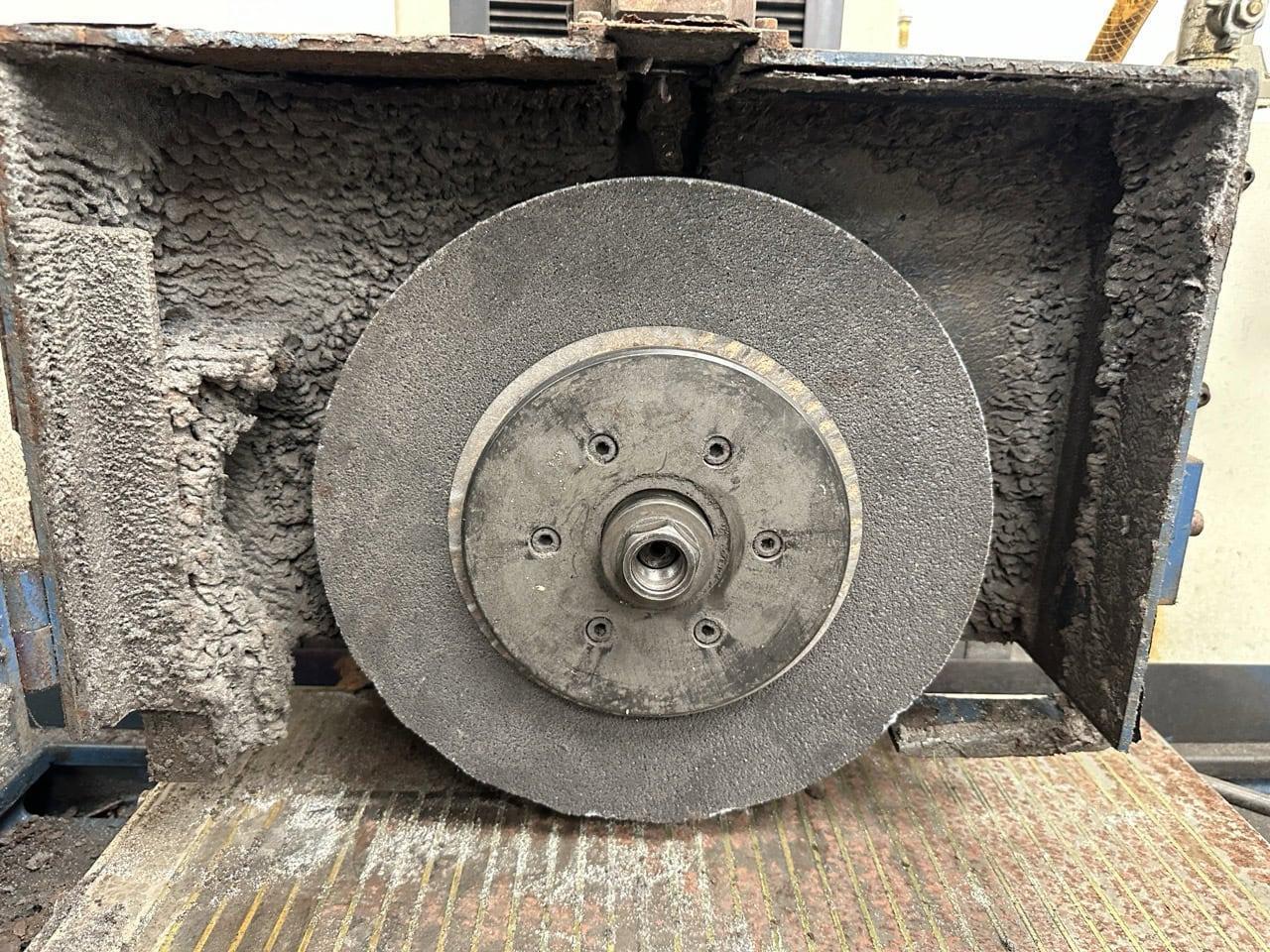

Manufacturer Kent Industrial USA Model KGS-63AHD Year 2005 Machine Type Hydraulic Surface Grinder Grinding Capacity 12″ × 24″ (300 × 600 mm) Maximum Table Travel (X-axis) 26.7″ (680 mm) Crossfeed Travel (Y-axis) 13.5″ (340 mm) Distance from Table to Spindle Center ~20″ (500 mm) Longitudinal Feed Hydraulic, automatic / manual selectable Crossfeed Automatic and manual (0.02–0.2 mm/stroke adjustable) Vertical Feed (Z) Motorized elevation with fine handwheel feed Spindle Motor 5 HP (3.7 kW) Spindle Speed 1,750 RPM Spindle Type Precision cartridge with preloaded angular contact bearings Grinding Wheel Size Ø14″ × 1.5″ × 5″ (355 × 38 × 127 mm) Table Speed 16–82 FPM (hydraulic variable) Hydraulic Pump Motor 2 HP Coolant Pump Motor 1/8 HP Machine Weight ~4,400 lbs (2,000 kg) Floor Space Required Approx. 90″ × 70″ × 75″ (L×W×H) Electrical 230V / 3-phase (standard)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
