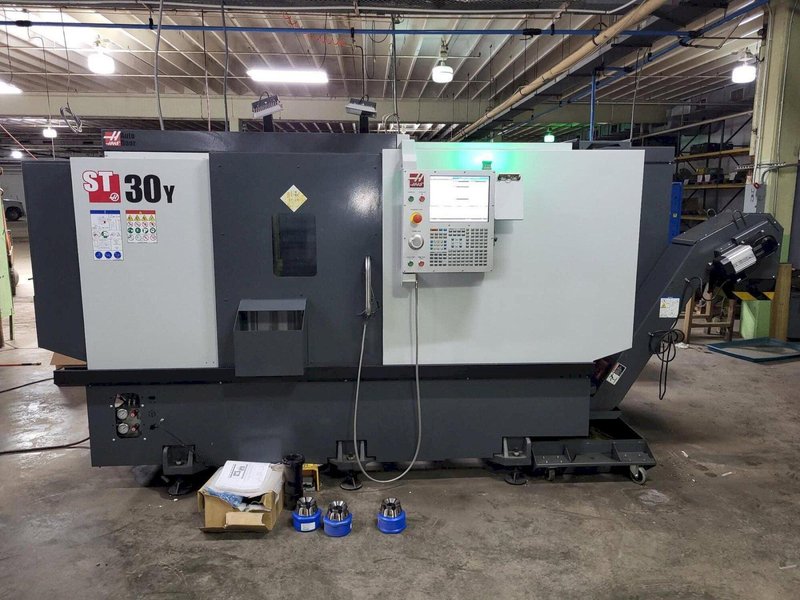

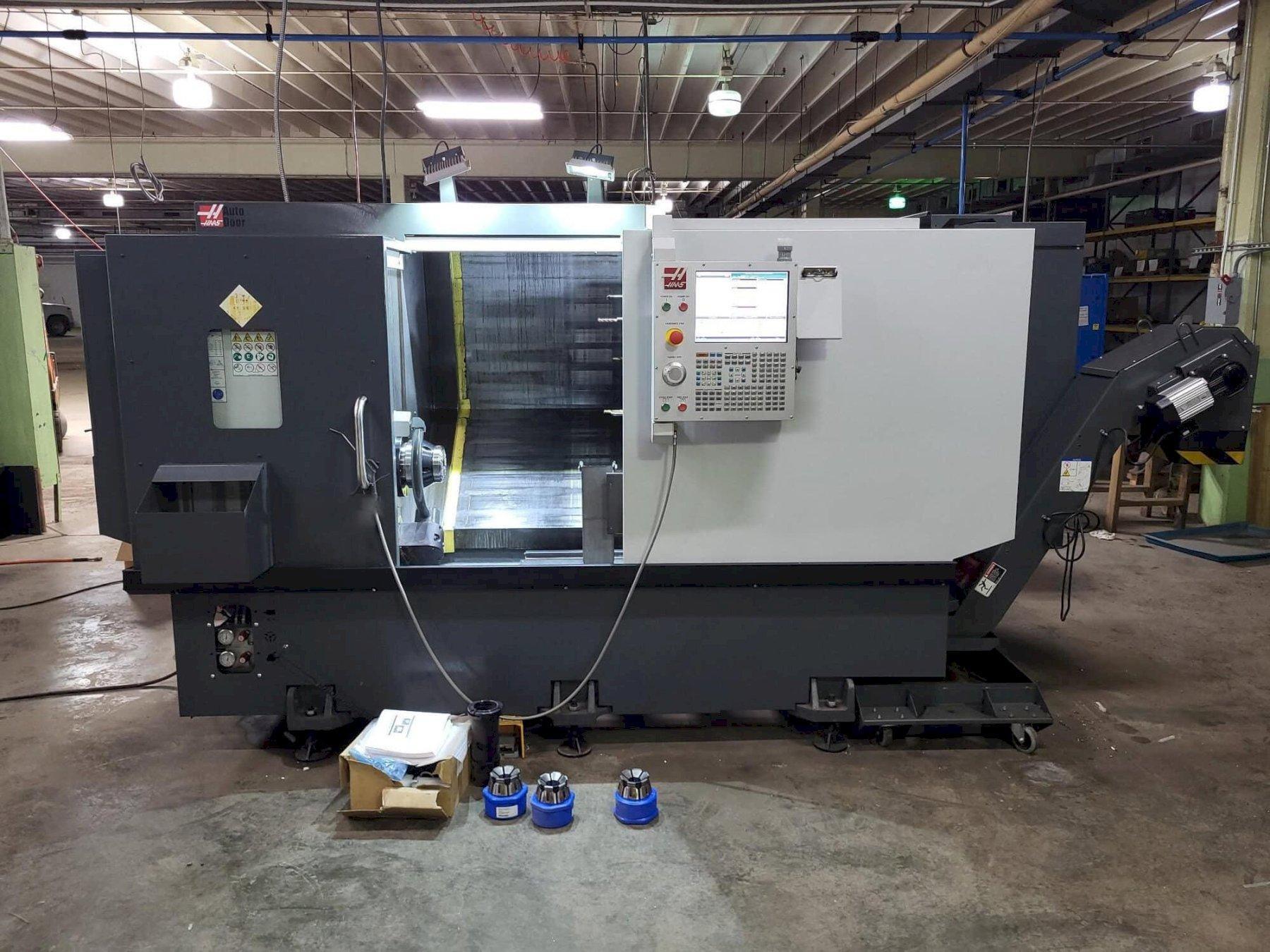

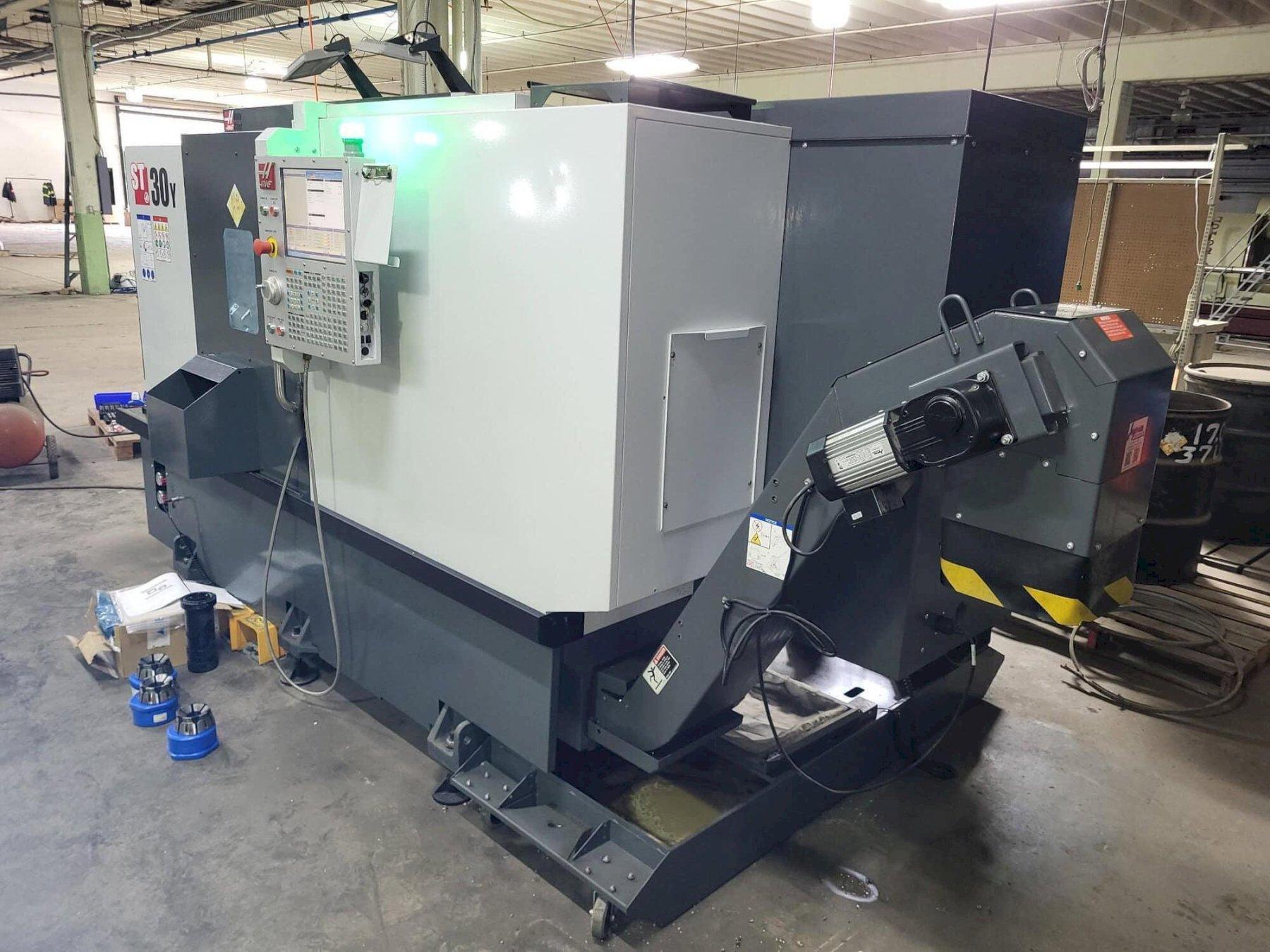

Haas ST-30Y Multi-Axis CNC Lathe, 2020 – Royal Quick-Grip Accu-Length CNC Collet Chuck

X-Axis Travel: 9.40 in (239 mm) Y-Axis Travel: ±2.0 in (±51 mm) Z-Axis Travel: 32.50 in (826 mm)Max Part Swing: 21.0 in (533 mm) Rapids on X: 472 IPM (12.0 m/min) Rapids on Y: 472 IPM (12.0 m/min) Rapids on Z: 945 IPM (24.0 m/min)Max Cutting Diameter (with BMT65 turret): 13.75 in (349 mm) Max Cutting Length (varies with workholding): 32.5 in (826 mm) Bar Capacity: 3.00 in (76 mm) Between Centers: 32.5 in (826 mm)

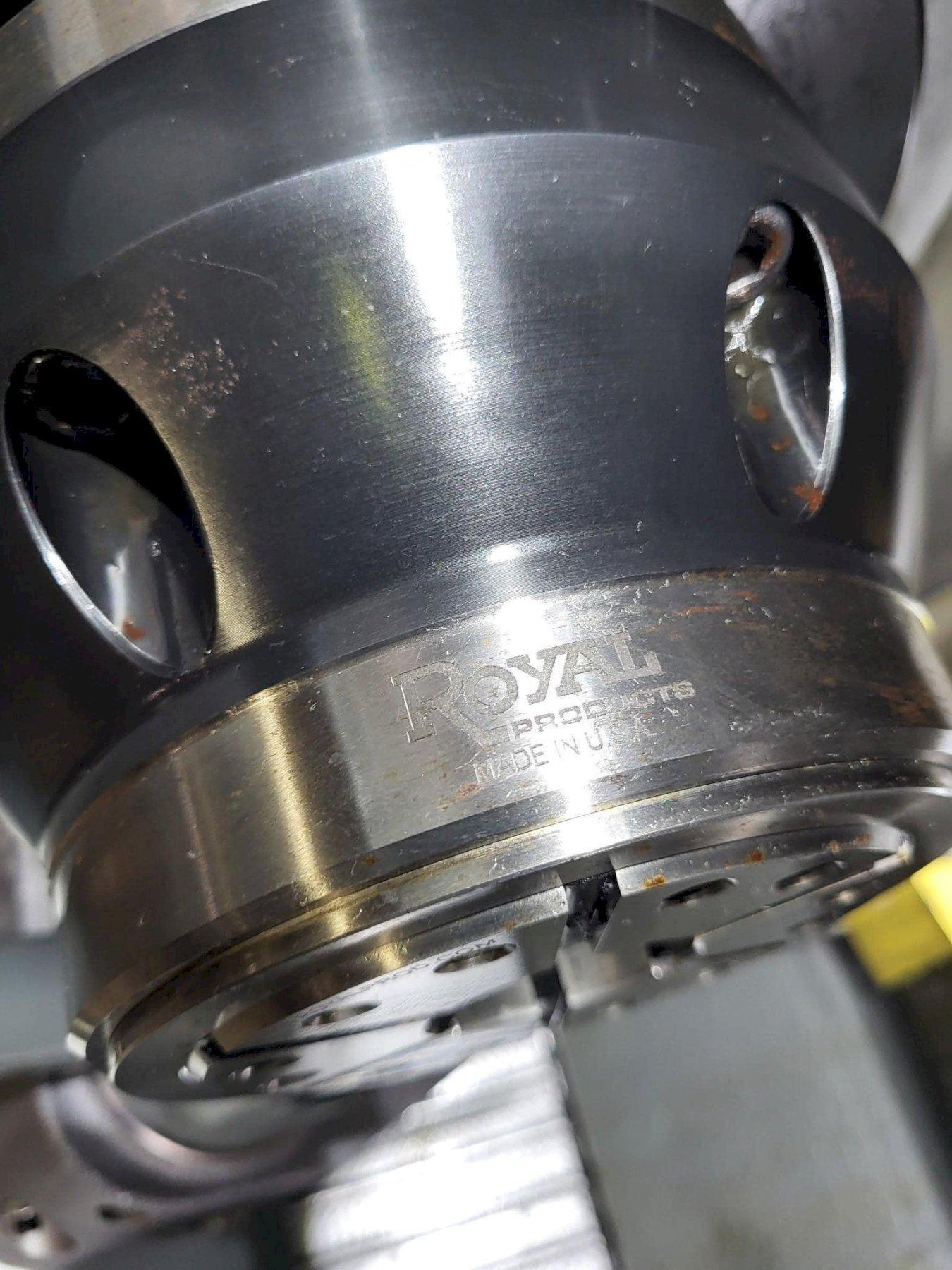

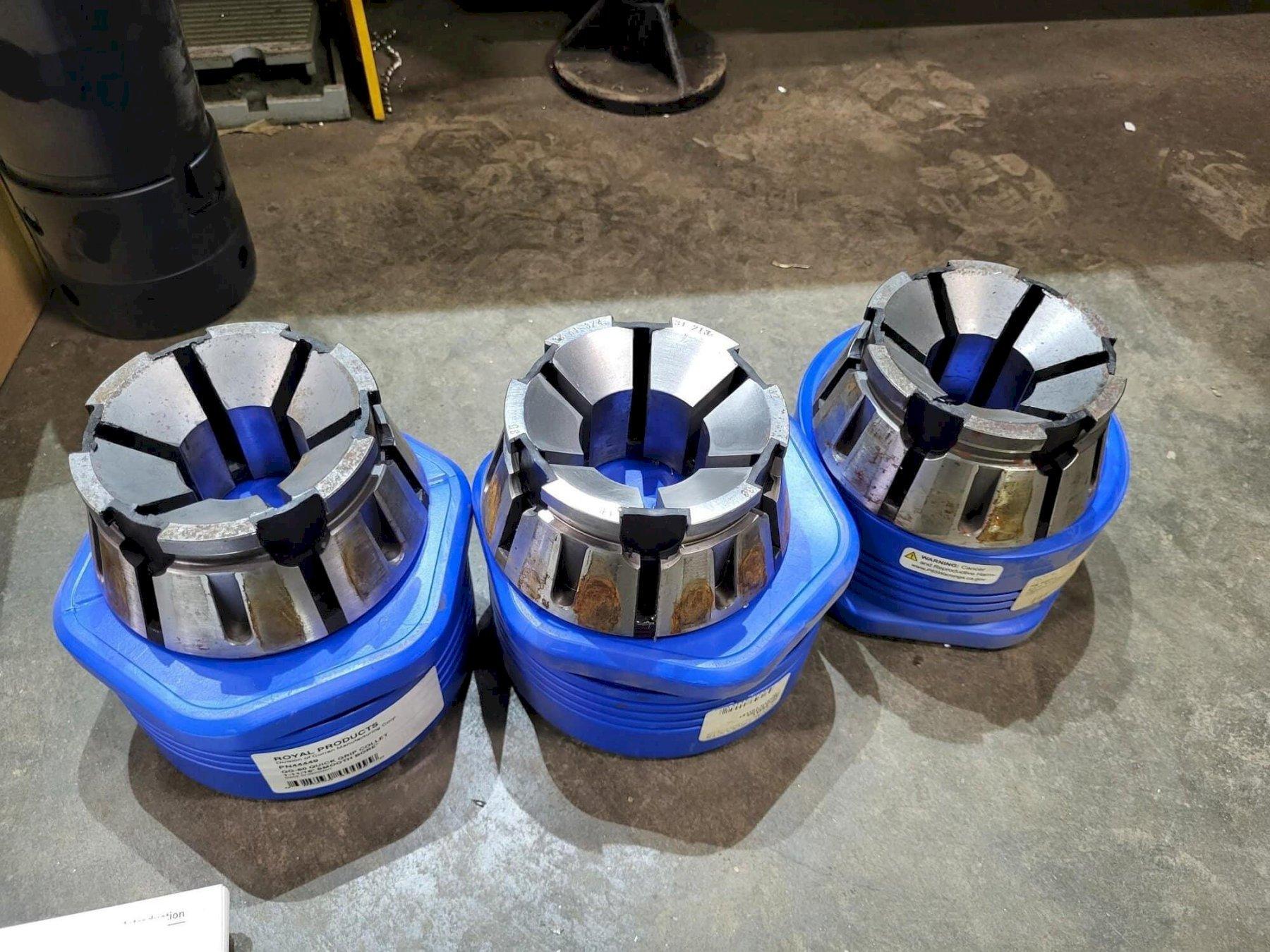

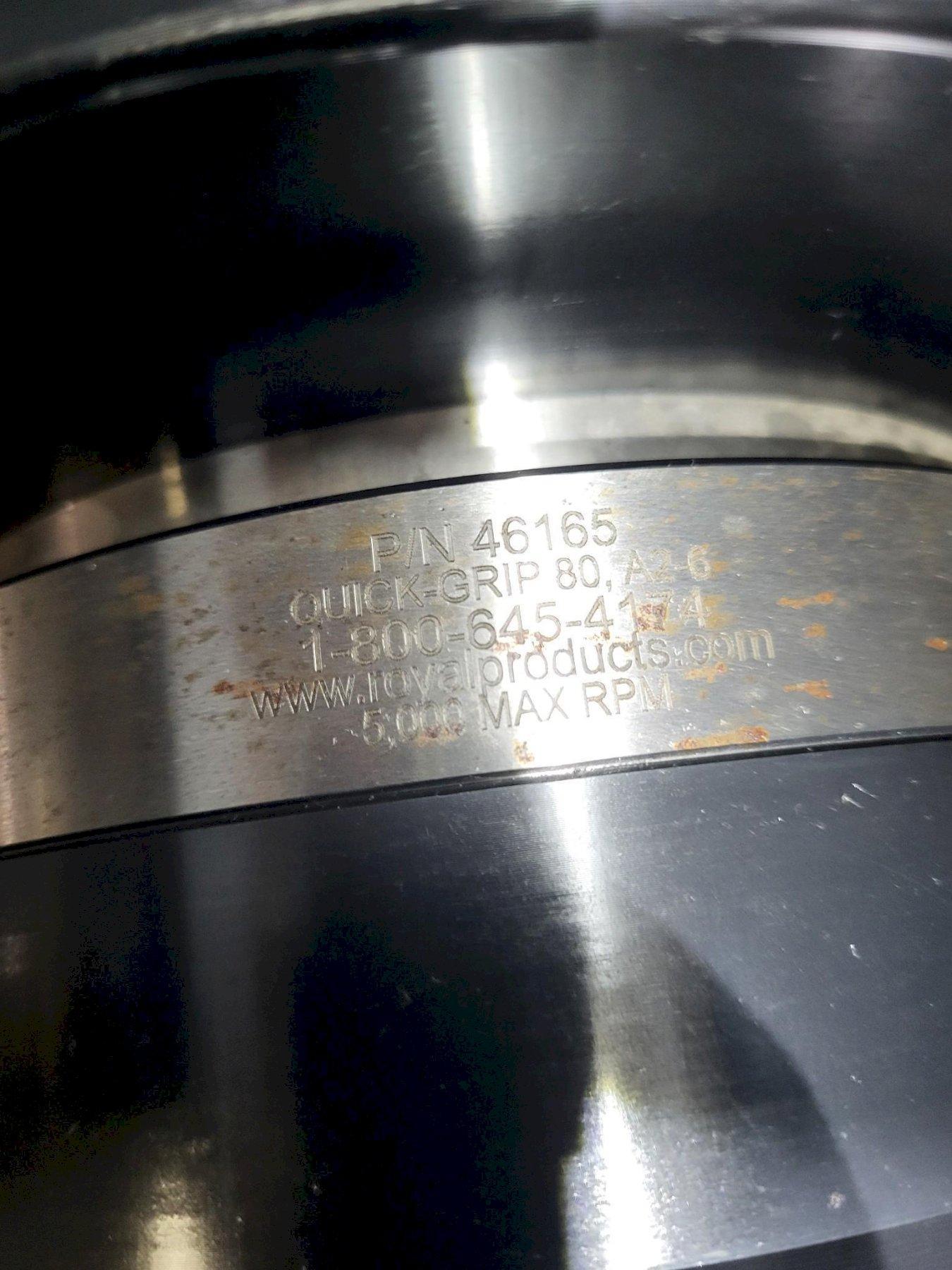

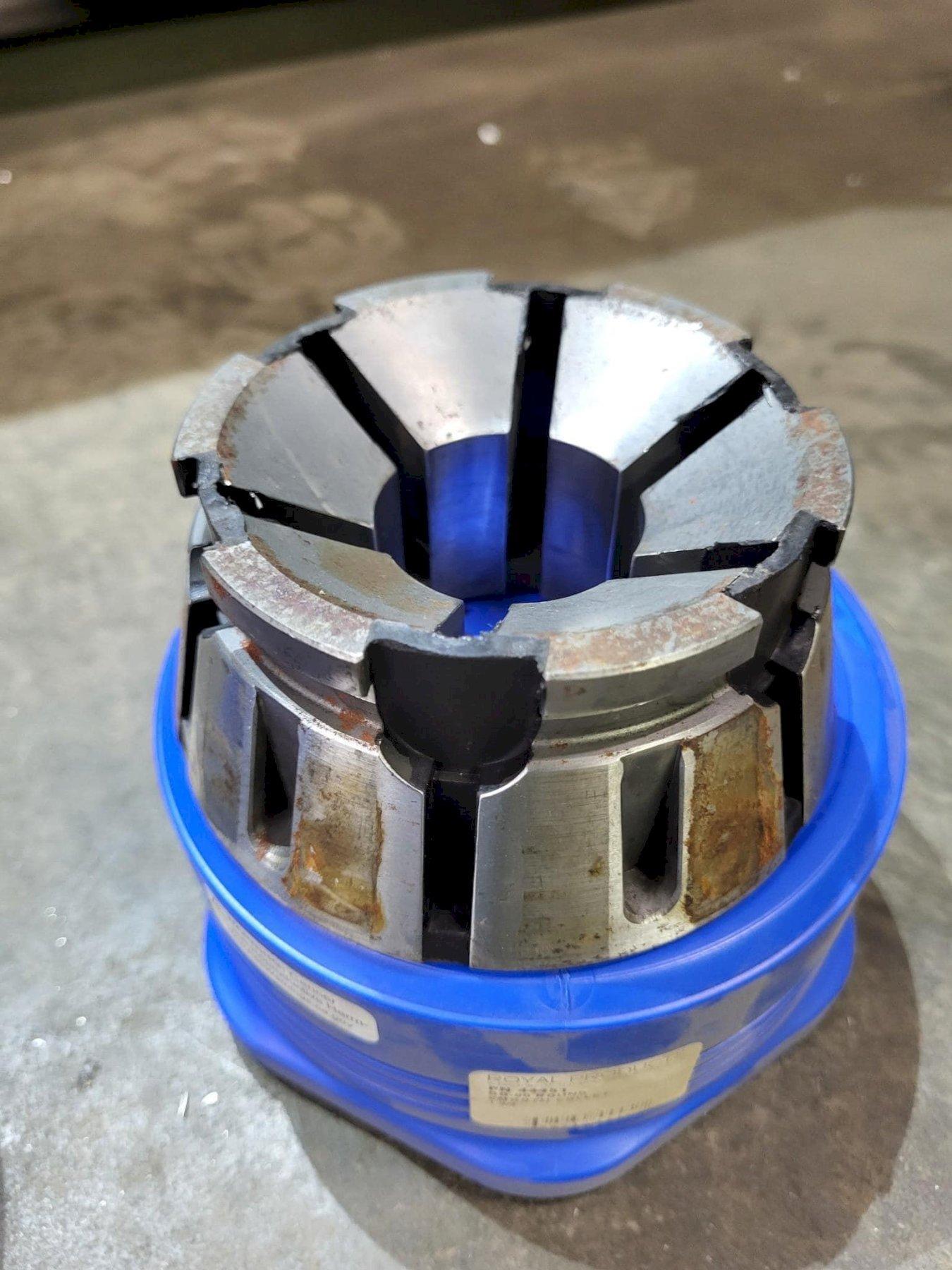

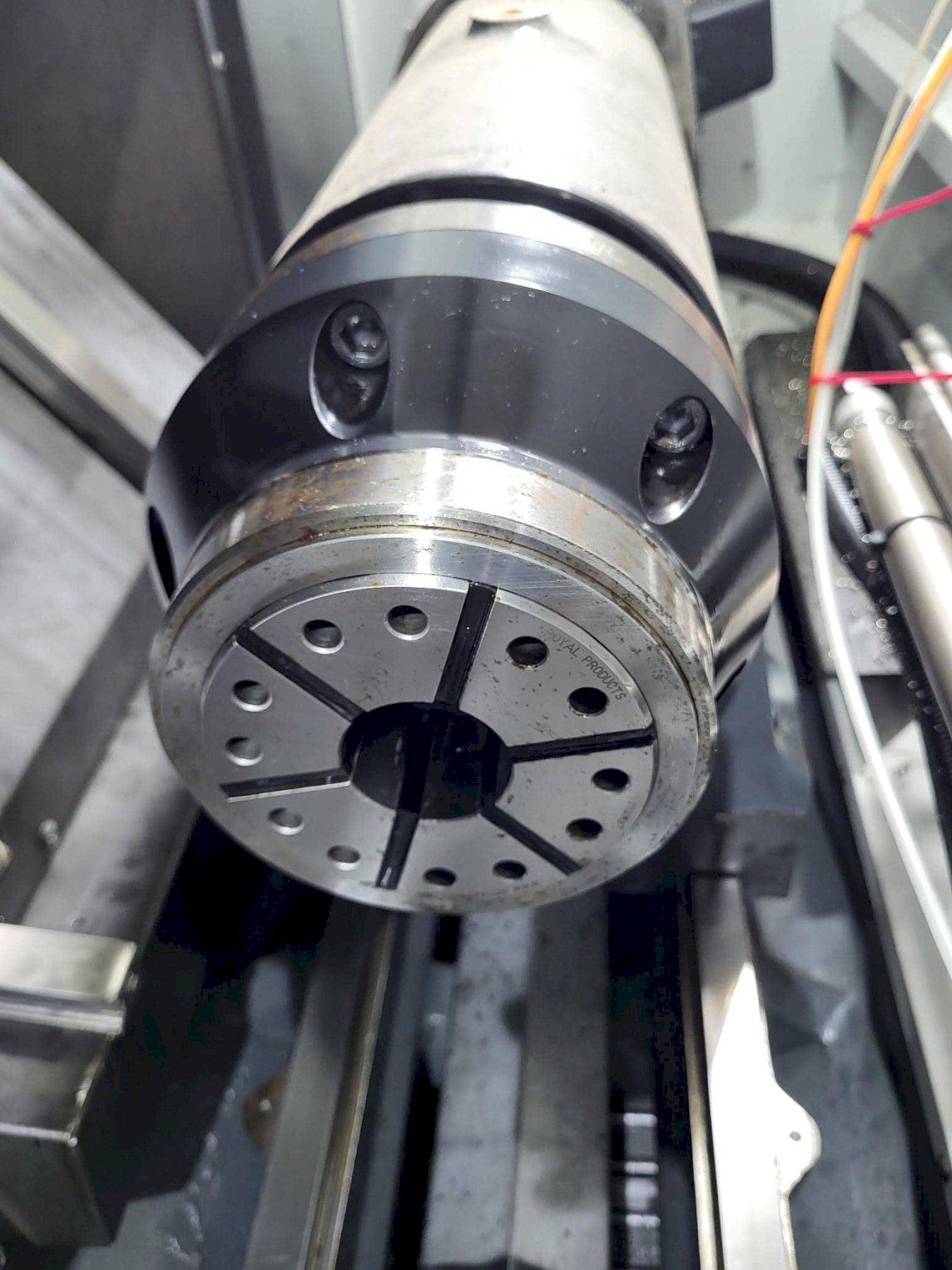

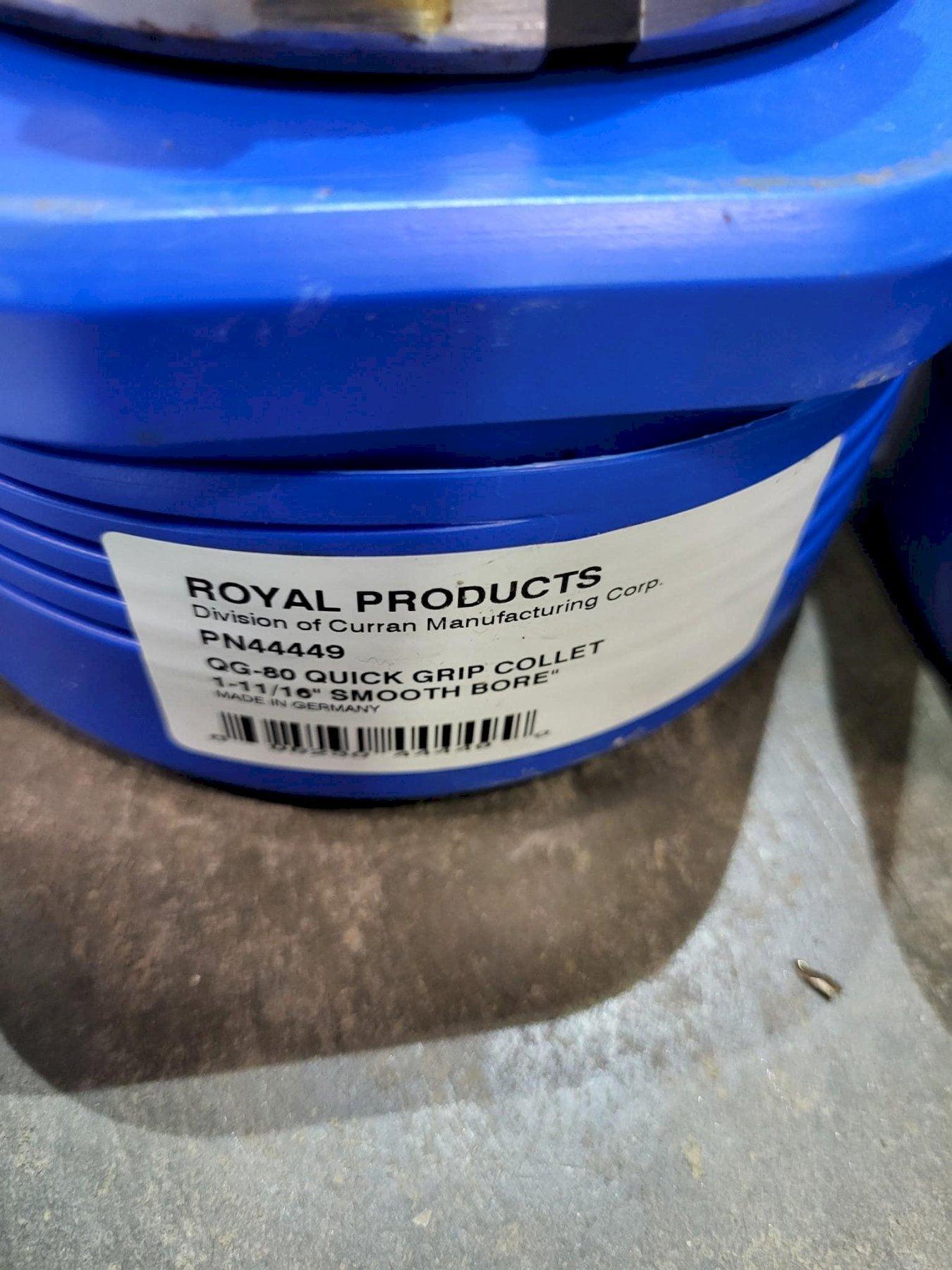

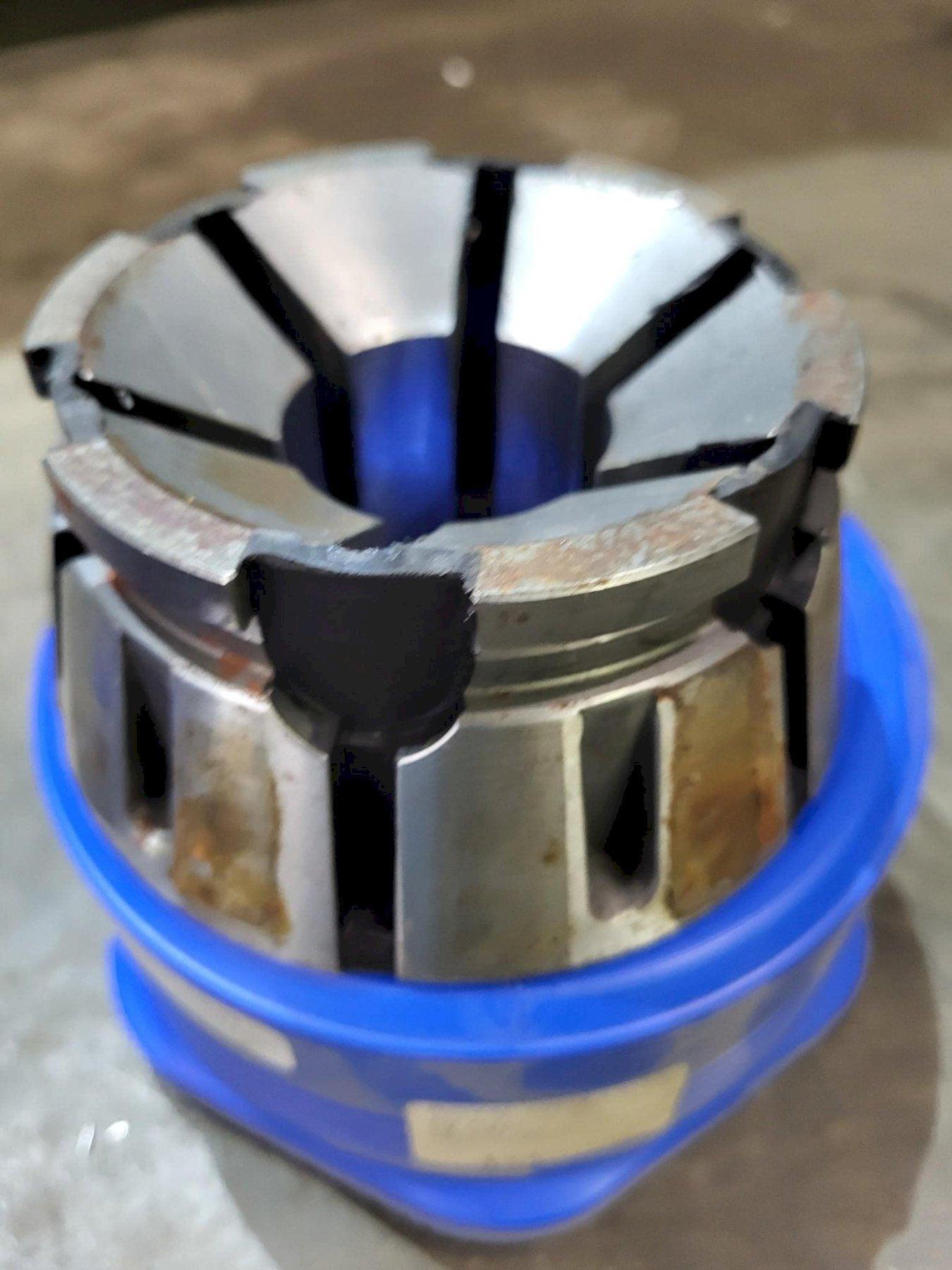

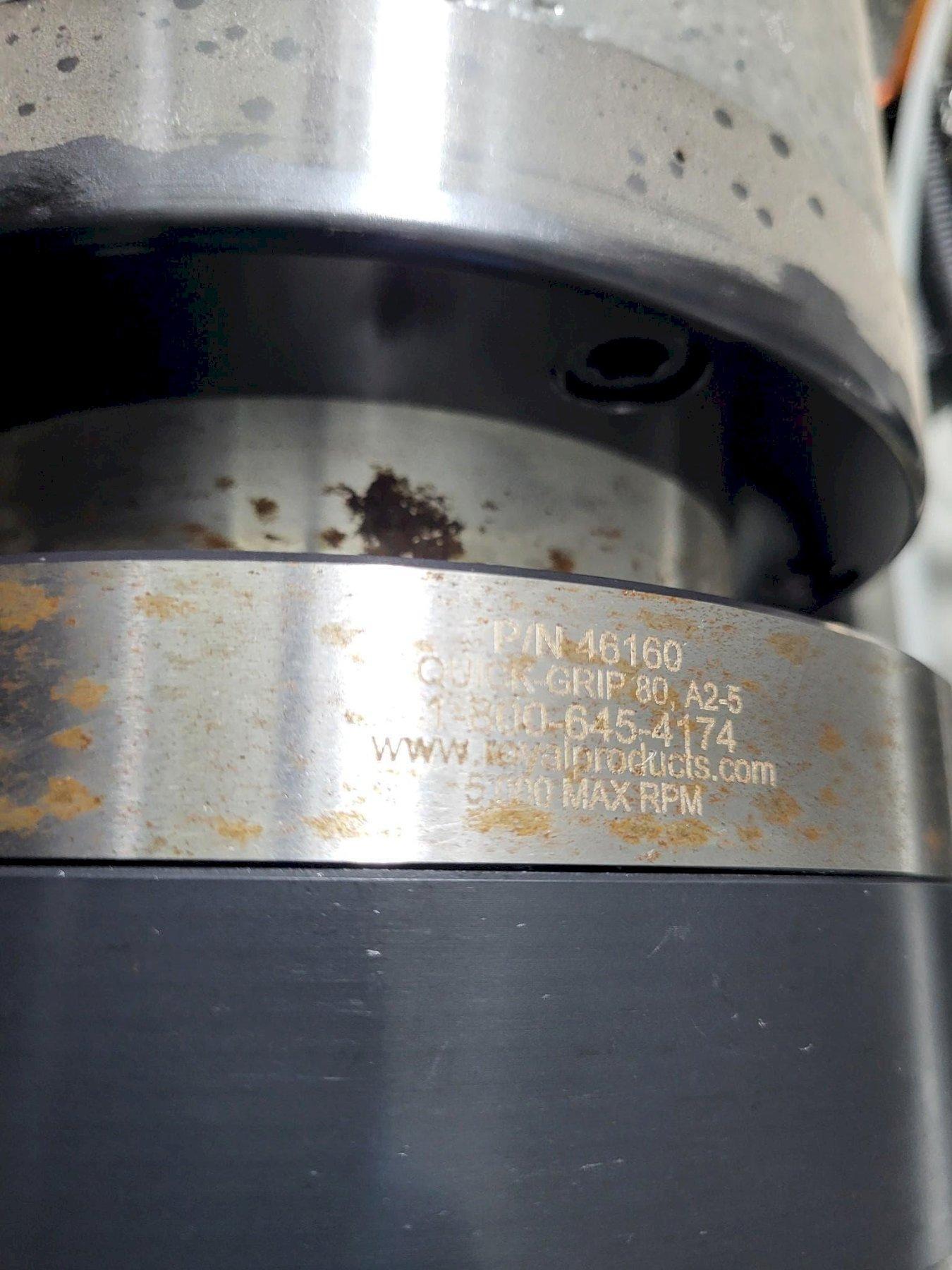

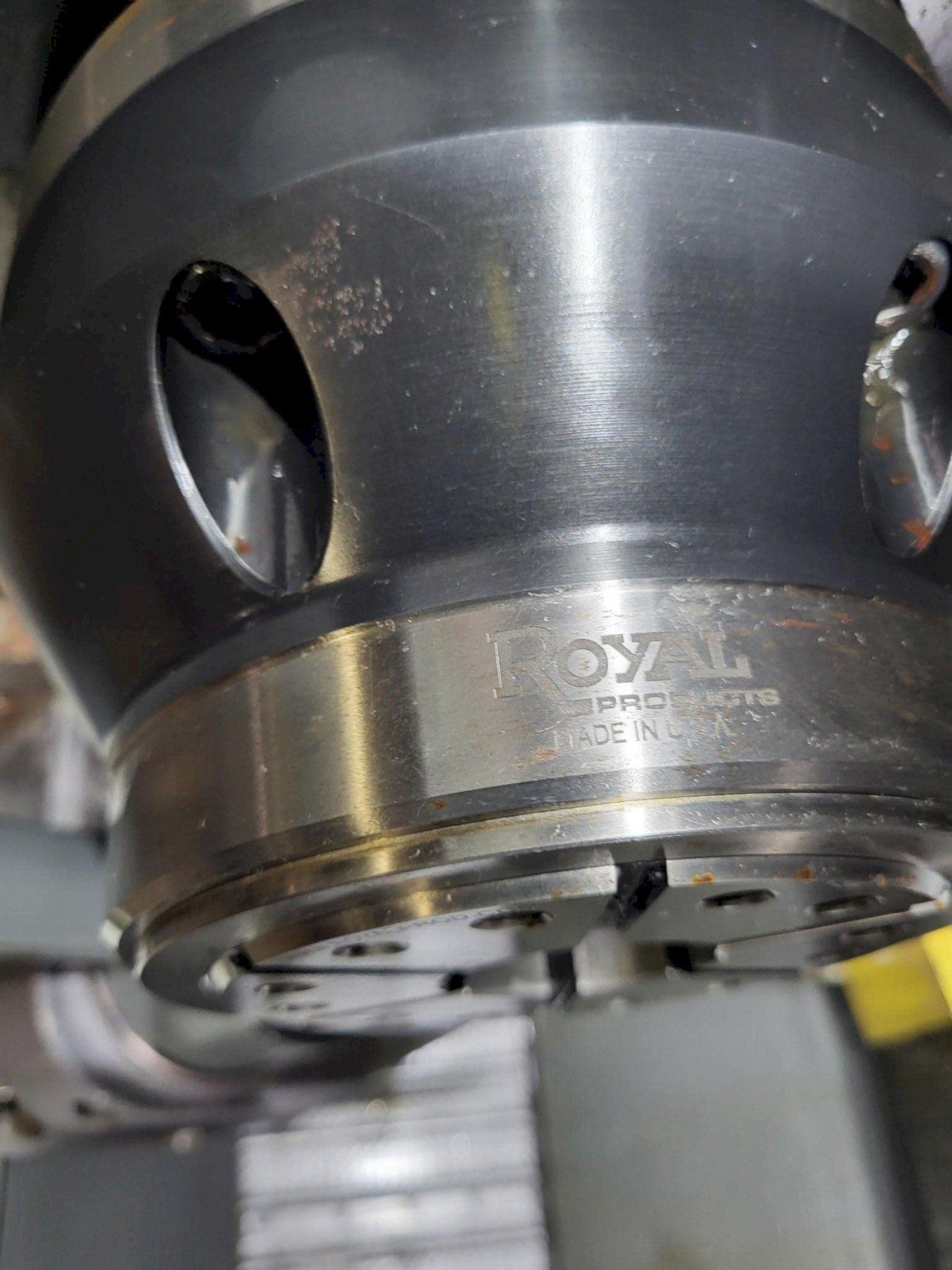

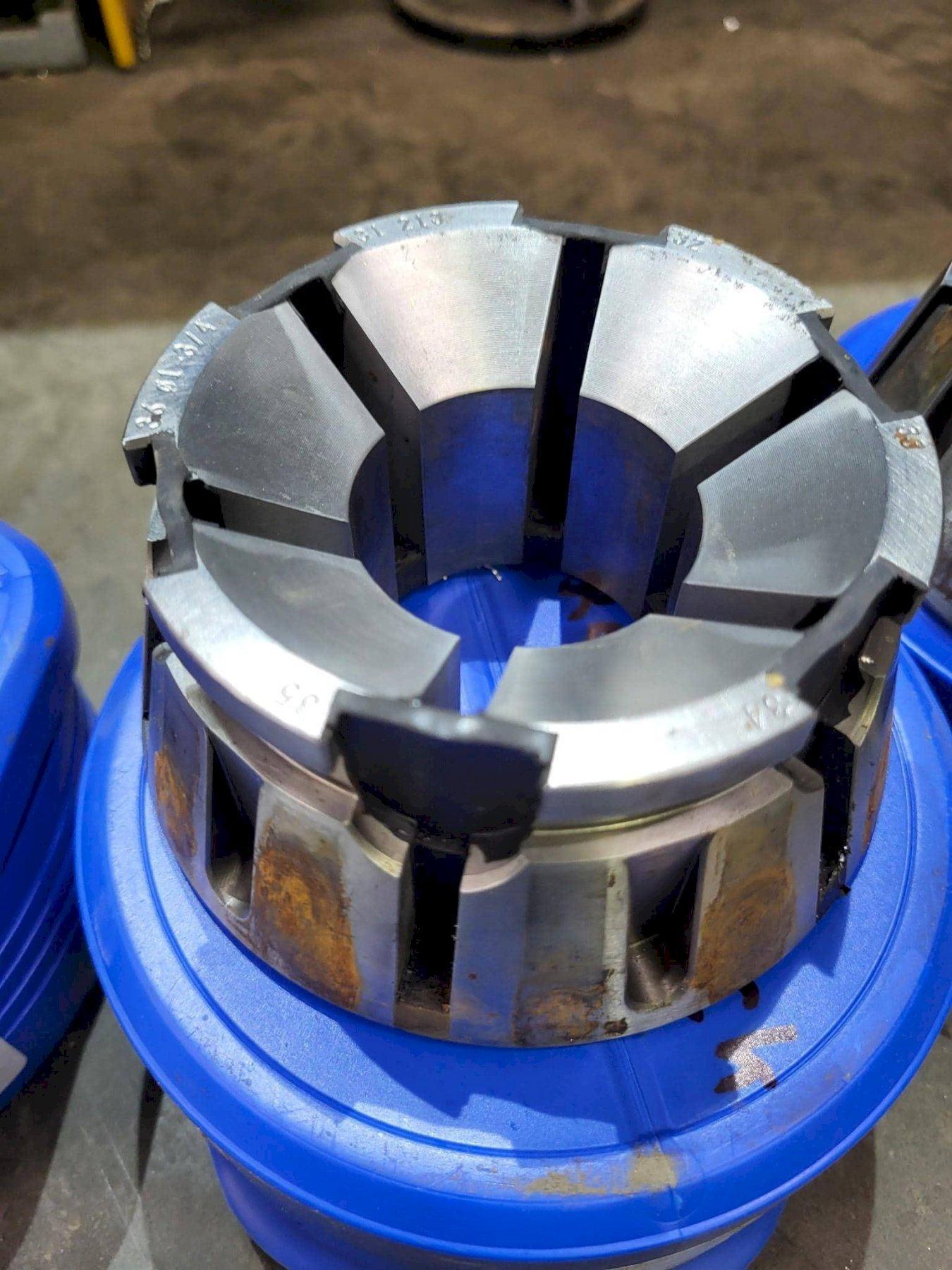

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Chuck Model: Royal Quick-Grip Accu-Length CNC Collet Chuck P/N 46615 Spindle Type: A2-6 Collet Chuck Weight: 35 lbs Collet Type: QG-80 Max Capacity (Bar): 3.28 in Max Capacity (Slug): 4.00 in Overall Length (A): 4.95 in Nose Diameter (B): 5.68 in Nose Length (C): 0.87 in Body Diameter (D): 7.45 in Flange Diameter (E): 7.45 in Max Drawbar Force: 11,240 lbs Max Clamping Force: 25,850 lbs Max RPM: 5,000

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle Spindle Nose: A2-6 Max Rating: 30.0 HP (22.4 kW) Max Speed: 3,400 RPM Max Torque: 300 ft-lbf @ 500 RPM (407 Nm @ 500 RPM) Max Torque with Optional Gearbox: 1,000 ft-lbf @ 150 RPM (1,356 Nm @ 150 RPM) Spindle Bore: Ø3.50 in (88.9 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle C-Axis Max Rating: 5.0 HP (3.7 kW) Max Speed: 60 RPM Positioning Accuracy (±): 0.01° Brake Diameter: 13.9 in (353 mm) Brake Holding Torque: 250 ft-lbf (339 Nm) Control Type: Interpolated motion and positioning

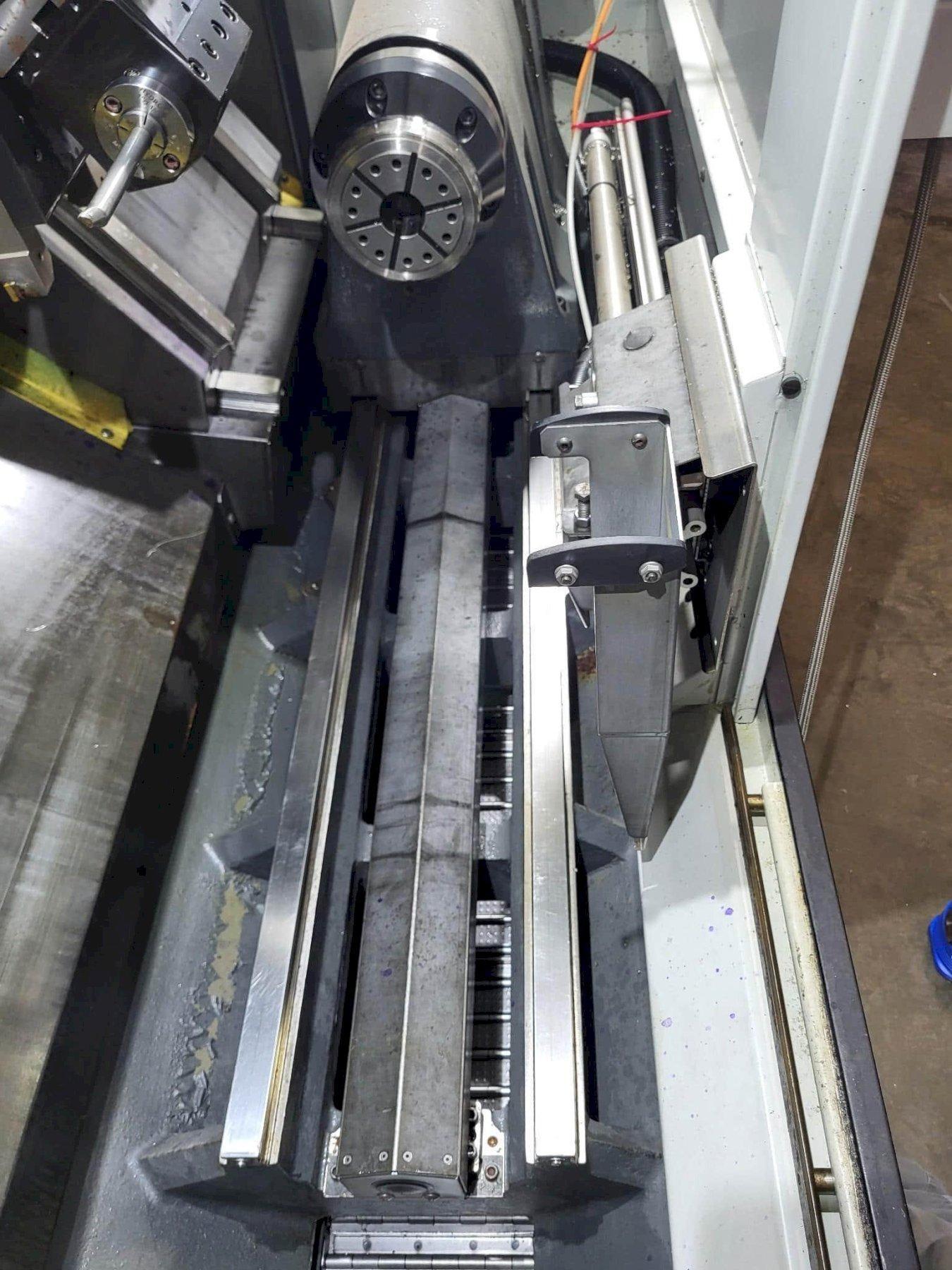

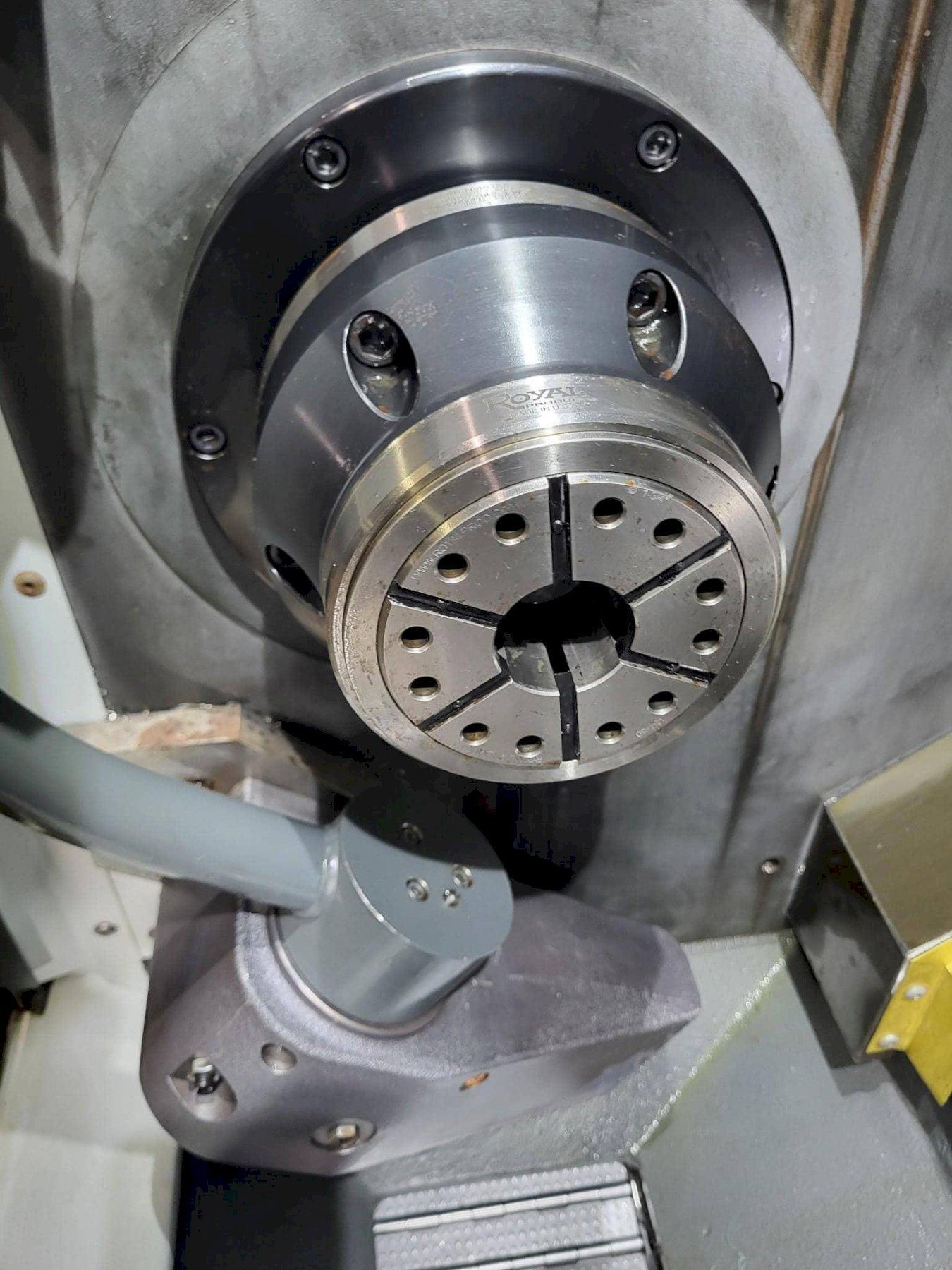

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sub-Spindle Chuck Size: 6.5 in (165 mm) Spindle Nose: A2-5 Max Speed: 4,100 RPM Max Sync Speed with Main Spindle: 3,400 RPM Chuck Throat: Ø1.81 in × 1.60 in deep (Ø46.0 mm × 40.6 mm) Drawbar Adapter Bore: Ø1.18 in × 3.09 in deep (Ø46.0 mm × 78.5 mm) Drawbar Bore (Non-Through): Ø1.03 in × 4.91 in deep (Ø26.2 mm × 124.7 mm) Spindle Bore (without Chuck and Drawbar Installed): 2.31 in (58.7 mm) Integrated Brake Torque: 17 ft-lbf (23 Nm) Spindle Orientation Accuracy (Requires SO): ±0.02° Rapids (B-Axis): 400 IPM (10 m/min)

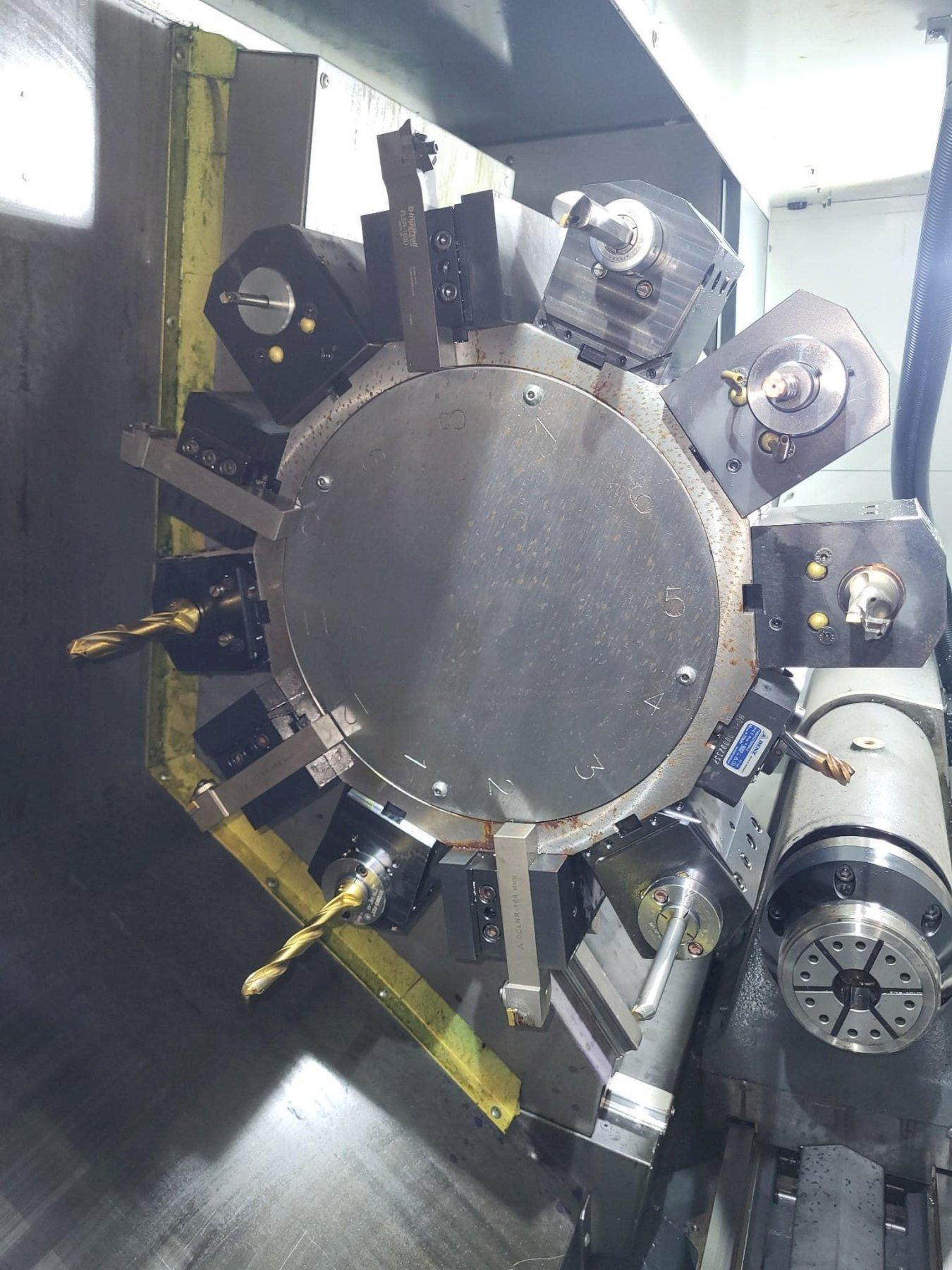

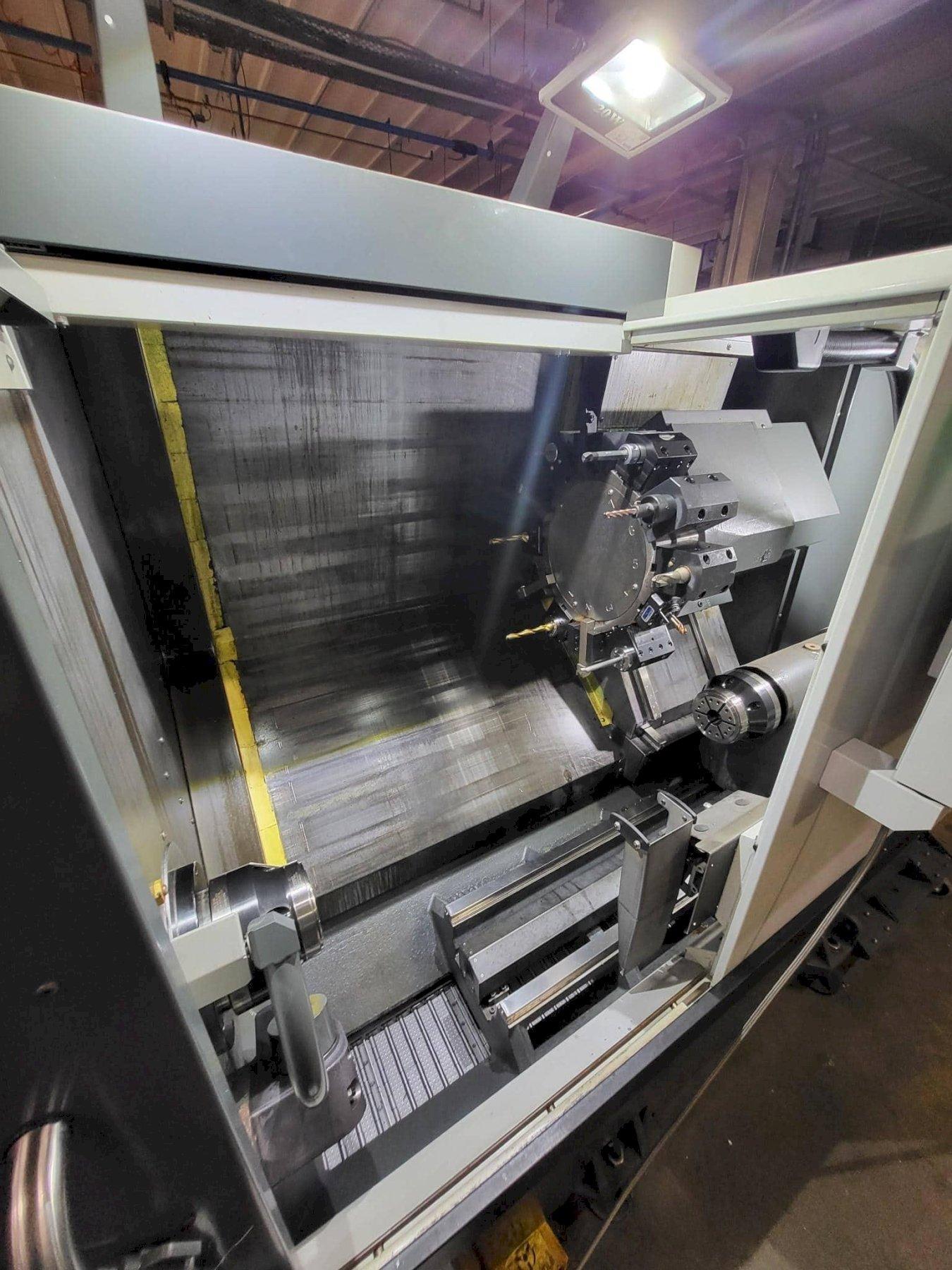

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turret Number of Tools: 12 stations OD vs ID Tools: Any combination (varies with turret) Boring Bar Rear Clearance (from back of turret): 4.00 in (102.0 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Live Tooling Max Speed: 4,000 RPM Tooling Type: BMT65

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Specifications Spindle Speed: 3,400 RPM Drive System: Direct speed, belt drive Spindle Power: 30.0 HP (22.4 kW) Input AC Voltage (3-Phase, Low): 220 VAC Full Load Amps (3-Phase, Low): 70 A Input AC Voltage (3-Phase, High): 440 VAC Full Load Amps (3-Phase, High): 35 A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approx. Weight: 11,500 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
