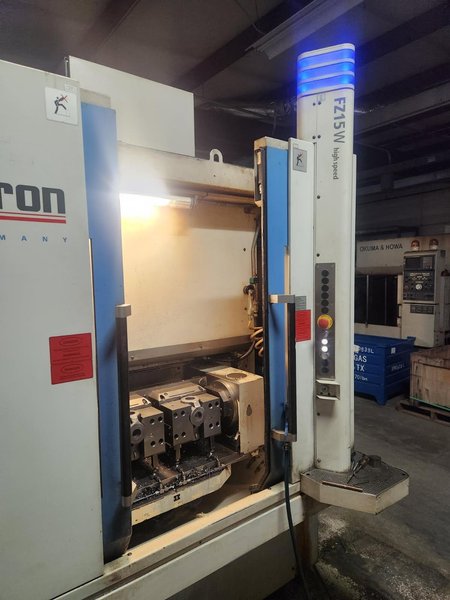

Chiron FZ 15 W High-Speed 5-Axis Vertical Machining Center, 2012 – Rigid Tap, High Pressure Coolant

X-Axis Travel: 21.65″ Y-Axis Travel: 15.75″ Z-Axis Travel: 16.73″ Max Spindle Speed: 10,500 RPM Spindle Motor: 50 HP Spindle Taper: CAT 40 Tool Capacity: 20 Tools (Umbrella) Table Size (Each Side): 26″ × 15.75″ Table Load Capacity (Per Side): 660 lbs Workpiece Swivel Table: 0° / 180° Max Table Weight Difference: 220 lbs Drilling Capacity (Steel): 1.42″ Tapping Capacity: M24 Milling Capacity (Steel): 18 in³/min

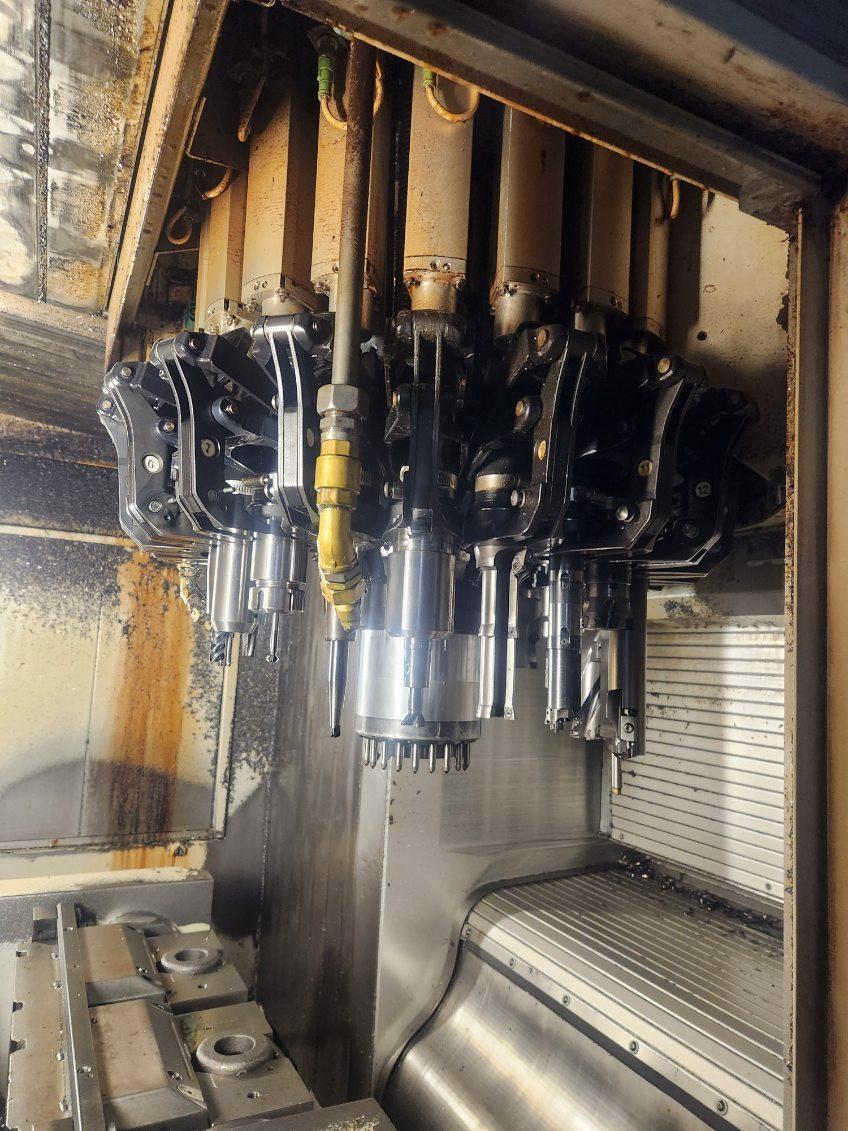

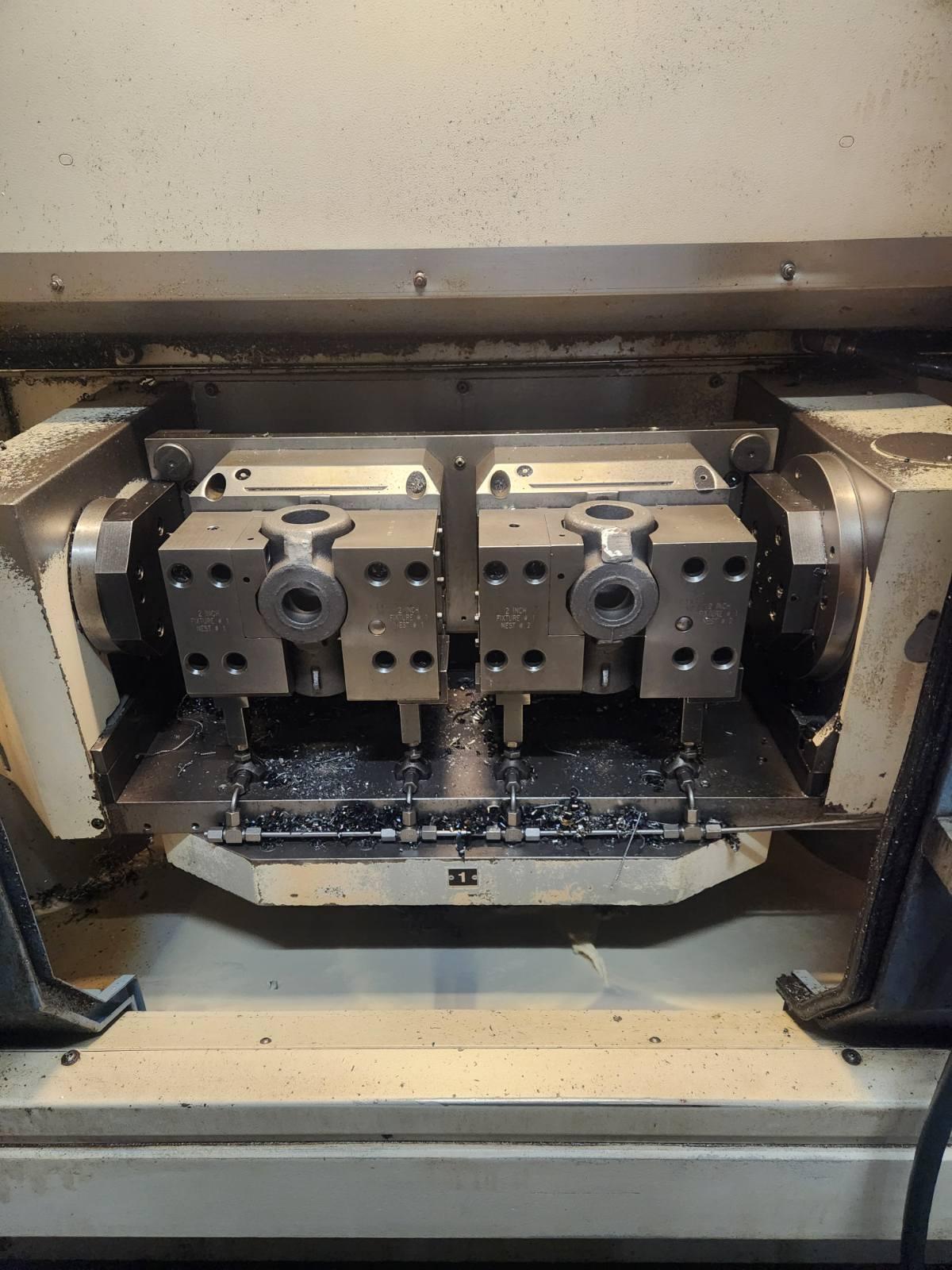

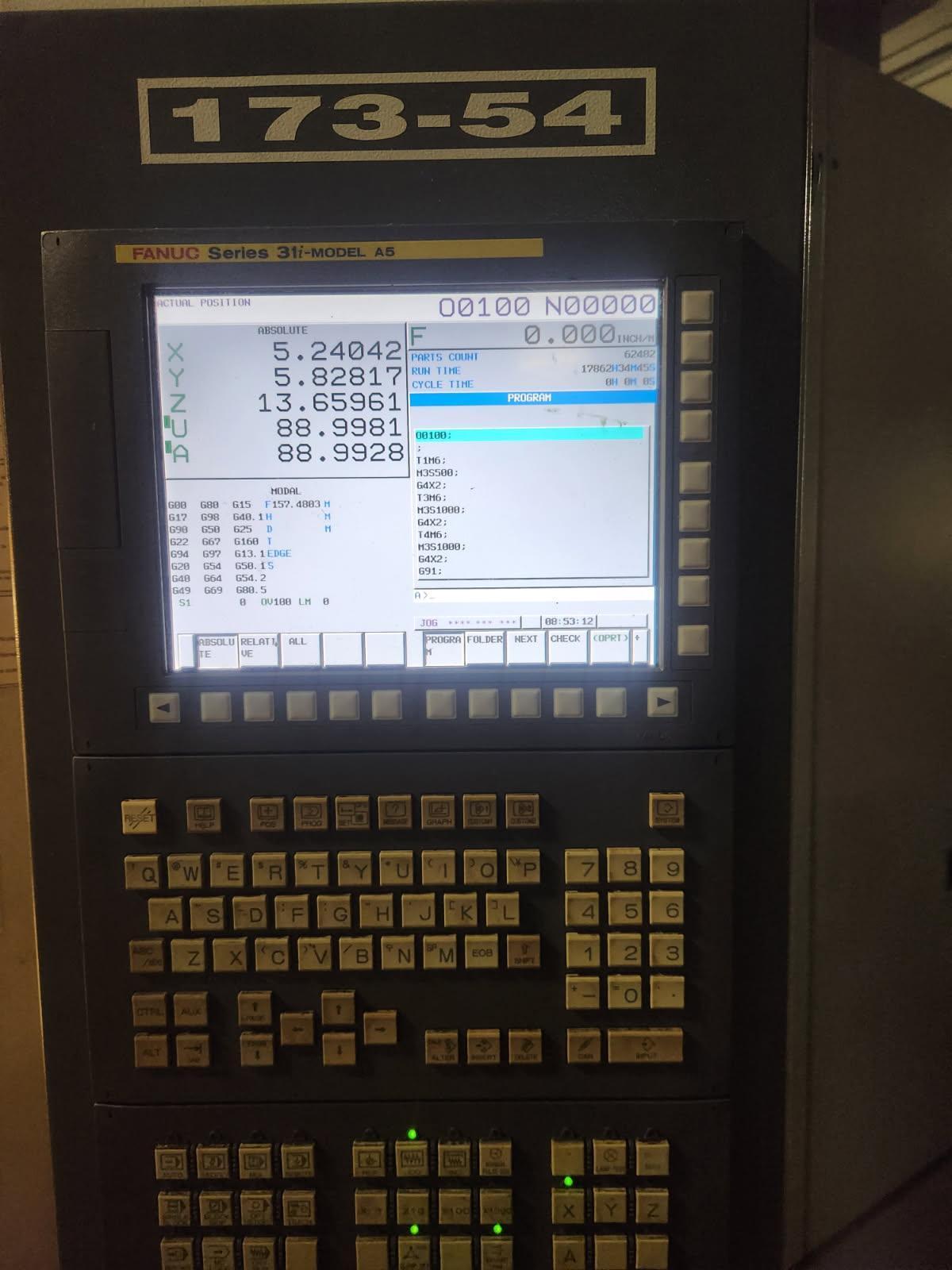

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Fanuc 31i A5 5-Axis CNC Control Workpiece Swivel Table With Center Divider Digital AC Servo Direct Drives Thermodrive Temperature Compensation Automatic Tool Changer (20 Station Umbrella) High Pressure Coolant Ethernet And RS-232C Communication Rigid Tapping All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
