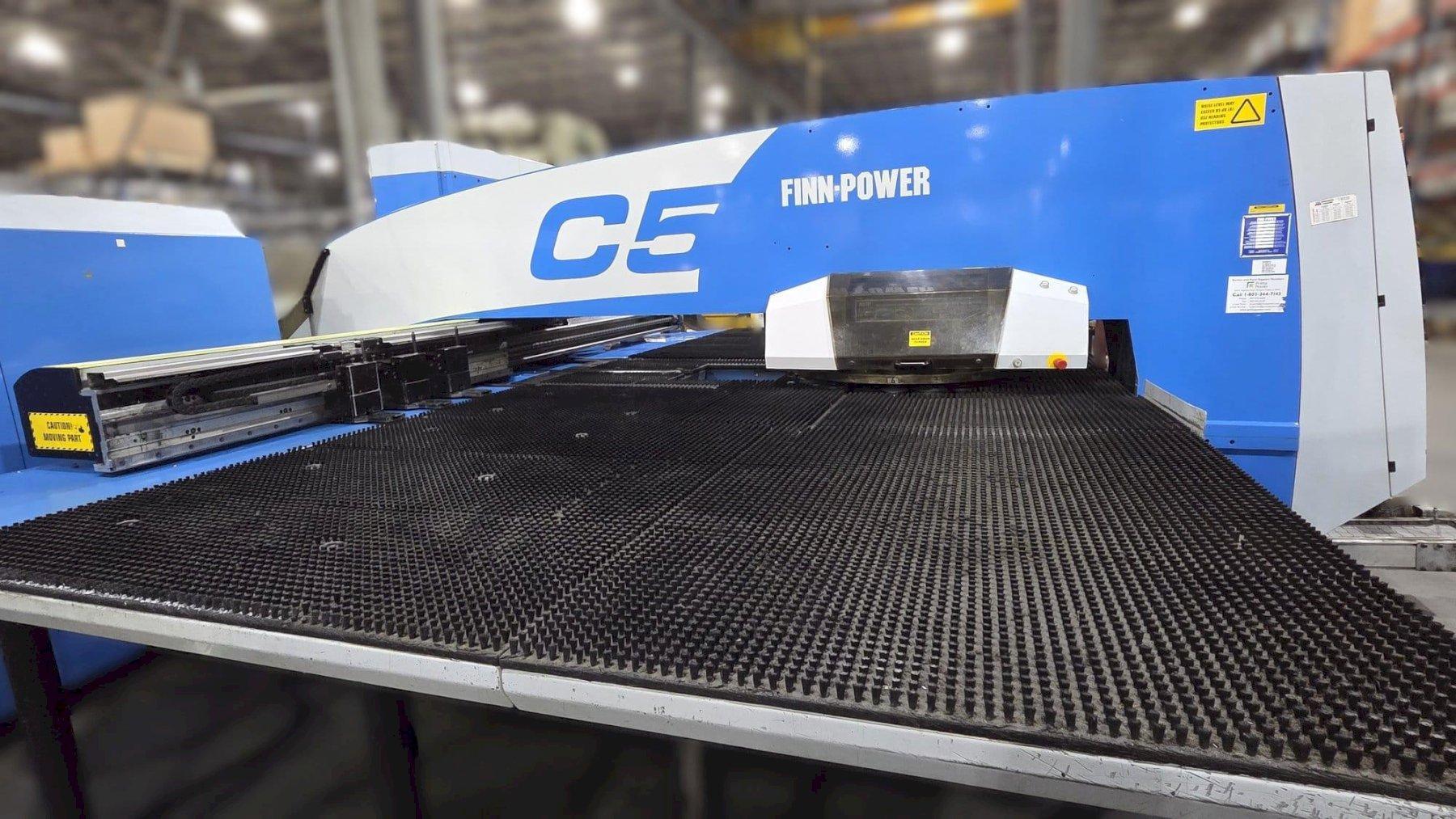

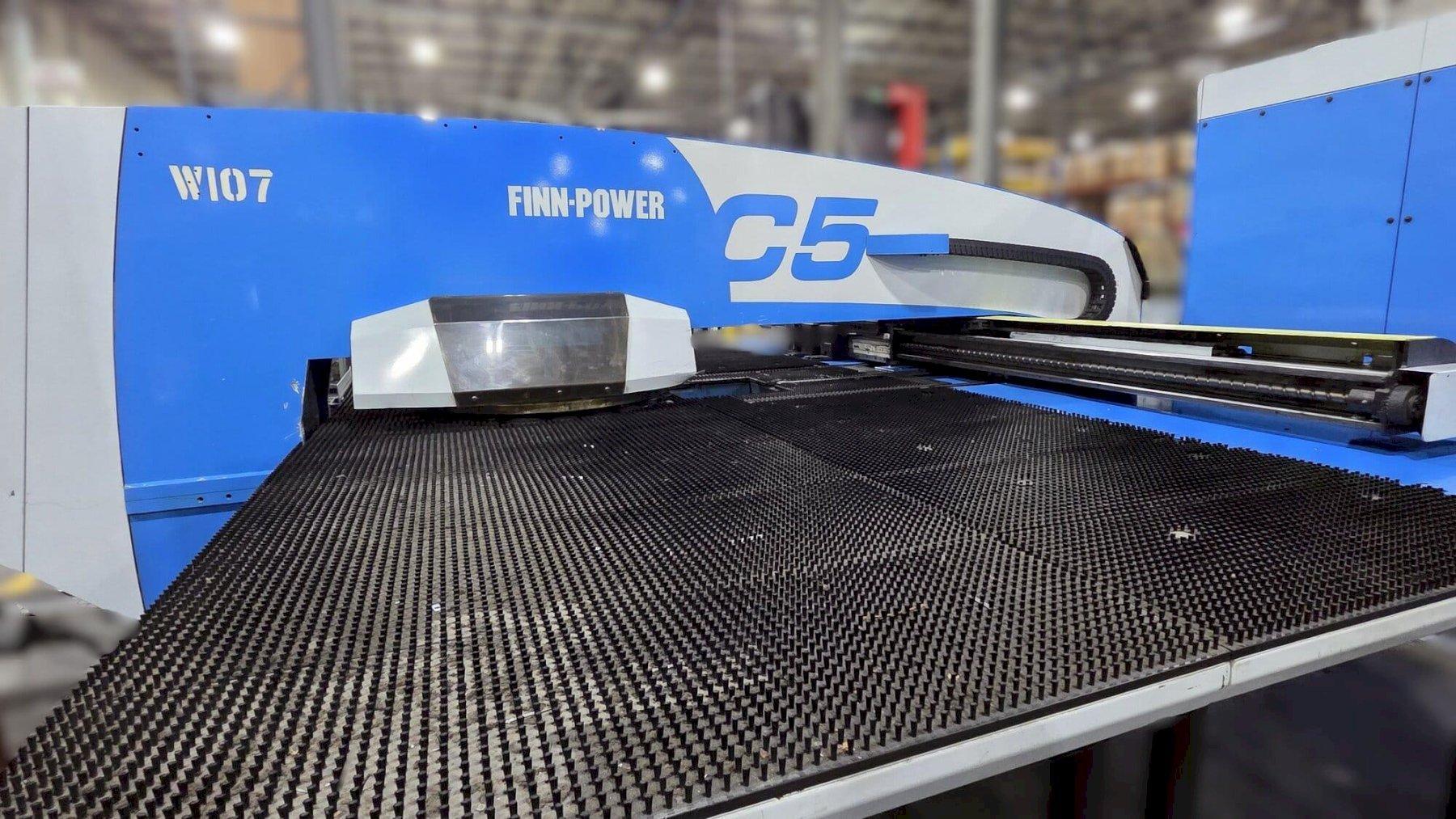

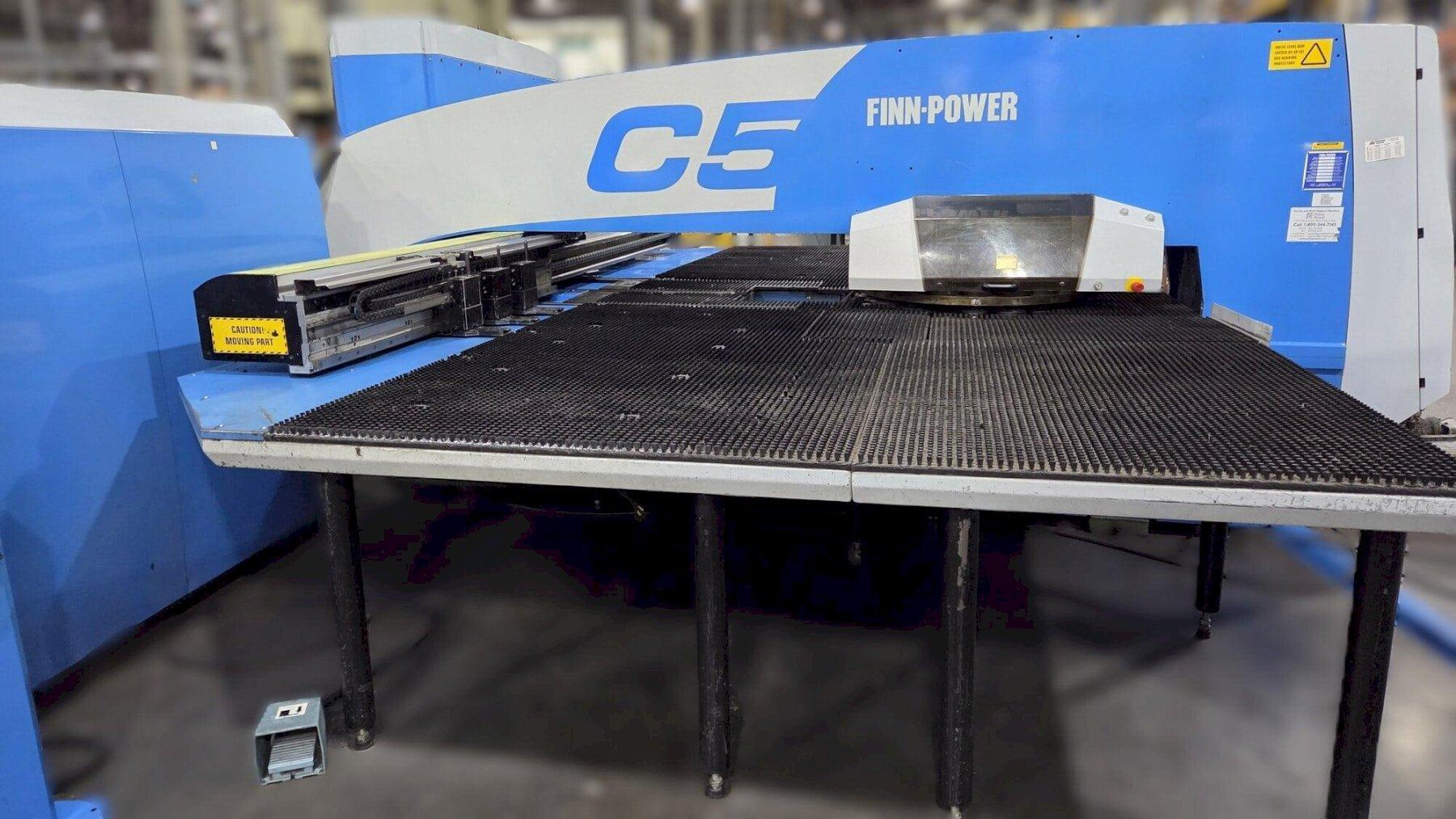

33 Ton Finn-Power C5 Turret Punch, 2008 – 8 Auto Index Stations
Brand
Category
Type
Model
C5
Stock #
296877
Year
2008
Condition
Not specified
Location
Michigan
|
Capacity: 33 Ton
Maximum Sheet Thickness: 5/16″
Maximum Sheet Size:
96″ x 48″ (w/o Repositioning)
Maximum Traverse: 101.7″ x 51.8″
Maximum Sheet Weight: 440 Lbs.

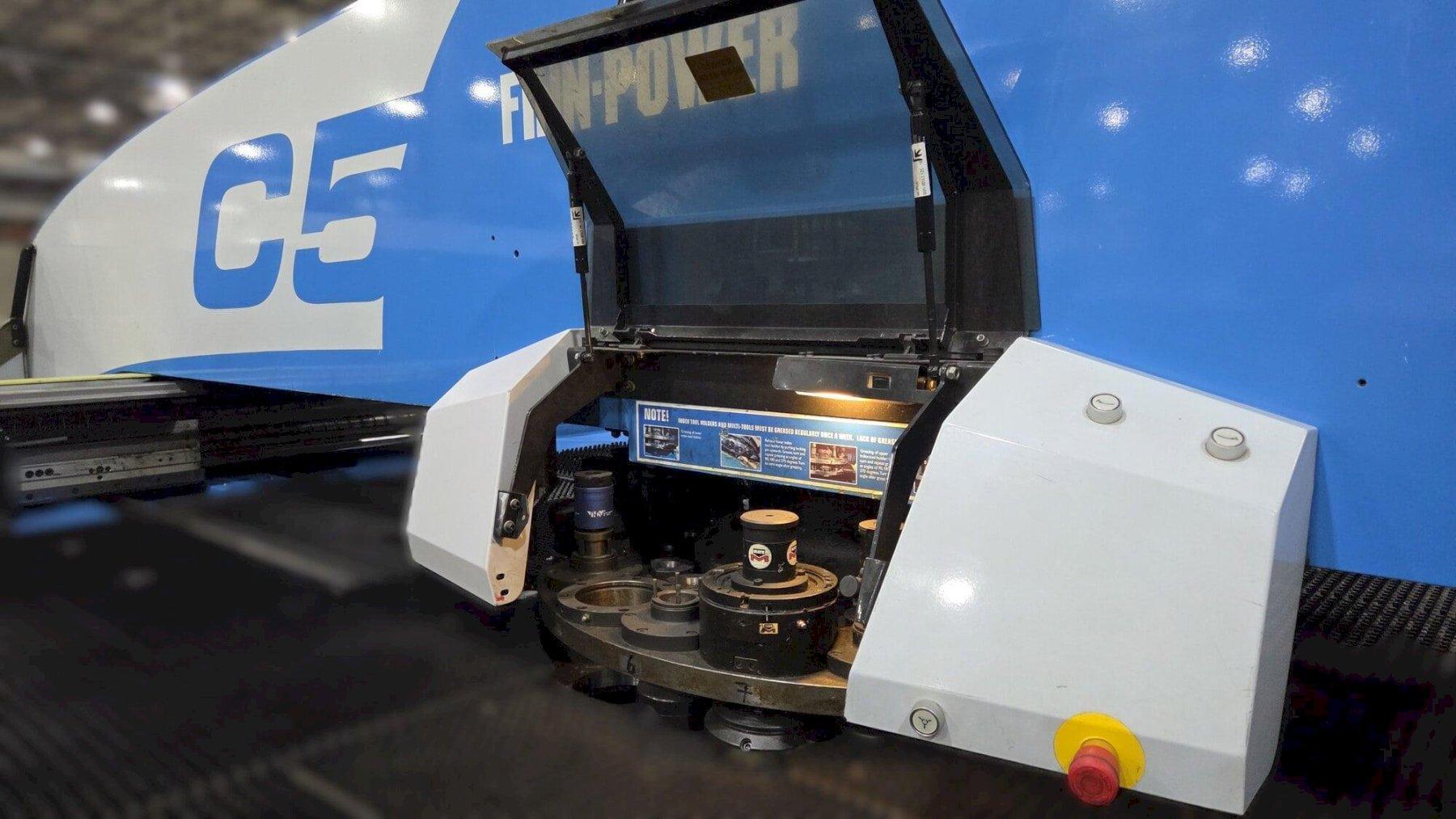

Turret Configuration (Thick): 20 Stations Turret Speed: 24 RPM (Bi-Directional)
Maximum Hit Rate:
420 HPM (1″ Increment Movement)
Hit Rate (Continuous Nibble Mode):
1,100 SPM
Maximum Table Traverse Speeds: X-Axis – 3540 IPM; Y-Axis – 2352 IPM
Maximum Punch Diameter: 3.5″

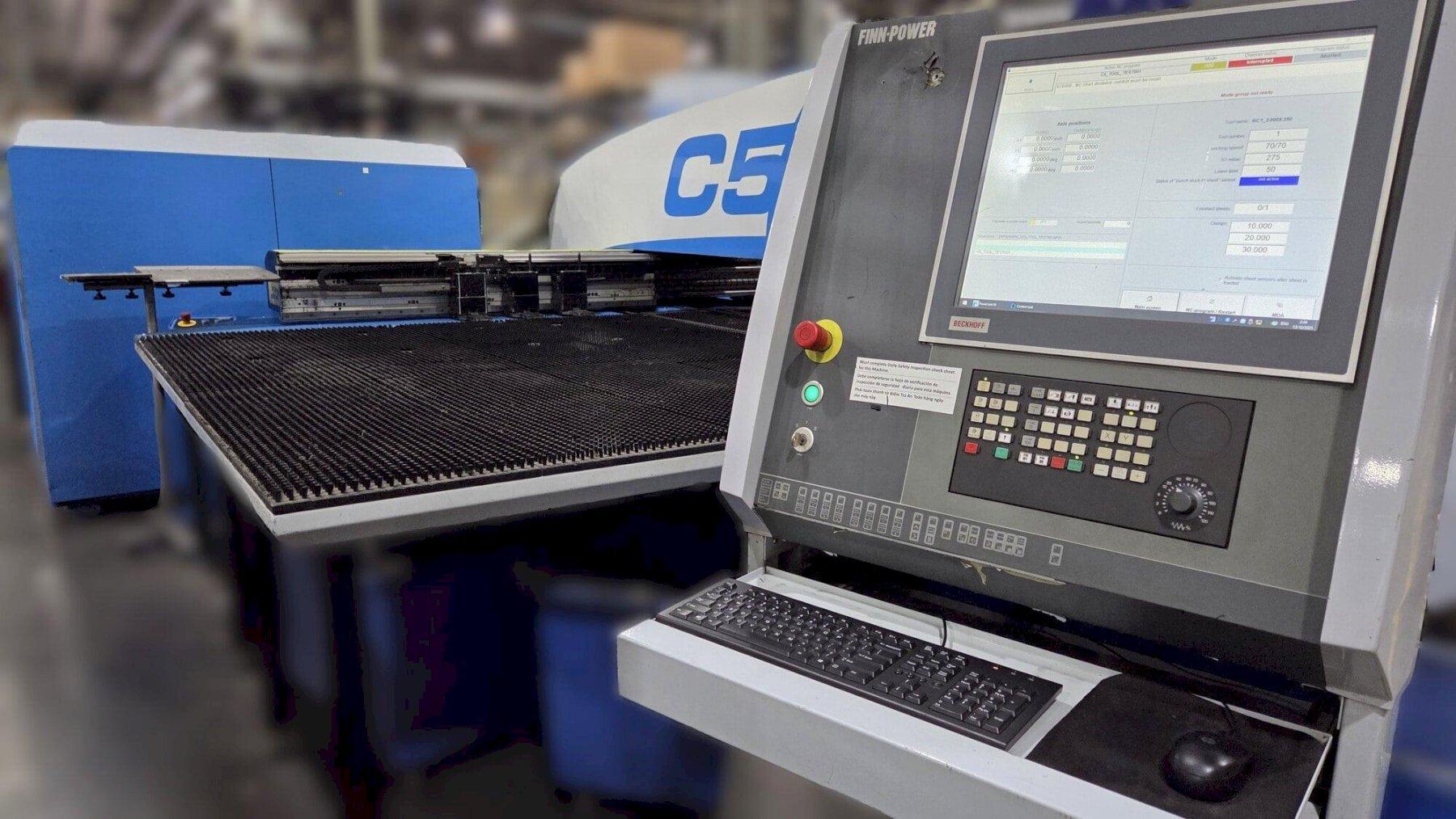

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Siemens Sinumeric 840D CNC Control w/CRT (8) Auto-Index Stations Multi-tool compatible for (2) auto-index and (1) keyed station Transformer Available Manuals All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
