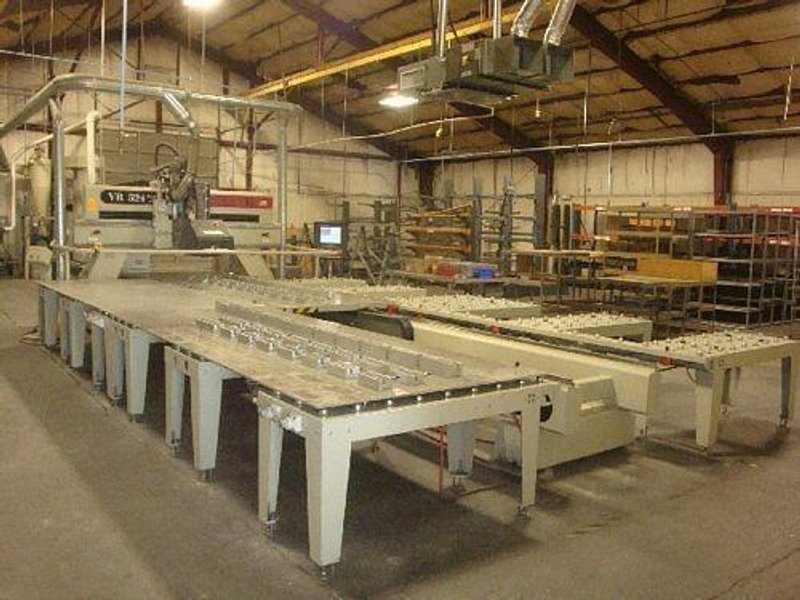

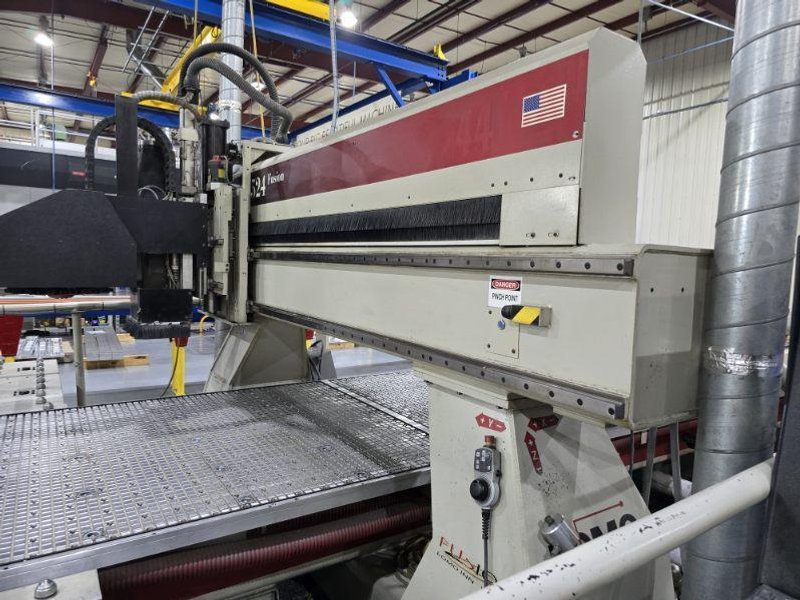

KOMO Fusion 524 VR Bridge Style CNC Router, 2007

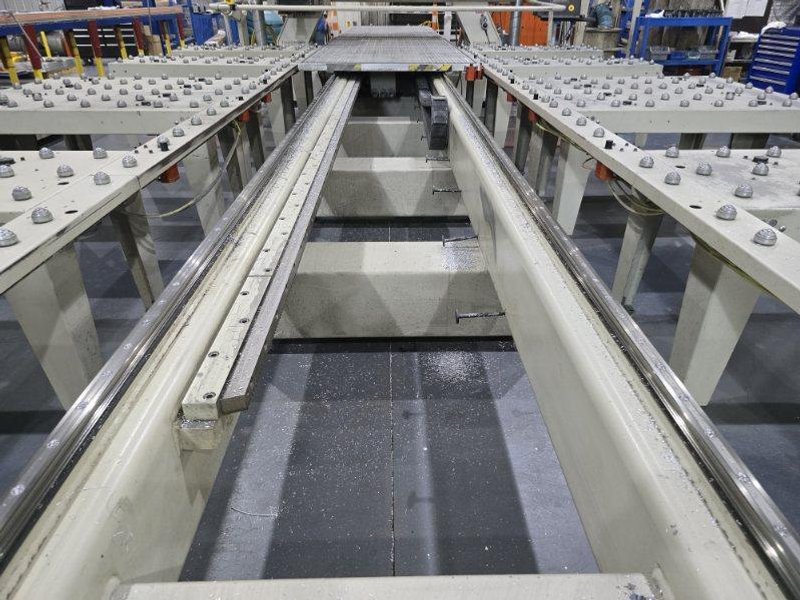

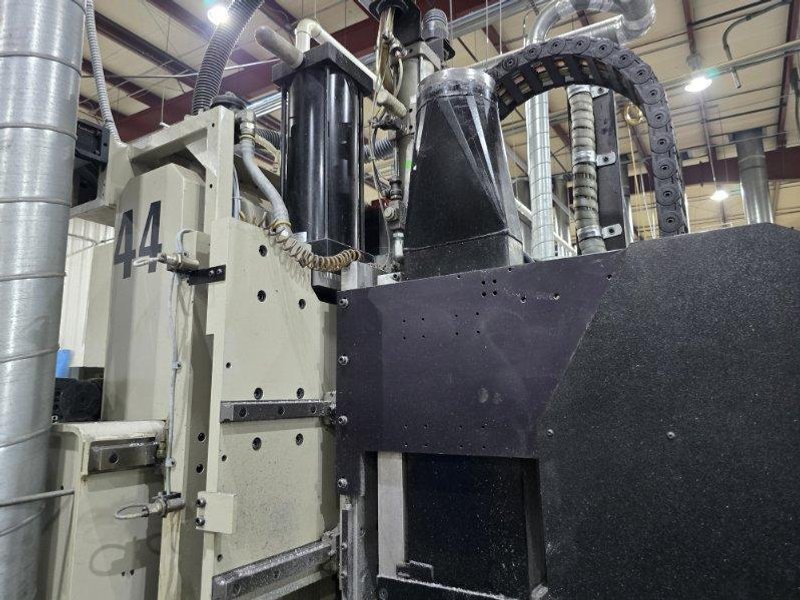

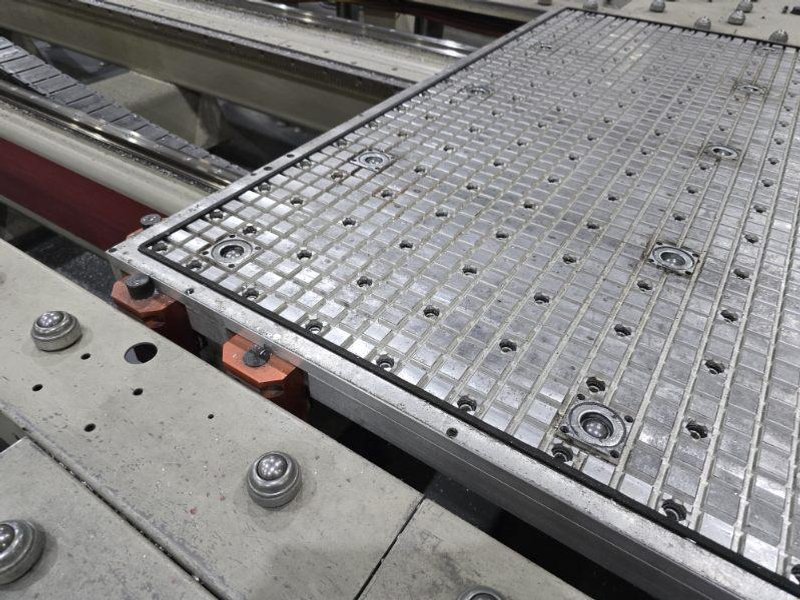

Table Size: 5′ x 24′ (60″ x 288″) vacuum table. Axis Travel: X-Axis: 288″ (moving table) Y-Axis: 60″ (gantry cross travel) Z-Axis: 12″ (spindle vertical travel) Spindle: 24,000 Horsepower: 14 HP Speed: 24,000 RPM (revolutions per minute) Taper: HSK 63F Type: Fan-cooled, 4-pole Automatic Tool Changer: 15 position carousel Control System: Komo-GE Fanuc i CNC Control Axis Drives: Digital Fanuc Alpha HVI servo motors on all axes, with a pre-loaded precision ball screw system for Y and Z axes, and a rack and pinion or ball screw system for the X-axis. Construction: Heavy-duty steel fabrication with a FEA (Finite Element Analysis) engineered structure. Overall Machine Dimensions: Approximately 299″ (L) x 86″ (W) x 10″ (H) Weight: Approximately 25,000 lbs (11,340 kg) Electrical: 480 Volts, 3 Phase, 60 Hz

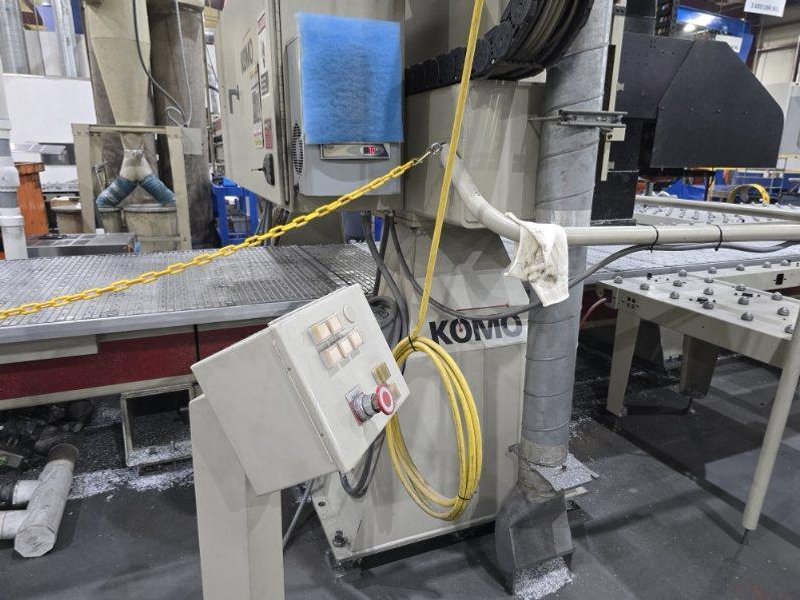

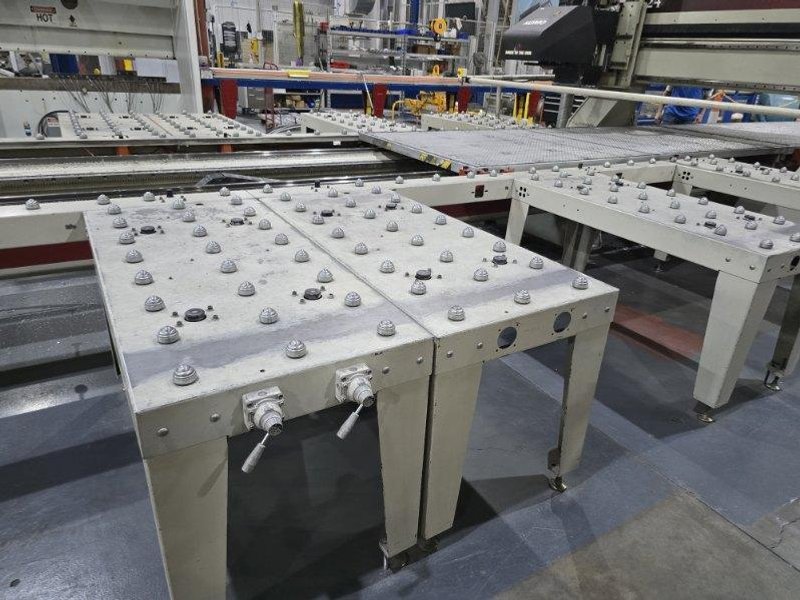

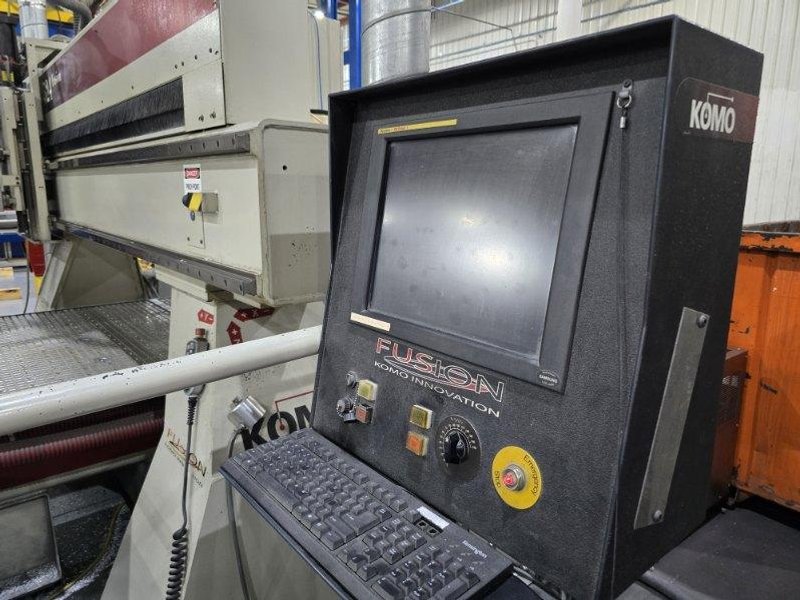

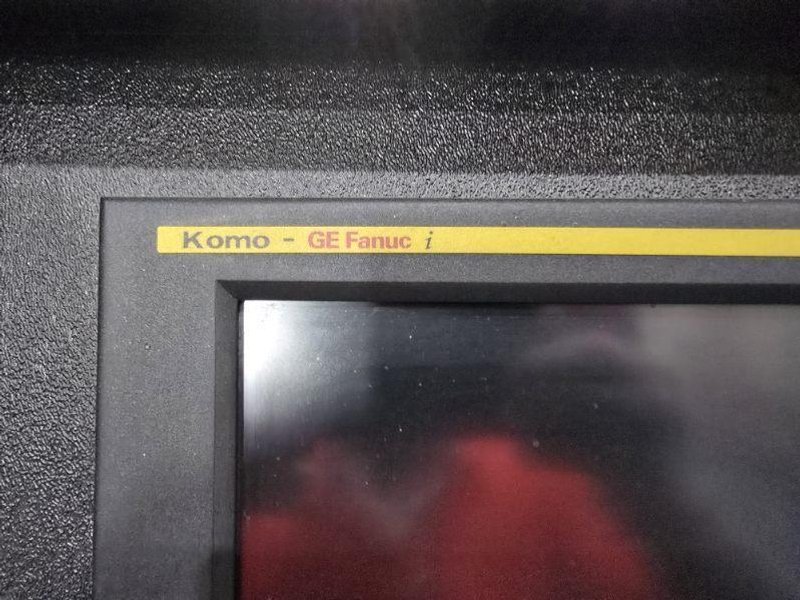

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Komo-GE Fanuc i CNC Control, Manual Roller-Ball Type Transfer Tables With Pneumatic Positioning Locks Portable Pedestal Type Control Stand With Hand Pendant, Koolant Koolers Dimplex Thermal Solutions Model JT750 Spindle Oil Chiller Dust Collection System With Cyclone Receiver & Dust Filter Bags

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
