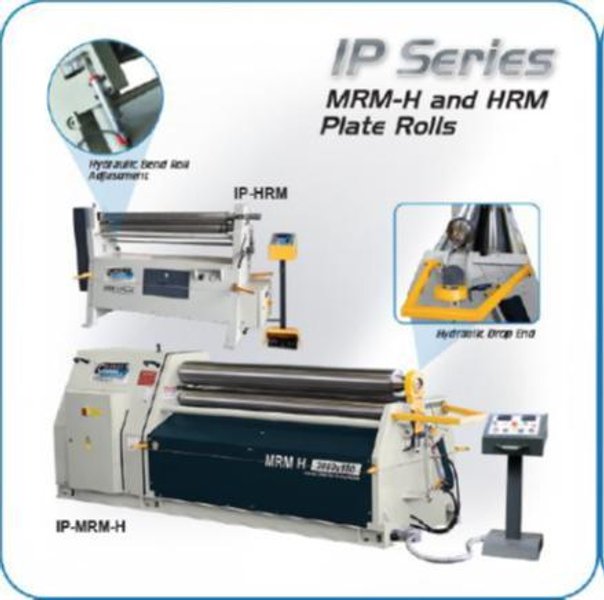

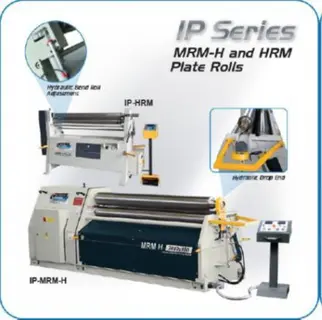

NEW SAHINLER / Carell Powered Initial Pinch Plate Bending Roll
Model HRM 1550 x 90

Specifications:
Roll Diameter .............................................................. 3.54 in.
Maximum Roll Bending Length ........................... 60 in.
Rated Capacity - Mild Steel ................................... 14 Ga.
Roll Speed ..................................................................... 16 fpm

Electrics: 220 Volt, 3 Phase

Overall Dimensions: 95" x 28" x 47" (l x w x h)
Approx. Weight: 1,280 lbs.

STANDARD FEATURES:

 Both Upper roll and Central Pinch rolls driven by electric motor and

oil bath speed reducer through NiCrMo solid stock gears

 Base in electro-welded and/or reinforced spheroidal cast steel, stress relieved

 Lateral roll, idle and moving on roller bearings

 Central pinch roll pinch pressure adjustable by ergonomic easy adjust cam

 Front lateral release top roll with spring loaded lock

 Hydraulic Lateral Roll Movement via push button controlled dual hydraulic pistons

 Lateral bending roll tilting for cone working via push buttons on control console

 Integral Hydraulic Power Pack with pressure gauge and pressure adjustment

 Low voltage console with foot pedals rotation, push buttons & E-stop

 Multi point safety system including circumferential trip wire

 3 Rod Grooves on lower rolls for up to 1/4", 3/8" and 1/2" rod

 Instruction manual

 NOTE: LED readout, Cone Device & Hardened & Polished Rolls ARE STANDARD

EQUIPPED WITH:

 Cone rolling attachment .......................................................................... INCLUDED

 Induction hardened rolls, required for most applications .................... INCLUDED

 Rolls smooth polished to remove heat treatment residue .................... INCLUDED

 LED Readout On Bending Roll ................................................................ INCLUDED

 Powered Adjustment of Bending Roll (hydraulic with tilting) .............. INCLUDED

FOB: ALABAMA
