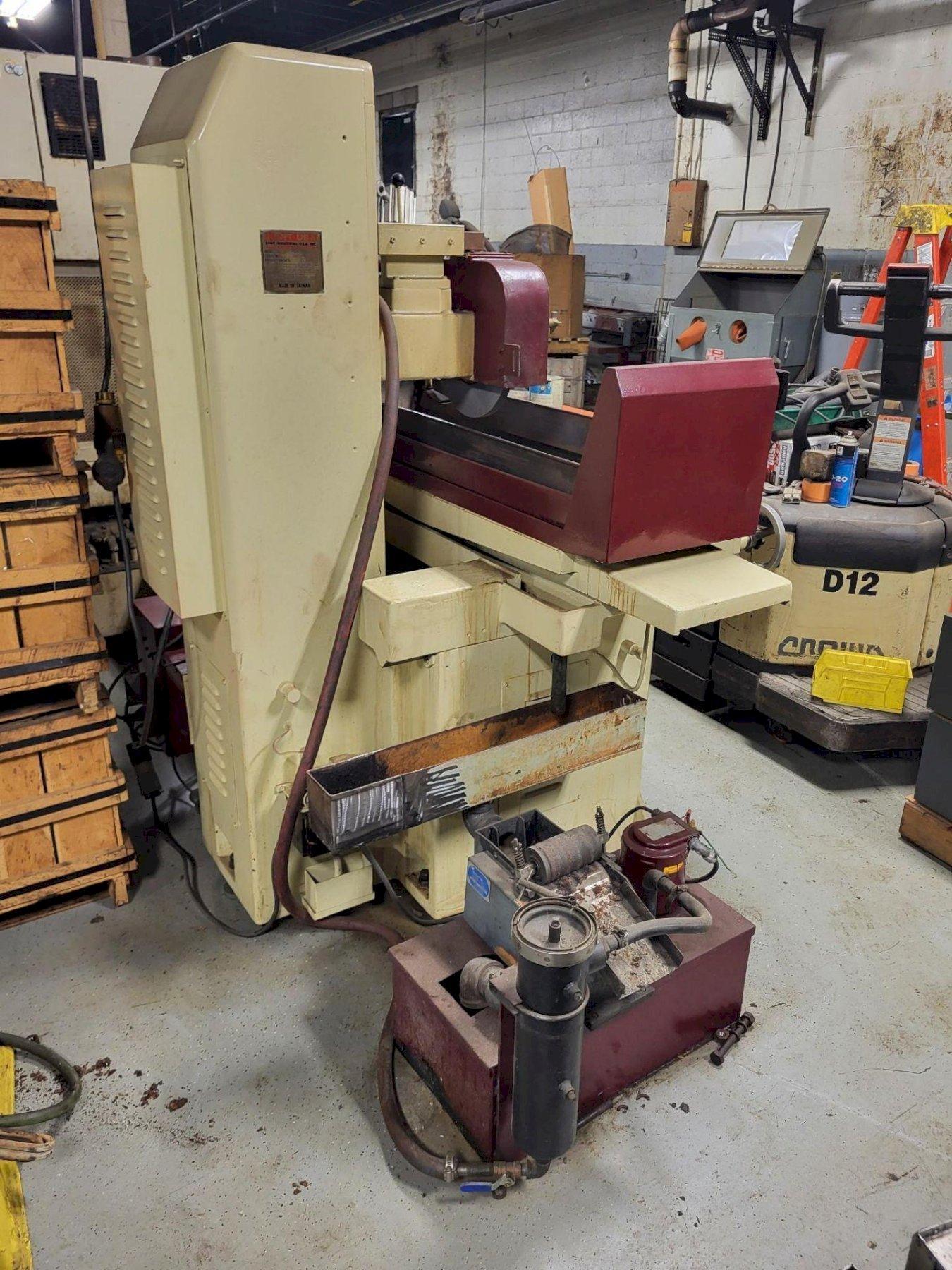

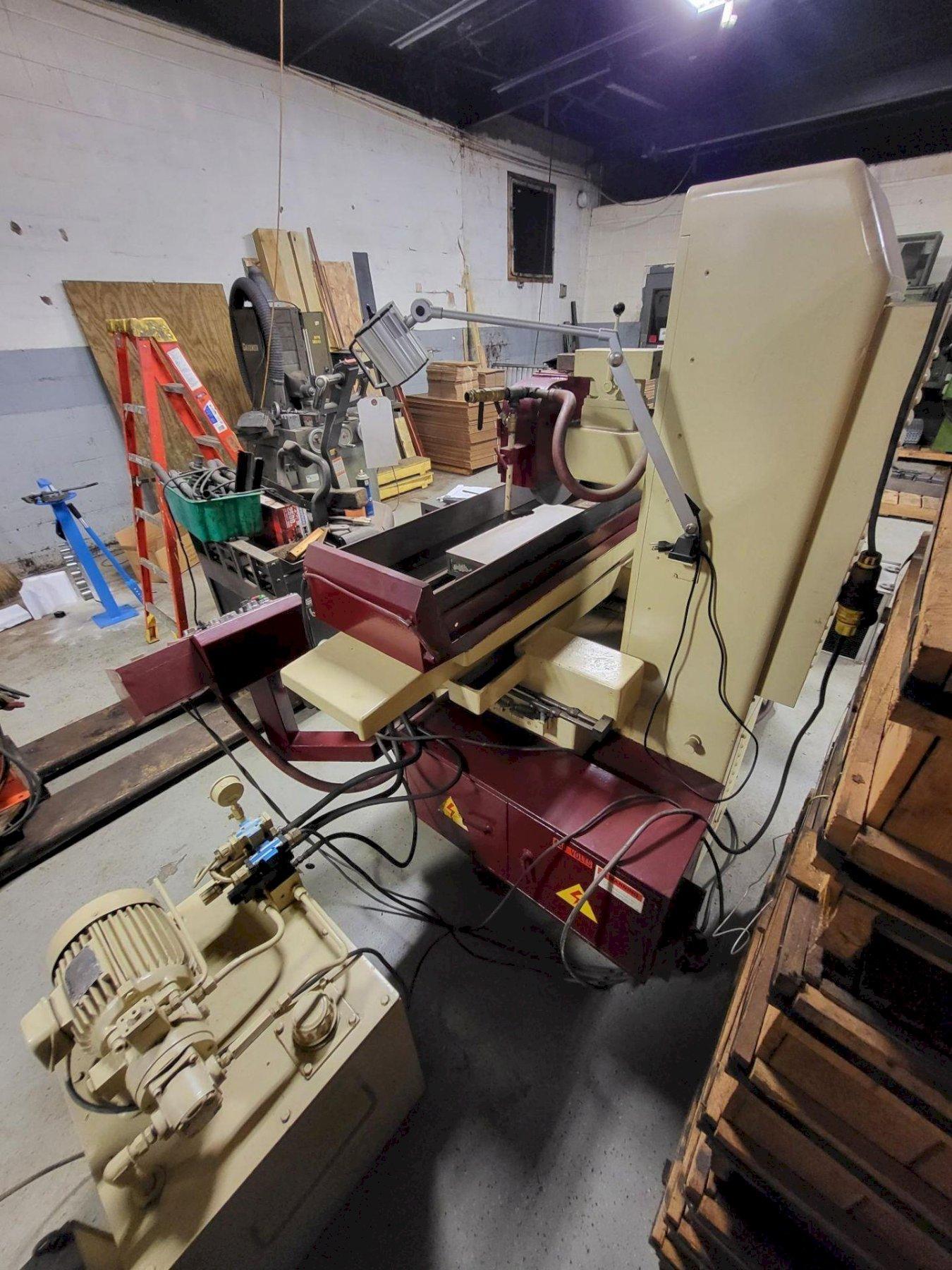

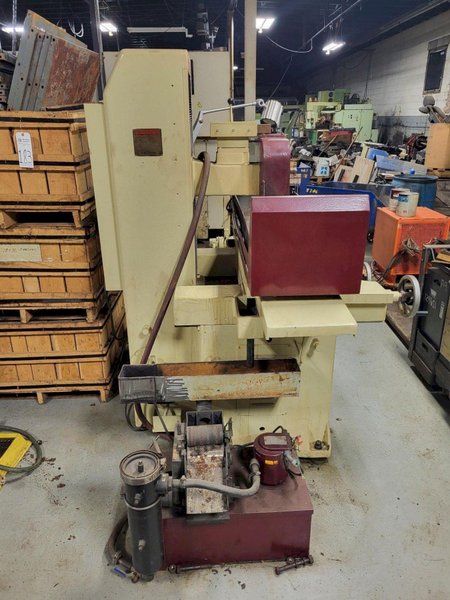

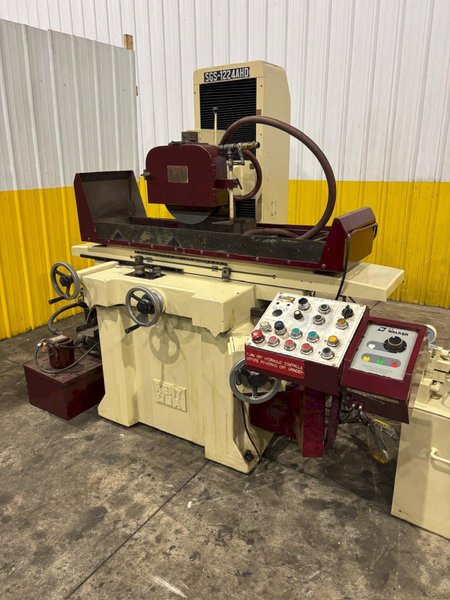

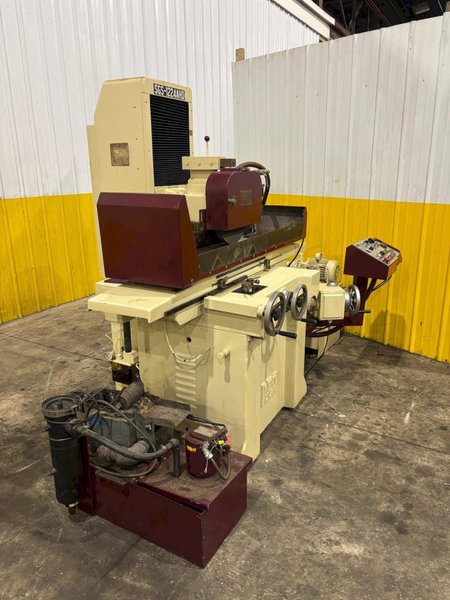

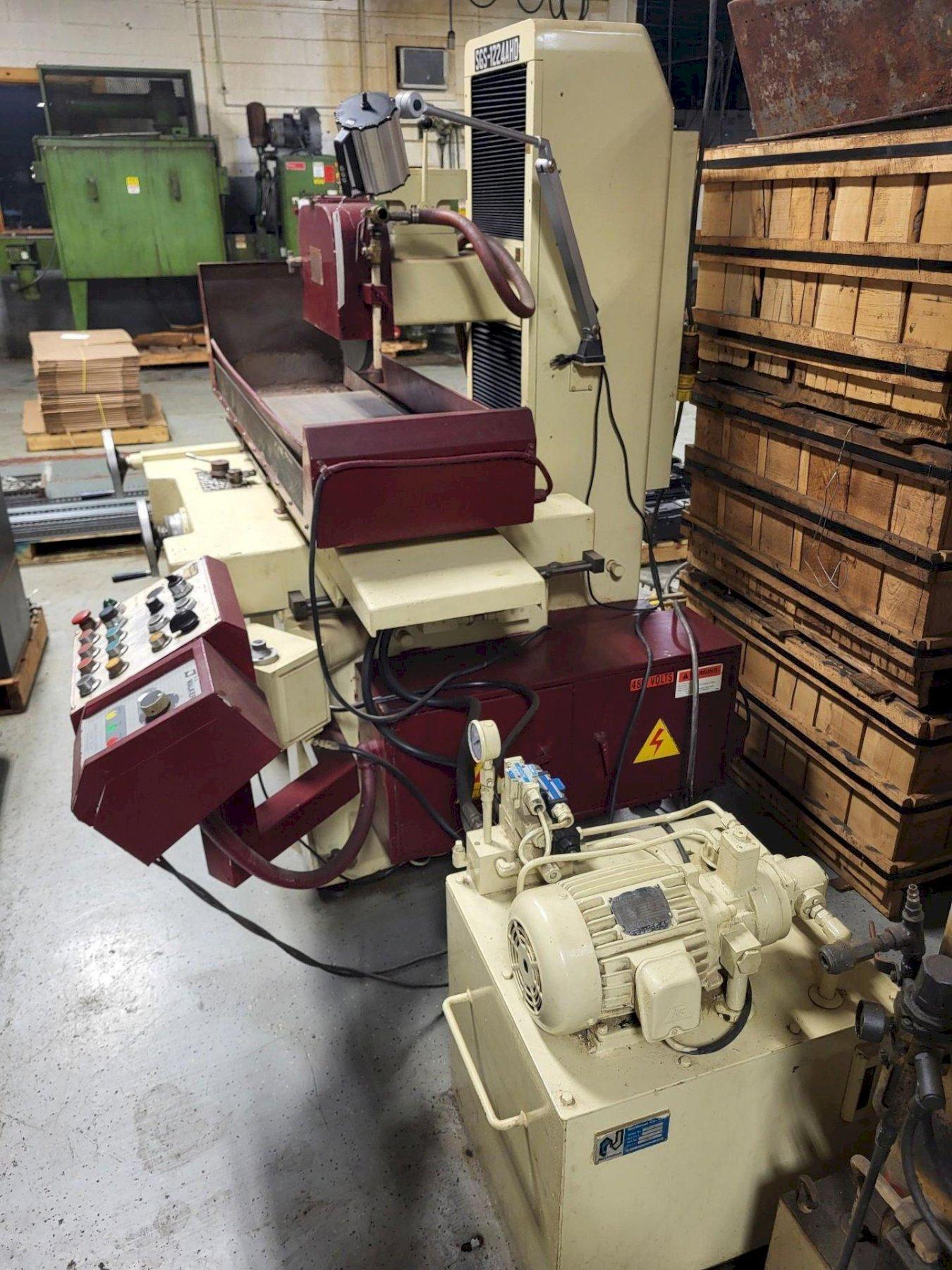

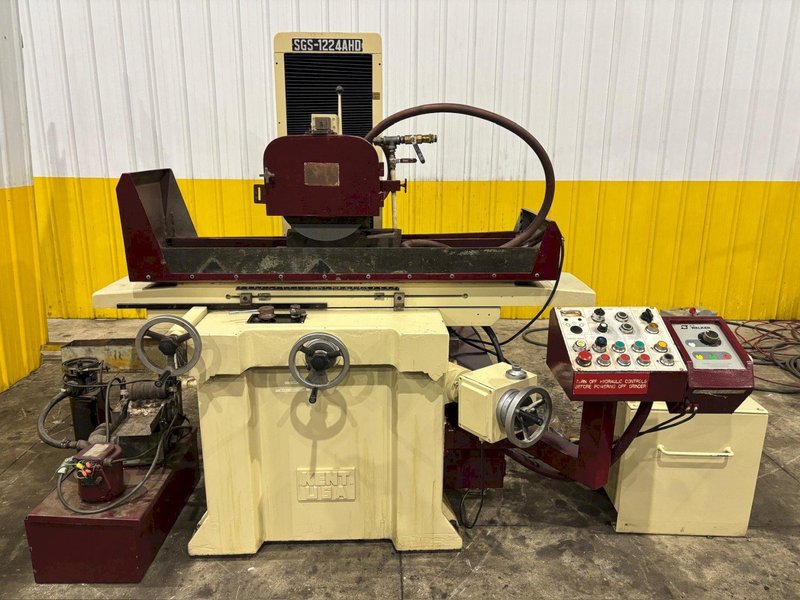

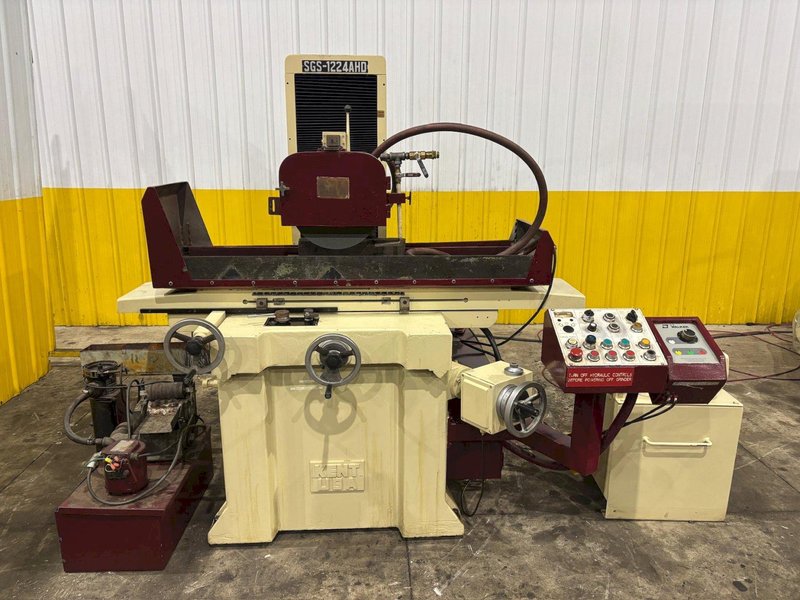

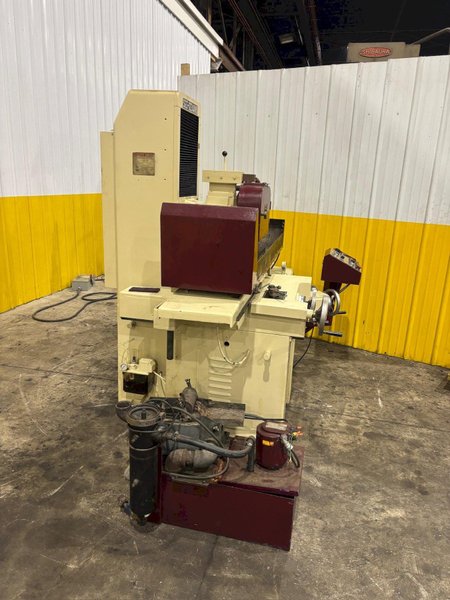

12" X 24" KENT SGS-1224AHD HYDRAULIC SURFACE GRINDER: YOBRO #24466
Brand
Category
Type
Model
SGS-1224AHD
Stock #
24466
Year
Not specified
Condition
Good
Location
Ohio
|

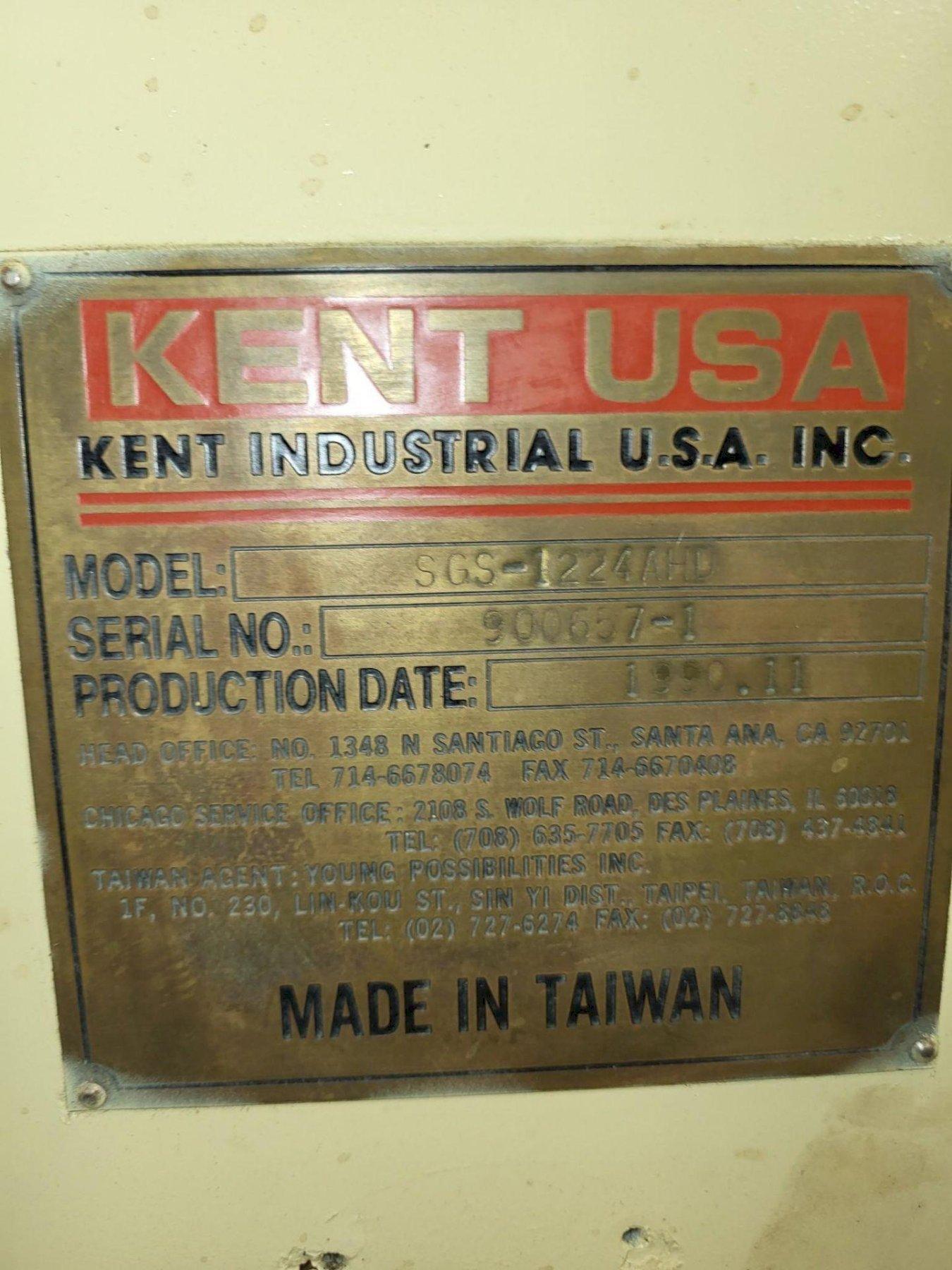

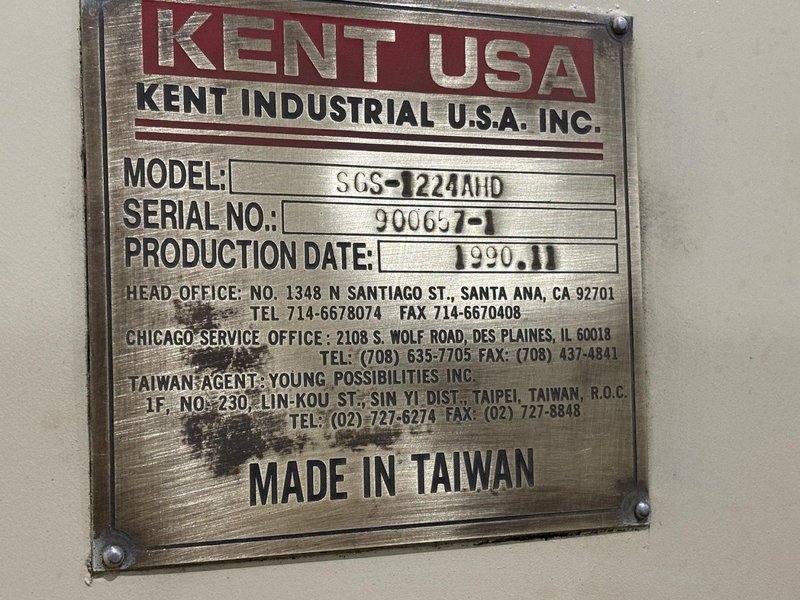

SERIAL ............................ 900657-1
MODEL ............................. SGS-1224AHD
YEAR NEW .......................... 11-1990
GRINDING CAPACITY ................. 12" X 24"
SPINDLE CENTER TO TABLE ........... 23-1/2"
LONGITUDINAL TABLE TRAVEL ......... 24-1/2"
CROSS TABLE TRAVEL ................ 13-3/8"

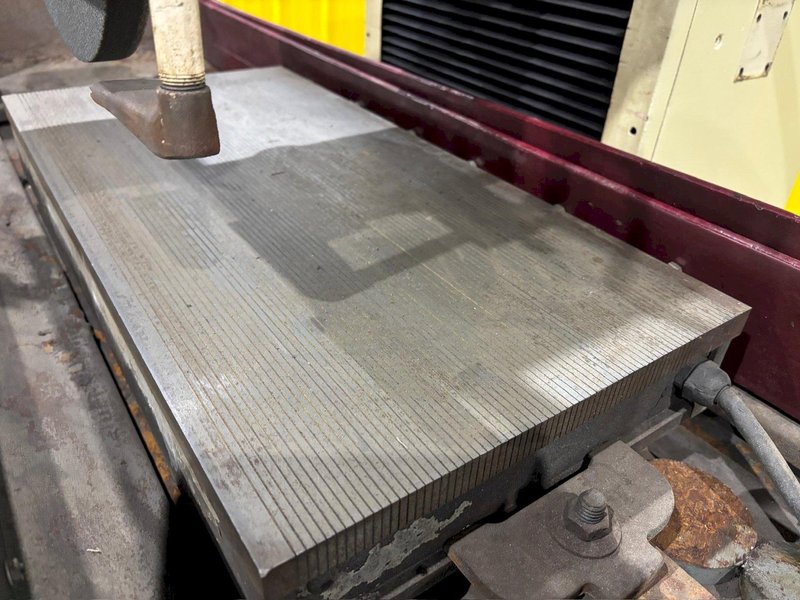

ELECTRO-MAGNETIC CHUCK SIZE ....... 12" X 24"

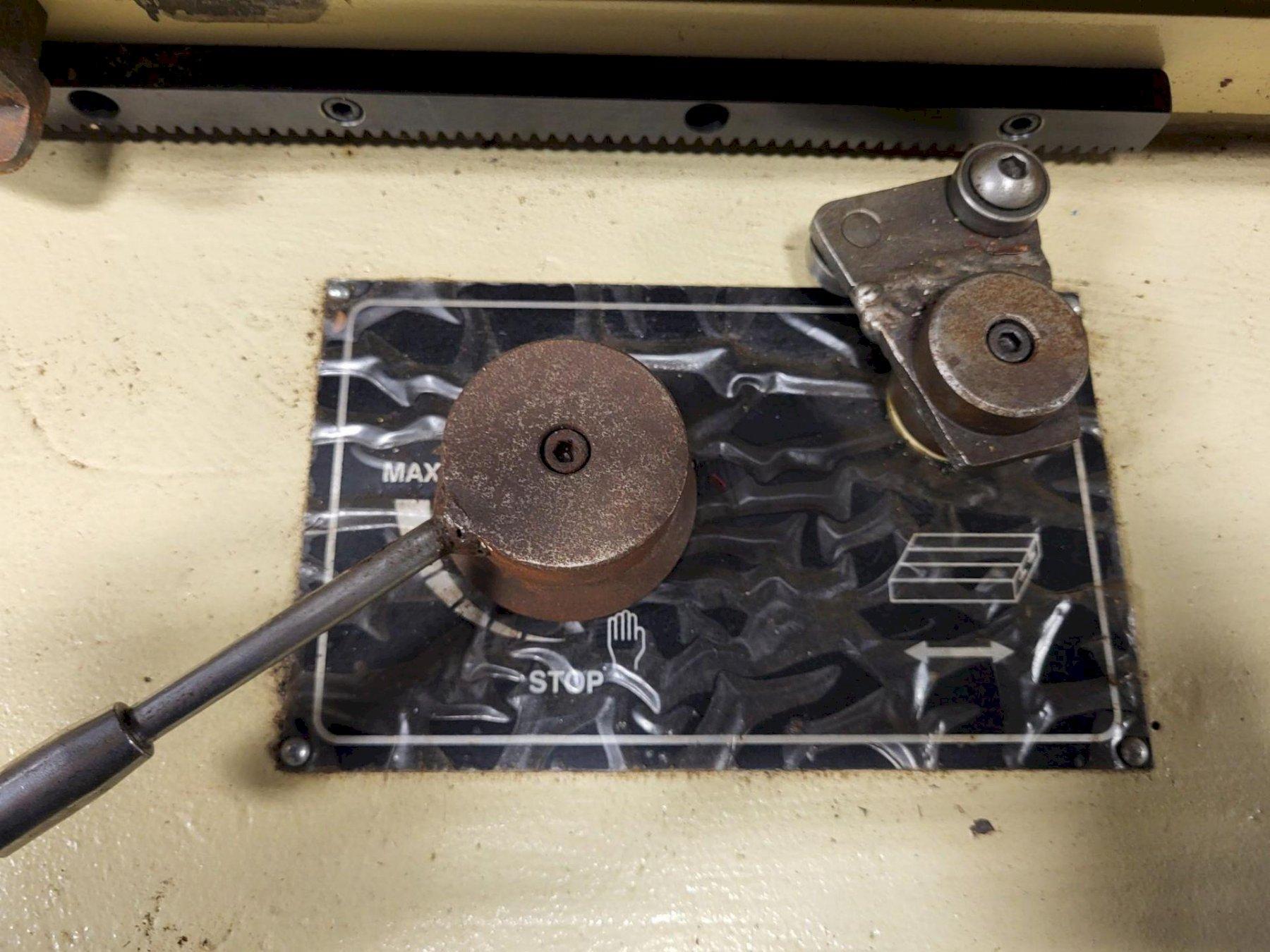

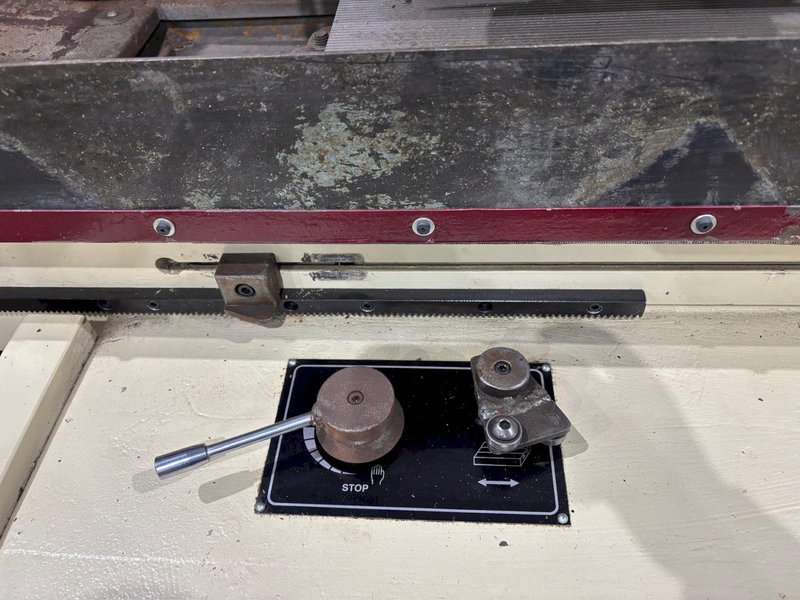

TABLE SPEED (VARIABLE) ............ 16 TO 82 FPM

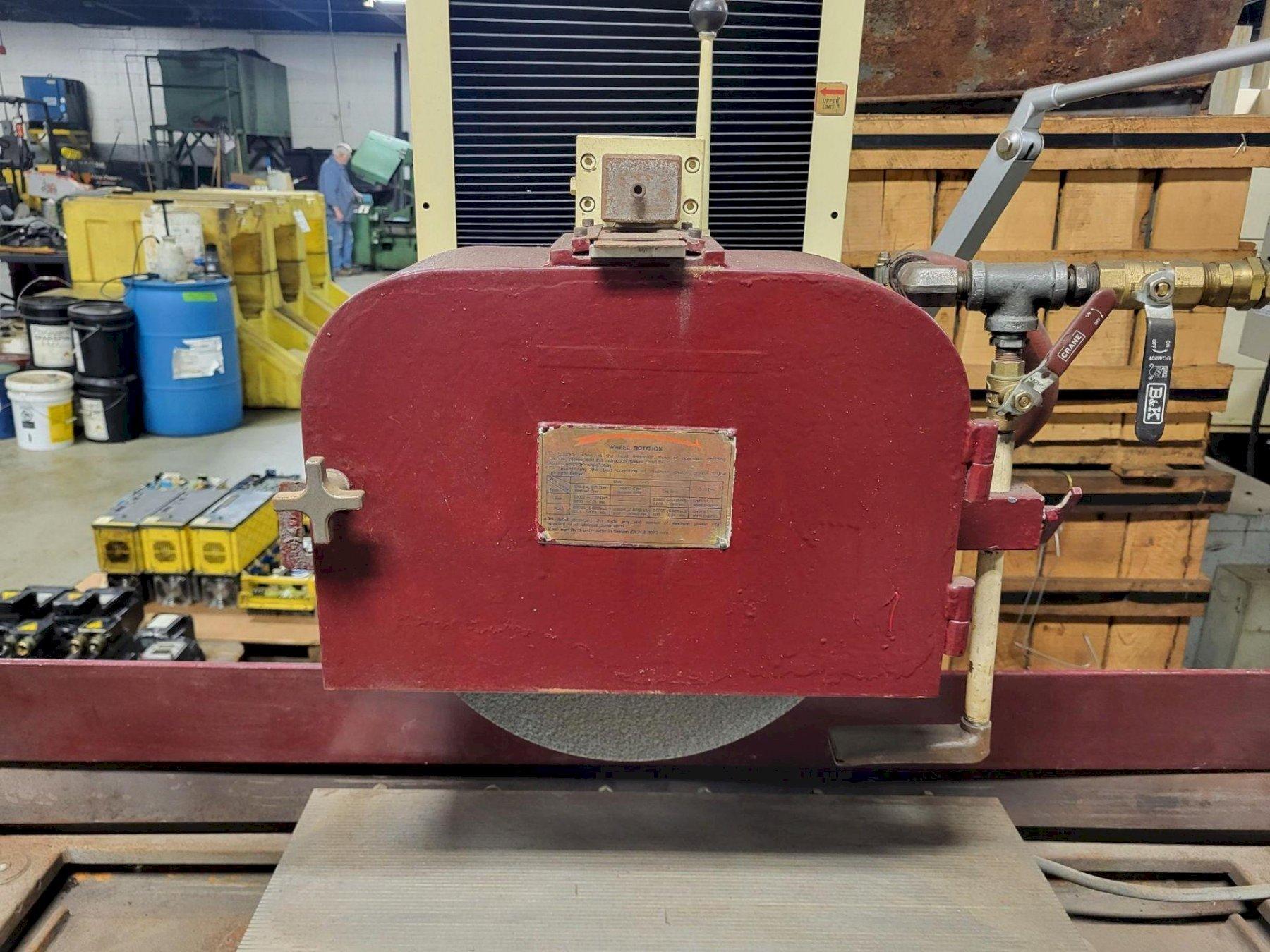

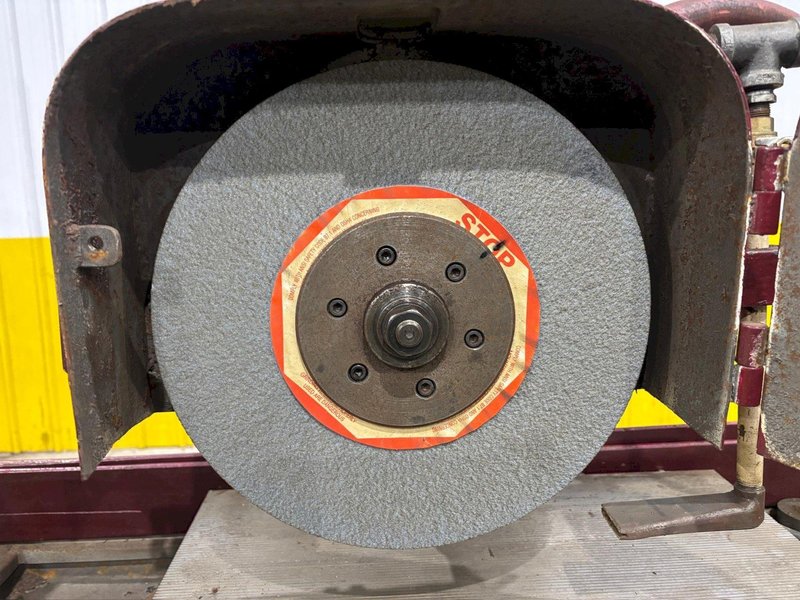

GRINDING WHEEL SIZE ............... 14" X 1-1/2" X 5"
SPINDLE SPEED ..................... 1750 RPM
POWER ELEVATION ................... YES
AUTO INCREMENTAL DOWNFEED ......... YES
AUTO CROSS FEED ................... YES

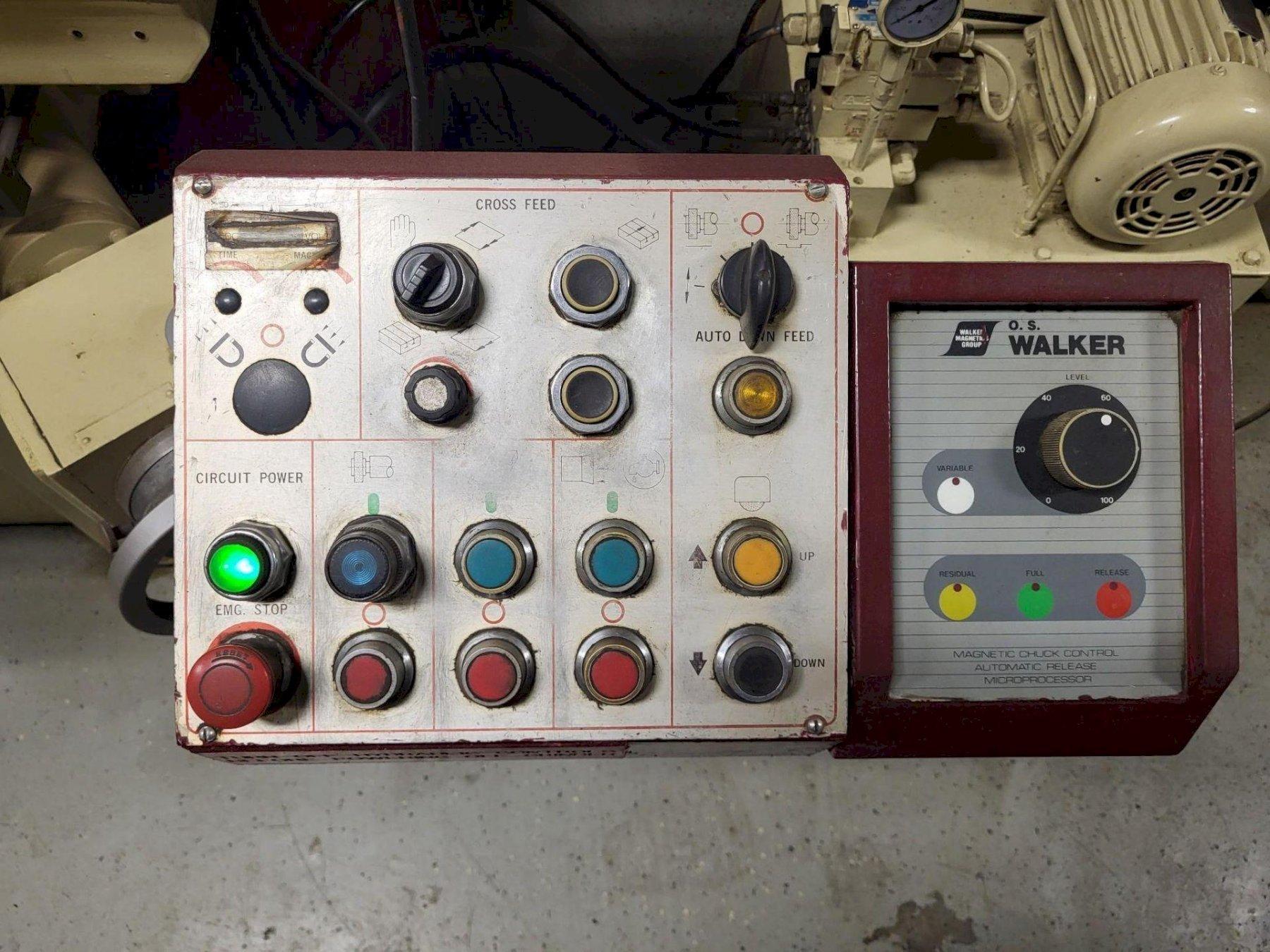

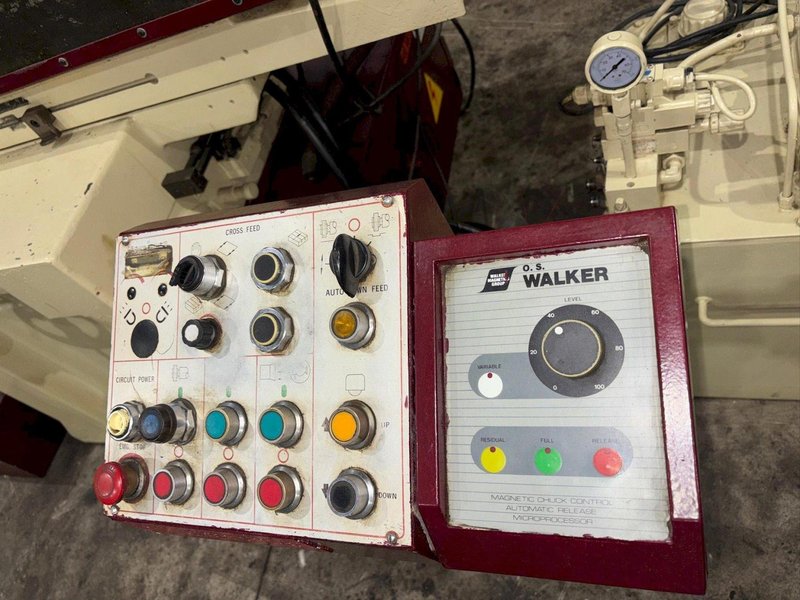

ELECTRO-MAGNETIC CHUCK ............ WALKER CONTROLS

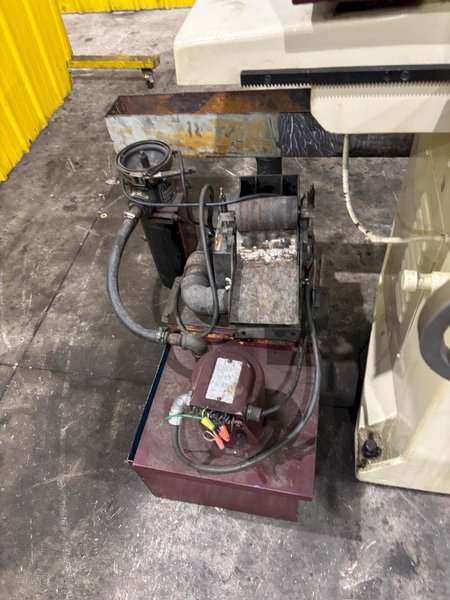

COOLANT WITH MAGNETIC SEPARATOR ... YES
AUTO LUBE SYSTEM .................. YES
ACCU-RITE DIGITAL READOUT ......... YES
SPINDLE MOTOR ..................... 5 HORSEPOWER

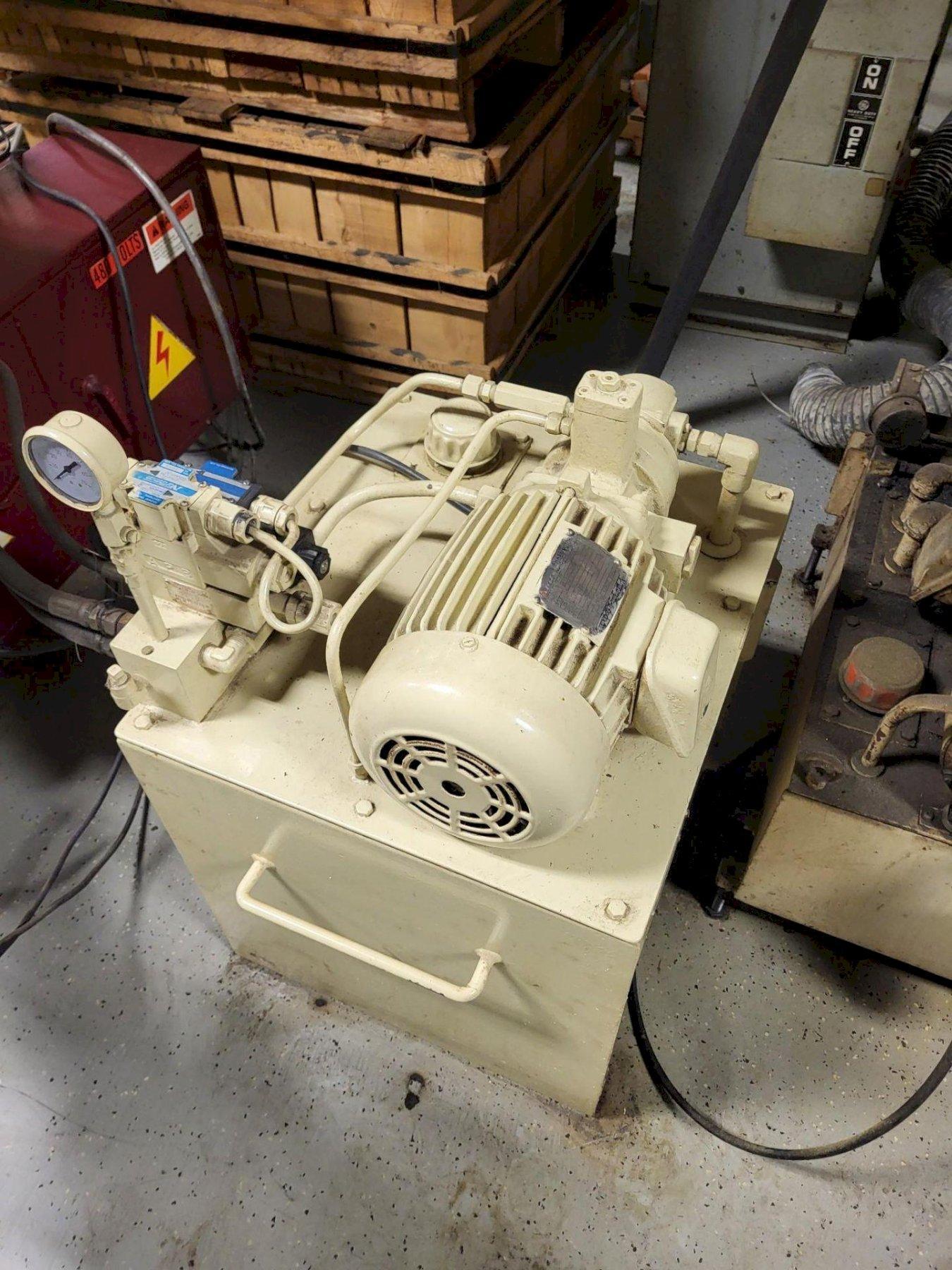

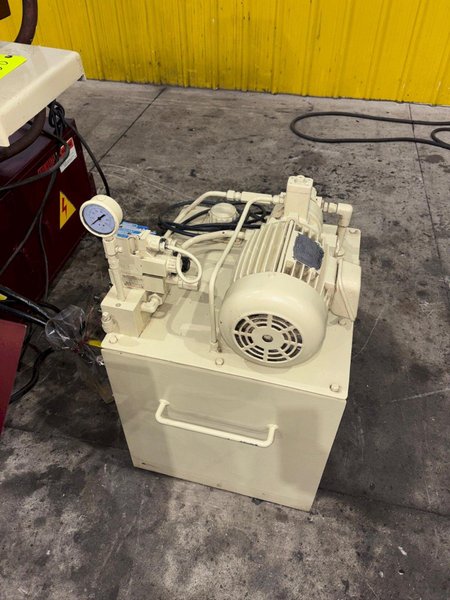

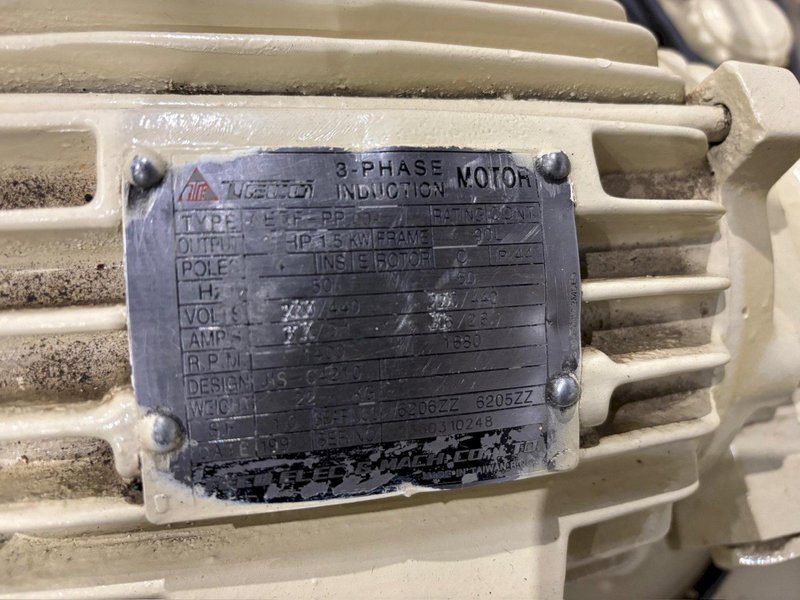

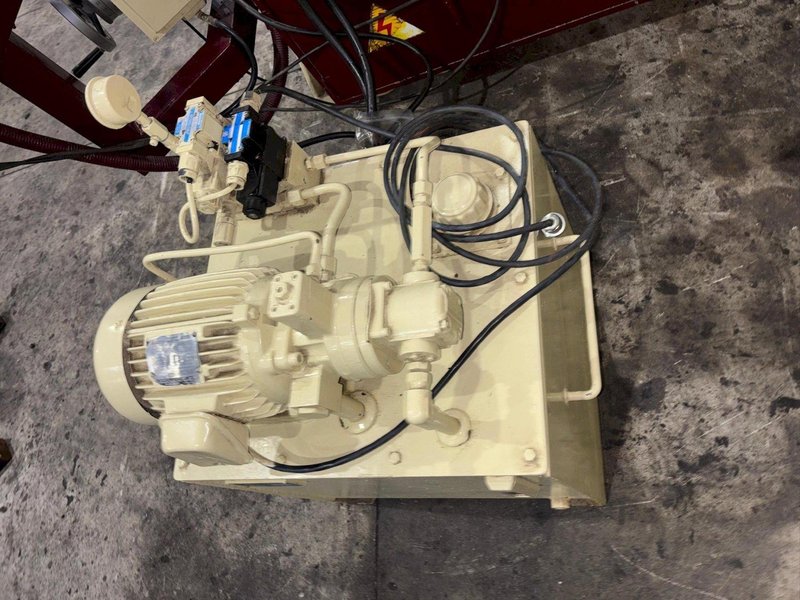

HYDRAULIC MOTOR ................... 1-1/2 HORSEPOWER |
