Breton - Ultrix 800 X: 800 - Y: 900 - Z: 600 mm CNC

Breton - Ultrix 800 X: 800 - Y: 900 - Z: 600 mm CNC

Name: Breton - Ultrix 800 X: 800 - Y: 900 - Z: 600 mm CNC
Brand: BRETON
SKU: D.02 16067
Availability: InStock

Brand

BRETON

Location

Not specified

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

X-axes 800 mm
Y-axes 900 mm
Z-axes 600 mm
Table dimensions dia 700 mm
Max weight on the table 700 kg
Admission in spindle (ISO)HSK-E40 / KM63 or HSK-63 / KM63
Power on the spindle 40 kW
Drilling capacity yes
Tapping capacity yes

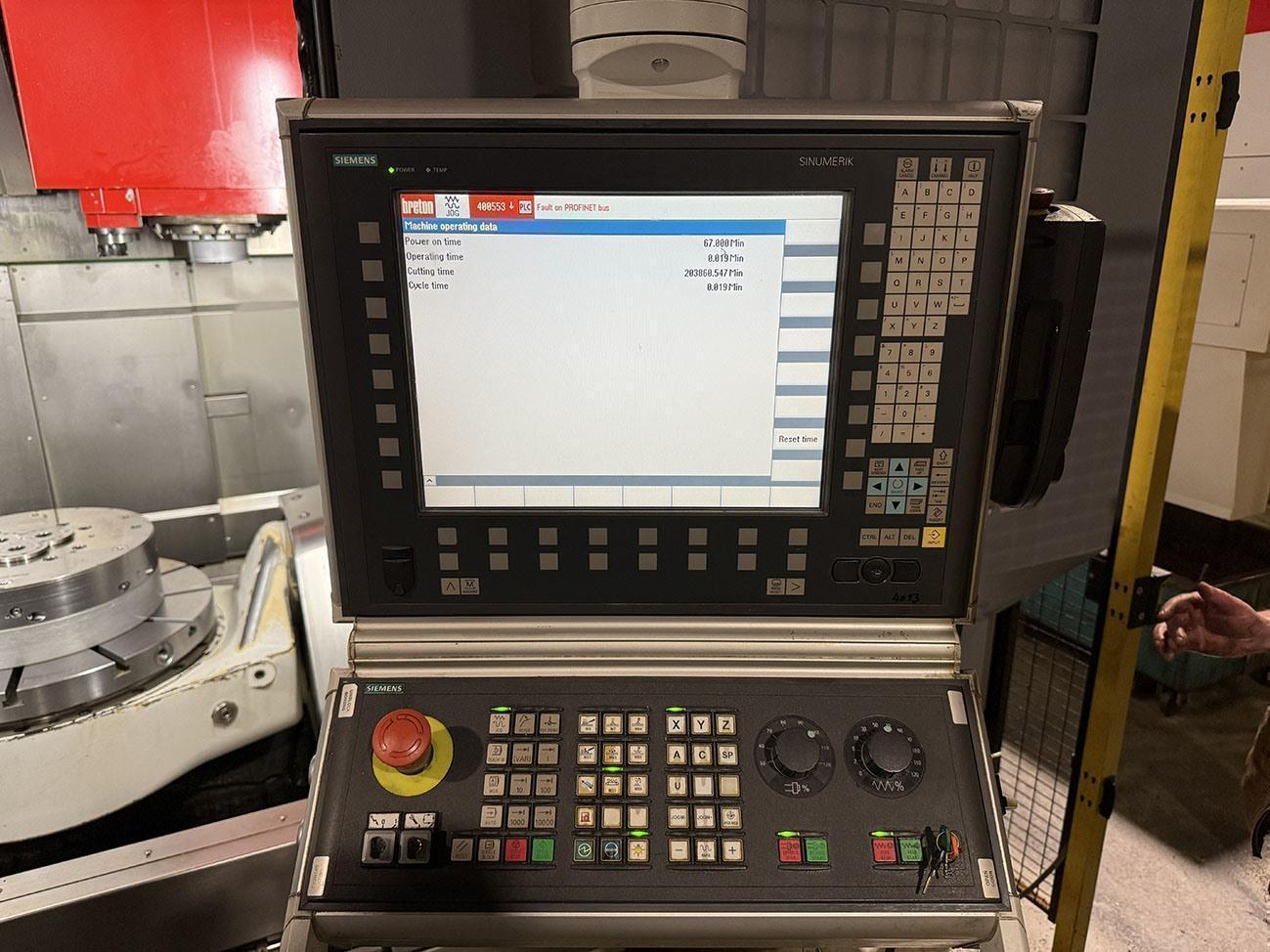

Control Siemens 840D Solution Line
Number of axes 5
Toolstore yes
Tools150 positions
Frequency 40 000 rpm!! - or - 18 000 rpm 137 / 100 Nm
Length 4655 mm
Depth 5890 mm
Height 3415 mm
Weight 17 ton
Cooling-system yes

Additional info

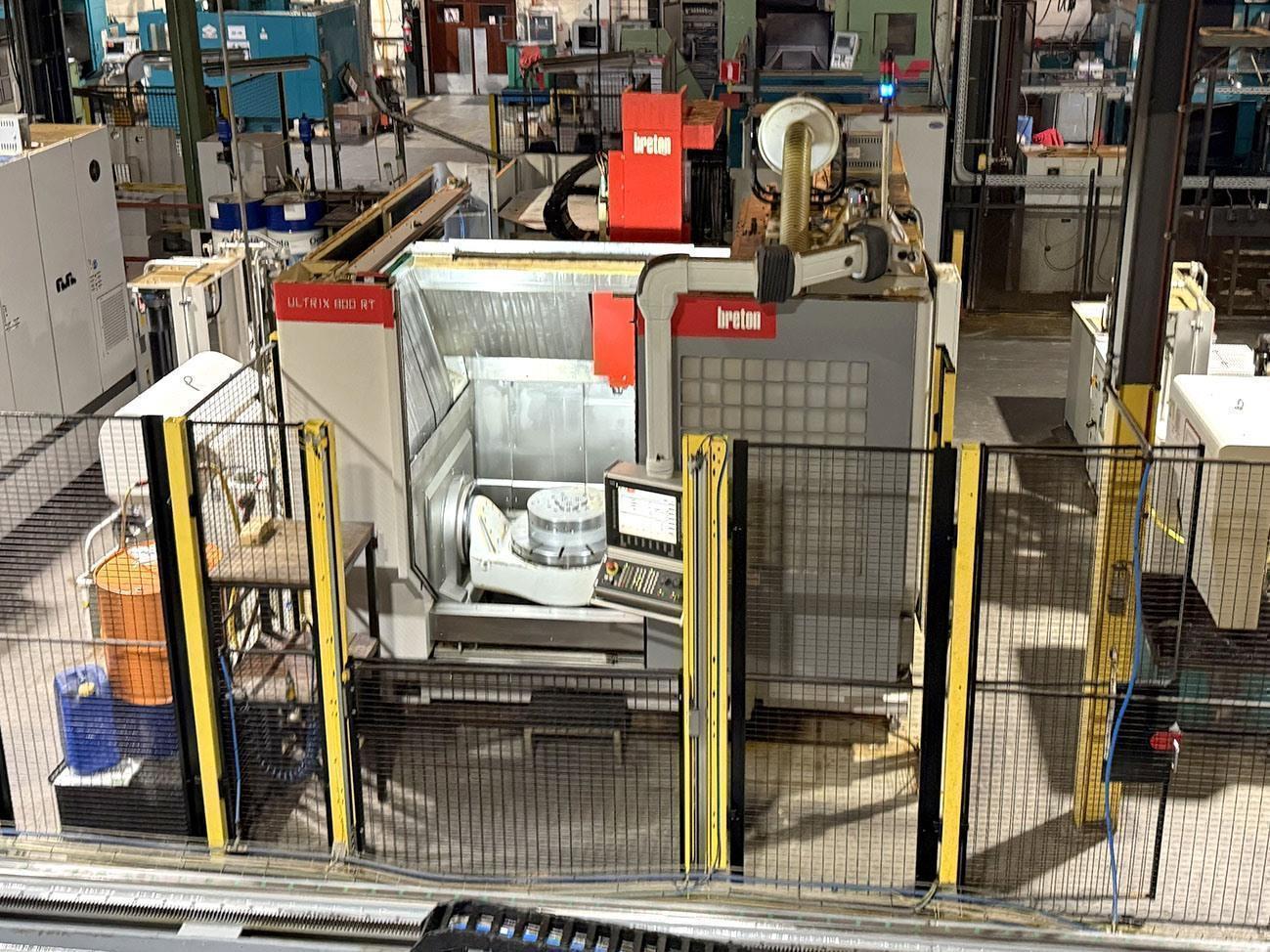

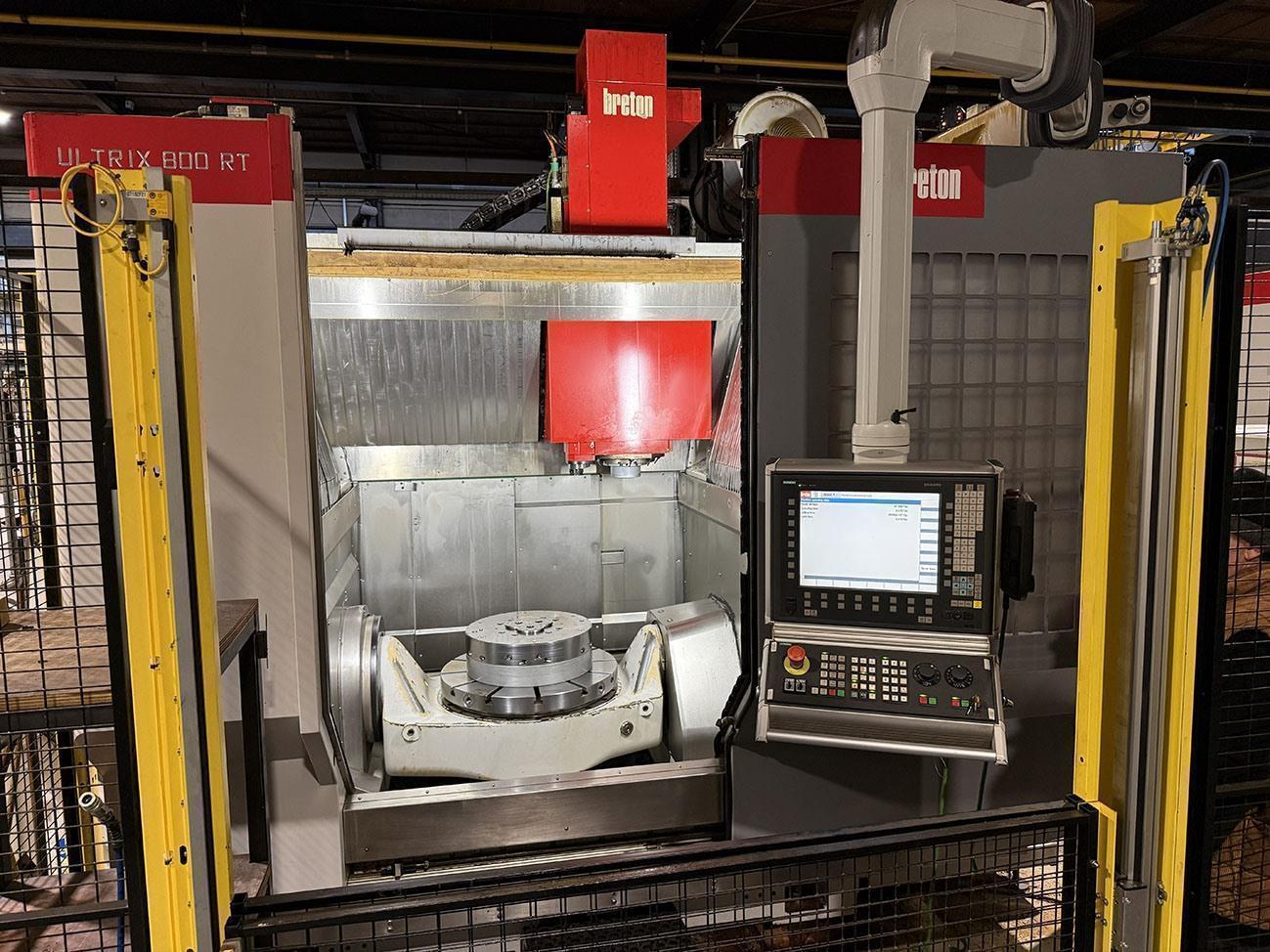

Type: Ultrix 800 RT

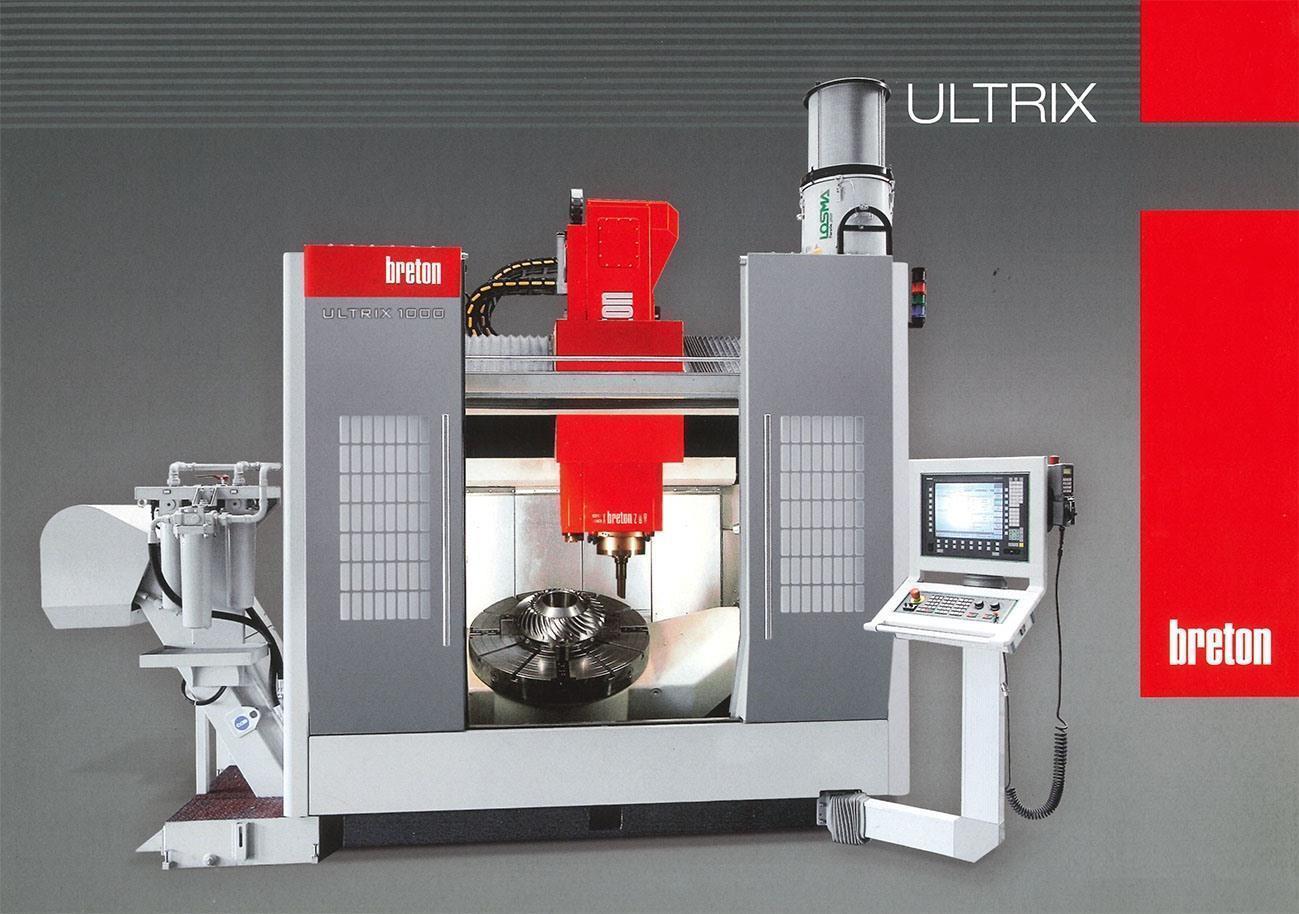

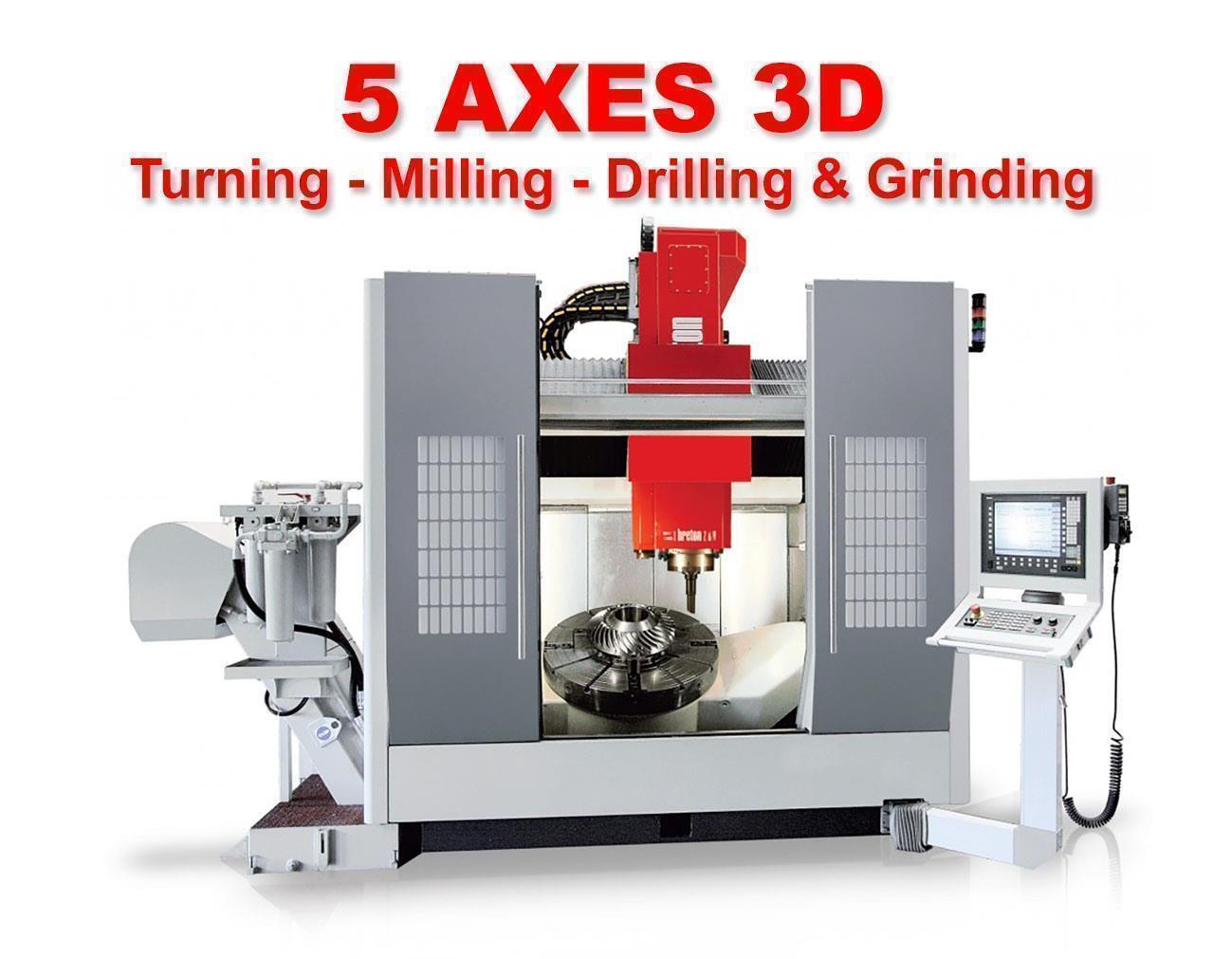

The Ultrix 800 RT is a multifunction machining center with 5 interpolated axes and a movable gantry design for fast milling, turning, grinding, drilling, tapping, finishing, deburring, and roughing of complex parts.
WE HAVE AN HSK 63 SPINDLE 18,000 RPM 137/100 Nm Spindle GMN in stock, so we can adapt the machine to this shape. Better for heavier milling work!

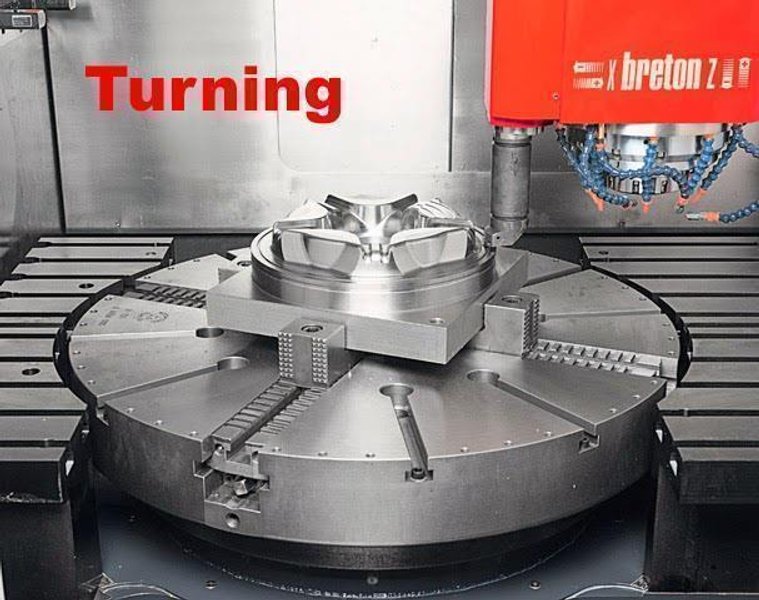

When used for turning > vertical lathe:
-slewing range: 1100 mm
- maximum weight of the workpiece: 700 kg
- 40/30 kW on the table
- maximum torque on the turntable: 1500 Nm
- Maximum turntable speed: 800 rpm!
- hydraulic clamping on turntable

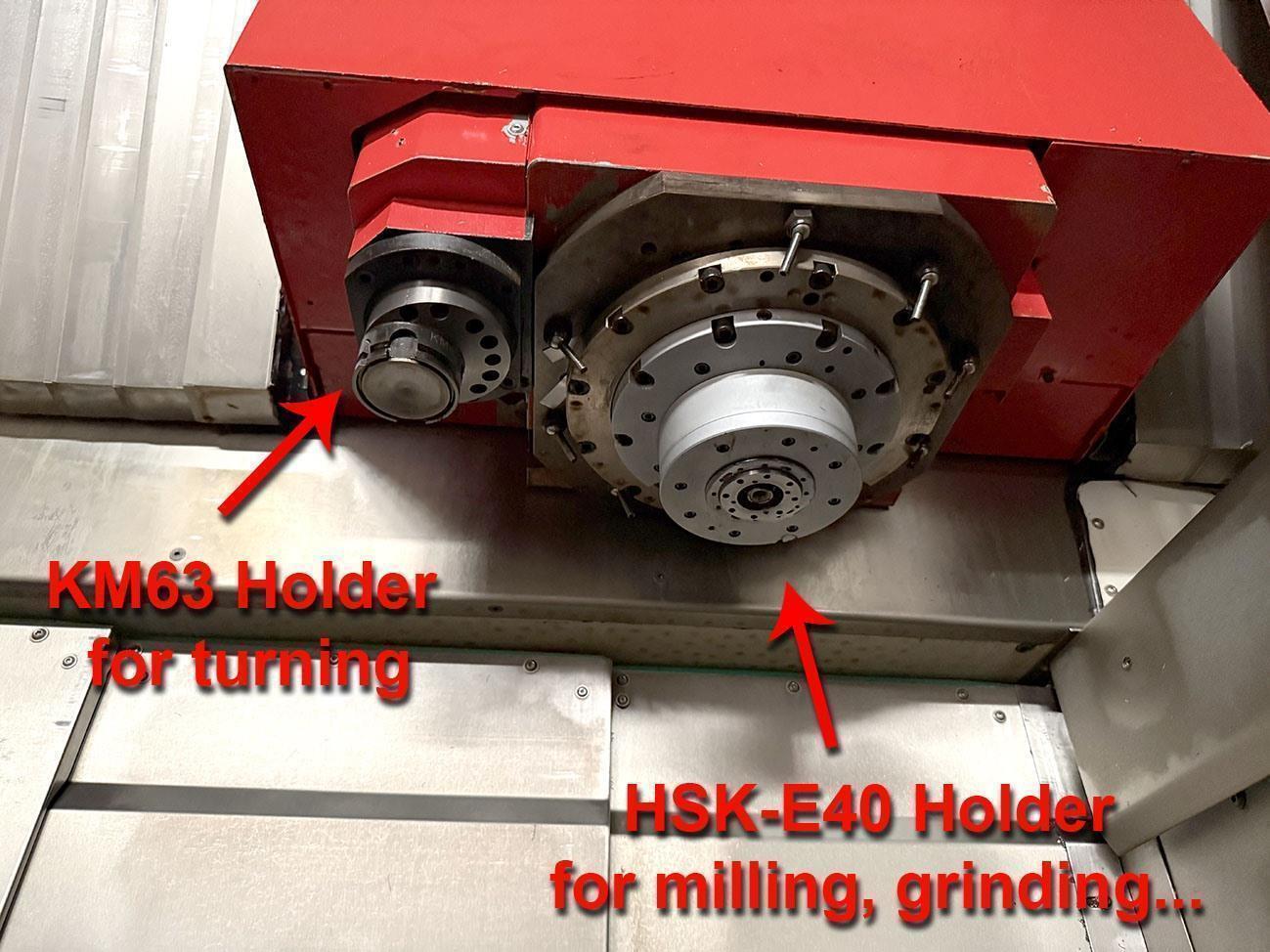

- tool taper for turning: KM63

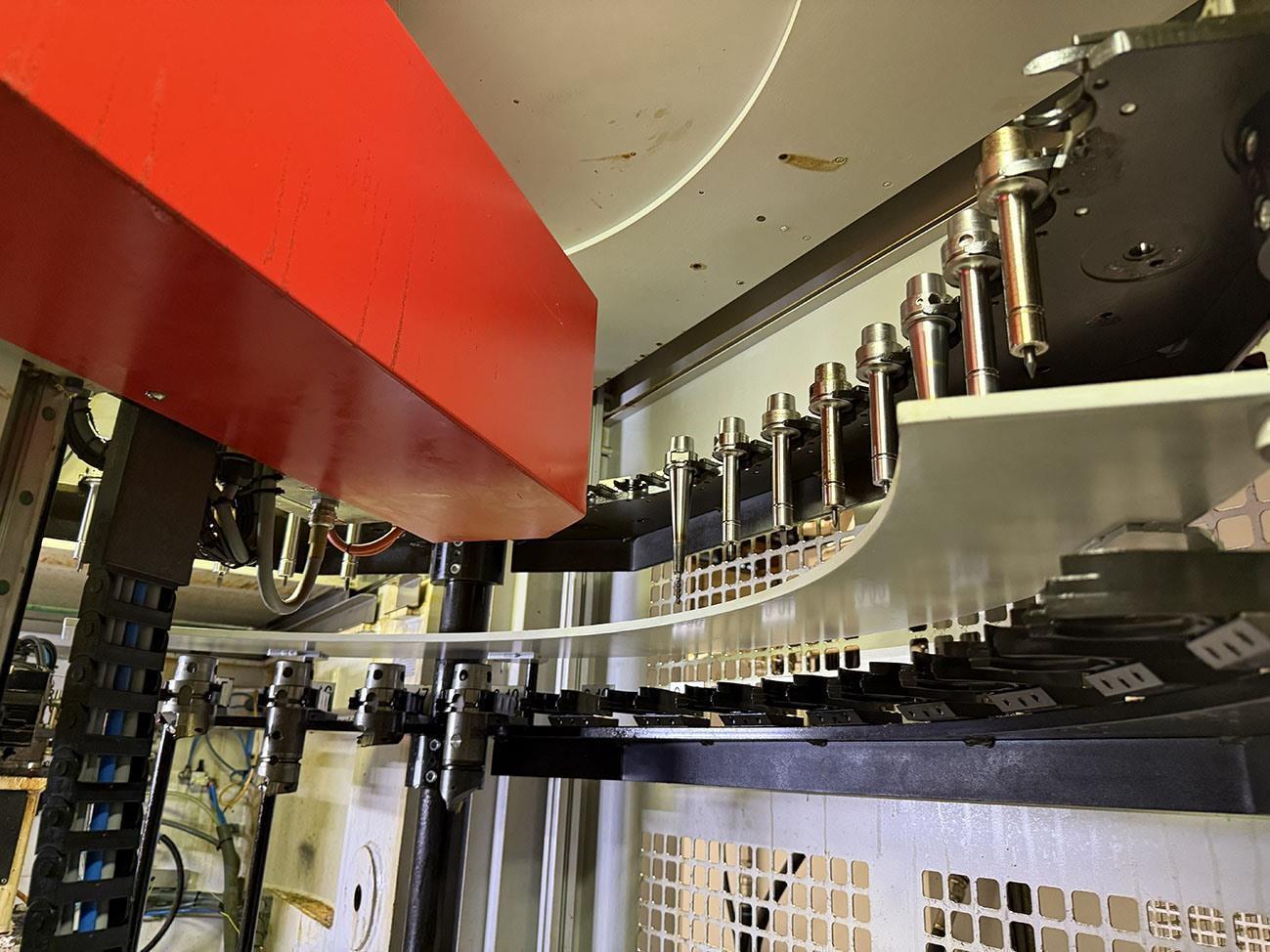

- tool changer with 150 positions, of which 24 are for turning.

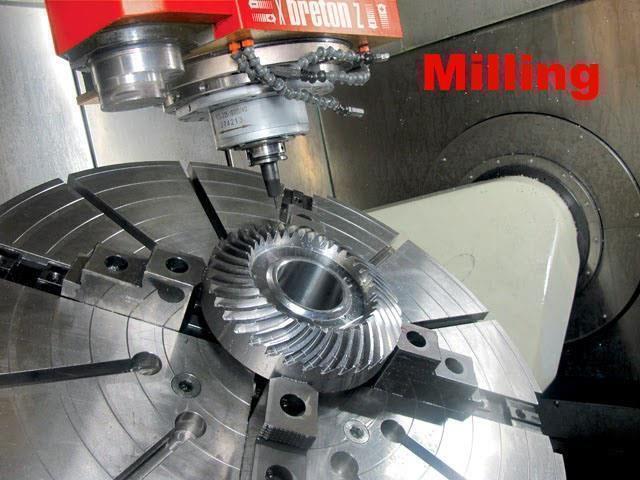

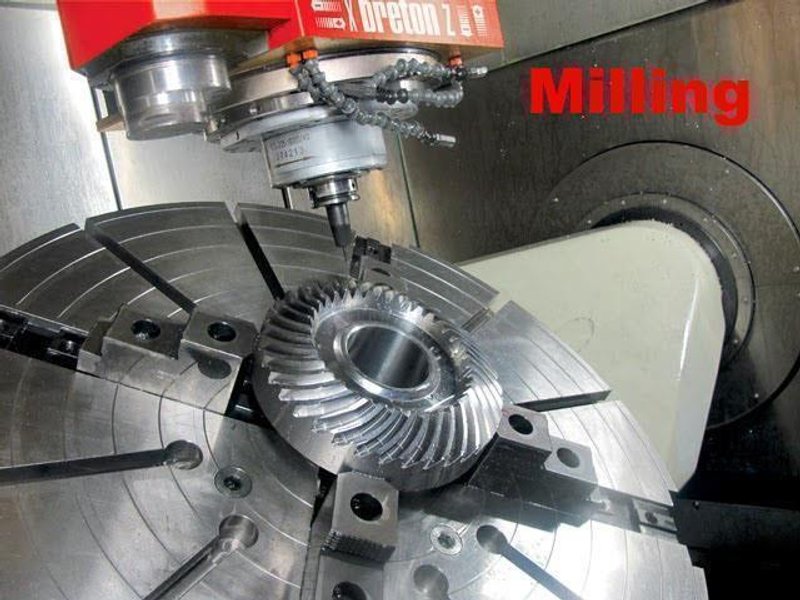

When used for milling, grinding, drilling, ... > machining center:
- X-axis: 800 mm
- Y-axis: 900 mm
- Z-axis: 600 mm
- A-axis: -30° / 110°
- C-axis: continuous
- maximum weight of the workpiece: 700 kg
- 45 kW on the spindle
- maximum torque on the spindle: 18 Nm - Can be adjusted to 100 Nm - 137 Nm torque
- maximum 40,000 revolutions per minute - can be adjusted to 18,000 RPM
- tool taper for milling: HSK-E40 - can be adapted to HSK 63, including the tools in the changer

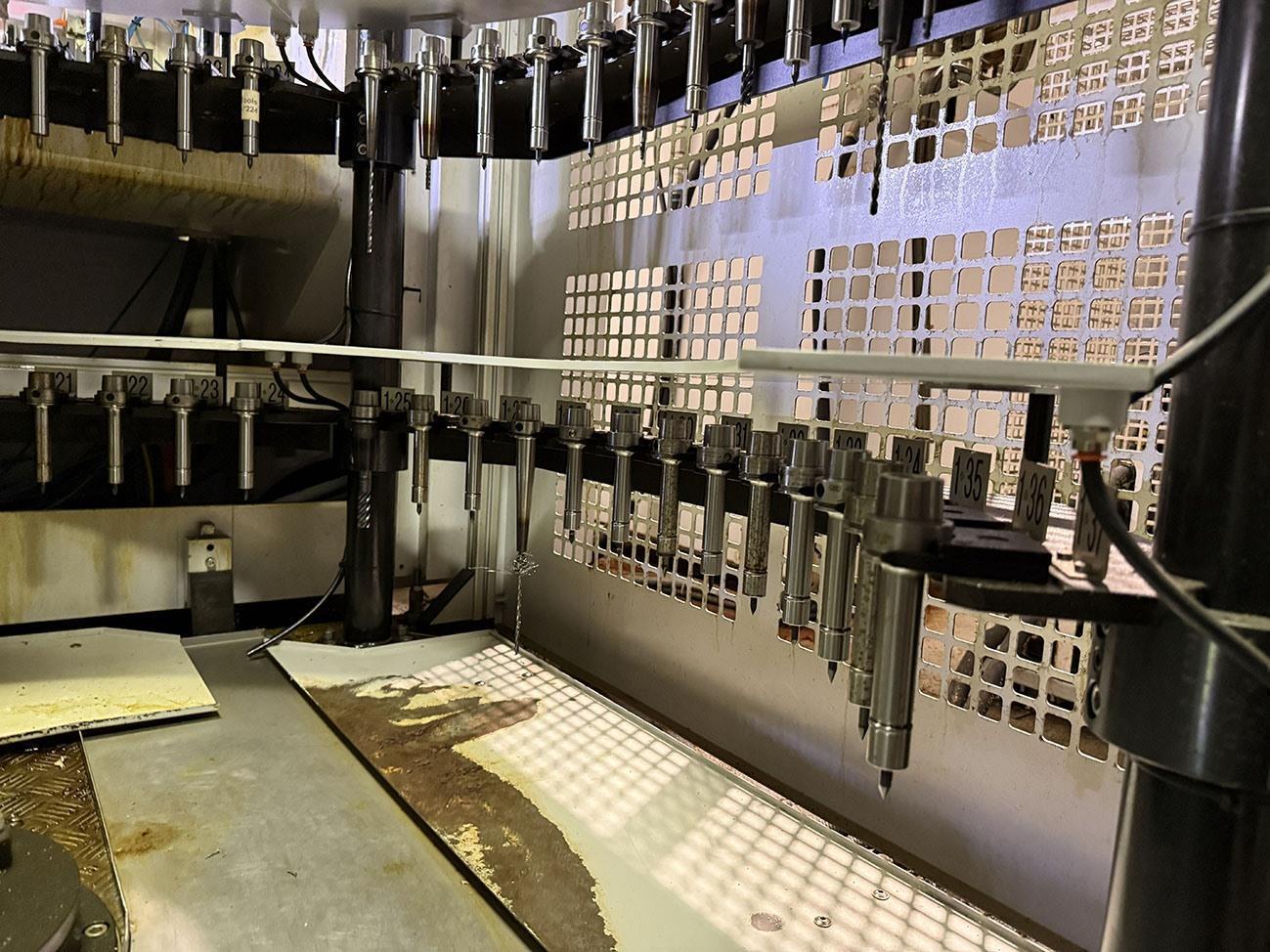

- tool changer with 150 positions and 126 tool positions for milling, grinding, and drilling

List of options mounted on the machine:
1 - high-speed spindle with 40,000 rpm OR 18,000 rpm

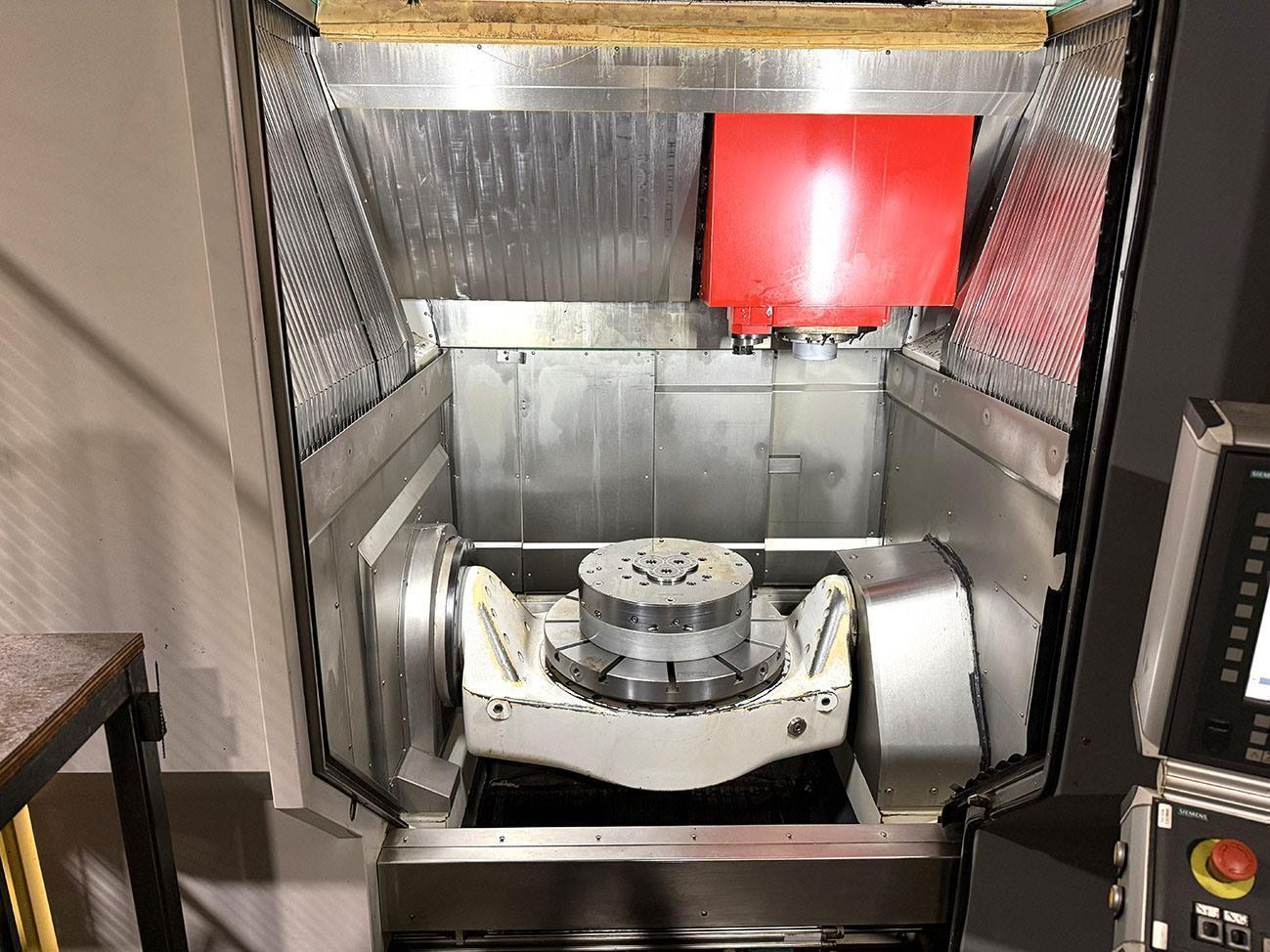

2 - table diameter 700 mm with hydraulic clamping

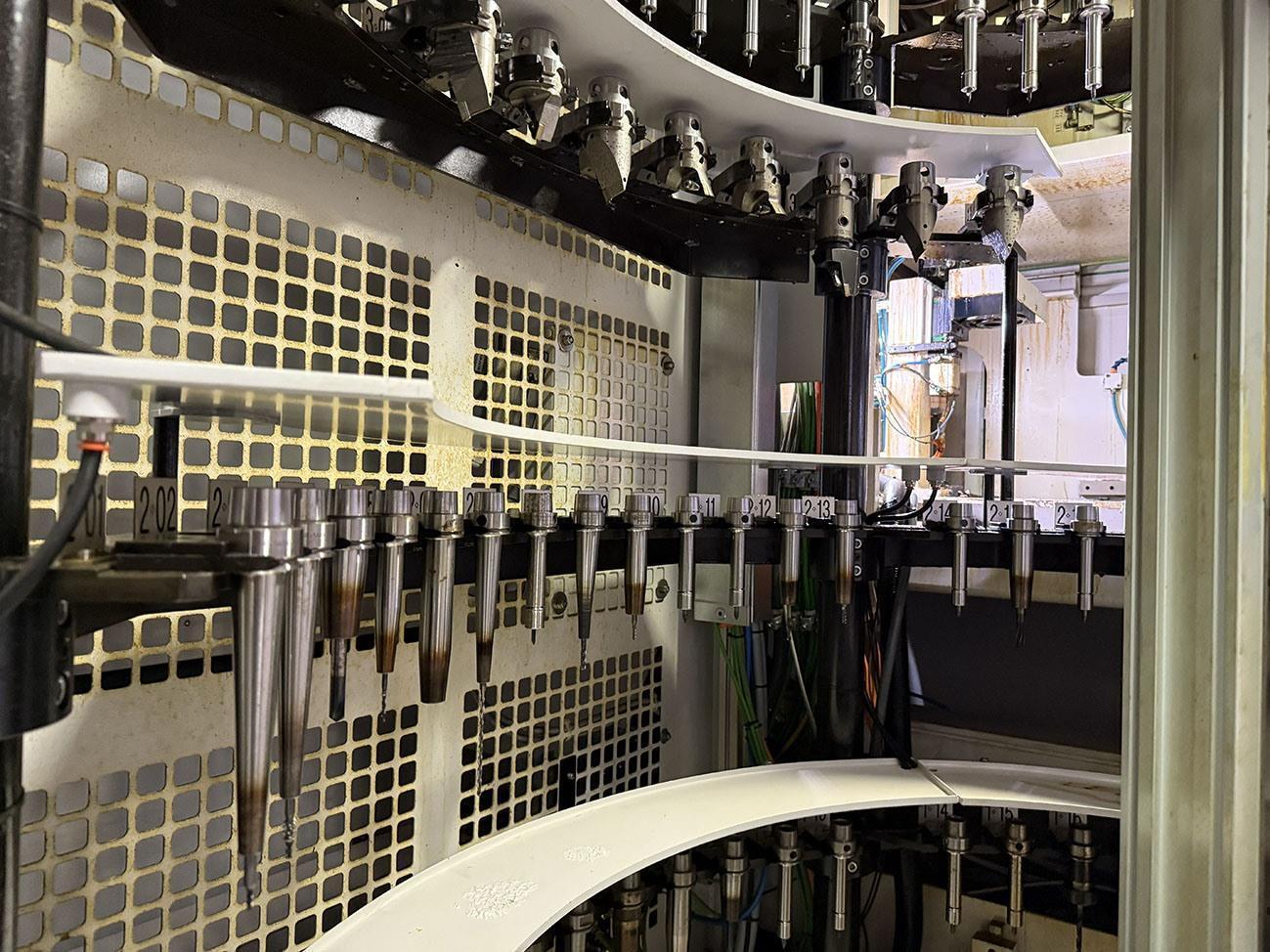

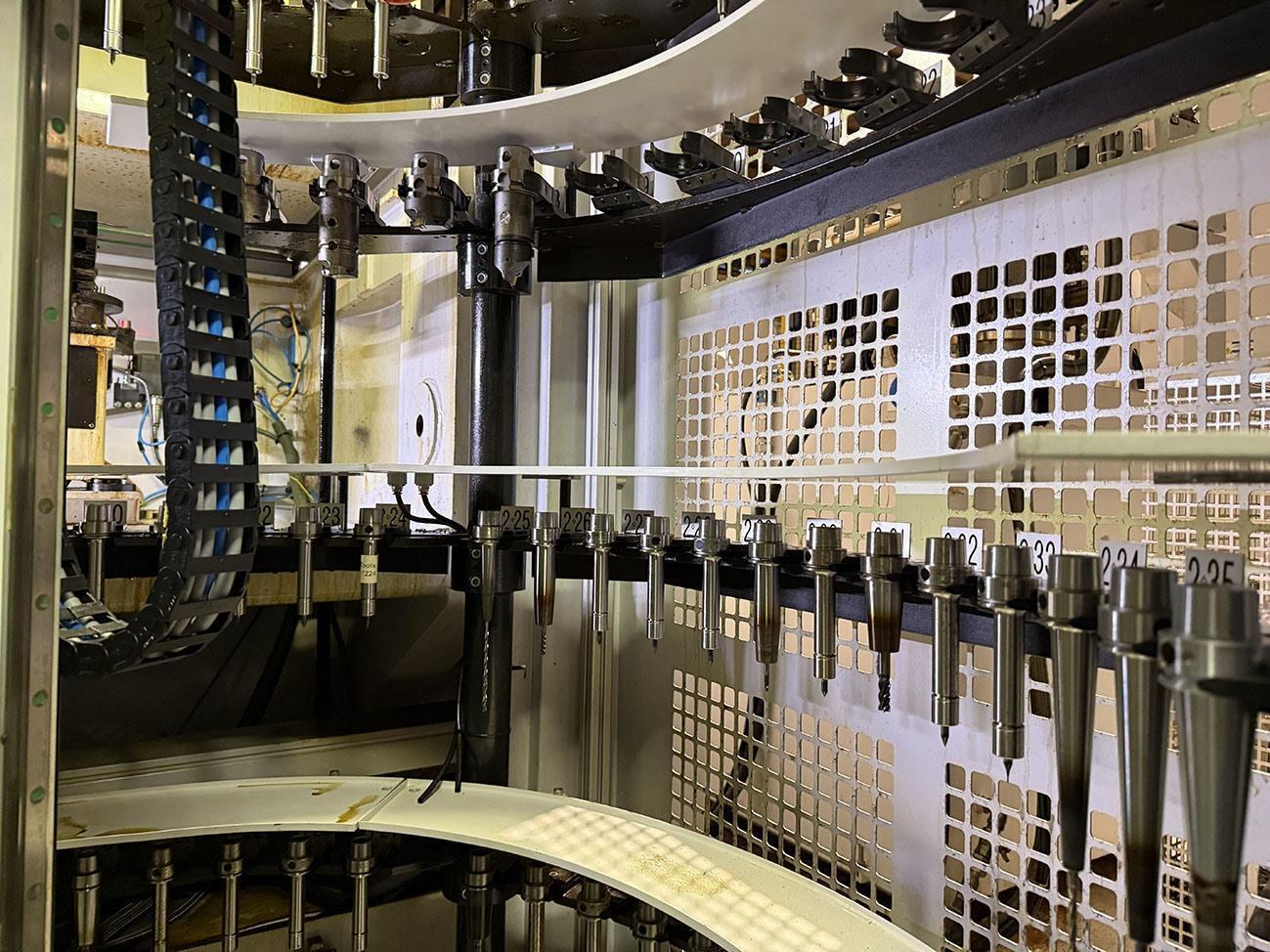

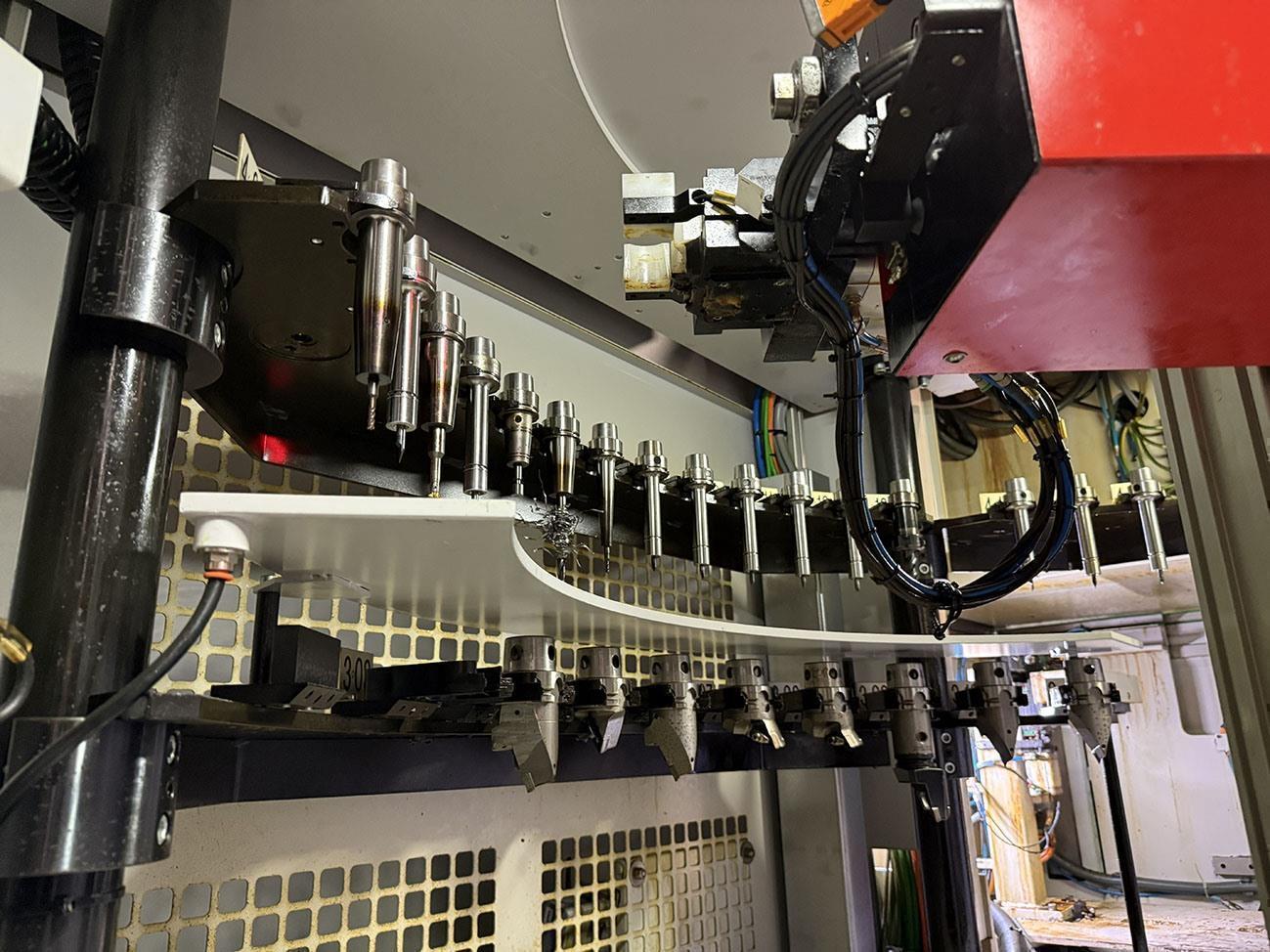

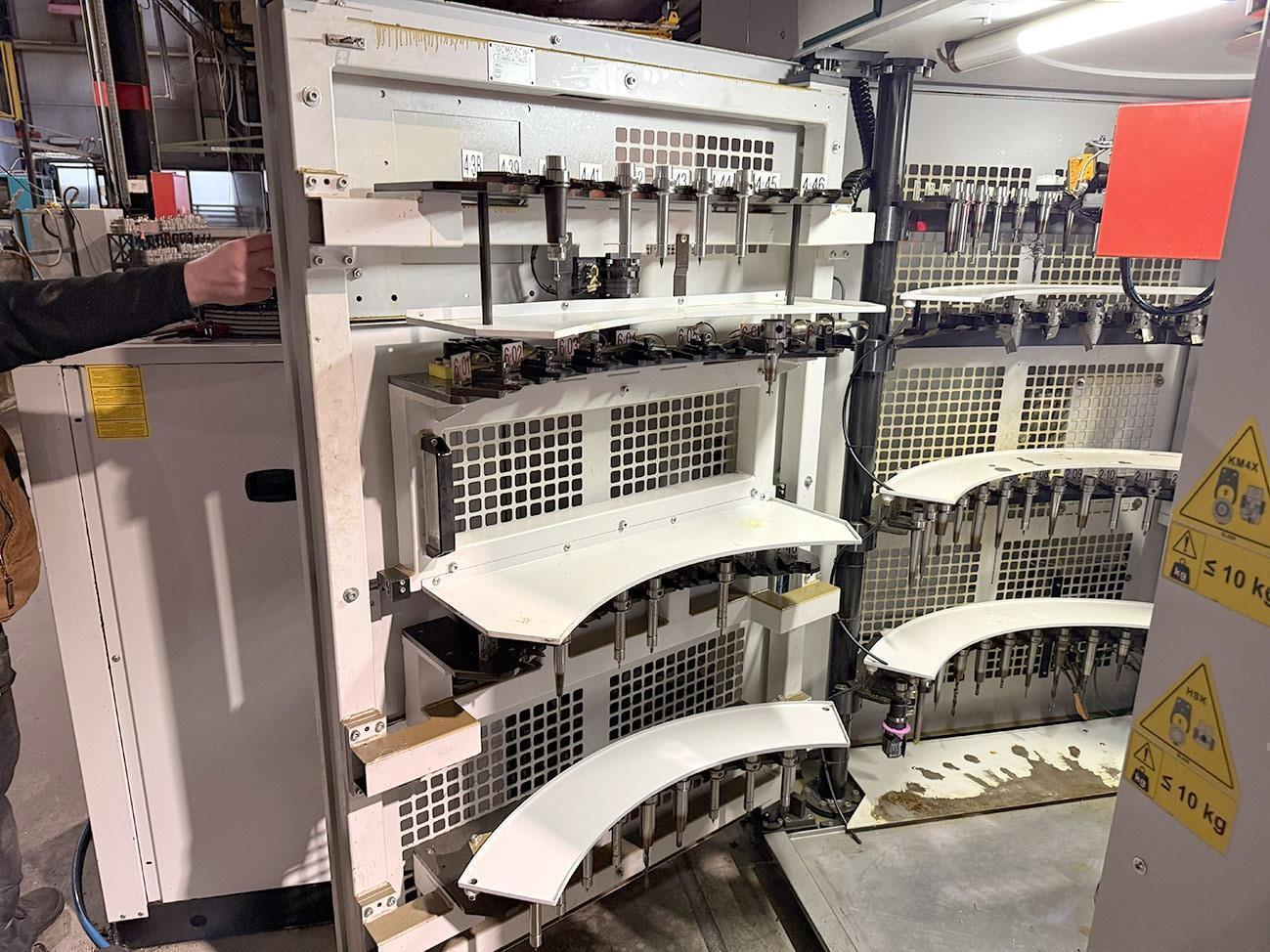

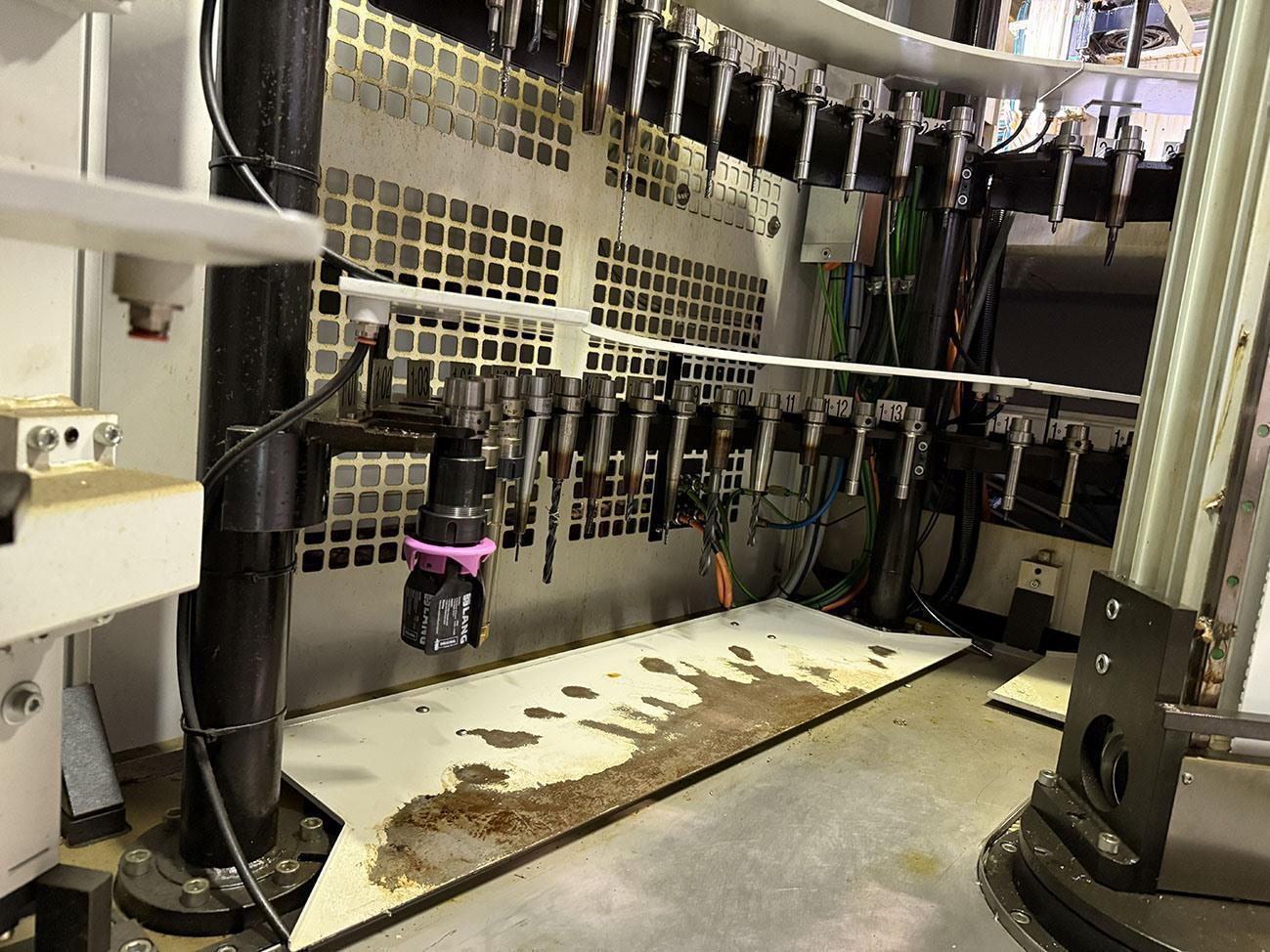

3 - Tool changer with 150 positions
4 - chip conveyor
5 - cooling system with recovery
6 - regulation of the coolant temperature
7 - high-pressure cooling (40 to 70 bar) door spindle
8 - smoke extraction system
9 - box for collecting chips
10 - Presetting system and tool integrity: Laser and mechanical probe for measuring instruments
11 - Renishaw probe

No files or videos to display
