Beam Drill and Saw Line, Ficep

YEAR: 2014

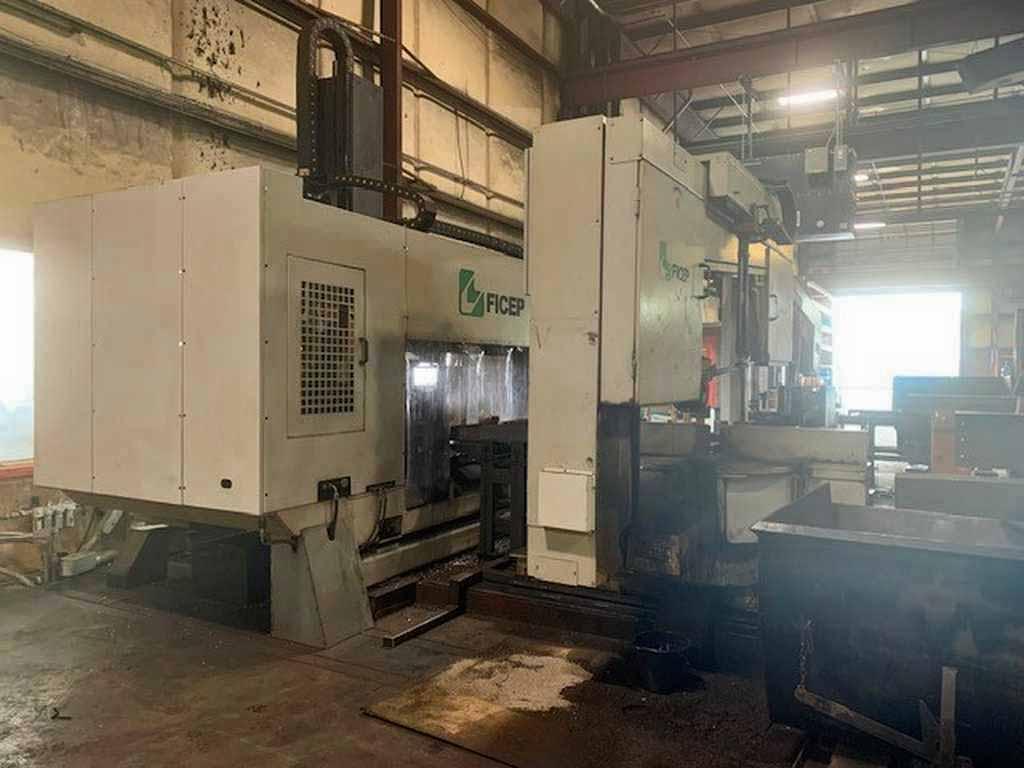

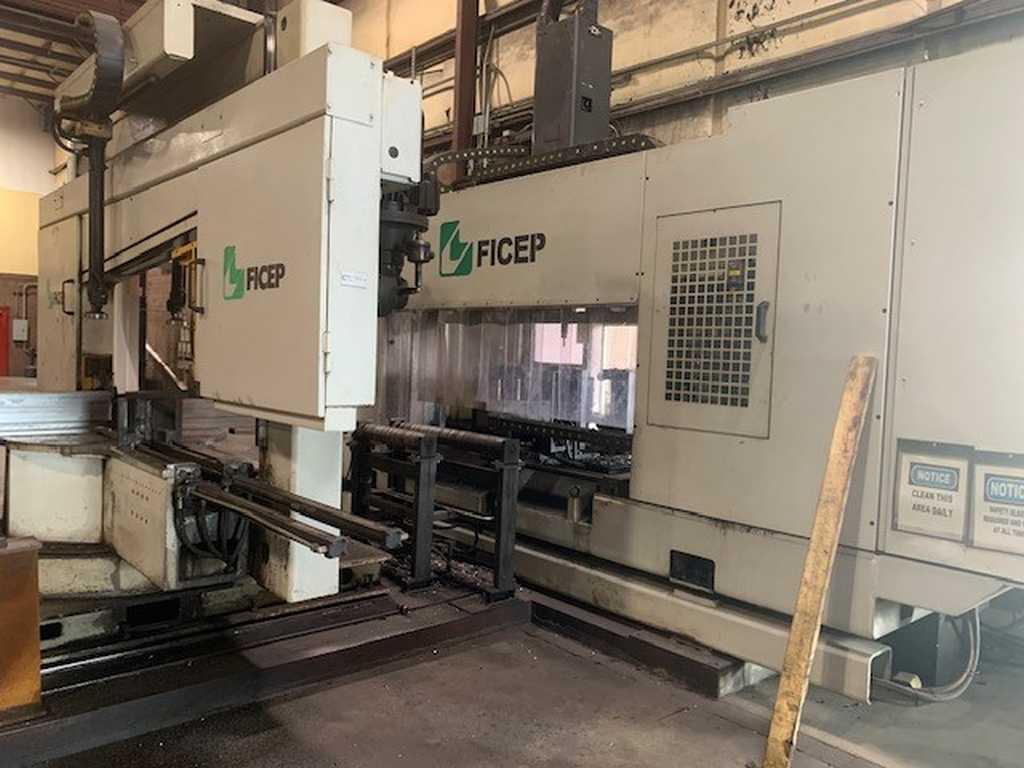

Ficep 1001 DDB Drill:

No. of Spindles, Rotating: 1
Beam Depth, Min.-Max.: 3 1/8" - 40"
Flange Height, Min.-Max.: 3/8" - 17 3/4"
Maximum Drill Diameter: 1 9/16"
Maximum Drill Thickness: 4"
Spindle Motor: 22 HP
Spindle Speed: 180 - 2500 RPM

Ficep K100 Band Saw:

Max. Sawing Capacity at 90 Degree: 40" x 17 3/4"
Sawing Capacity at 45 Degree: 24 3/8" x 17 3/4"
Sawing Capacity at 60 Degree: 186 - 557 FPM
Motor Power: 12 HP

Consisting of the following:

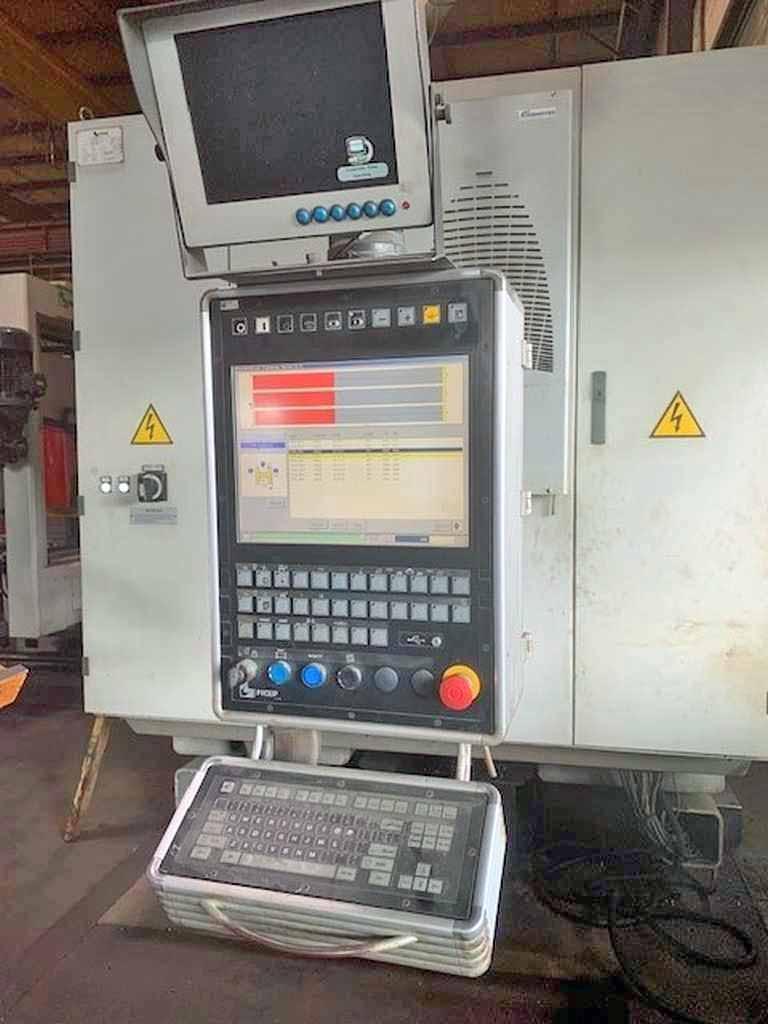

-Ficep Pegaso CNC Control
-(1) Monospindle 180 Degree Rotary Drilling Spindle for Drilling
on 3 Sides.
-(6) Position Tool Changer
-Scribing on 3 Sides
-Carriage Feed

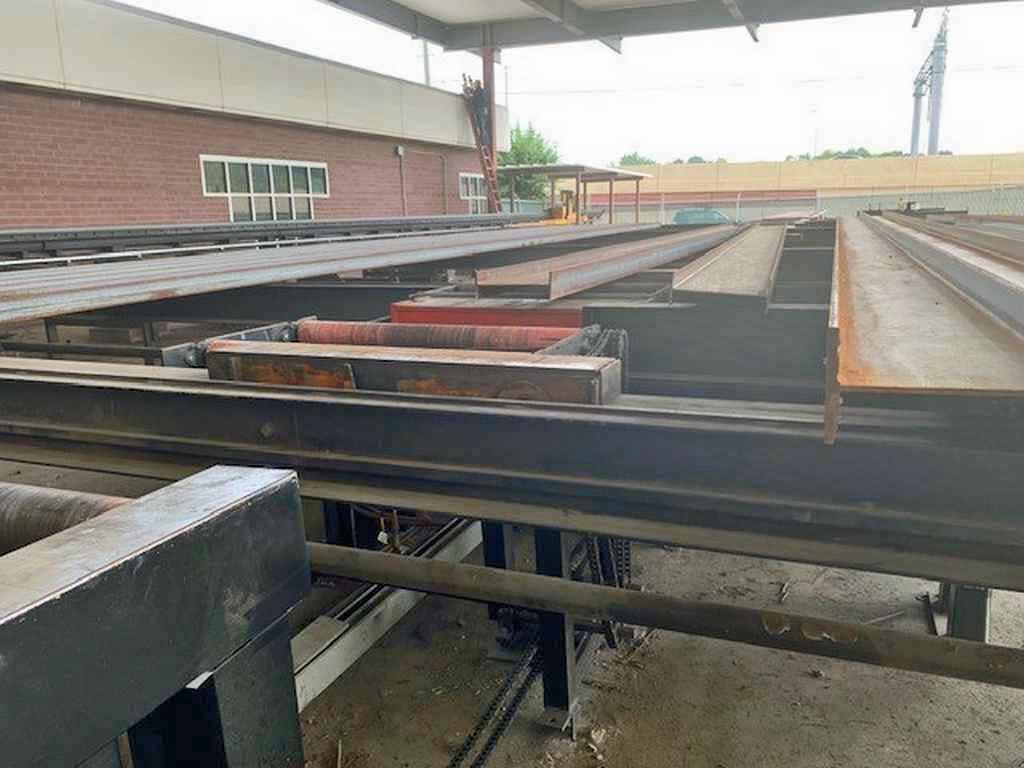

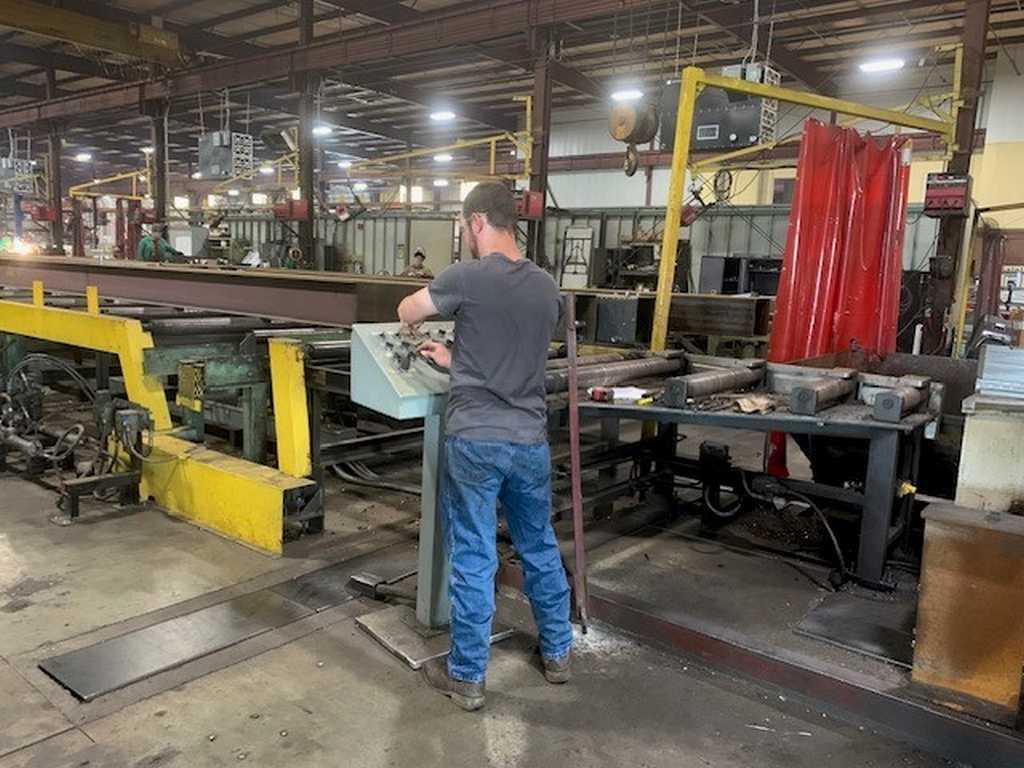

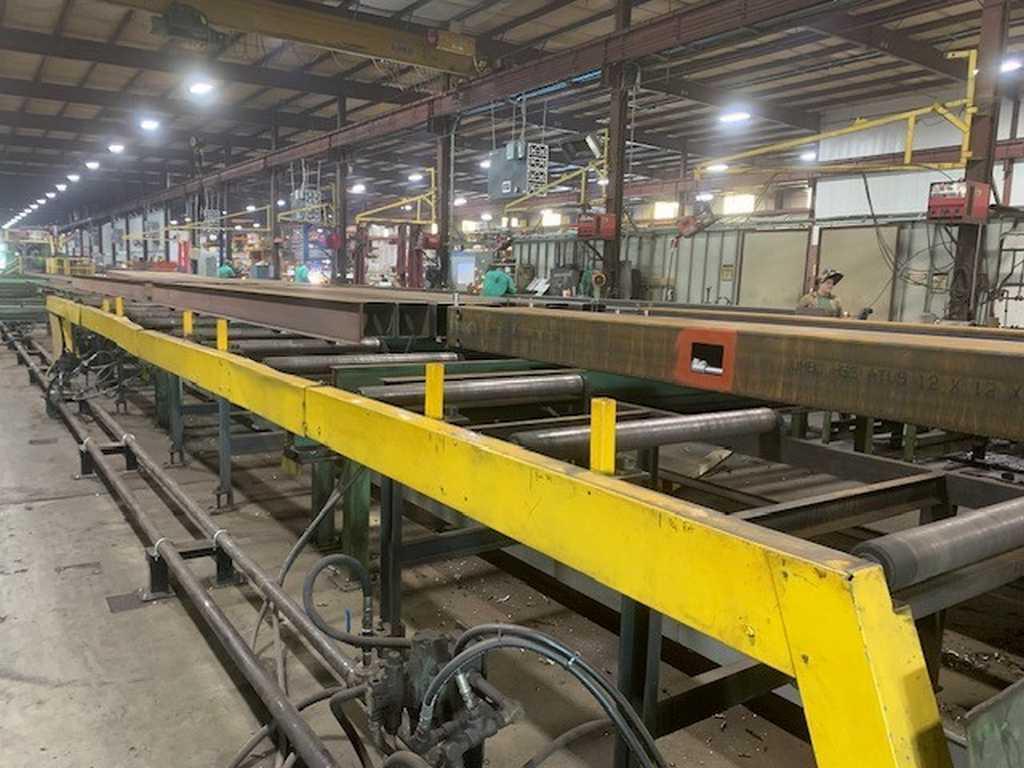

-65' Powered Infeed Conveyor with Transfers

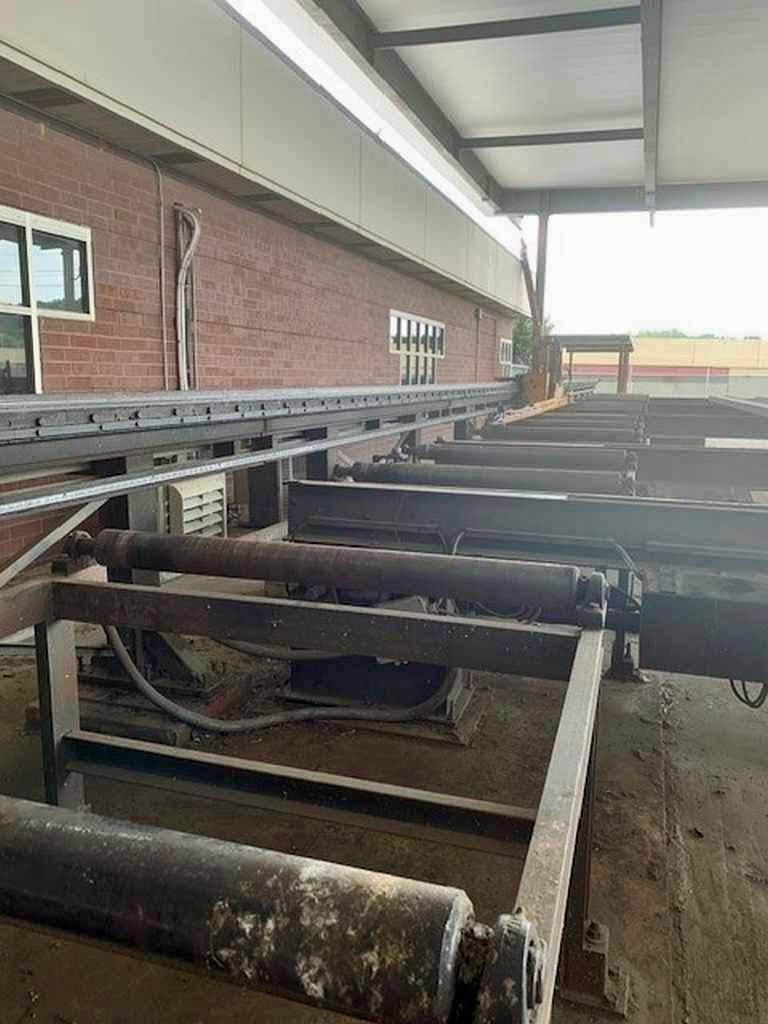

-40' Outfeed Powered Conveyor

-Recently the Spindle, Spindle Motor, Axis Motor and Gripper Arm
were replaced.
