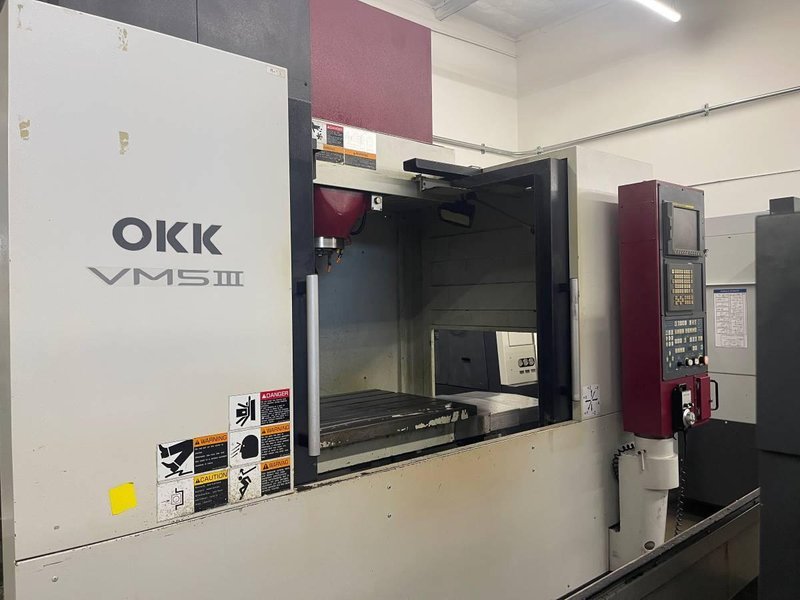

2006 OKK VM-5III VERTICAL MACHINING CENTER - (2) Available!

2006 OKK VM-5III VERTICAL MACHINING CENTER - (2) Available!

Brand

OKK

Location

California

REQUEST FINANCING

Specifications
Files & Videos

Fanuc 180is-MB Series CNC Control
Box Way Construction

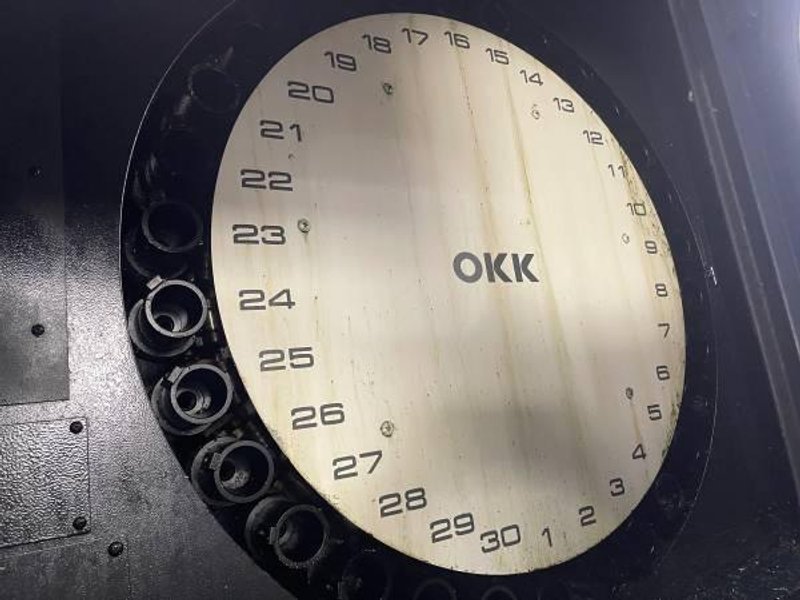

30 Station Automatic tool changer
8,000 RPM Spindle*

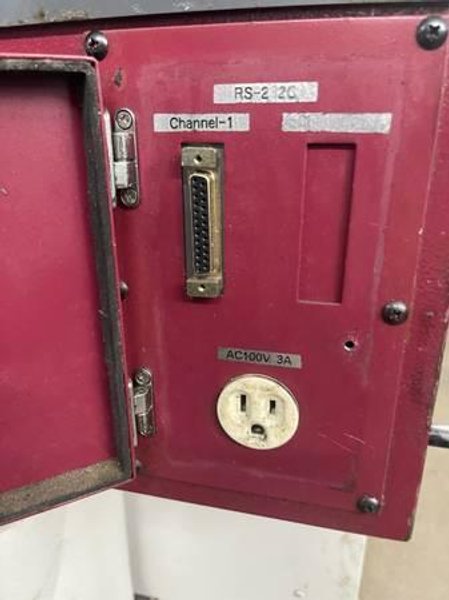

RS-232 Port

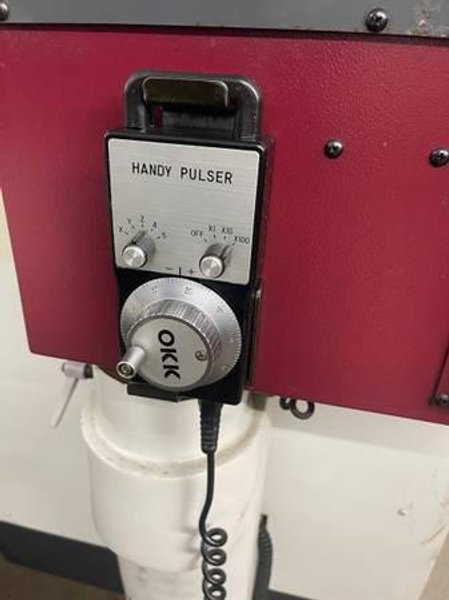

MPG Handwheel Control
Rigid Tapping
Telescopic way covers
Coolant Tank
Travels:
X-Axis: 40.15″
Y-Axis: 20.08″
Z-Axis: 20.08″
Spindle Nose to Table (Min.- Max.): 4.5″ – 24.5″

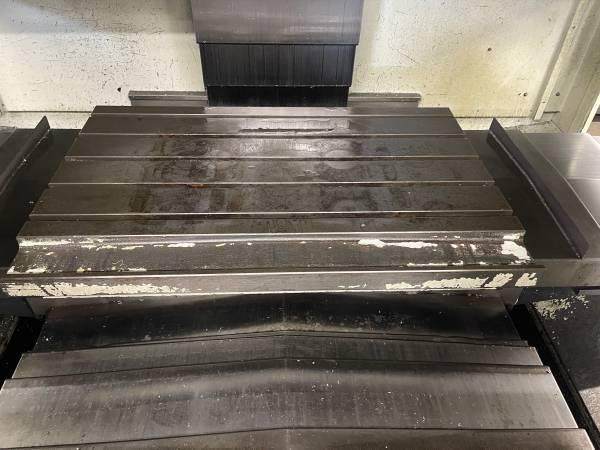

Table:
Length: 48″
Width: 20″
Max Weight on Table: 3000 lbs
Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 15 HP
Automatic Tool Changer:
40 Taper
Capacity: 20 Station
Tool Weight: 15 lbs
Max Tool Length: 15″
Max Tool Dia.: 4.33″
Feed rates:
Rapid Traverse rates: 900 IPM
Cutting Feedrate: 400 IPM
General:
Air Required: 80 psi, 4 scfm
Power: 220v / 3-Phase
Overall Dimensions: 122″ x 100″ x 100″ High
Weight: 12,500 lbs

Parts Total/Count: 144059
Power On Hours: 61893
Operating Time: 21355
Cutting Time: 22430

Watch Video On Our Youtube Channel www.youtube.com/@pmmmachines

Buyer Is Responsible For Scheduling Transportation Of All Items, As Well As All Cost To Move It. We Can Provide You With Shipping And Rigging Quotes If You Need Help. Please Contact Us And We Will Assist You With Any Questions You May Have.

All Items Are Are Sold "As Is, Where Is”. Specifications, Options, And Additional Accessories Are Quoted To The Best Of Our Knowledge And Are Subject To Buyer's Verification And Correction.
