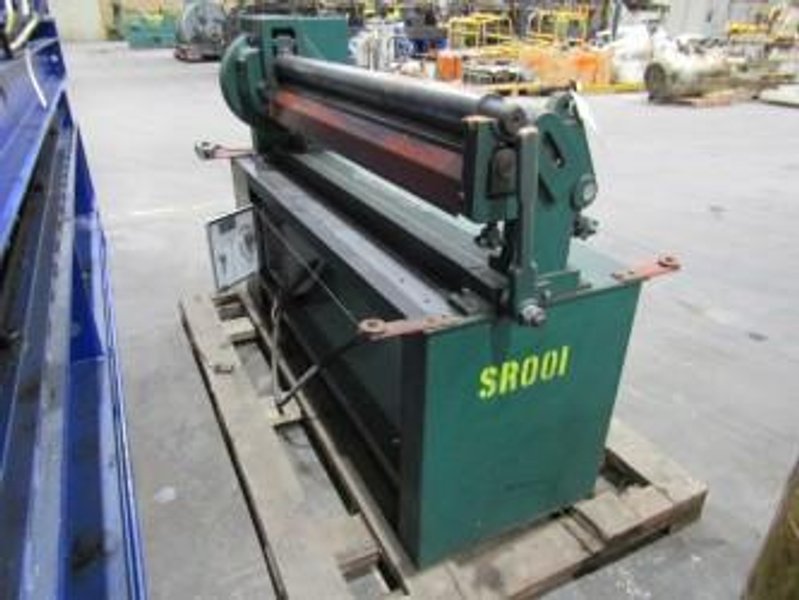

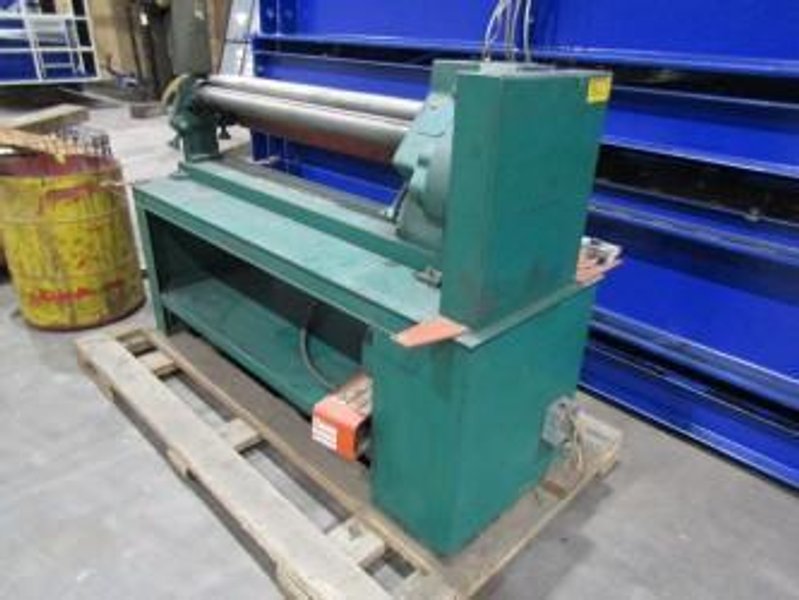

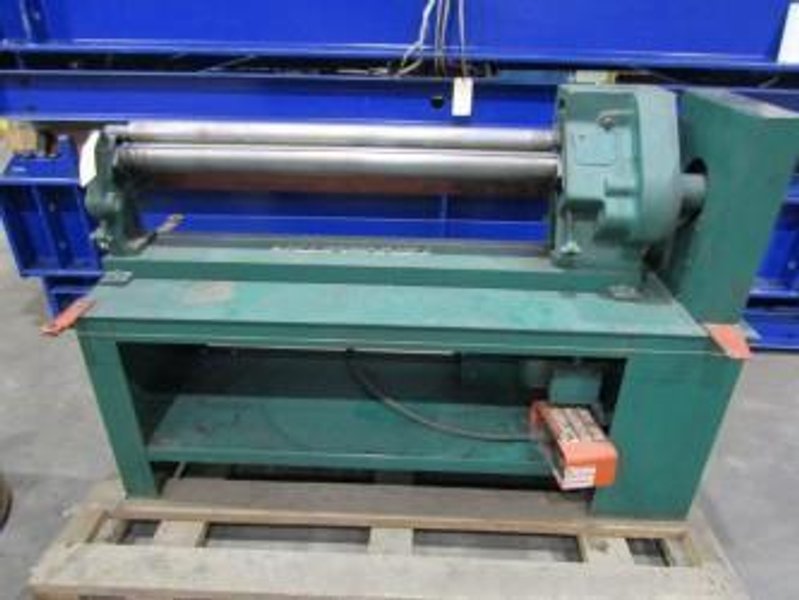

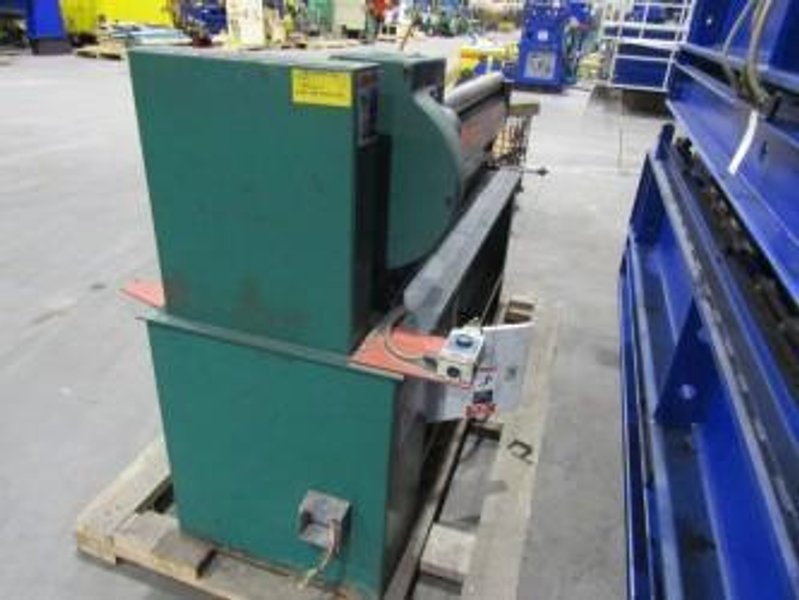

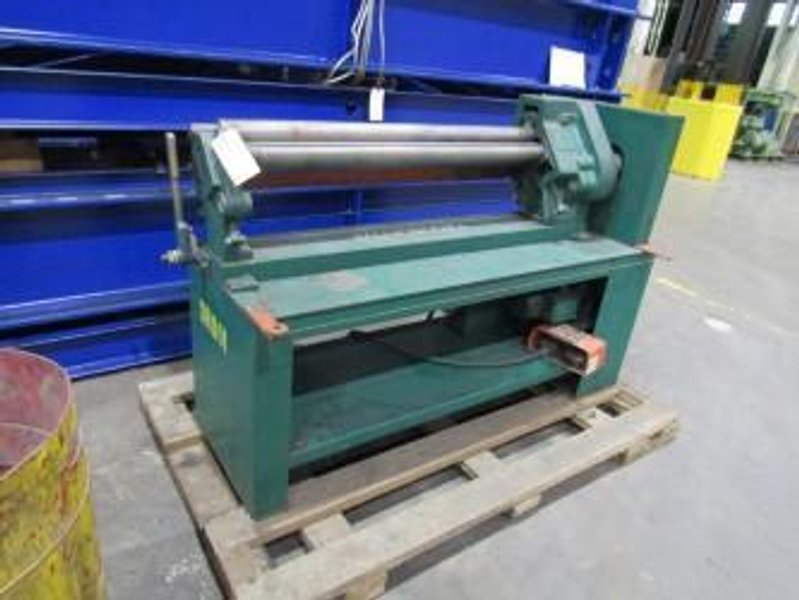

16 GA X 48” TENNSMITH #SR48P INITIAL PINCH BENDING ROLL

Brand
Not specified
Category
Bending & Forming Equipment
Type
Rolls, Plate Bending (incld Pinch)
Model
Not specified
Stock #
117104
Year
Not specified
Condition
Used

Location

Not specified
REQUEST FINANCING

MANUFACTURER – TENNSMITH

TYPE – INITIAL PINCH BENDING ROLL

MODEL - #SR48P

MAX THICKNESS – 16 GA (1.6MM)

MAX WIDTH – 49” (1244MM)

DIAMETER OF ROLLS – 3” (76MM)

MINIMUM FORMING RADIUS – 1 ½” (38MM)

WIRE GROOVES – 3/8”, ½”, 5/8” (9.5MM, 12.7. 15.8MM)

GEAR RATIO – 4:01

ROLL SPEED – 22 RPM (17.28 SFPM)

MOTOR – ¾ HP

APPROXIMATE DIMENSIONS – 77” X 29” X 50” (1956MM X 737MM X 1270MM)

APPOXIMATE WEIGHT – 1100 LBS (500 KG)



INCLUDES

FOOT PEDAL
