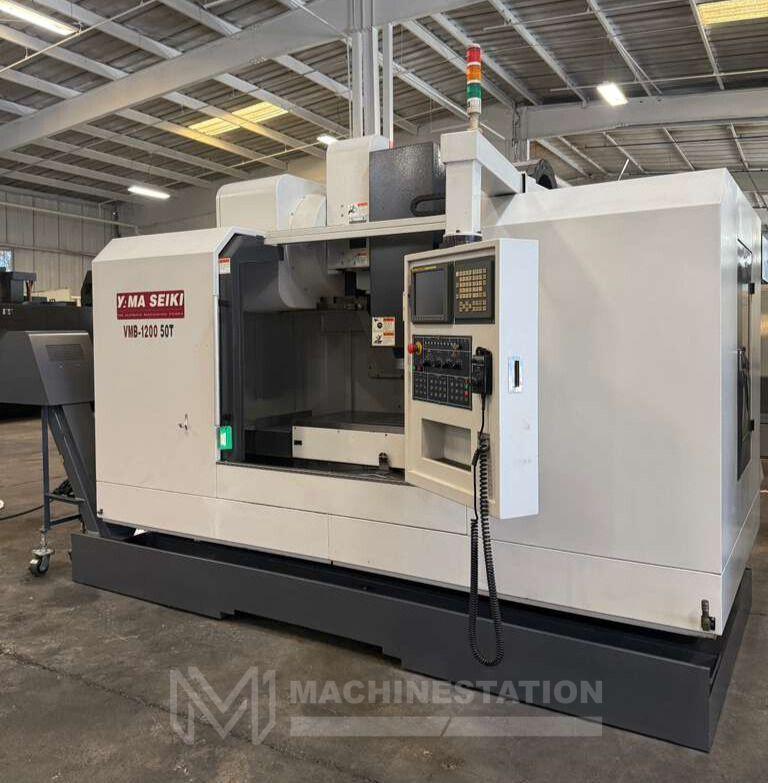

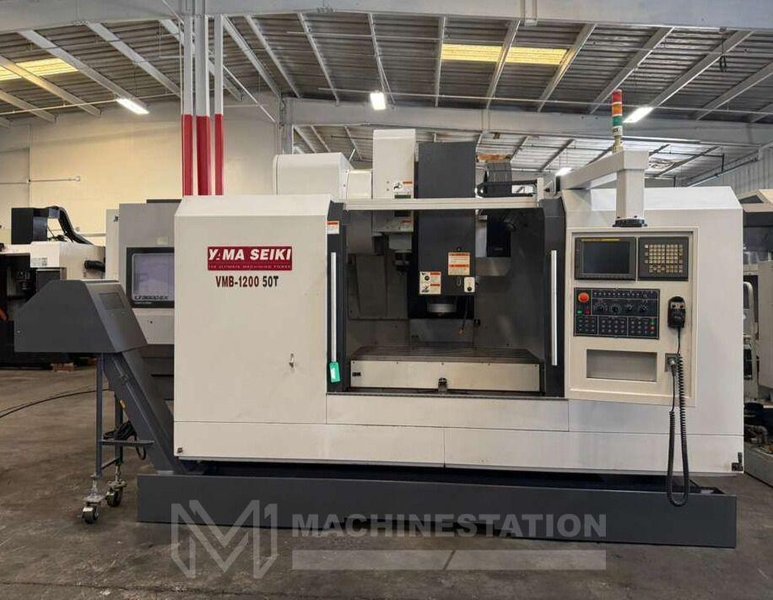

Yama Seiki VMB-1200/50 CNC Vertical Machining Center – 50 Taper Mill

Yama Seiki VMB-1200/50 CNC Vertical Machining Center – 50 Taper Mill

Name: Yama Seiki VMB-1200/50 CNC Vertical Machining Center – 50 Taper Mill
Brand: YAMA SEIKI
SKU: 112636
Availability: PreOrder

Brand

YAMA SEIKI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	112636
Make:	Yama Seiki
Model:	VMB1200/50
Year:	2008

Features:

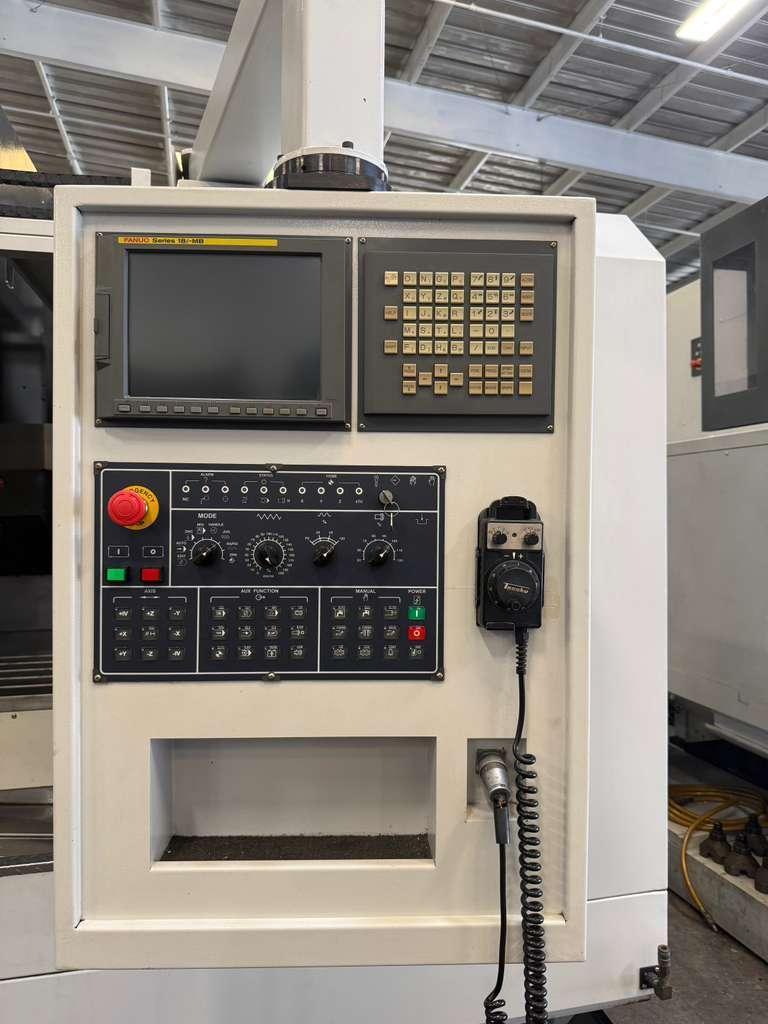

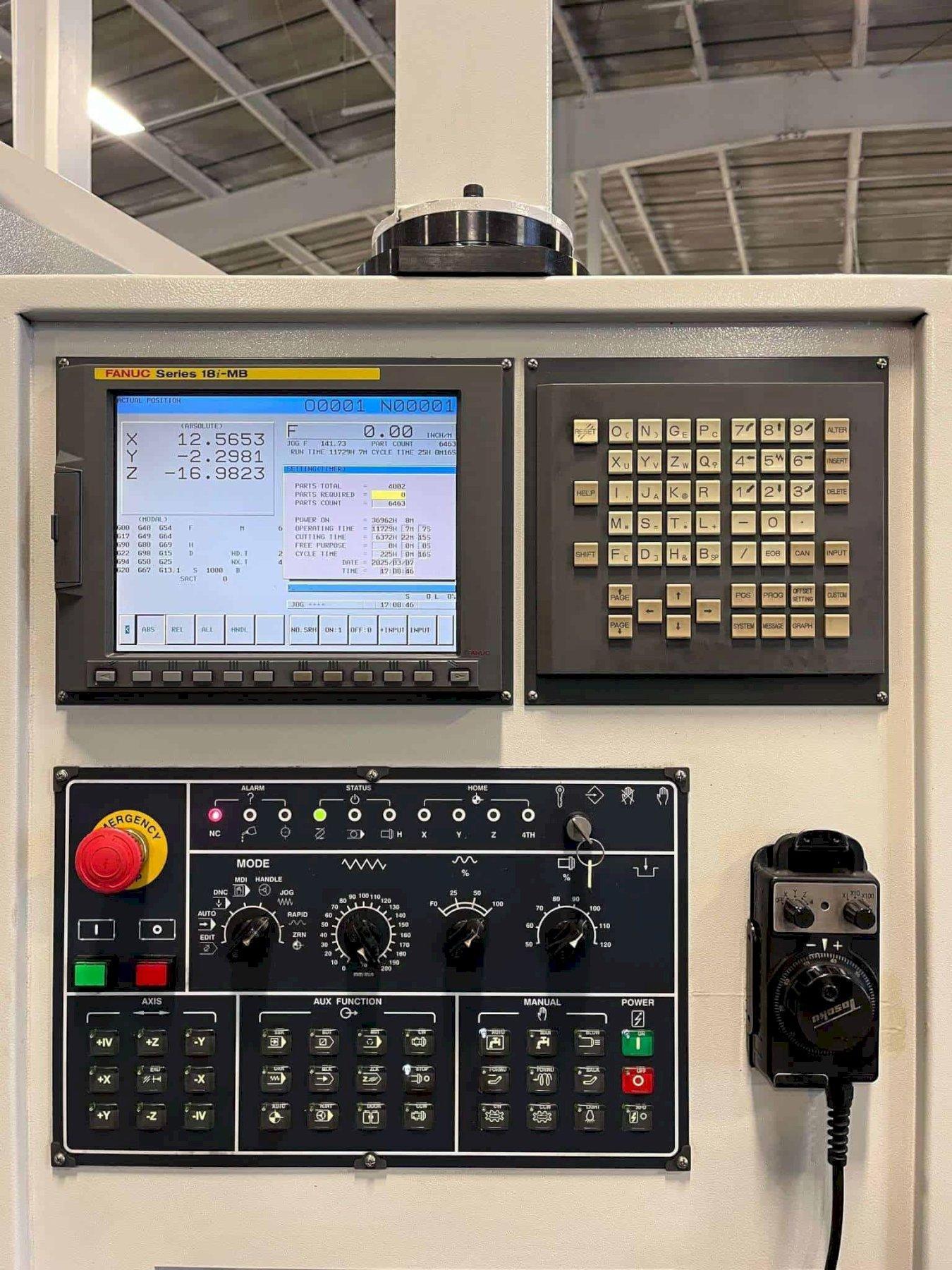

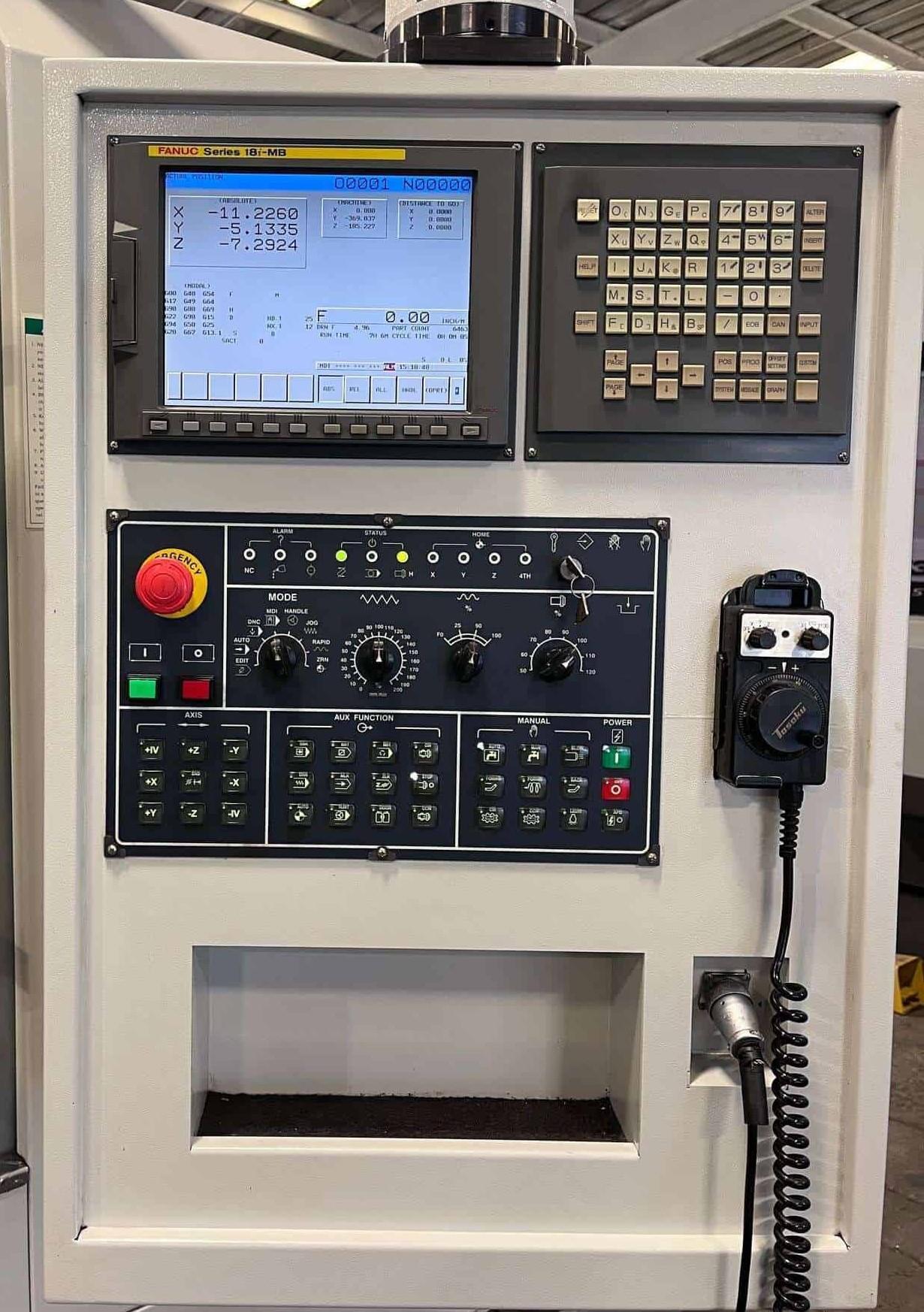

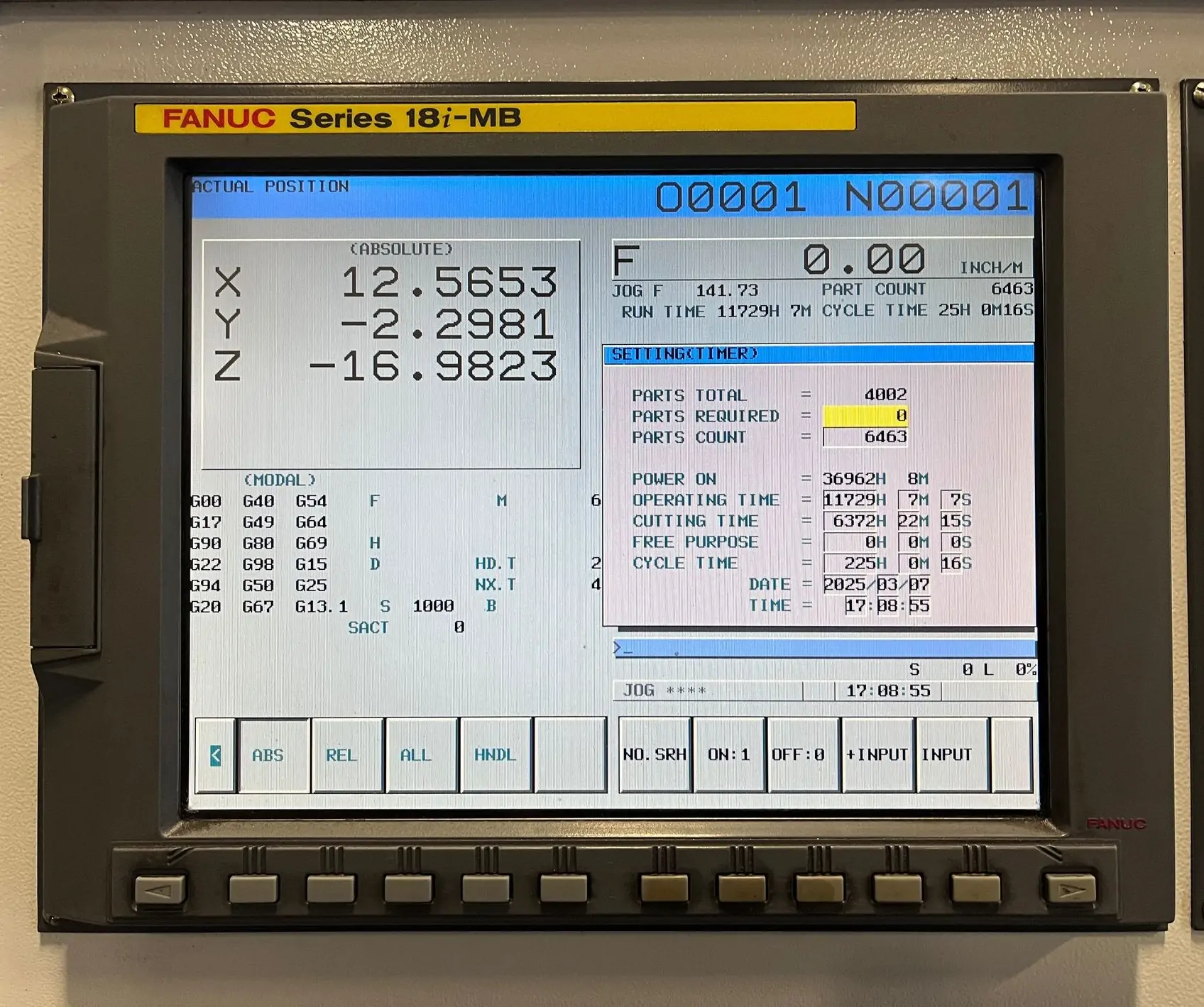

Fanuc 18i-MB CNC Control
Box Way Construction
CAT-50 Taper Gear Head Spindle
6000 RPM Spindle

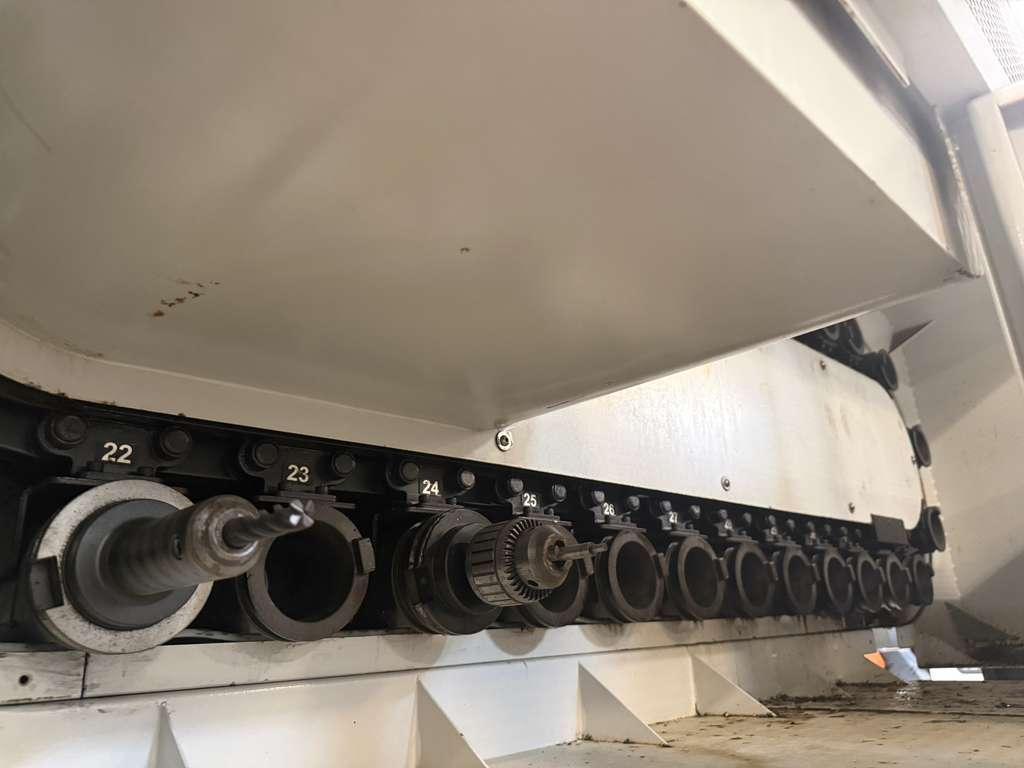

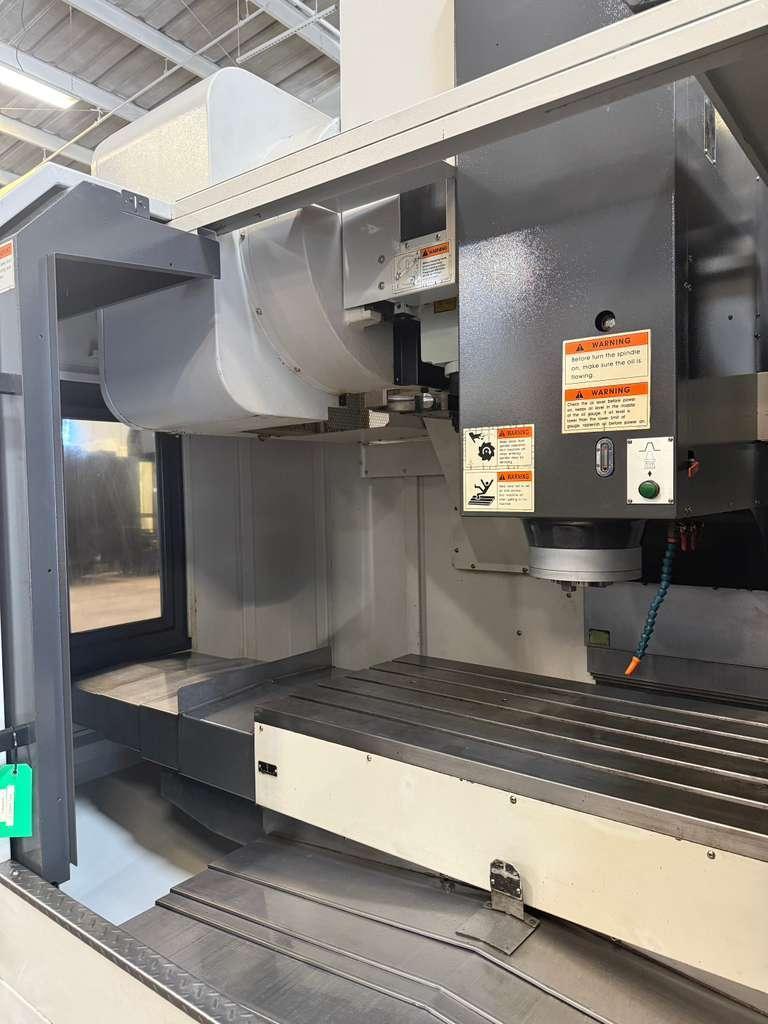

30 Station Automatic Tool Changer
Through Spindle Coolant ?
PCMCIA Interface
MPG Handwheel Control
Rigid Tapping
Spindle Chiller Unit

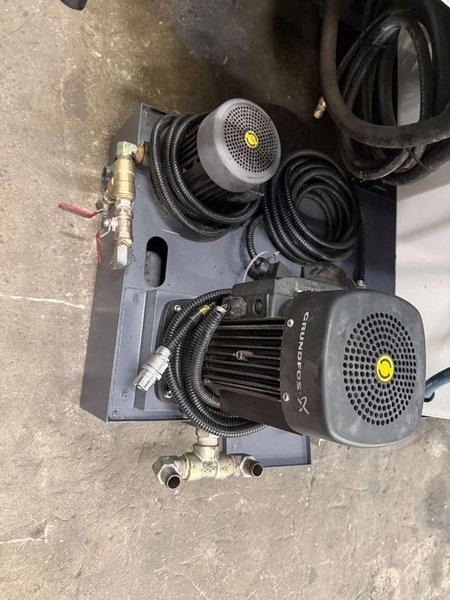

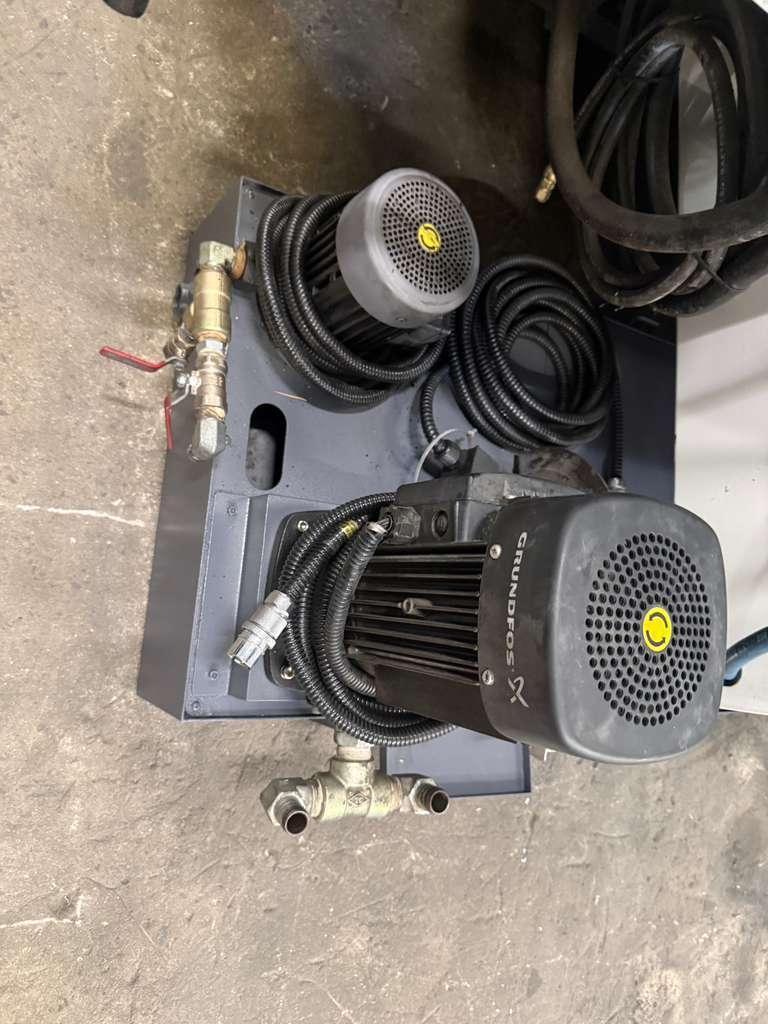

Coolant System
Chip Conveyor

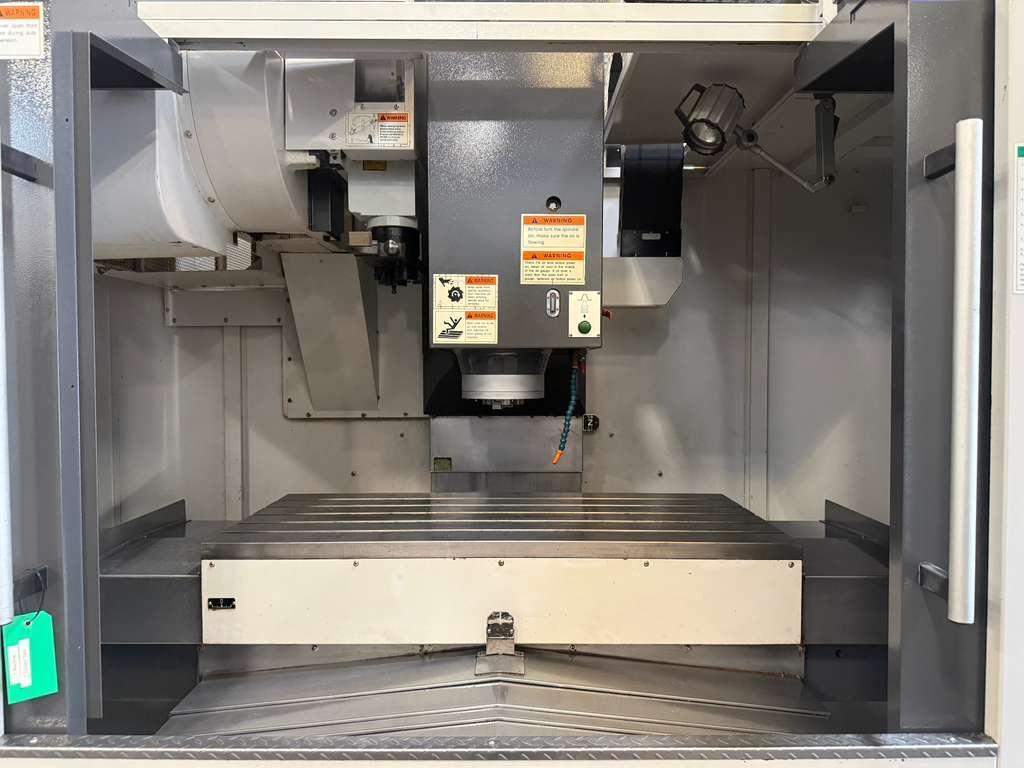

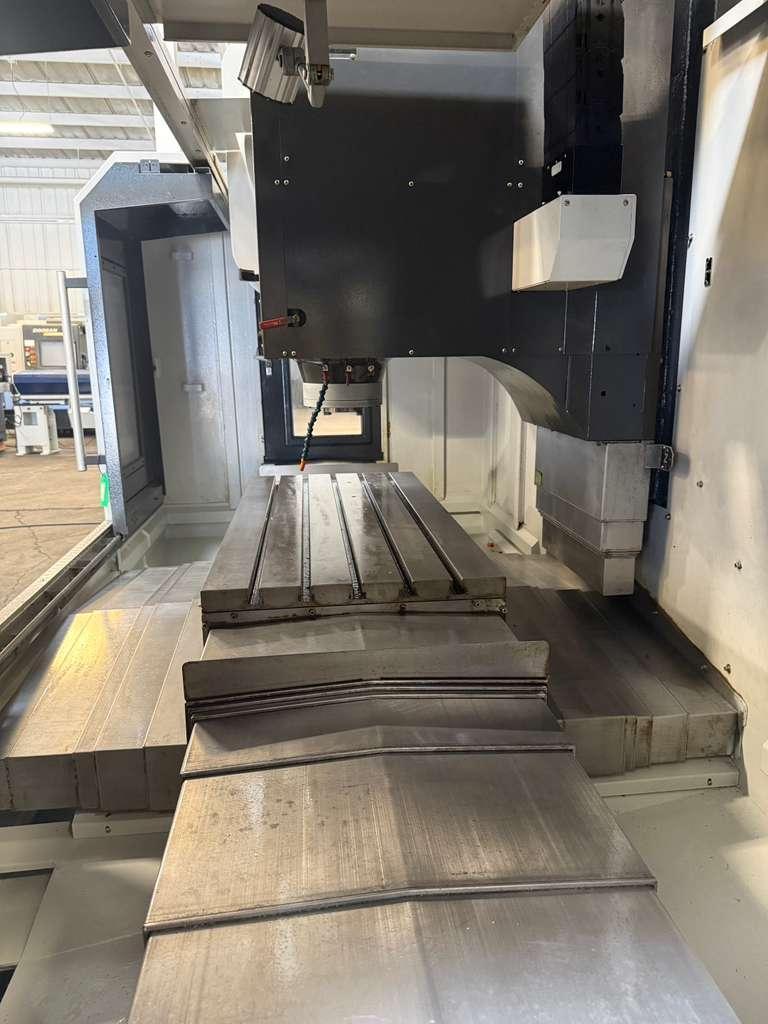

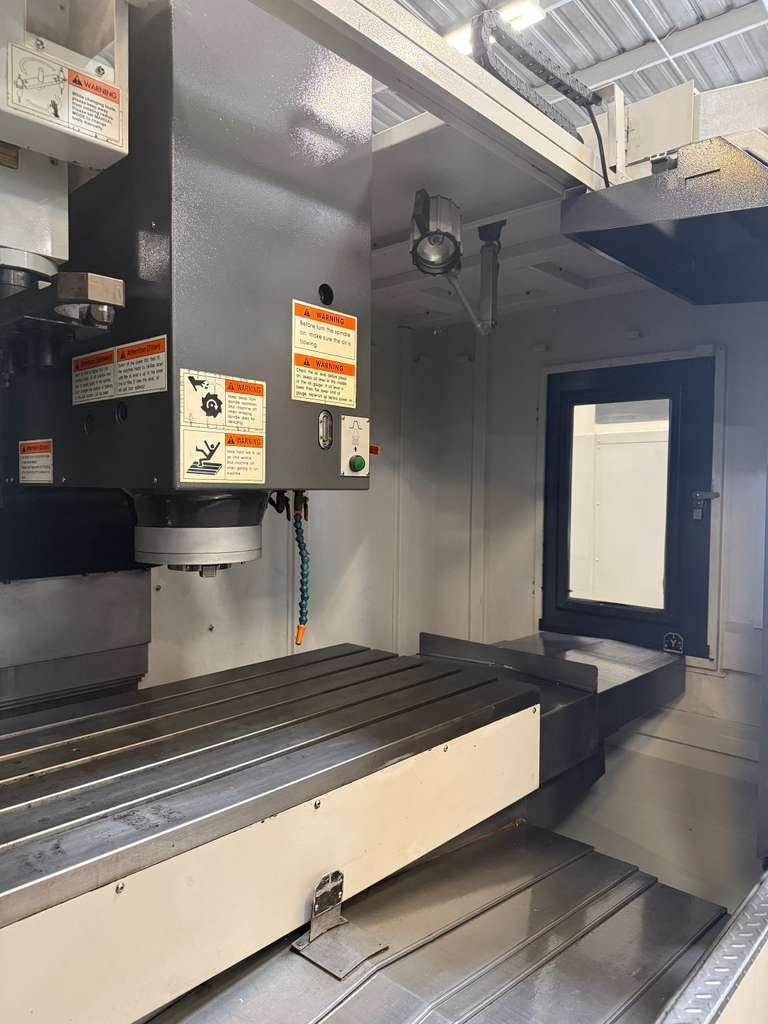

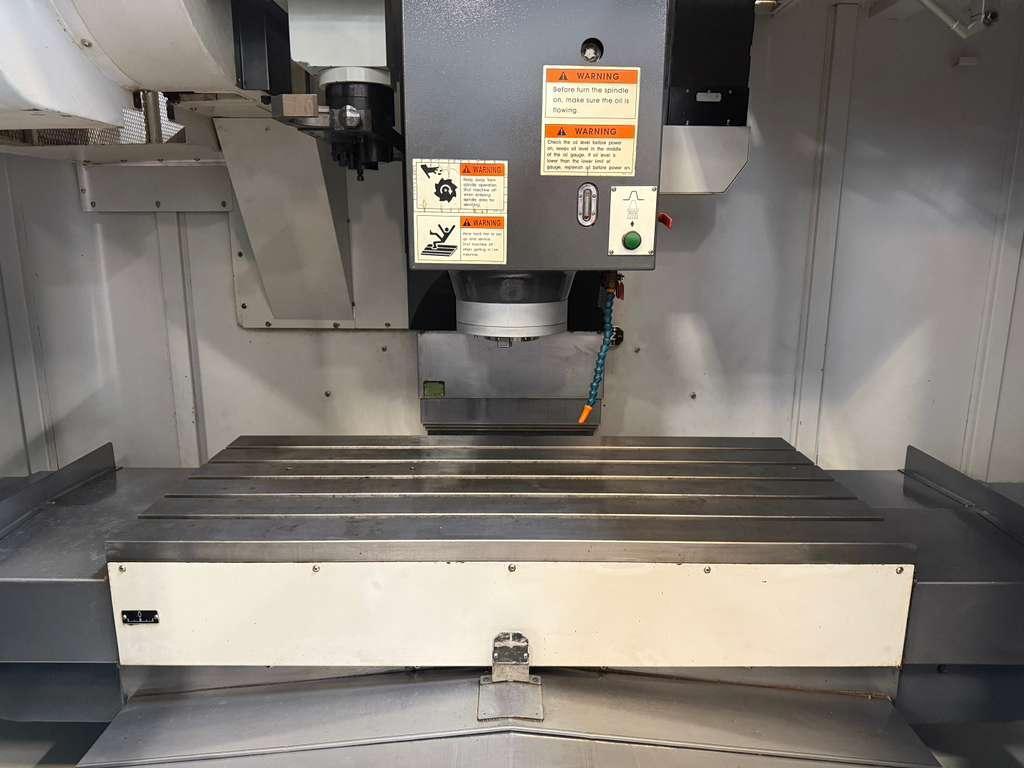

Table:
Length: 51.2″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 2650 lbs

Travel:
X-Axis: 47.2″
Y-Axis: 23.6″
Z-Axis: 23.6″
Rapid Traverse Rates: 945 Inch Per Minute
Cutting Feed Rates: 788 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.9″ – 28.5″

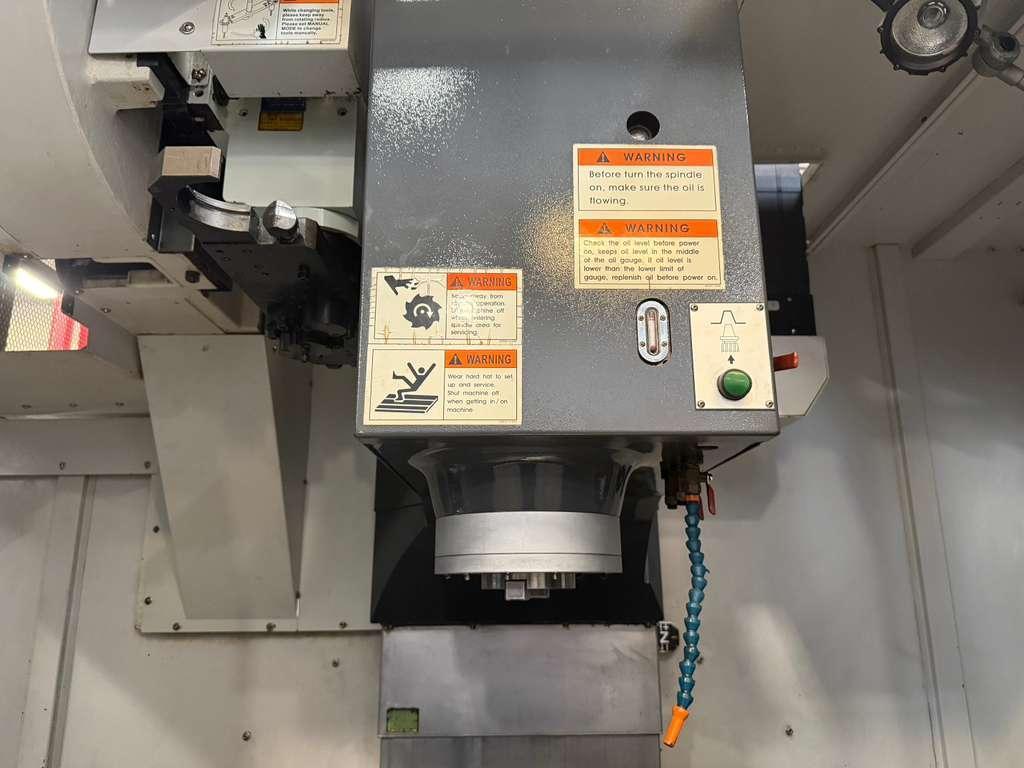

Spindle:
Taper Size: CAT-50
Speed Range: 6000 RPM
Spindle Power: 25 HP

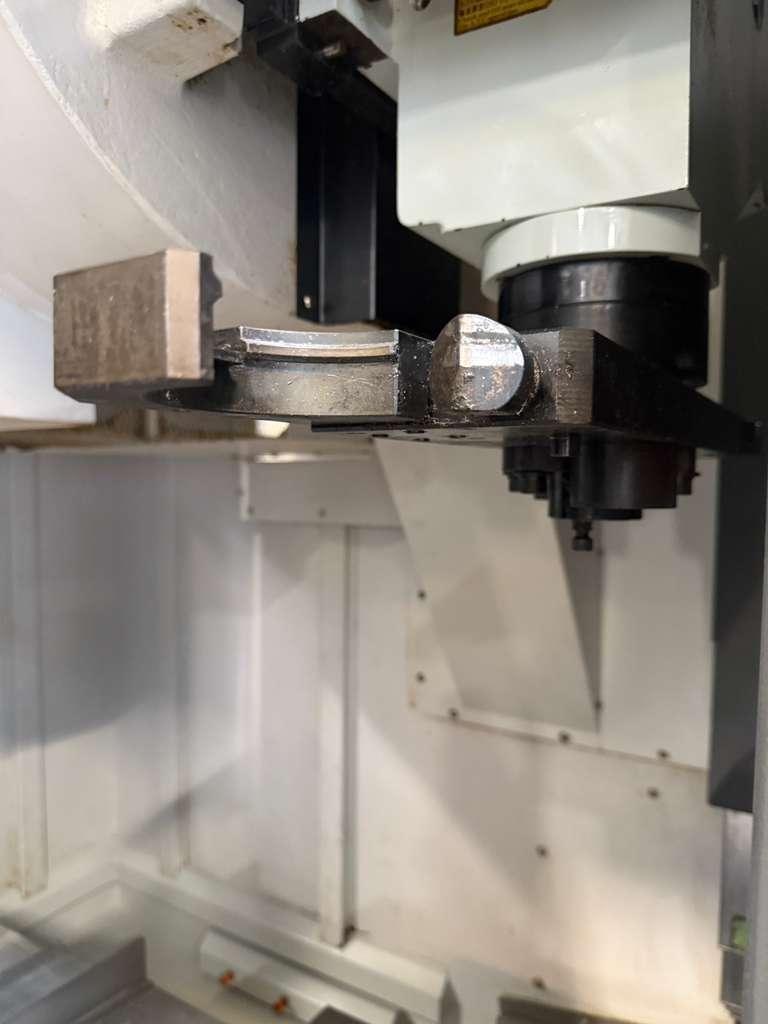

Tool changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 33 lbs
Max Tool Dia: 7.8″
Max Tool Length: 11.8″
Tool Changing Time: 2.7 Seconds

General:
Air Required: 85 psi, 6 scfm
Power: 220v / 50/60 Hz / 3-Phase / 25 kva
Overall Dimensions: 134″ x 98″ x 110″ High Approx.
Weight: 16,500 lbs Approx.
