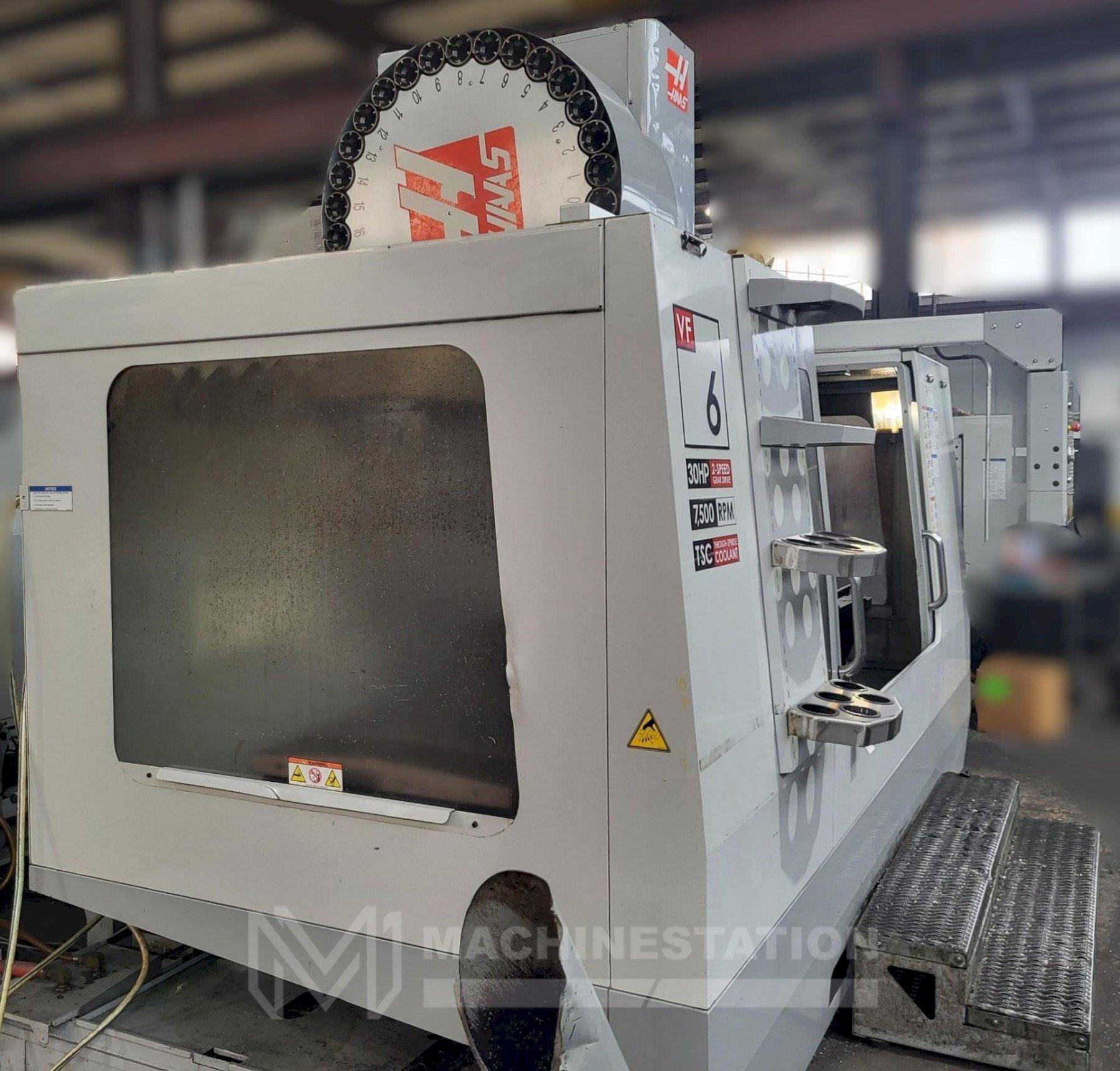

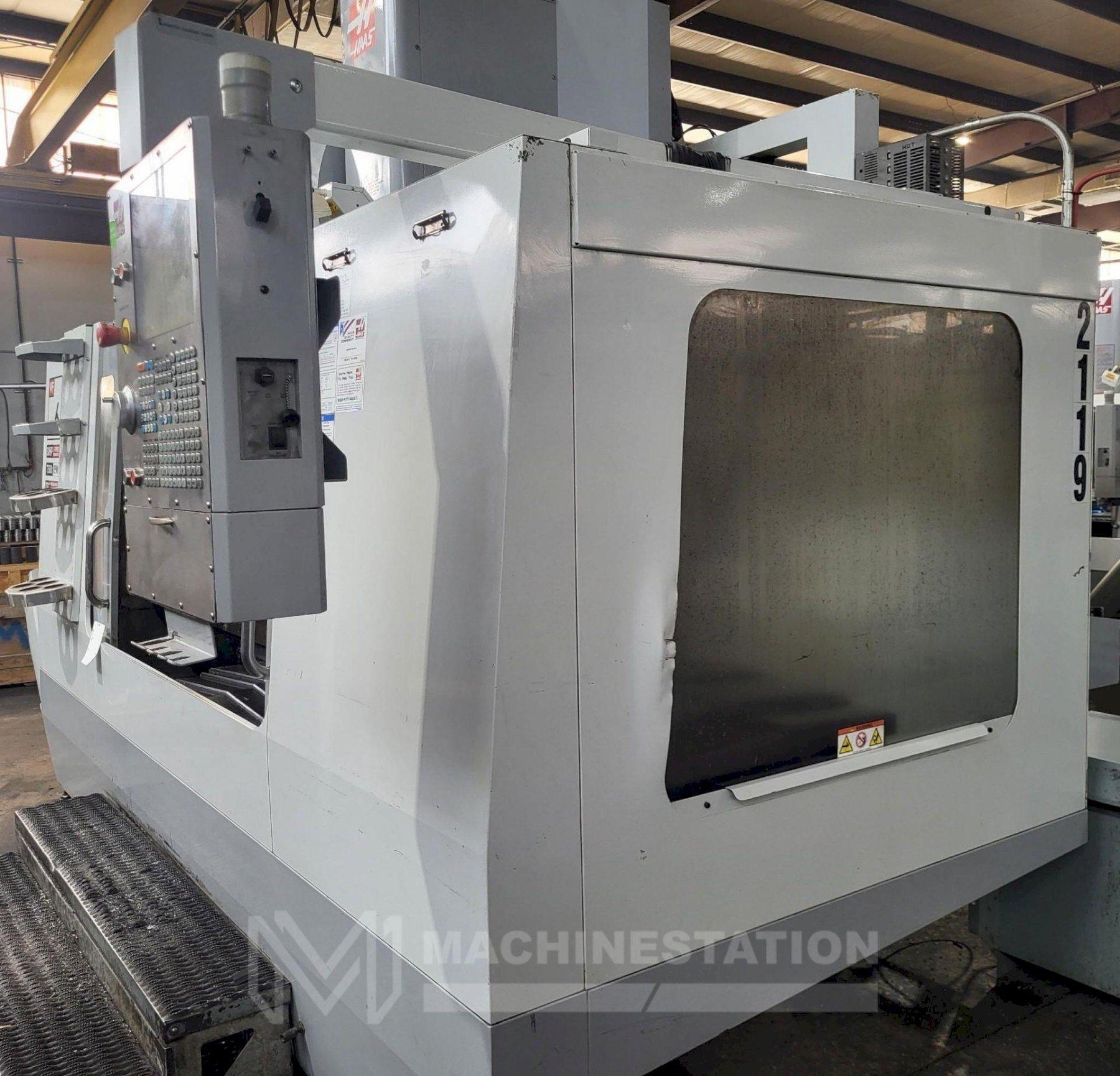

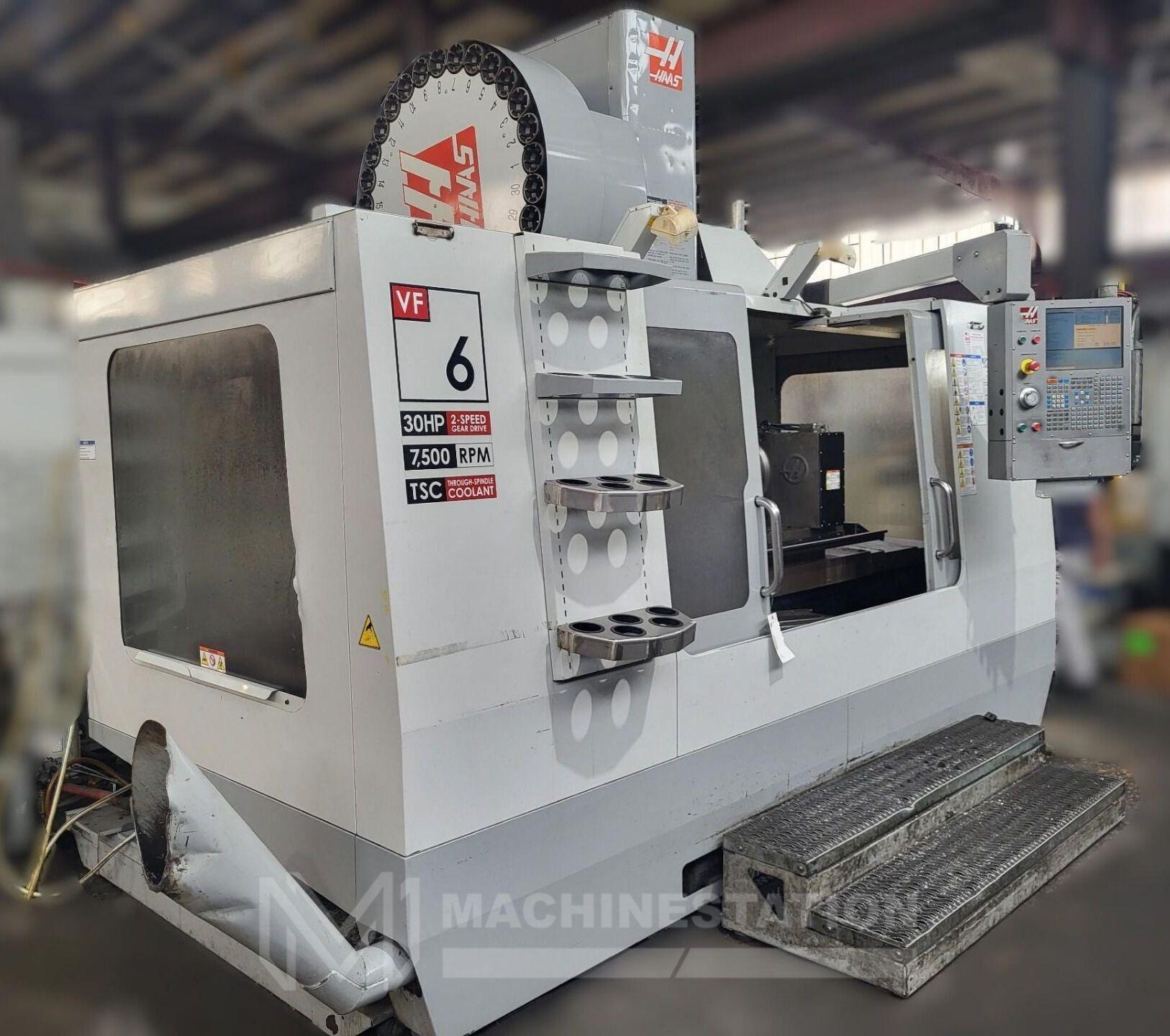

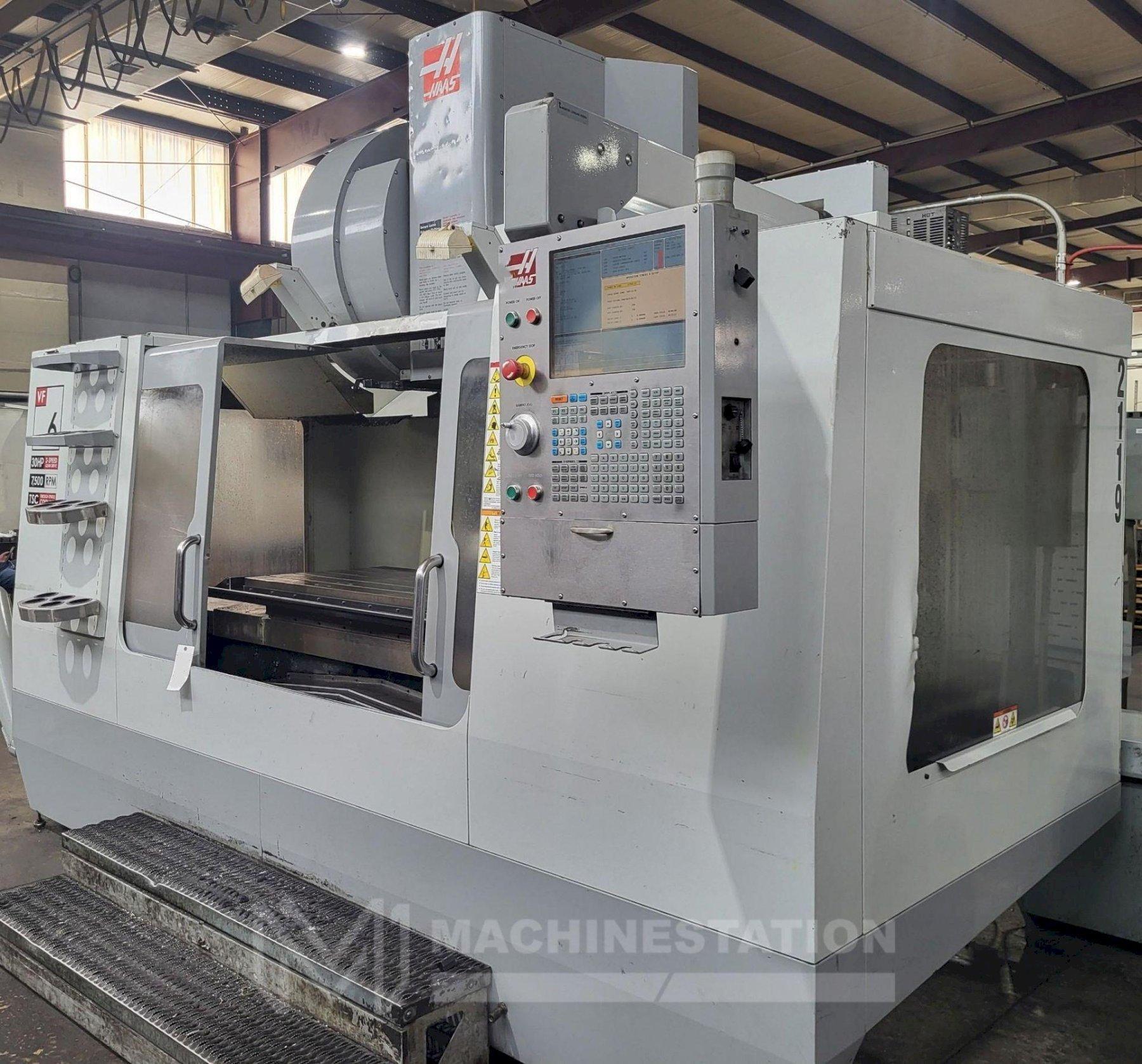

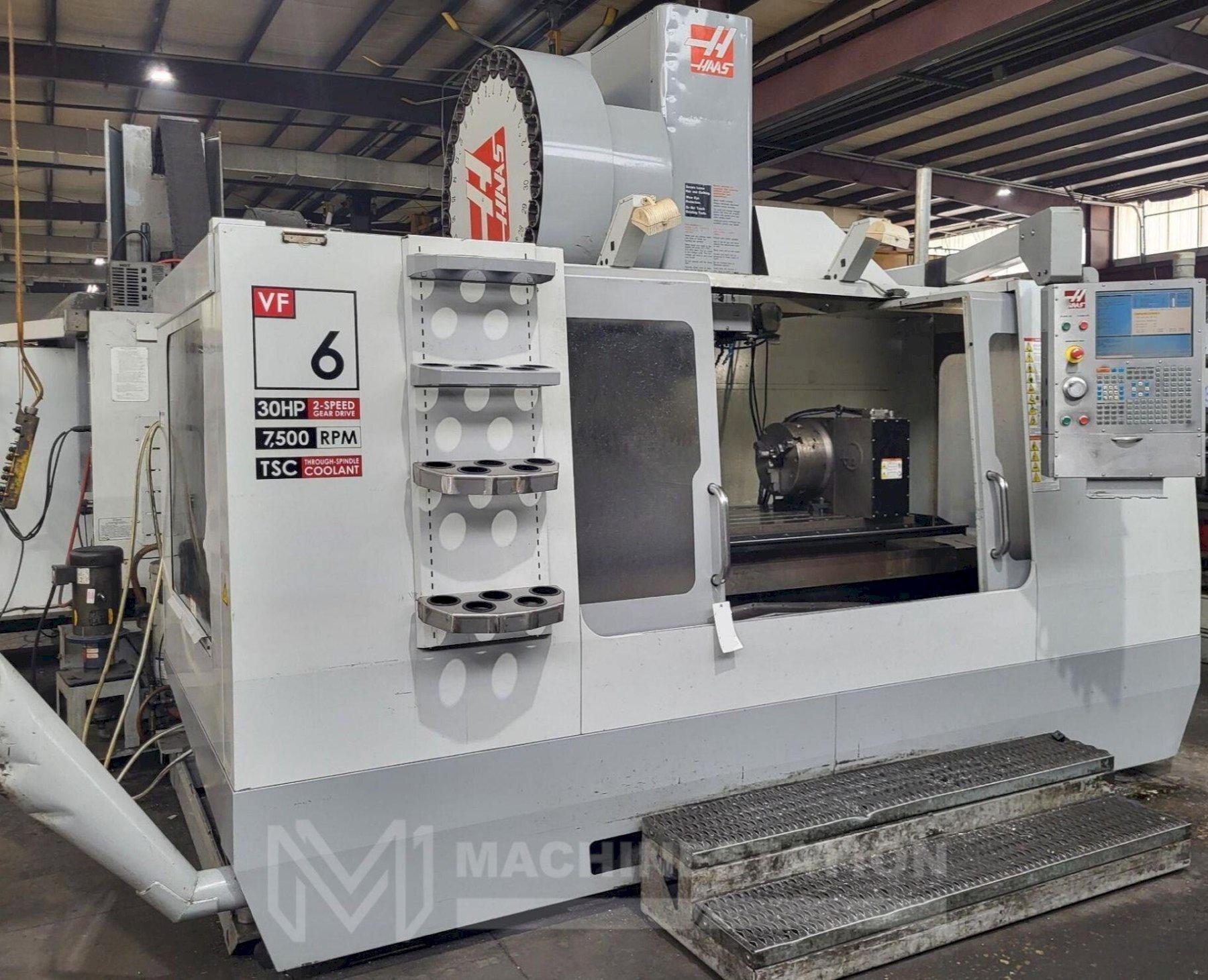

Haas VF-6/50 CNC Vertical Machining Center – 4th Axis Ready 50 Taper Mill

Brand
HAAS
Category
Machining Centers
Type
Machining Centers, Vertical
Model
HAAS VF-6/50
Stock #
112919
Year
2008
Condition
Not specified

Location

California
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:HAAS
Model:VF-6/50
Year:2008
Condition:Used – Good
Features:

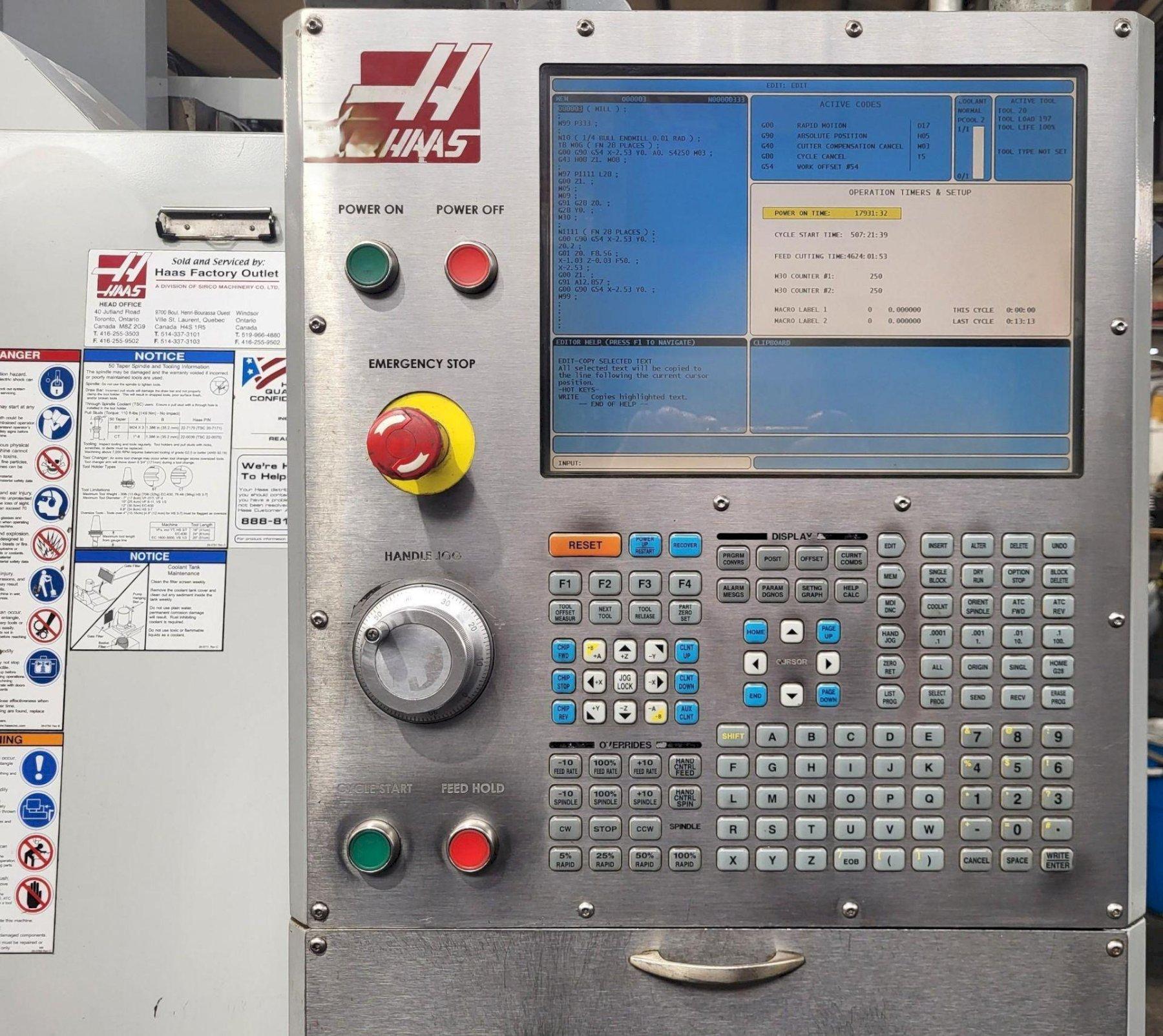

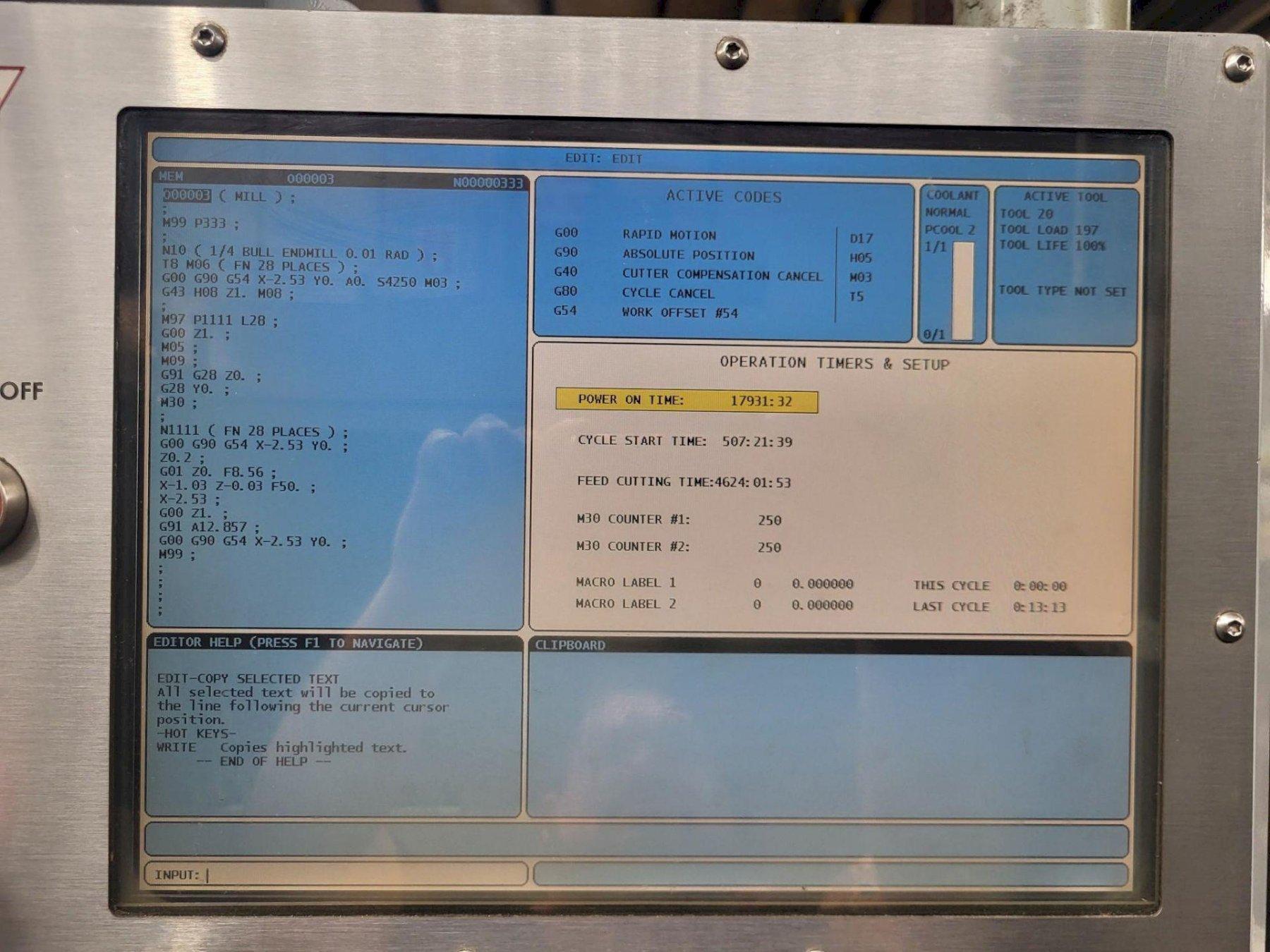

Haas CNC Control
4th Axis Ready

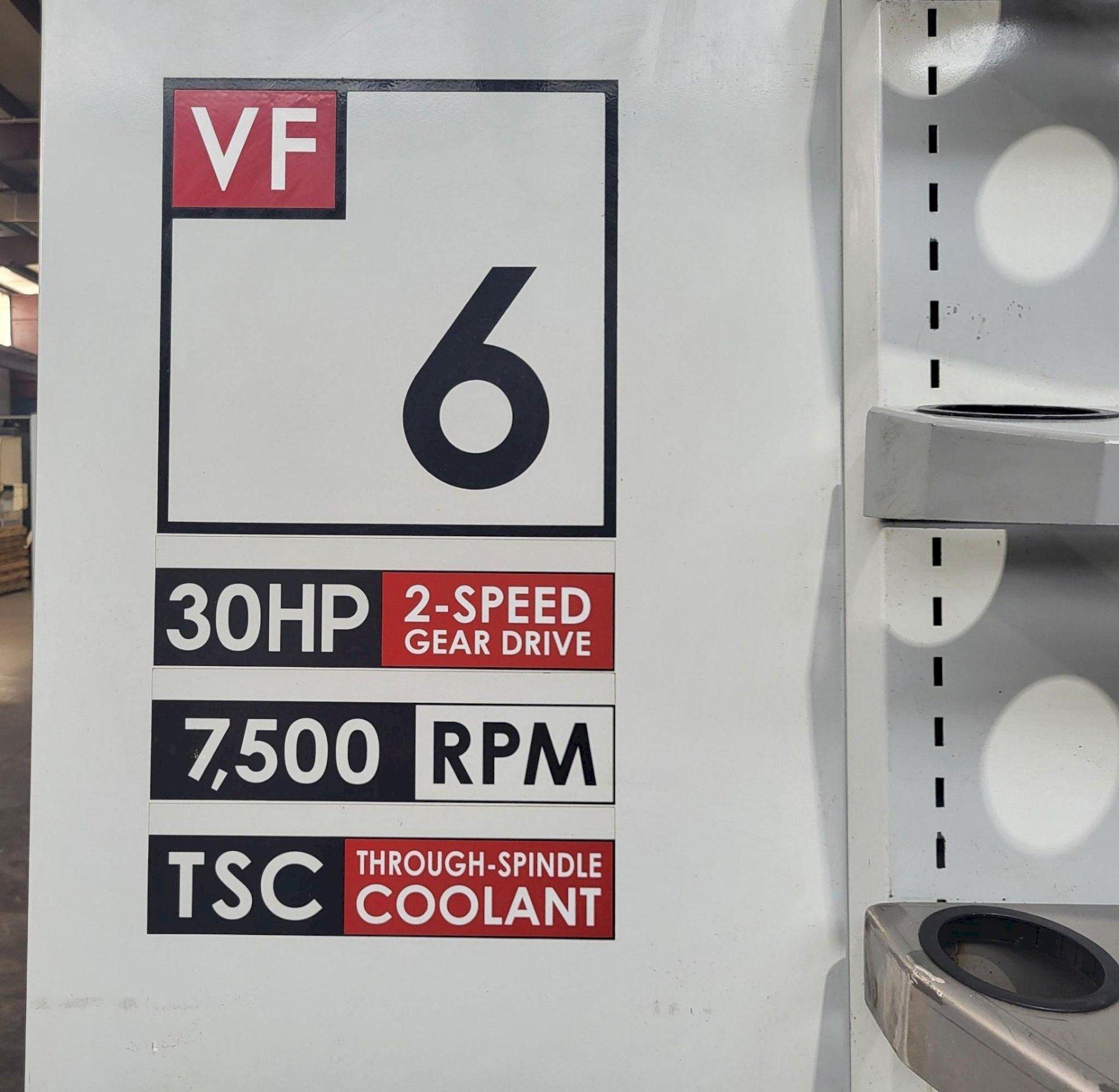

7500 RPM High Torque Spindle
30 HP 2 Speed Gear Drive

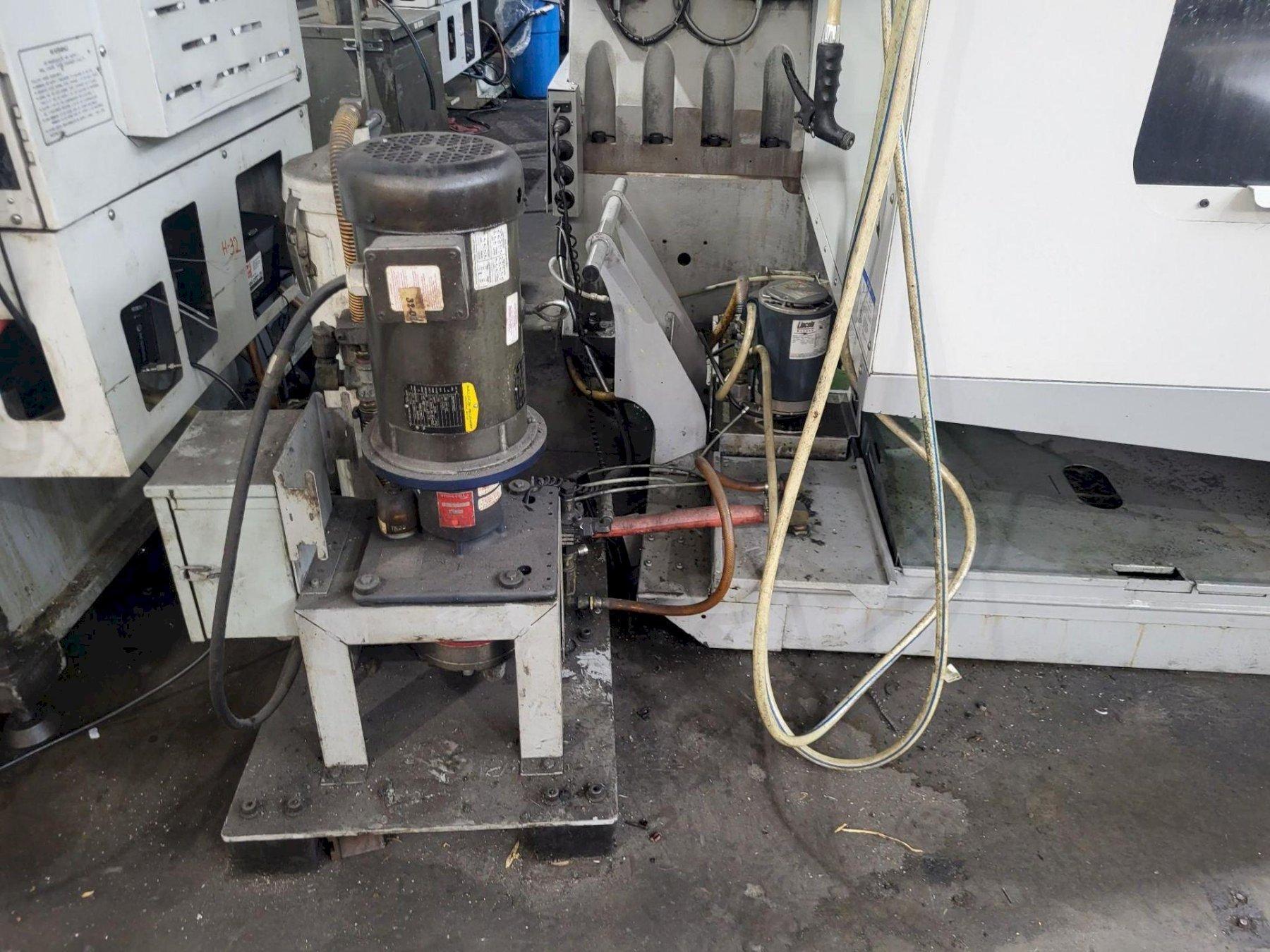

Through Spindle Coolant

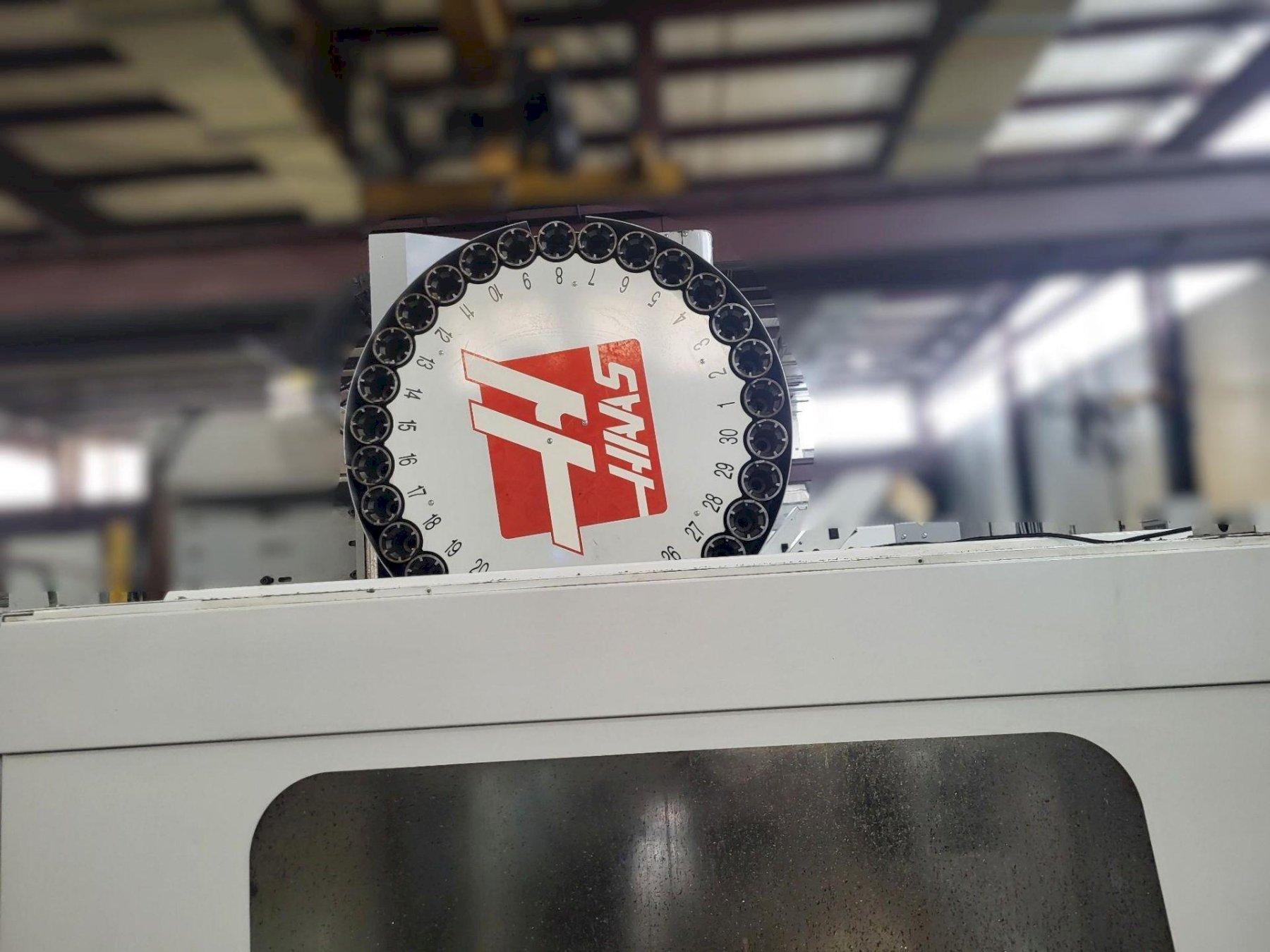

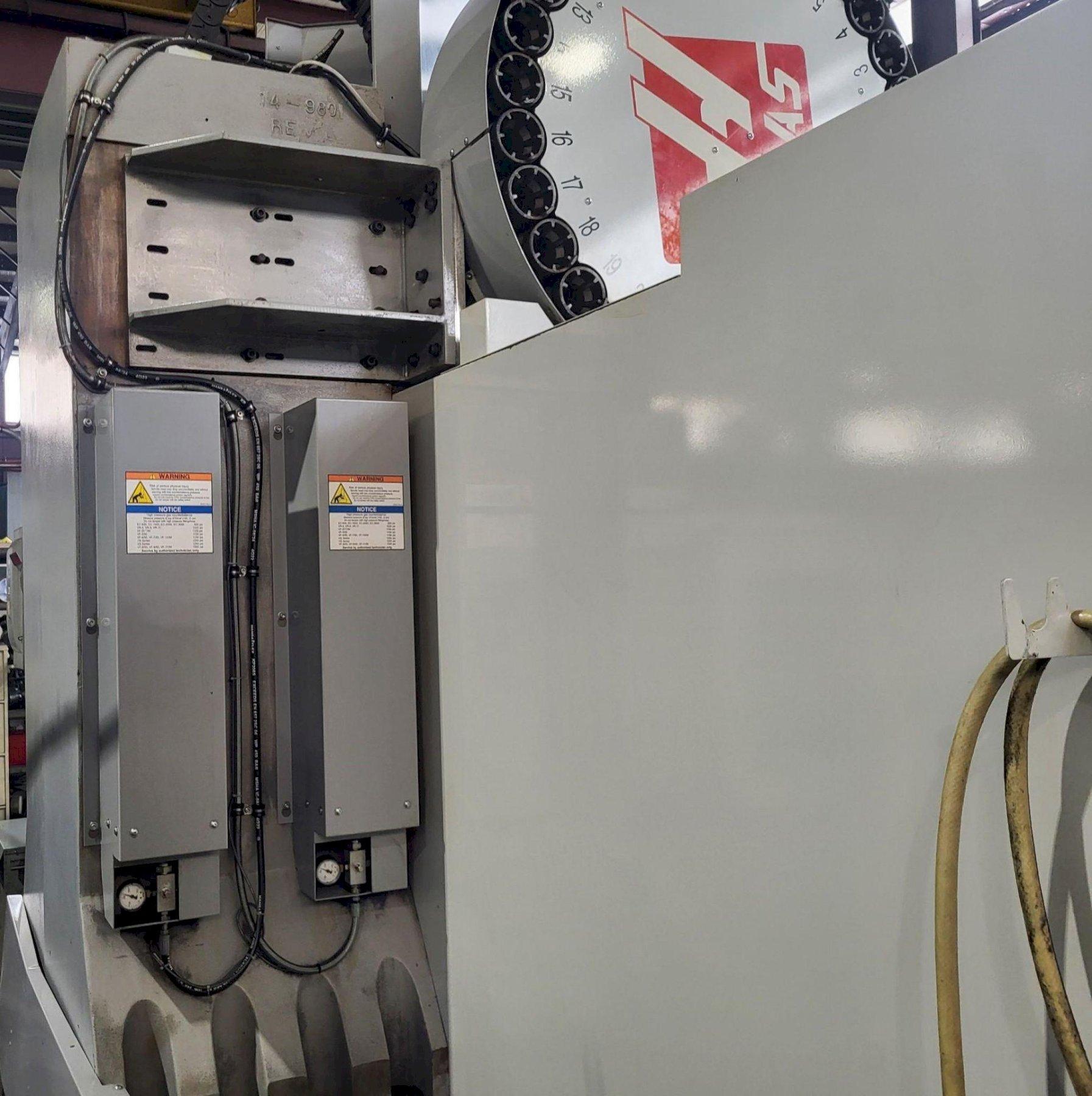

30 Station Automatic Tool Changer
MPG Control
Rigid Tapping
Programmable Coolant

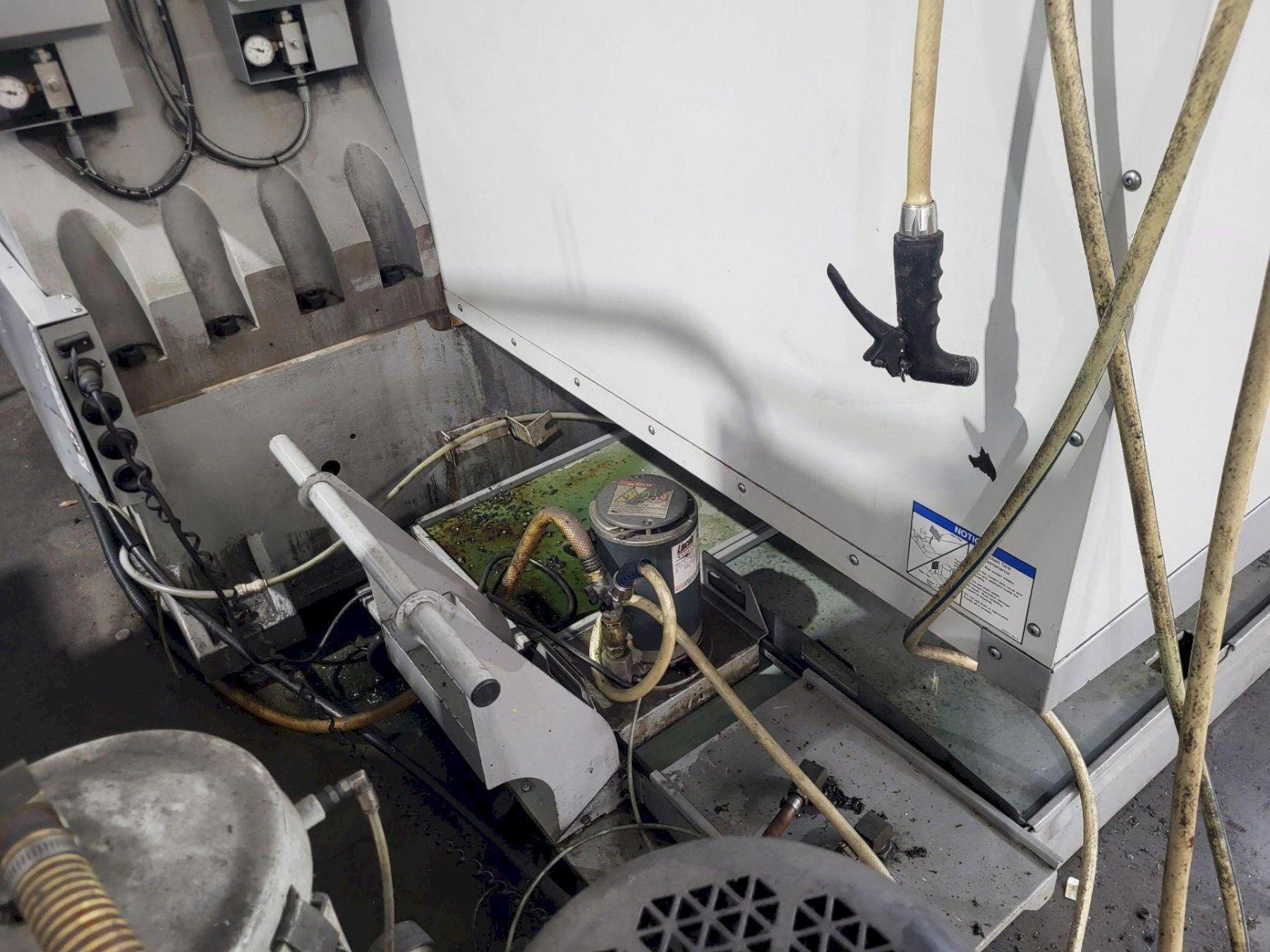

Auxiliary Coolant Filter System
Coolant System
Chip Auger

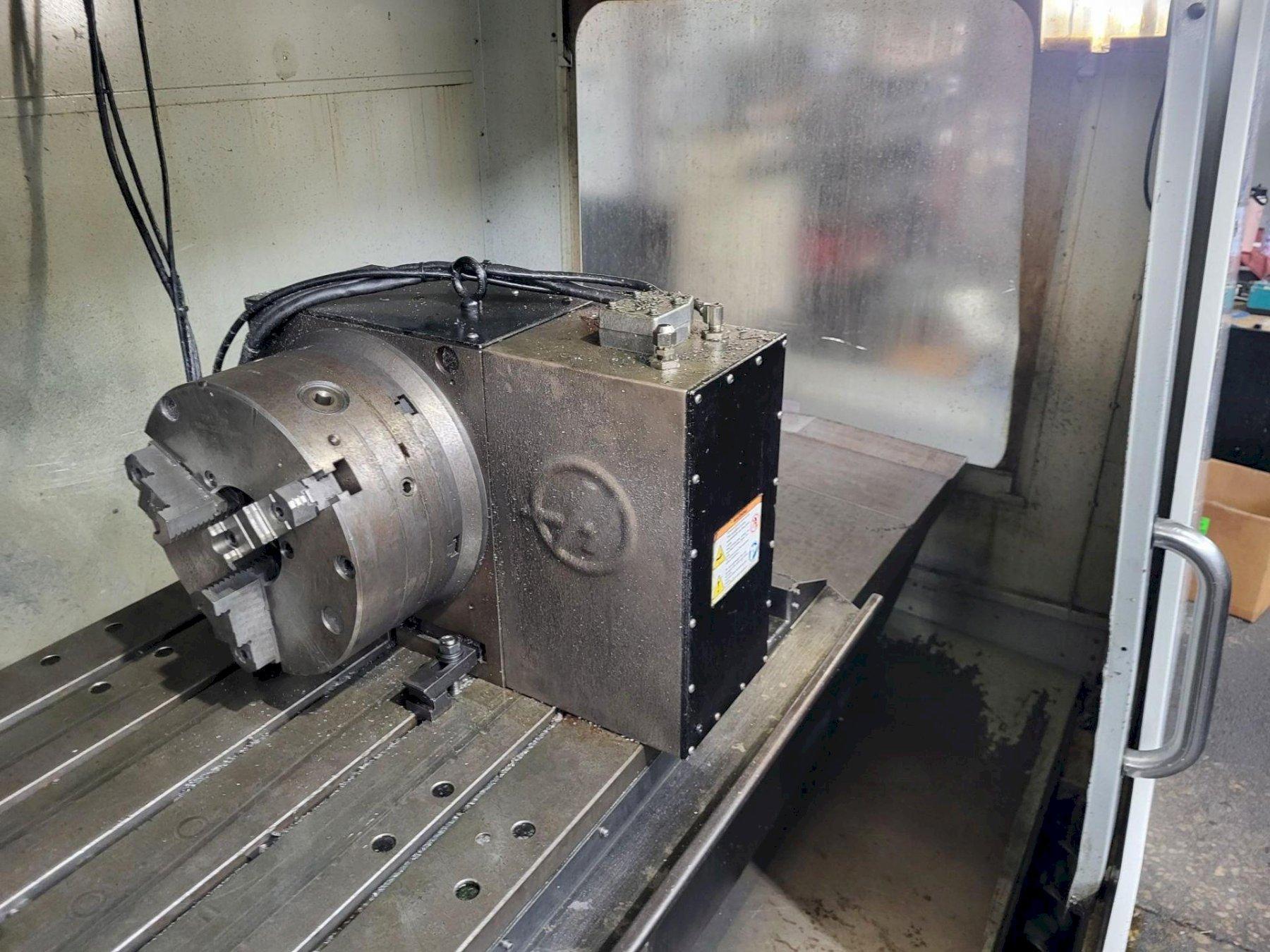

Note: 4th Axis Rotary Table Not Included with the Machine
Travels:
X-Axis: 64″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5″ – 35″

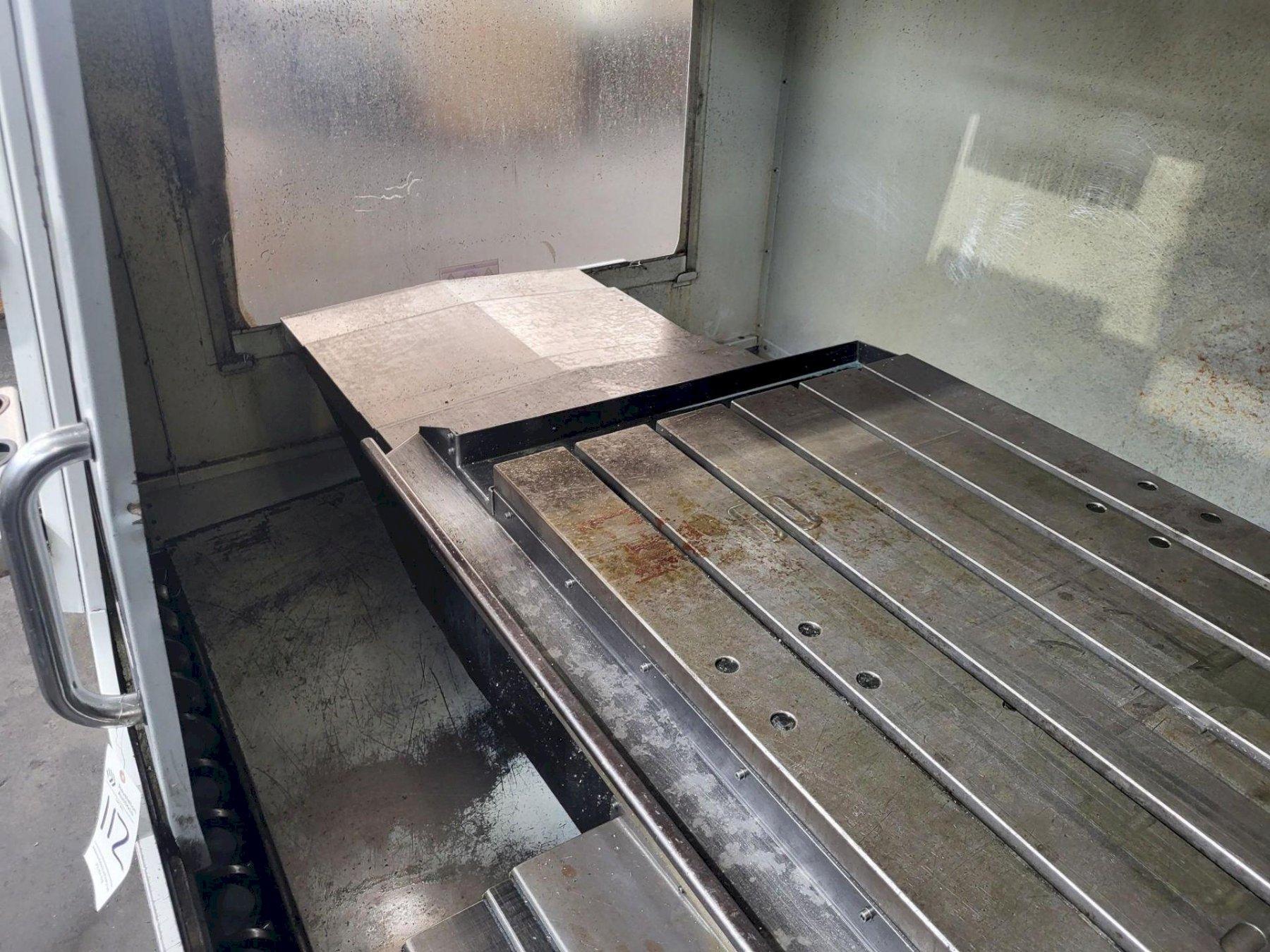

Table:
Length: 64″
Width: 28″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs

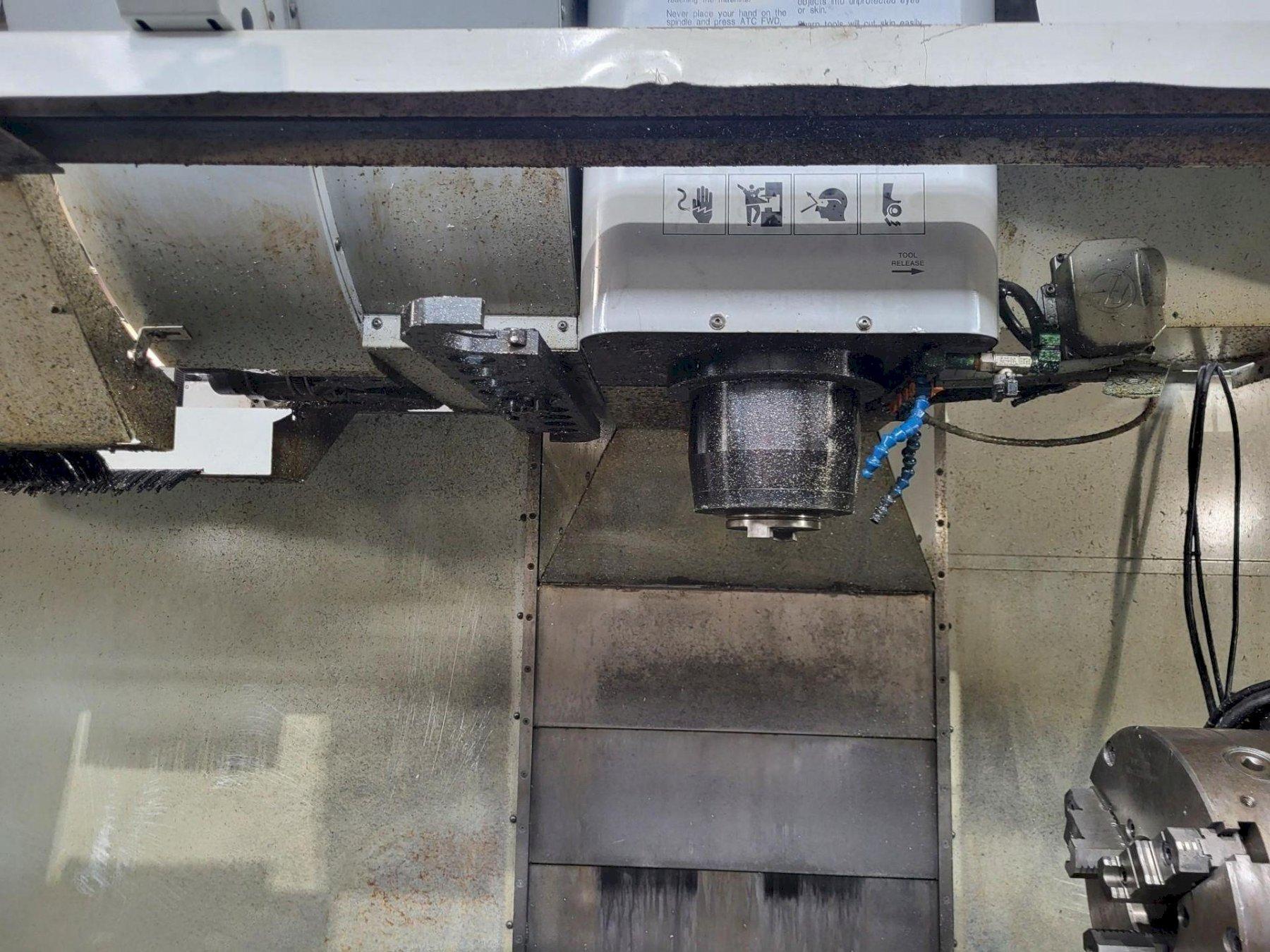

Spindle:
Taper Size: CAT-50
Speed Range: 7500 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 340 ft-lb @ 700 RPM
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 30 lbs
Max Tool Diameter (Full): 4″
Max Tool Diameter (adjacent empty): 10″
Max Tool Length: 16″
Tool Changing Time: 4.2 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 195″ x 102″ x 132″ High Approx.
Weight: 25,500 lbs Approx.
