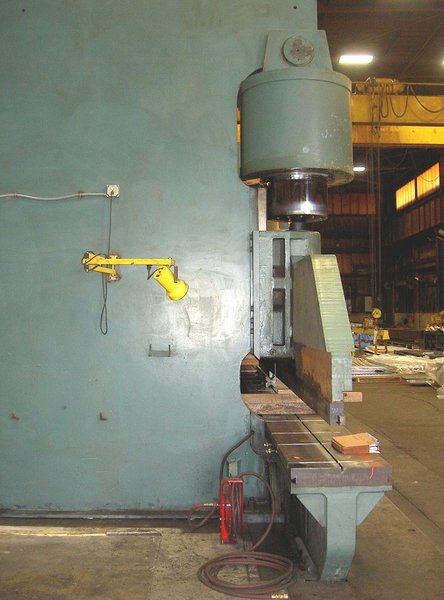

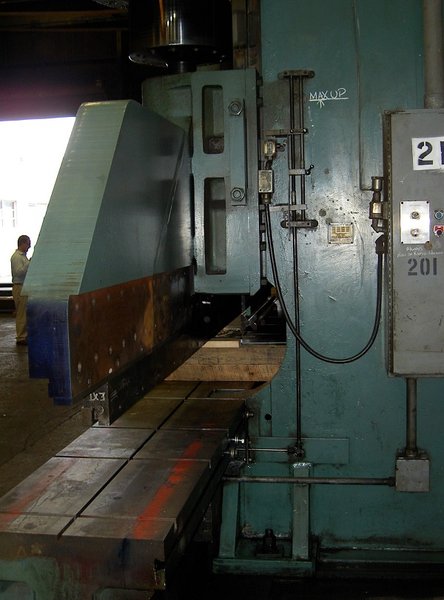

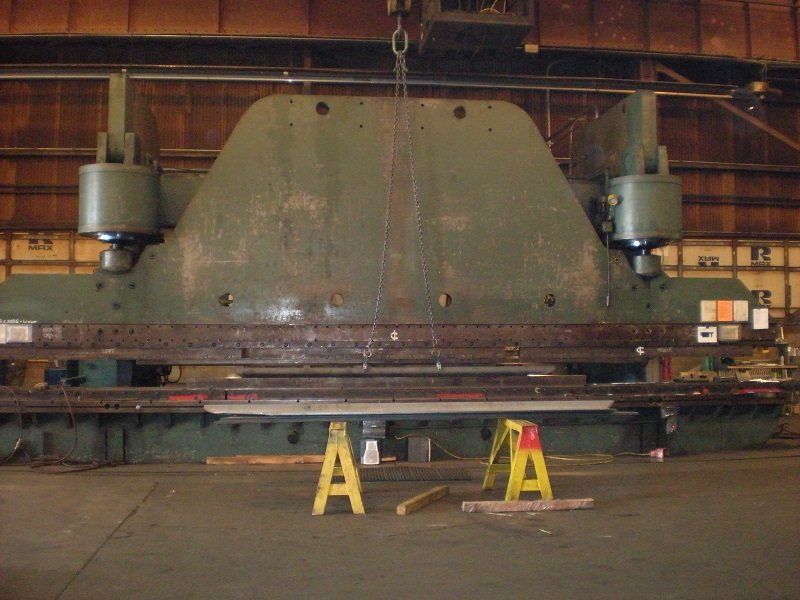

1500 Ton x 36' Cincinnati Hydraulic Press Brake
Brand
Category
Type
Model
1500H-22
Stock #
1501017
Year
1974
Condition
Used
Location
Not specified
|
SPECIFICATIONS:

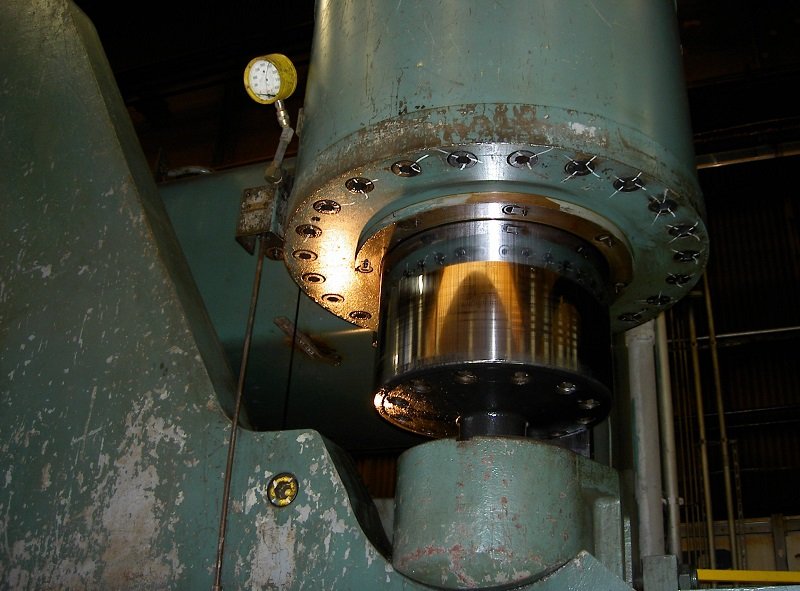

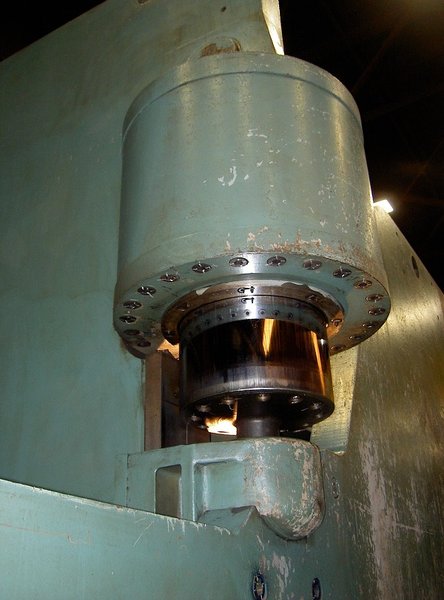

Capacity: 1500 Ton Bed Length: 36' Stroke: 18" Open Height: 24" Distance Between Housing: 22' 5" Bed Width: 24" Throat: 20 1/4" Speeds: 46 IPM Rapid Advance - 25 IPM Fast Press - 10 IPM Full Tonnage Press - 19 IPM Return Speed Originally a 30' bed/ram, Extended to 36' Wight: 325,000 lbs Est Complete w/ 60 Hp 220/440/3/60 Hydraulic pump motor electrical controls WE PURCHASED THE UNIT IN FALL 10-09-09 . THE CYLINDERS ARE IN A TEMPERATURE CONTROLLED ROOM. THE HYDRAULIC SYSTEM HAS BEEN COMPLETELY CLEANED DOWN AND IS COVERED AND STORED UNDER COVER. ALL PARTS FOR RE- ASSEMBLY HAVE BEEN CLEANED AND ARE READY Cylinders done in 1999 PER CUSTOMER ,THEY WERE IN GREAT SHAPE ON MY SITE VISIT |
