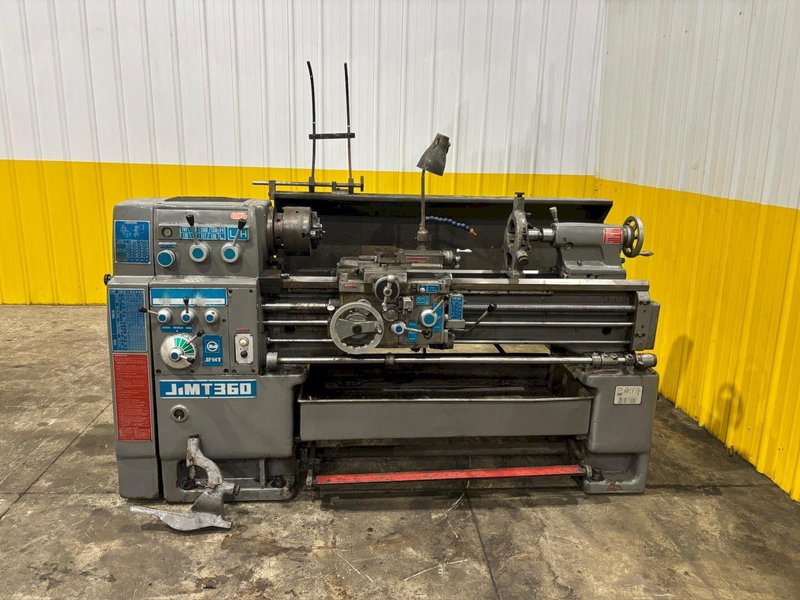

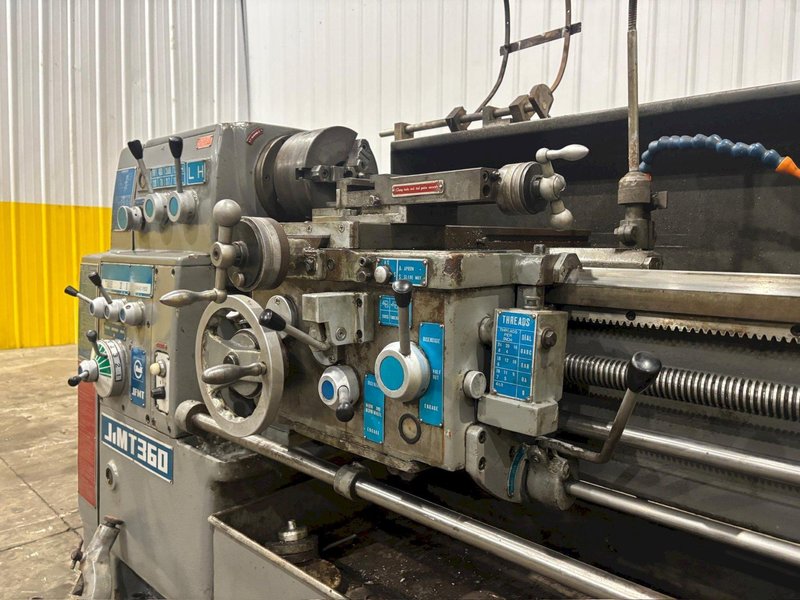

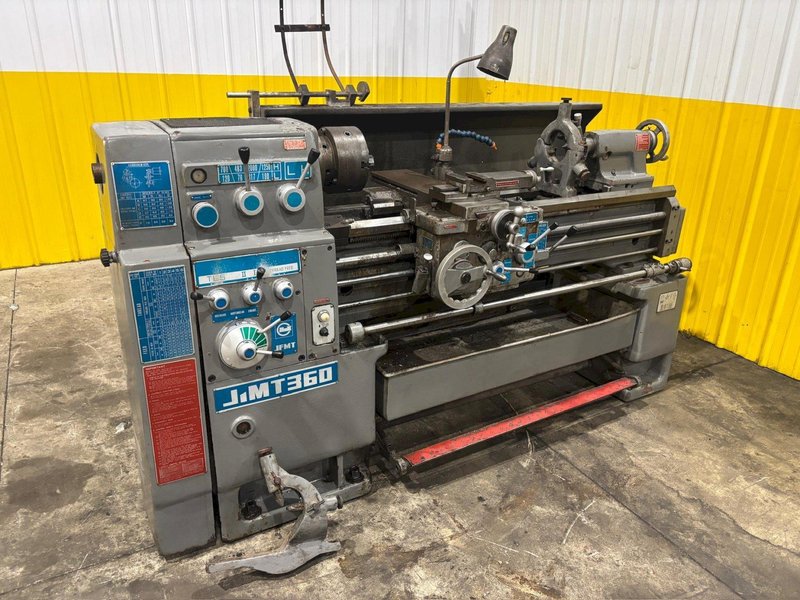

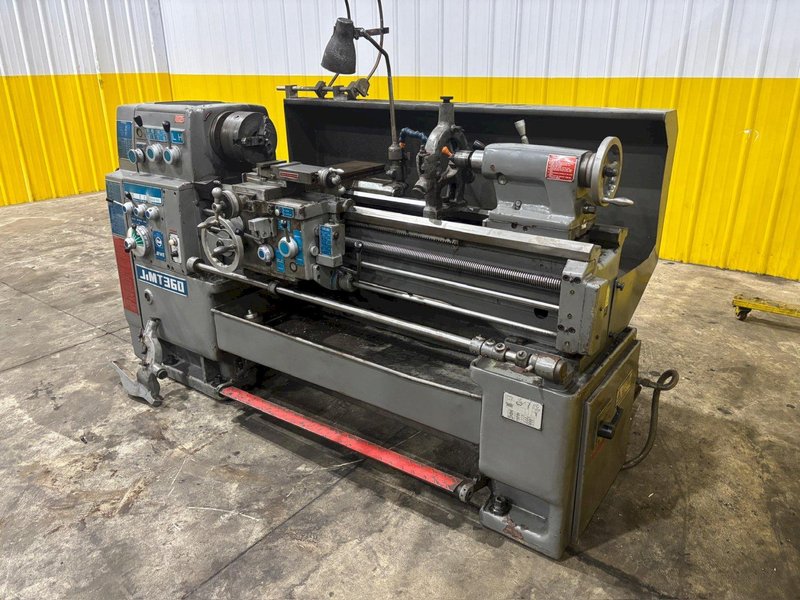

14" X 40" JIMT 360X1000 GAP BED GEARED HEAD ENGINE LATHE 1.5" HOLE: YOBRO #24325

14" X 40" JIMT 360X1000 GAP BED GEARED HEAD ENGINE LATHE 1.5" HOLE: YOBRO #24325

Name: Used JMT 360X1000 For Sale 24325
Brand: JMT
SKU: 24325
Price: 4750.00 USD
Availability: InStock

Brand

JMT

Location

Ohio

Price

$4,750.00

REQUEST FINANCING

Specifications
Files & Videos

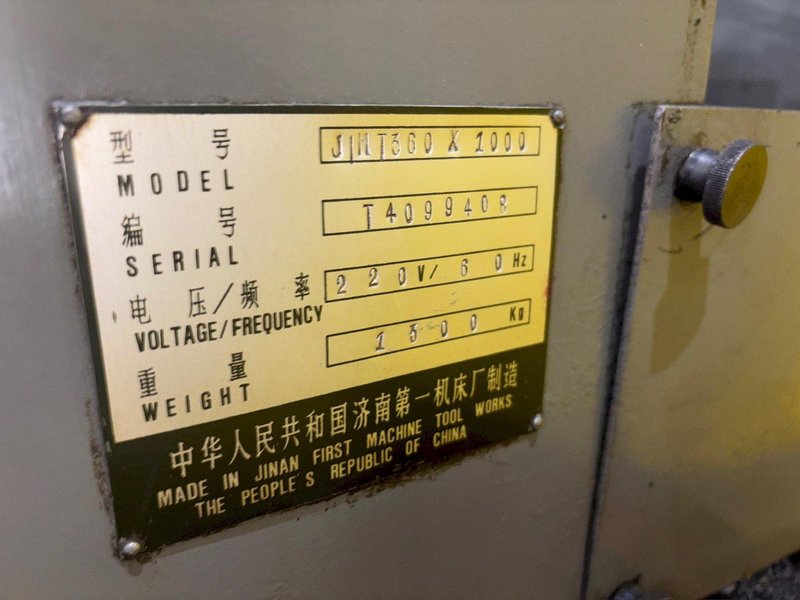

SERIAL T4099408

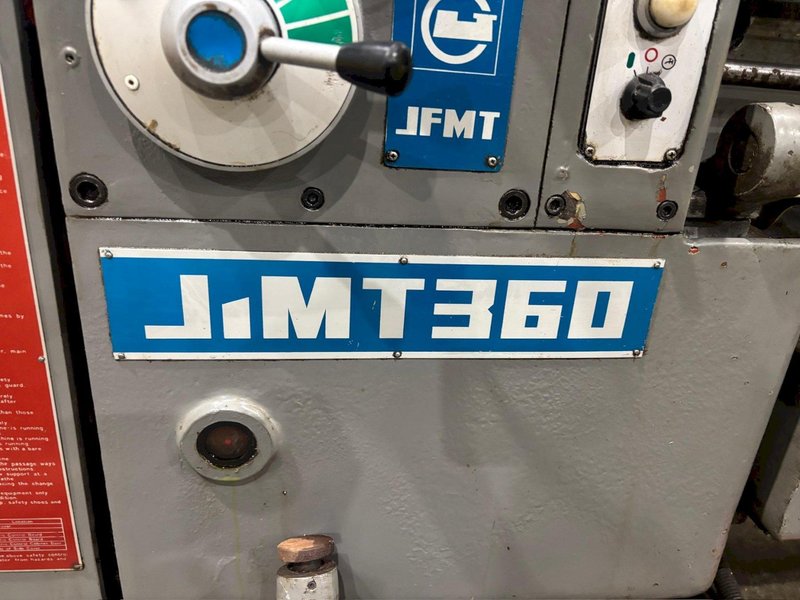

MODEL JIMT360X1000

Swing over bedways 14.17" (360 mm)

Swing over cross slide 7.87" (200 mm)

Distance between centers 39.37" (1000 mm)
Spindle Hole 1.57"

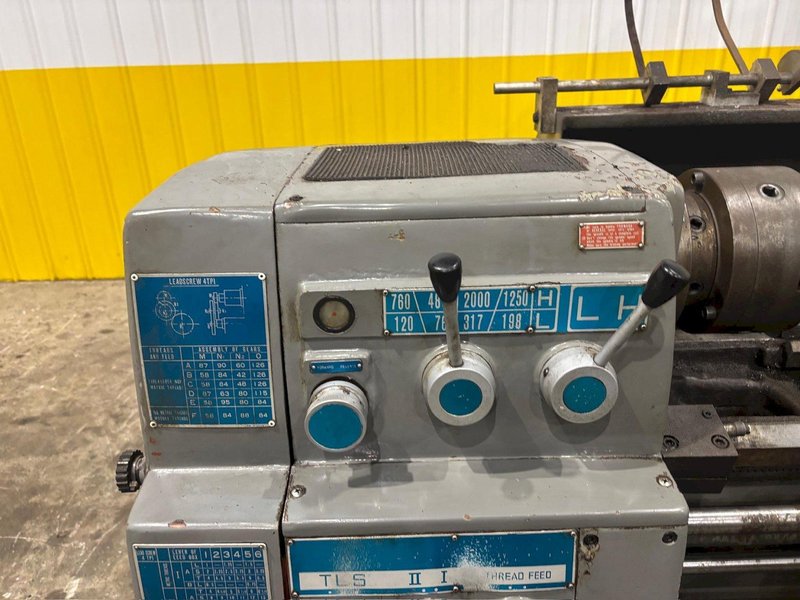

Spindle speeds 76 TO 2000 RPM

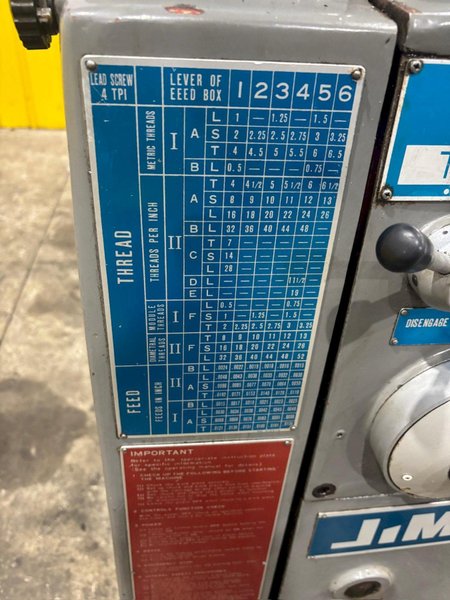

Feeds (56) 0.0015 TO 0.196

Inch threads (#) (28) 4 TO 24

Metric threads (#) (16) 0.5 TO 6.5

Module Threads (#) (11) 0.5 TO 3.25

Diametral threads (#) (18) 8 TO 52

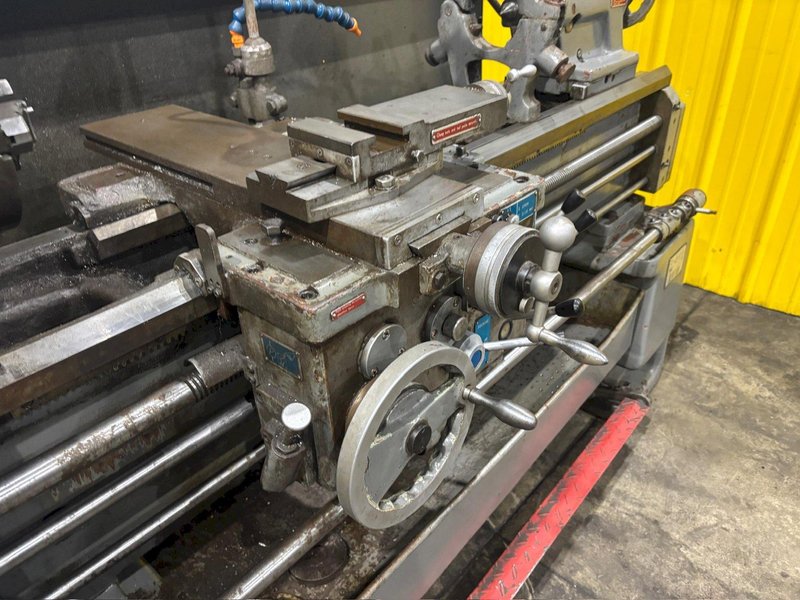

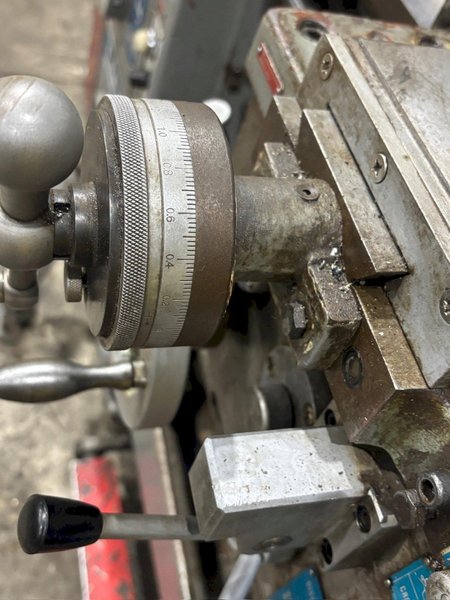

Cross slide travel 10-3/4"

Compound slide travel 4-1/8"

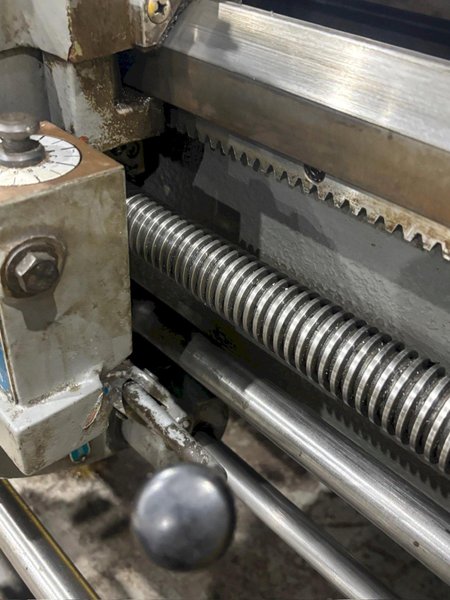

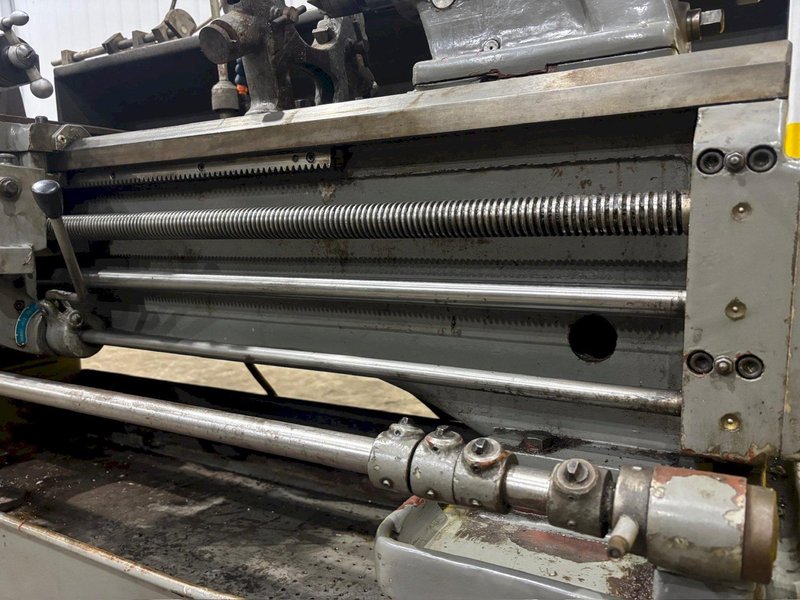

Leadscrew diameter 1-1/2"

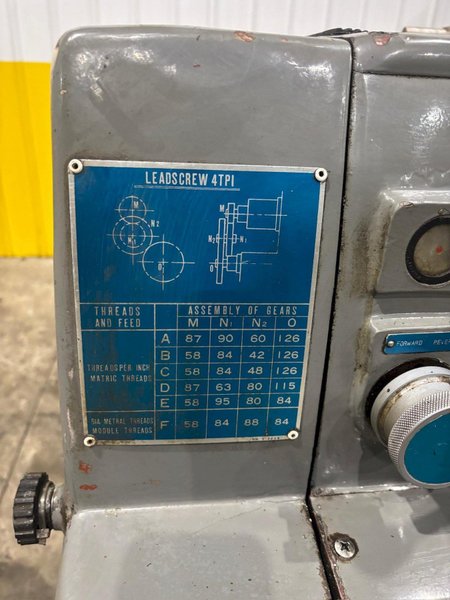

Leadscrew pitch 4 TPI

Bed width 11-3/4"

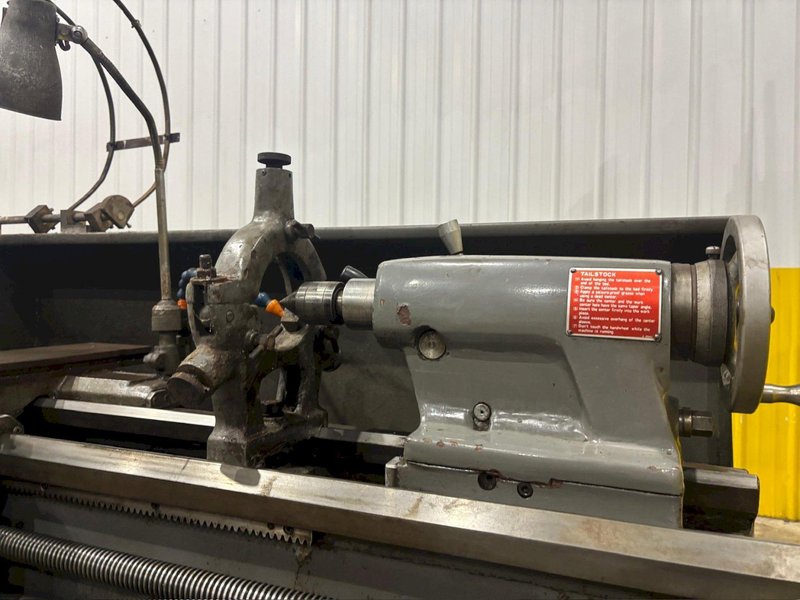

Tailstock quill diameter 2-1/4'

Tailstock quill travel 5"

Motor 5.4 HP (4 KW)

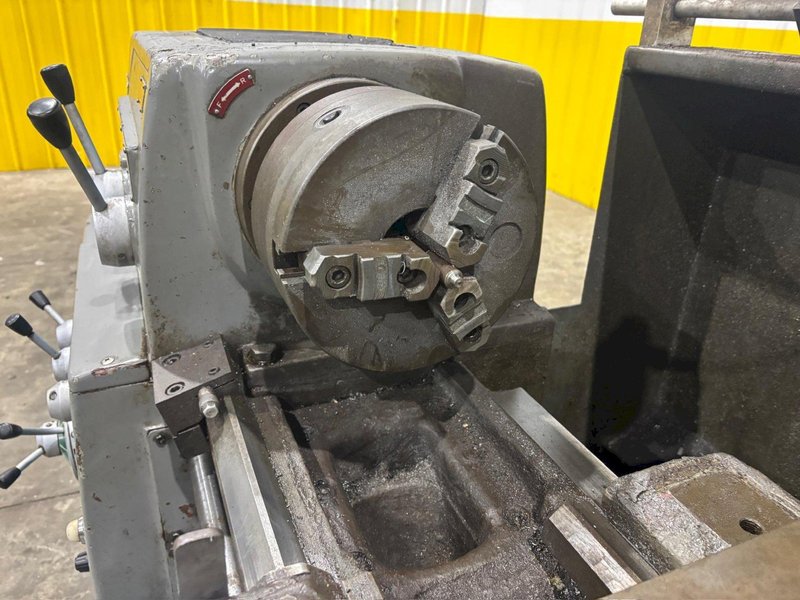

3 JAW CHUCK

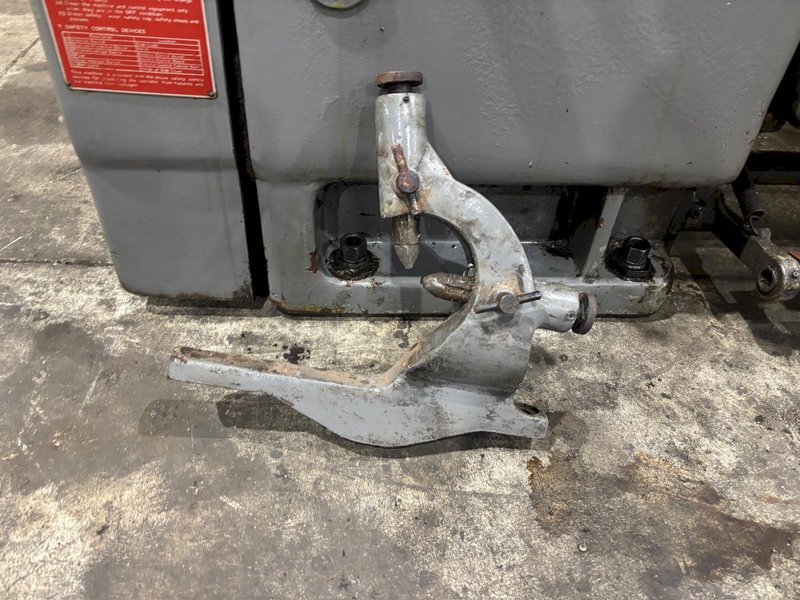

FOLLOW REST
STEADY REST
FOOT BRAKE

91" x 42" x 65" high x 3,528 lbs (1600 kg)

Watch 14" X 40" JIMT 360X1000 GAP BED GEARED HEAD ENGINE LATHE 1.5" HOLE: YOBRO #24325
