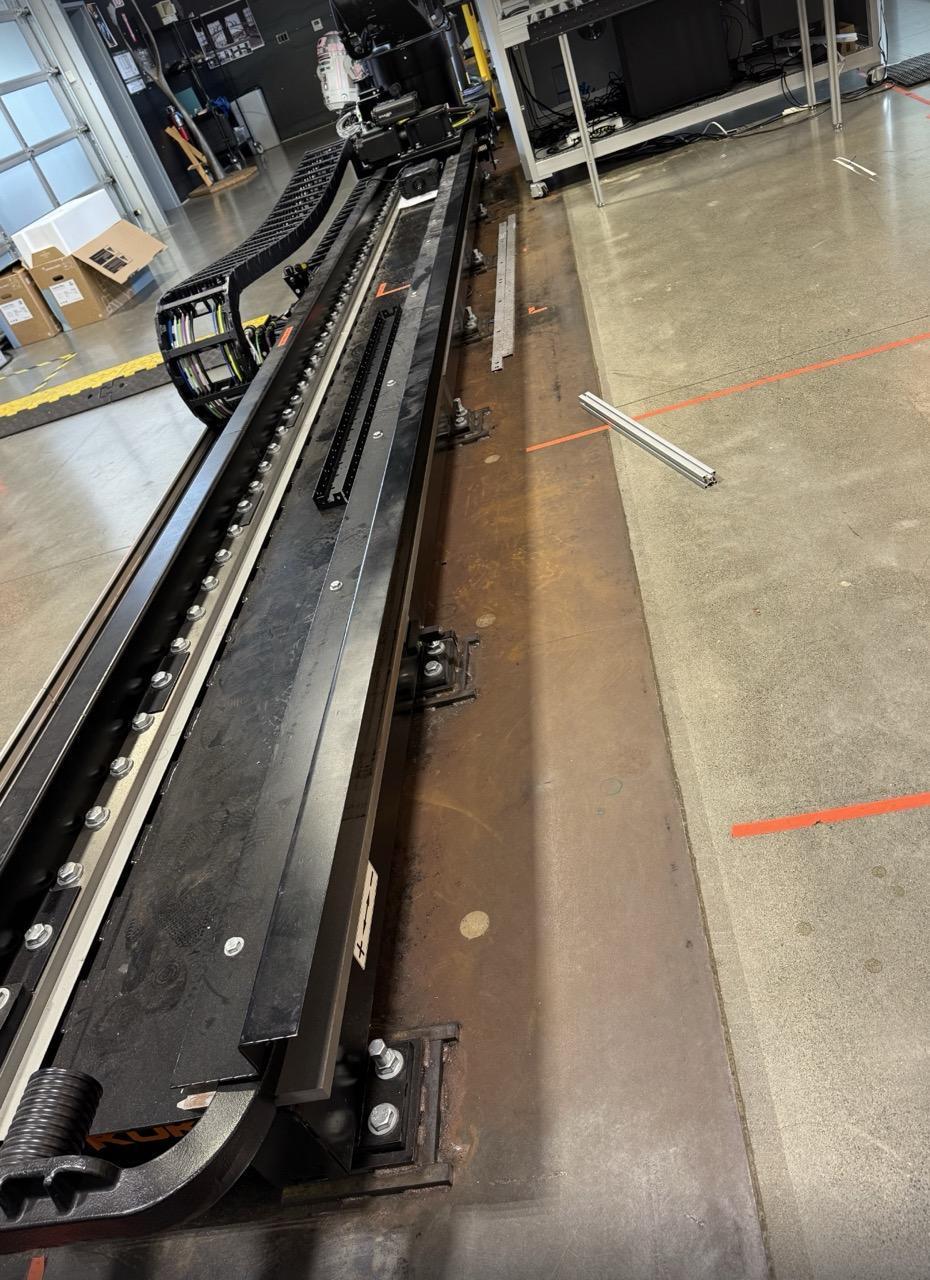

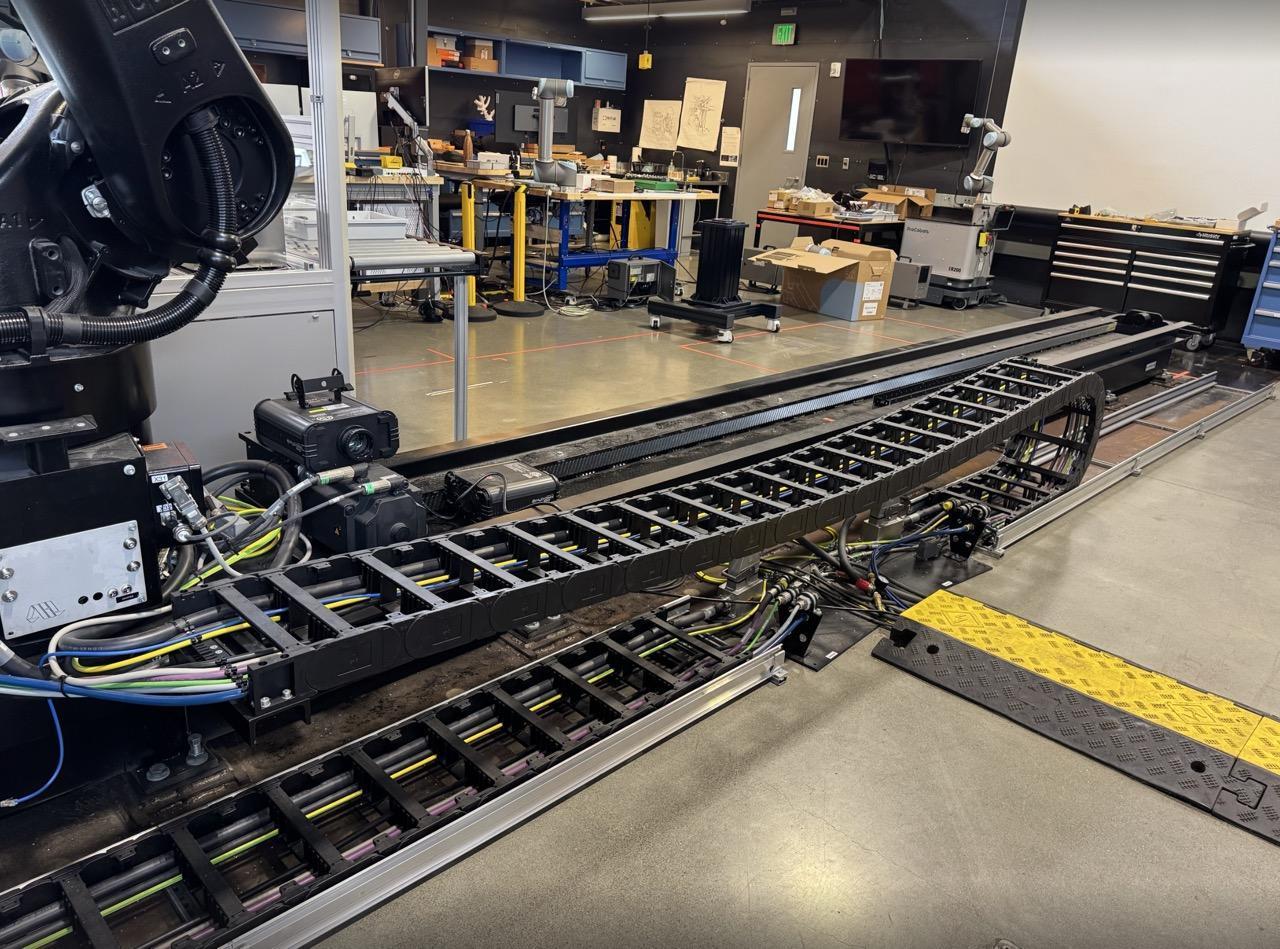

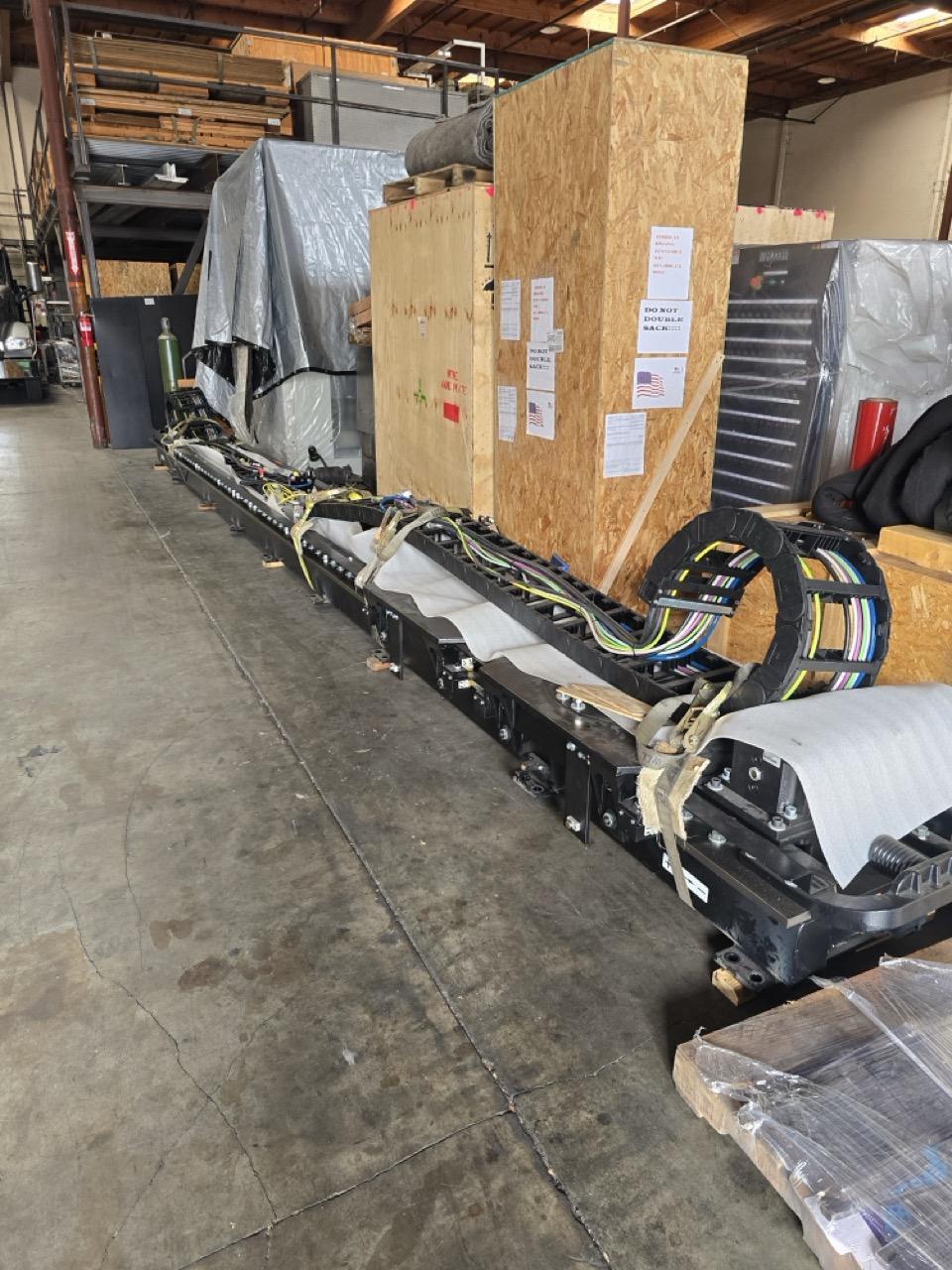

KUKA KL1000/2 Linear Track – 30 Foot

Model: KL1000/2

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Track Length: 30 feet (9,144 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Payload (robot tool): Up to 1,000 kg (typically designed for KUKA robots like KR1000 Titan, large payload/heavy process robots)​

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Number of Robots/Carriages: 2 (can run 2 robots along one axis for extended automation)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Rated Travel: ~30,000 mm (29.9 m is max spec; your unit is full-length)

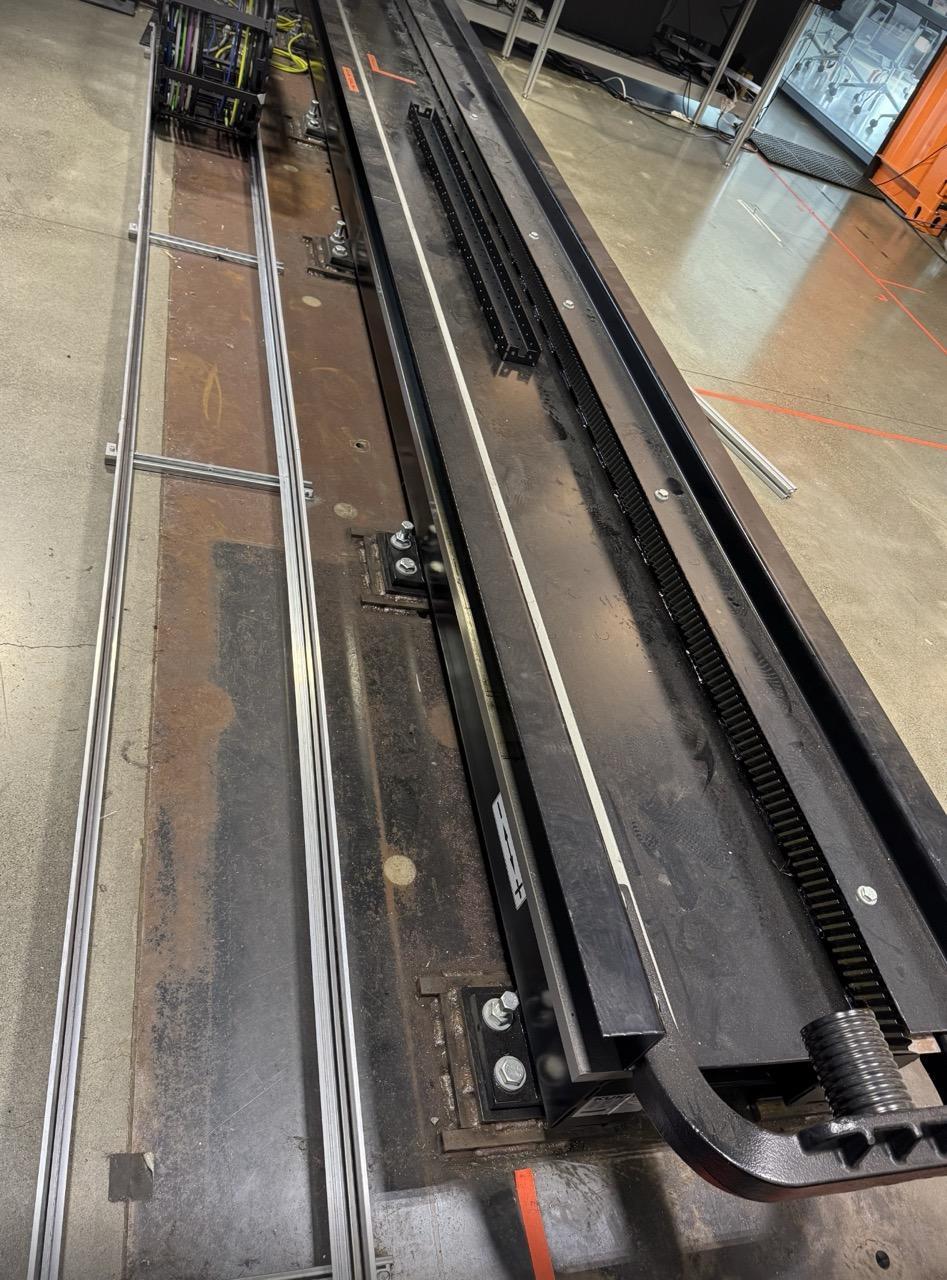

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Speed (with rated payload): Up to 1.96 m/s (rack and pinion drive)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Repeatability: ±0.02 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type: Floor-mounted, enclosed track

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mass (weight):

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Beam: Approx. 240 kg/meter (track alone = 2,160 kg / 4,760 lbs for 9m length)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Carriage: ~350 kg/770 lbs per carriage (robot not included)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Total system with drives: typically 5,500–7,000 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controller compatibility: KUKA KR C4 (standard), operated via KUKA smartPAD Teach Pendant​

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating temperature: +10° to +55°C
