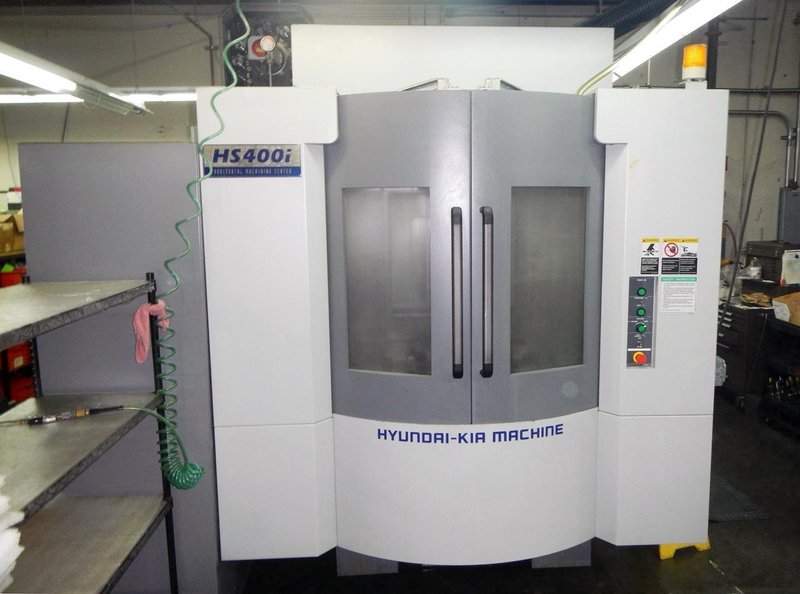

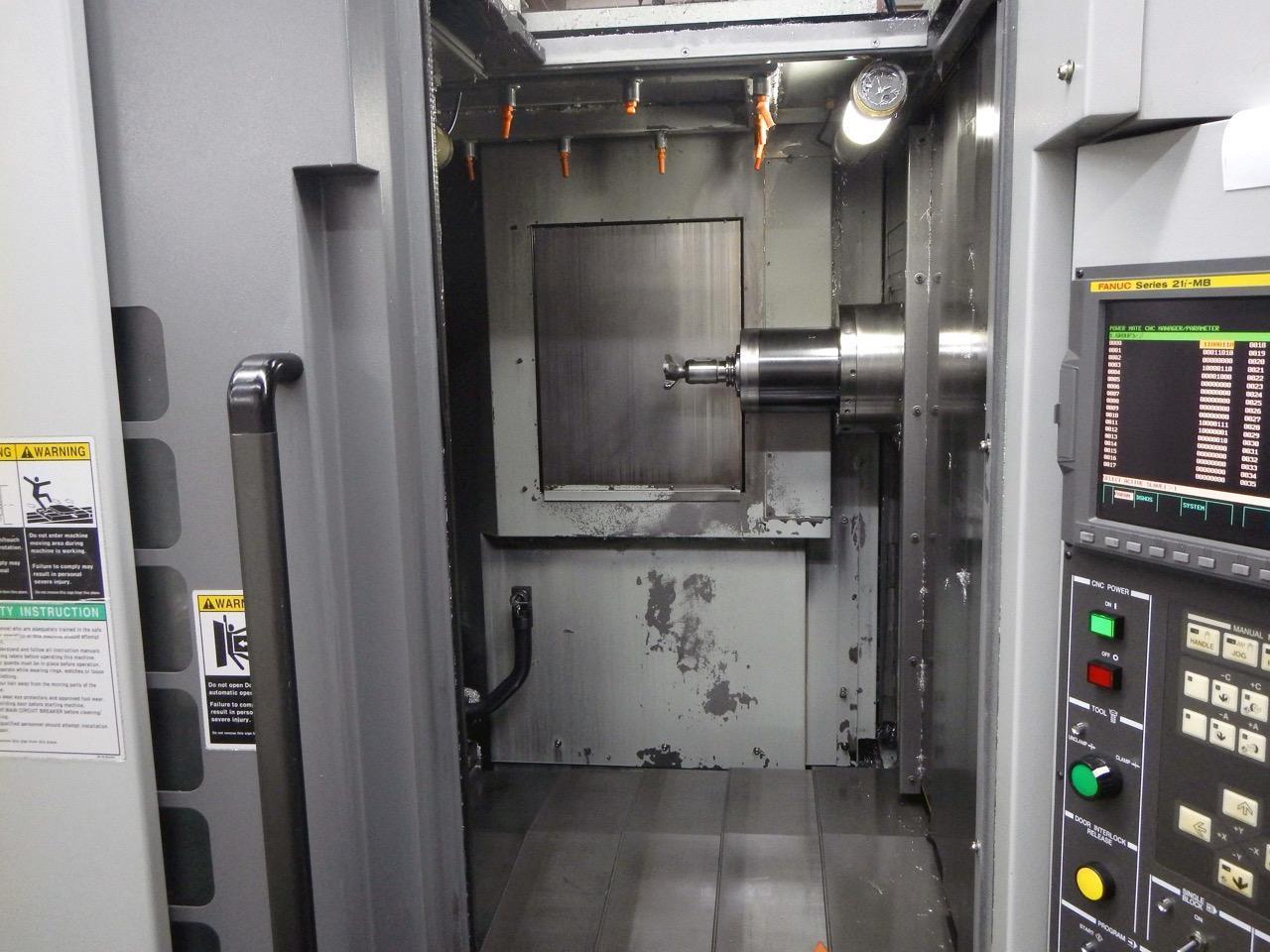

Hyundai Kia HS400i HMC, 2010 – 12K Spindle, TSC, Fanuc, 400mm Pallets, 60 ATC

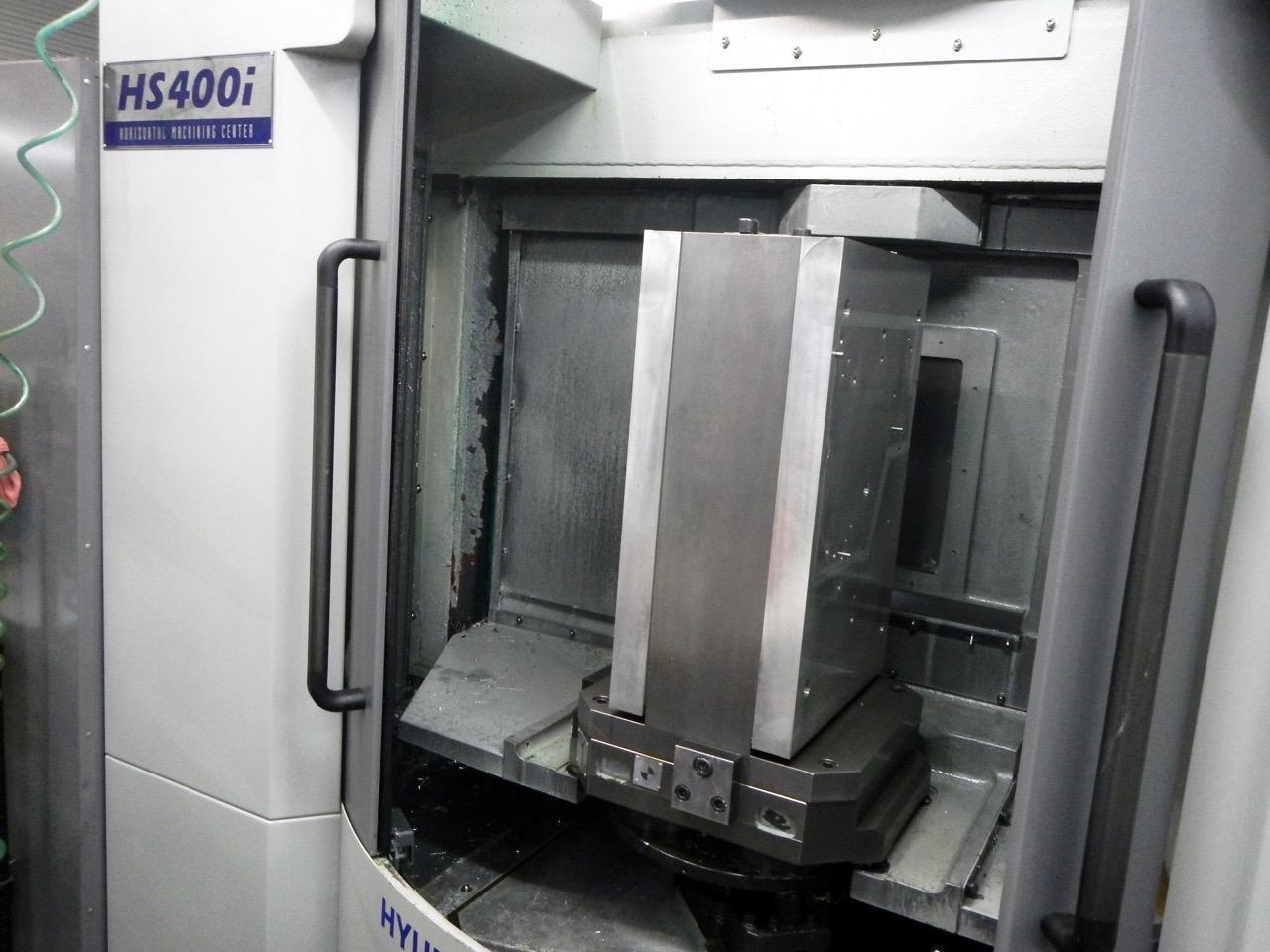

Pallet Size: 15.75″ x 15.75″ (400 mm) X-Axis Travel: 25.2″ Y-Axis Travel: 22″ Z-Axis Travel: 25.6″ B-Axis: 1° Indexing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Speed: 12,000 RPM Spindle Power: 33.5 HP Spindle Taper: CAT 40 Automatic Tool Changer: 60 Positions Automatic Pallet Changer: 2 Positions

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Traverse (X/Y/Z): 1,969 in/min Max Workpiece Diameter: 25.6″ Max Workpiece Height: 25.6″ Max Pallet Load: 1,102 lbs

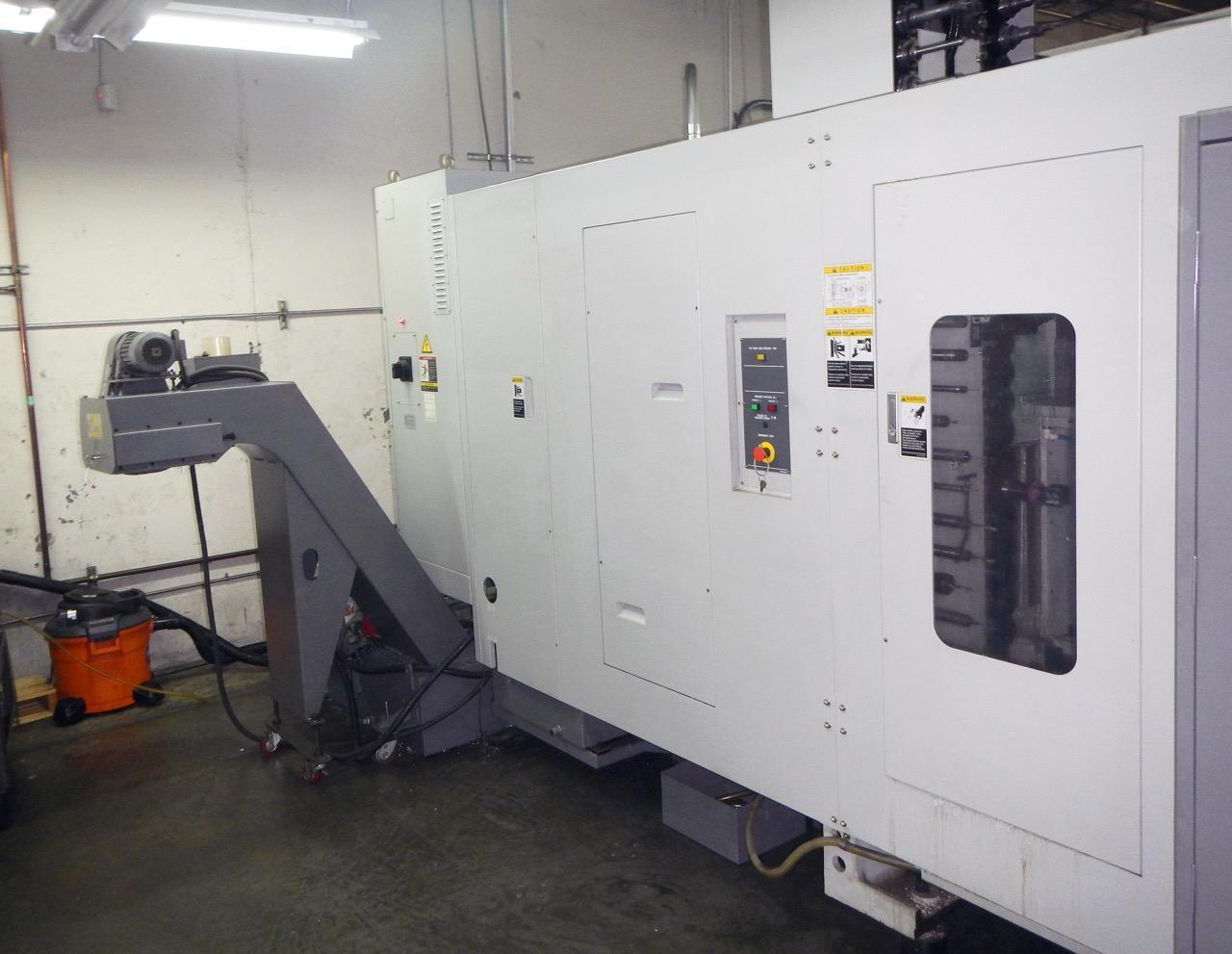

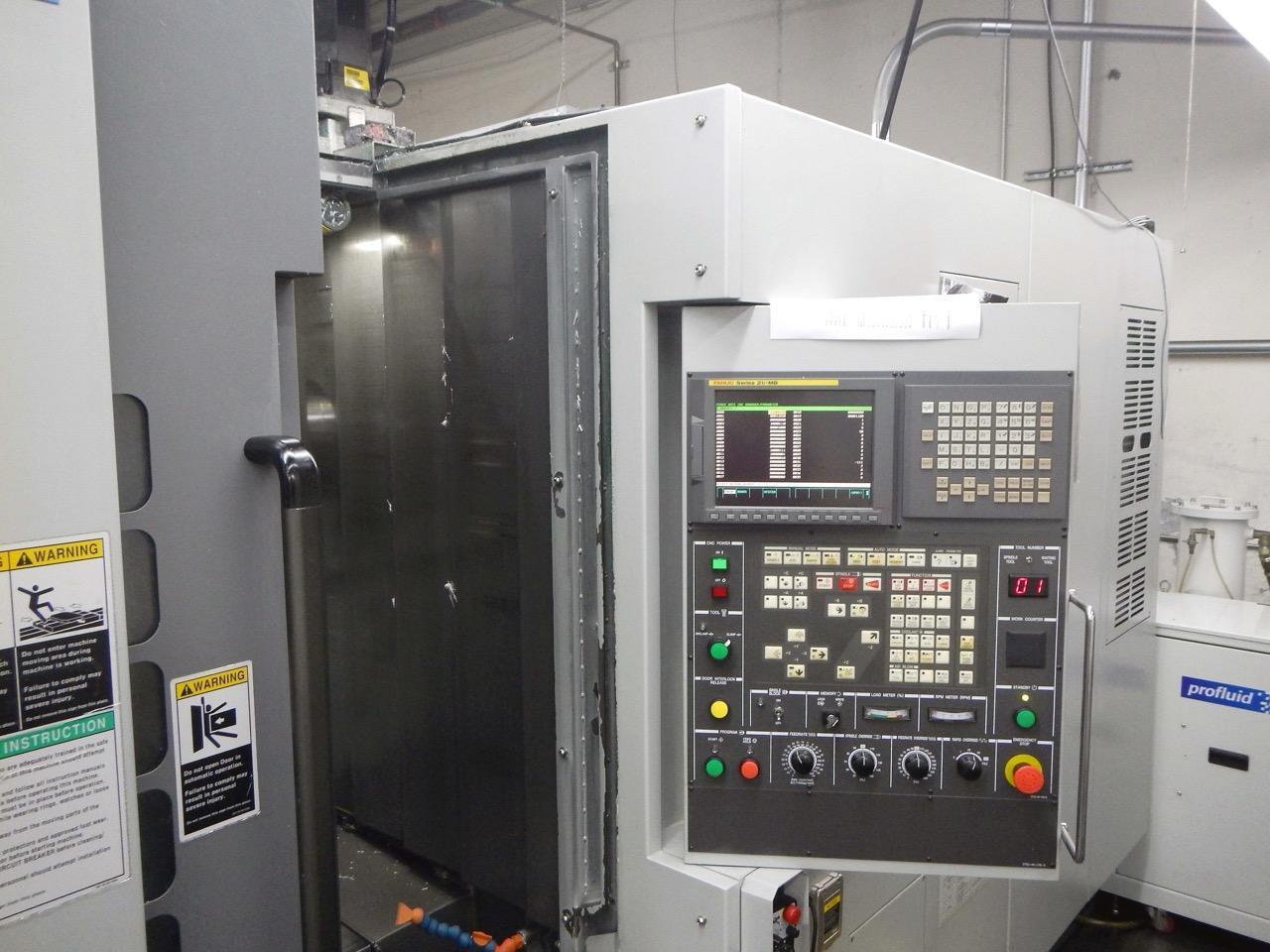

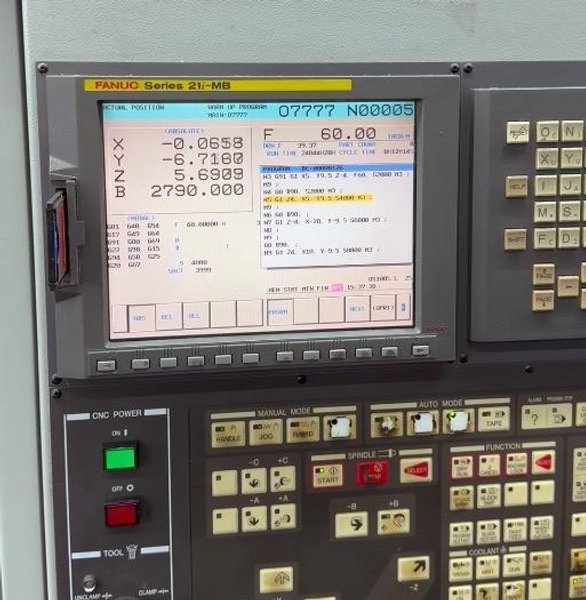

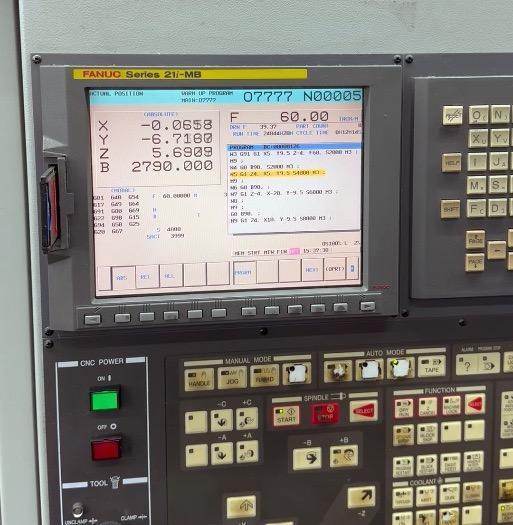

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Fanuc Series 21i-MB CNC Control Through Spindle Coolant Rigid Tapping Custom Macro B & Variables (200 each) 33.5 HP Direct Drive Spindle 60 Position Tool Changer Extended Memory Chip Conveyor 2x Pallets

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle rebuild in 2022
