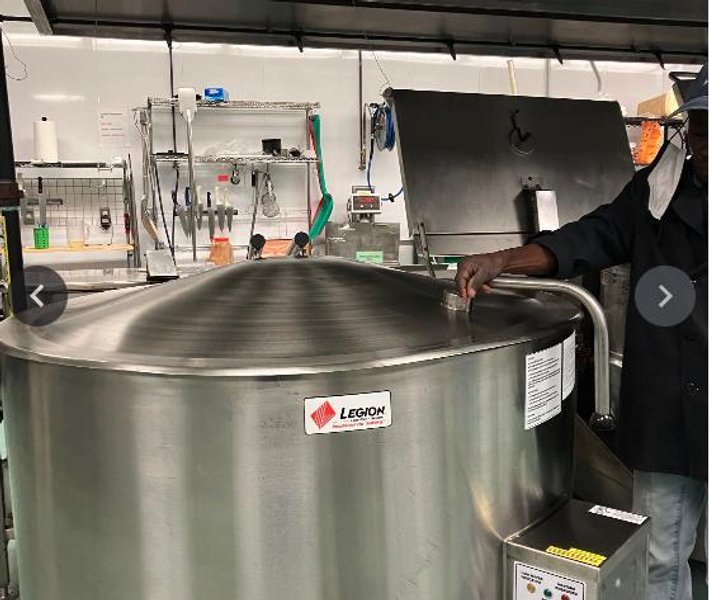

Legion 100 Gallon Self-Contained, Low-Profile, Jacketed Steam Kettle

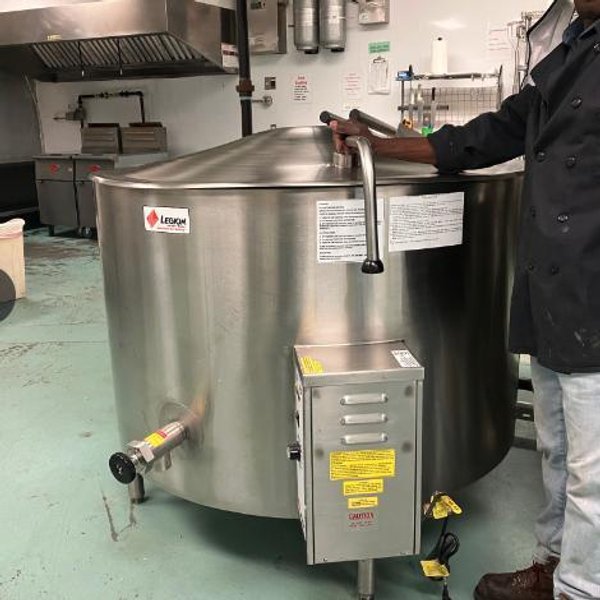

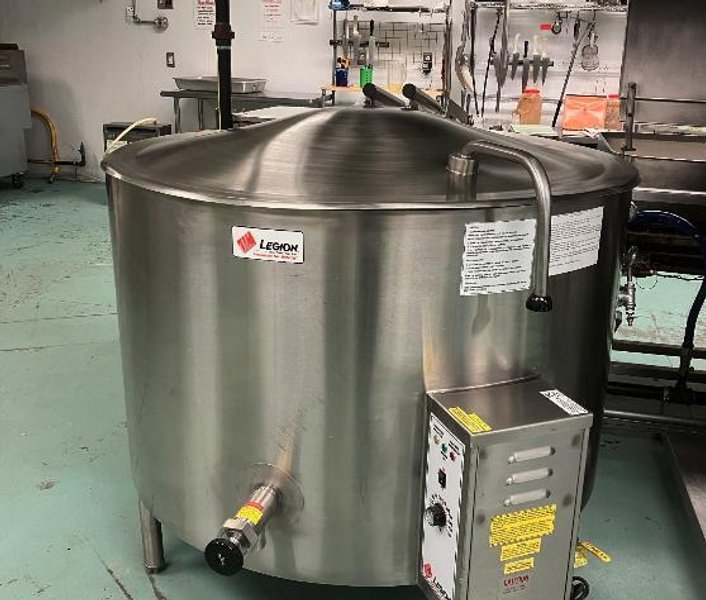

Equipment Overview This unit is a Legion LGB‑100F 100-gallon, low-rim, self-contained gas-fired steam kettle with a fully jacketed 304 stainless liner, insulating jacket, actuator-assisted domed cover, and a 2″ stainless draw-off valve. Its 154,800 BTU input (nat gas) drives rapid, even heating with thermostat control between 150–260°F, making it suitable for high-volume institutional cooking. The robust build and full stainless construction enable long service life.

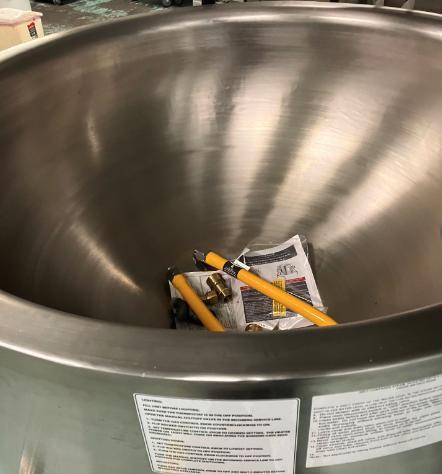

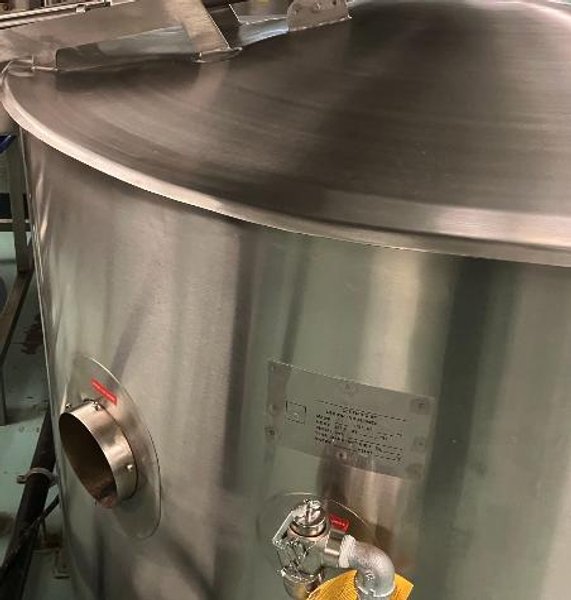

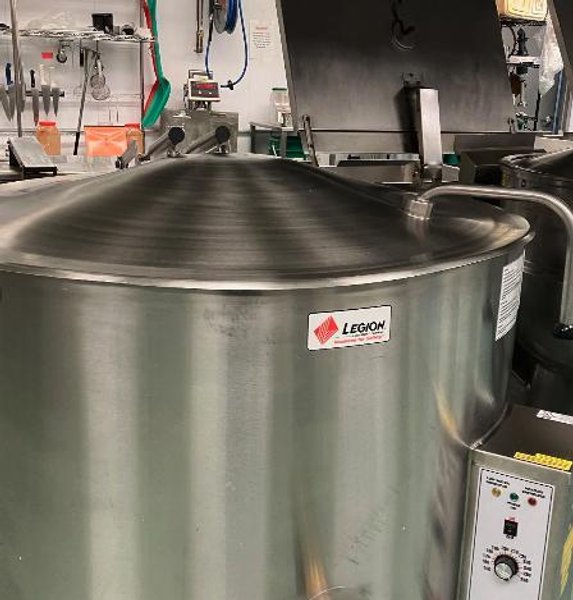

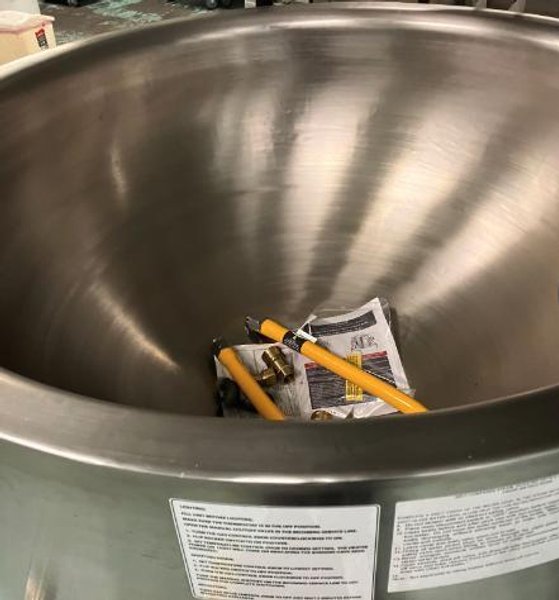

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications • Capacity: 100 gal / 378.5 L • Weight (empty): 860 lb / 390 kg • BTU Input: 154,800 BTU/hr (natural gas) / 149,200 BTU/hr (propane) • Gas connection: ¾” IPS • Gas supply pressure: Natural 5–7″ W.C. (factory outlet 3.5″), Propane 12–14″ W.C. (factory outlet 10″) • Electrical: 120 V, 1 A, single-phase (208/240 V optional) • Temperature control range: 150°F to 260°F via thermostat • Draw-off: 2″ stainless compression valve • Liner & Construction: – Seamless deep-drawn 304 stainless liner with radius lip – 304 stainless draw-off tube and welds – Full 304L stainless outer jacket • Safety / Protection Features: – Pressure relief valve – Air eliminator valve – Pressure gauge – Automatic low-water cut-off + indicator – Safety pilot control – Full body insulation between kettle jacket and outer shell • Cover: Actuator-assisted domed stainless cover (on units 40–125 gal) • Strainer: Perforated disc (¼” holes) • Support: Adjustable bullet feet / leg-mounted • Dimensions (approx with cover): 47.80″ L × 55.60″ W × 93.50″ H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
