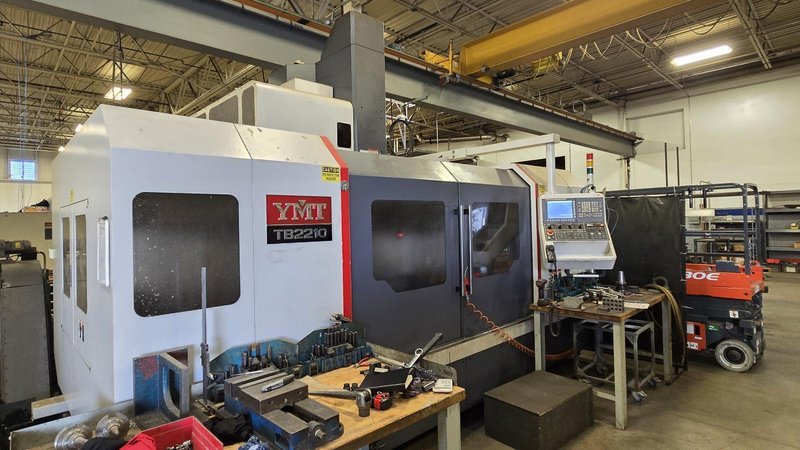

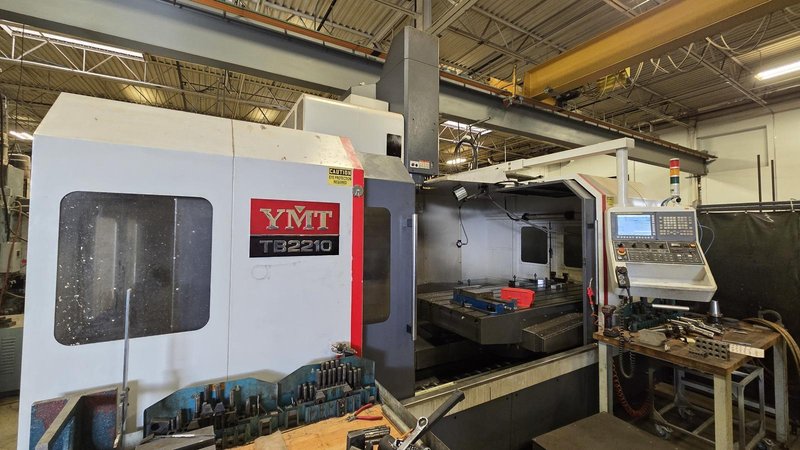

YMT TB–2210 CNC VERTICAL MACHINING CENTER. STOCK # 1004625

Brand
YMT
Category
Machining Centers
Type
Machining Centers, Vertical
Model
TB-2210
Stock #
1004625
Year
2015
Condition
Not specified

Location

Michigan
REQUEST FINANCING

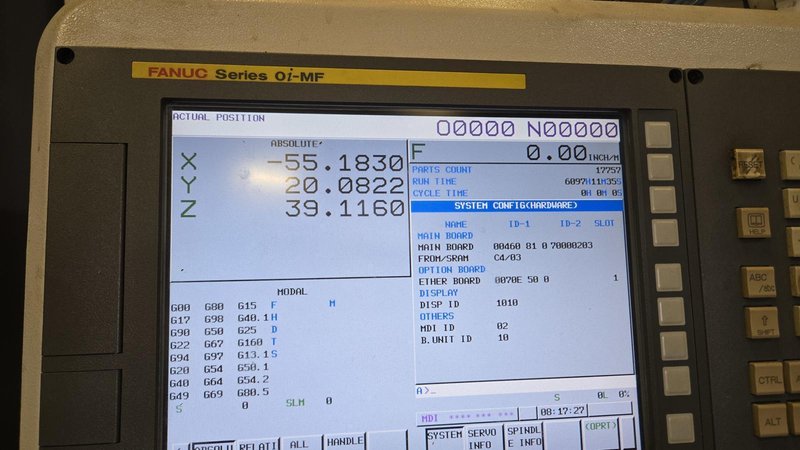

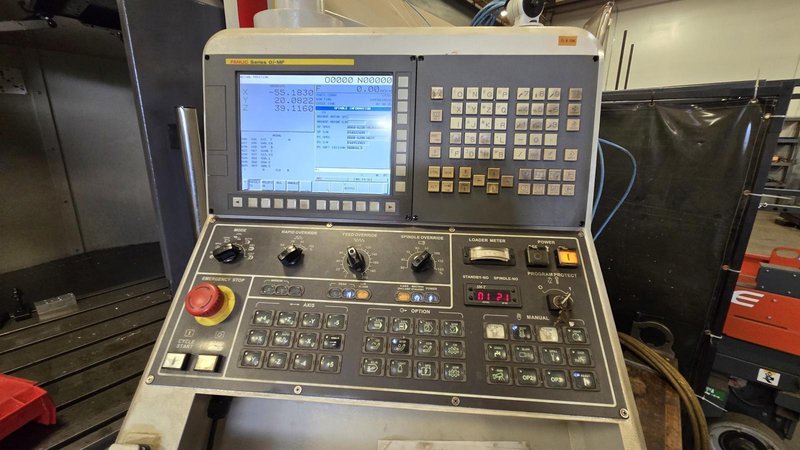

CNC CONTROL..............: Fanuc Oi-MF

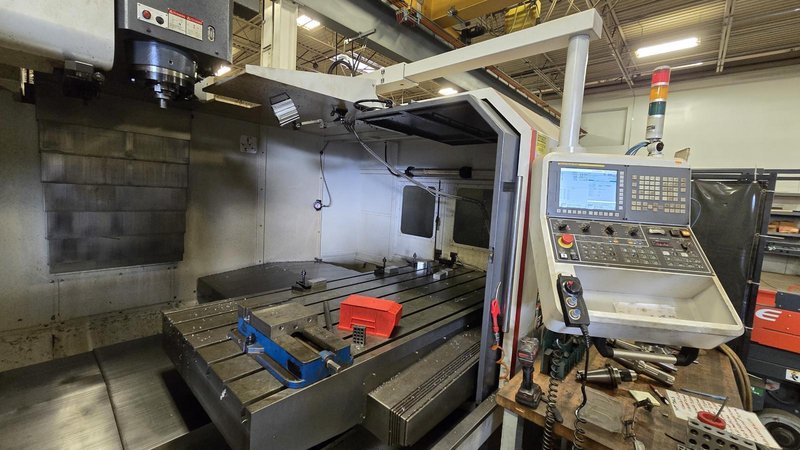

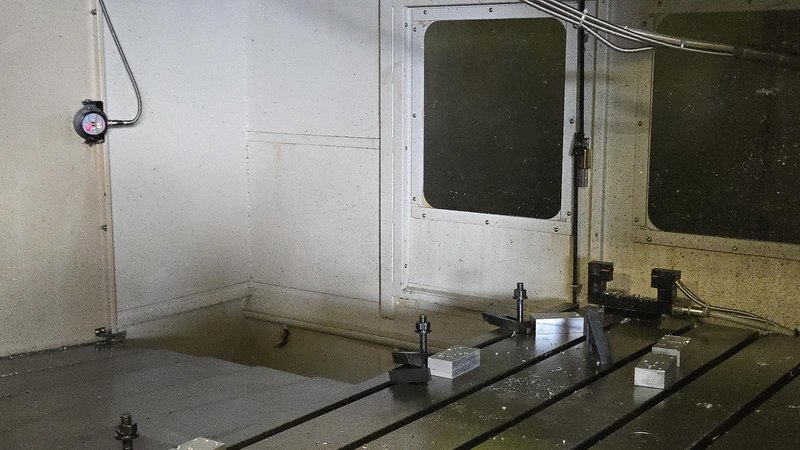

TABLE AREA...............: 88.6" x 39.4"
T–SLOTS..................: (7) 0.86" x 5.9"
TABLE MAX. LOAD..........: 6,600 lbs.

X AXIS TRAVEL............: 88.6"
Y AXIS TRAVEL............: 39.4"
Z AXIS TRAVEL............: 35.4"
SPINDLE NOSE TO TABLE....: 6.5" – 41.9"
SPINDLE CENTER TO COLUMN.: 39.3"

RAPID FEEDRATES (X/Y/Z)..: 472 ipm
CUTTING FEEDRATES (X/Y/Z): 393 ipm

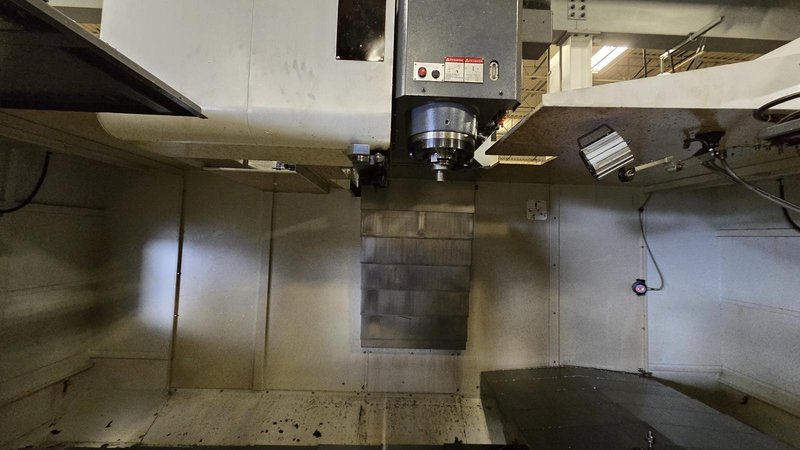

SPINDLE TAPER............: CAT 50
SPINDLE SPEED............: 6,000 rpm
SPINDLE MOTOR............: 35 HP

TOOLS....................: 32 Bi-Directional, Random Access

APPROX. WEIGHT...........: 36,300 lbs.
FLOOR SPACE..............: 208" x 145" x 141"
ELECTRICS................: 220 V, 3 Ph, 60 Hz, 118 Amp Breaker
EQUIPPED WITH............: 35 HP Spindle Motor

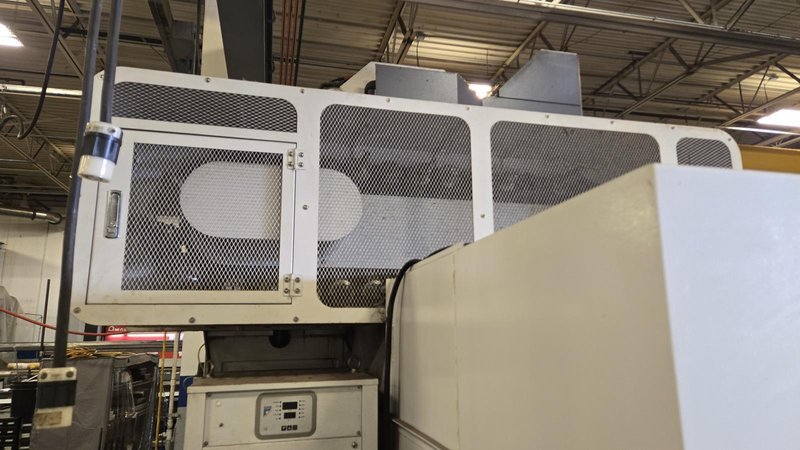

                          Fast 32 Tools Swing Arm ATC
                          6,000 RPM Spindle Speed w/ Gear Box
                          Random Access / Bi-Directional ATC

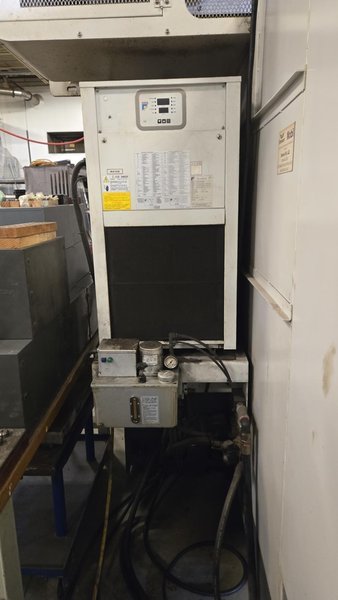

                          Spindle Chiller
                          Chip Washing System / Oil Skimmer
                          Flood Coolant, 118 Gallon Tank
                          Additional Work & Tool Offsets
                          Hardened & Ground Box Way Construction
                          Absolute Encoder

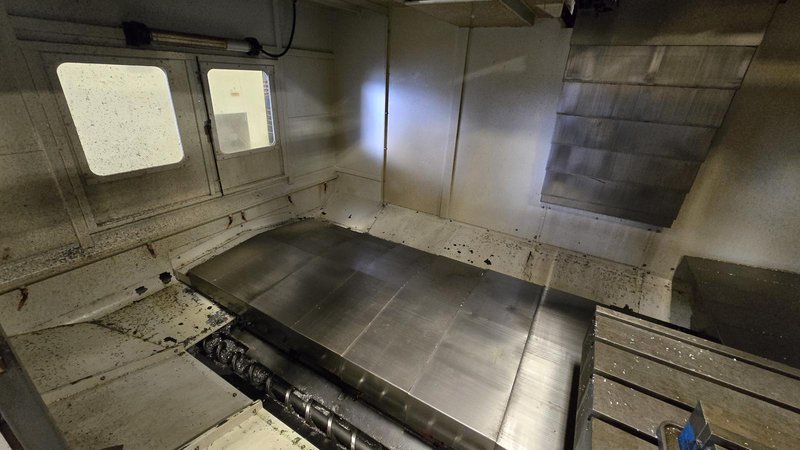

                          Dual Chip Augers / Chip Conveyor
                          AICC-II 200 Block Look Ahead
                          Automatic Central Lubrication System
                          Custom Macro B & Skip Function
                          Coolant Through Ballscrew – 3 Axis
                          Rigid Tapping, Manual Guide
                          Handheld Water Gun / CTS Prep with Union
                          10.4" LCD Color Monitor
                          Cutting Air Blast / Spindle Air Blast
                          1280 Meters Memory w/ PCMCIA Expansion Slot
                          Heat Exchanger for Electrical Cabinet
                          RS-232C Interface & Ethernet Connection
                          Deep Hole Drilling Package
                          M-Code 30 Auto Power Off
                          Remote Handwheel
