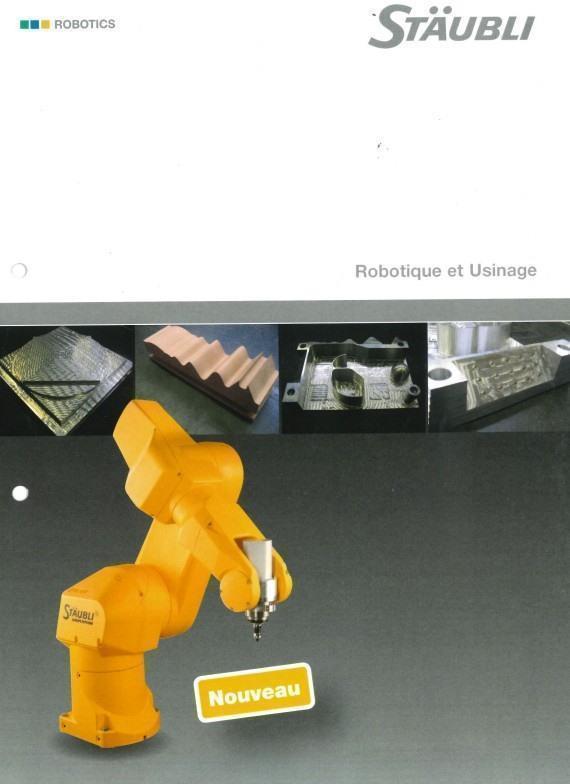

Staubli - RX170 HSM Drilling / Milling robot

Brand
STAUBLI
Category
Machining Centers
Type
Vertical Machining Centers
Model
RX170 HSM Drilling / Milling robot
Stock #
D.01 16021
Year
Not specified
Condition
Not specified

Location

Not specified
Located in Deinze, Belgium

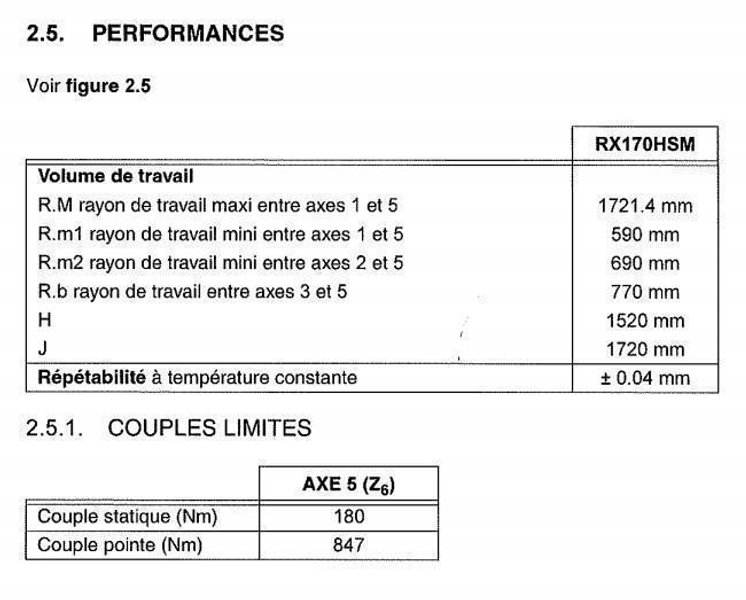

Technical information

  • Max weight on the table 300 kg
  • Admission in spindle (ISO) HSK E 32
  • Power on the spindle 8 kW
  • Drilling-capacity 80 mm
  • Tapping-capacity 80 mm

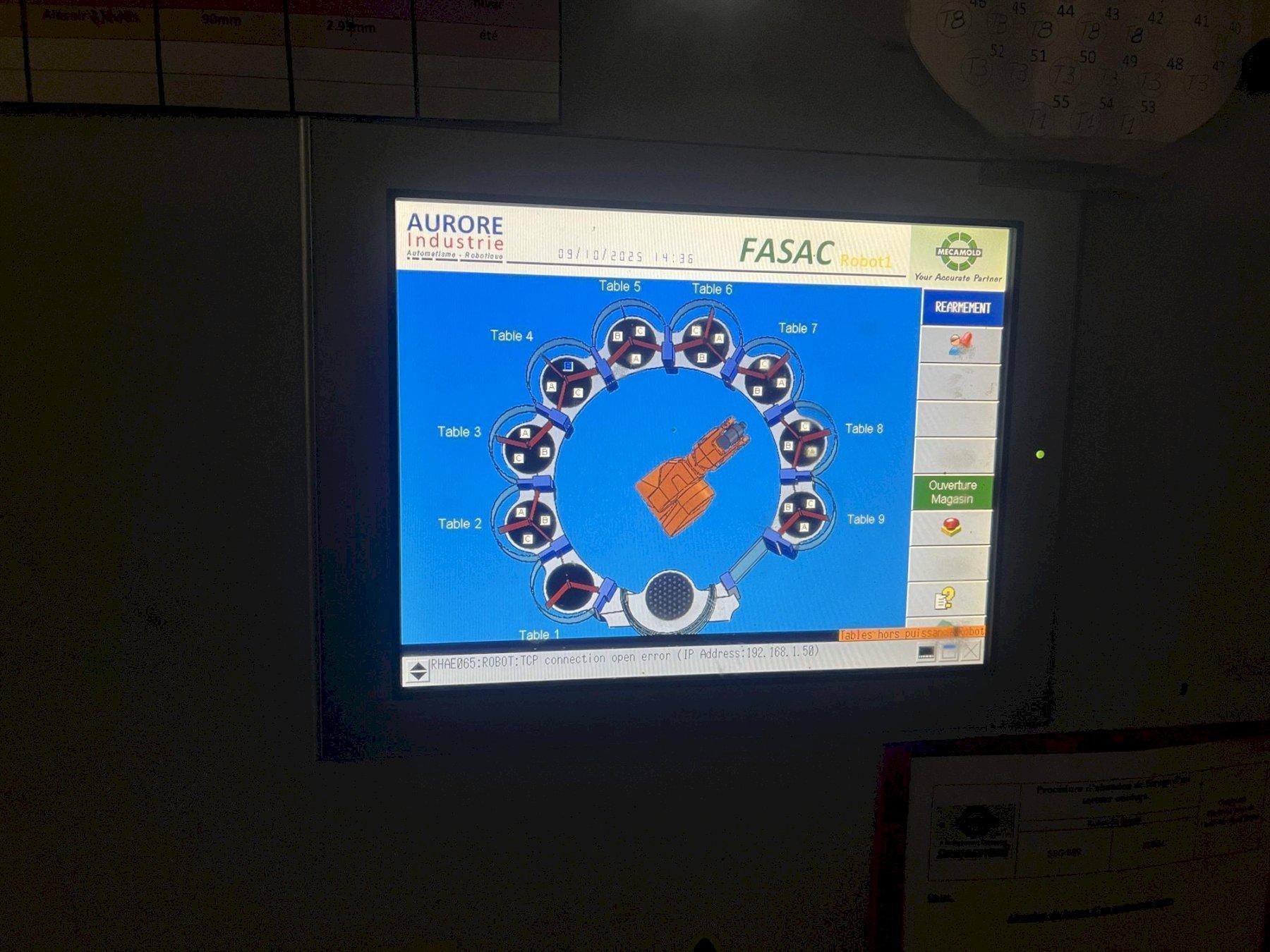

  • Control Staubli

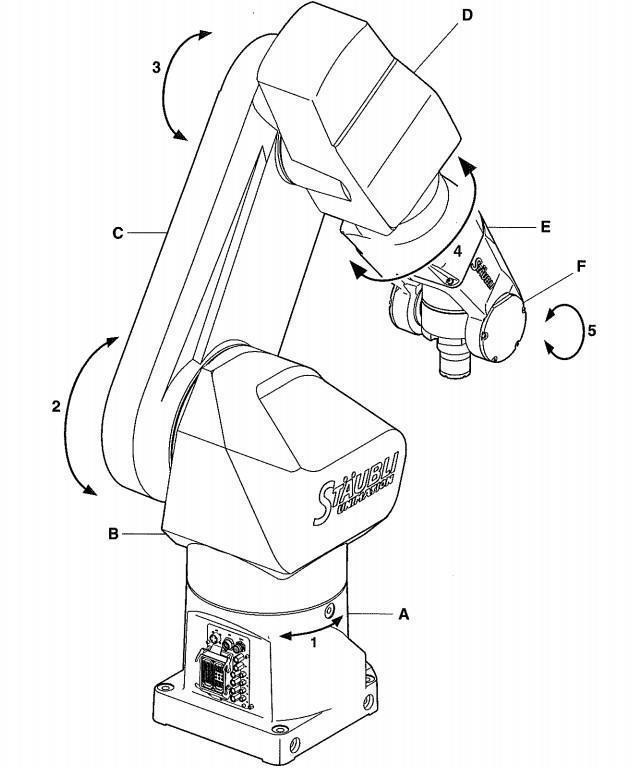

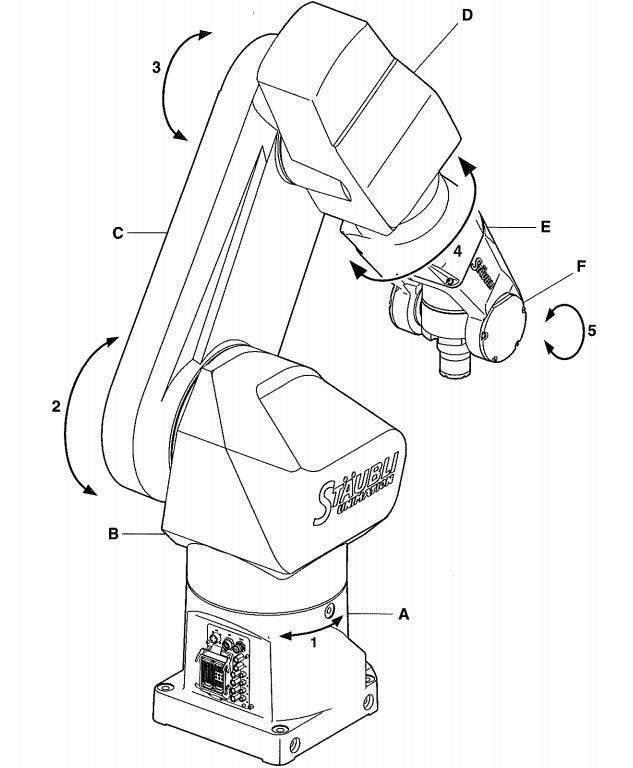

  • Number of axes 6
  • Toolchanger yes
  • Number of rotations 500 - 20 000 rpm
  • Power principal motor 5 kW

Additional info

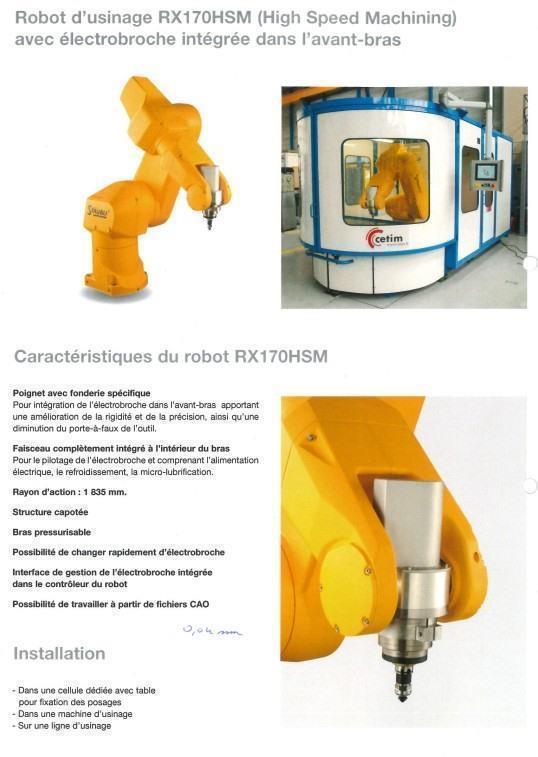

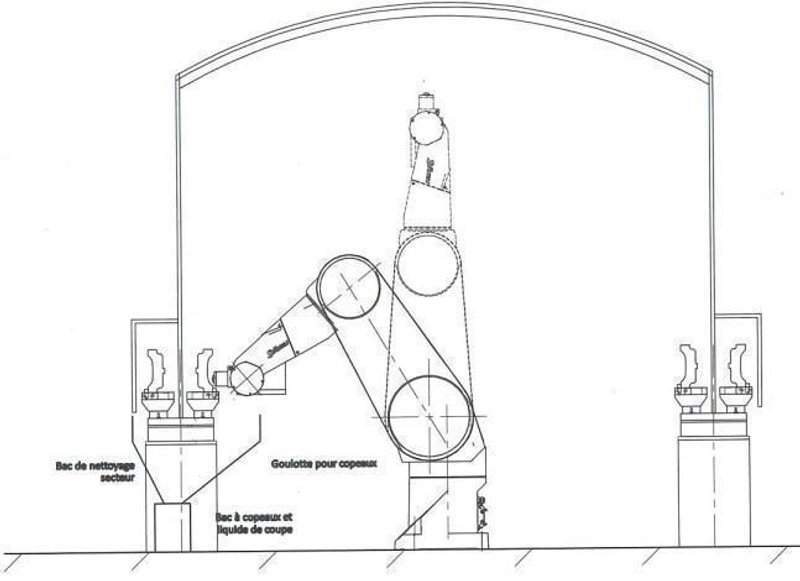

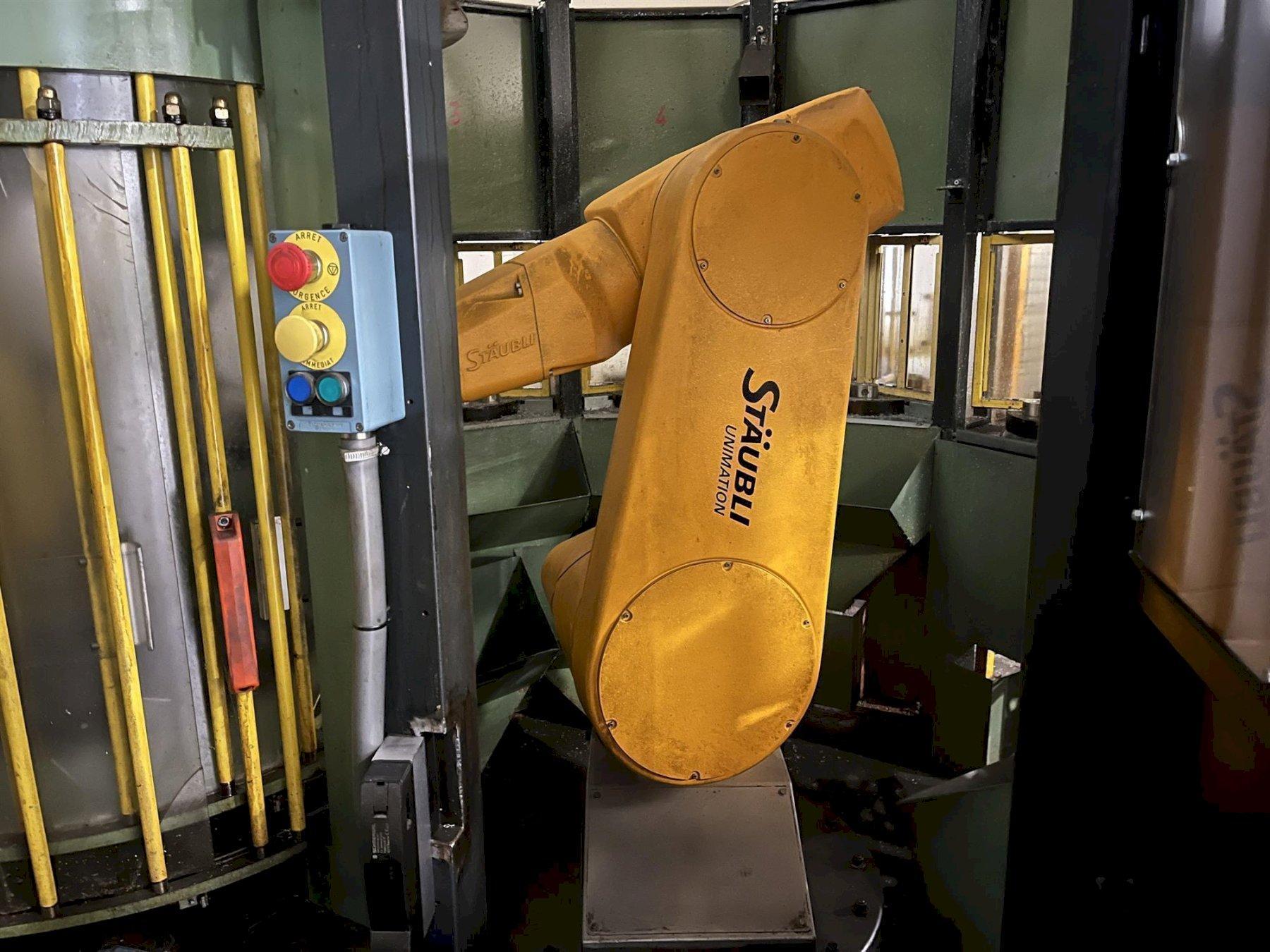

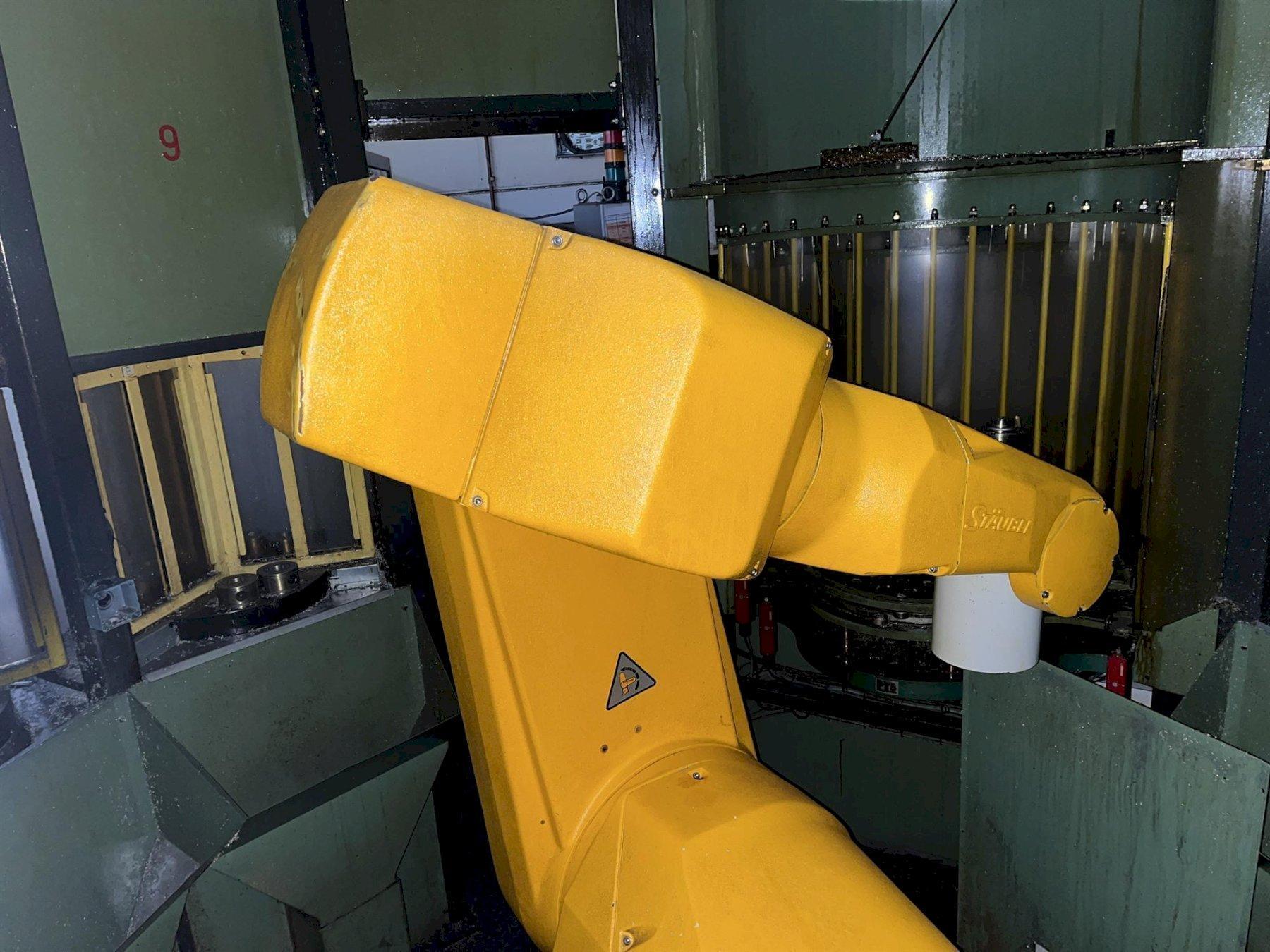

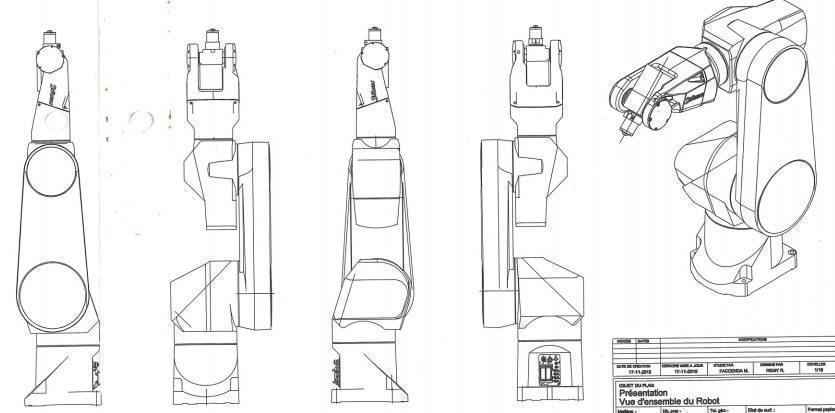

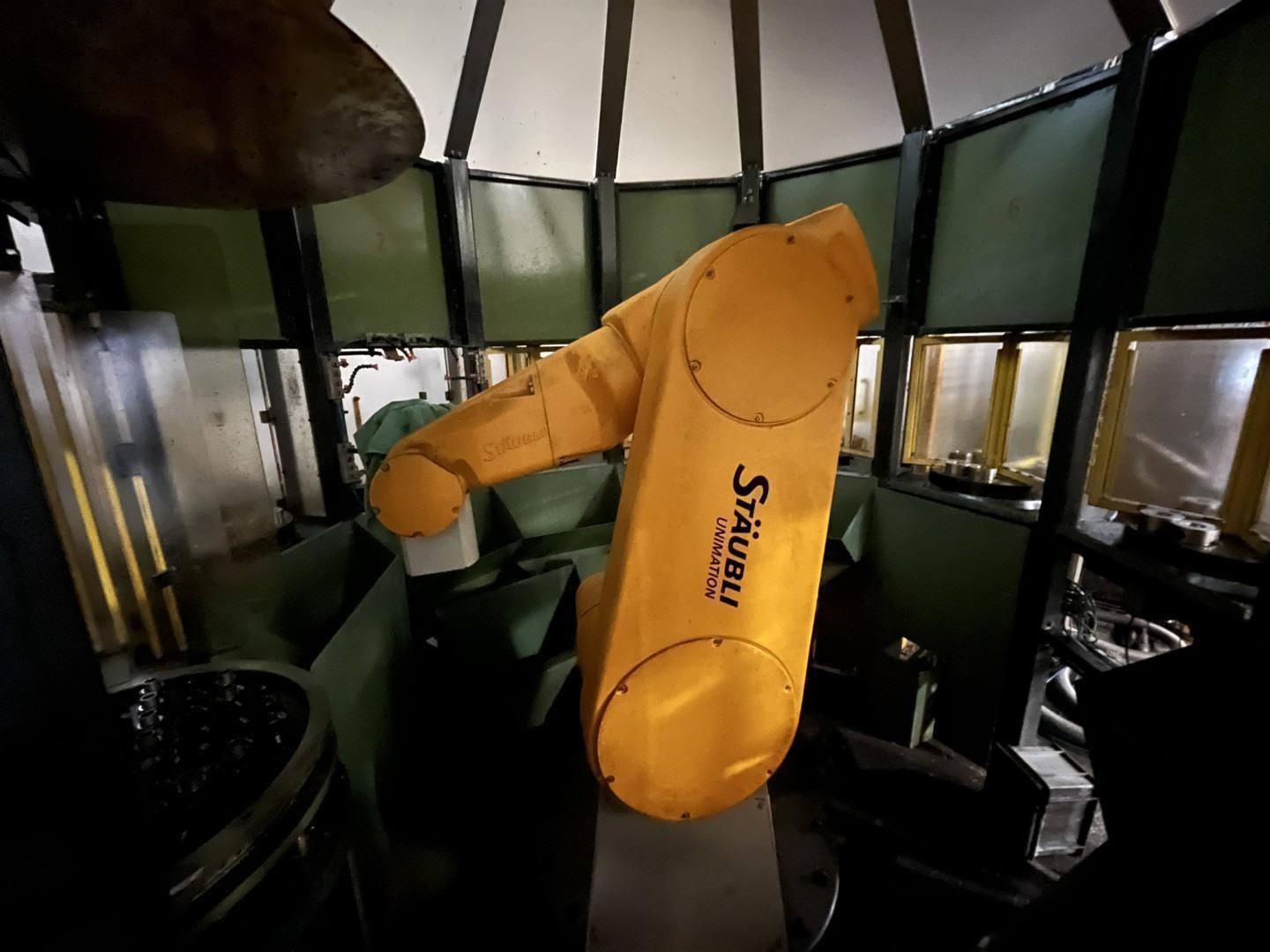

  • Staubli RX170HM milling robot

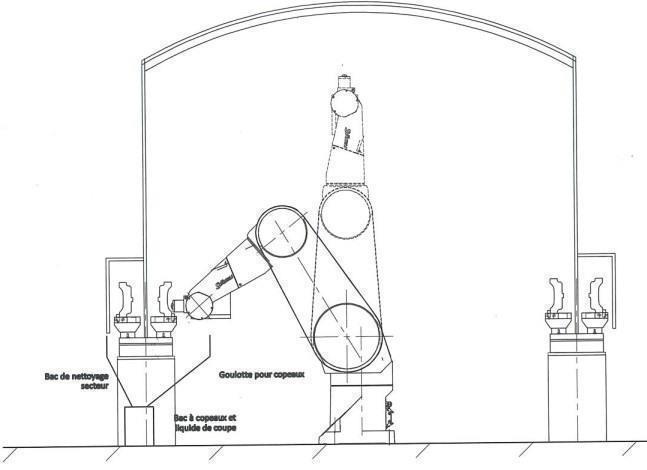

    This robot is equipped with holes for milling tire molds, but this is also possible in other applications.
    Cooling is provided by the spindle and the cooling milk is air-cooled.
    Lubrication was done with grease.

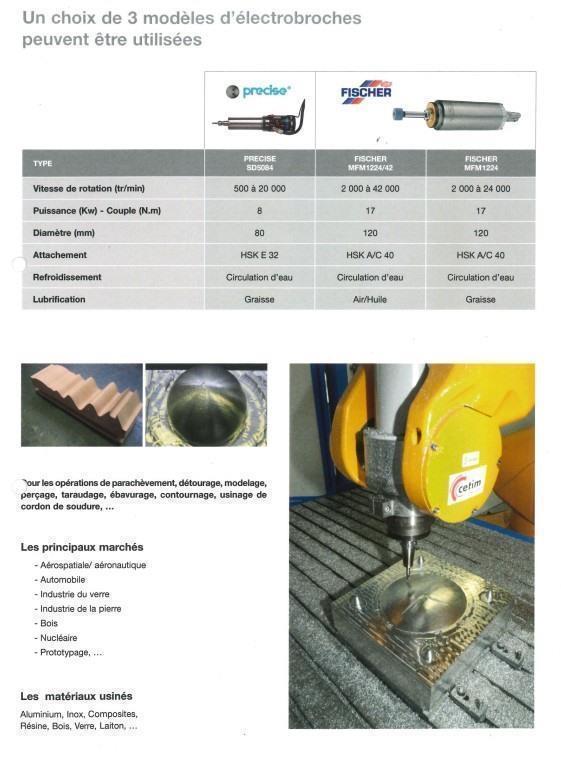

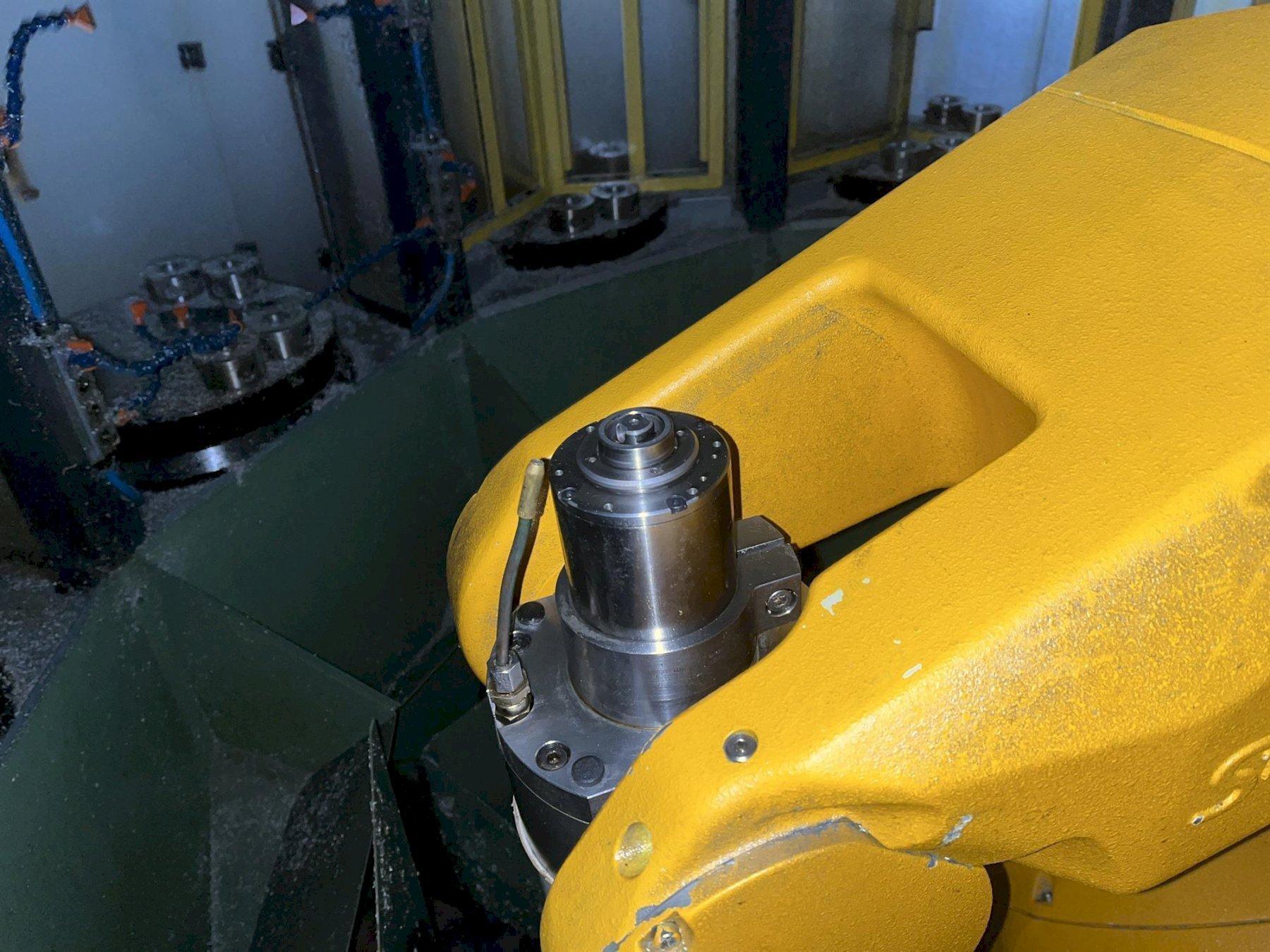

    spindle taper: HSK E 32

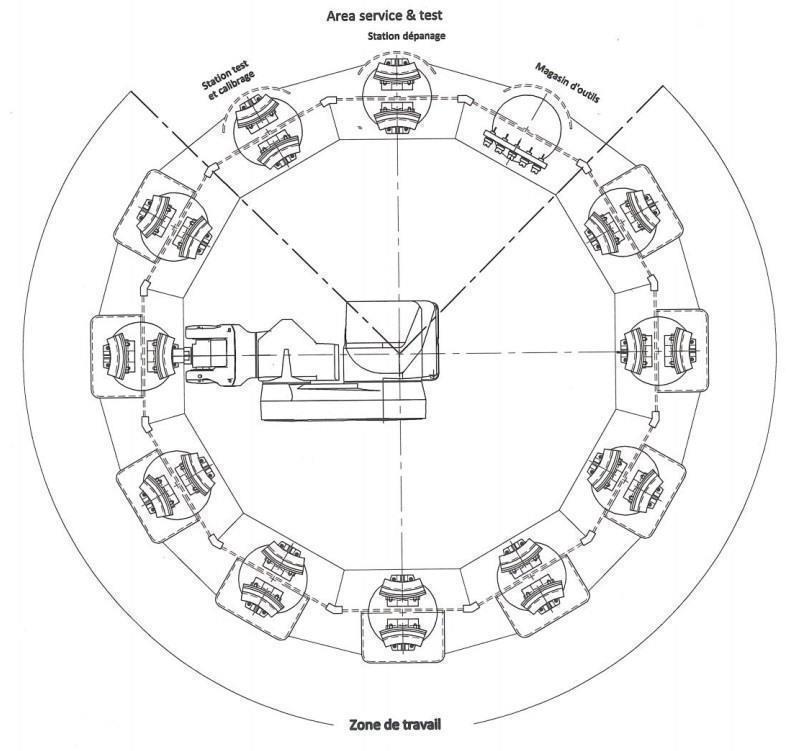

    Operating radius: 1835 mm

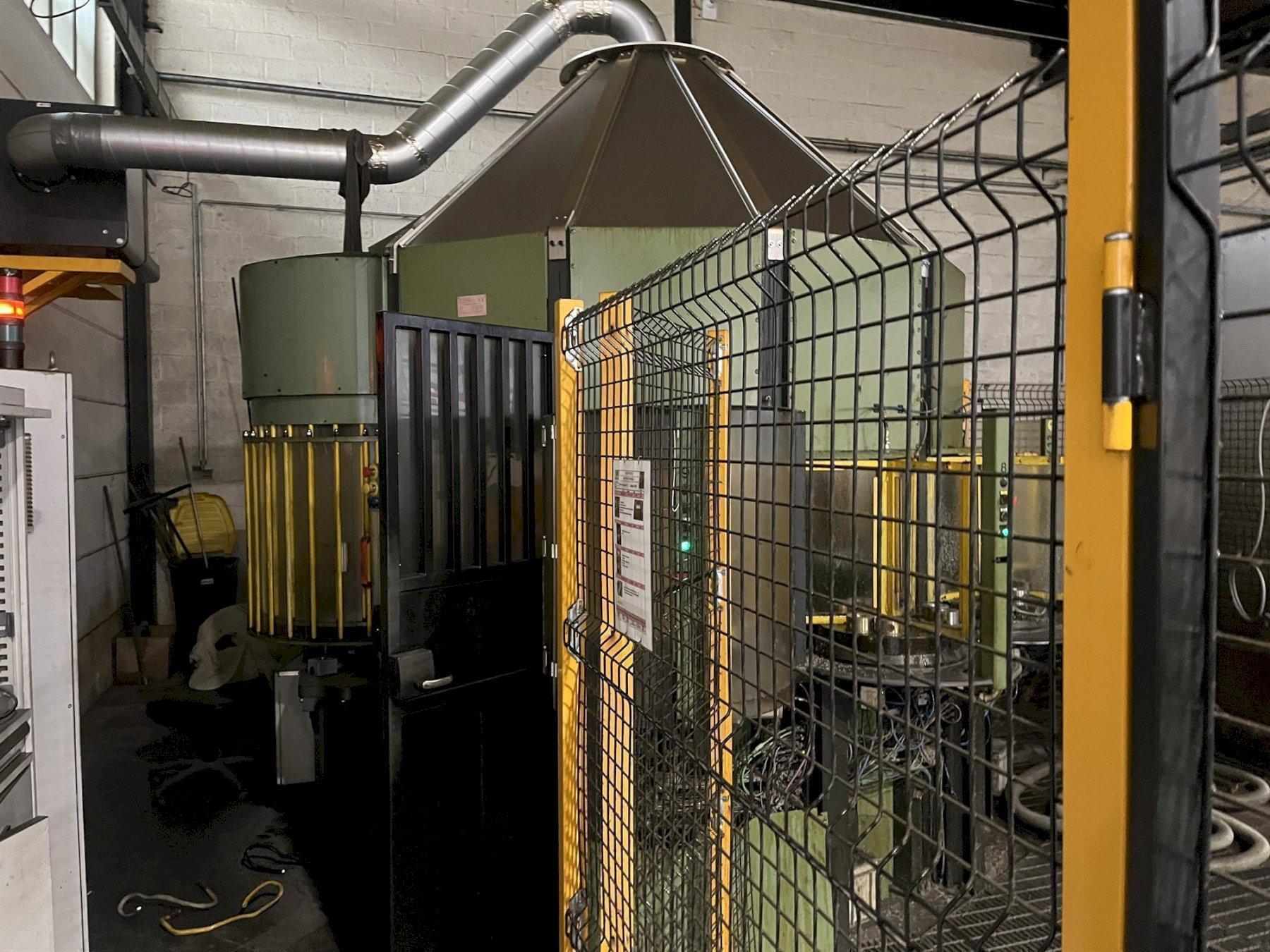

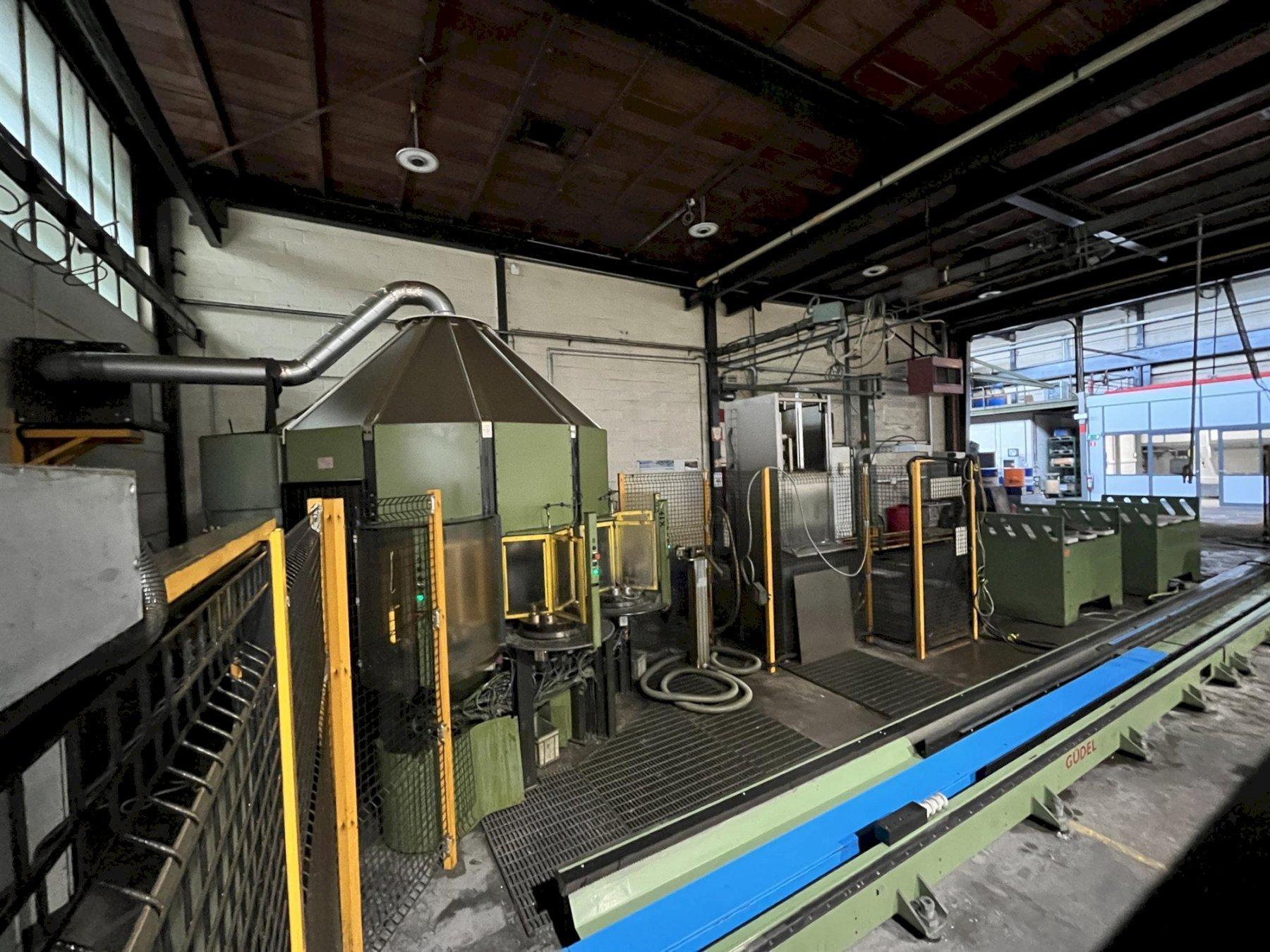

    Was used in the Mecamold Herstal Tire Mold factory.

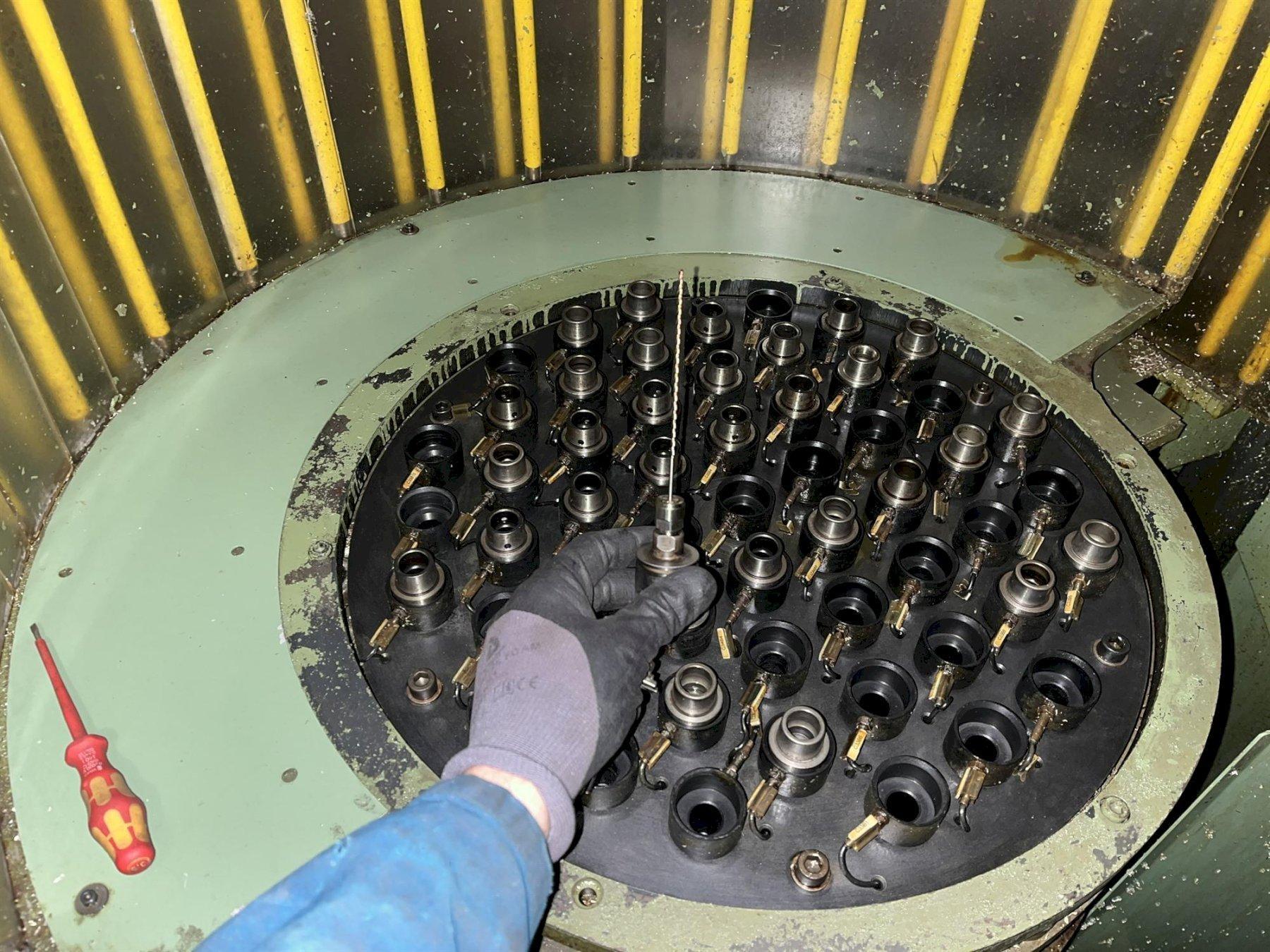

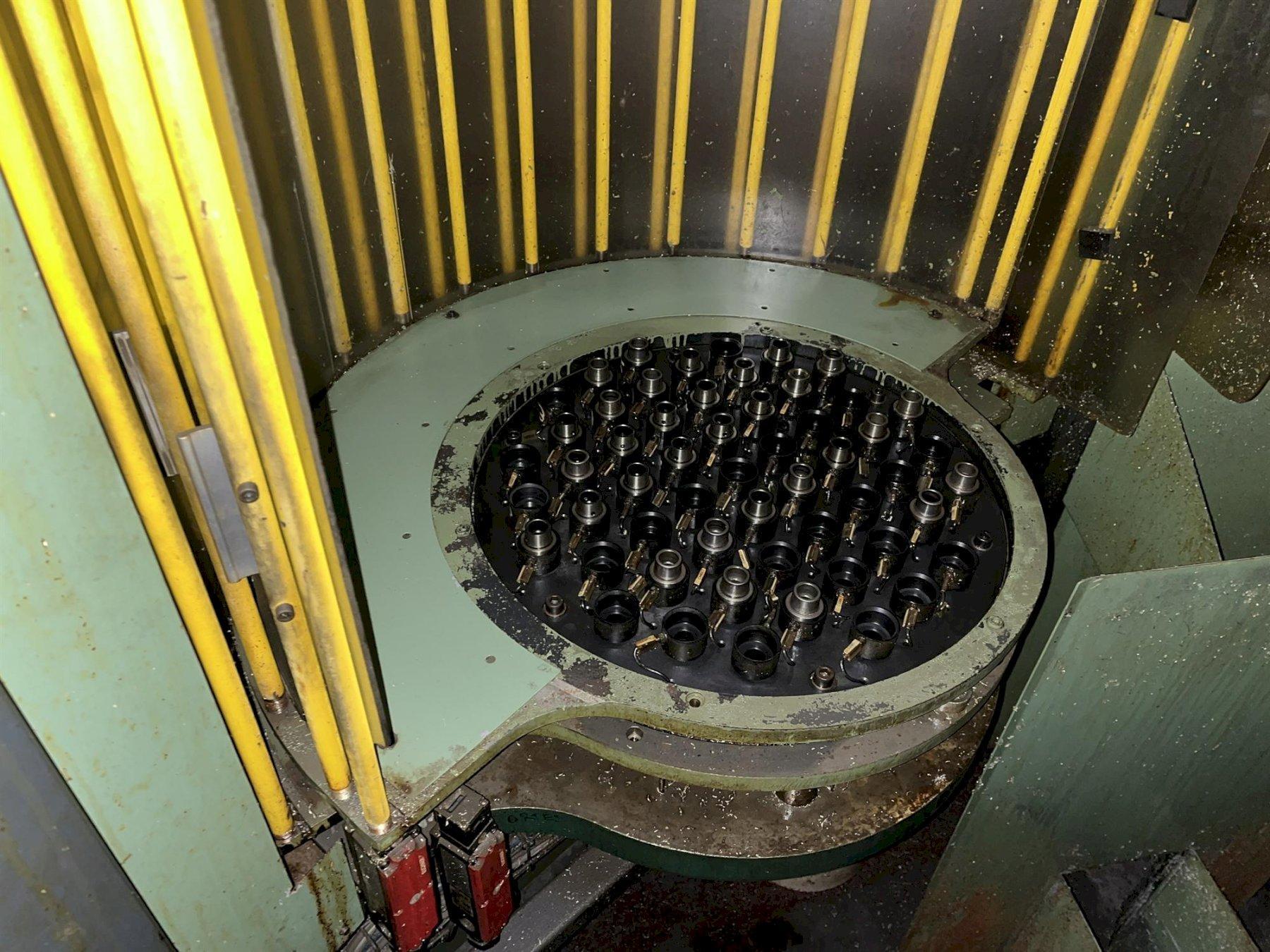

    Toolchanger is included
No files or videos to display
