Name: Bridgeport Series 1 Vertical Milling Machine DRO USA #7853
Brand: BRIDGEPORT
SKU: 7853
Availability: PreOrder

Brand

BRIDGEPORT

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Milling Machines

Manufacturer:

BRIDGEPORT

Model:

SERIES 1

Year:

1973

Stock #:

7853

Status:

For Sale

Description

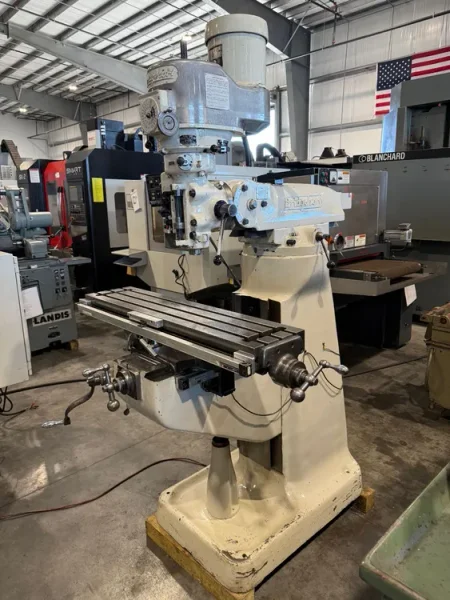

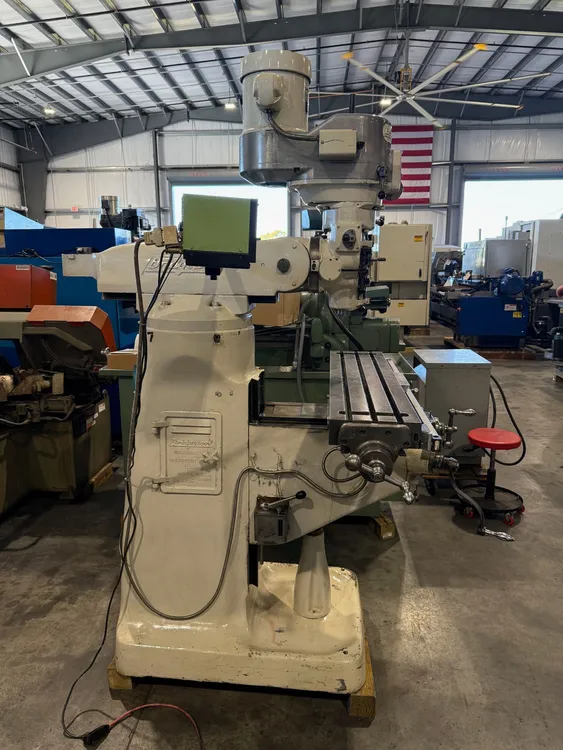

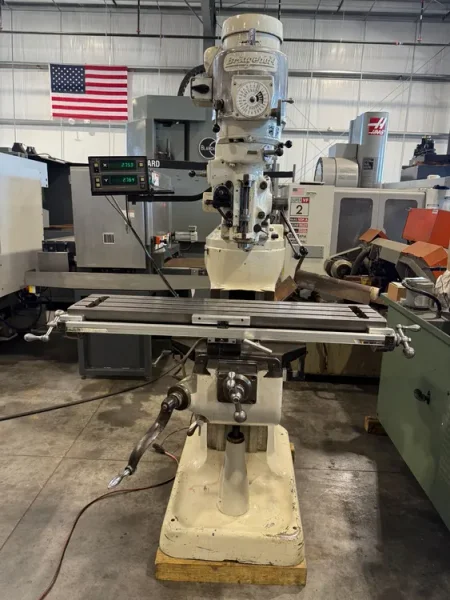

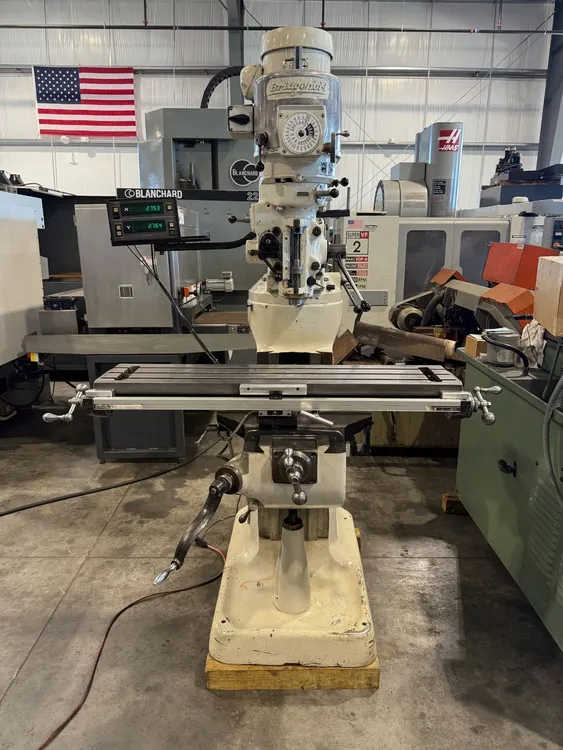

Bridgeport Series 1 Vertical Milling Machine DRO USA #7853

Bridgeport Series 1 Vertical Milling Machine DRO USA #7853
Reference # 7853
Model # Series 1

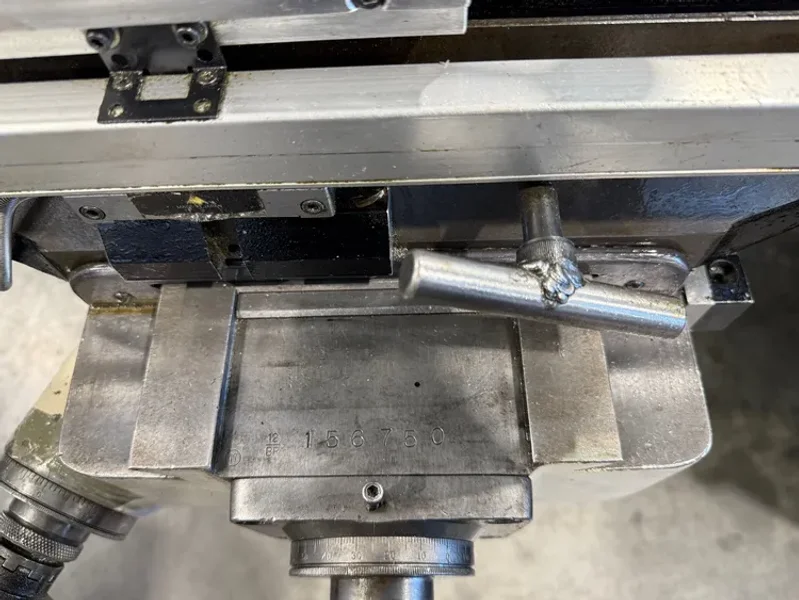

Serial # 156750
Year of manufacture- 1973’

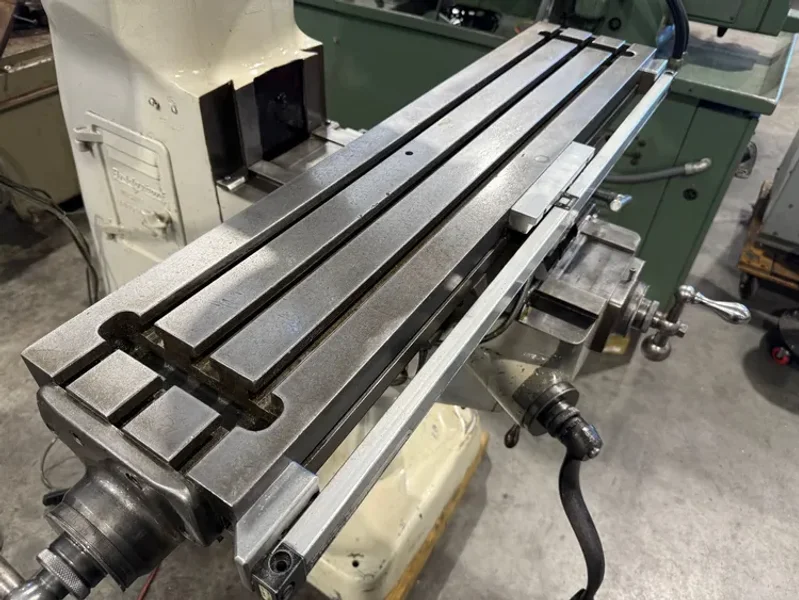

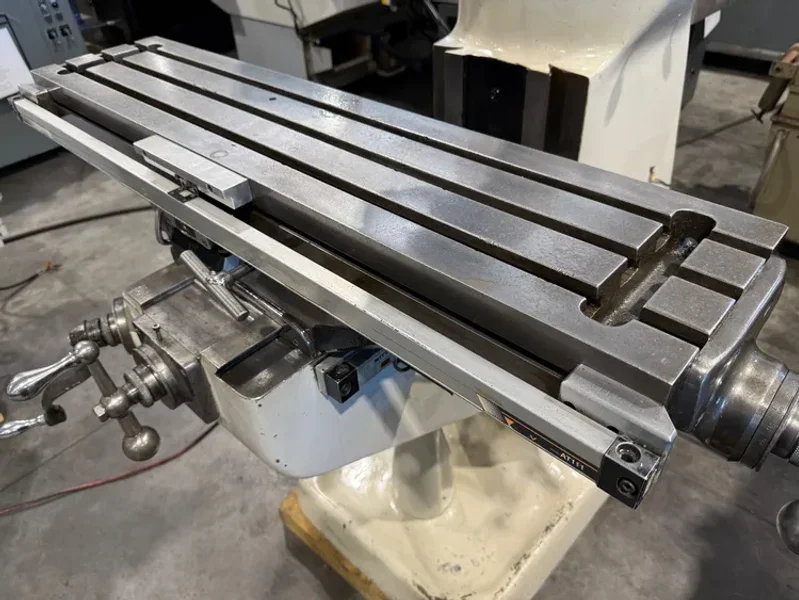

Table working surface- 9“ x 42”
Number of t-slots- 3
Ranges-
Longitudinal- 26”
Cross- 11.5”
Vertical, knee- 16”
Quill-5”
Maximum/Minimum distance, spindle nose to top of table- 18.5"/2.5"
Maximum/Minimum distance, centerline of spindle to face of column- 18.75"/6.75"
Ram travel- 12”
Head tilt, left & right- 90 degrees
Head tilt, front to rear, each way- 45 degrees
Turret rotation- 360 degrees

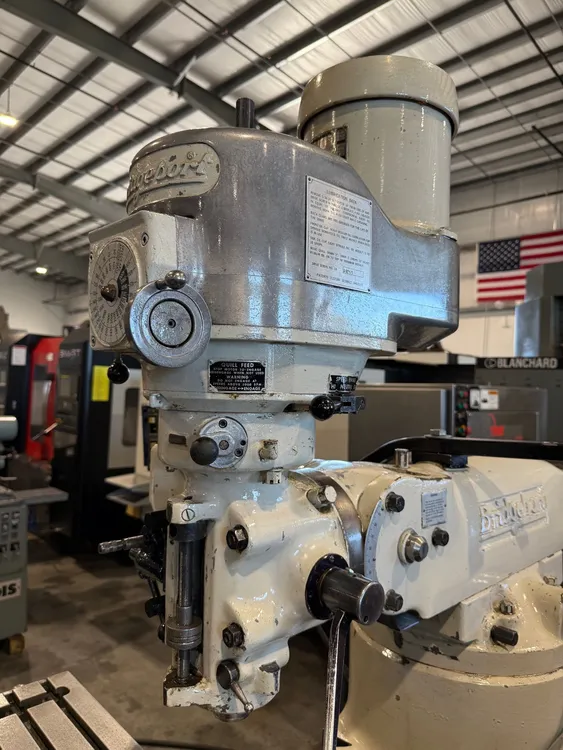

(3) Power quill feeds- - .0015, .003, .006 I.P.R.

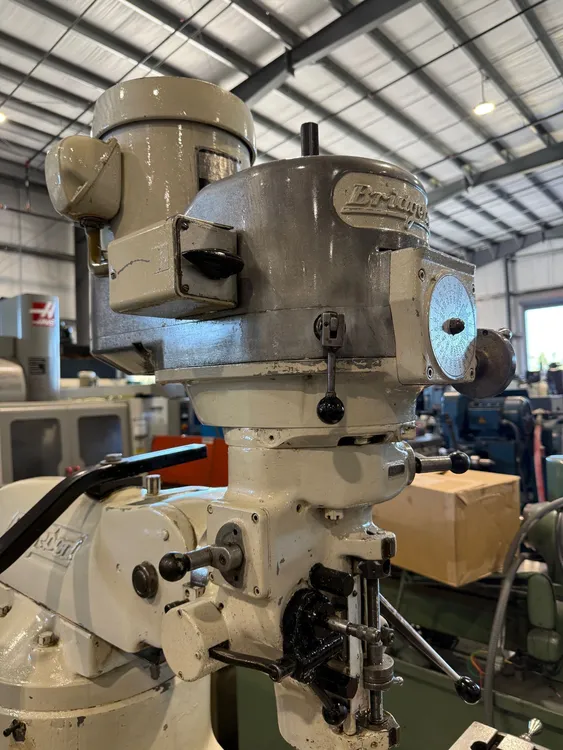

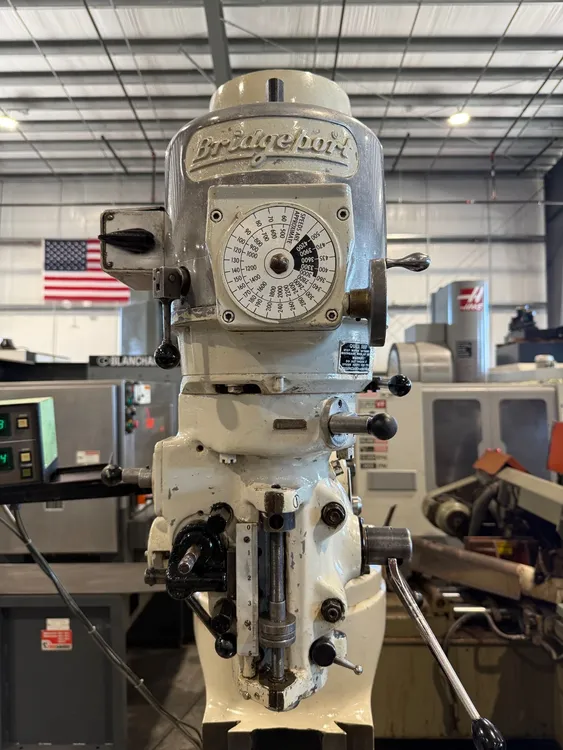

Infinitely variable spindle speeds, two ranges- 60-4,200 R.P.M
Spindle taper- R-8
Maximum collet capacity- ¾”

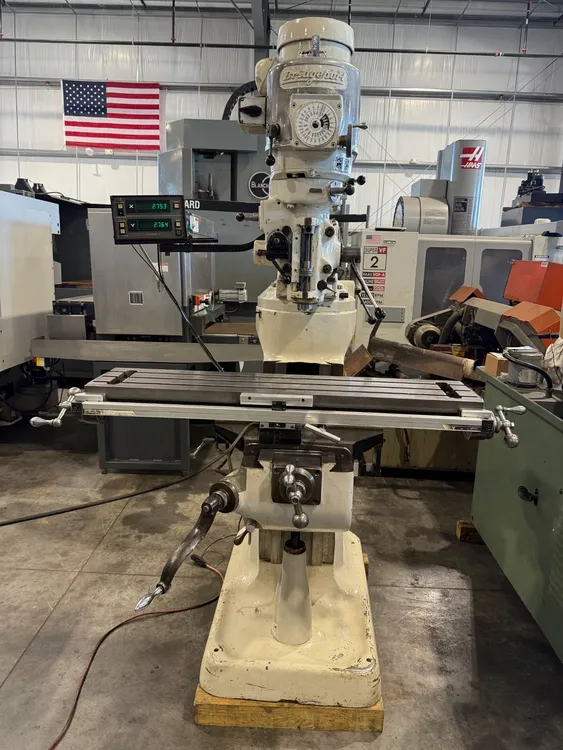

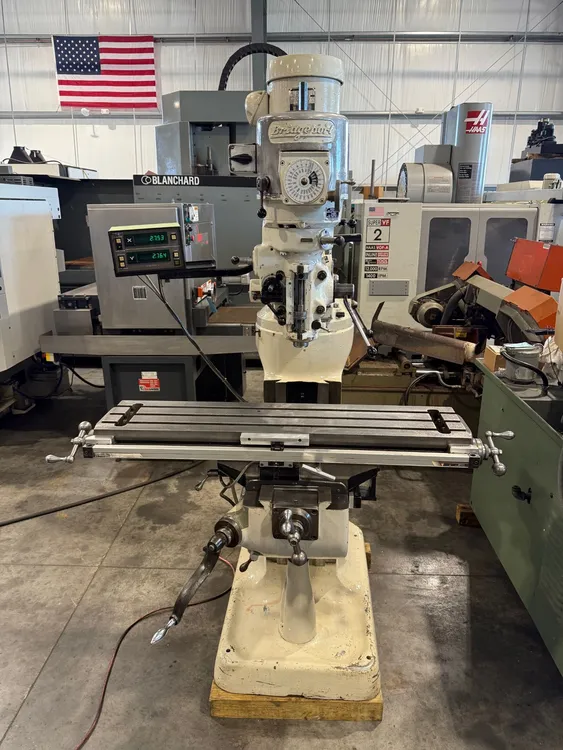

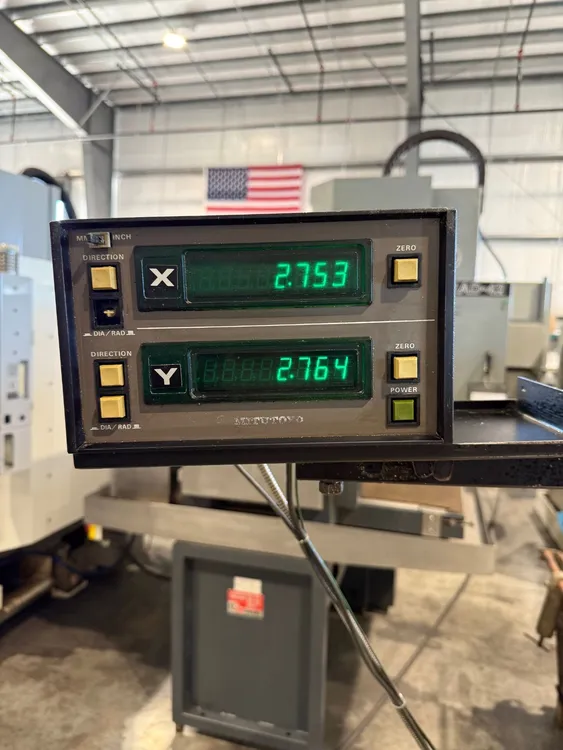

MITUTOYO 2 Axis DRO Digital Read Out

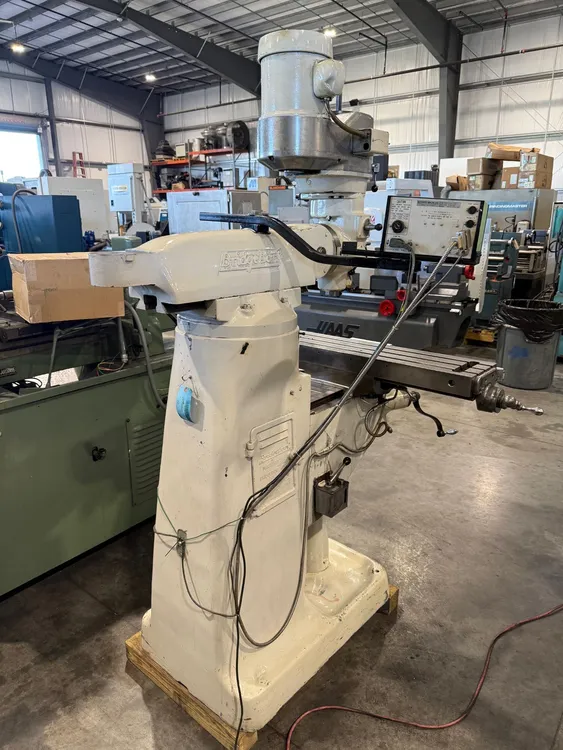

SERVO Power feed
Work light
One-shot lubrication system
1-1/2 H.P. 3/60/230-460 volt spindle drive motor and electrical controls
Machine is wired for 230 volt operation.
Machine weight- 2000 Lbs.
Machine dimensions- 64” L x 57” w x 83’’ H
Machine location- F.O.B. Sarasota, Florida
