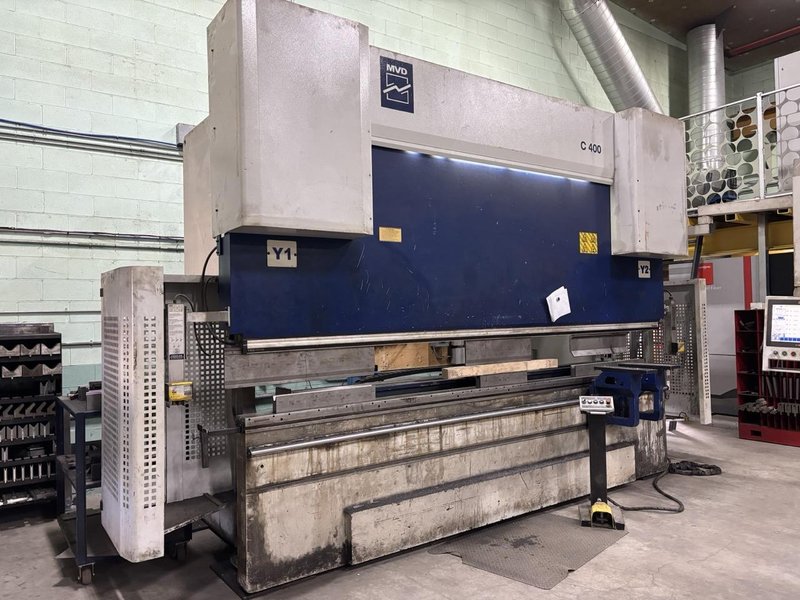

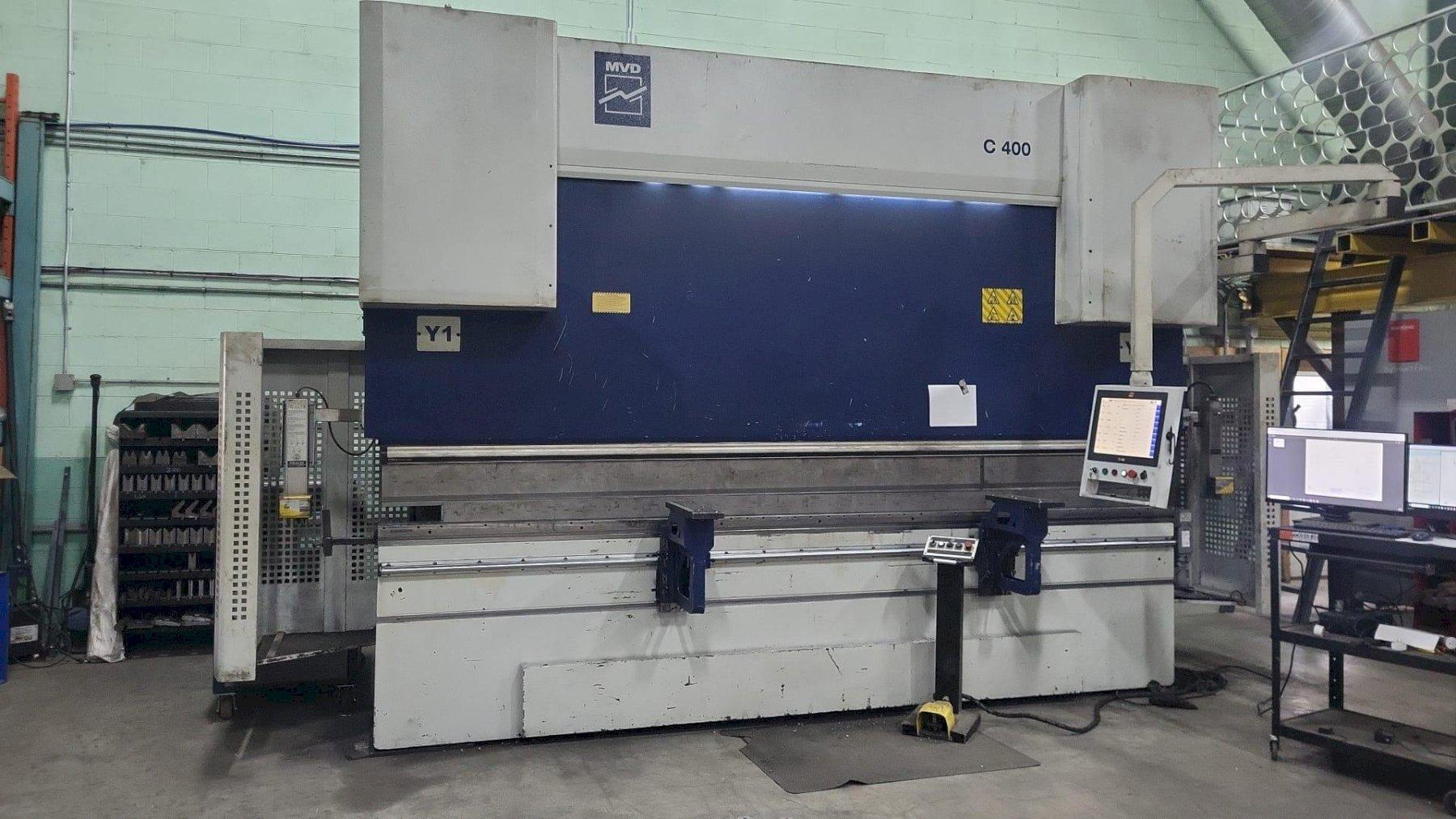

400 Ton x 13′ MVD Wysong CNC Press Brake, 2019 – 4 Axis Backgauge

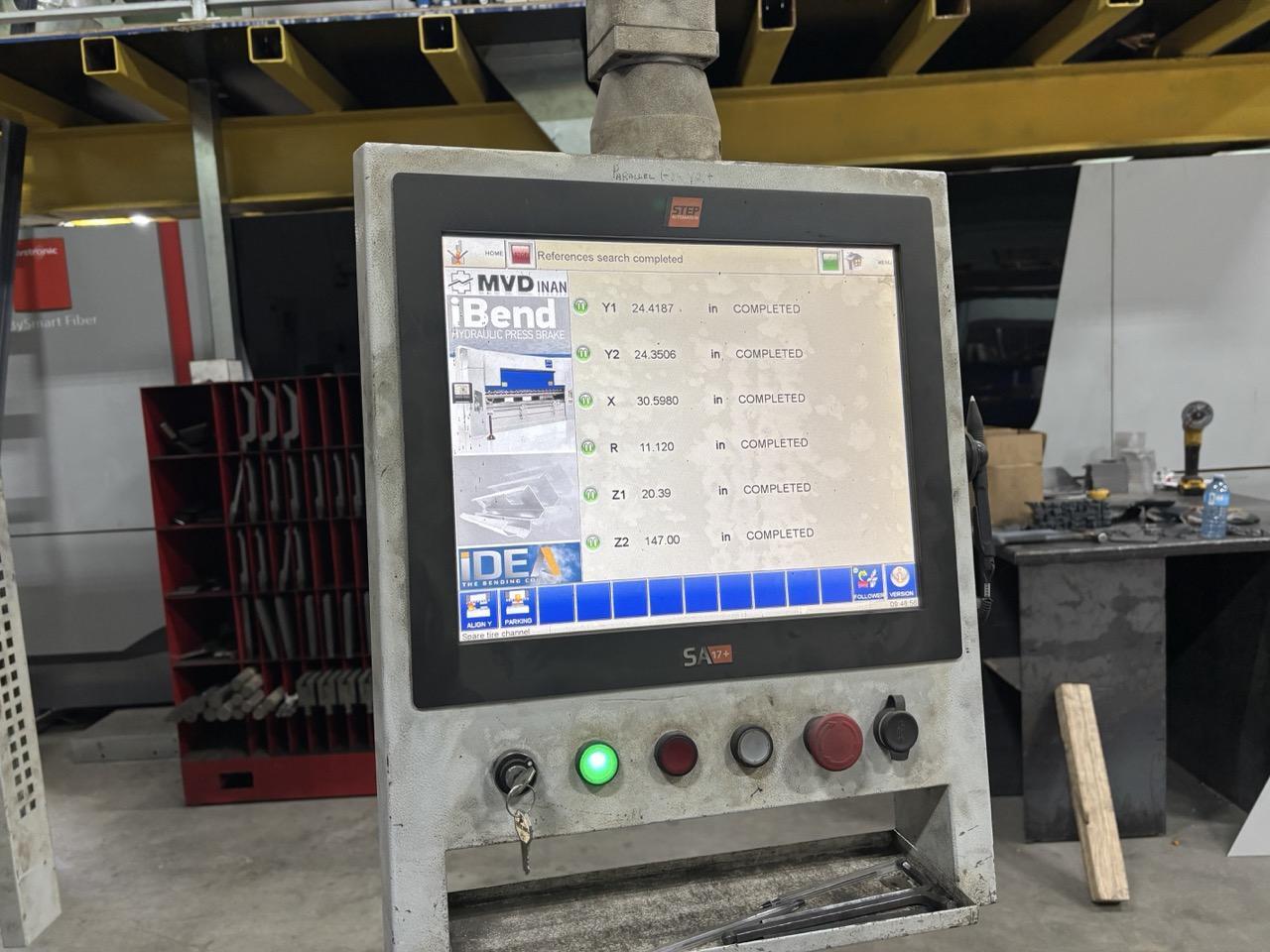

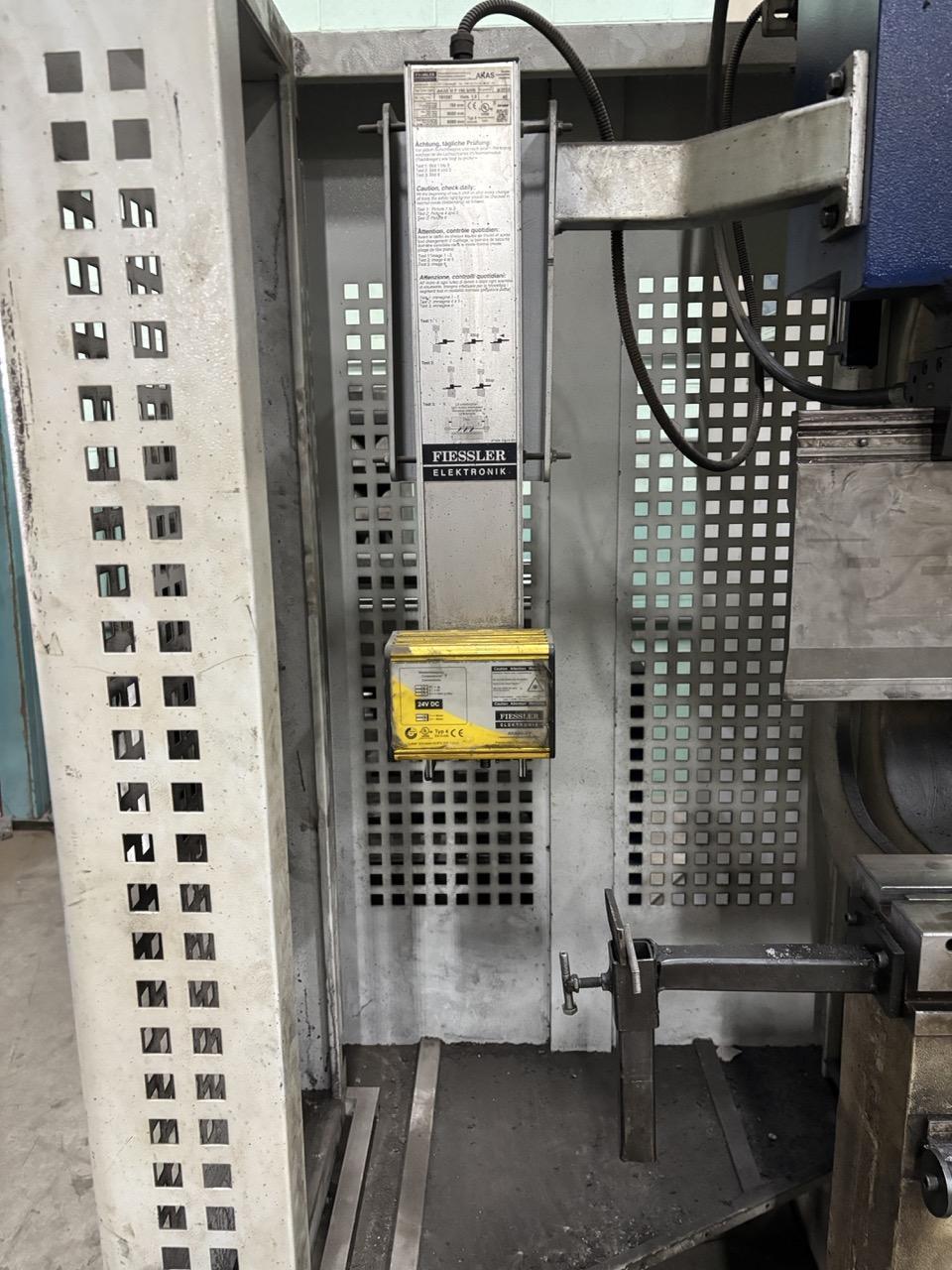

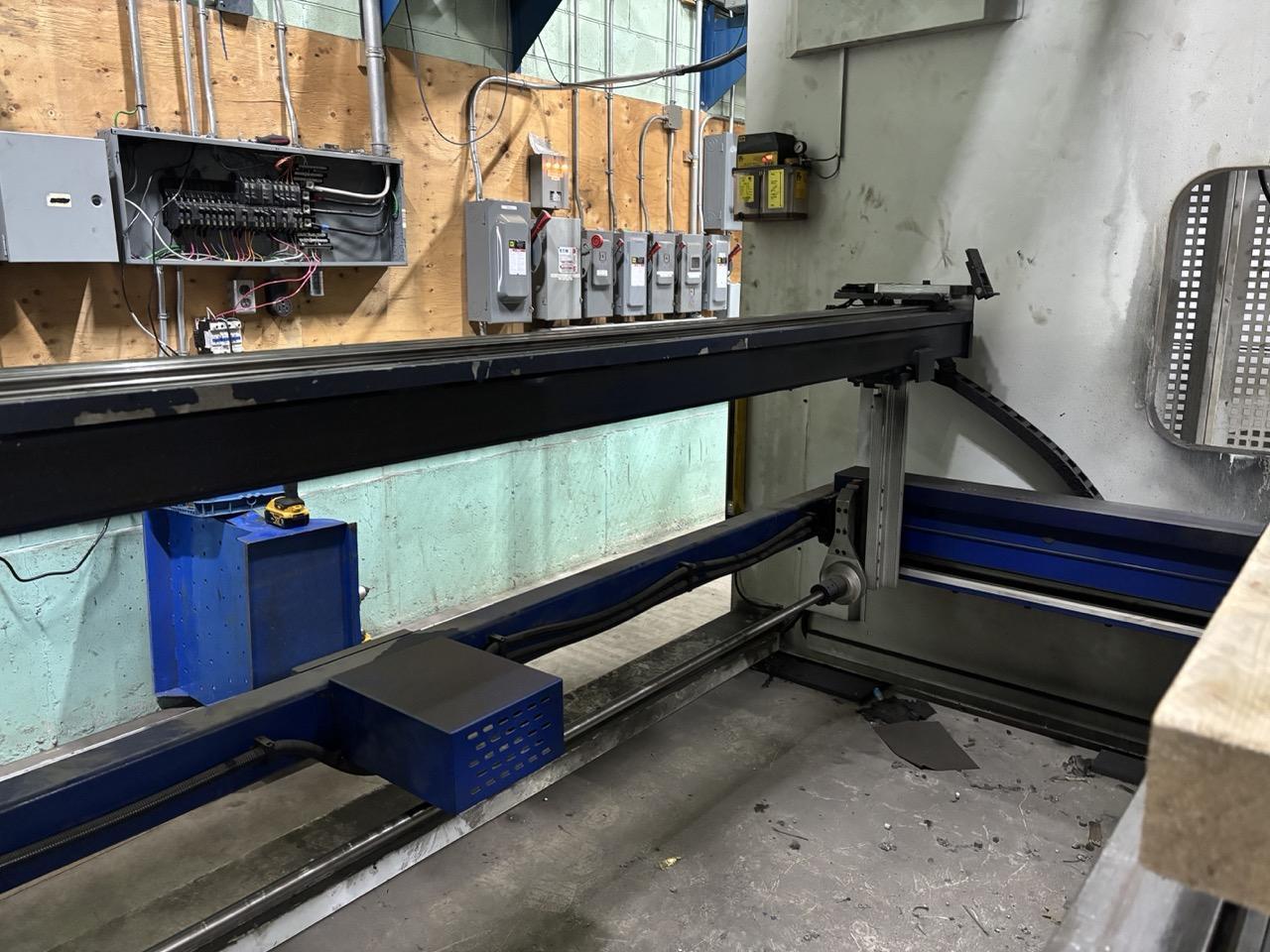

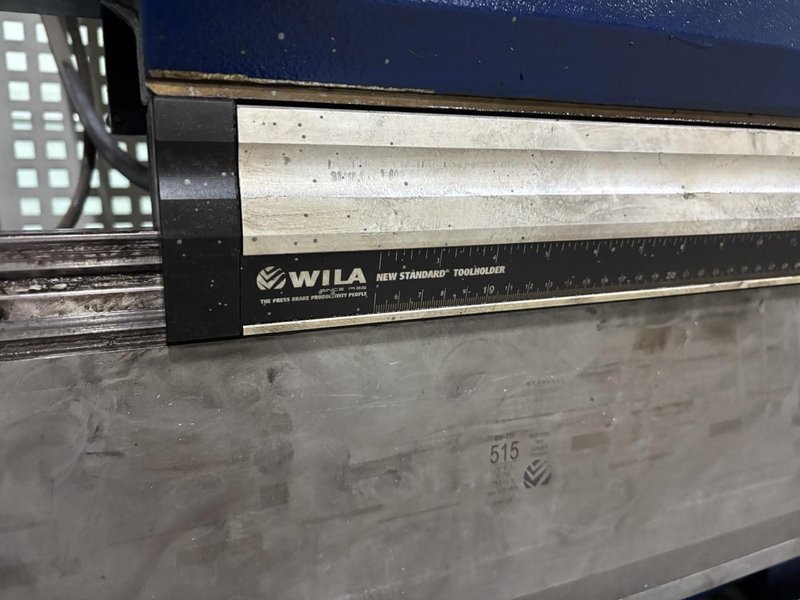

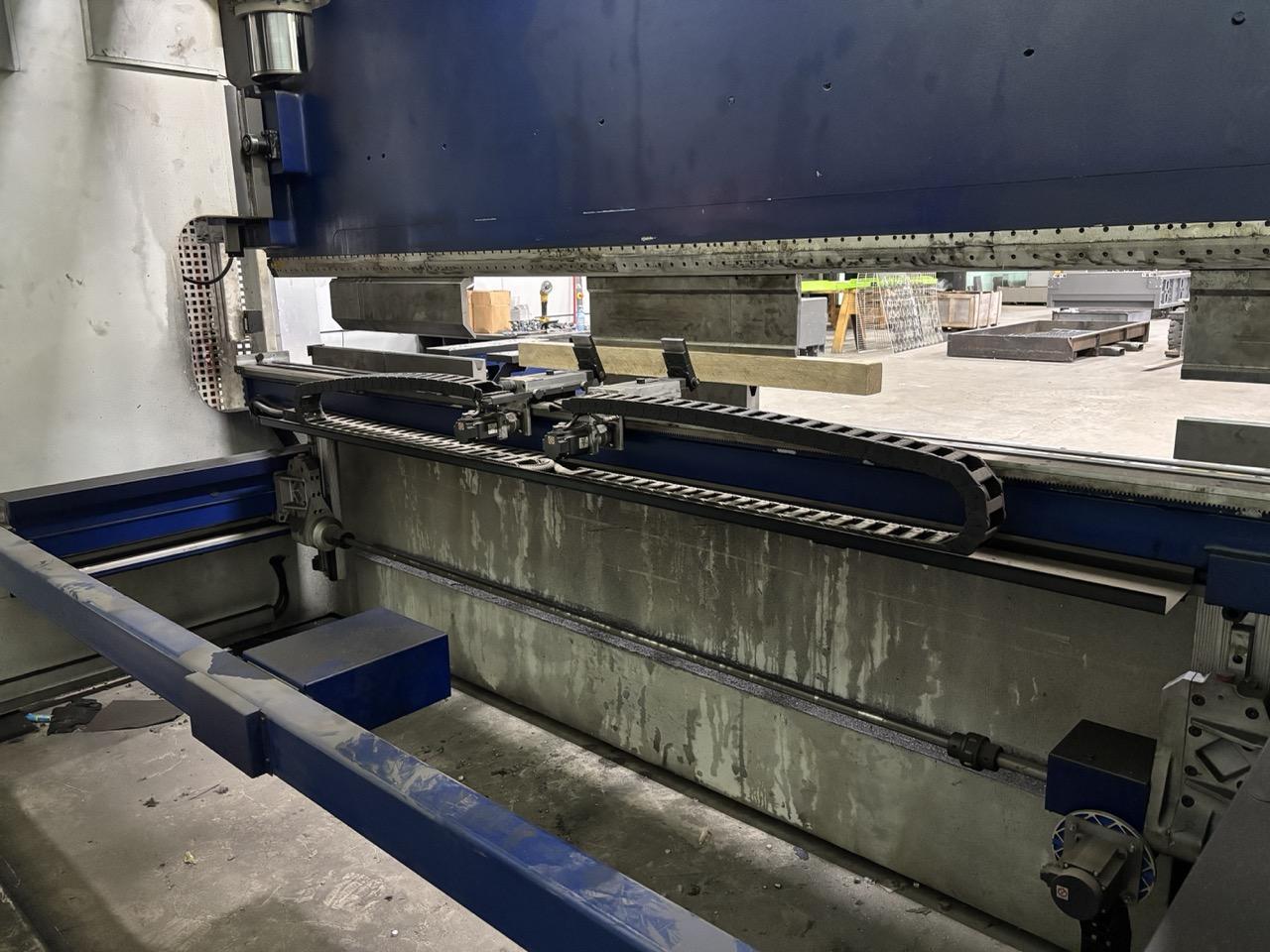

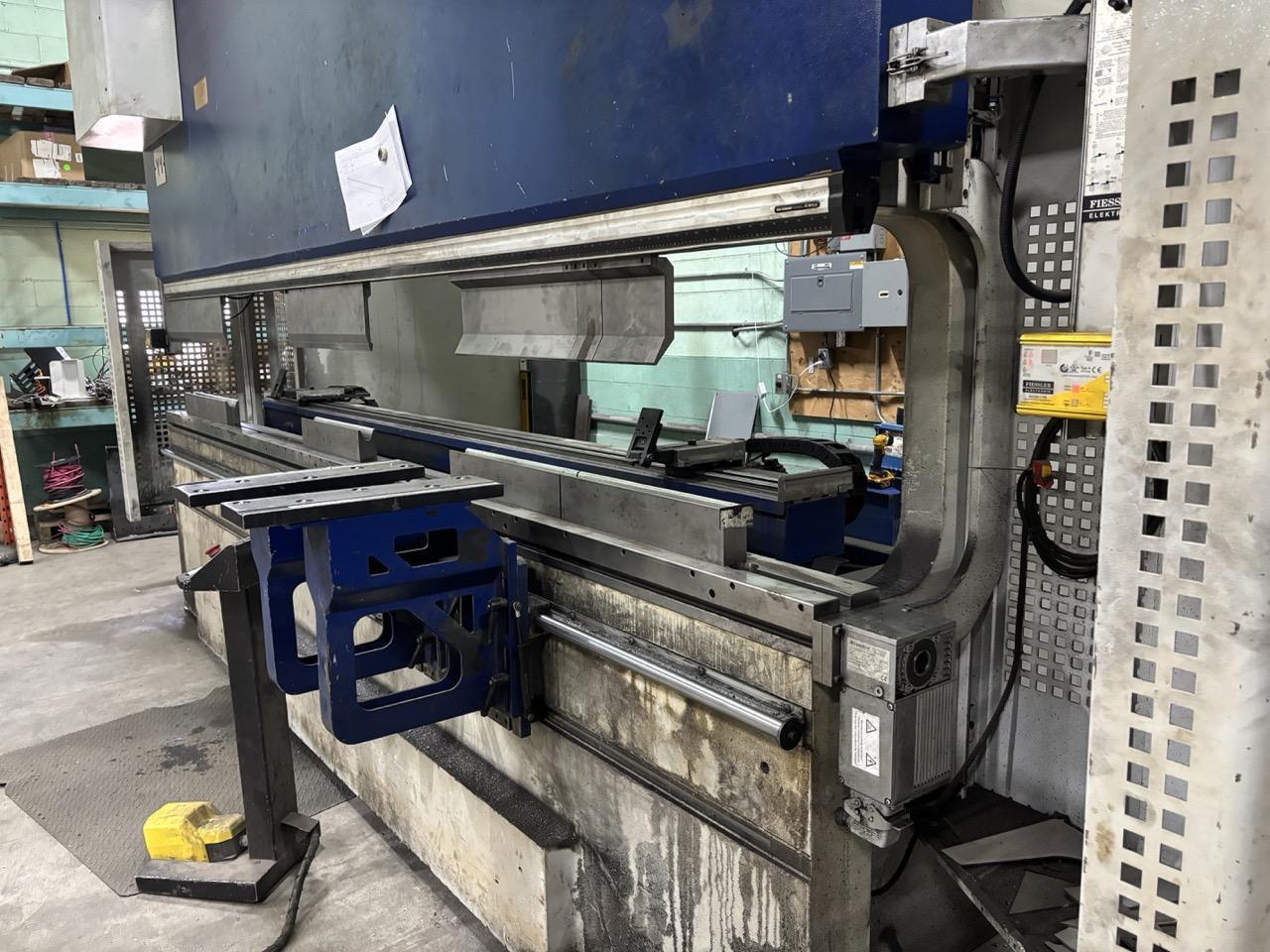

Press Force: 400 Tons Bending Length: 160 inches (4060 mm) Distance Between Housings: 140 inches (3550 mm) Daylight: 21 inches (533 mm) Throat Depth: 16 inches (406 mm) Stroke: 12 inches (305 mm) CNC Control: ESA S650 or similar unit CNC Axes: Y1, Y2, X, R (4-axes) Back Gauge Accuracy: ±0.03 mm Back Gauge Range: X: 750 mm, R: 250 mm Hydraulic Clamping: On the ram Crowning System: Motorized anti-deflection crowning system with Wila wedges Tool Clamping: Promecam-type quick clamp punch holder Front Support Arms: Sliding front sheet support arms Safety: Rear side protection covers and rear light barriers

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,TABLE HEIGHT:38.4″ MACHINE DIMENSIONS:240″ X 105.3″ X 132.6″ HIGH SPEED APPROACH SPEED: 3.9 IPM RETURN SPEED: 3.12 IPM BENDING SPEED:0.312 IPM WEIGHT:22,500 KG MAIN MOTOR:30KW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
