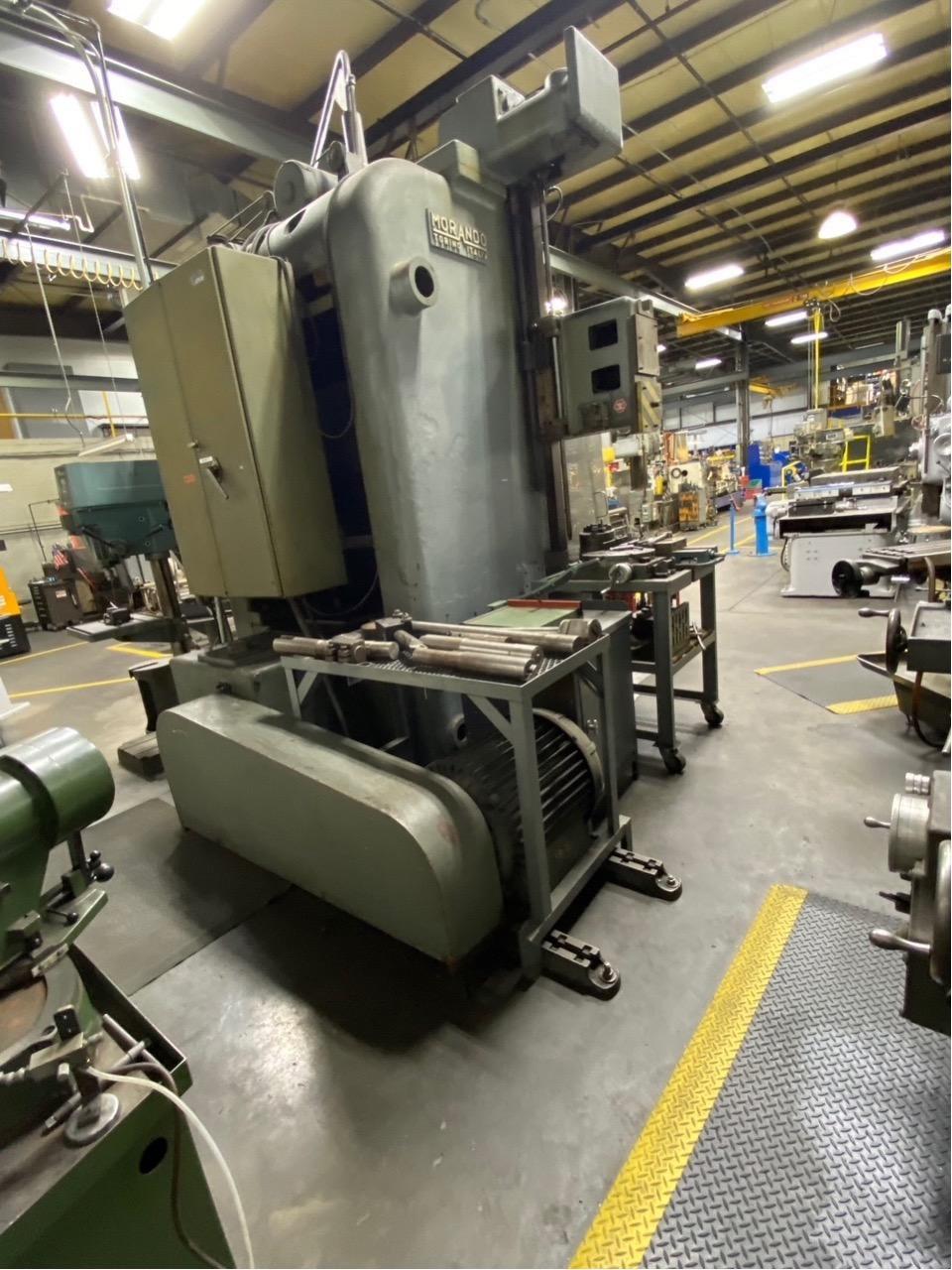

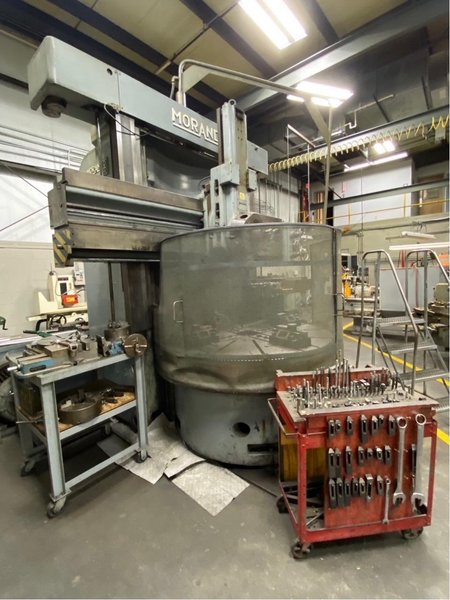

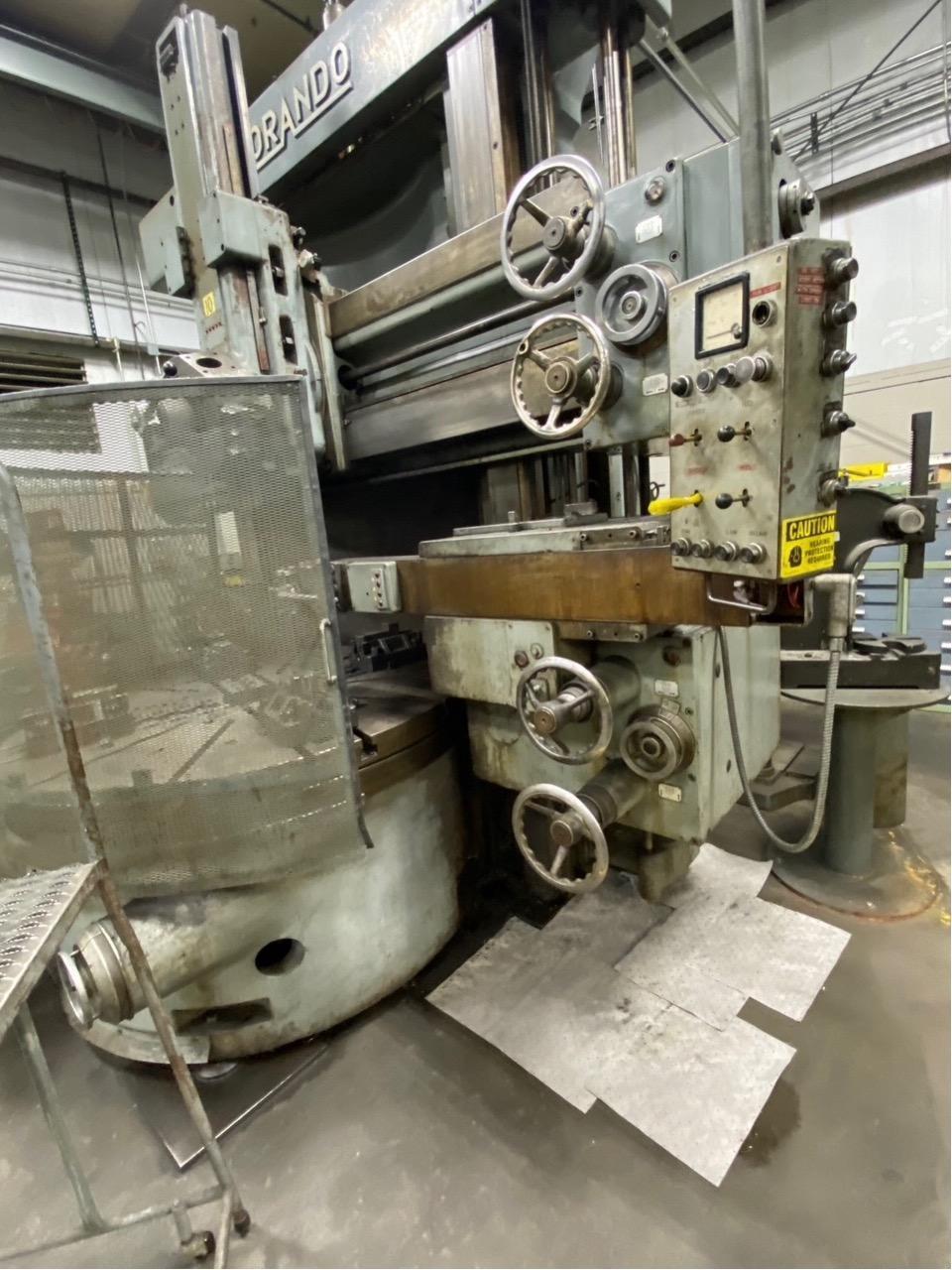

Morando VK17 Vertical Turret Lathe, 1954 – 67″ Table

Machine Capacity Maximum Swing With Side Head: 71″ Maximum Swing With Ram Head And Side Head In Forrest Position: 75″ Maximum Turning Height: 53″ Maximum Height Under Cross Rail: 56″

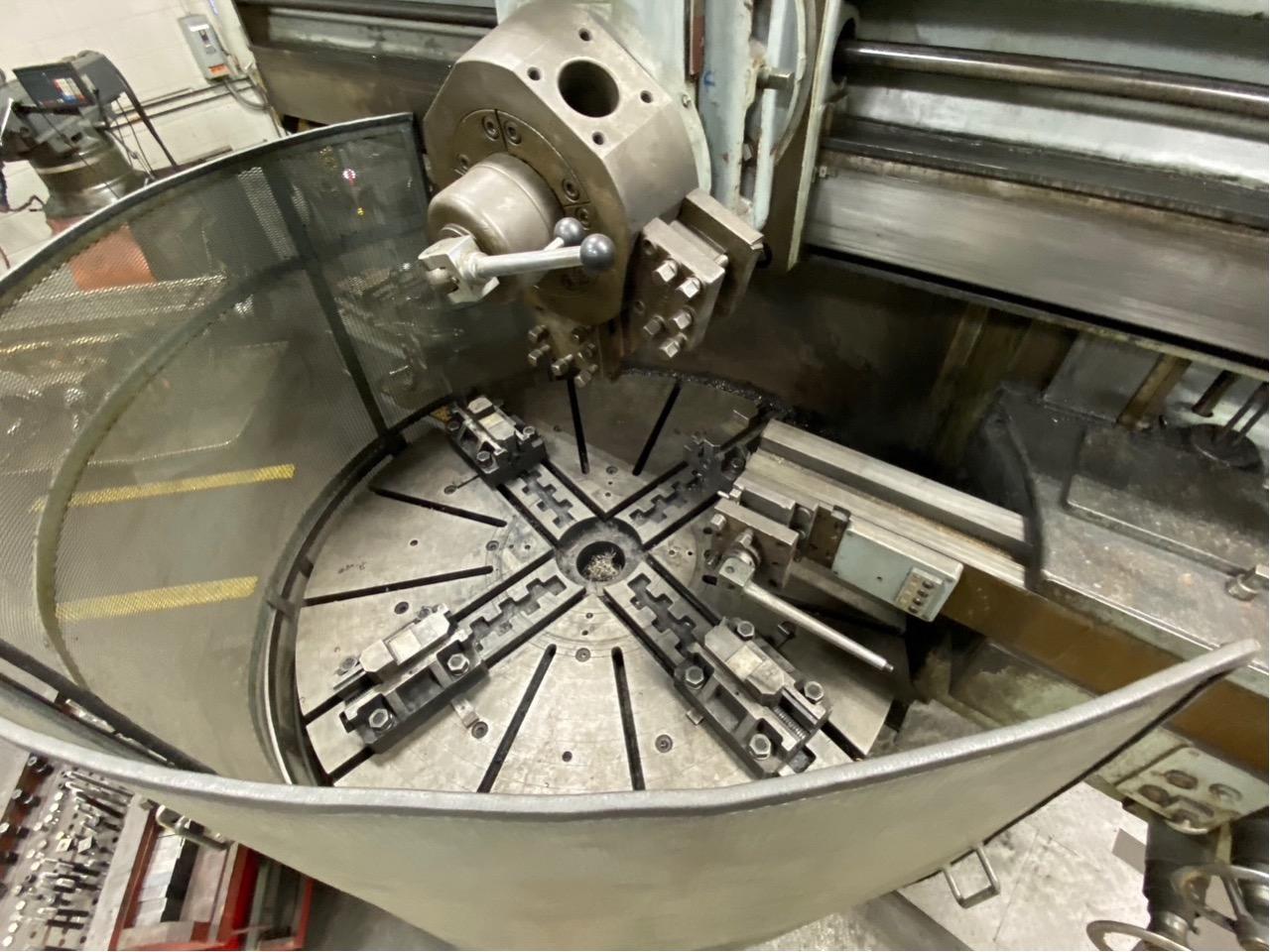

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Table Diameter: 67″ Maximum Weight Of Workpiece: 10 ton Table Speeds: 16

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Standard Speed Range High Speed Range: 49–120 RPM Low Speed Range: 5–150 RPM Extra Low Speed Range: 3–90 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Side Head Vertical Traverse Along Column: 53″ Working Stroke Of Slide: 28″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Vertical Heads Amount Of Swivel Of Ram And Turret Head: 35° Horizontal Travel Of Heads On Cross Rail: 43″ Stroke Of Slide On Ram Head: 39″ Stroke Of Turret Slide: 30″ Diameter Of Holes Of The Pentagonal Turret: 3 5/32″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Traverse Of Heads 95 in/min

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cross Rail Vertical Travel Along Column: 42″ Speed Of Travel: 14 in/min

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feeds (Vertical Or Cross Feed) Range Of Feed Per Revolution Of Table: .0026–.500″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Driving Power Main Motor (1500 RPM): 50 HP Rapid Traverse Motor (1000 RPM): 5 HP Maximum Total Cutting Force: 13,200 lbs working on Ø 55″ Maximum Torque On Table: 38,500 lbs/ft Size Of Tools: 2 x 1 3/8″ Cast Iron Chip Section About: 0.110 sq/in R70 Steel Chip Section About: 0.055 sq/in

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight & Dimensions Net Weight (With Turret And Ram Head): 58,200 lbs Overall Dimensions (With Turret Head): 11′ x 14′ x 12′ Overall Dimensions (With Turret And Ram Head): 14′ x 14′ x 12′

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
