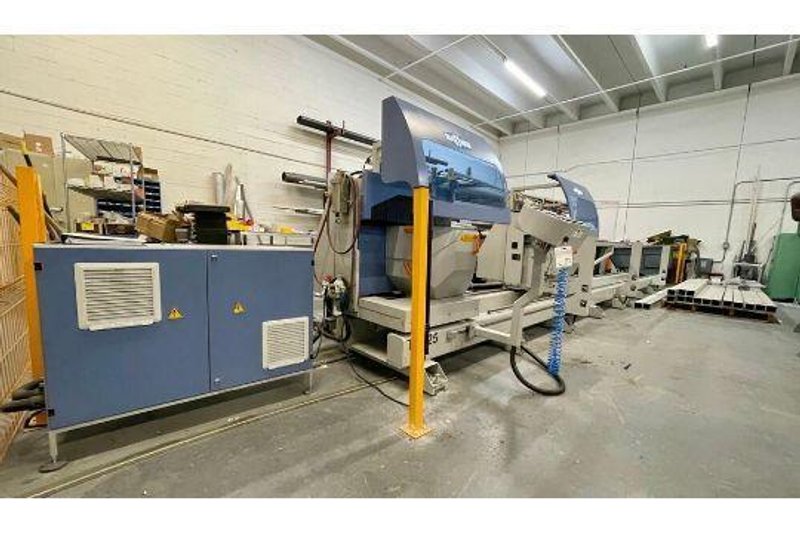

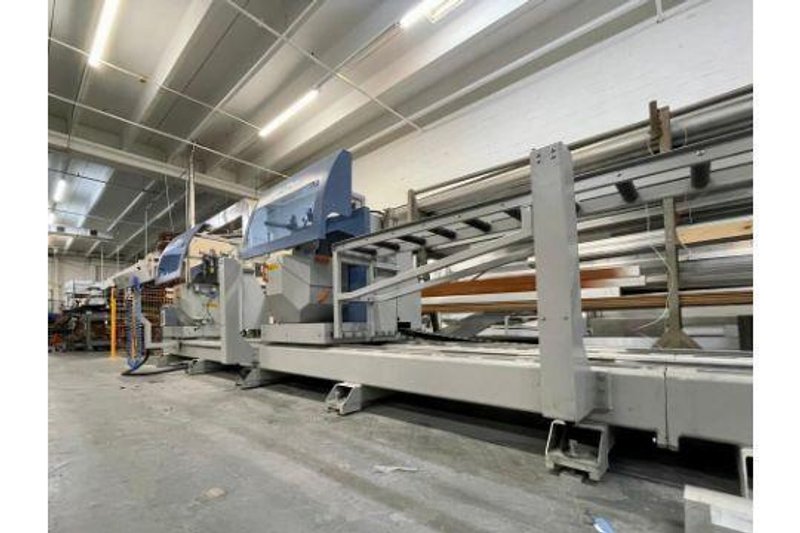

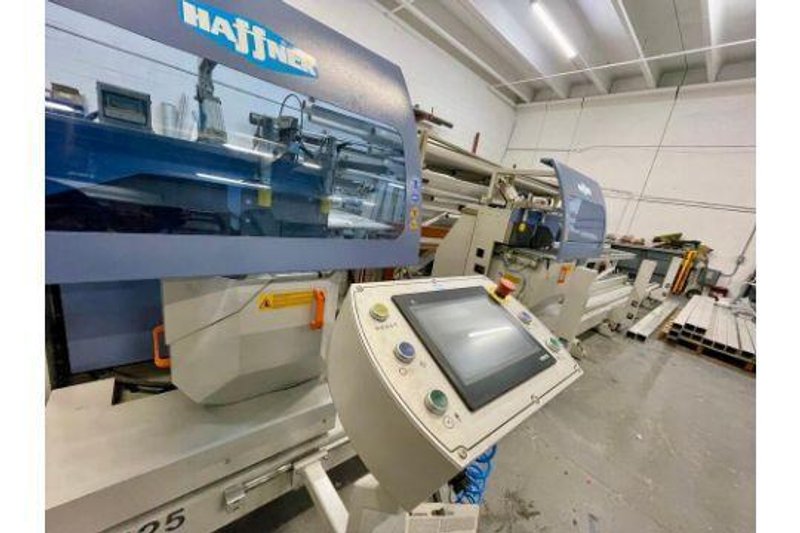

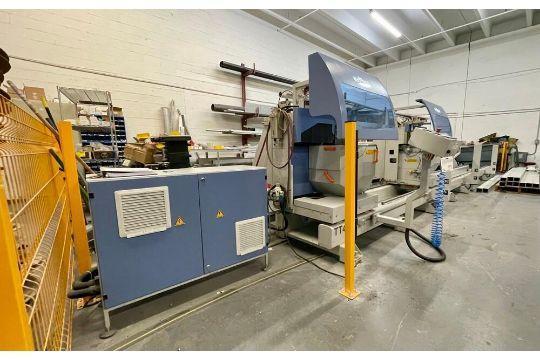

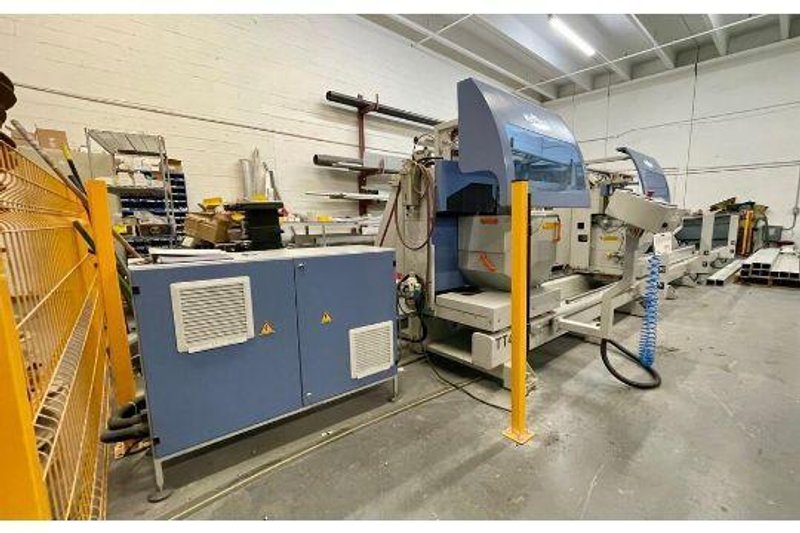

HAFFNER TT-425 PROFILE DOUBLE HEAD MITRE SAW, 2024 – Precision Profile Cutting Machine

CUTTING AREA: 13.1′ X 19.6′ X 24.6′ PIVOT ANGLE RANGE: 90° TO 22.5° (WITH INTERMEDIATE STOPS) TILTING & PIVOTING DEGREE: 90° AND 45° (BY PNEUMATIC CYCLINDER) SAW BLADE MOTOR: 5.36 HP X 2 SAW BLADE SPEEDS: 2,800 RPM / 3,400 RPM SAW BLADE DIAMETER: 18.7″ MIN CUTTING LENGTH AT 90° & 45°: 17.71″ PIVOTING RANGE: INWARDS 90°- 22.5° WITH ACCURACY UP TO ± 0.1° TILTING RANGE: INWARDS PNEUMATICALLY 90°- 45° COMPRESSED AIR SUPPLY: 100 PSI (7 BAR) AIR CONSUMPTION PER WORKING CYCLE: 2.12 CU. FT.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: PNEUMATIC SAW BLADE FEED SYSTEM WITH ADJUSTABLE BLADE FEED SPEED VERTICAL AND HORIZONTAL PNEUMATIC CLAMPS STANDARD CUTTING LENGTHS VERY MINIMAL USE/VERY LOW HOURS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
