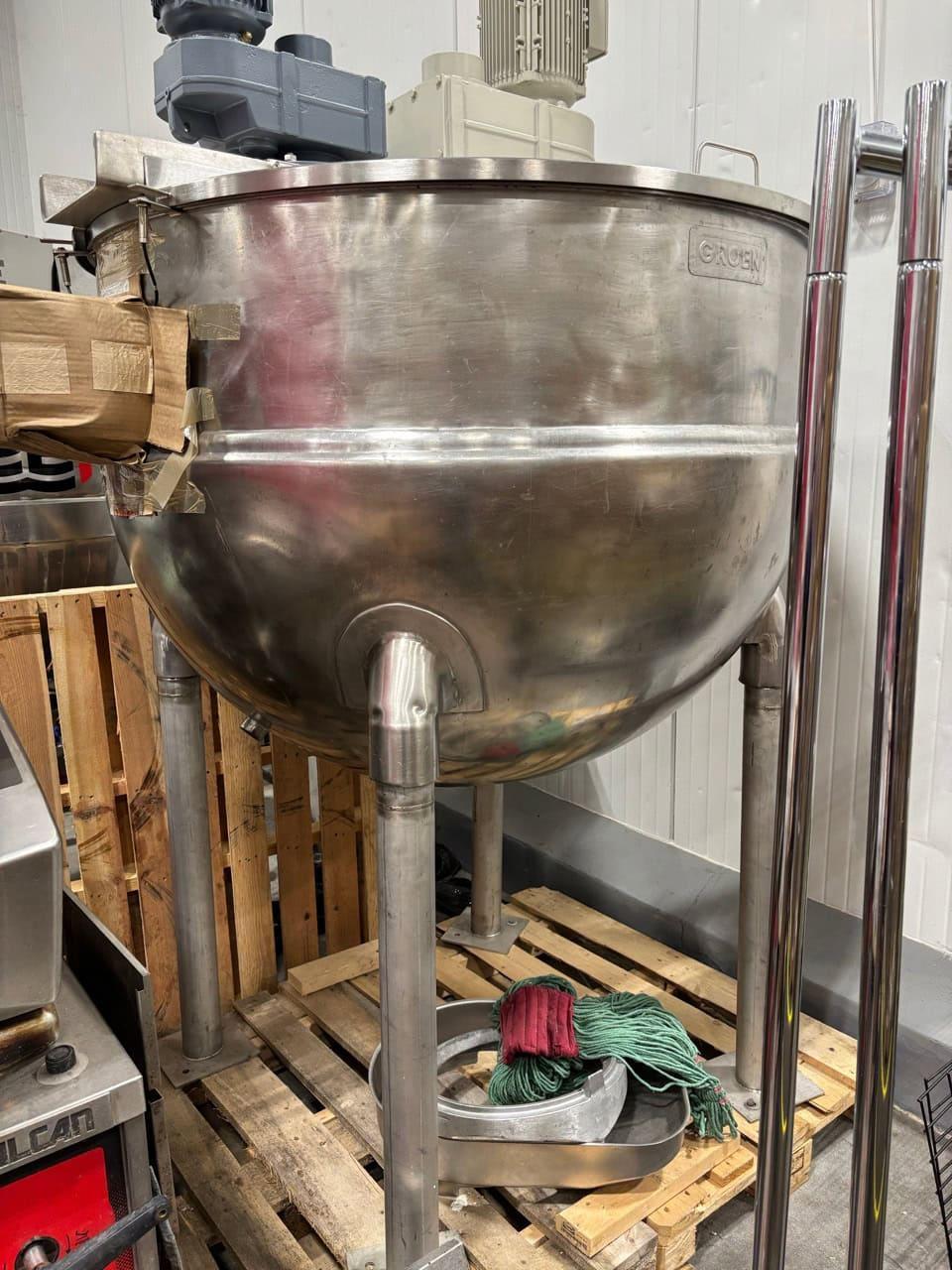

250-Gallon Groen N-250 SP ASME Jacketed Agitated Kettle – 316 SS, 125 PSI Steam Rated

Equipment Overview 250-gallon Groen stainless steel steam-jacketed kettle with ASME/NB certification and overhead agitation. Designed for food, chemical, and industrial batch heating, it supports up to 125 PSI steam at 353 °F (jacket) and has been modified by Lee Industries under NB “R” repair stamp.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications Capacity: ~ 250 gallons Material: Stainless Steel, Type 316 (jacketed) Certification: ASME U / W → NB certification Jacket (Steam / heating media): Rated 125 PSI @ 353 °F (OEM) / Altered to 90 PSI @ 330 °F Vessel internal pressure tolerance (as altered): 90 PSI Head & wall thickness: Inner head: 0.375″, Jacket head: 0.187″, Jacket shell: 0.187″ Dimensions (approx): 42.5″ diameter × ~45″ depth Design form: Open top, hemispherical dish bottom Discharge: Bottom outlet, likely 2″ Agitation: Top-mounted drive, likely dual agitators Motor: ~2 HP, 230/460 V, 3-phase Legs / mounting: Three stainless legs ASME modifications: Altered by Lee Industries under NB R1111 Use cases: Sanitary processing, food, chemical, sauces, batch heating / mixing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
