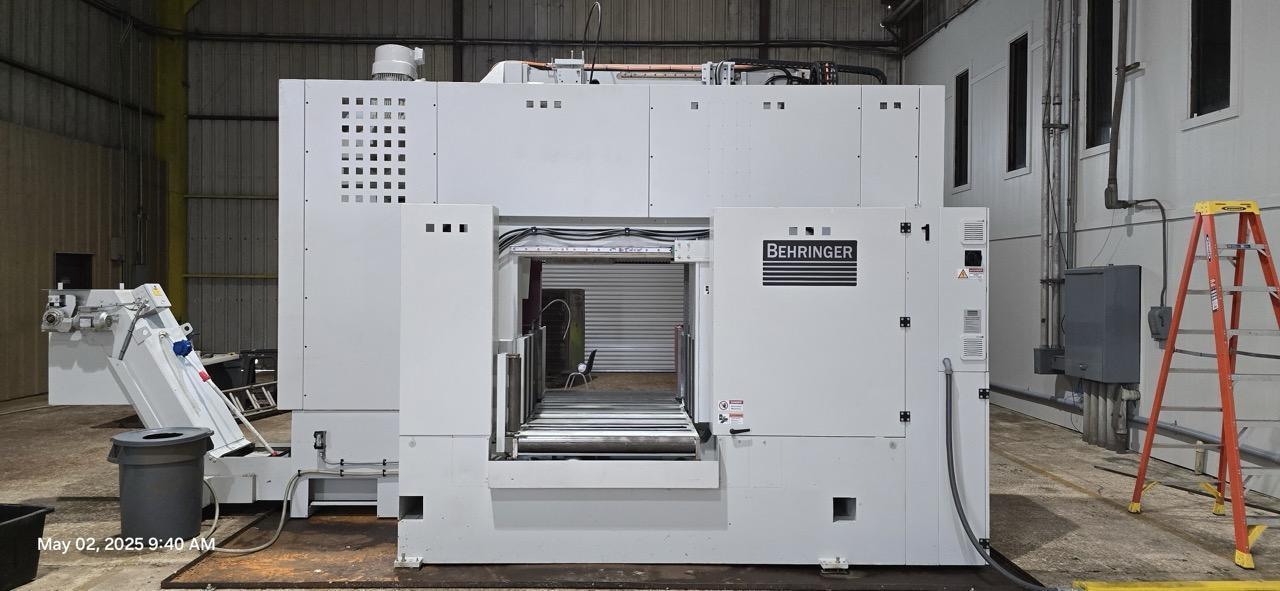

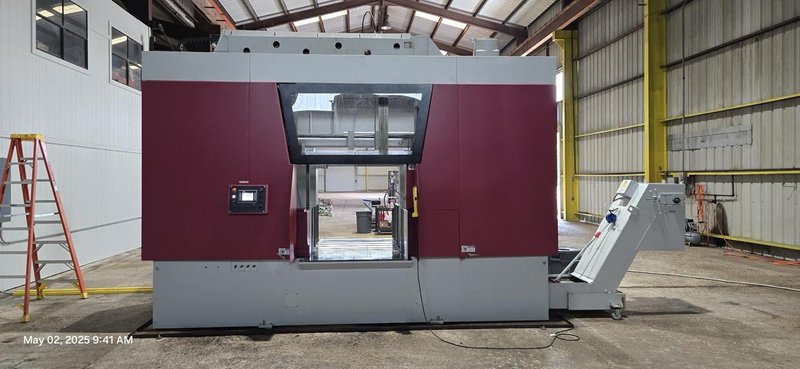

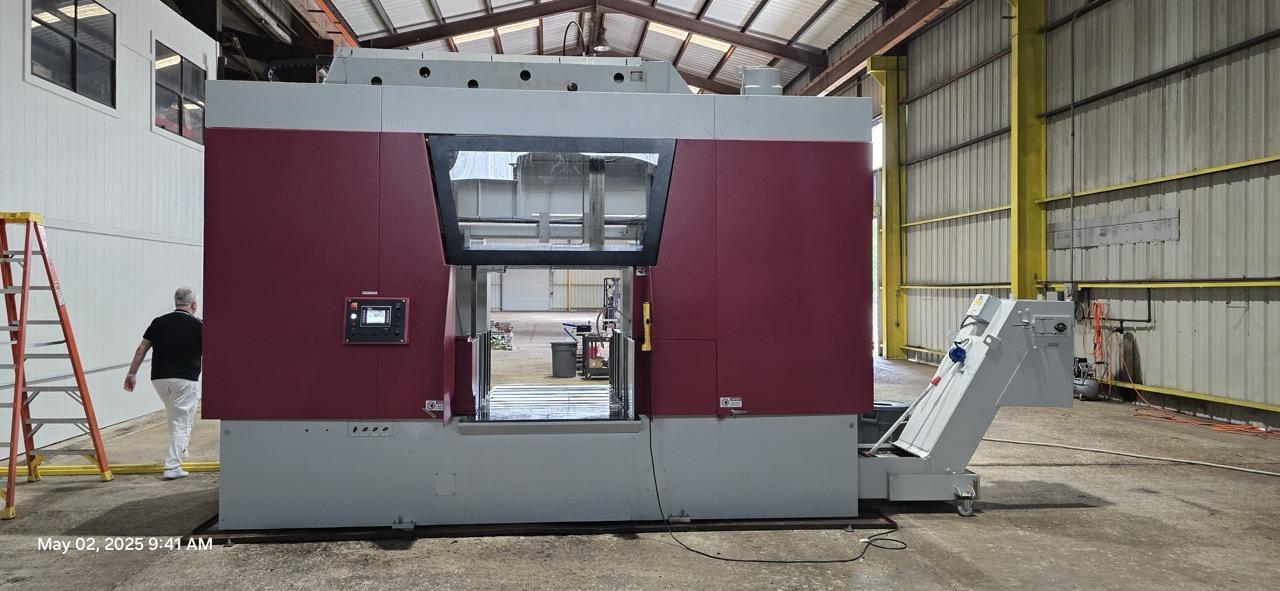

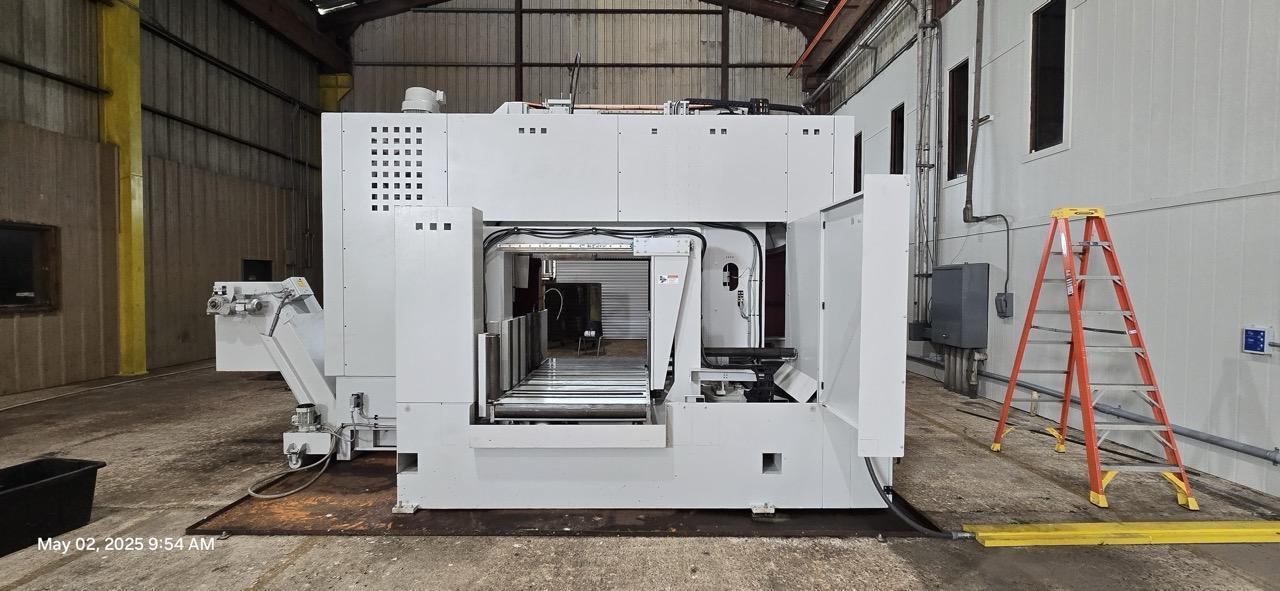

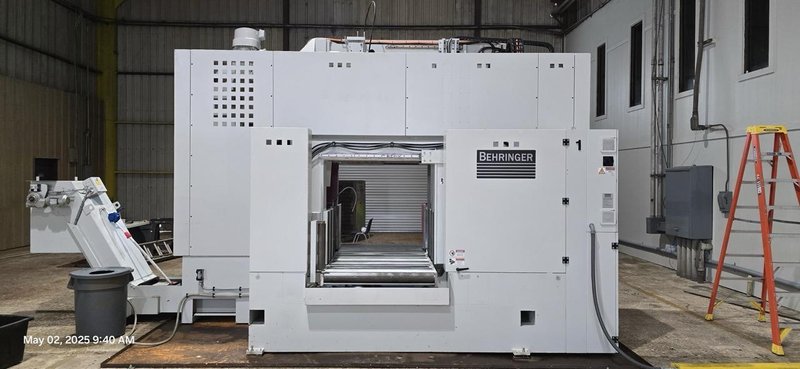

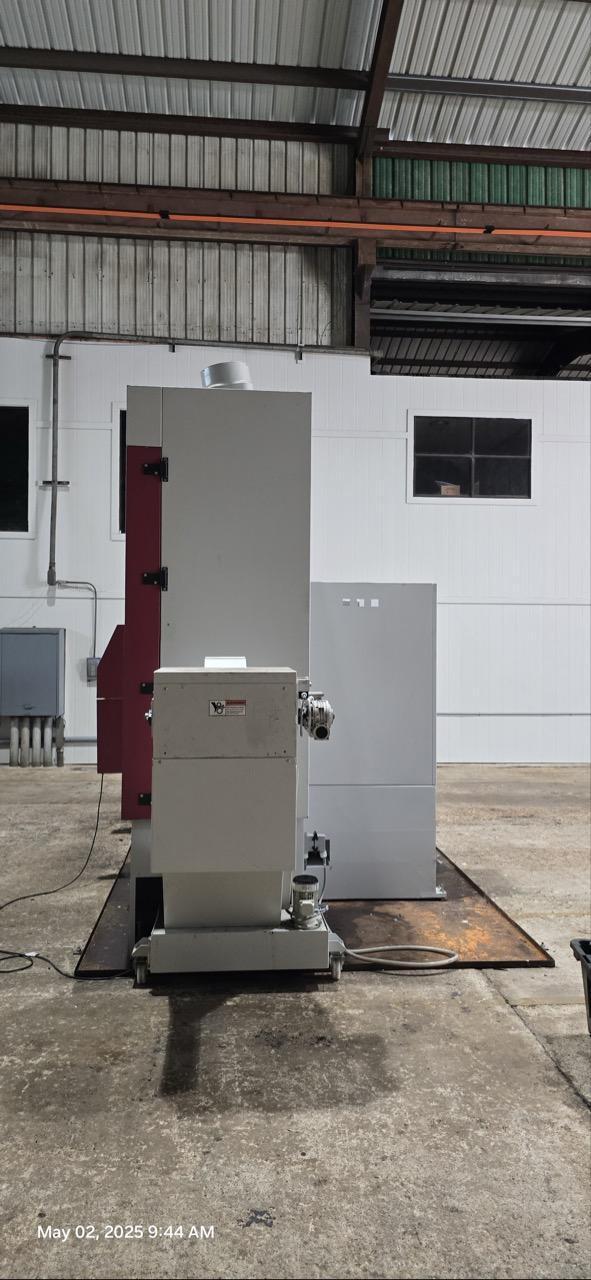

41.7″ x 41.7″ H Behringer HBE1060A Horizontal Automatic Band Saw, 2022 – Conveyor

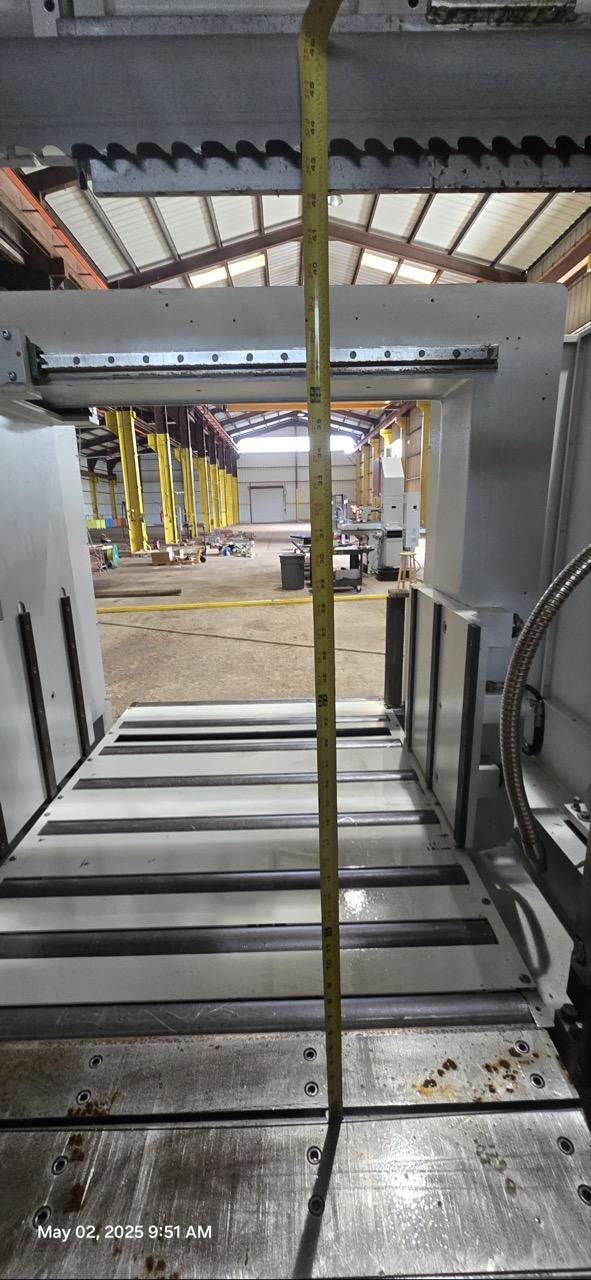

Cutting capacity: Cutting capacity round: 41. 73” Cutting capacity flat : 41.73” W x 41.73” H Minimum round: 2.36” Minimum flat (W x H): 2.36” x .7874”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Characteristics: Saw blade: 34’ 6” x 2-⅝” x .063” Saw drive: 18.5 kw frequency controlled Cutting speed range: 10-180 m/min or 32 – 590 ft/min Total connection power: approx. 23 kW Electrical equipment Voltage 460 V Material feeding length: 19.685” each stroke – max 177”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Minimal cut-off length: In automation Operation from .3937” Minimum length of rest piece: In automation Operation from 2.16” In manual operation from .4724”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions and weight: Machine length: 99.4” – 88.58” (for shipping) Machine width: 110.2” Machine height: 139. 7 “ (125.98” for shipping) Weight: 24,250.85 lbs. Material support height: 31.49”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

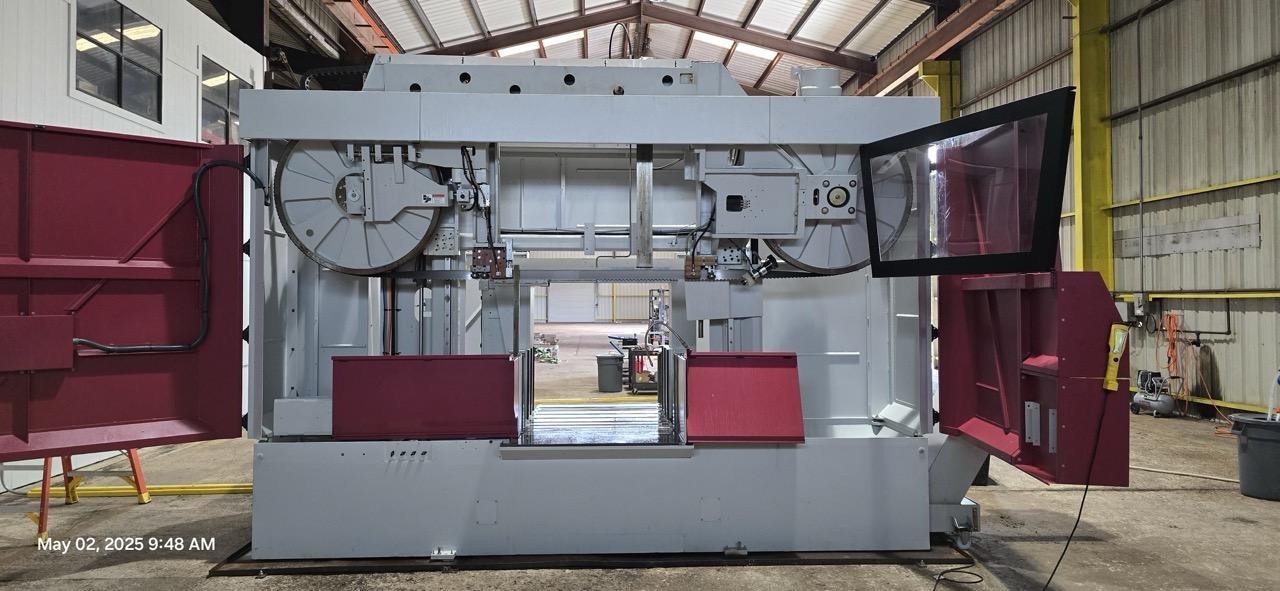

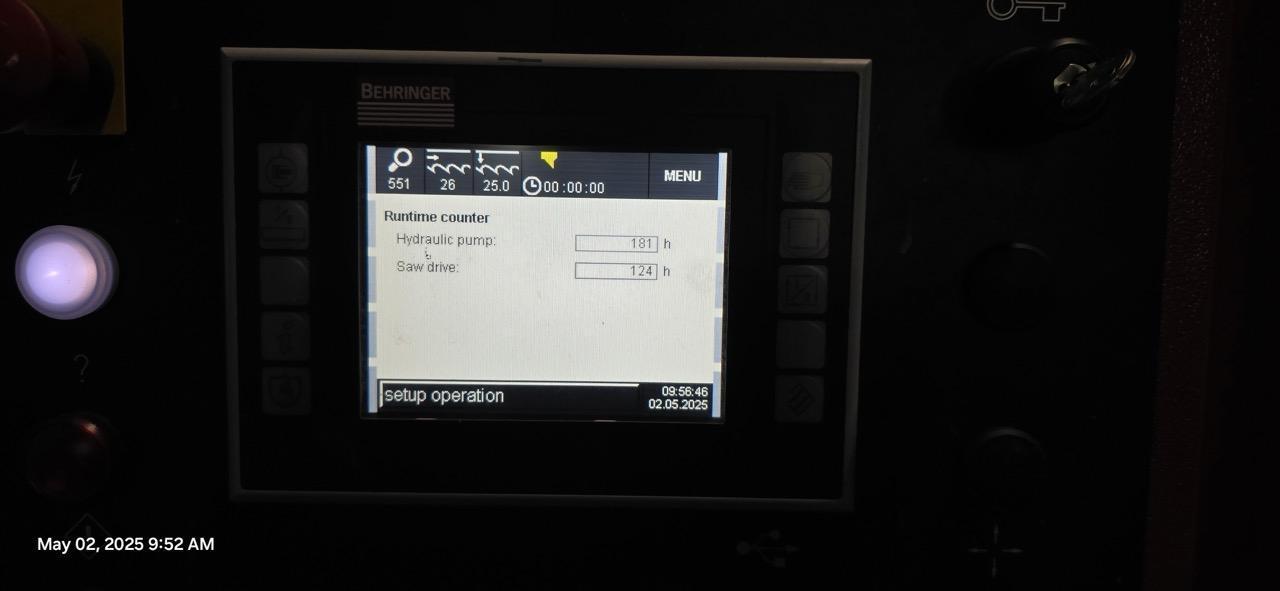

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,BEHRINGER BT65 Touch Panel with Auto-Feed ControlSaw Frame Height adjustment of the saw frame Saw band guides Saw band drive Electronic monitoring of minimum speed Down feed control Saw Blade Cleaning with BEHRINGER Material Clamping Device Automatic Material Feeding

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
