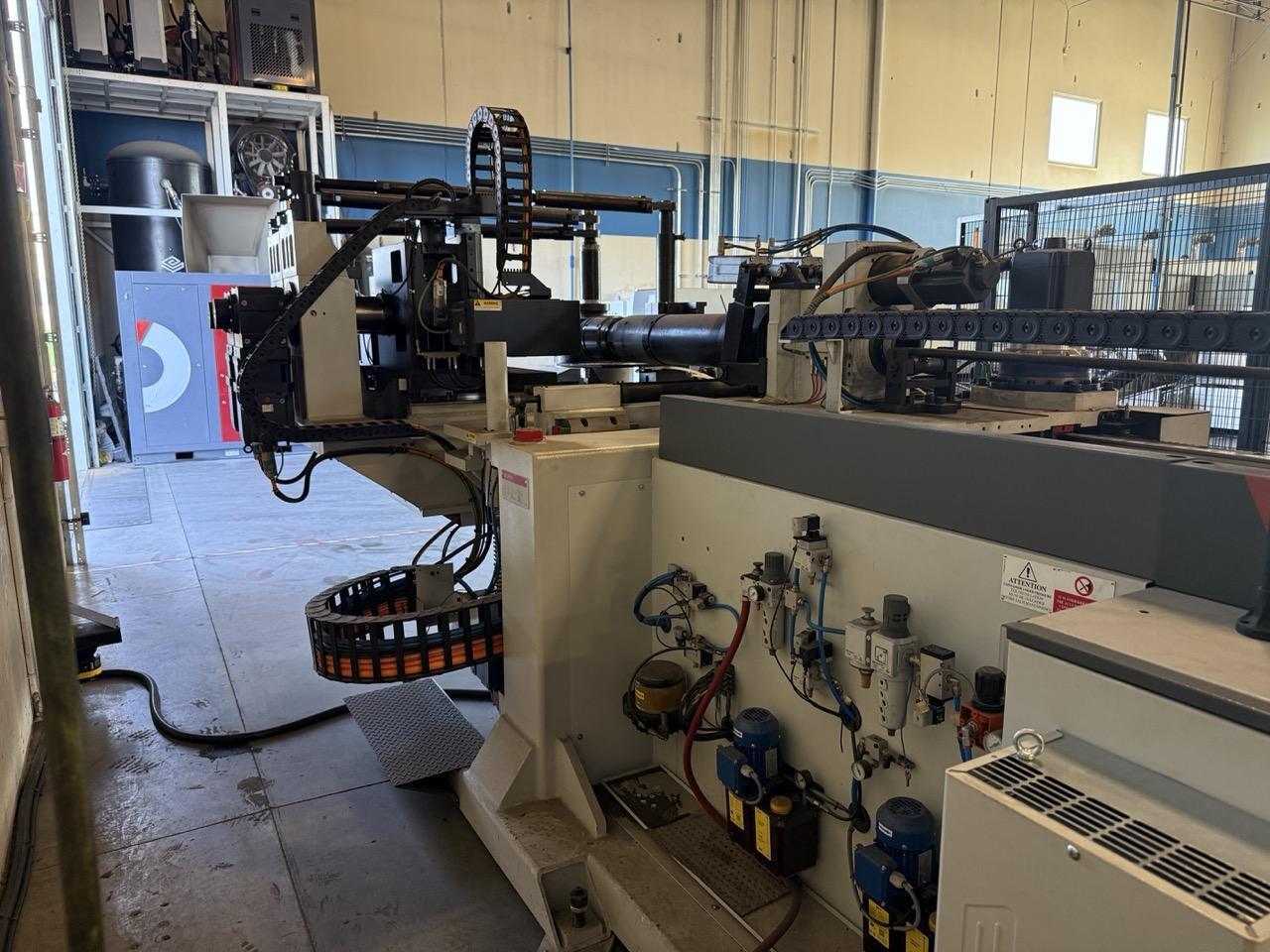

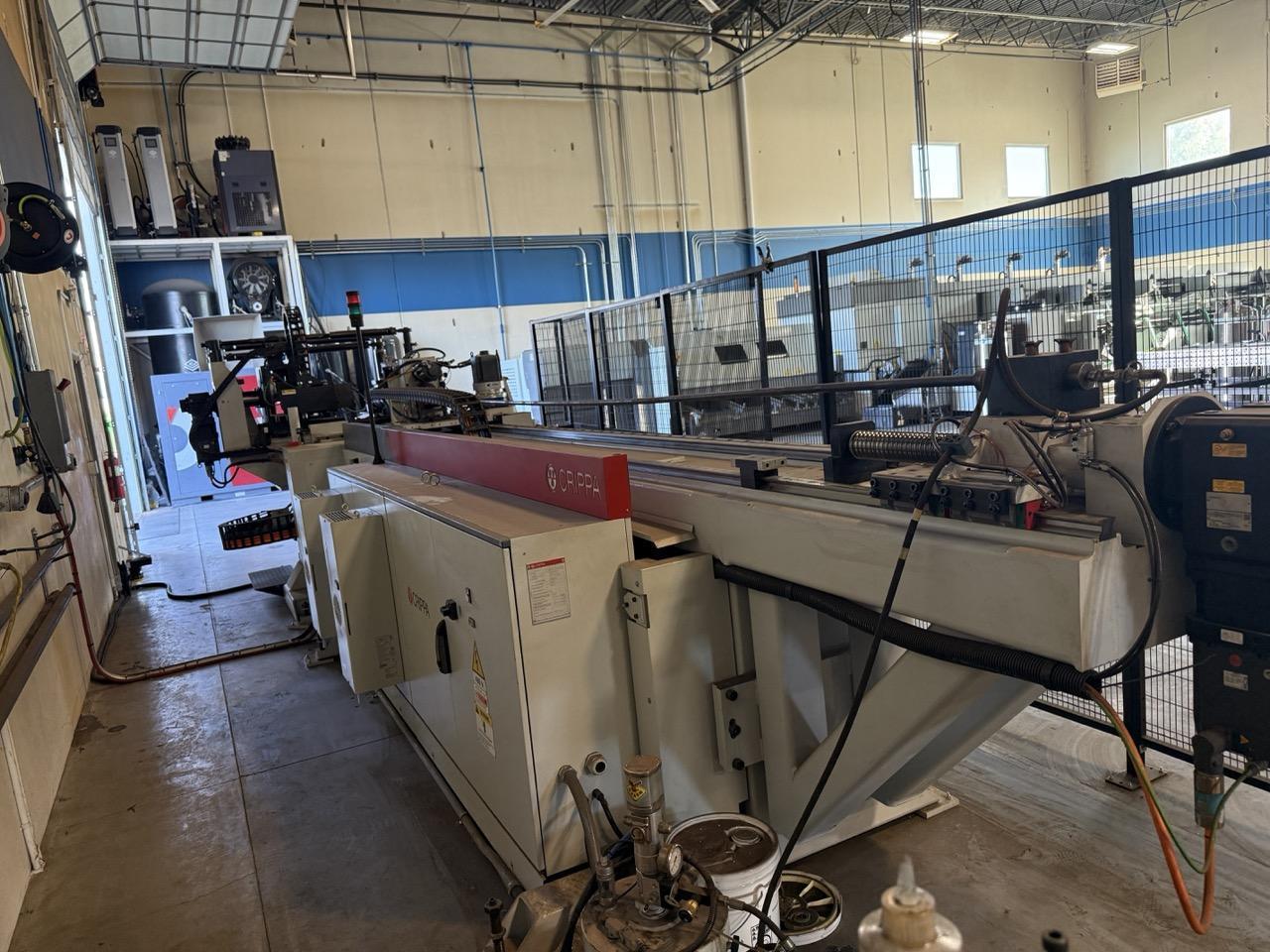

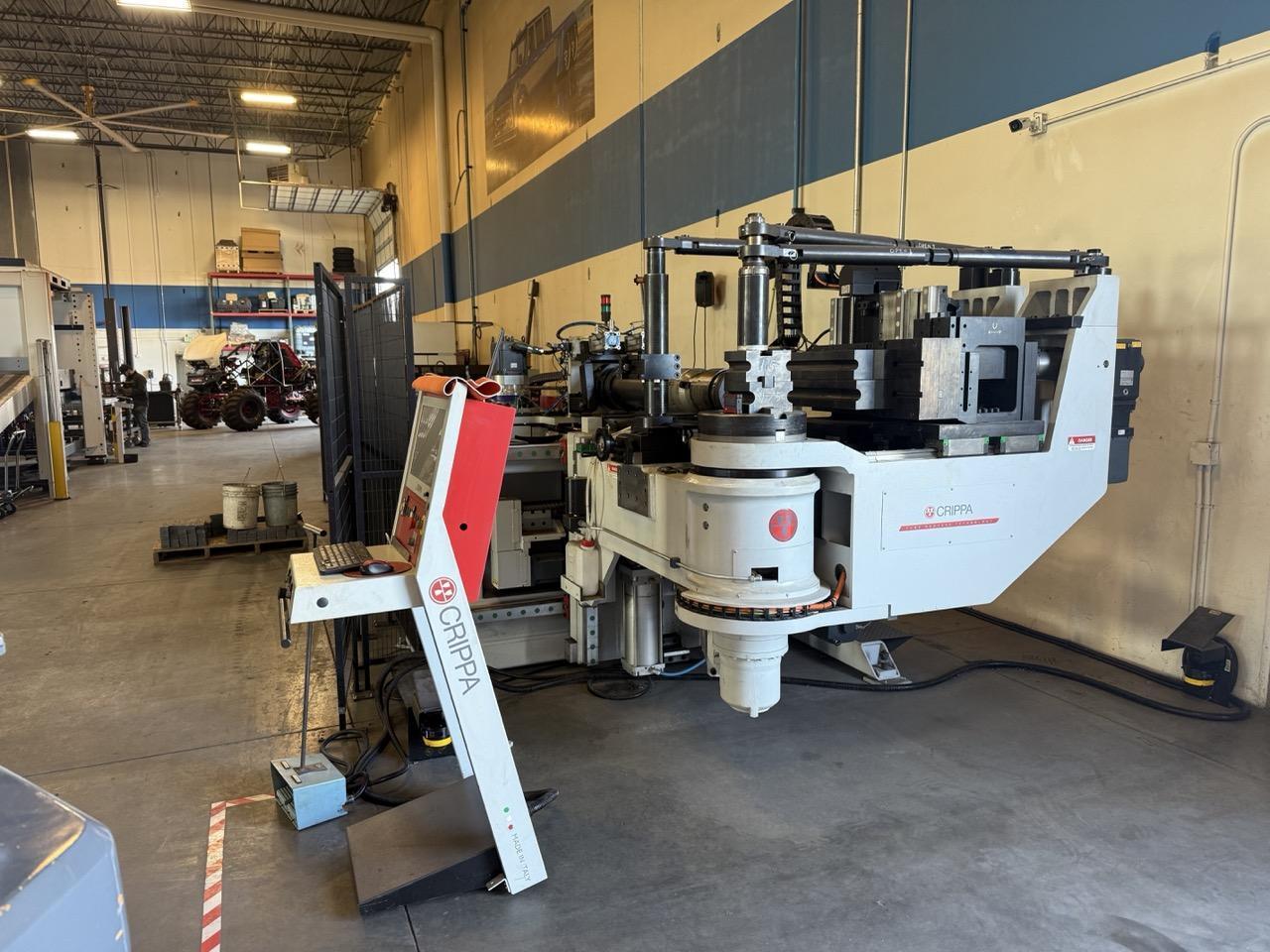

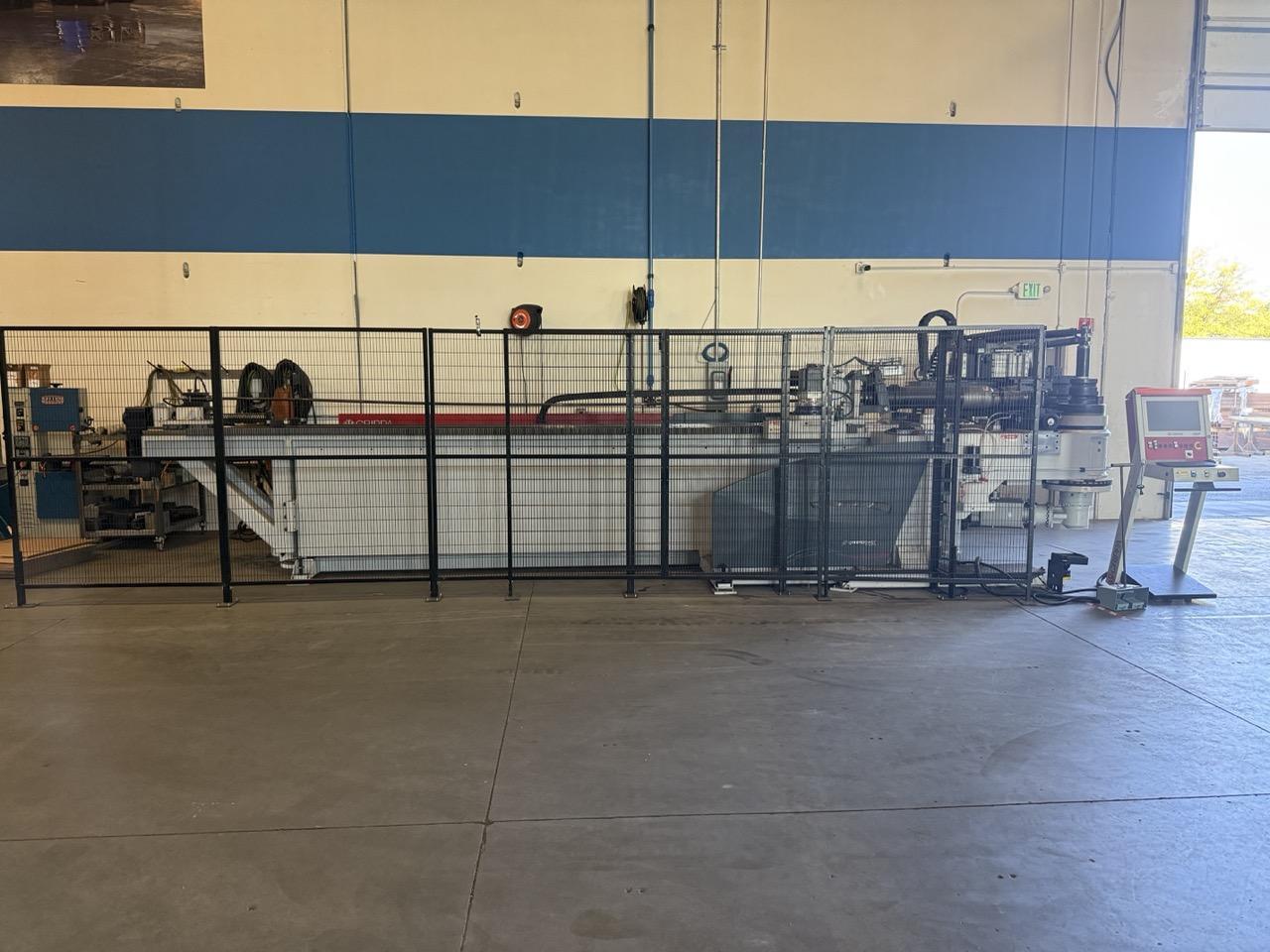

Crippa 114LE Tube Bending Machine, 2022
Brand
Category
Model
114LE
Stock #
887481
Year
2022
Condition
Not specified
Location
Not specified
|
Bending direction: Right or left
Number CNC axes: 9
Mild steel max. OD (R=350-450 N/mm²): 114×2.5 mm
Stainless steel max. OD: 114×1.5 mm
Max. bending radius: 400 mm
Max. bending speed: 66 °/sec
Workable length of standard tube inside the collet/hitch feeding: 3400/4800 mm
Max. OD for hitch feeding: 90 mm
Resolution of Y axis: ±0.05 mm
Power: 36 kW
Approximate Weight: 14000 kg
Stroke: 300 mm
Control: Siemens 840D sl
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
