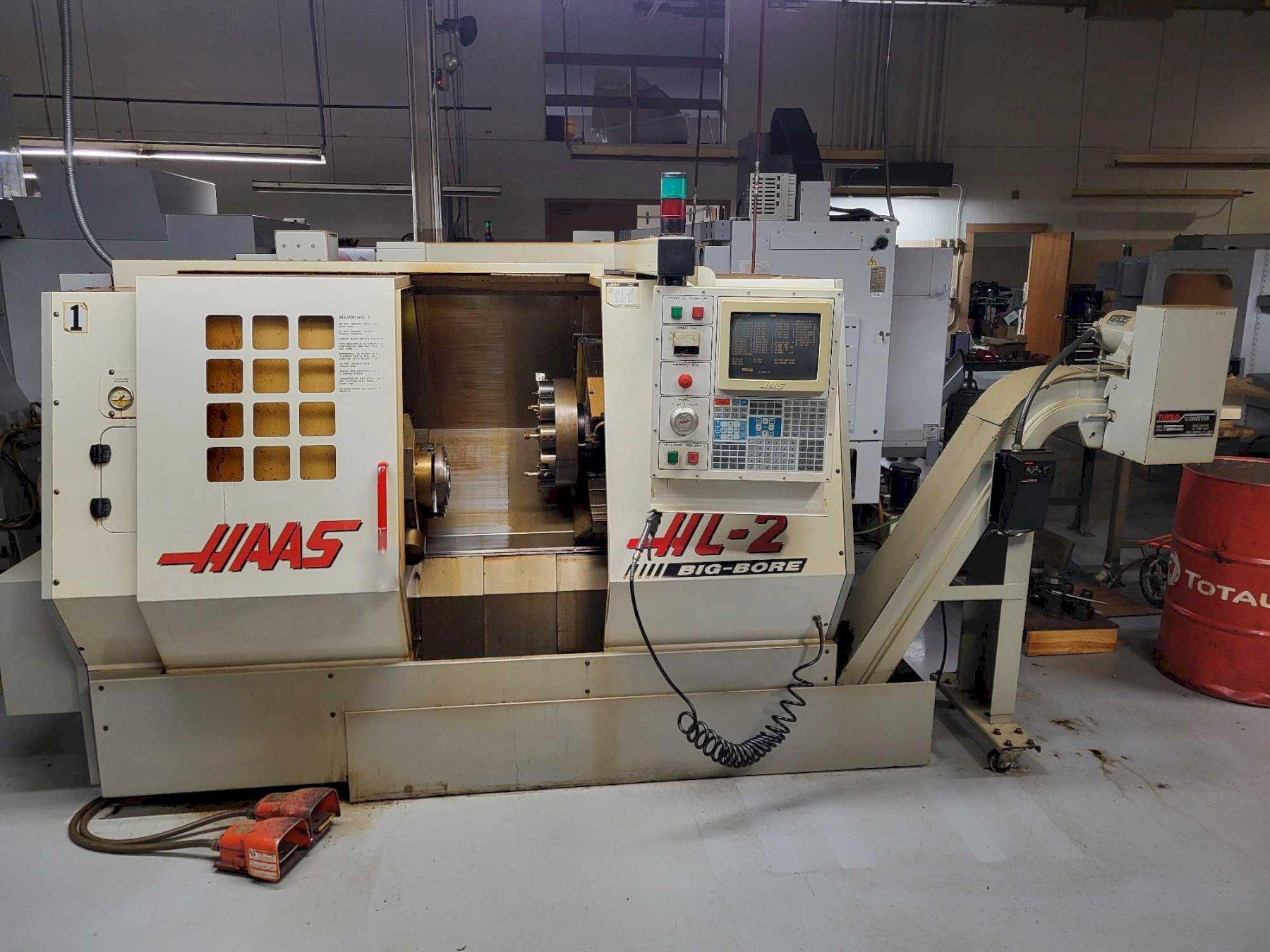

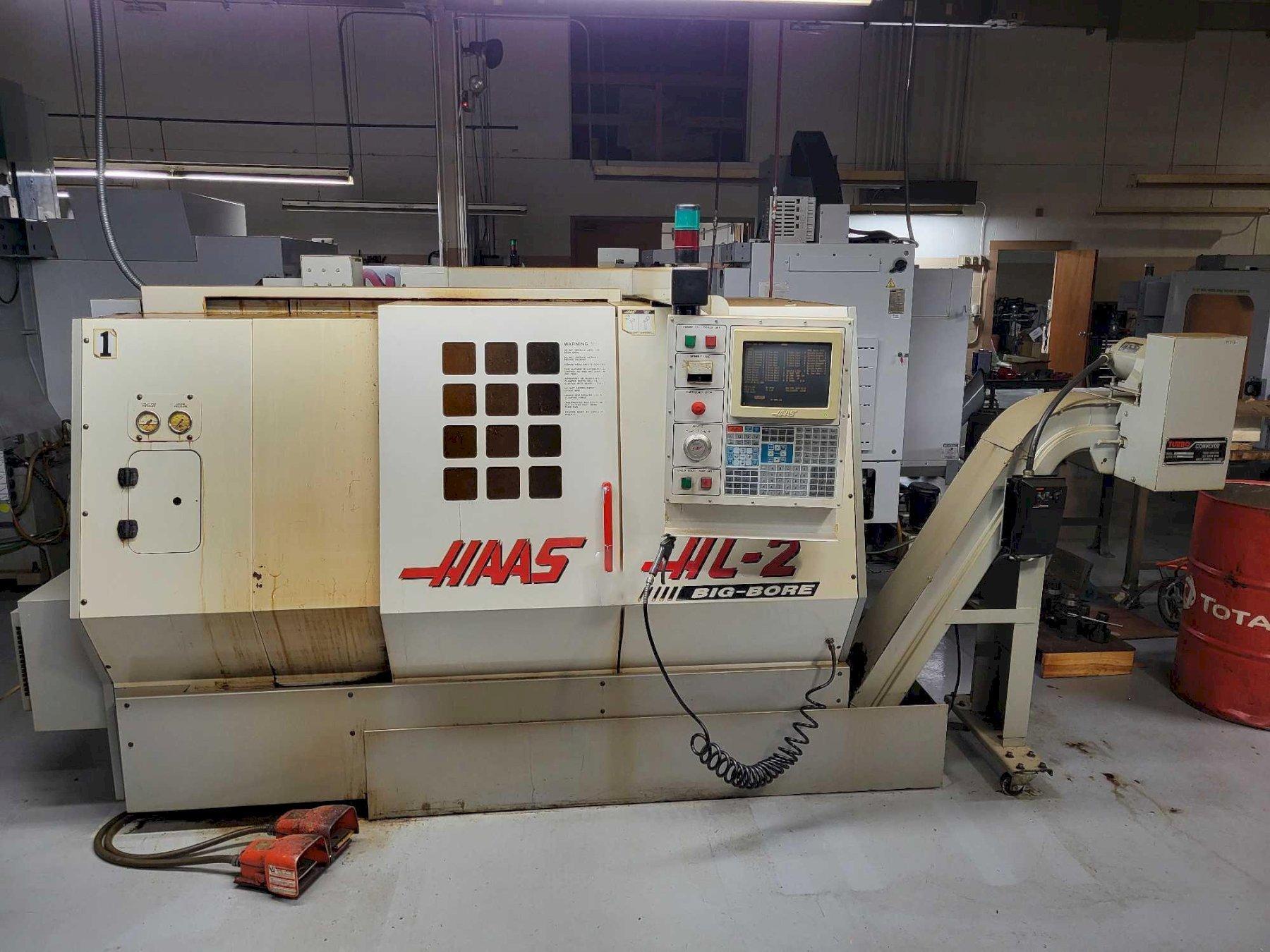

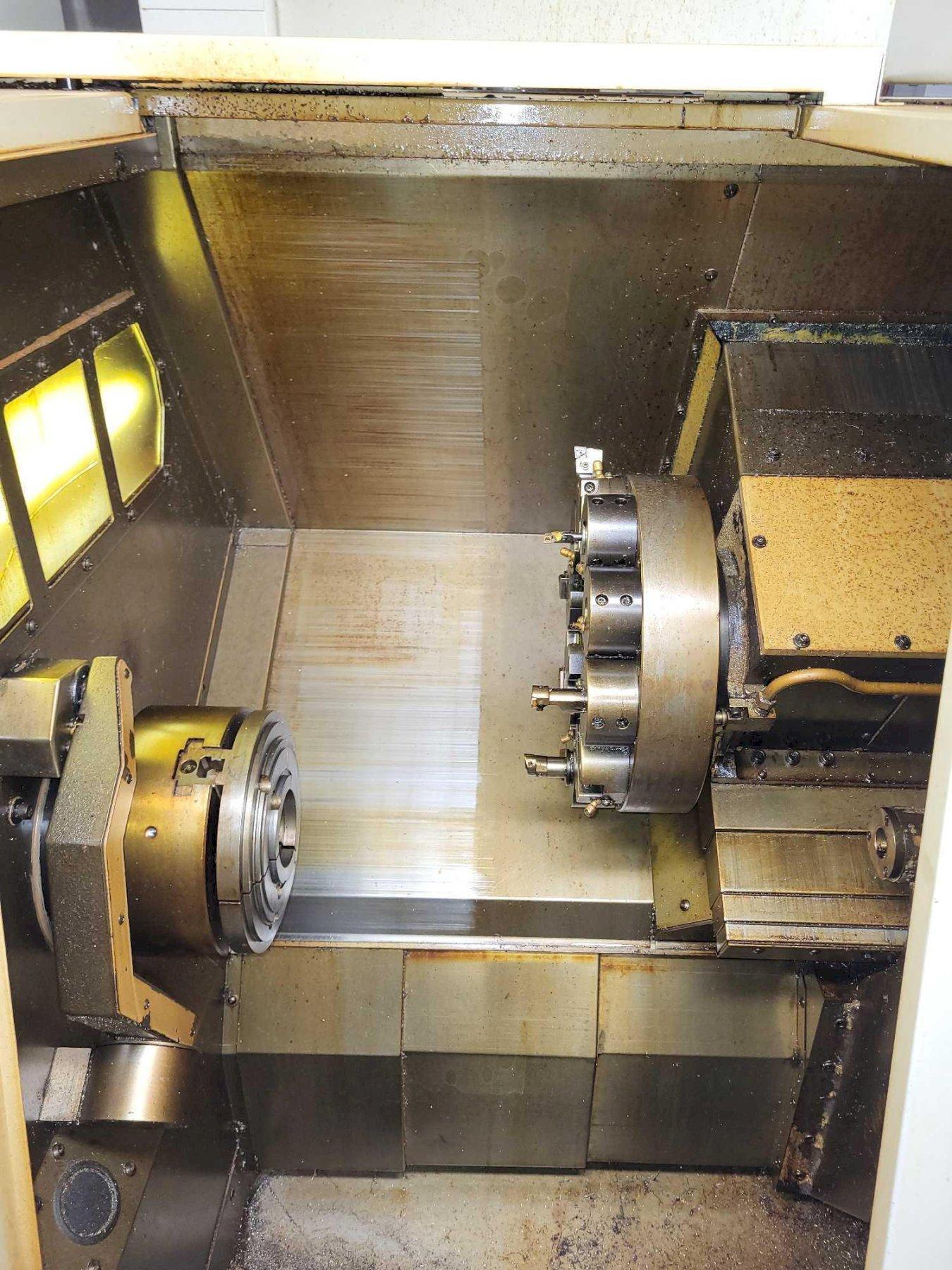

Haas HL-2 Big Bore CNC Lathe, 1997
Brand
Category
Type
Model
HL-2
Stock #
388774
Year
1997
Condition
Not specified
Location
Michigan
|
Max swing over bed: 24″
Max swing over saddle: 9.5″
Max turning diameter: 10″
Max turning length: 20″
Spindle speeds: 3,400 RPM
Spindle drive: 30/22 HP
Spindle nose: A2-6
Max bar capacity: 2.5″
Hole through spindle: 3″
Hole through draw tube: 2.56″

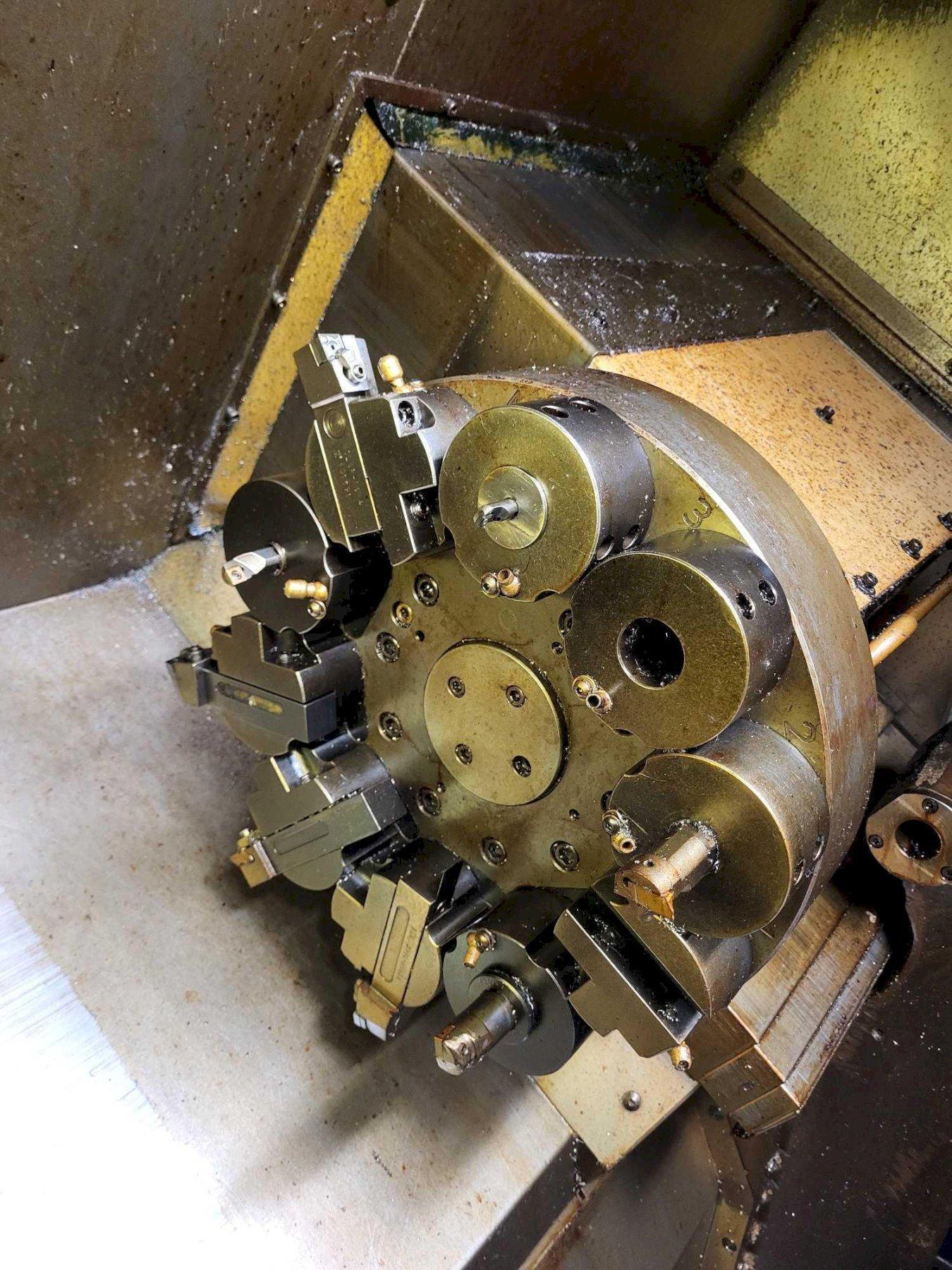

Turret capacity: 10 tools
Turret index time: 1 second
Turret travels (X/Z): 8.45″ / 20″
Rapid traverse rate (X/Z): 710 IPM

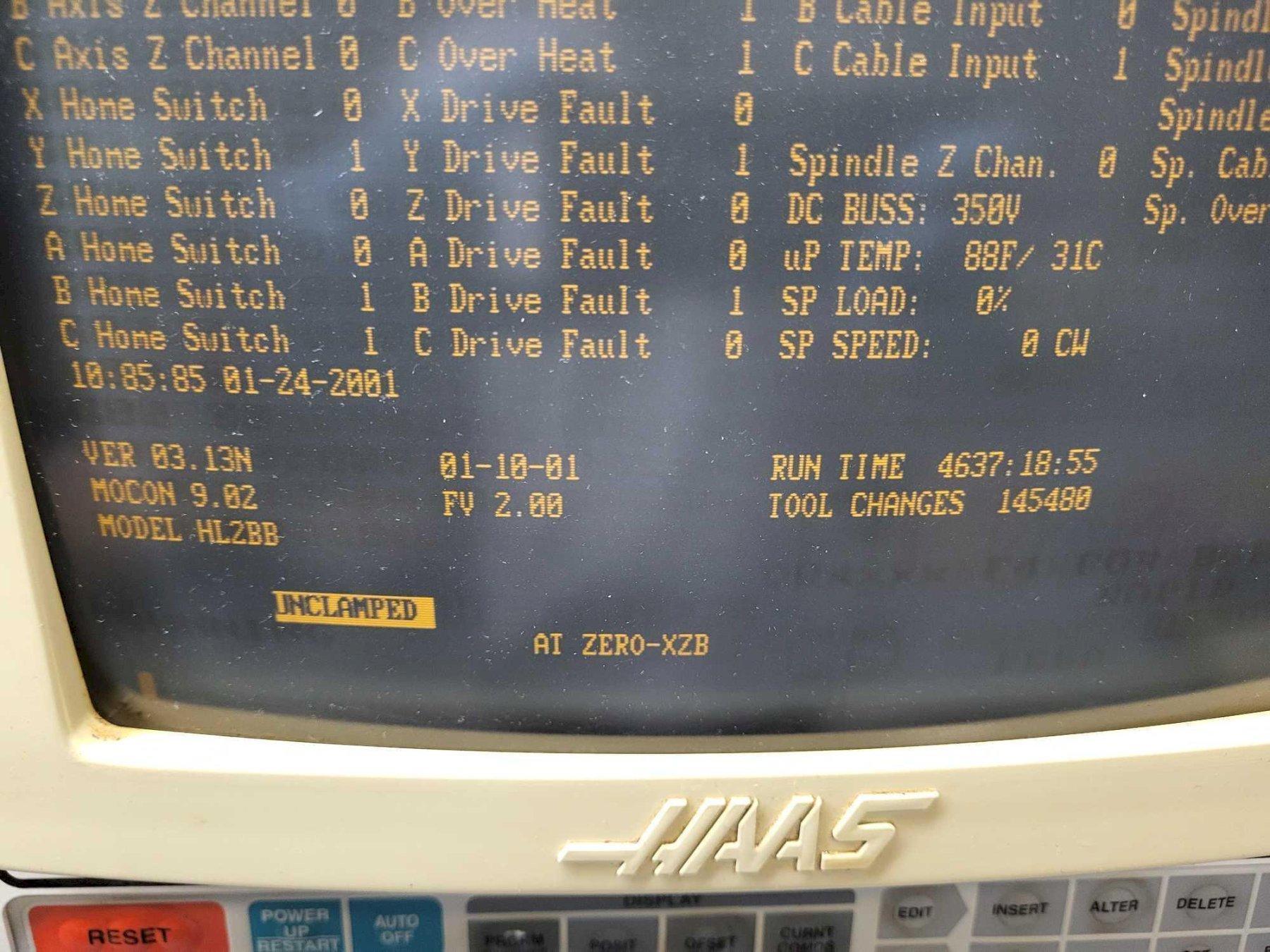

Run time: 4,637 hours
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
