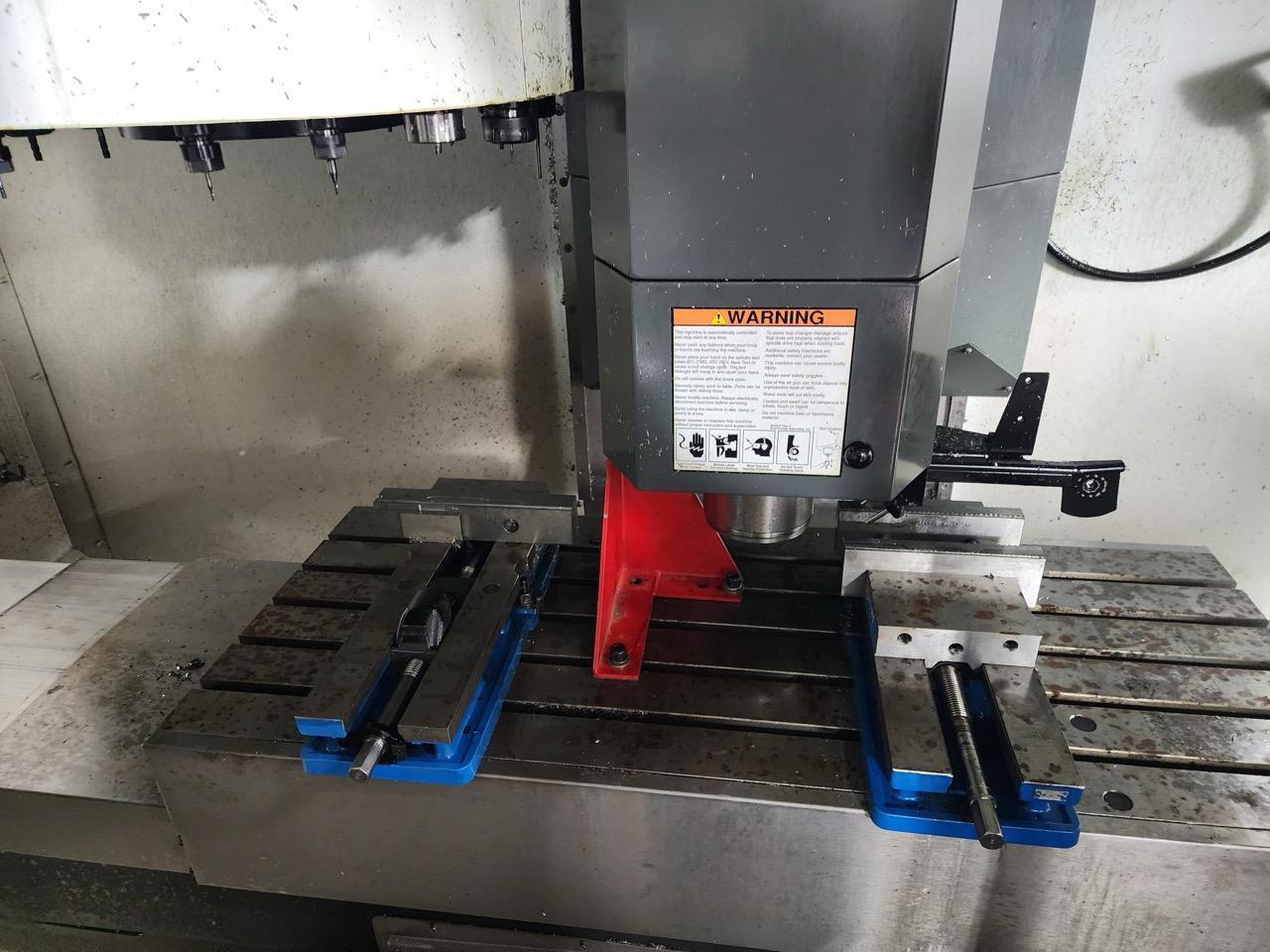

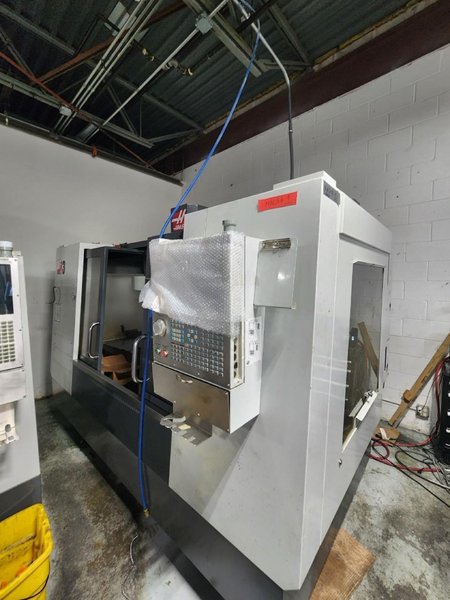

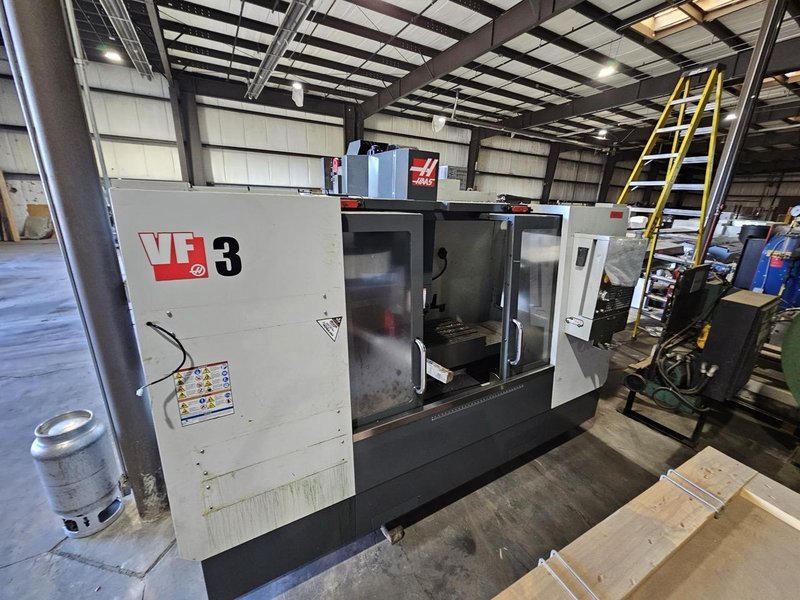

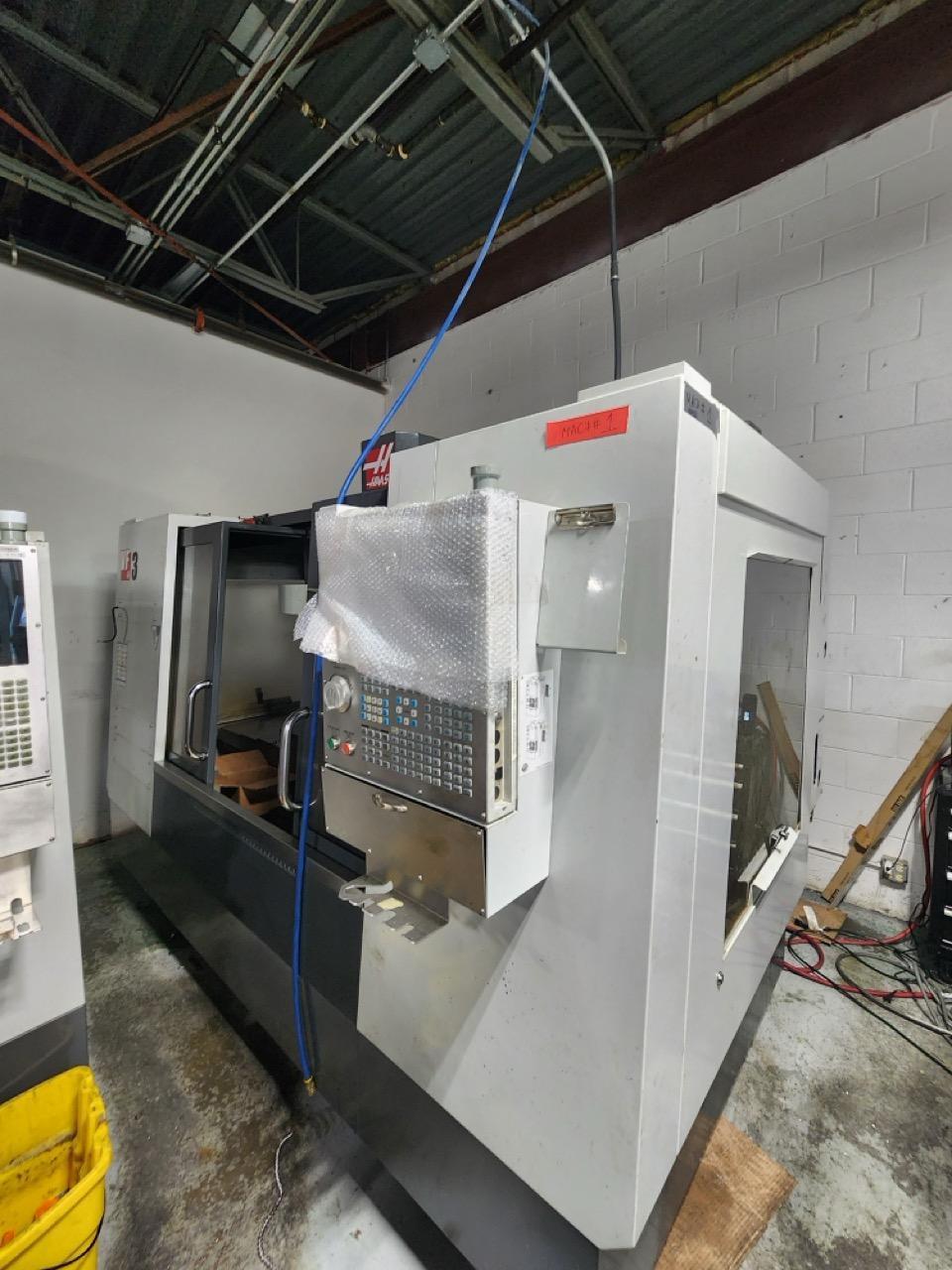

Haas VF-3 CNC Vertical Machining Center, 2013 – 40x20x25 Travels | 20 HP | 10,000 RPM | Haas Control |

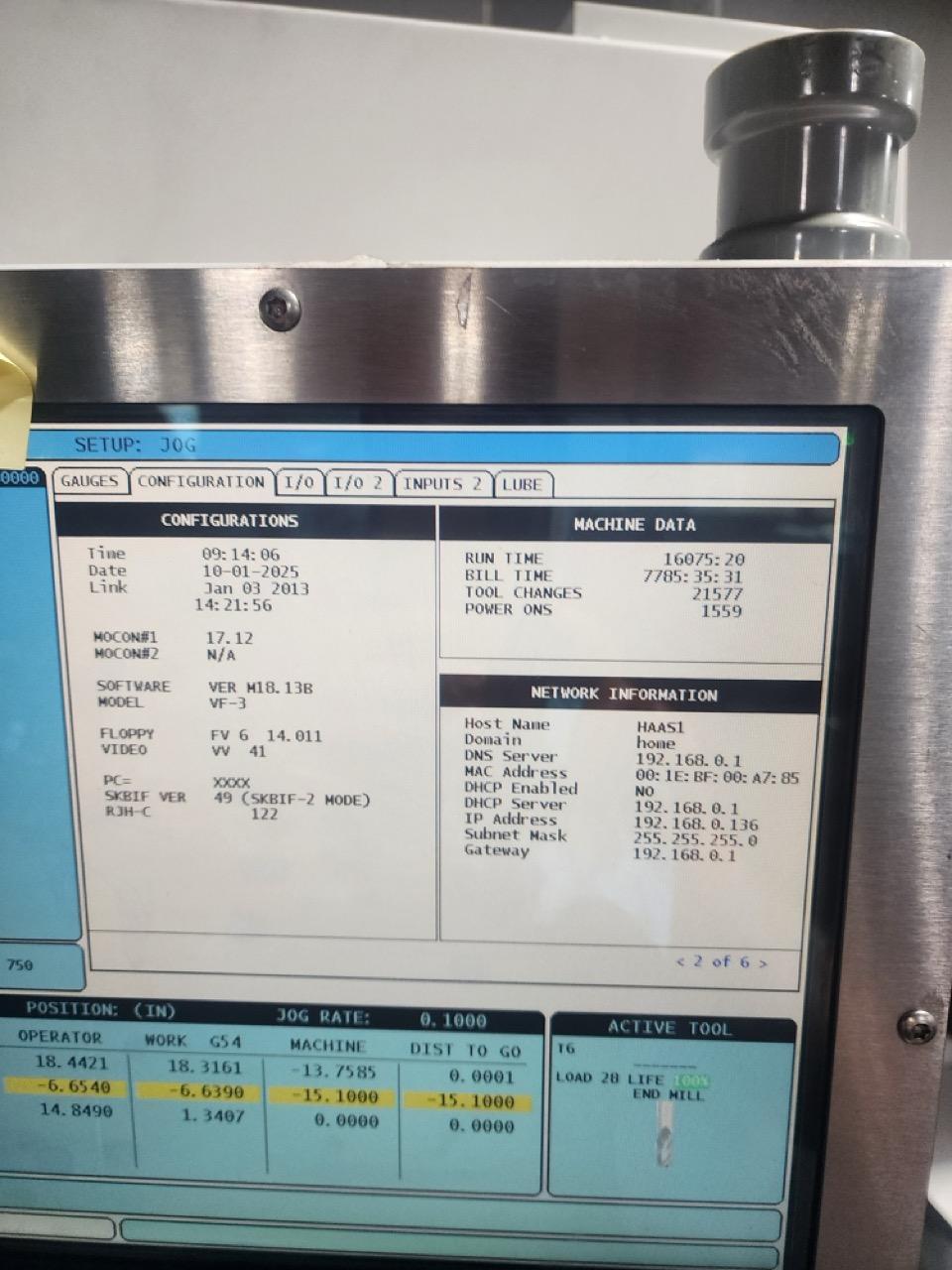

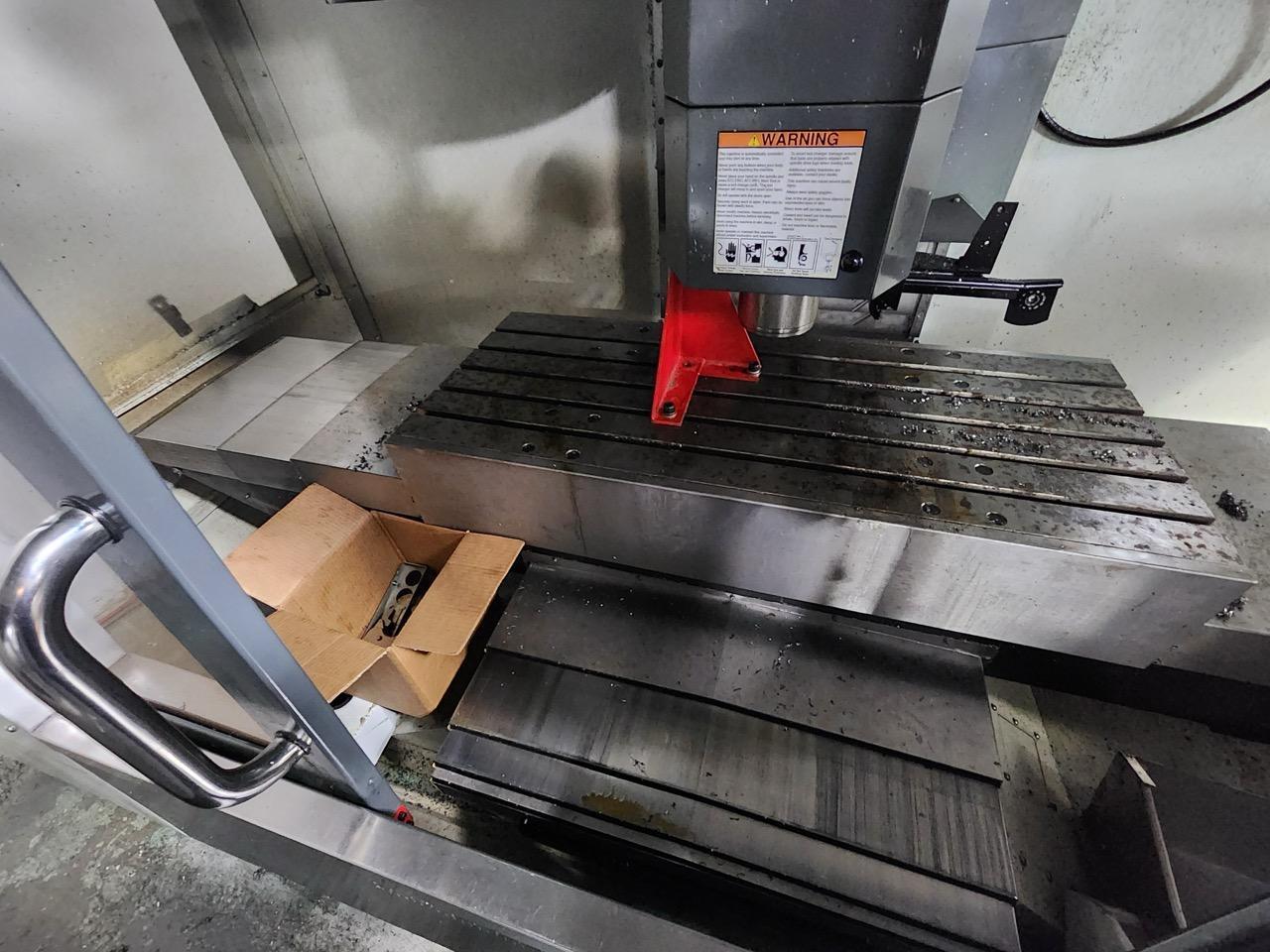

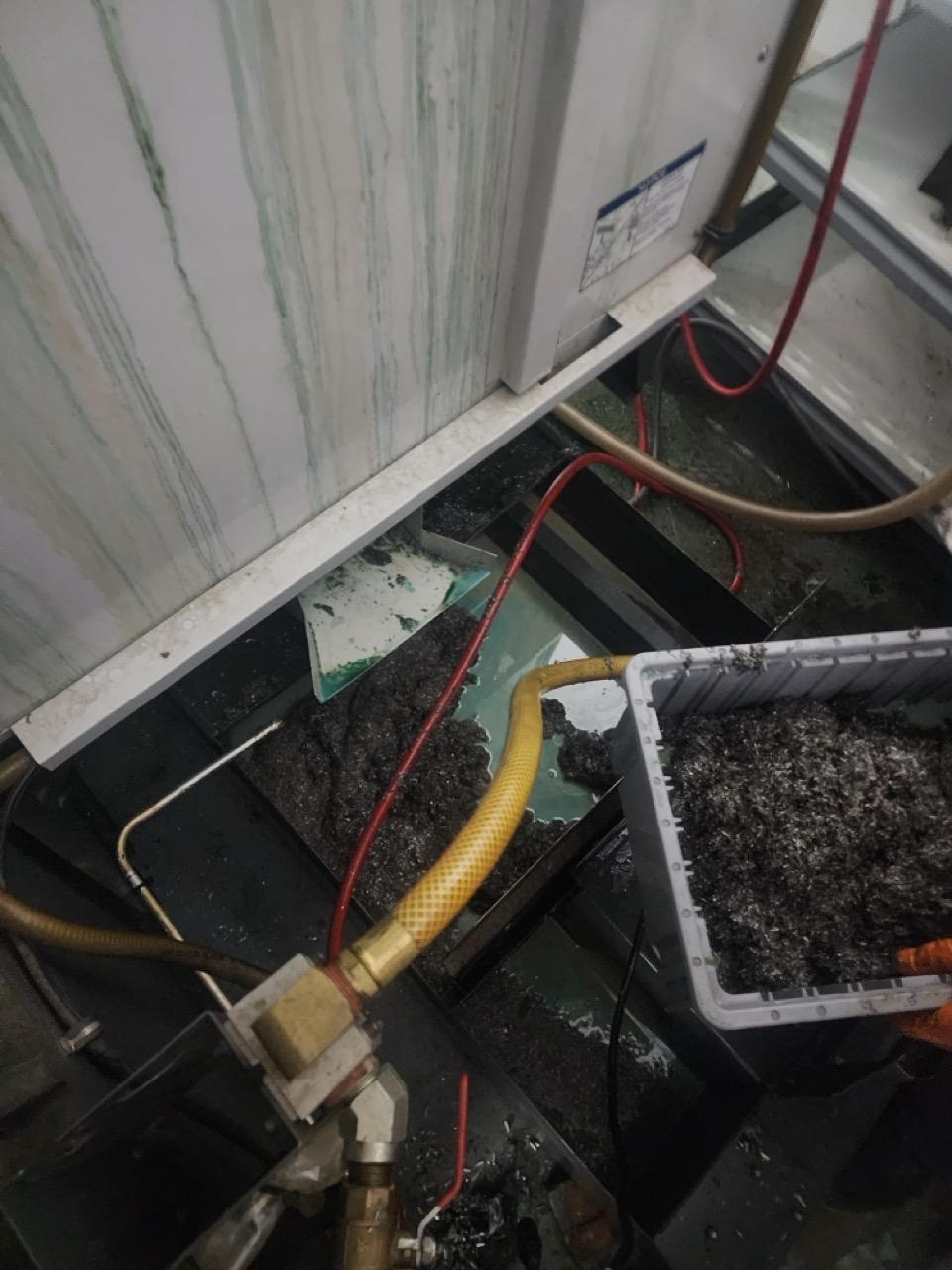

Manufacturer Haas Automation Inc. Model VF-3 Year 2013 Machine Type CNC Vertical Machining Center (VMC) Control Haas CNC Control Travels (X / Y / Z) 40″ × 20″ × 25″ (1,016 × 508 × 635 mm) Table Size 48″ × 18″ (1,219 × 457 mm) Table Load Capacity 3,500 lb (1,588 kg) Spindle Speed Up to 10,000 RPM Spindle Taper CAT 40 Spindle Motor 20 HP Vector Drive Tool Changer Capacity 20 + 1 (standard carousel) Tool Change Time ≈ 4.2 sec (tool-to-tool) Rapid Traverse Rates 710 ipm (X / Y / Z) Feed Rate (Max.) 500 ipm Coolant System Flood coolant (through-spindle optional) Air Requirements 4 SCFM @ 100 psi Electrical Requirements 208–240 V / 3-Phase / 50–60 Hz (30 A min) Approx. Machine Weight ≈ 12,500 lb (5,670 kg)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
